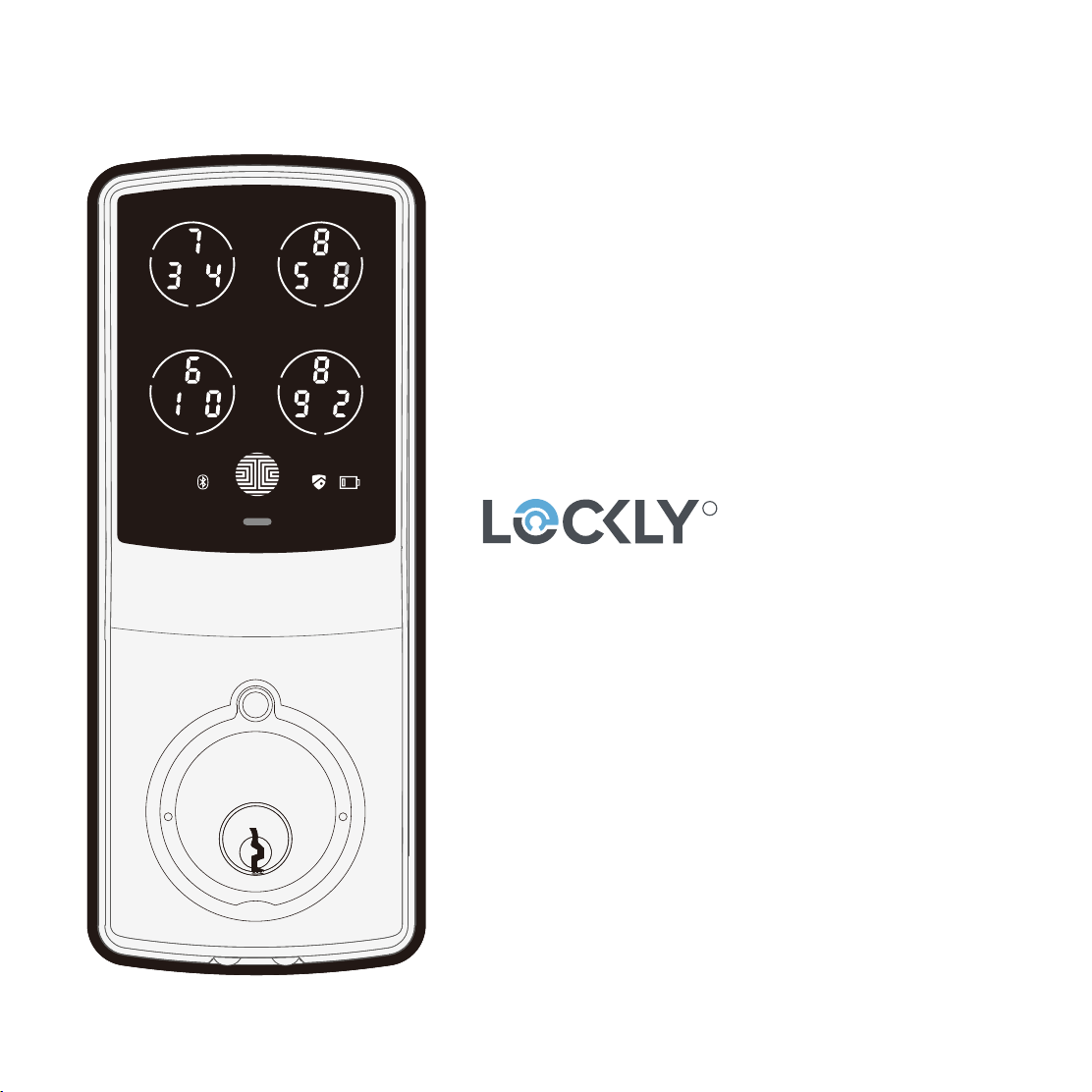

Lockly DEADBOLT EDITION 7S User manual

USER MANUAL
DEADBOLT EDITION
MODEL 7S
R

Table of Contents
TABLE OF CONTENTS
2.1 Product Overview - Outside
2.2 Product Overview - Inside
2.3 Understanding Your New Lock
2.4 Reset Button
2.5 Rebooting Your Lock
2.6 Low Battery
2.7 Changing The Battery
Section 1 - Product Highlights
Section 2 - Product Overview
Section 3 - Using Your Smart Lock
3.1 Configuring Access
3.2 Entering Programming Mode
3.3 Adding an Access Code
3.4 Deleting an Access Code
3.5 Checking an Access Code
3.6 Adding Secure Link Wi-Fi Hub
Section 4 - Locking and Unlocking
1.1 Product Features
4.2 Locking / Unlocking using App
4.3 Locking / Unlocking using Physical Key
4.4 Locking and Unlocking with Voice
Assistant Control
4.5 Safe Mode
Section 5 - Advanced Features
5.1 Offline Access CodeTM (OAC)
Section 6 - Re-keying
6.1 Re-keying
Section 7 - Important Notes
7.1 Important Notes
Section 8 - Cleaning
8.1 Cleaning
For additional support, visit http://lockly.com/help
or email [email protected]
1
2
3
4
5
5
6
7
9
10
11
13
15
16
24
25
26
27
28
31
5.2 SubAdmin 32
32
33
34
Section 9 - Safety Precautions
9.1 Safety Precautions 35
4.1 Locking / Unlocking using Access Codes

Patented Anti-Peep PIN Genie®Keypad
Digits are randomly displayed on the keypad ensuring access codes to be undetectable to
intruders after repeated use. Numbers are randomly distributed across 4 buttons, with 3 numbers
in each button. Users can press any button showing their number. Location of the numbers are
always different every time someone uses the keypad, making it hard for prying eyes to guess
the correct code.
Multiple Access Codes & Monitoring
Store up to 18 Access Codes for family, friends and guests, as well as monitor entry and exit records.
Live Monitoring and Voice Control(Requires Secure Link Wi-fi Hub, sold separately)
Through your smartphone, monitor door access from anywhere in the world and securely control
who comes and goes. You can also control your Lockly®smart lock using your voice with
Amazon Alexa or Google Assistant.
Complete Privacy
The exterior displayed keypad can be locked and switched off through the Lockly®App. The
owner can prevent others trying to input the passcode from the outside and entering the home
Offline Access Code™ (OAC)
The Offline Access Code™ can allow owners to issue access codes, set the allowed access
duration, all without Lockly®ever connecting to the internet, so in case of power outage, you
can still magically and remotely issue Access Codes without any connection to the web.
Auto-Lock
Users no longer have to worry about forgetting to lock the door. With Auto Lock enabled,
Lockly®will automatically auto-lock the door based on your customized time setting.
Backup Keys and 9V Battery Socket
The door can be opened with physical backup keys. There is also a 9V battery connection
socket for emergency power backup to access the keypad in case your smart lock runs out of
battery.
1.1 Product Features
SECTION 1.1 1

2.1 Product Overview - Outside
SECTION 2.12
Restart Pin Hole
Screen Lock Icon
Bluetooth Light
Low Battery Alert
Bluetooth Icon
OK Button
9V Battery Emergency
ChargingSocket
Key Hole
Fingerprint Sensor

2.2 Product Overview - Inside
SECTION 2.2 3
Battery Compartment
( Operated by 4 x AA Batteries)
Battery Cover
Thumbturn
Beep Alert
Reset Button
Program Button
RESET
PROGRAM

2.3 Understanding Your New Lock
SECTION 2.3
After the installation of your new Lockly®, understanding some key functions of
operating your smart lock is important. The following guides will walk you through
resetting a lock, adding Access Codes, deleting Access Codes ,and also how to
configure your OAC (Offline Access Code™).
For any questions you can always visit http://lockly.com/help for assistance.
Don’t forget that Lockly®Secure works best with our iOS and Android app. Please
download the app by visiting the link below.
Scan or visit Lockly.com/app
4

2.4 Reset Button
SECTION 2.4
Reset Button
If Never Paired
Press Reset Button
for three (3) seconds
5
In order to setup the Lockly®to another smart phone,you must have your “Activation
Code” available. The Activation Code can be found on the Activation Code Card
(PART U) that came with your smart lock.
After you have the Activation Code ready, push the reset button on the back panel of the
Lockly®Secure to perform your reset. See below to see which Reset Process applies for
you. Once the smart lock has been reset, all the data previously stored will be deleted.
Press Reset Button for
one (1) second or till
you hear a short beep
Open the Lockly®
smartphone app to
add your lock using
the Activation Code

2.6 Rebooting Your Lock
SECTION 2.6
NOTICE
Reboot Lockly®in case of dead battery or
malfunction. No settings will be changed and all
Access Codes will still be stored within Lockly®.
Press and release the reboot button when you want to reboot the lock. Your Lockly®
will beep once after reboot. Only reboot when necessary.
To reboot, find the reboot button located on the bottom of the exterior side of Lockly®
lock. The reboot button is located in the middle of the two 9V battery backup sockets.
You will need something small such as a paperclip, to press the reboot button. Insert
the paper clip and press down firmly and let go. Your screen should restart and the
lock should reboot automatically.
Reboot Button
6

2.7 Low Battery
SECTION 2.7
When the battery is in seriously low condition, Lockly®will make continuous beeping sounds in
addition to the flashing low battery icon on the touch screen. You should replace batteries
immediately to avoid your smart lock from shutting down.
When your smart lock low-battery warning alert finally dies, you will have 3 chances to
unlock your smart lock either by a password, APP or fingerprint. If the unlock was successful,
the low-battery warning alert will be on for 1 minute. After which, the smart lock will go to
dead-battery mode and will lock auto lock in 5 seconds and the screen will display a
low-battery icon.
Dead Battery
Condition Indicator Solution
Low Battery
Battery Icon on the display
keypad will light up to indicate
low battery.
Replace batteries immediately
to avoid battery failure. Lockly®
Secure can still operate up to 300
cycles in low battery condition.
When there is no display and
sounds; and screen is non-functional.
Replace batteries immediately.
Supplied physical backup keys
can be used to unlock the door.
Alternatively, use a 9V battery as
shown below to temporarily
activate the lock.
Your Lockly®will automatically
detect battery
polarity. So hold your 9V
battery lead in place
against bottom of
the Lockly
®
to temporarily
activate
t he screen to enter your Access Code.
Be sure to hold the 9V battery against the
contact points located at the bottom
of the
lock until you have successfully
unlocked your
door with your Access
Code. Once unlocked,
batteries should
be replaced immediately.
7
9V Battery
-
+

2.8 Changing The Battery
SECTION 2.8
Under normal use, the Lockly®battery will last up to a year. Please check battery levels
regularly and change your batteries when the low battery notification is issued. For
best practice, always use new batteries by a major brand.
Open the battery compartment cover and insert four (4) new AA alkaline batteries as
shown. Be sure to unscrew the screw located on the top of the cover first by unscrewing
counter clockwise before sliding the cover up.
- Make sure the batteries are oriented correctly by matching the orientation displayed.
- Replacing the batteries do not reset stored Access Codes.
- To see a list of recommended brands, please visit http://Lockly.com/battery.
8
+
+
-
+
-
-
+
-
Screw
Whenever batteries are replaced, reconnecting the smart lock to your smartphone App is required.
If you have not yet downloaded the app, visit: Lockly.com/app
NOTICE

3.1 Configuring Access
SECTION 3.1
The Default Access Code is
NOTICE 1 2 3 4 5 6
Your new Lockly®Access Code can be any combination of 6 to 8 digits.
Once a new Access Code is entered, the Default Access Code of 123456 would be
deleted. A maximum of 16 sets of Access Codes can be stored for use at any given time.
To add more than 16 sets of Access Codes, you must delete an existing Access Code
before adding a new code. If you're not using the APP, you can store up to 18 sets of
Access Code.
9
There are a total of five (5) buttons on the keypad as
shown in the example image to the left. The numbers
in each button may differ than what is shown on your
device than what is displayed here.
To enter your required digit, just simply press the circle
where your number is shown. You do not need to press
the actual number as anywhere within the circle will
suffice.
The button on the bottom is the OK button. You will be
pressing this button when you are done entering your
Access Code.
OK Button
We recommend pairing your lock to your smart phone to manage
your access codes. Section 3.1 - 3.9 refers to locks not paired with
a smart phone. Once paired with a smart phone, the Program
button will be disabled.

3.2 Entering Programming Mode
SECTION 3.2
Program Button
Add Access Code
ModeNumber
Delete Access Code
View Access Code
To enter Programming Mode, remove
the battery compartment cover on the
interior side of the Secure to expose the
Reset and Program buttons (See page 8).
Simply press the Program button to
enter programming mode.
Note: Program button will be disabled
once synced to a smart phone. Configure
all settings via synced smart phone.
Access Codes previously added by
Programming mode will be cleared.
To end Programming Mode, press the Program button anytime.
Programming Mode will automatically exit if the keypad is inactive for more than
thirty (30) seconds.
After entering Programming Mode, you should
see the screen as displayed to the right on your
Lockly®keypad. Follow the following steps to
add, delete, or check your Access Codes.
10

3.3 Adding an Access Code
SECTION 3.3
While in Programming Mode,
select “1AD” to add an
Access Code. If you are not
in Programming Mode,
please see Section 3.2 to
enter Programming Mode.
After pressing “1AD” to add
an Access Code.
Enter your new 6 - 8 digit Access Code and press
when you are finished. You will then re-enter the code to
confirm your new Access Code.
Remember, just touch the digit you need within the circle
around each 3 numbers. There is no need to touch the
exact location of the number. For example, based on the
example image to the left, if you need “1”, you can touch
the upper left button. For “6”, you would touch the upper
right button.
11

3.3 Adding an Access Code (Continued)
SECTION 3.3
If you have successfully entered your new Access Code
twice, you will see the new code displayed here. In this
example, we chose 654321. Press to Confirm or
to cancel.
To exit or cancel, you can always press or
If the two (2) Access Codes you entered does not
match, an error message will appear on the screen
(As shown to the left). Press OK Button to return to the
Programming Screen and try again. See Section 3.3
OK Button
12

3.4 Deleting an Access Code
SECTION 3.4

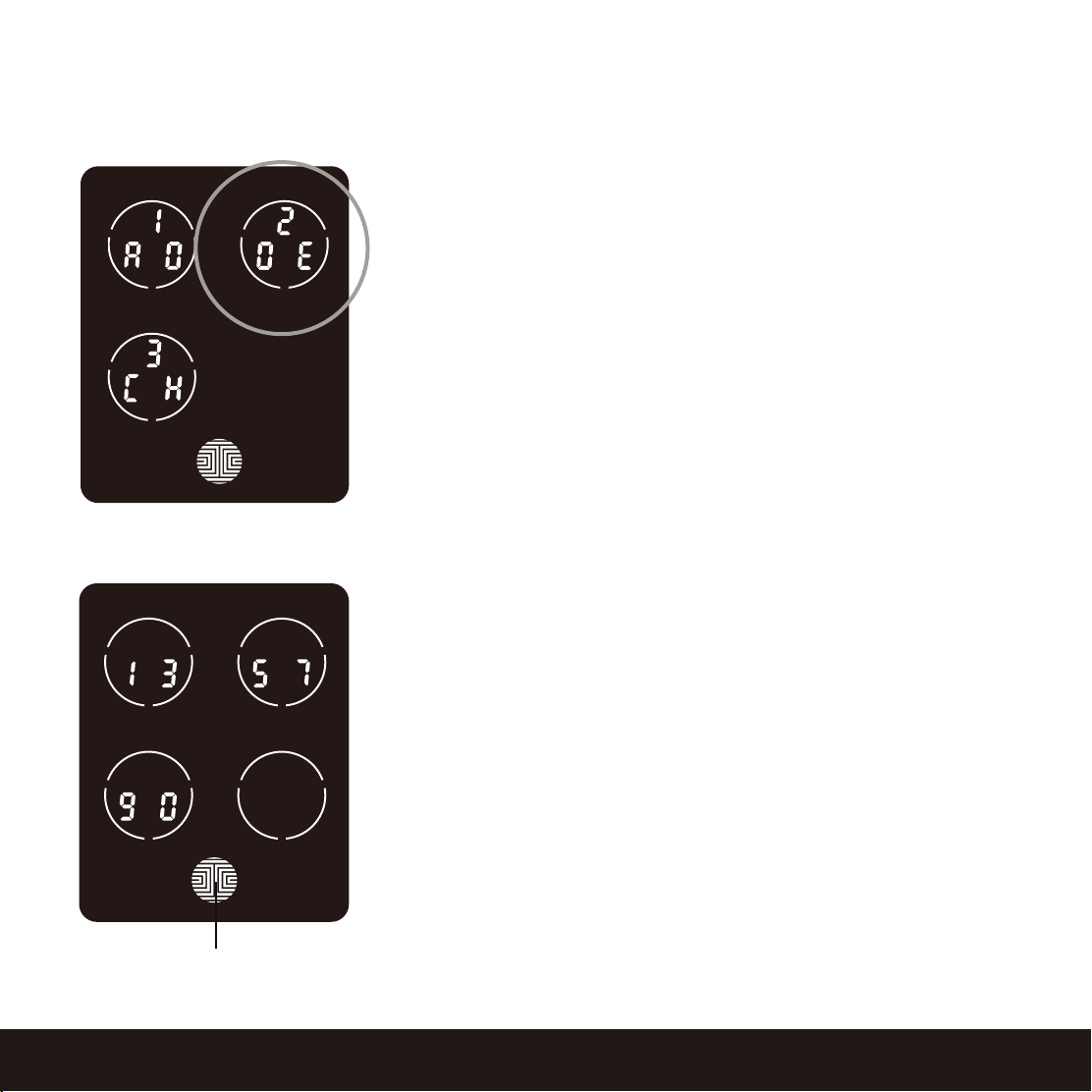

While in Programming Mode, select “2DE” to delete an
Access Code. If you are not in Programming Mode,
please see Section 3.2 to enter Programming Mode.
After pressing “2DE” to delete an Access Code.
OK Button
Example Only
Active Access Codes will then be displayed on the
screen in sequence from left to right, top to bottom. In
the example shown on the left, the Access Code
displayed is 1 3 5 7 9 0 .
Rotate through different Access Codes shown by touch-
ing any number on the screen. If you find the Access
Code
you want to delete, simply hold the OK Button for 3
seconds.
(Continue on next page)
13

3.4 Deleting an Access Code (Continued)
SECTION 3.4
Once you have selected the Access Code you want
to delete, Lockly®will ask you to confirm deletion by
showing you the Access Code you are deleting, in
this example, 1 3 5 7 9 0.
Press to delete, or to cancel.
There are two incidents where your Access Code cannot be deleted.
NOTE
Only one Active Access CodeNo Access Codes Set
There are no Access Codes
set. The factory default Access
Code cannot be deleted.
There is only one (1) Access Code saved in
the smart lock. At least one code must be
registered. Please add another Access Code
before attempting to delete the existing
code.
14

3.5 Checking the Access Codes
SECTION 3.5
While in Programming Mode, select
“3CH” to check registered Access
Codes. If you are not in Programming
Mode, please see Section 3.2 to
enter Programming Mode.
Active Access Codes will then be
displayed on the screen in
sequence from left to right, top to
bottom. In the example shown on
the left, the Access Code
displayed is 1 3 5 7 9 0 .
OK Button
Rotate through the different Access Codes by touching any number on the screen.
To exit Check Access Code screen, simply press the OK Button.
If there are no Access Codes registered in your smart
lock, Check Access Code mode will be invalid. The
default Access Code will not be shown on the display
keypad, and you will see the following screen shown to
the left instead.
15

3.6 Adding Secure Link
SECTION 3.6
Lockly®Secure Link adds live status monitoring and voice control capabilities to your
Lockly®Smart Lock. Secure Link can be purchased and added anytime.
To set up the Lockly
®
Model 7S smart lock with Secure Link Wi-Fi Hub and Door Sensors,
launch the Lockly
®
App on your iOS or Android device. From the main menu drop down
located on the upper left of the screen, select “Add a New Device” then select “Secure
Link Wi-Fi Hub”. Follow the in-app instructions to set up your Secure Link.
To activate voice commands, you will need Amazon Alexa or Google Assistant. Make
sure you enable the Lockly®Action for Google Assistant or the Amazon Alexa Skill before
you can configure your voice to perform voice commands.
Visit the link below to purchase:
https://lockly.com/hub
16

4.1 Locking/Unlocking with Access Codes
Lockly
®
Smart Lock can be unlocked using multiple ways - via your stored Access Code ,
smartphone with Bluetooth, the physical key supplied with your lock, or voice (Secure
Pro only or Secure Plus with Secure Link Wi-Fi Hub installed)
OK Button
Three consecutive wrong attempts will put Lockly®in “Safe Mode”. (See Section 4.5)
Lock your Lockly®by pressing the OK Button or by brushing your hand across the screen
anytime when the door is closed. The smart lock will also auto-lock after unlocking based
on your set auto-lock settings.
Slide your hand across the screen to activate
the keypad.
Enter your 6 to 8 digit Access Code followed by
the OK button. Press OK anytime to reset if you
entered the wrong digit.
If the Access Code entered is correct, the door
will unlock. If the Access Code entered is incor-
rect, Lockly®will flash red light.
Hold OK Button (3 sec)
You may toggle between two types of keypad
displays to enter your Access Code. The fixed digit
version and the PIN Genie® version (Recommended).
Press and hold the OK Button for 3 seconds to toggle
back and forth between the two keypads.
(Sample display shown only)
PIN Genie®Fixed Digit
SECTION 4.1 17

4.2 Locking/Unlocking Lockly®with App
18 SECTION 4.3
You must have the Lockly®iOS or Android app installed in order to lock and unlock with
smartphone and connect with voice assistants like Alexa or Google Assistant. Please
download the app by visiting the link below or search “Lockly” from the correct app store.
Scan or visit Lockly.com/app
