Lockly LUX Compact User manual

USER MANUAL
LUX COMPACT
MORTISE EDITION

Section 1 - Product Highlights
Section 2 - Product Overview
Section 3 - Using Your Smart Lock
3.1 Configuring Access
3.2 Entering Programming Mode
3.3 Adding an Access Code
3.4 Deleting an Access Code
3.5 Checking an Access Code
3.6 Adding a Fingerprint
3.7 Fingerprint Scanning Directions
3.8 Fingerprint Tips & Troubleshooting
3.9 Deleting Stored Fingerprints
3.10Adding Secure Link
Section 4 - Locking and Unlocking
1.1 Product Features
Section 5 - Advanced Features
Section 6 - Important Notes
Section 7 - Cleaning
Section 8 - Safety Precautions
8.1 Safety Precautions
1
2
3
4
5
6
5
7
8
9
10
11
13
15
16
19
21
22
23
24
25
26
27
28
29
32
30
33
34
35
2.1 Product Overview - Outside
2.2 Product Overview - Inside
2.3 Understanding Your New Lock
2.4 Reset Button
2.5 Keypad Display Switch
2.6 Rebooting Your Lock
2.7 Low Battery
2.8 Changing The Battery
4.1 Locking / Unlocking with Codes
4.2 Locking / Unlocking using Fingerprint
4.3 Locking / Unlocking using App
4.4
4.5
Locking / Unlocking using Physical Key
4.6
Locking / Unlocking with Door Handle
Locking and Unlocking with Voice
Assistant Control
4.8 Safe Mode
5.1 Offline Access Code (OAC)
6.1 Important Notes
7.1 Cleaning
Table of Contents
TABLE OF CONTENTS
For additional support, visit http://lockly.com/help
or email [email protected]

1SECTION 1.1
1.1 Product Features
Patented Anti-Peep PIN Genie®Keypad
Digits are randomly displayed on the key pad ensuring access codes to be undetectable to intruders
after repeated use. Numbers are randomly distributed across 4 buttons, with 3 numbers in each button.af
Users can press any button showing their number. Location of the numbers are always different every
time someone uses the keypad, making it hard for prying eyes to guess the correct code.
Multiple Access Codes & Monitoring
Store up to 18 Access Codes for family, friends and guests, as well as monitor entry and exit records.
Advanced 3D Fingerprint Recognition
Biometric Fingerprint Recognition protocol allows up to 99 registered fingerprints to be used and
accepts only actual fingerprints - preventing lifted prints from being used.ac
Live Monitoring and Voice Control
Through your smartphone, monitor door access from anywhere in the world and securely control
who comes and goes. You can also control your Lockly®smart lock using your voice with
Amazon Alexa or Google Assistant.
Complete Privacy
The exterior displayed keypad can be locked and switched off using the simple ON/OFF toggle from
the inside panel. The owner can prevent others trying to input the passcode from the outside and
entering the home
Offline Access Code™(OAC)
The offline access code can allow owners to issue access codes, set the allowed access duration, all
without Lockly®ever connecting to the internet, so in case of power outage, you can still magically and
remotely issue Access Codes without any connection to the web.
Auto-Lock
Users no longer have to worry about forgetting to lock the door. With Auto Lock enabled, Lockly®
will automatically auto-lock the door based on your customized timing set between 5-300 seconds.
Backup Keys and 9V Battery Socket
The door can be opened with physical backup keys. There is also a 9V battery connection socket for
emergency power backup to access the key pad in case your smart lock runs out of battery.

2.1 Product Overview - Outside
2SECTION 2.1
Key Hole Cover
9V Battery Backup Socket
Key Hole
Touchscreen
Keypad Buttons
Bluetooth icon
Power Status
Lock Status icon
OK Button
Bluetooth light
Handle
Reboot Button

Inside Handle
ResetButton
Program Button
Battery Cover
Battery Compartment
4 x AA Alkaline
Batteries(Included)
Keypad Display Switch
Low Battery Indicator
Battery Cover Screw
SECTION 2.2 3
2.2 Product Overview - Inside

2.3 Understanding Your New Lock
After the installation of your new Lockly, understanding some key functions of operating your
smart lock is important. The following guides will walk you through resetting a lock, adding Access
Codes, deleting Access Codes, adding and deleting fingerprints, adding and deleting RFID cards,
and also how to configure your OAC(Offline Access CodeTM).
For any questions you can always visit https://lockly.com/help for assistance.
Don’t forget that Lockly Lux Compact works best with our iOS and Android app. Please
download the app by visiting the link below.
Scan or visit Lockly.com/app
4 SECTION 2.3

SECTION 2.4 5
2.4 Reset Button
In order to restore the Lockly®Lux Compact to factory default settings, you must have your
“Activation Code” available. The Activation Code can be found on the Activation Code Card
that came with your smart lock.
After you have the Activation Code ready, push the reset button on the back panel of the Lockly®
Lux Compact to perform your reset. See below to see which Reset Process applies for you. Once
the smart lock has been reset, all the data previously stored will be deleted.
2.5 Keypad Display Switch
The exterior keypad screen can be locked and
turned off by using the ON/OFF switch at the
back panel (interior) of the smart lock. When it
is switched off, people who are outside cannot
enter any access codes to unlock the door.
Reset Button
If Paired with App
Press Reset Button
for one (1) second
Open the Lockly®
smartphone app to
add your lock using
the Activation Code
If Never Paired
Press Reset Button
for three (3) seconds

6

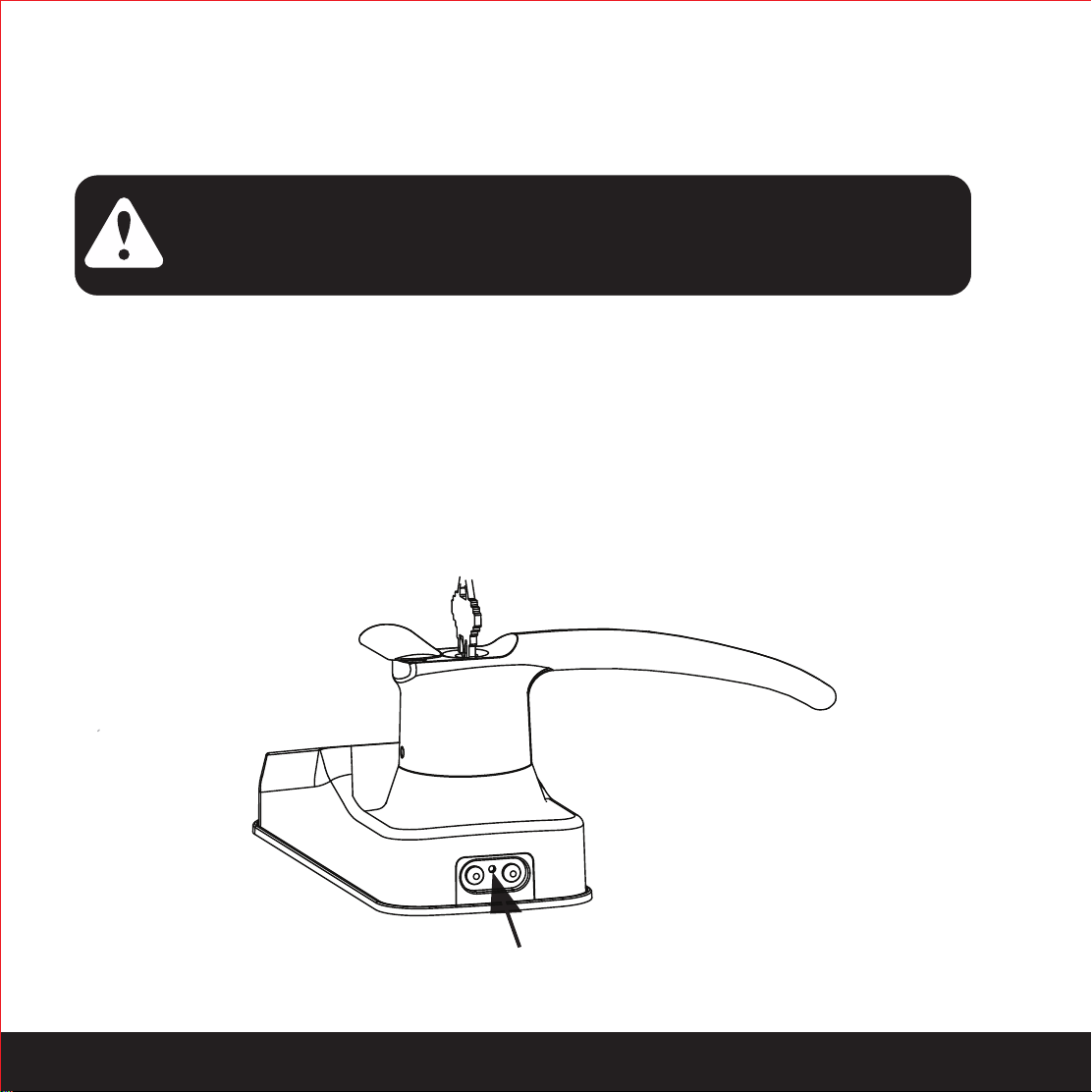

2.6 Rebooting Your Lock
Reboot Button
NOTICE
Reboot Lockly in case of dead battery or malfunction. No
settings will be changed and all Access Codes will still be
stored within Lockly.
SECTION 2.6
Press and release the reboot button when you want to reboot the lock. Your Lockly will beep once
after reboot. Only reboot when necessary.
To reboot, find the reboot button located on the bottom of the exterior side of Lockly lock. The reboot
button is located in the middle of the two 9V battery backup sockets.
You will need something small such as a paperclip, to press the reboot button. Insert the paper clip
and press down firmly and let go. Your screen should restart and the lock should reboot automatically.

7SECTION 2.7
9V Battery
-
+
2.7 Low Battery
When the battery is in seriously low condition, Lockly will make continuous beeping sounds in
addition to the flashing low battery icon on the touch screen. You should replace batteries
immediately to avoid your smart lock from shutting down.
When your smart lock low-battery warning alert finally dies, you will have 3 chances to unlock
your smart lock either by a password, APP or fingerprint. If the unlock was successful, the low-battery
warning alert will be on for 1 minute. After which, the smart lock will go to dead-battery mode
and will lock auto lock in 5 seconds and the screen will display a low-battery icon.
Dead Battery
Condition Indicator Solution
Low Battery
Battery Icon on the display
keypad will light up to indicate
low battery.
Replace batteries immediately
to avoid battery failure. Lockly
Lux Compact can still operate
up to 300 cycles in low battery
condition.
When there is no display and sounds;
and screen is non-functional.
Replace batteries immediately.
Supplied physical backup keys
can be used to unlock the door.
Alternatively, use a 9V battery as
shown below to temporarily
activate the lock.
Your Lockly will automatically
detect battery
polarity. So hold your 9V
battery lead in place
against bottom of
the Lockly to temporarily
activate
t he screen to enter your Access Code.
Be sure to hold the 9V battery against the
contact points located at the bottom
of the
lock until you have successfully
unlocked your
door with your Access
Code. Once unlocked,
batteries should
be replaced immediately.

8SECTION 2.8
2.8 Changing The Battery
12AA 1.5V X 4
3
+
+
-
+
-
-
+
-
Screw
Under normal use, the Lockly battery will last up to a year. Please check battery levels regularly and
change your batteries when the low battery notification is issued. For best practice, always use new
batteries by a major brand.
Open the battery compartment cover and insert four (4) new AA alkaline batteries as shown.
Be sure to unscrew the screw located on the top of the cover first by unscrewing counter
clockwise before sliding the cover up.
- Make sure the batteries are oriented correctly by matching the orientation displayed.
- Replacing the batteries do not reset stored Access Codes.
- To see a list of recommended brands, please visit http://Lockly.com/battery
Whenever batteries are replaced, reconnecting the smart lock to your
smartphone App is required.
If you have not yet downloaded the app, visit: Lockly.com/app
NOTICE

SECTION 3.1 9
3.1 Configuring Access
The Default Access Code is
NOTICE 1 2 3 4 5 6
Your new Lockly Access Code can be any combination of 6 to 8 digits.
Once a new Access Code is entered, the Default Access Code of 123456 would be deleted.
A maximum of 16 sets of Access Codes can be stored for use at any given time.
To add more than 16 sets of Access Codes, you must delete an existing Access Code before adding
a new code. If you're not using the APP, you can store up to 18 sets of Access Code.
How to Use the Keypad
There are a total of five (5) buttons on the keypad as shown in the
example image to the left. The numbers in each button may
differ than what is shown on your device than what is displayed
here.
To enter your required digit, just simply press the circle where your
number is shown. You do not need to press the actual number as
anywhere within the circle will suffice.
The button on the bottom is the OK button. You will be pressing this
button when you are done entering your Access Code.
OK Button
We recommend pairing your lock to your smart phone to manage
your access codes. Section 3.1 - 3.9 refers to locks not paired with
a smart phone. Once paired with a smart phone, the Program
button will be disabled.

10 SECTION 3.2

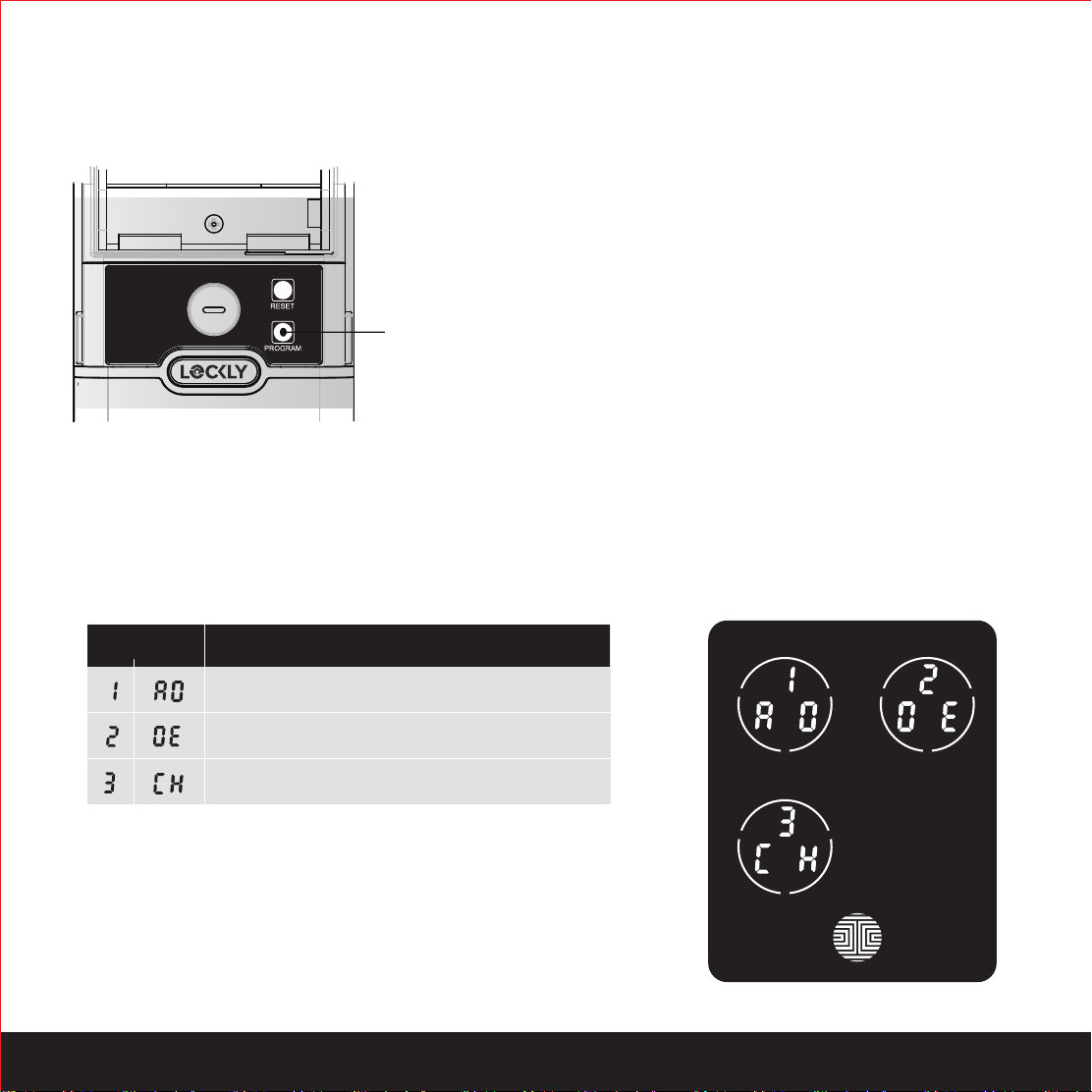

3.2 Entering Programming Mode
Add Access Code
ModeNumber
Delete Access Code
View Access Code
Program Button
To enter Programming Mode, remove the
battery compartment cover on the interior
side of the lock to expose the Reset and
Program buttons.
Simply press the Program button to enter
programming mode.
Note: Program button will be disabled once
synced to a smart phone. Configure all settings
via synced smart phone. Access Codes
previously added by Programming mode will
be cleared.
To end Programming Mode, press the Program button anytime.
Programming Mode will automatically exit if the keypad is inactive for more than thirty (30)
seconds.
After entering Programming Mode, you should see the
screen as displayed to the right on your Lockly keypad.
Follow the following steps to add, delete, or check
your Access Codes.

SECTION 3.3 11

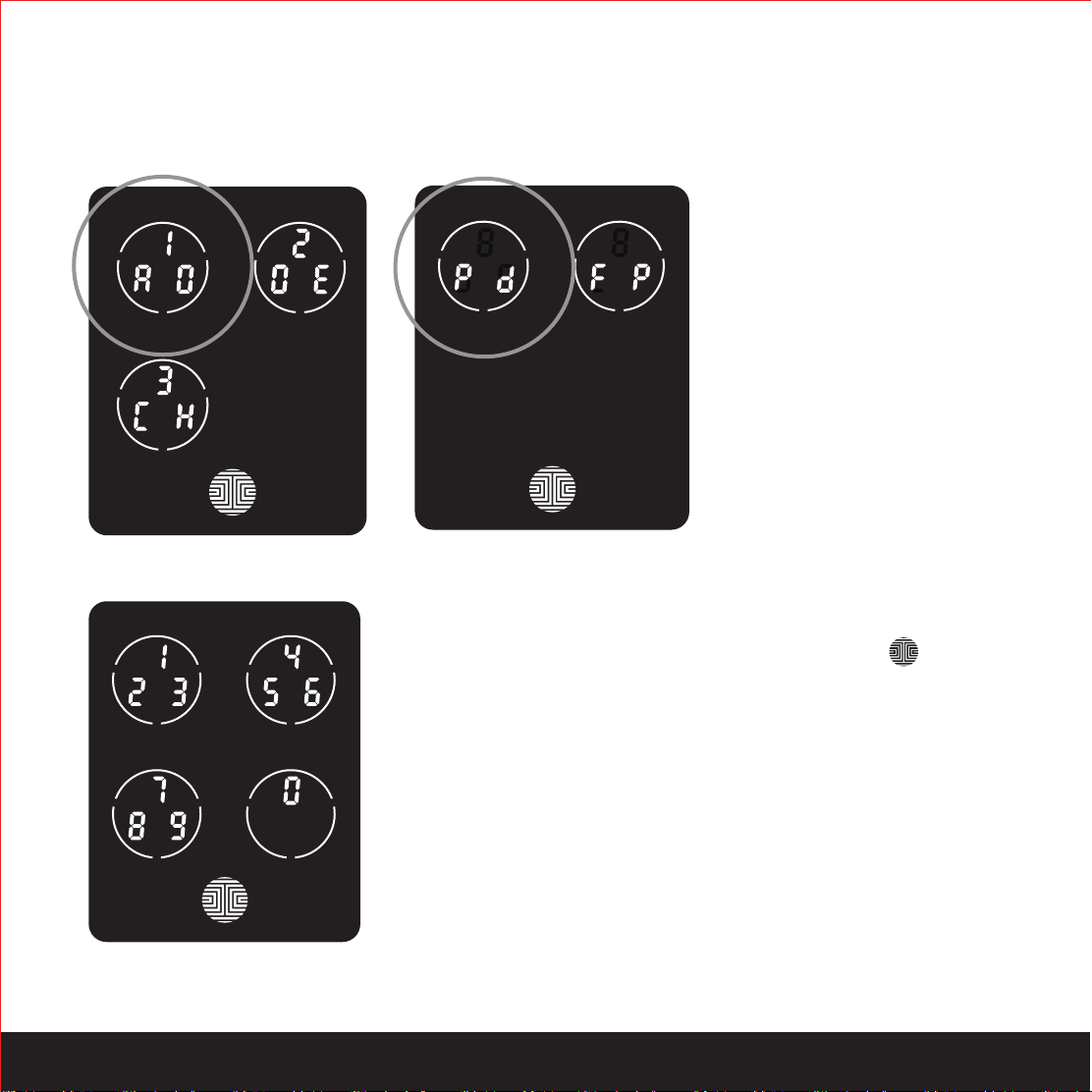

3.3 Adding an Access Code
While in Programming Mode,
select “1AD” to add an Access
Code. If you are not in
Programming Mode, please
see Section 3.2 to enter
Programming Mode.
After pressing “1AD” press “Pd”
to add an Access Code.
Enter your new 6 - 8 digit Access Code and press
when you are finished. You will then re-enter the code to
confirm your new Access Code.
Remember, just touch the digit you need within the circle
around each 3 numbers. There is no need to touch the
exact location of the number. For example, based on the
example image to the left, if you need “1”, you can touch
the upper left button or the lower right button. For “6”, you
would touch the upper right button.

12 SECTION 3.3

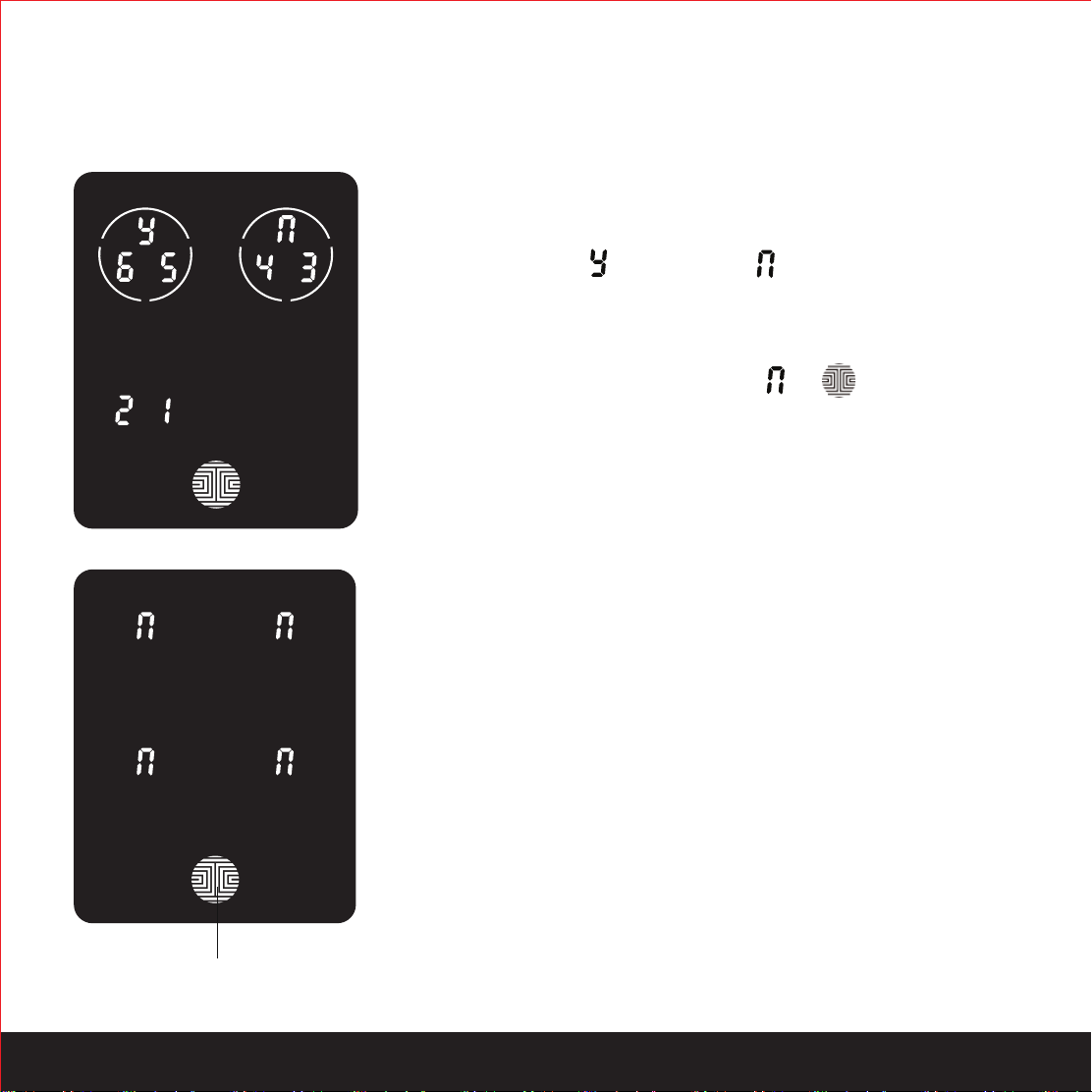

3.3 Adding an Access Code (Continued)
If you have successfully entered your new Access Code twice,
you will see the new code displayed here. In this example, we
chose 654321. Press to Confirm or
to cancel.
To exit or cancel, you can always press or
If the two (2) Access Codes you entered does not match, an
error message will appear on the screen (As shown to the left).
Press OK to return to the Programming Screen and try again. See
Section 3.3
OK Button

13SECTION 3.4
3.4 Deleting an Access Code
While in Programming Mode,
select “2DE” to delete an
Access Code. If you are not in
Programming Mode, please
see Section 3.2 to enter
Programming Mode.
After pressing “2DE” press “Pd”
to delete an Access Code.
OK Button
Example Only
Active Access Codes will then be displayed on the screen in
sequence from left to right, top to bottom. In the example shown
on the left, the Access Code displayed is 1 3 5 7 9 0 .
Rotate through different Access Codes shown by touching any
number on the screen. If you find the Access Code you want to
delete, simply hold the OK button for 2 seconds. (Continue on
next page)

14 SECTION 3.4
3.4 Deleting an Access Code (Continued)
Once you have selected the Access Code you want to delete,
Lockly will ask you to confirm deletion by showing you the Access
Code you are deleting, in this example,1 3 5 7 9 0.
Press to delete, or to cancel.
There are two incidents where your Access Code cannot be deleted.
NOTE
Only one Active Access CodeNo Access Codes Set
There are no Access Codes set. The
factory default Access Code cannot
be deleted.
There is only one (1) Access Code saved in the smart
lock. At least one code must be registered. Please
add another Access Code before attempting to delete
the existing code.

SECTION 3.5 15
3.5 Checking the Access Codes
OK Button
While in Programming Mode, select
“3CH” to check registered Access
Codes. If you are not in Programming
Mode, please see Section 3.2 to enter
Programming Mode.
Active Access Codes will then be
displayed on the screen in sequence
from left to right, top to bottom. In the
example shown on the left, the
Access Code displayed is 1 3 5 7 9 0 .
Rotate through the different Access Codes by touching any number on the screen.
To exit Check Access Code screen, simply press the OK button.
If there are no Access Codes registered in your smart lock,
Check Access Code mode will be invalid. The default Access
Code will not be shown on the display keypad, and you will see
the following screen shown to the left instead.

16 SECTION 3.6
Fingerprint Pattern with
Cross Intersection Lines
Concentric or Parallel Pattern
with no Cross Intersection Lines
Fingerprint with Scars or Worn
Out Ridges
OK Not OK Not OK
3.6 Adding a Fingerprint
In this section, you will learn how to register a fingerprint to your new smart lock.
We are using an advanced biometric sensor, providing the most secure fingerprint authentication. For
security reasons, Lockly will only accept fingerprint patterns that consist of cross intersection points.
Patterns with no cross intersection points will not be acceptable.
Please check your fingers before registration to make sure the finger you want to register will be
acceptable by our system. Otherwise, use an alternative finger to ensure successful registration.
The following examples show which types of fingerprint patterns will be acceptable. It is highly
recommended to enroll at least one finger from each hand in case the hand you are using is
unavailable, such as, in instances like if you are holding items in that hand or have sustained an
injury.
Your smart lock can register up to ninety-nine (99) fingerprints. Please read the following sections
if you want to add or delete fingerprints. We recommend using your app to add fingerprints,
however, the following section can show you how to add and remove fingerprints if you did not
pair your lock with a smart phone.

SECTION 3.6 17
3.6 Adding a Fingerprint (Continued)
While in Programming Mode, select
“1AD” to add an Access Code. If
you are not in Programming Mode,
please see Section 3.2 to enter
Programming Mode.
After pressing “1AD” press “FP” to
register a Fingerprint.
Upon pressing “FP”, you will enter Fingerprint Registration Mode and you will see a green LED ring
light up on the fingerprint panel on the exterior side of Lockly.
Once you’re in Fingerprint Registration Mode you will see two
numbers displayed on keypad. The top number is your Fingerprint
Registration number, in this example to the left, “1”. The bottom
number will always start with a “6”.
You must successfully scan your fingerprint six (6) times for it to
properly register. Every time you scan your fingerprint, the number
on the bottom will change, starting from 6 - then 5, 4, 3, 2, 1, until
the fingerprint is successfully registered.
Note: For reference, please keep a record of your fingerprint
registration number to distinguish whom it was registered to.

18 SECTION 3.6
3.6 Adding a Fingerprint (Continued)
NOTICE
Please make sure your fingers are clean from dirt and oils before
scanning your fingerprint. Make sure the sensor is also clean by
taking a soft cloth and wiping the surface.
Scan your finger by lightly placing your designated finger on the sensor until you hear a beep. Lift
your finger and repeat the process slowly until the digit “6” shown on the screen becomes “1”. If you
have successfully scanned and registered your fingerprint, you will hear a long beep, and the Blue-
tooth icon will flash green.
PASS will show on the keypad and press OK to exit. If you did not successfully register your fingerprint,
FAIL will show on the keypad. If FAIL is displayed, press OK to return to the previous screen to rescan
your finger.
For instructions on scanning an optimal fingerprint, please proceed to Section 3.7.
OK Button
