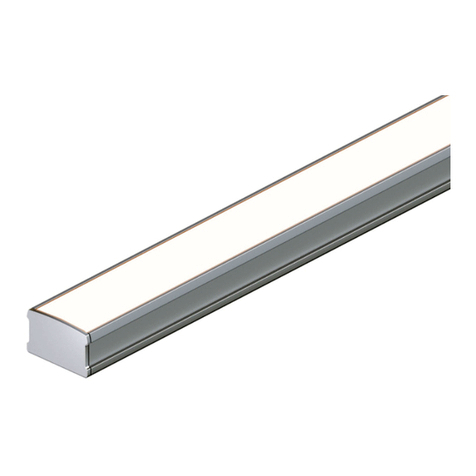

KM, KS, KXL & KL Channel - Installation Instructions
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
Page 1 of 2

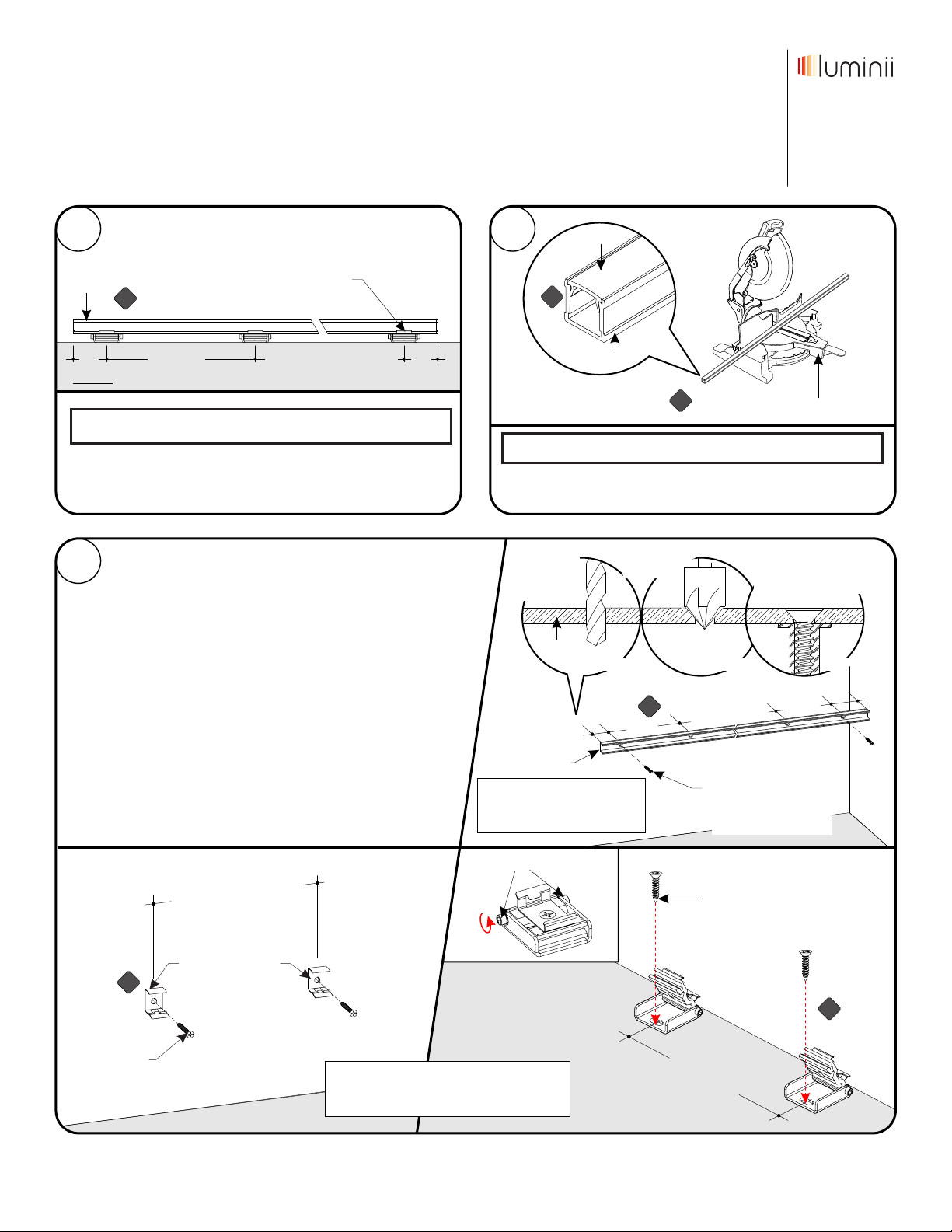

1.1 Snap the lens into the extrusion, then align & center the extrusion to the
determined location. Then make any reference marks if needed to install
the extrusion, reference step 3 for mounting options.
Note: Prior to install, 24VDC power must be present for wiring. Also
review and account for all parts necessary to install properly. Caution: Safety equipment is recommended, when modifications are being
made to the extrusion & lens.
2.1 Extrusion & lens can be cut in the field. Using the proper blade for
aluminum, cut to the desired length.
2
miter saw
2.1
lens
extrusion
2.1
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
REV0.2 09062018
Models KMC-XX, KSC-XX, KXLC-XX, & KLC-XX
30" maximum spacing
of mounting brackets
mounting brackets
#4 flat head
wood screws
extrusion
STEP A STEP B STEP C
tighten screws below
extrusion surface
before installing LineLED
drill through
extrusion for
mounting
holes
countersink
the holes
3
flathead screw
1.1
4” 4”every 30”
mounting
bracket
fixture
surface
loosen screws
3.1 Secure the extrusion to the surface by either mounting directly with
screws or using mounting brackets.
Make counter sunk holes through a. If mounting extrusion with screws:
the extrusion followed by screwing directly to the surface.
b. If mounting extrusion with brackets : fixed mounting brackets For ,
install a bracket 4” from each end, followed by installing one every
30”. Then secure, by screwing through the bracket to the surface.
For , install a bracket 4” from each adjustable mounting brackets
end, followed by installing one every 30”. Then secure, by slightly
loosening the 2 screws on the side of each adjustable bracket.
Then secure, by screwing through bracket to the surface. Then
rotate to the desired position, followed by tightening the side
screws.
MOUNT EXTRUSION
WITH MOUNTING BRACKETS
FIXED BRACKET ADJUSTABLE BRACKET
extrusion
4.0” 30.0”
30.0” 4.0”
30" maximum spacing
of mounting brackets
MOUNT EXTRUSION
WITH SCREWS
install #4 flat head wood
screws a maximum 30"
apart minimum of 2
screws per extrusion.
3.1
3.1
3.1

*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
Page 2 of 2
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
7.1 Remove the protective film from the diffuser lens. Snap the diffuser lens into
the aluminum extrusion.
7.2 If extrusion is to be installed facing up in wet locations, apply silicone to
the edges of the endcaps. Followed by applying silicone to the edge
between the lens and extrusion, make sure to clean off any excess
silicone.
7
endcap
protective film 7.1
7.2
7.2
silicone
dispenser
KM, KS, KXL & KL Channel - Installation Instructions
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
Models KMC-XX, KSC-XX, KXLC-XX, & KLC-XX
REV0.2 09062018
5
5.1 Extrusion are not waterproof. If it is going to be installed Optional:
facing up and in a wet location, drainage holes should be drilled
along the inner corner of the extrusion every 12". Drill 1/16" to 1/8"
diameters holes before installing LED strip.
12.00"
corner drainage hole
corner
drainage
hole
5.1
solder pads
4.1 LineLED can be shortened by cutting along the dashed lines in between
the solder pads. Make sure the cut is made on the side of the LineLED
without the wire leads. LineLED cannot touch the metal endcap which will
shorten the circuit.
cut
LineLED
cut
4.1
wire leads
LineLED
4
3.1
extrusion
6
6.1 Prior to installing LineLED to extrusion, clean extrusion from any debris.
Gently push LineLED onto aluminum extrusion and then install endcaps at
both ends.
endcap
feed LineLED wire leads
through the endcap opening
remove paper backing on the
adhesive tape of the LineLED
before installing to the extrusion
8.1 Ensure the correct (wattage & voltage) power supply is used to power
LineLED. Then proceed to connect LineLED wires from extrusion to power
supply. For more information please refer to power supply and LineLED
wiring instructions.
8
line voltage wires low voltage wires
class II power
supply
LineLED of
extrusion
8.1
6.1
