Makita JS1602 User manual

1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
DOUBLE INSULATION
IMPORTANT: Read Before Using.
Metal Shear
JS1602
013076

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model JS1602
Steel up to 400 N/mm21.6 mm (16 ga.)
Steel up to 600 N/mm21.2 mm (18 ga.)
Steel up to 800 N/mm20.8 mm (22 ga.)
Max. cutting capacities
Aluminum up to 200 N/mm22.5 mm (13 ga.)
Min. cutting radius 30 mm
Strokes per minute (min-1) 4,000
Overall length 255 mm
Net weight 1.6 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END201-5
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
󻜎Read instruction manual.
󻜎DOUBLE INSULATION
󻜎Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible recycling
facility.
ENE037-1
Intended use
The tool is intended for cutting sheet steel and stainless
sheet steel.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated and can, therefore, also be used from
sockets without earth wire.
ENG905-1
Noise
The typical A-weighted noise level determined according
to EN60745:
Sound pressure level (LpA) : 79 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum) determined
according to EN60745:
Work mode : cutting sheet metal
Vibration emission (ah) : 7.0 m/s2
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).

3
ENH101-16
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Metal Shear
Model No./ Type: JS1602
are of series production and
Conforms to the following European Directives:
2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by:
Makita International Europe Ltd.
Technical Department,
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
17.01.2012
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEA005-3
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
12. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

4
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
17.
If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
21. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
26. Follow instruction for lubricating and
changing accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB027-3
SHEAR SAFETY WARNINGS
1. Hold the tool firmly.
2. Secure the workpiece firmly.
3. Keep hands away from moving parts.
4. Edges and chips of the workpiece are sharp.
Wear gloves. It is also recommended that you
put on thickly bottomed shoes to prevent
injury.
5. Do not put the tool on the chips of the
workpiece. Otherwise it can cause damage
and trouble on the tool.
6. Do not leave the tool running. Operate the tool
only when hand-held.
7. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
8. Do not touch the blade or the workpiece
immediately after operation; they may be
extremely hot and could burn your skin.
9. Avoid cutting electrical wires. It can cause
serious accident by electric shock.
10. Do not operate the tool at no-load
unnecessarily.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.

5
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
013083
CAUTION:
• Before plugging in the tool, always check to see
that the slide switch actuates properly and returns
to the "OFF" position when the rear of the slide
switch is depressed.
• Switch can be locked in "ON" position for ease of
operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain firm grasp on tool.
To start the tool, slide the slide switch toward the "I (ON)"
position. For continuous operation, press the front of the
slide switch to lock it.
To stop the tool, press the rear of the slide switch, then
slide it toward the "O (OFF)" position.

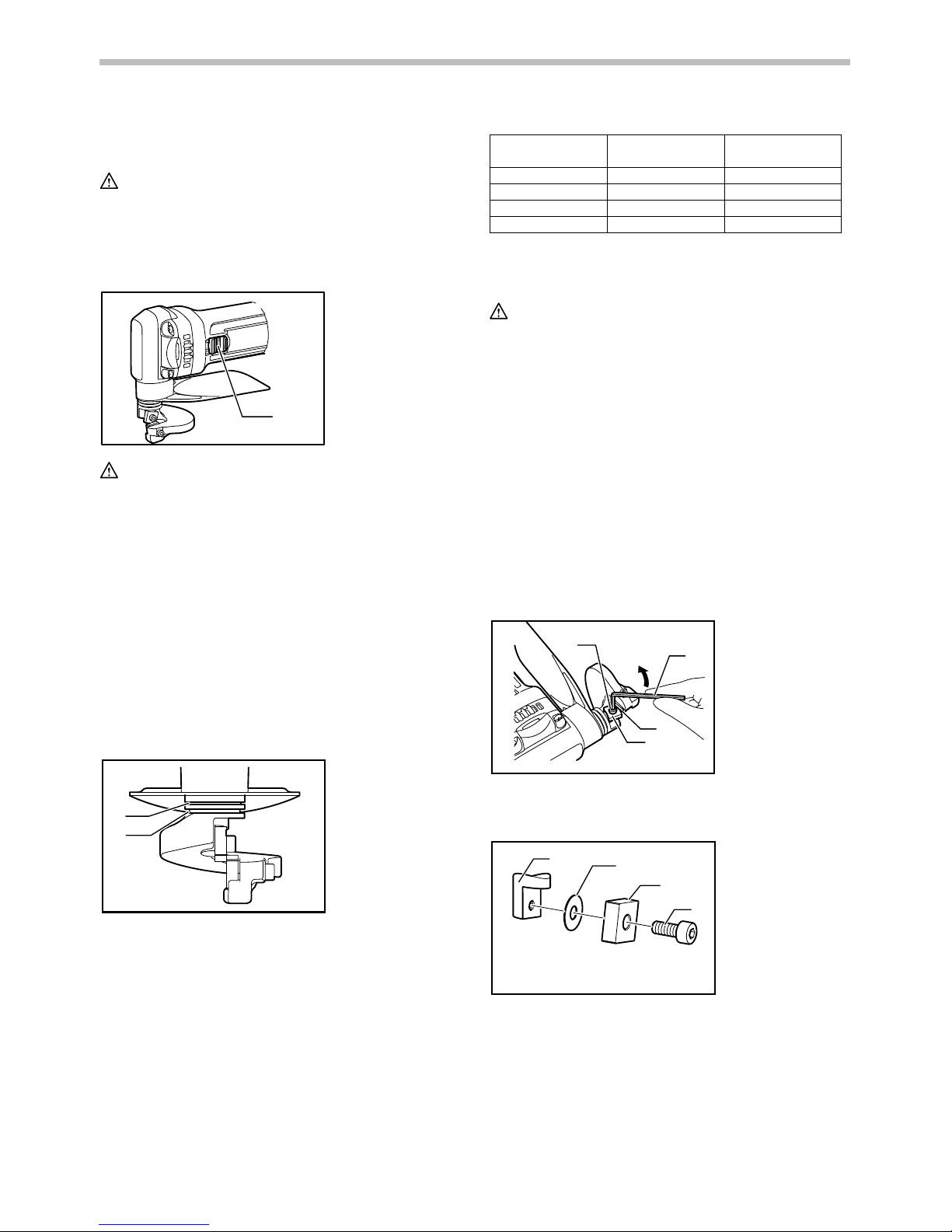

Permissible shearing thickness
1
2
013085
The groove on the yoke serves as a thickness gauge for
shearing mild or stainless steel plate. If the material fits
within the groove, it is shearable.
The thickness of materials to be sheared depends upon
the type (strength) of the material. The maximum
shearing thickness is indicated in the table below in
terms of various materials. Attempting to shear materials
thicker than indicated will result in tool breakdown and/or
possible injury. Keep within the thickness shown in the
table.
Material Max. cutting thickness
(mm)
Tensile Strength
(N/mm
2
)
Mild steel (A) 400 1.6 (16 ga)
Hard steel (B) 600 1.2 (18 ga)
Stainless steel 800 0.8 (22 ga)
Aluminum plate 200 2.5 (13 ga)
006425
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Blade inspection
Before using the tool, check the blades for wear. Dull,
worn blades will result in poor shearing action, and the
service life of the tool will be shortened.
Rotating or replacing blades
Both the upper and lower blades have four cutting edges
on each side (the front and back). When the cutting edge
becomes dull, rotate both the upper and the lower blades
90° to expose new cutting edges.
When all eight edges are dull on both the upper and
lower blades, replace both blades with new ones. Each
time blades are rotated or replaced, proceed as follows.
1
2
3
4
5
013077
Remove the blade securing bolts with the hex wrench
provided and then rotate or replace the blades.
12
3
4
013078
Some tools have one washer between the upper blade
and the blade holder.When the tool has the washer, be
sure to use the thin washer when reassembling.
1. Blade holder
2. Thin washer
3. Upper blade
4. Upper blade
securing bolt
1. Hex wrench
2. Loosen
3. Upper blade
securing bolt
4. Lower blade
5. Upper blade
1.
Gauge for
stainless: 1.2 mm
(3/64")
2. Gauge for mild
steel: 1.6 mm
(1/16")
1. Slide switch

6
NOTE:
• No thin washers are used for the lower blade.
12
3
013079
Install the upper blade and tighten the upper blade
securing bolt with the hex wrench. Press up on the upper
blade while tightening it.
1
2
3
4
013080
After securing the upper blade, be sure that there is no
gap left between the upper blade and the beveled
surface of the blade holder.
1
2
3
013081
When installing the lower blade onto the yoke, the lower
blade should be pressed against the yoke so as to be
contacting the beveled portions A and B of the yoke and
the tip C of the lower blade positioning screw while you
tighten the lower blade securing bolt. There must be no
clearance between A, B and C during installation.
NOTE:
• The lower blade positioning screw is
factory-assembled. Do not tamper with it.
1
2
3
A
B
C
013082
OPERATION
Holding material and shearing method
WARNING:
• Before operating the tool, be sure to firmly tighten
the upper blade securing bolt and the lower blade
securing bolt. Loosen bolts may cause blades
coming off, resulting in a serious injury.
• When cutting, always place the shear on the
workpiece so that the material cut away is
positioned on the right side to the operator.
The materials for cutting should be fastened to the
workbench by means of workholders.
013084
Always hold the tool firmly with one hand on housing. Do
not touch the metal part.
Keep the shear moving parallel with the material.
Maximum cutting width
1800 mm
(70-7/8")
A
1
004703
Stay within the specified maximum cutting width (A):
Case of length 1,800 mm.
1. Cutting line
1. Yoke
2. Lower blade
positioning
screw
3. Lower blade
1. Tighten
2. Lower blade
3. Yoke
1. Blade holder
2. Upper blade
securing bolt
3. Upper blade
4. No gap allowed
1. Upper blade
securing bolt
2. Tighten
3. Upper blade

7
Mild steel (thickness) 1.6 mm Under 1.2 mm
Max. cutting width (A) 100 mm No limit
Stainless (thickness) 1.2 mm Under 1.0 mm
Max. cutting width (A) 80 mm No limit
006430
Minimum cutting radius
Minimum cutting radius is 30 mm when cutting 1.0 mm
mild steel.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Shear blades
• Hex wrench
• Wrench holder
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.

8
Makita Corporation
Anjo, Aichi, Japan
www.makita.com
885145-229
