Maytronics Dolphin Liberty 400 Instruction manual

What’s in the Box
|EN - LIBERTY Quick User Guide | 1
Quick User Guide
First Time Use
Maytronics Dolphin Cordless Robotic Pool Cleaner
Power button Inductive charger connection
Battery indicatorsSettings or status indicator
Grab hookFilter basketExtra filter pannels Clicker Charger
Plug the charger
into the wall outlet
1
Connect the inductive
charger to the robot
2
Peel-o the sticker
3
Charge the battery
to 100% -3 green bars
4
Unplug the
inductive charger
5
Press the power
button
6
Put the robot in the pool.
It will start cleaning within
30 seconds
7
8180170 Rev. 01

EN - LIBERTY Quick User Guide | 2

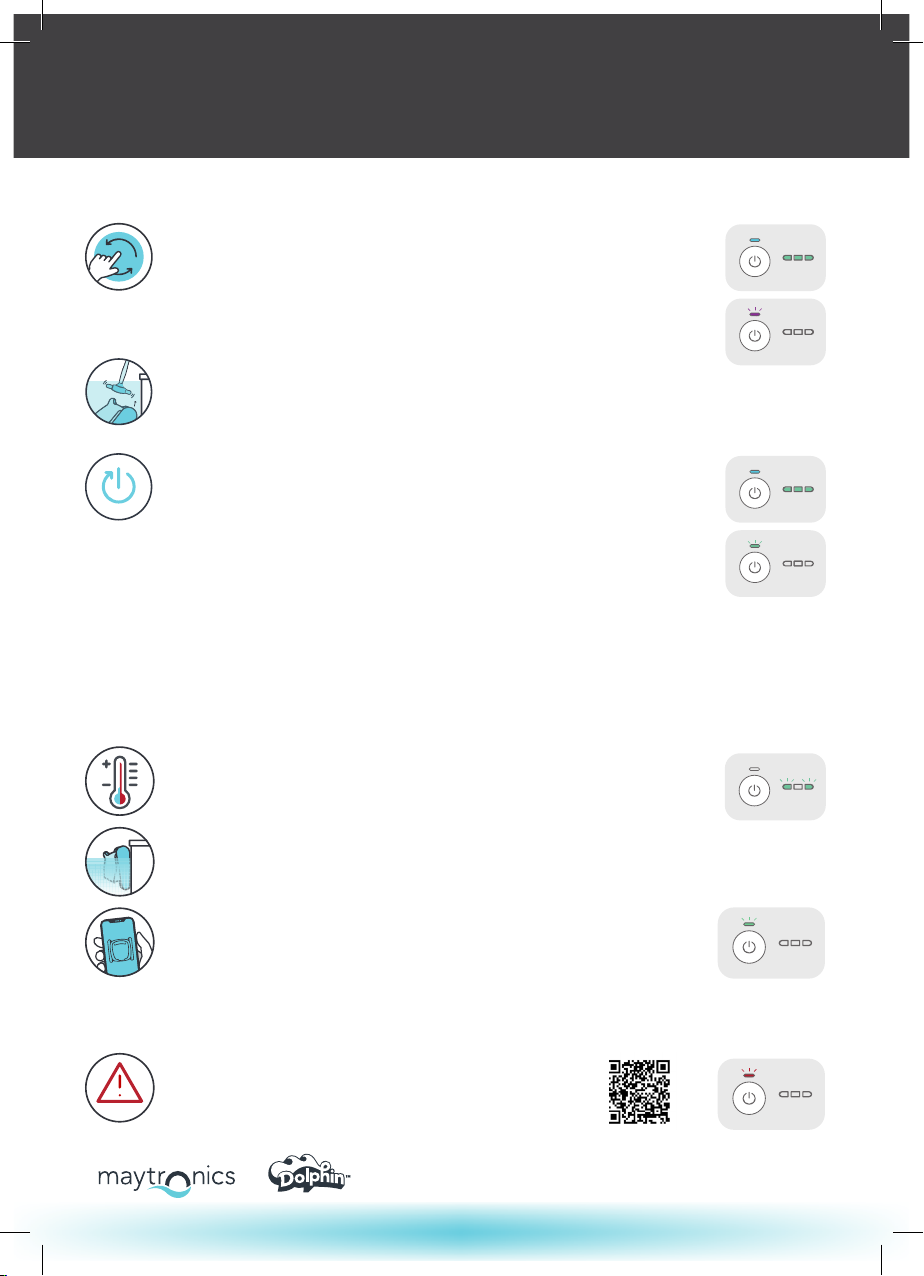

Features and Indications
Error
In case of error notification, please refer to User Manual.
Temperature Warning
In case of temperature warning notification, place and charge the pool
cleaner in a protected and shaded area, at a temperature range
of 6°C - 35°C / 43°F - 95°F.
Waterline Scrubbing
Scrubs then removes grime and oils that accumulate on the waterline.
MyDolphinTM Plus Mobile App
Download the app, sign-up and follow the app instructions to pair with
your robot. You can configure it with the MyDolphin™ Plus App while
the robot is out of the water. When paired, the LED above the robot’s
power button will start flashing. Now you can schedule cleanups, set
cleaning cycle type, and receive notifications when it is ready to be
taken out of the pool.
Eco Mode
Use Eco Mode to keep your pool floor clean for a week on one charge.
The robot will automatically clean the pool floor for up to 30 min,
three times a week, with 48 hours between cleaning cycles.
Use Eco Mode to keep your pool floor clean for a week on one charge.
The robot will automaticly clean the pool floor for up to 30 min,
three times a week, with 48 hours between cleaning cycles.
1. Press ON to activate until LED lights up.
2. After 3 seconds, you will see a purple LED flashing. Hold the button
until you see the green LED flashing.
3. Place the robot in the pool, and within 30 sec, it will start working.
While in Eco Mode you can use the Clicker between cycles and at the end
of the third cycle, however using the Clicker will cancel the eco mode.
ClickUpTM
Easily take the robot out of the pool by shaking the Clicker in the water
for 3 seconds when the robot has finished the cleaning cycle. The robot
will climb up its nearest wall and wait a few seconds to be picked up.
Cycle Selector
Use Cycle Selector to customize cleaning mode to “Floor only”:
1. Press ON to activate until the LED lights up.
2. Press ON again for 3-6 seconds until the purple LED blinks 3 times.
Place the robot in the pool, and within 30 sec, it will start working.
After each cleaning cycle, the robot will return to default mode.
Step 1Step 1 Step 2 Step 2
Quick User Guide
|
Scan for
user manual

EN - LIBERTY Quick User Guide | 3
1 2 3
* Standard pole, not included
Removing the robot from the pool
Grab hook - Pull robot to waterline, then grab it with your hand to pull it out of the water.
*
ClickUpTM
After the cleaning cycle, shake the Clicker inside the water for over 3 seconds and the robot will
climb its nearest wall. The robot needs to finish its cycle before it can be called up with the Clicker.
In regular mode, the feature will be available for 6 days after the cleaning cycle ends.
Please note: When in Eco Mode, you can use the Clicker between cycles and at the end of the
third cycle, however using the Clicker will cancel the Eco Mode.
1 2
3
End of Cycle Pickup
In the last few minutes of its cleaning cycle, the robot will climb each wall and wait 20 seconds
to be taken out. If you started the cycle with the app, you will get a push notification on your
phone to let you know the robot is waiting. If it isn’t picked up, it will wait on the floor near a
wall. You can then use the Clicker or hook to take it out.
Quick User Guide
1 2 3 4
Cleaning the Filter Basket
To prevent debris from hardening on the filter, we highly recommend quick-rinsing the filter
immediately after removing the robot from the pool.
|
4
3

•When the battery is low and all indicators are o - the cleaner is on standby mode.
Connect to the charger to wake it up.
•Always charge the pool cleaner in a protected and shaded area at a temperature range of
6°C - 35°C / 43°F - 95°F, until you see 3 green bars in the battery indicator panel (up to 6 hours).
•The charger is rainproof, the robot can be charged when wet. However, do not put the
charger in the water. It is not designed to be underwater.
O-Season Storage
Before o-season storage - Charge the battery to about 50% (2 green bars in the
battery indicator panel).
Recommended storage temperature range: -10°C - 40°C / 14°F - 104°F.
Exceeding the maximum will likely damage the battery.
After o-season storage, charge the robot to its fullest.
EN - LIBERTY Quick User Guide | 4
Charging Recommendations
Quick User Guide
Note
• Keep your fingers away from the impeller motor area to avoid injury.
•Any maintenance should be done only when the robot is o.
•Ensure that the electrical outlet is protected by a ground fault interrupter (GFI) or earth
leakage interrupter.
•Do not put the charger in the pool.
•Do not enter the pool while the pool cleaner is working.
•In case of any physical damage to the pool cleaner or the charger, contact Customer Care
for instructions.
•When removing the robot from the pool, set it on the edge to empty the water before lifting.
•Water temperature range: 6°C - 35°C / 43°F - 95°F
•Water depth range: 0.4m - 3m / 1.33ft - 9.8ft
•Motor protection: IP 68
•Charger protection: IP 54
•Chlorine - 4 ppm, Max.
•pH - 7.0-7.8
•NaCl - 5000 ppm, Max.
•Battery Lithium-ion | 5,000mAh
Info and recommendations
For more information www.maytronics.com.au
Scan for User Manual
|
