3Dolphin Wave 75 Pool Cleaner | Operating Instructions
Robotic Pool Cleaner Dolphin Wave 75
Operating Instructions
1. INTRODUCTION
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.4 m (1.33 ft)
Maximum depth: 5 m (16.4 ft)
3. WARNINGS AND CAUTIONS
3.1 Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3.5 m (12 ft) away from the edge of the pool
• Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing
• Keep the Robotic Pool Cleaner out of the reach of children or persons with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
3.2 Cautions
When not in use store the Pool Cleaner on the Caddy in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine 4 ppm max.
pH 7.0 - 7.8
Temperature 6°C - 35°C (43°F - 95°F)
NaCl 5000 ppm max.
CAUTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush
enhance maximum pool hygiene.
The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting
performance and easy maintenance.

4Dolphin Wave 75 Pool Cleaner | Operating Instructions

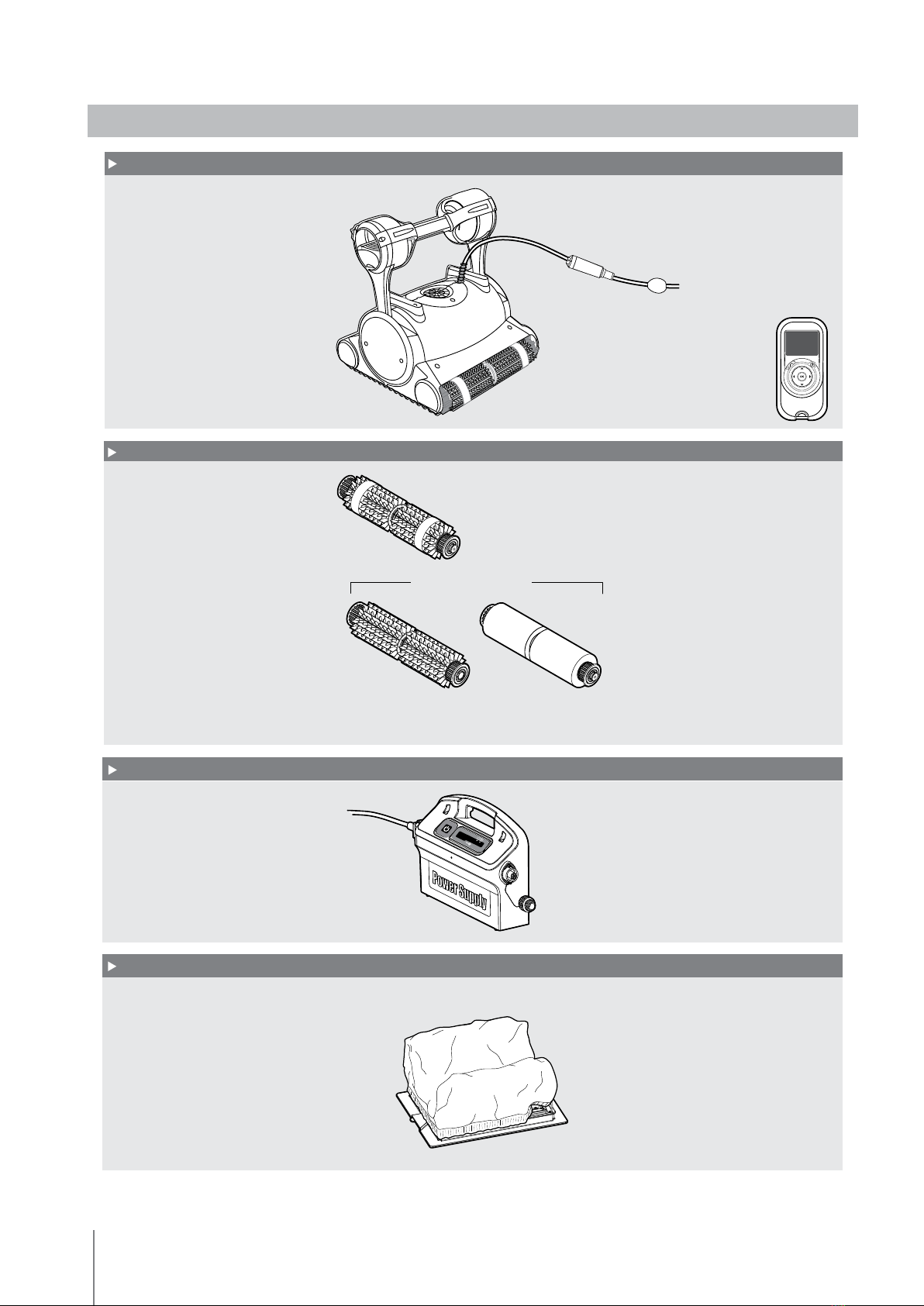

4. POOL CLEANER PARTS
Bottom lid and filter Bag
Wonder Brush
For smooth ceramics.
Combined Brush
All surface climbing brush
ideal for most pool surfaces
PVC Brush
For concrete, PVC,
fiberglass and liner.
Optional Brushes
Filtration
Robotic Pool Cleaner Model Dolphin Wave 75
Power supply unit
Brushes
Remote
control unit
<30 VDC; IP 54

5Dolphin Wave 75 Pool Cleaner | Operating Instructions
5. USING THE POOL CLEANER
5.1 Set Up
Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up
with the groove in the socket on the power supply and turning clockwise (2).
NaCl
max
4000 ppm
32°C 90°F
12°C 54°F
PH
7 - 7.4
CHLORINE
2 - 4 ppm
9
9
Turn the power supply ON.
5.2 Putting the Pool Cleaner into the pool
If Wonder brush/ Wonder rings are dry,
soak them in water until soft.
Shake the robot from side to side or turn it
upside down to release trapped air.
Let it sink to the pool floor.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
ON
NaCl
max
4000 ppm
32°C 90°F
12°C 54°F
PH
7 - 7.4
CHLORINE
2 - 4 ppm
9
9
<30 VDC; IP 54
GFI/ELI
40°C Max
104°F Max
3.5 m (12 ft)
<30VDC; IP 54
<30 VDC; IP 54

6Dolphin Wave 75 Pool Cleaner | Operating Instructions
5.3 Removing the Pool Cleaner from the pool
The robot will perform automatic shut-off at the end
of the cleaning cycle.
Turn OFF and unplug the power supply.
CAUTION
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle remove the Pool Cleaner from the pool.
OFF
B
C
C
A
B
C
C
A
<30 VDC; IP 54
Clean the filter bag with a hose.
Periodically clean the brushes with a hose.
It is recommended to periodically wash
the filter bag in a washing machine.
Use gentle cycle program.
5.4 Maintenance
Filter bag

7Dolphin Wave 75 Pool Cleaner | Operating Instructions
To remove the kinks,
stretch the cable out
completely and let it
sit for at least a day in
the sun.
If you notice debris trapped in the impeller open the impeller and remove the debris.
If the pool cleaner will not be in use for an extended
period, perform the following storage steps:
• Make sure that no water is left in the pool cleaner.
• Thoroughly clean the filter bag and insert in place.
• Roll up the cable so that it has no kinks and place
on the Caddy.
• Store the pool cleaner upright on the Caddy in
a protected area out of direct sun/rain/frost at a
temperature of between 5°C - 45°C (41°F - 113°F).
5.5 Off-season storage
Cleaning the impeller
Unplug the power supply.
Cable
A
B
Ph
Ph
A
B
Ph
Ph
No. 2

8Dolphin Wave 75 Pool Cleaner | Operating Instructions

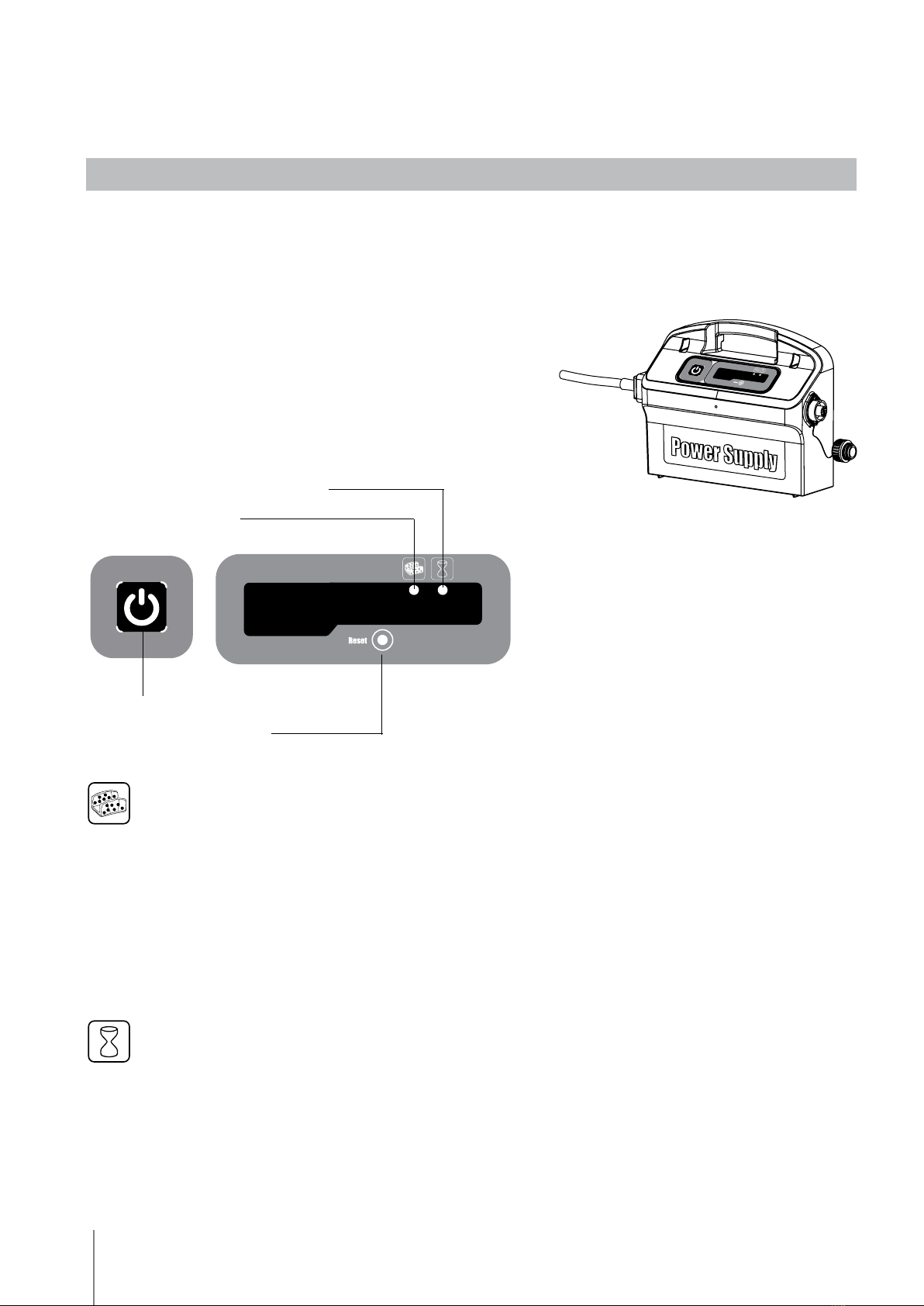

Full filter bag indicator and Reset button
The power supply is equipped with a filter bag status indicator.
The red LED indicates two filter conditions.
• When blinking - The filter is partially blocked.
• When lighted - The filter is blocked and must be emptied and cleaned.
If the LED does not turn off after the filter bag had been emptied and cleaned, press the RESET button
while the robot is working.
Delay indicator
The power supply is equipped with a Delay indicator that indicates if the Delay option is activated
(through the remote control unit).
• Input - 100 VAC – 250 VAC
• 50 Hz – 60 Hz
• 180 W
• Output - <30 VDC
• IP 54
On/Off switch Reset button
Delay indicator
Full filter bag indicator
<30 VDC; IP 54
<30 VDC; IP 54
Digital “Switch-Mode” Power Supply with full filter bag and delay indicator.
6. POWER SUPPLY

9Dolphin Wave 75 Pool Cleaner | Operating Instructions
7. REMOTE CONTROL UNIT
The remote control unit
offers two operation modes -
Automatic mode and manual
direction control mode.
In automatic mode, the
cleaning parameters can be
changed.
In manual direction mode,
the robot’s motion can be
controlled manually.
Radio reception meter
When no black lines are showing, move
closer to the power supply unit
Battery level meter
When flashing, change the batteries
Manual control indicator
When flashing, you are in manual direction
control mode
Cleaning cycle icons
Delay timer icons
Cleaning mode icons
ON/OFF button
Manual/automatic select button
Set/OK button
Direction control arrows

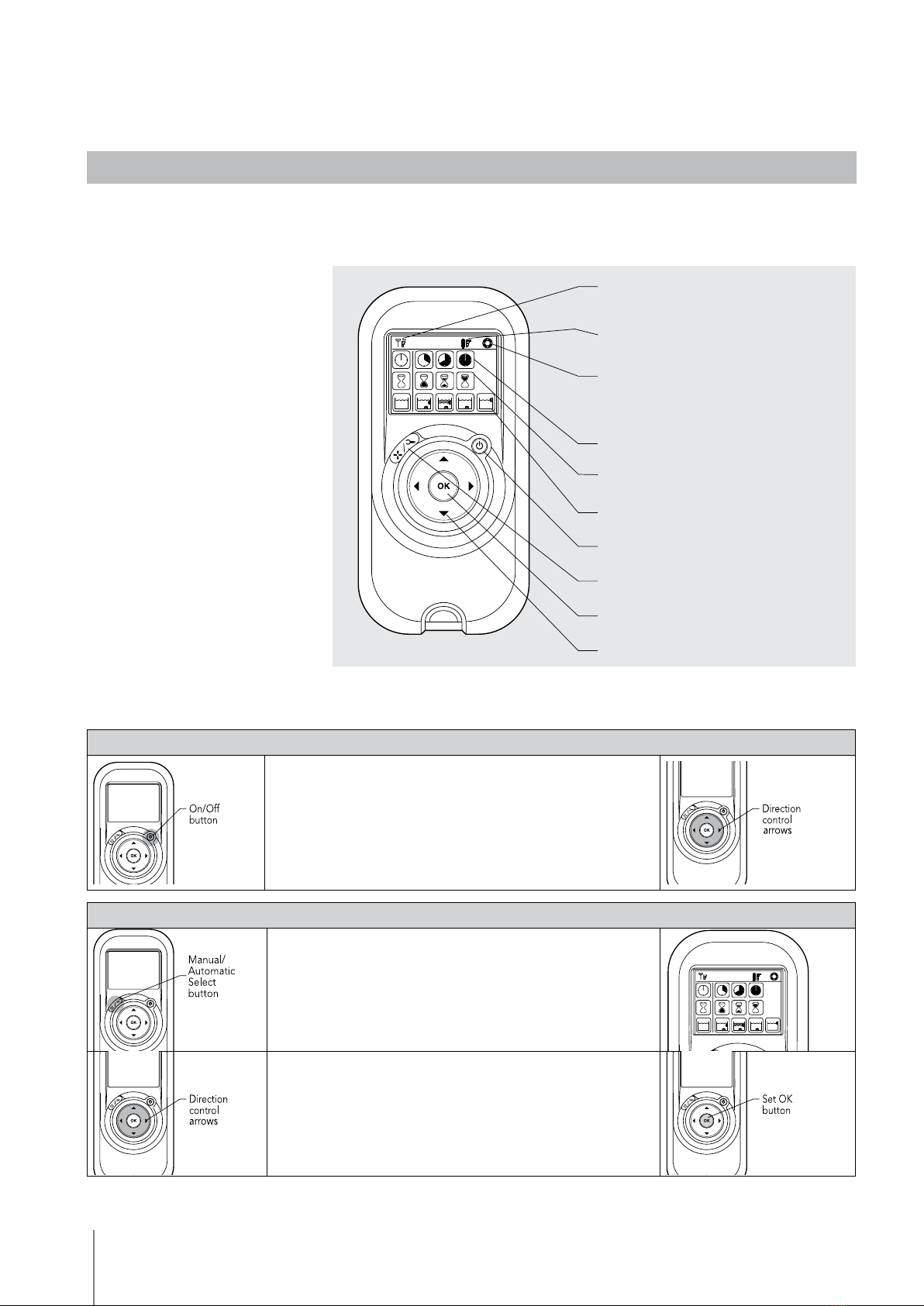

The Control Panel
Manual Direction Control Mode
1. Press the On/Off button once. The remote control will start in
manual direction control mode.
2. Use the direction control arrows (see right) to control the
movement of the robot around the pool.
Exiting Manual Direction Control Mode and setting the Automatic Mode
1. To exit the manual direction control mode, press the
Manual/Automatic select button once only.
2. The digital screen will light up and three rows of function
icons will be displayed in default mode.
1. To change the parameters press the up or down arrows.
2. To select the parameter settings use the right or left arrows.
When you reach the required function press the Set/OK
button.

10 Dolphin Wave 75 Pool Cleaner | Operating Instructions
Press the Manual/Automatic select button and then choose the desired parameters according to the
following table:

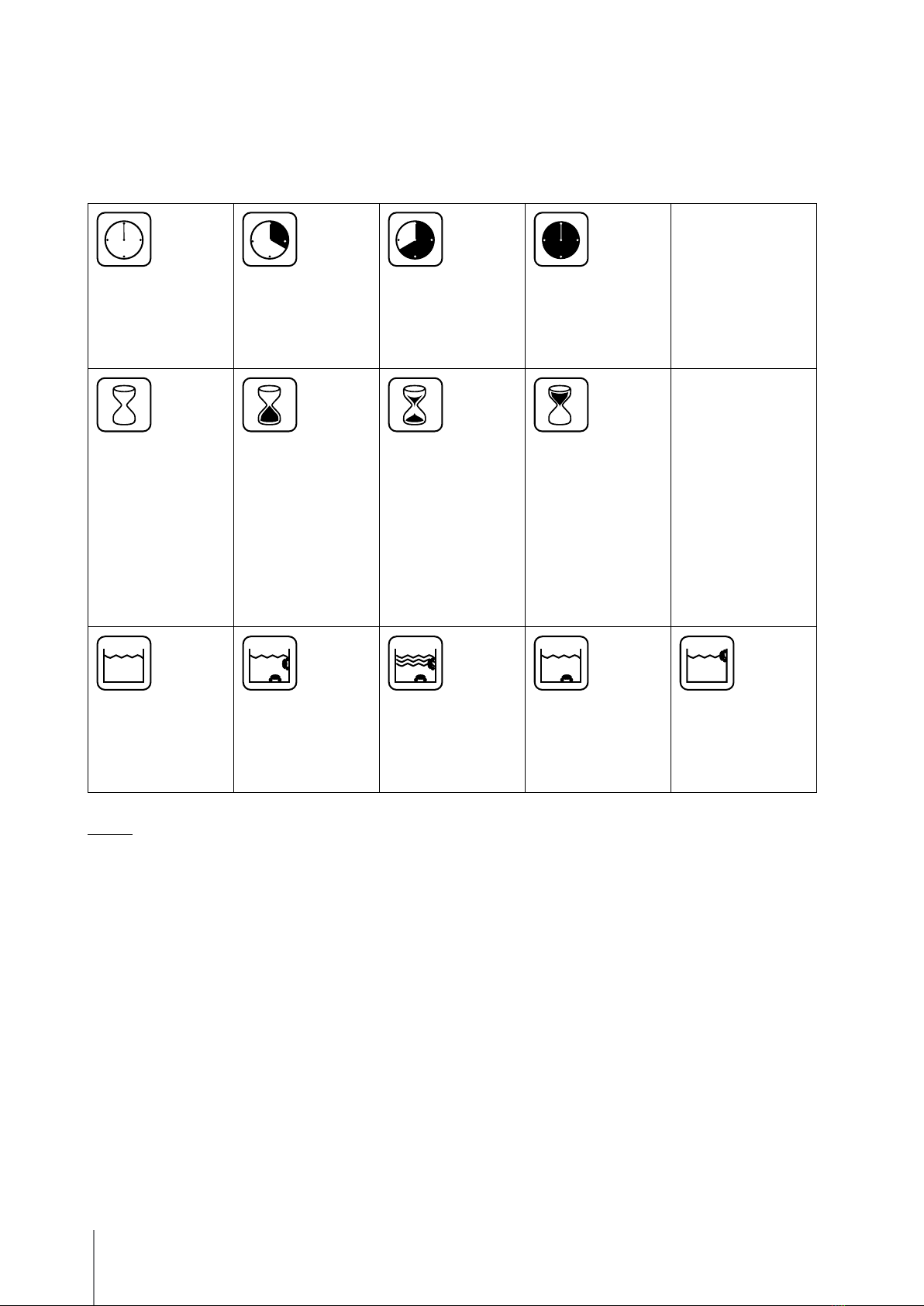

Cleaning cycle
indicator
This determines
the length of the
cleaning cycle.
Fast
2-hour cycle
Efficient
3-hour cycle for
everyday use.
(Default setting)
Extra
4-hour cycle
Delay time
indicator
This determines
when the pool
cleaner starts to
work. Delaying
allows the dirt
to settle to the
bottom of the
pool.
Immediate start
(Default setting)
One-hour delay Two-hour delay
Cleaning action
indicator
Allowing you to
choose from the
following options.
Standard
Floor and wall
cleaning.
(Default setting)
Ultra-clean
Stronger suction
and slower
movement.
(floor and wall)
Floor only
Cleans only the
floor and the area
where the floor and
walls meet
Walls only
Cleans walls and
waterline only
Note:
• After 2 minute if no button is pressed, the Remote Control Unit will shut-down and the Pool cleaner
will continue to work in the previous settings.
• When the "Ultra-Clean" and "Walls Only" options finish their cycles, the Pool Cleaner will return to
default settings.

11

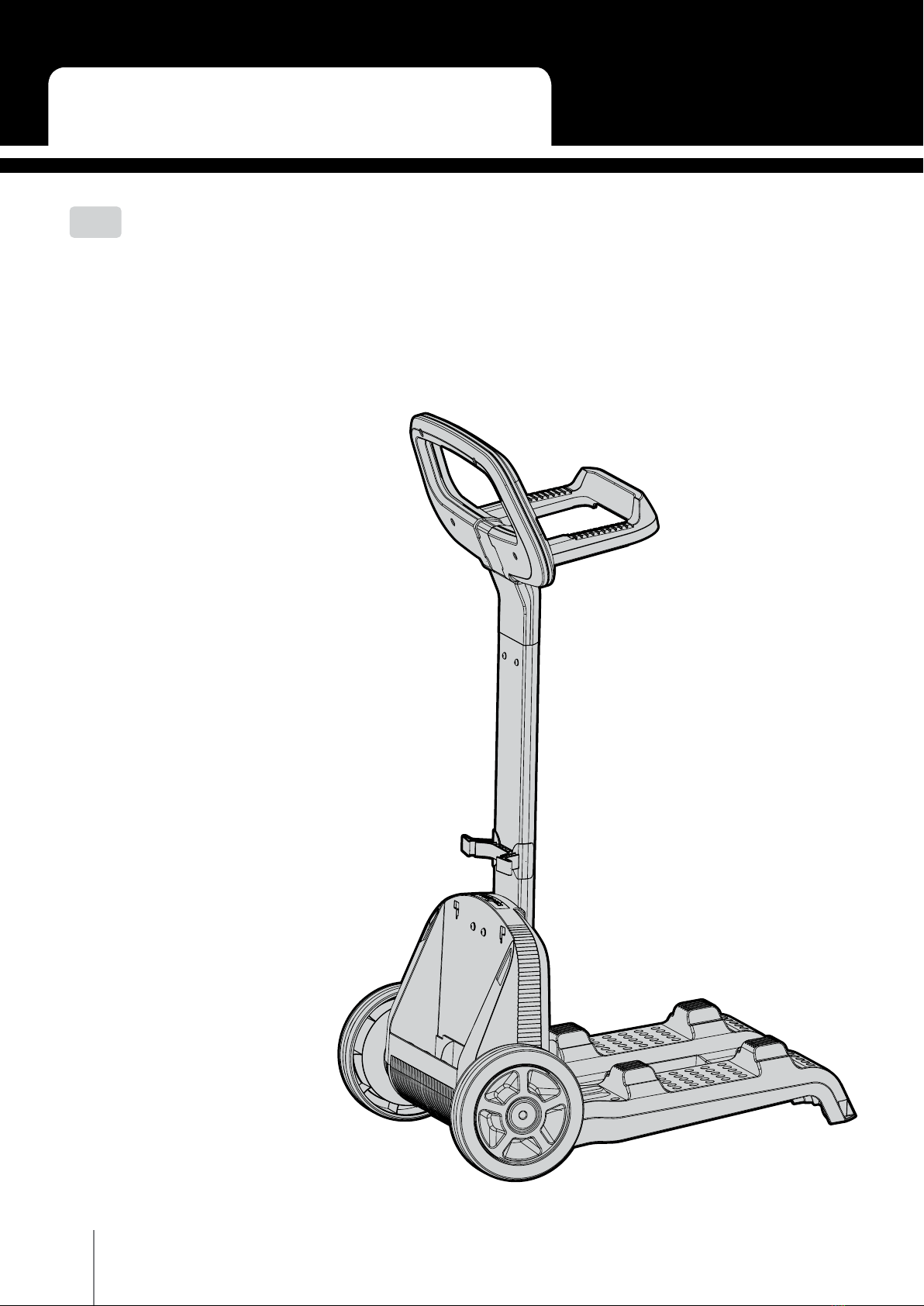

EN Caddy assembly
