Maytronics Dolphin Supreme M3 User manual

by
Robotic Pool Cleaners
8109024
ADVANTAGES GUIDE
Exceptional Experience

Dolphin principals of operation
Dolphin principals of operation
Driving & steering
Dolphin robots drive on two brushes that are connected by sturdy tracks and
a robust robotic drive system to the motor unit which provides the motion and
steering power to the Robot. The drive and steering system ensures optimal
maneuverability in any pool condition, including around common obstacles.
Scanning system
The Dolphin scanning system is powered by intelligent software that detects
processes and learns the various parameters of the pool, throughout the cleaning
cycle, this enables optimal coverage without stalling near the walls and without
wasting cleaning time. The software allows sharp changes in direction, ensuring the
Dolphin reaches into every area and corner of the pool.
•Floor-only models
The robot is designed to work 100% of the cycle time on thoroughly cleaning the
entire floor area. This includes the critical areas where the floor and walls meet,
where dirt tends to accumulate.
•Climbing models
The robot is designed to optimally distribute cleaning time between the pool
floor, walls and waterline, so that each part is worked on for the maximum time
required for complete and thorough cleaning.

Dolphin principals of operation
Dolphin principals of operation
Brushing system
The brushing system is composed of two or three brushes, depending on the model.
•Principles
Rapid brush rotation is vital to effective cleaning. The third brush (installed in
select Dolphin models) rotates at double the speed of the robot’s movement,
providing extra-rigorous brushing and scrubbing. Brushes scrub the pool floor,
corners, walls and waterline – effectively removing algae and bacteria colonies.
Dolphin robots utilize several types of brush to enable optimal cleaning of different
pool types:
•PVC
Suitabel for vinyl, PVC and unglazed concrete pools.
•Combined brushes (CB)
Suitable for vinyl, PVC and unglazed concrete pools as well as pools lined with
fiberglass, rough ceramics, Marbelite and stainless steel.
•Wonder brushes (WB)
Suitable for pools lined with smooth ceramic tiles.

Dolphin principals of operation
Dolphin principals of operation
Filtration system
•Suction principals
Water is sucked into the bottom of the robot by a powerful pump. Dirt particles
of all sizes are captured by the filtering system; and clean water flows out of the
robot and back to the pool.
Two filtering levels – ultra-fine and rough – address different needs.
This provides efficient and effective cleaning according to pool conditions,
geographical area and season.
There are two different filter configurations: filter bag and cartridge.
•Models with a filter bag
With its large surface area of specially constructed fabric, the filter bag is highly
efficient at catching a large volume of debris and dirt, including small dust
particles, without becoming clogged. This enables efficient cleaning throughout
the cycle.
•Models with cartridges and spring net
Four large filter cartridges effectively trap dirt and dust. The lightweight
construction makes it easy to insert/remove and clean the cartridges and nets.

Dolphin principals of operation
Dolphin principals of operation

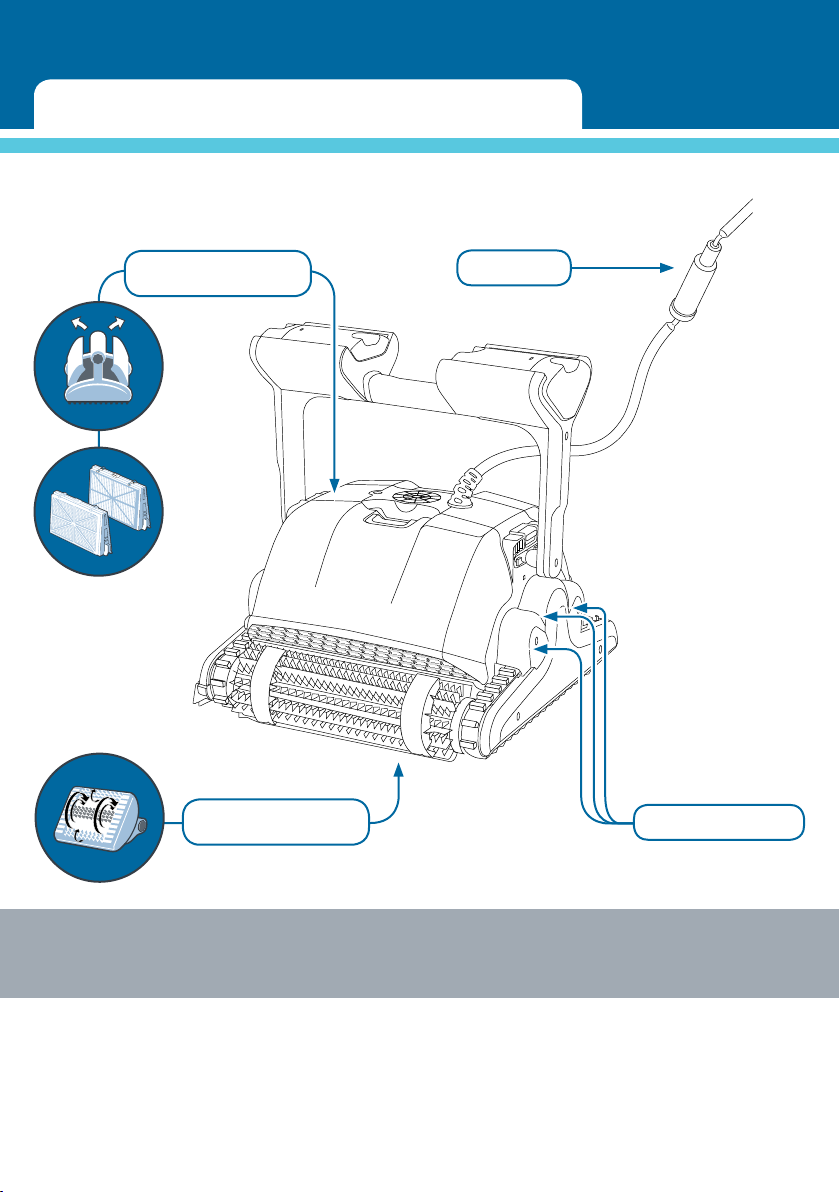

Dolphin overview
Filtration system
Dual-level Swivel
Brushing system
Triple-active Driving system

Why a Dolphin robot pool cleaner?
Why a Dolphin robot pool cleaner?
Experience
The pioneer of robotic pool cleaners. Established in 1983
Only Dolphin robotic pool cleaners by Maytronics deliver a complete, exceptional
pool experience. Building on decades of expertise in automated pool cleaning,
every Dolphin robot combines advanced technologies with proven reliability to
ensure maximum satisfaction, every time.
Superior pool cleaning performance
•Pool coverage
The Dolphin smart scanning algorithm is designed to ensure optimized coverage
for any pool size or shape, including beach entry pools.
•Brushing
Effective brushing system eliminates algae and bacteria from the pool floor,
corners, walls and waterline.
•Dirt collection
The Dolphin is equipped with a powerful and efficient suction system that
optimizes the collection of rough debris and fine dirt particles without clogging,
leaving the entire pool surface clean and crystal clear.

Why a Dolphin robot pool cleaner?
Why a Dolphin robot pool cleaner?
Motor Unit (MU) protection system
•Overload
Automatic MU protection shutdown in case when an external object
(e.x goggles) blocks the drive system.
•Out of water
Automatic MU protection shutdown in case where the Dolphin drives outside
the water (beach entry, top stairs).
•Obstacle escape
Automated mechanism that senses when the Dolphin is stuck
(ex. under the pool stairs) and activates a special escape drive mode.
Benefits
Only Dolphin robotic pool cleaners by Maytronics deliver an automated
high-performance pool cleaning in minimum time with maximum cleaning effectiveness.

Why a Dolphin robot pool cleaner?
Why a Dolphin robot pool cleaner?
Unique features
•Swivel
Only Dolphin robotic pool cleaners come standard with a unique, patented swivel
device that prevents the cable from creasing or tangling. The robot moves freely
with no need for manual intervention to untwist the cable.
•DIY servicing
Snap-in/out brush replacement.
Dolphin robots are designed for DIY repair by dealers. Generally within several
minutes the Dolphin can be disassembled, analyzed with a dedicated DIY tester,
repaired and assembled and ready to use.
We welcome you to approach your local distributor and get more information
on how to become a certified DIY repair dealer.
•Top access
Easy access to filtration system allows easy cleaning maintenance operation
(Avilable in selcted model).
•Gyro inside
Maintain stable navigation and ensure maximum cleaning efficiency.
Warranty policy
The only brand in the market that grants full Warranty on all parts for the longest
duration (2 years for floor only and 3 years for climbing models).

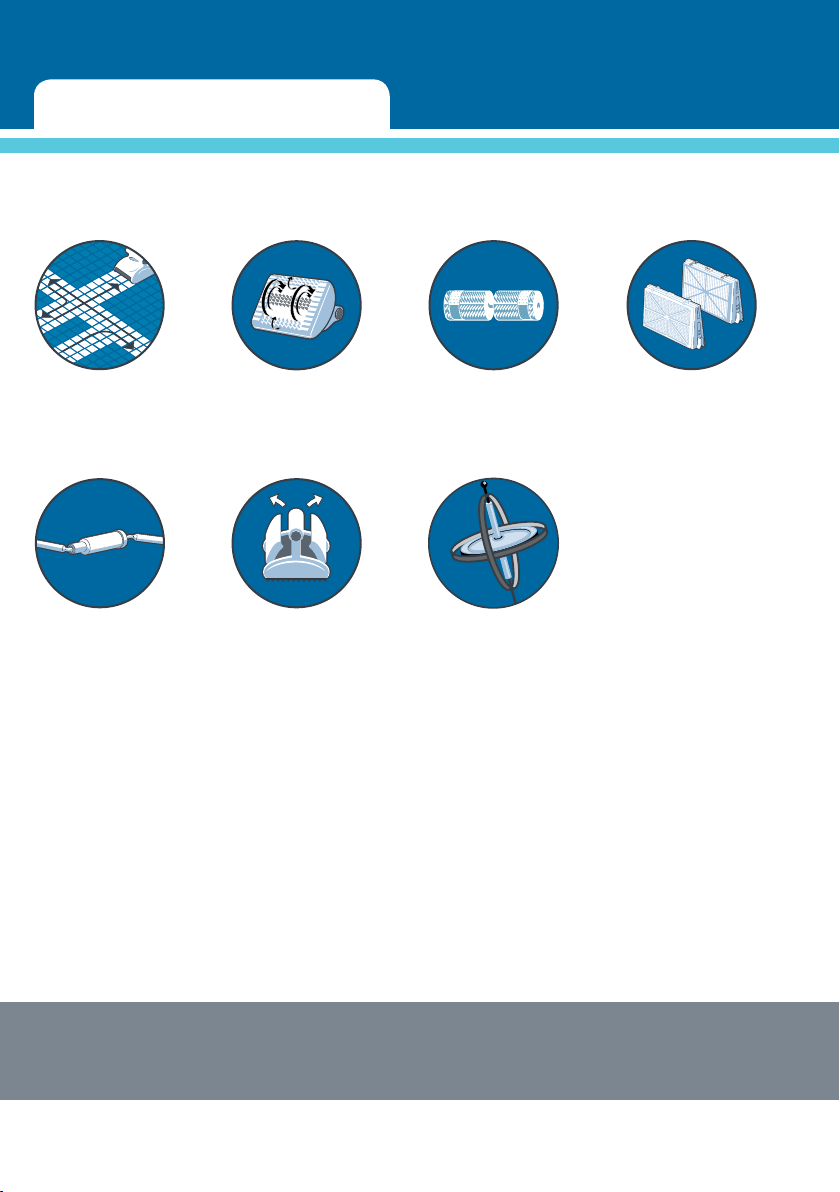

Features and advantages
Recommended for pools up to 10m in length.
Cleans pool floor including the angles where the floor meets the walls.
Scanning – Optimal pool coverage throughout the cycle time.
Obstacle escape mechanism.
Brushing – Dual-active brushing, high cleaning performance.
Reinforced removal of algae and bacteria leaves the pool water pure and clean.
Significantly reduces the need for chemicals.
Filtration – Fine filter bag collects fine dust particles and rough debris.
Models information
Models information
Dolphin Supreme M3

Models information
Models information
Dolphin Supreme M3
Cleans pool floor and
the angle where the
floor meets the walls
Powerful filtration
system All-surface brushes
DIY
Repairable at
dealer level
Product specifications:
•Cable – 18m
•Swivel – Prevents cable tangling
•Cycle time – 3 hours
•Digital switch-mode power supply – Output 30 VDC, IP 54
•Stand for storage
•Combined brushes – All-surface brushes
•Warranty – 24 months
Swivel on cable
prevents cable
tangling
Top-access

Features and advantages
Recommended for pools up to 12m in length.
Cleans pool floor, walls and waterline.
Scanning – Optimal pool coverage throughout the cycle time.
Obstacle escape mechanism.
Brushing – Triple-Active brushing, the third brush rotates at double the speed,
reinforcing the high cleaning performance and completely removing all algae and
bacteria, leaving the pool water pure and clean.
Significantly reduces the need for chemicals.
Filtration – Top-access for easy and convenient maintenance.
• Dual-level filtration system covers all pool conditions.
• Ultra-fine cartridge for day-to-day cleaning collects fine dust particles.
• Net for leaves and rough debris.
Models information
Models information
Dolphin Supreme M4 PRO
GYRO inside

Models information
Models information
Product specifications:
•Cable – 18m
•Swivel – Prevents cable tangling
•Cycle time – 2.5 hours
•Digital switch-mode power supply – Output 30 VDC, IP 54
•Caddy for storage and handling
•Combined brushes – All-surface climbing brushes
•Warranty – 36 months on all part
Complete pool
scanning
Triple-active
brushing
Top-access
Dual-level filtration
options for fine
and rough dirt
Dual-level
brushes
Swivel on cable
prevents cable
tangling
Dolphin Supreme M4 PRO
Gyroscopic
navigation
system inside

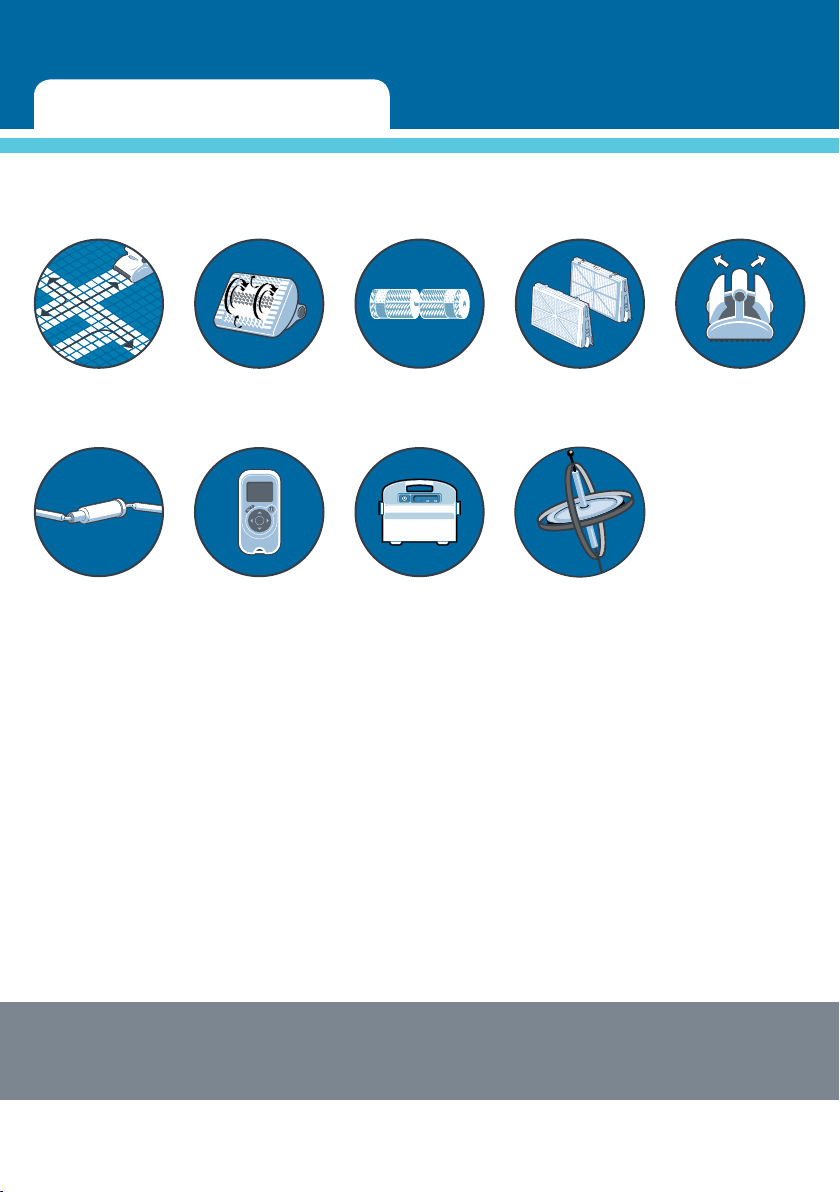

Features and advantages
Recommended for pools up to 15m in length.
Cleans pool floor, walls and waterline.
Scanning – Optimal pool coverage throughout the cycle time.
Obstacle escape mechanism.
Brushing – Triple-Active brushing, the third brush rotates at double the speed,
reinforcing the high cleaning performance and completely removing all algae and
bacteria, leaving the pool water pure and clean.
Significantly reduces the need for chemicals.
Filtration – Top-access for easy and convenient maintenance.
• Dual-level filtration system covers all pool conditions.
• Ultra-fine cartridge for day-to-day cleaning collects fine dust particles.
• Net for leaves and rough debris.
Additional features – Remote control with choice of cleaning programs,
operation delay and manual navigation.
Digital switch-mode power supply with full filter bag indicator.
Models information
Models information
Dolphin Supreme M5
GYRO inside

Models information
Models information
Dolphin Supreme M5
Swivel on cable
prevents cable
tangling
Complete pool
scanning Triple-active brushing
Top-access
Dual-level filtration
options for fine
and rough dirt
Remote control
set-up of parameters
and cleaning
programs
Full filter indicator,
operation delay
Dual-motor
All-surface brushes
Product specifications:
•Cable – 18m
•Swivel – Prevents cable tangling
•Cycle time – 1.5/2.5/3.5 hours
•Digital switch-mode power supply – Output 30 VDC, IP 54
with full filter bag indicator and operation delay
•Caddy for storage and handling
•Combined brushes – All-surface climbing brushes
•Remote control for touch-guided navigation,
setting parameters and cleaning programs
•Warranty – 36 months on all parts
Gyroscopic
navigation system
inside

Useful operation hints
Useful operation hints
Useful operation hints
For optimal operation, instruct your customer to check that the water
temperature, pH and chlorine conform to the following recommended levels:
•pH: 7.0 – 7.8
•Chlorine: max 4 ppm / NaCI 5000 ppm
•Temp.: 6º – 34ºC
Quick answers to common customer questions
How should I set up the Dolphin for operation?
1. Connect the cable to the power supply, ensuring the power supply is positioned
at least 3m from the pool’s edge and is in the shade.
CAUTION: Never use an extension cable.
2. Release the minimum required floating cable length to ensure entire pool
coverage. Leave excess cable coiled outside the pool.
3. Place the Dolphin in the pool. For models with combined brushes (CB) or wonder
brushes (WB), squeeze the brushes until they are soaked with water.
How should I clean the Dolphin?
After each cleaning cycle, wash the filter bag or cartridge under running water.
Clogged filters reduce scanning and cleaning efficiency.
Once every two months, wash the filter bag (M3 only) in a washing machine
using a regular synthetic wash cycle.
How should I store the Dolphin?
After each cleaning cycle, take the Dolphin out of the water and store away from
direct sunlight, excessive heat or frost, to prevent accelerated wear and tear on
plastic parts. Store the Dolphin in a shady place on its Caddy or stand or, if not on
the Caddy/stand, place the Dolphin upside down.

Useful operation hints
Problem Solution
Pool cleaner
does not move
1. Check that the power supply is plugged in,
and that the plug attached to the power supply is
connected properly.
2. Turn the power supply off, wait 30 seconds,
then turn it back on.
3. Unplug the power supply, open the impeller top cover
and check that nothing is trapped in the impeller.
The pool cleaner
moves but
does not clean
the pool
1. Clean the filter bag/cartridge if blocked.
2. Check that nothing is trapped in the impeller.
(Note: Unplug the power supply before checking the impeller).
The pool cleaner
cleans only
part of the pool
1. Check that there is sufficient slack in the cable for the pool
cleaner to reach the entire pool. (Excess cable should be
coiled on the Caddy or laid out alongside the pool).
2. Check the brushes to see if they are obstructed
or worn out.
3. Clean the filter bag/cartridge.
The pool cleaner
floats instead
of sitting on the
pool floor
1. Try removing the air.
2. With the pool cleaner in the water, squeeze the brushes
to make sure that they are completely soaked with water.
Useful operation hints
Useful operation hints
Basic troubleshooting

Useful operation hints
Problem Solution
Cable has kinks To remove the kinks, stretch the cable out completely
and let it sit in the sun for a day.
The pool cleaner
does not climb
walls
1. Clean the filter bag/cartridge.
2. Check the level of chemicals in the water. Improper levels
may allow algae to grow, resulting in slippery walls. If this is
the case, adjust the chemical levels and scrub the walls.
3. Check that the brushes are not worn out.
4. In models with a remote control, check that the robot
is in wall climbing mode.
Useful operation hints
Useful operation hints
Basic troubleshooting

Useful operation hints
Useful operation hints
Useful operation hints
Service policy
Dolphin after-sales service commitment
Maytronics, the company behind all Dolphin robotic pool cleaners, is dedicated
to providing all customers fast, professional, cost-effective and efficient service.
We believe in supporting your ability to deliver highly effective first-line response
to your customers:
•Self-diagnostics – Enable instant, onsite diagnoses of problems.
•Full repair instructions and interactive repair tools – Reduce service time.
•Analyzer tool – For all motor units, power supplies, cables, remote control units
•Professional technician education – Customized training and certification at
distributors’ facilities; annual technical seminars.
•Ongoing support from Maytronics local distributor.
Our service standards and expectations:
•Repair time should not exceed 7 days repair cycle time.
•Bumper to bumper assurance, full warranty on all parts.
•Availability of spare parts at your local distributor service center.
•Annual product training – Coordinate with your local distributor.
•Hot line support provided by your local distributor.

1
3 4
2
DIY quick guide
DIY quick guide
Level 1:

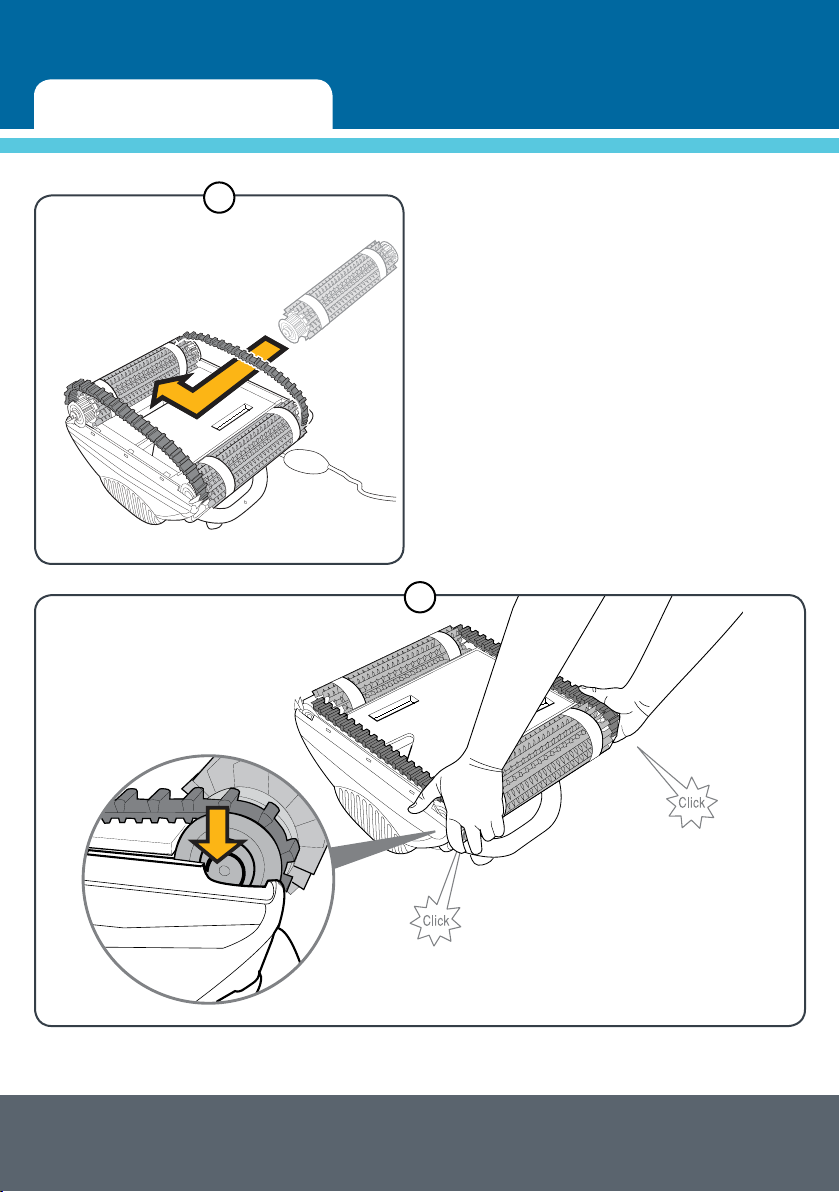

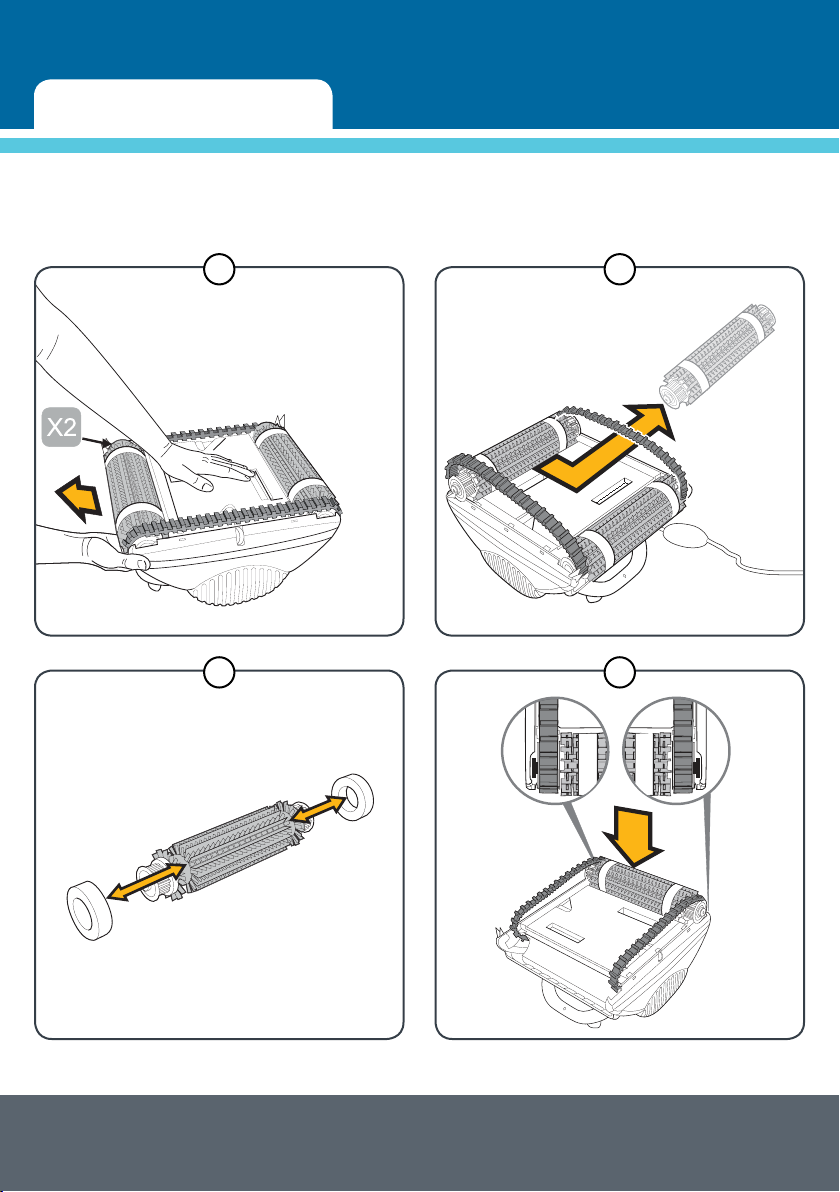

Snap in/out brushes replacement

5
6
DIY quick guide
DIY quick guide
