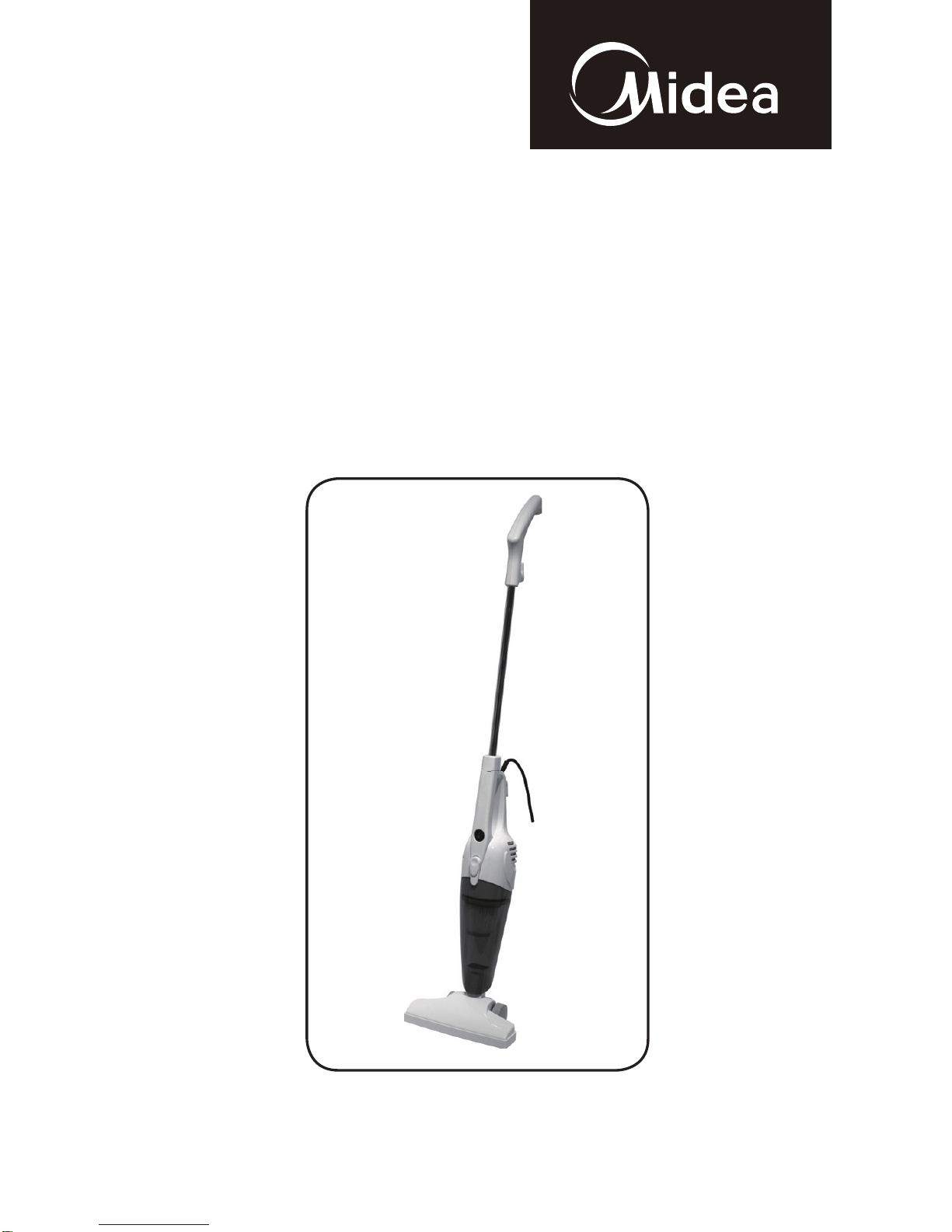

Midea MVC-SC861R User manual

Vacuum Cleaner
2 IN 1
MVC-SC861R & MVC-SC861B
Instruction manual
Made in China

DearCustomer,
Congratulationsonyour purchaseofa Handheld and FloorVacuum Cleaner!As a handheld
vacuum cleanerit is always ready waitingif you wantto removea few crumbs orgive your
upholsterya clean.As a floor vacuum cleanerit can also easilycopewith largeareas.The scope
of supplyalso includes a floornozzle attachmentand a crevice nozzle to cater for a widerange
vacuum cleanerit is always ready waitingif you wantto removea few crumbs orgive your
of uses.We are sure that this appliance will do sterlingservice formanyyears.
Before usingthedevice for the first time,please read the instructions throughcarefully
and storethem in a safeplace. If the device is given to someone else,itshouldalways
be accompanied bytheseinstructions.The manufacturerand importerwillnotaccept
liabilityif the directions intheseinstructionsare notobserved!
We reserve the rightto modifythe product,packaging orencloseddocumentationat
any timeinconjunctionwithour policyof continuous development.
Symbols used in the manual:
Warning abouthazards involving major risk.
Tips andrecommendationsare markedwiththis symbol.
Safety information
Proper use
The appliance is usedtovacuum up the dustoccurring inany home.Itis only designedfor
Warning about improper use
�Underno circumstancesshouldtheappliancebe usedonthefollowing:
–Liquids orwetmaterials (e.g. carpet shampoo when wet)
–Glowingash,cigaretteends,matches etc.
–Combustibleorinflammable substances
–Very fine dust(e. g. concrete dust)or toner
–Hard, pointedobjects suchas large splinters ofglass
Risk to children
�Keep the applianceoutofthe reach of children.Improperusemayresultininjuryor electric shock.
�Keep packaging awayfrom children(riskof suffocation).
�This applianceis notdesignedtobeusedby people(includingchildren)withlimitedphysical,
sensoryormental capabilitiesorpeoplewithoutadequateexperienceand/orunderstanding
unless supervisedbysomeoneresponsible fortheirsafety.
�Childrenmustbesupervised toensurethatthey donot play withthe appliance.
Risk of electrocution
�Never immerse the appliance in water or other liquids as there is a risk of electric shock.
�Never touch the appliance with wet hands. Do not use the appliance outside or in rooms with high
humidity levels.
�When using the appliance as a handheld vacuum cleaner to clean cars, make sure it is not exposed
to rain or moisture.
�Never vacuum up liquids.
�Only store the appliance indoors in a dry place.
�Immediately remove the power plug from the electrical outlet in the event of any damage or
malfunction.

�CAUTION: Acute danger to life from electrocution! Never try to repair an electrical appliance
yourself. For your own safety take or send it in to your nearest customer service centre / specialist
repair shop. This also applies to the power cable.
�Do not use the appliance if there is damage to the cable, plug or the vacuum cleaner itself.
�Never drag on the power cable or carry the appliance by the cable. Always handle the power cable
with care. Make sure the cable does not get caught in doors or dragged over sharp edges or
corners. Keep the cable away from hot surfaces.
�Before connecting the appliance to the electrical outlet, make sure the voltage matches the
specifications on the nameplate of the appliance.
�The appliance must be switched off when the power plug is removed or inserted in the wall outlet.
�Disconnect the plug from the wall outlet during storms.
�When removing the plug from the outlet, always pull on the plug and NOT the cable, Only touch
the plug with dry hands.
�The appliance should never be used outside.
Risk of injury
�Never hold the crevice nozzle close to the body or it may stick to the skin. If the nozzle does get
stuck, set the On/Off switch to immediately.
Caution when in use
�After rinsing,the dustfilter and motorprotection filter mustbecompletelydrybefore being
reinserted.
�Only usethe appliance againonceithas beenfully reassembledandboth filters (dustfilter
and motorprotection filter) have beenreinserted.
�For your own safety, check the appliance fordamage before use.If defective, the applianceshould notbe
useduntilit has beenrepaired bya qualified technician.If the powercord is damaged,itshould be
replacedbya qualifiedtechniciantoavoid risk.
�Once connected, the power cord should be placed so that no one can trip over them.
�Do not insertanythinginto the openings /nozzles of the appliance and makesurethatthey
do not becomeblocked.
�Before changing nozzles,always switchthe vacuum cleaneroff beforehand.
�Never leave the applianceunattendedwhenswitchedon.
�When interrupting workand after use switchtheappliance off andunplug.
�Only usegenuinemanufactureraccessories.
Caution with malfunctions
�Before checkingthe appliance forblockages ordealingwiththem,switchthevacuum cleaner
off andremovethe plug.
�Do not insertobjects inthe appliance:theymighttouchlive parts.
�If liquids orforeign bodies getinsidetheappliance,unplugimmediately.Have the appliance
checkedbeforereusing.
Damage to property / appliance
�Never placeheavy objects onthe appliance.
�Protect the appliancefrom heat,naked flame,direct sunlightand shocks.Do notdrop the
appliance.
Caution when cleaning appliance

�Cleanthe filters regularly, especiallywhenyou noticethe suctionhas weakened.The motor might
otherwisebecome overloaded.
�Always unplug the appliance from the wall outlet before cleaning.
�The dustfilter and motorfilter shouldnotbe cleanedinthe washingmachine.
�Always allow filters to dry inthe air. Never usea hairdryer.
�Do not usecausticorabrasiveproducts to cleanthe housing oryou maydamagethesurface.
Warranty Terms
�The followingareexcludedfrom the warranty: alldefects causedbyimproperhandling,damage or
unauthorizedattempts torepair. The same appliesfornormalwear.
�Length of Warranty: 90days from date of purchase.
�Within 90 days from dateof purchase,return productto placeof purchasealongwiththe originalreceipt.

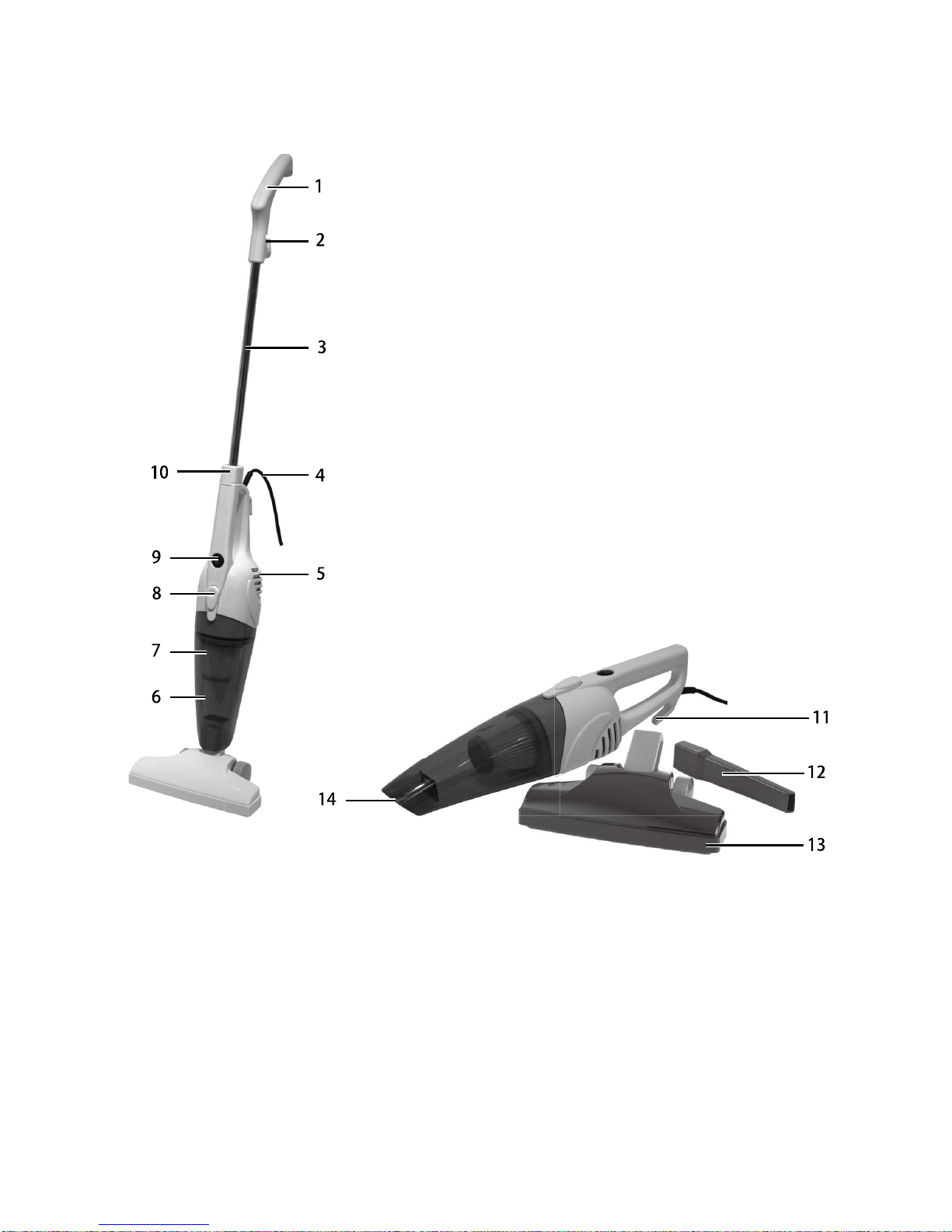

List of parts
1. Handle
2. Top cord holder
3. Detachablerodhandle
4. Power cord
5. Air outlet openings
6. Dustcollector
7. Dustfilter (in dustcollector)
8. Unlockingbuttonfor dustcollector
9. On/Off switch
10. Adapter
11. Bottom cord holder
12. Crevice nozzle
13. Floor nozzle attachment
14. Suction opening
3
7
2
1
4
5
9
6
10
8
11
13
14
12

Assembly
Conversion from handheld to floor vacuum cleaner
Removeallparts from the packaging and placecarefullyon a flat area. If necessary,putprotective
sheetingunderneathtoavoid harm to easilydamagedsurfaces.Carefullyremoveallpacking
materials.Compare the contents withthe listof parts.
Using as a handheld vacuum cleaner
The 2 in 1 Vacuum Cleaneris readyfor useas a handheldappliance
as soonas it has beenunpacked.
Using asa floor vacuum cleaner

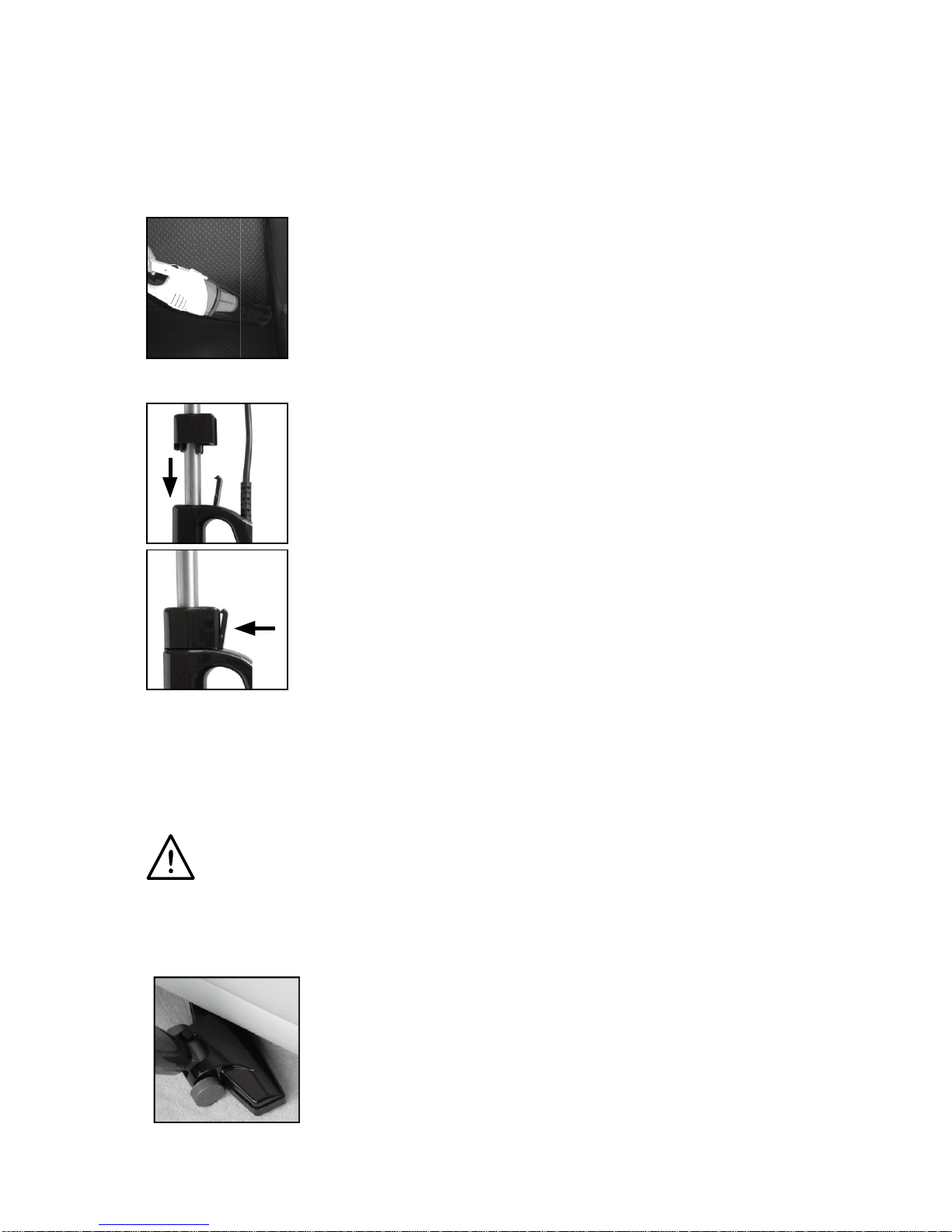

1. Open the little flapon the handleof the handheldvacuum cleaner.
2. Insert the rod handle in the opening in the handleand push in as
far as it willgo.
3. Press the flap againstthe adapterso that it snaps intoplace.
Removing rod handle
4. Open the flap.
5. Pull out the rod handle.
6. Closetheflap on the handleagain.
Accessories
Fitting and removing nozzles
CAUTION
�Before changingnozzles, always switchthe vacuum cleaneroff first.
●When fitting nozzles, insertin the suction opening.
●To remove nozzles, pullout of the suctionopening.
Floor nozzle attachment
The floor nozzle attachmentis suitableforbothcarpets and smoothfloors.

Crevice nozzle
CAUTION
Riskof injury! Never holdthe crevice nozzle closeto the bodyor it maystickto the skin.If
the nozzle does getstuck, set the On/Off switchto immediately.
The crevice nozzle is designedforupholstery,cleaning the interior
of cars and for gettinginto all corners andcracks that are
inaccessible with the floornozzle attachmentor withouta nozzle.
Preparing to use the appliance
CAUTION
�Only switchthe vacuum cleaneron onceyou have checkedthat allparts are fullyassembled
and all filters correctlyinserted.
�Underno circumstancesshouldtheappliance beusedonthefollowing:
–Liquids orwetmaterials (e.g. carpet shampoo when wet)
–Glowingash,cigaretteends,matches etc.
–Combustible orin flammablesubstances
–Very fine dust(e. g. concrete dust)or toner
–Hard, pointedobjects suchas large splinters ofglass
1. Fit or removethe rod handledepending onwhetheryouwant to usethe vacuum cleaneras
a handheldora floorappliance.
2. You can usethevacuum cleanereitherwithouta nozzle or fit
one of the nozzles to the suctionopening.
3. To quickly unwind the cable from the floor vacuum cleaner, twist down the
cord holder on the top handle.
4. Insert the power plug in a wall outlet.
5. Set the On/Off switch to .
6. Move the suction opening or nozzle over the surface to be cleaned.
7. After finishing vacuuming, set the On/Off switch to and unplug.
8. After use, always empty the dust collector and clean the dust filter.

Cleaning
CAUTION
�Remove the power plug before cleaning and / or putting away.
�Do not use caustic or abrasive products to clean the housing or you may damage the surface.
�Never immerse the appliance in water.

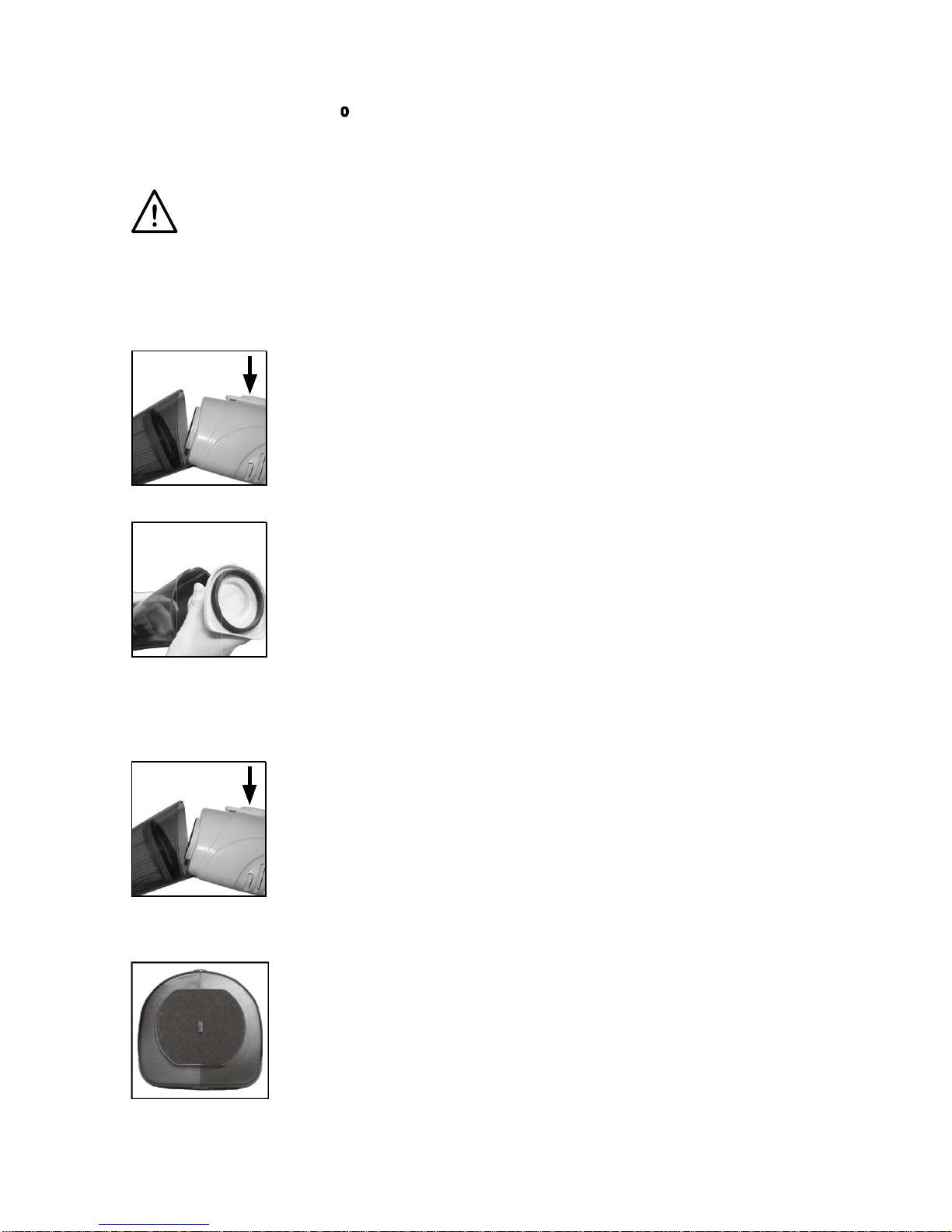

Emptying dust collector and cleaning dust filter.
1. Hold down the unlocking button for the dust collector and carefully
remove.
2. Hold the dust collector over a dustbin, carefully remove the dust filter and
empty the dust collector.
3. Bang the dust filter gently.
4. Then wash the dust filter under cold running water.
CAUTION: Do not wash the dust filter in the washing machine.
5. Leave the dust filter to dry in the air for 24 hours until completely dry before reinserting.
CAUTION: Never usea hairdryer.
6. Press thedustfilter firmlyback intothe dustcollectorso it fits closelyall roundthe wall of the housing.
CAUTION: Never usethe vacuum cleanerwithout the dustfilter inserted.
7. First insertthe dustfilter inthe bottom of the applianceand
then close.Press the unlockingbuttonfor the dustcollectorto
engage.The dustcollectormusthave securelyengagedatthe
top and bottom of the appliance.
Cleaning or replacing motor protection filter
Once you have removedthe dustcollector, you will find a piece
of non-wovenmaterialonthe open side of the appliance.This
is the motorprotection filter. It needs to be cleaned from time
to time.
1. Remove the motorprotection filter from the appliance andbang off the dust.
2. Rinse withlukewarm water.
3. Then give the motorprotection filter a goodshake andleave to dry off completely.
CAUTION: Never insertthe motorprotection filter whilestilldamp.
4. Check the motorprotection filter for damageandreplacewitha new one if necessary.
5. Reinsertthemotorprotection filter.
Cleaning housing
Cleanthe housingwitha slightlydamp,softcloth if necessary.

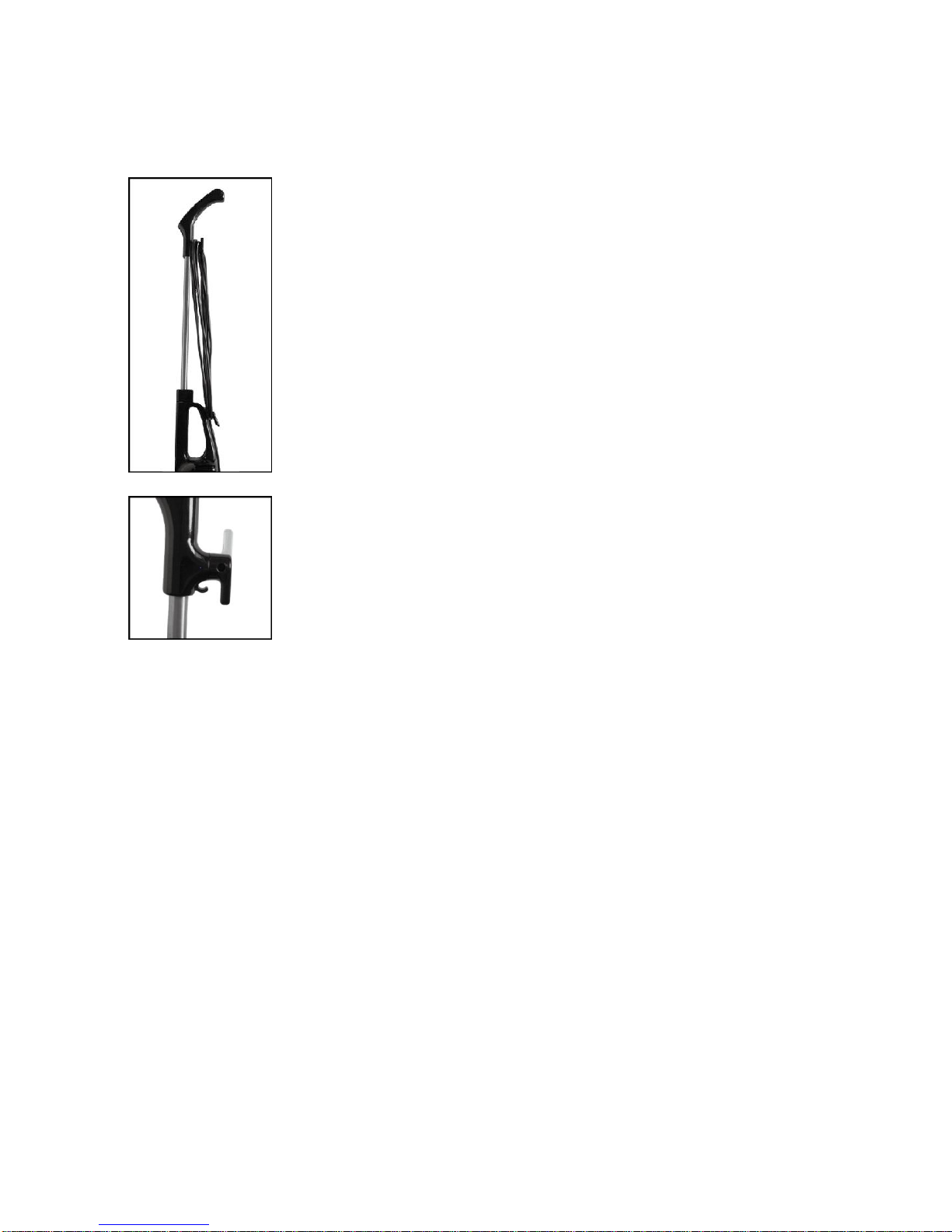

Storage • Once you have fitted the rod handle,you can windthe cord
aroundthe two cordholders before putting away.
• To quickly unwind the cable next time you use it, twist down the
cord holderonthe top handle.
• The vacuum cleaner should be stored indoors in acool, dry place.

Troubleshooting
If your appliance does not function, is damaged or requires a spare part, please do not make any repairs
yourself for your own safety.
The following table contains tips on how to deal with minor problems yourself:
Problem
Causes, Solutions, Tips
No suction action.
Check that the power plug is inserted properlyin the wall
socket.
The suction capacity is too
weak.
• Is the dust collector full?
Empty the dust collector.
•Is the dustfilter heavily soiled?
Clean the filter and leave to dry for 24 hours.
•Is the suction opening or nozzle blocked?
Unplug and remove the blockage.
Dust escapes from the appliance
during use.
• Is the dust collector full?
Empty the dust collector.
• Has the dustfilter not been inserted properly?
Press the dust filter firmly into the dust collector so it
fits closelyall-round the wall of the housing.
Strange smell
When the appliance is used for the first time, it is normal
for it to smell new: this will disappear over time.
Technical specifications
Model: MVC-SC861R & MVC-SC861B
Power supply: 220-240V~ 50/60Hz
Power consumption: 600 W
Protection class: II

美的手持推杆二合一吸尘器使用说明书
MVC-SC861R & MVC-SC861B
中国制造

尊敬的顾客，
感谢您购买美的手持推杆二合一吸尘器。作为手持吸尘器，它便携易用，可以轻松地为您
清洁室内家具，解决碎屑烦恼。作为推杆式吸尘器，它可以很轻松的完成大面积室内地面清洁
工作。它设计轻巧，使用简便，是您家居清洁的得力助手。
使用须知：
首次使用吸尘器前请仔细阅读使用说明书，并妥善保管。如果吸尘器转手他人，使用
说明书应和产品一起交付。因为不按照说明书使用，由操作不当引发的相关问题，制造商和进
口商将不予承担责任。为了适应不断发展的政策，我们保留对产品，产品包装及相关附件的修
订权。
符号说明:
危险警告
意见和建议
安全使用须知：
本产品仅限室内使用。
不当操作警告：
�严禁吸入以下物体，否则可能会损坏吸尘器或引起火灾，造成意外伤害。
–液体和潮湿物体（如，潮湿的地毯清洗液）
–发热物体，如炭头，烟头。.
–易燃易爆物品。
–有害物品，如溶剂，腐蚀剂，酸剂等。
–大截锐利碎片，如玻璃
远离儿童
�切勿让儿童玩弄，操作吸尘器，以免发生意外
�产品包装要远离儿童，以免引起窒息。
�智力或者生理有障碍的成人或儿童不宜使用本产品。
触电危险
�切忌将本产品投入水中或者其它液体，以免触电引发火灾
�双手潮湿时请勿使用本产品。请勿在高湿度的环境下使用本产品。
�本产品作为手持吸尘器清理汽车时，请避免雨天开窗或者高湿度环境。
�室内干燥环境存放本产品。
�如有产品故障，请立即切断电源。
�注意：为保障您的人身安全，请勿自己维修本产品。如出现故障，请将本产品送至最近的服
务站点进行维修。
�严禁在产品，电源线或者电源线插头损坏的情况下使用本产品.
�切勿拖拉电源线来移动本吸尘器。禁止将电源线缠绕在门上或者锋利的边缘。禁止将电源线
至于发热的表面。

�使用本产品前请检查供电电压与产品铭牌上标注电压保持一致。
�拔出插头前请关闭本产品。
�雷雨天气请勿将插头连接电源。
�切断电源线时请用干手拿住插头塑料部位拔下插头，避免拉开电源线。
意外伤害
�扁吸嘴请远离身体以免造成伤害。如果扁吸嘴堵塞，请立即将开关键调至 .
使用注意事项：
�滤网，电机保护网层需完全干燥后才可重新装入本产品。
�请在配件及滤网完全及正确组装的情况下使用本产品。
�为了您的人身安全，使用此产品是请检查产品和电源插头及电源线是否有损坏。如果损坏请
联系专业的维修机构进行维修。
�此产品工作时，电源线请合理放置以免将人绊倒。
�吸口必须永远保持通畅的状态，并且没有异物堵塞。否则，将引起马达过热造成事故。
�更换扁吸嘴时请关闭本产品。
�本产品打开后必须使用者不得离开。离开请关闭并拔出电源线。
�本产品暂停工作或者停止工作时请拔出电源线。
�请使用原厂供应配件。
保养注意事项
�检查吸口是否堵塞之前，请关闭开关并拔出电源线。
�请不要在此产品内放异物以免损坏核心部件。
�如此产品内不慎进入液体或者异物，使用之前请全面检查此产品。
注意损伤
�本产品上勿放重物。
�请勿将本产品接近热源，辐射源，火源或燃烧的香烟头。
清洁注意事项
�定期清洁滤网，尤其是注意到本产品吸力减弱时。否则会引起电机超负荷工作。
�本产品清洗前请确保拔下电源线。
�请勿使用洗衣机清洁尘杯过滤器。
�请勿使用吹风机干燥过滤器。需自然晾干。
�请勿使用腐蚀性或摩擦性产品清洁本产品表面以免损伤产品表层。
保修说明：
�以下情况恕不免费维修: 消费者使用，保管，维修不当造成损坏。非本公司指定维修部自行
装拆修理造成损坏。因不可抗力造成损坏。
�保修期限：购买之日起90
�购买之日起90天内，请将本产品和购机发票一同带到购买地点申请免费维修。

产品零部件名称
1. 手柄
2. 上绕线钩
3. 手柄杆
4. 电源线
5. 出风口
6. 尘杯
7. 滤尘网
8. 尘杯开启按钮
9. 开关按钮
10. 手柄锁块
11. 下绕线钩
12. 扁吸嘴
13. 地刷组件
14. 吸入口

组装
将手持吸尘器组装为推杆吸尘器
将各零部件从包装里面小心取出放在一块空地上。最好在地面上铺一层保护物以免损伤产品表
面。对照说明书一一检查每款零部件。
手持式吸尘器
包装打开后，本产品即可当做手持式吸尘器来使用。
推杆式吸尘器
1. 打开手持机上的手柄开关。
2. 将手柄杆插入直到手柄锁块锁紧。
3. 将手柄开关关闭，并且按牢。
拆除手柄杆
4. 打开手柄锁块.
5. 拔出手柄杆.
6. 重新关闭手柄锁块.
配件
安装和拆除扁吸嘴
注意
�更换扁吸嘴前，请保持本产品关闭状态。
● 将扁吸嘴插入吸入口进行安装。.
● 不需使用时将扁吸嘴从吸入口移除。

地刷组件
地刷组件适用于地毯，地板和瓷砖等光滑地面。
扁吸嘴
注意
注意伤害! �扁吸嘴请远离身体以免造成伤害。如果扁吸嘴堵塞，请立即将开关键调至 .
扁吸嘴适用于清洁缝隙，角落，护墙板及衬垫缝隙等；
操作指导
注意
�使用前请检查此产品所有零部件已经正确安装
�严禁吸入以下物体，否则可能会损坏吸尘器或引起火灾，造成意外伤害。
–液体和潮湿物体（如，潮湿的地毯清洗液）
–发热物体，如炭头，烟头。.
–易燃易爆物品
–有害物品，如溶剂，腐蚀剂，酸剂等。
–大截锐利碎片，如玻璃
1. 根据您需要使用手持吸尘器或推杆吸尘器决定取下或者安装手柄杆。
2. 您可根据实际情况选择是否使用吸嘴。
3. 需要释放电源线时，只要向左或者向右旋转上绕线钩即可快速释放电
源线。
4. 将电源插头插入电源
5. 将开关按钮调至 .
6. 将吸入口或扁吸嘴靠近需要清洁的区域.

7. 完成使用后请将开关调至 并移除电源线.
8. 为了达到最好的效果，请每次使用完毕后清空尘杯，清理尘杯过滤器。
清洁
注意
�清洗本产品之前请将电源线插头移除。
�请勿使用腐蚀性或摩擦性产品清洁本产品表面以免损伤产品表层。
�切勿将本产品浸入水中或其它液体中。
清空尘杯，清洗滤网
1. 按住尘杯开启按钮，从机身上取出尘杯
2. 在某个垃圾桶上方取出尘杯过滤器，清空尘杯。
3. 轻轻拍打尘杯过滤器。
4.若过滤器堵塞可在冷水中清洗过滤器，晾晒24小时后装在尘杯里面。
注意：切勿在洗衣机里清洗过滤器
注意：尘杯未装好前请勿使用本产品。
5.
首先，将滤网插入本产品的底部并关闭。按住尘杯开启按钮。尘杯需要安
全紧固的固定在机身上下才可使用。
清洗或更换电机保护网
尘杯取下后，你会发现在本产品出口处有一块无妨材料的保护层，这就是
电机保护层。这里需要经常清洗。

1. 从机身上取消电机保护层并轻轻拍打灰尘。
2. 用温水冲洗
3. 轻轻耍出积水并在阴凉干燥处晾至完全干燥。
注意：切勿将潮湿的电机保护层装进本产品。
4. 检查电机保护层是否有损坏，如有必要，需要更换新品。
5. 重新插入电机保护测
清洁表层
用柔软略湿的软布擦拭表层。
储存
本产品安装完成后，放置前将电源线缠绕上上下绕线钩上。
为了下次能够快速使用，将电源在绕在绕线钩上。
• 本产品需要存放在阴凉干燥处。

常见故障排除方法
为了您的安全，当吸尘器不能正常工作时，请勿随意维修。下表格为您展示了一些小故障的处
理方法；
故障现象
可能原因及处理方法
吸尘器不工作
插头插接不良。-插好插头
其它问题-联系售后服务
吸尘器吸力差
• 尘杯已满
清空尘杯
• 尘杯需清理或者更换
清理尘杯货更换过滤器
吸入口或者扁吸嘴堵塞
疏通吸入口或扁吸嘴
灰尘从机器中泄露出
来
• 尘杯已满
清空尘杯
•过滤器未正确安装
重新安装过滤器
异味
此产品初次使用时会有一些异味，这些异味会随着使用次数增多慢慢小
时
技术参数
型号：MVC-SC861R & MVC-SC861B
电压：20V~~ 50Hz
功率：600W
防护等级：II
