TECHNICAL CHARACTERISTICS
MR
INSTRUCTIONS FOR FINAL CONSUMERS/SPECIALIZED TECHNICIANS
ADJUSTMENT OF THE DETECTION AREA DEPTH: INFRARED
CONFIGURATION BY REMOTE CONTROL
. SAFETY INSTRUCTIONS
. THE PRODUCT
. PROGRAMMING
. INSTALLATION
. CONFIGURATION
. TROUBLESHOOTING
DESCRIPTION
DIMENSIONS
LED INDICATIONS
INSTALLATION AND CONNECTIONS
ADJUSTMENT OF THE DETECTION AREA DEPTH: RADAR
MAINTENANCE MODE
ADJUSTMENT OF THE DETECTION AREA WIDTH: INFRARED
CHECKING THE SETTINGS
ADJUSTMENT OF THE DETECTION AREA WIDTH: RADAR
SET AND CLEAR FOURDIGIT SECURITY CODE
LED INDICATORS COMMAND LED
00. CONTENT
INDEX
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.
ATTENTION:

A B
ENEN
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•Thismanual isintended firstlyforspecialized technicians, anddoesnot
invalidate the user’s responsibility to read the “User Norms” section in
order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and other
mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical,sensorialormentalcapacitiesarelower,orbypersonswithout
any knowledge of the product, provided that these are supervision
and instructions given by persons with experienced in terms of usage
of the product in a safe manner and who understands the risks and
dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
01. SAFETY INSTRUCTIONS
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you have
all the devices and materials necessary to complete the installation
of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know how
to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a door
locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements do
not support its weight. If necessary, add brackets at strategic points
to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if the
necessary mechanical stops are in the appropriate places.
•The central must be installed on a safeplace ofanyfluid (rain,moisture,
etc.), dust and pests.
•You must route the various electrical cables through protective tubes,
to protect them against mechanical exertions, essentially on the
power supply cable. Please note that all the cables must enter the
central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m from
the ground or other level of access, the minimum safety and health
requirements for the use of work equipment workers at the work of
Directive 2009/104/CE of European Parliament and of the Council of 16
September 2009.
•Attach the permanent label for the manual release as close as possible

A B
ENEN
to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the electrical
panel, must be provided on the product’s fixed power supply leads in
accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it must
immediately disconnect from the power supply to avoid short circuits,
and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•Ifthesystemrequiresanyrepairormodification,unlocktheautomatism,
turn off the power and do not use it until all safety conditions have
been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult this
manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in in
motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if the
product is in motion.
01. SAFETY INSTRUCTIONS
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.

A B
ENEN
. THE PRODUCT . THE PRODUCT
MR
• Installation height 3,5 - 6.5 meters
• Supply voltage 12 to 24Vac/dc 50/60 Hz
• Power consumption 12Vac (máx. 1,5VA) - 24Vac (máx. 3,3VA)
12Vac (máx. 150mA) 24Vac (máx. 80mA)
• Exit
Exit IR Optical relay (no polarity)
48Vdc 300mA
Radar Output Optical relay (no polarity)
48Vdc 300mA
• Operating temperature -20 a +60C
• Operating humidity < 80%
• IP IP65
• Weight 1.30kg
Reflection Sensor
• Detection method Active infrared reflector
• Response time 0,25 sec. approx.
• Presence timer 30 sec., 1, 2, 5, 10, 20 min., 1,2 hours. or 
Radar Sensor
• Detection method Moving body detection
• Transmission frequency 24,15 GHz
• Response time 0,1 sec. approx.
Note: Features are subject to change without notice.
The MR65 is a radar ideal for large doors, such as high speed doors, and can be installed up to .m high.
It has detection technology capable of differentiating people and vehicles, reducing unwanted openings,
thus saving energy.
TECHNICAL CHARACTERISTICS
LED INDICATIONS
Green On hold
Flashing Green Sensor Starting
Red Infrared sensor and/or RADAR sensor detected
Flashing Red RADAR detected
Yellow Internal detection "Line " is detecting the door moving
Flashing (fast) Green/red Sensor’s internal error
DESCRIPTION
DIMENSIONS
Sensor Wire
Remote control
receiver
Fixing support
Radar Sensor
Infrared Sensor
Confirmation LED
(Blue, Yellow and Red)
Operation LED sensor
body (Red, Green)
Adjustment of radar sensor
detection area
mm
.mm
mm
°
°
mm
.mm
mm
User manual Cable Fixing screws ( pcs.)


1
2
3
4
1
2
2
3
4
EN
03. INSTALLATION
INSTALLATION AND CONNECTIONS
To ensure the correct functioning of the MR, please note the following indications:
• Prevent the installation site from having accumulation of snow or water on the ground;
• Adjust the sensor body so that it does not detect the door;
• The Radar part of the MR can be negatively influenced by metal from the detection
field;
• Install at a maximum height of . meters;
• Make sure no condensation forms on the sensor;
• Make sure there are no moving objects in the detection zone;
• Ensure minimal sunlight reflected from the floor;
• Use different frequency settings when there is more than one sensor nearby
Drill the fixing holes (. mm) according to the fixing support markings.
Remove the sensor body from the fixing support.
DETAIL A
Secure the fixing support with the mounting screws provided.
Place the sensor body on the fixing support. Pass the cable through the fixing
support.
Make the connections according to the diagram below. (See detail A)
Red
Black
White
Green
Yellow
Blue
Gray
Brown
Power supply (no polarity)
Output  (Radar Output)
Output  (Radar Output)
Do not use
Sensor Wire

A B
6.5
6.0
5.0
4.0
3.5
3.0
2.0
1.0
0
1.01.02.03.04.05.0 0
6.5
6.0
5.0
4.0
3.5
3.0
2.0
1.0
0
1.01.02.03.04.05.06.07.08.09.0 0
[m] [m]
32°
ENEN
. PROGRAMMING
ADJUSTMENT OF THE DETECTION AREA DEPTH: INFRARED
. PROGRAMMING
ADJUSTMENT OF THE DETECTION AREA WIDTH: INFRARED
Installation height: 3500mm
Installation height: 5000mm
When the angle of the sensor
body is set to 32° When the angle of the sensor body is set to 16°
[Distant] [Close]
32°(distante) 32°(distante)
16°(próximo) 16°(próximo)
0° 0°
When the angle of the sensor
body is set to 32°
When mounted
on the wall When ceiling mounted
When the angle of the sensor
body is set to 16°
01 • Adjust the detection angle between 16˚ and 32˚ by moving the body angle.

A B
6.5
6.0
5.0
4.0
3.5
3.0
2.0
1.0
0
1.01.02.03.04.05.0 0
6.5
6.0
5.0
4.0
3.5
3.0
2.0
1.0
0
1.01.02.03.04.05.06.07.08.09.0 0
[m] [m]
+25° +25°
-10° -10°
32° 16°
ENEN
. PROGRAMMING
ADJUSTMENT OF THE DETECTION AREA DEPTH: RADAR
distant distantclose close
Installation height: 3500mm
25°(distant) -10°(close) 0°(IR - line 3)
Installation height: 5000mm
Sensor body angle
set to 32°
Sensor body angle
set to 32°
Sensor body angle
set to 16°
Sensor body angle
set to 16°
. PROGRAMMING
ADJUSTMENT OF THE DETECTION AREA DEPTH: RADAR
-10°
-10°
-10°
-10°
25°
25°
25°
25°
The detection area varies according to object size and approach speed. The radar is
designed to detect only large objects and not people.
01 •
Adjust the detection width by turning the controller clockwise or counterclockwise.

A B
MR65 - RC
12 3
45 6
78 9
AB C
DE F
GH I
*#
ENEN

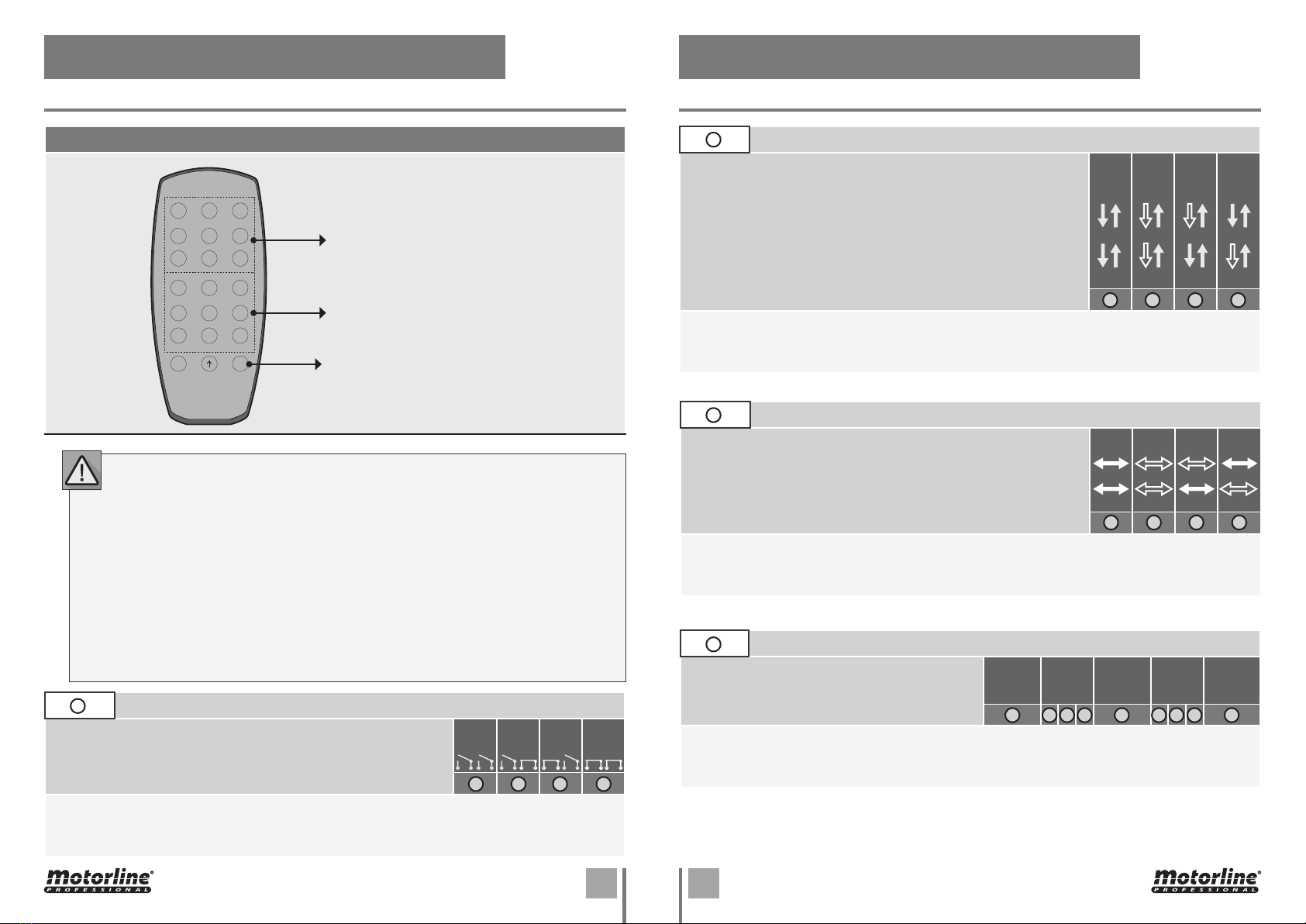

ADJUSTMENT OF RADAR SENSITIVITY
This menu allows you to set the radar detection
sensitivity. The factory default is [5].
MINIMUM
VALUE FACTORY VALUE MAXIMUM VALUE
1 2 3 4 5 6 7 8 9
01 • Press function key [D] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
. CONFIGURATION . CONFIGURATION
CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL
CONFIGURATION VALUES
FUNCTIONS
CONFIRMATION
RELAY OUTPUT
This menu allows you to set the status of the relay output (IR/Radar).
The factory value is [3].
NO/NO NO/NC NC/NO NC/NC
1 2 3 4
01 • Press function key [A] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
DIRECTION DETECTION
This menu prevents the sensor from detecting an object that moves
away from the sensor. Factory default is [1].
Nota • A deteção de direção infravermelho (IR) funciona apenas
quando todos os IR pontos de deteção estão ativos. (5x12 pontos)
BOTH APPROX.
ONLY APPROX. JUST GO APPROX. RADAR
ONLY
1 2 3 4
01 • Press function key [B] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
CROSS TRAFFIC
This menu prevents the sensor from detecting movement parallel to
the door. Factory default is [1].
Note • Infrared (IR) direction detection works only when all IR
detection points are active.
OFF ON IR ON RADAR
ON
1 2 3 4
01 • Press function key [C] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
IR
IR IR IRIR
IR IR IR
RADAR
RADAR RADAR RADARRADAR
RADAR RADAR RADAR
ATTENTION:
• If the [1-9] button is not pressed and the [#] button is pressed, the last selected [1-9]
button becomes valid.
• When the [#] button is pressed after pressing the [1-9] button, the setting is confirmed
and saved.
• The last function selected on the remote control is the one that will be changed when
the [1-9] buttons are pressed.
(example: [C] followed by [2] sets Cross Traffic ON)
• If you press the [#] button without pressing the [1-9] button, it will exit the setting state
without any settings being saved.
• You can switch from one function setting to another as many times as you like until the
[#] button is pressed. D
C
B
A



     






  

A B
ENEN
ADJUSTMENT OF INFRARED SENSITIVITY
This menu allows you to set the infrared detection
sensitivity. The factory default is [4].
MINIMUM VALUE FACTORY VALUE MAXIMUM
VALUE
1 2 3 4 5 6
01 • Press function key [E] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.

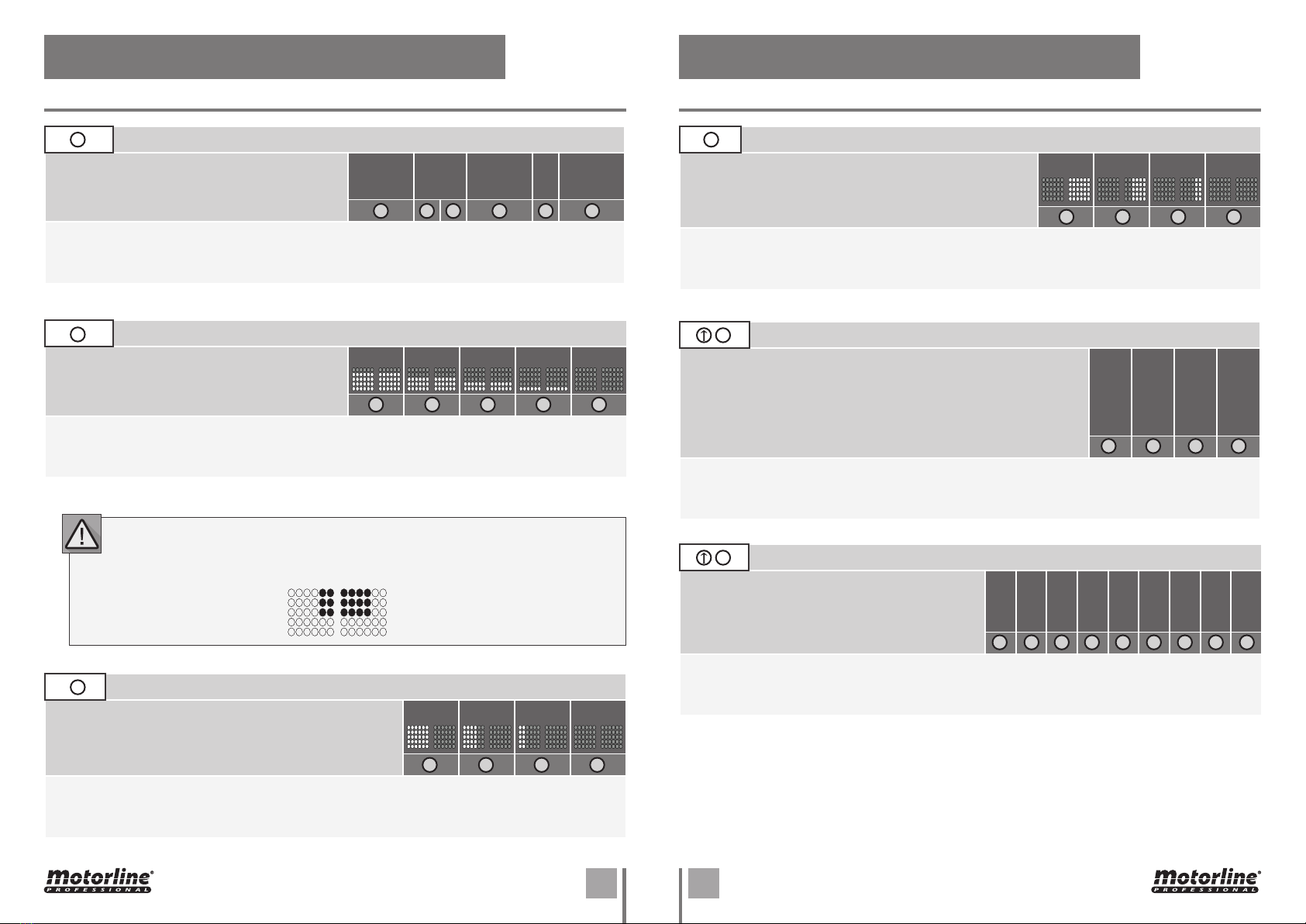

INFRARED DETECTION LINES
This menu allows you to set the number of infrared
detection lines. The factory default is [5].
1 2 3 4 5
01 • Press function key [F] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
. CONFIGURATION . CONFIGURATION
CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL
INFRARED WIDTH ADJUSTMENT - LEFT SIDE
This menu allows you to set the infrared detection width for
the left side of the sensor. The factory default is [4].
L L L L
1 2 3 4
01 • Press function key [G] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
INFRARED WIDTH ADJUSTMENT – RIGHT SIDE
This menu allows you to set the infrared detection width for
the right side of the sensor. The factory value [4].
R R R R
1 2 3 4
01 • Press function key [H] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
INFRARED FREQUENCY
This menu allows you to set the infrared frequency.
Factory default is [1].
Note • When more than two sensors are installed in close proximity,
select different frequency settings for each sensor to avoid cross
interference.
A B C D
1 2 3 4
01 • Press function key [↑+ A] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
INFRARED PRESENCE TIME
This menu allows you to set the amount of time
the infrared will detect the same object in its 5
detection lines. Factory default is [1].

Sec.  MIN  MIN  MIN  MIN  MIN  H H
1 2 3 4 5 6 7 8 9
01 • Press function key [↑+ B] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
Detection lines and detection width can be set independently. Like for example:
L R
 lines
B
A
HE
F
G






















     

A B
ENEN
INSECTS MODE
This menu allows you to reduce malfunctions caused by insects.
Factory default is [1].
OFF ON
1 2
01 • Press function key [↑+ C] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
VIBRATION MODE
This menu allows you to reduce malfunctions caused by vibrations in the sensor body.
Factory default is [1].
OFF ON
1 2
01 • Press function key [↑+ E] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
INFRARED DETECTION TARGET
This menu allows you to set the detection target for infrared area detection, which
can be set as "Vehicle and people" or "Vehicle only".
Factory default is [1].
VEÍCULO
E PESSOA VEÍCULO
1 2
01 • Press function key [↑+ F] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
. CONFIGURATION . CONFIGURATION
CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL
SURROUNDING ENVIRONMENT MODE (SNOW)
This menu allows you to reduce malfunctions caused by
snowfall. Factory default is [1].OFF LOW
(FIX) MID (FIX) HIGH (FIX) LOW (AUTO) MID (AUTO) HIGH (AUTO)
1 2 3 4 5 6 7
01 • Press function key [↑+ D] .
02 • Press the numeric key to change the value.
03 • Press #to save the new value.
When set to any of the settings (Fix), the sensor operates in this state regardless of outside
temperature.
When set to any of the settings (Auto), the sensor operates in this state at a temperature
C. At temperatures of C this mode is disabled.
The radar detection target only detects vehicles in your area instead of people.
F

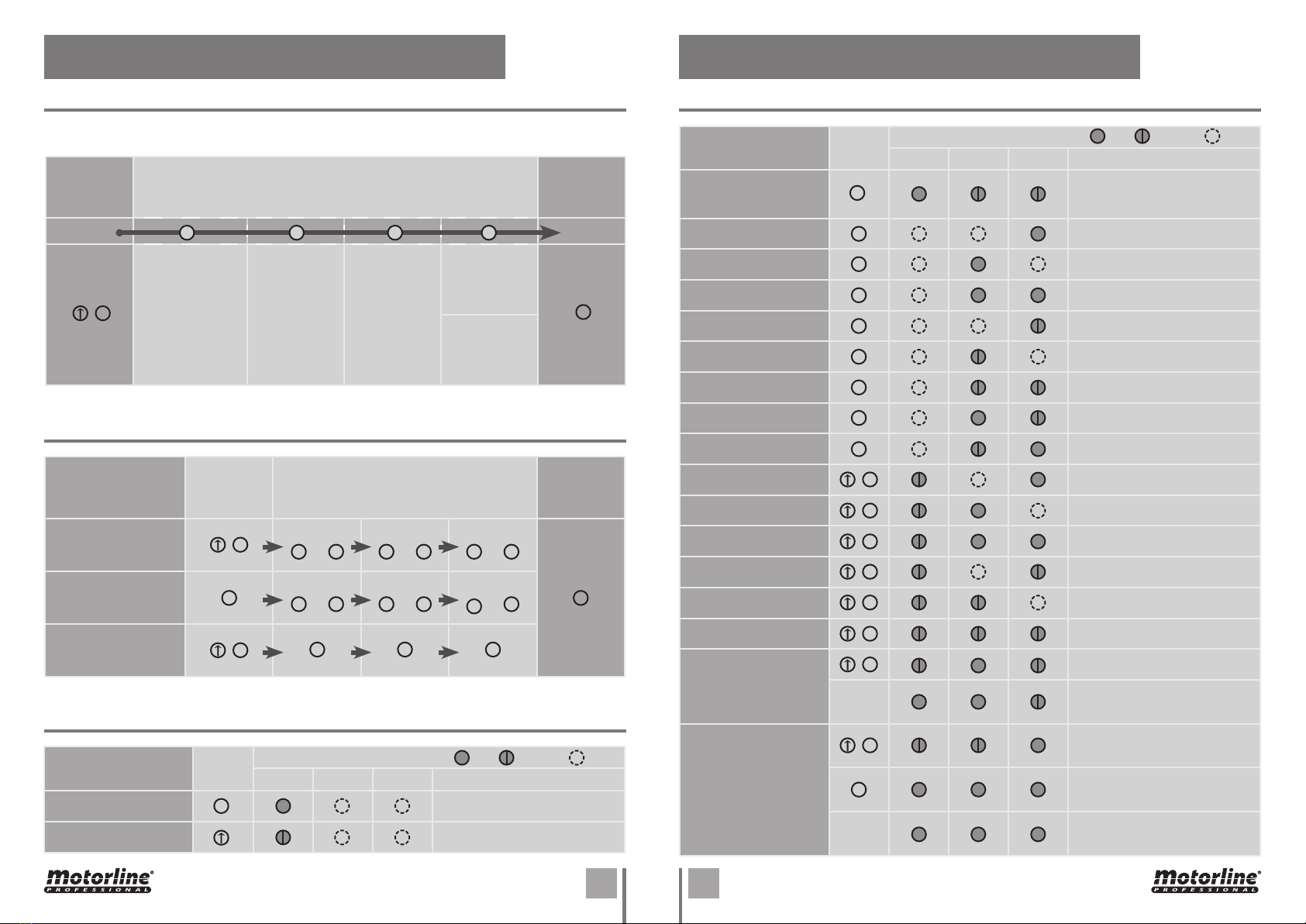

CHECKING THE SETTINGS
01 • The configuration of any sensor function can be checked as follows.
Trigger
configuration
verification
Function
selection Confirmation Visual confirmation Finish
The green LED flashes from []
to [] times to confirm
the actual sensor configuration.

AH 
*

AF
E
D
C






   

A B
ENEN
. CONFIGURATION . CONFIGURATION
MAINTENANCE MODE LED INDICATORS COMMAND LED
LED INDICATORS COMMAND LED
01 • This setting is used during maintenance.
Function
selection configuration options Finish
Permanently
activate the relay
to open the door
so that the
position of
detection line 
can be verified
Cancel the
permanent
activation of
the relay
Return to
factory
settings
Soft reboot
Reboot the
sensor
H
SET AND CLEAR FOURDIGIT SECURITY CODE
Function Select the
function Press a -digit number Finish
Set a security code choose between
and
choose between
and
choose between
and
Unlock the security code choose between
and
choose between
and
choose between
and
Clear the security code
Function Button Blue Yellow Red
Complete When the [] button is pressed, the sensor LED flashes green to indicate
registration
Relay Output (IR/Radar)
Direction detection
Cross traffic
Radar sensitivity
IR sensitivity
IR line
Left Side - IR
Right side - IR
IR frequency
IR Presence Timer
Anti-insect mode
Ambient mode (snow)
Vibration Mode
IR detection target
Maintenance mode
When [] is selected
Access code operation
Setting/Clearing a Security Code
Security Unlock Code
Full Security Unlock Code
Function Button Blue Yellow Red
Settings Confirmation
-

I







  




I
I
   

*
I
A
B
C
D
E
F
H
I
H
G
F
E
D
C
B
A
On
On
Off
Off
Flashing
Flashing

 EN
Problem LED Possible cause Solution
The door does not
open when a person
enters the detection
area
Turned off
Incorrect supply voltage. Apply the proper voltage to the sensor (12-24V ac/dc).
Incorrect sensor connection. Check sensor connection again.
The door opens and
closes for no apparent
reason
Door opens, red
or flashing red
The door closes,
green
Move object in detection area. Remove the moving object from the detection area.
Very high sensitivity to the installation environment. Lower the sensor sensitivity setting.
Dust, ice or water drops on the sensor lens. Clean the sensor lens.
The detection area corresponds to that of another sensor. Check if each sensor's frequency setting is different. Adjust detection areas so that
they do not overlap.
snow detection Set the Environment (snow) mode according to the amount of snow.
Detection of flying insects Set insect mode to "ON"
When the door opens
or closes Yellow The "line 1" detection line is detecting too close to the door. Adjust the infrared detection area away from the door.
The door opens and
stays open
Red
The detection area changes while the infinite presence timer setting is in use. Turn the sensor back on or change the presence timer settings to something other
than infinity.
Incorrect sensor connection. Check sensor connection again.
Saturation of the reflected signal. Remove very bright objects from the detection area.
Decrease sensor sensitivity setting.
Flashing red Object movement in the radar detection area Remove moving objects from the detection area.
Fast flashing
green/red Internal sensor error. Replace the sensor.
INSTRUÇÕES PARA CONSUMIDORES FINAIS/TÉCNICOS ESPECIALIZADOS
. TROUBLESHOOTING
