ATTENTION:
MF2020
TECHNICAL CHARACTERISTICS
NUMBER OF SENSORS
IDENTIFICATION OF PARTS
DIMENSIONS AND DESCRIPTION
CARE DURING INSTALLATION
INSTALLATION
OPERATING MODE
CONNECTION SCHEME
INSTRUCTIONS FOR CONSUMERS AND SPECIALIZED TECHNICIANS
01. SAFETY INSTRUCTIONS
02. THE PRODUCT
03. INSTALLATION
05. OPERATION
04. CONNECTIONS
06. TROUBLESHOOTING
CHANGE OPERATING MODE
RELAY OUTPUT
TEST INPUT
TIME DIAGRAM
LED SIGNALING

2EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•This manual is intended firstly for specialized technicians, and does
not invalidate the user’s responsibility to read the “User Norms”
section in order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any
action, unless explicitly requested by specialized technicians to do
so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical, sensorial or mental capacities are lower, or by persons
without any knowledge of the product, provided that these are
supervision and instructions given by persons with experienced in
terms of usage of the product in a safe manner and who understands
the risks and dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you
have all the devices and materials necessary to complete the
installation of the product.
•YoushouldnoteyourProtectionIndex(IP) andoperatingtemperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know
how to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a
door locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
• Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if
the necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain,
moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially on
the power supply cable. Please note that all the cables must enter
the central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m
from the ground or other level of access, the minimum safety and
health requirements for the use of work equipment workers at the

3EN
work of Directive 2009/104/CE of European Parliament and of the
Council of 16 September 2009.
•Attach the permanent label for the manual release as close as
possible to the release mechanism.
•Disconnect means,suchas aswitch orcircuitbreakerontheelectrical
panel, must be provided on the product’s fixed power supply leads
in accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it
must immediately disconnect from the power supply to avoid short
circuits, and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
conditions have been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in
in motion, and do not create strength to the gate movement.
Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
• Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
• Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
• In these cases, the warranty is voided.
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal
01. SAFETY INSTRUCTIONS
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information

4A 4B
B
C
D
A
ENEN

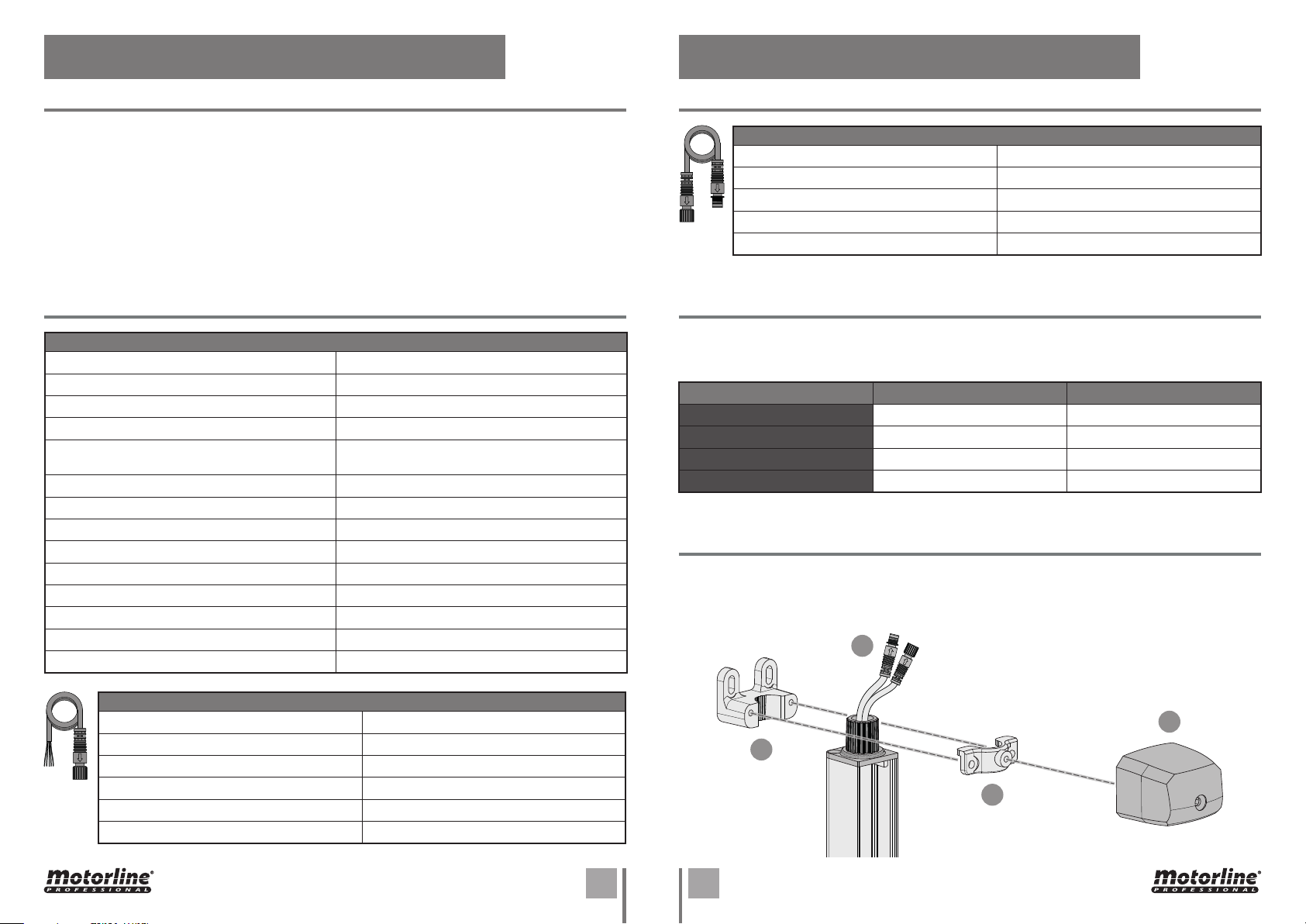

02. THE PRODUCT
MF
. THE PRODUCT
TECHNICAL CHARACTERISTICS
Depending on the maximum length chosen for the MF, the protection distance and number of
sensors in each column of photocells vary:
TECHNICAL CHARACTERISTICS NUMBER OF SENSORS ON DIFERENT MODELS
IDENTIFICATION OF PARTS
Length/Model Protection height Number of sensors
MF2020-1425 mm 1305 mm 17
MF2020-1825 mm  mm 21
MF2020-2225 mm  mm 25
MF2020-2625 mm  mm 29
CONNECTION CABLE TO THE CONTROL BOARD
• Length 3 m
• Connection Screw-on (M8) | 5 pins
• Diameter ∅4,2 mm
• Wires AWG28
• Material Polyurethane (PUR)
• Protection degree IP67
SYNC CABLE
• Length 10 m
• Connection Screw-on (M8) | 4 pins
• Diameter ∅3,5 mm
• Material Polyurethane (PUR) with shielding
• Protection degree IP67
To facilitate the identification of the parts in the installation diagram, each part of the photocell columns
is identified with a letter:
The MF is a column photocell developed to safeguard all types of industrial doors (sectional and
high-speed doors) up to a maximum width of  meters.
The emitter and receiver create an infrared beam grid offering protection up to . meters high.
When the infrared beams are interrupted, a signal is sent to the control board. Once the detention area
is clear, a new signal is sent to the control board to indicate that the area is clear.
The photocell has three operating modes:
Static,Sequential and Sequential for transparent tarpaulins.
GENERAL
• Power supply 12-24 Vdc
• Consumption (29 elements at 24Vdc) 100 mA
• Protection degree IP67
• Working temperature -20°C to 60°C
• Operating mode Sequential | Static | Sequential for transparent
tarpaulins
• Output Relay (NC)
• Output load 1A (30 Vdc) | 0,3A (125 Vac)
• Maximum response time 70 ms
• Supervision timer 265 ms
• Operating distance 1 a 10 m
• Number of elements 17 | 21 | 25 | 29
• Maximum protection height 2505 mm
• Material Lacquered aluminum
• Speed in sequential mode 1.4 m/s

5A 5B
1305 | 1705 | 2105 | 2505
49
24
10050
350
28
33
RX
RXTX TX
1425 | 1825 | 2225 | 2625
1370 | 1770 | 2170 | 2570
ENEN
02. THE PRODUCT . INSTALLATION
CARE DURING INSTALLATIONDIMENSIONS AND DESCRIPTION
Photocell Status
LED
Sector Status
LEDs
Upper beam
Distance between
sensors
Distance between
sensors Lower zone with more
sensors to ensure greater
protection close to the
ground
Lower beam
Dimensions in mm
For the correct functioning of the photocells, it is necessary to pay attention to some aspects during
the installation process.
Make sure that the lower edge of the
photocell columns is aligned with the level of
the door in the closed position.
You should avoid exposing the photocells
(especially the photocell receiver) directly to
sunlight.
Other types of devices that emit infrared light
such as photocells and other light curtains
should also be avoided.
Also avoid areas with a reflective surface.
Make sure the columns are installed with the
cable ends facing up.
• COLUMN ALIGNMENT
• AVOID SUN EXPOSURE
• PHOTOCELLS ORIENTATION

6
4a
360°
3
3
2
2
4
1
D
A
EN
03. INSTALLATION
INSTALLATION
Before starting the installation, turn off the main power supply to the door control board and
make sure that this system is completely deactivated.
• ASSEMBLY OF PHOTOCELL COLUMNS
Remove covers (D) from columns (A) by loosening the screws on
each cover.
Place the photocell receiver (RX) in the place to be fixed, mark the 4
necessary holes, drill and tighten.
The output of the cables must always face upwards.
Repeat with the other photocell (TX), ensuring both columns are at
the same height (aligned horizontally).
Adjust the orientation of each column so that they are aligned
between them:
• Slightly loosen the clamp screws (C);
• Rotate the columns until they are perfectly aligned (Detail 4a);
• Retighten the clamp screws (C) to lock this position.
SEQUENTIAL MODE
• ALIGN THE PHOTOCELL BEAMS
1
2
3
4

7
9
d
c b a
7
d
5
b
c
a
8
D
RX TX
EN
03. INSTALLATION
INSTALLATION
Make the cable connections in the following order:
Connection a: TX Photocell (emitter) with Synchronization Cable;
Connection b: Synchronization Cable with RX Photocell (receiver);
Connection c: RX Photocell (receiver) with Connection Cable;
Connection d: Connection Cable with Control Board (see page 8A);
Power the door control board and check the photocell Signaling Leds
(see page 9B).
Test the functioning of the system by carrying out an opening/closing
maneuver, verifying that the photocells do not interfere with the normal
movement of the door.
Then repeat the maneuver and place yourself in the area protected by
the photocells and check if it reverses the direction of maneuver.
SYNC CABLE
Pass the photocell cables through holes centered with the supports (B)
of each column, in order to make the connections between them and
with the control board.
This way, they will be hidden by the covers (D).
Replace the covers (D) on the supports (B) and fasten with the screws.
• MAKE THE CONNECTIONS
• TEST SYSTEM OPERATION
5
7
6
8
9

8A 8B
ENEN
04. CONNECTIONS
CONNECTION SCHEME
CONNECTION COLOR
• Power supply Red
• GND (V) Black
• Relay output (NC) Green
• Relay output (COM) Yellow
• Test input Blue
Power Supply GND (0V) Relay output
(NC) Relay output (COM) Test input
•Photocell
emitter (TX) •Photocell receiver (RX)
•Connecting
cable
•Sync Cable

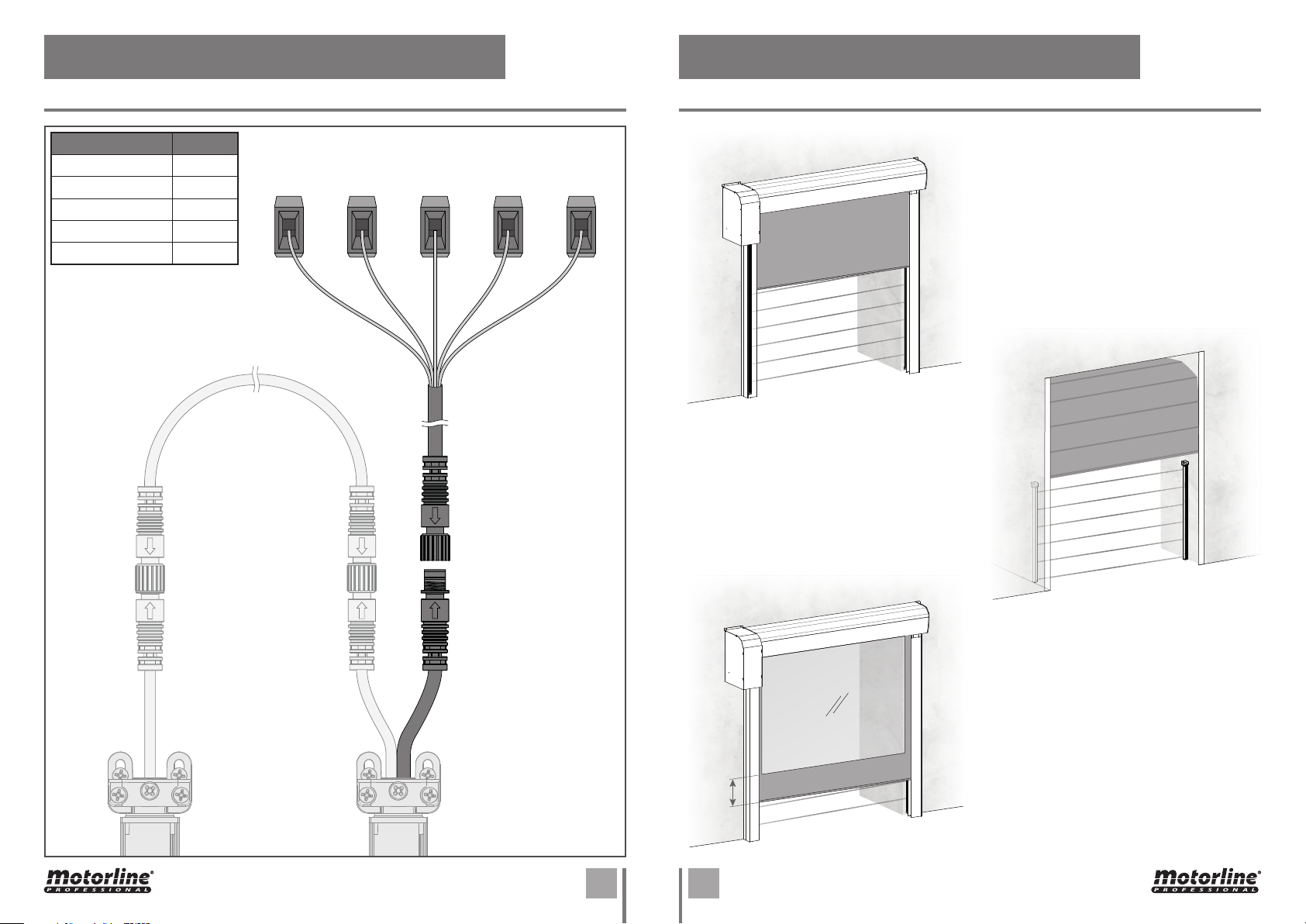

OPERATING MODE
Photocells can operate in three different modes:
• SEQUENTIAL MODE
The photocell is able to differentiate between
an interruption caused by an object and the
movement of the door.
For this mode to work correctly, the door must be
opaque.
• SEQUENTIAL MODE FOR TRANSPARENT
TARPAULINS
The photocell is able to differentiate between
an interruption caused by an object and the
movement of the door.
For this mode to work properly, the bottom of
the tarpaulin must be opaque by at least 200mm.
• STATIC MODE
In this mode, the photocell will reverse
the maneuver when one of the sensors is
interrupted.
05. OPERATION
Min.
200mm

9A 9B
4
5
6
7
8
9
10
9
1
2
3
4
5
6
7
8
10000
T3T1 T5T4T2
ENEN
RELAY OUTPUT
TEST INPUT
TIME DIAGRAM
When an object enters the area protected by the light curtain the output switches to open contact (NO)
after the response time.
When the object leaves the area, the output returns to closed contact (NC).
This diagram allows, during a test, to verify the behavior of the photocell and its interaction on a time
scale, showing the conditions that change during that period.
To check if the photocell is working correctly, this function allows the photocell to be self-tested
through a pulse of at least 100ms to GND (0V) executed by the door control board.
If the photocell is working correctly, it will switch the relay output.
05. OPERATION 05. OPERATION
If you do not want to use this feature, you must connect the test cable to the power cable.
Value Description Time
T1 Startup time 1000 ms
T Response time 70 ms
T Recovery time 350 ms
T Test response time 30 ms
T Reboot time 100 ms
T Test time 100 ms (minimum)
Power supply
T6 (TEST)
V+
GND
NC
NO
V+
GND
Object
No Object
Test input
Object
detection
Output (Relay)
CHANGE OPERATING MODE
Photocell Status LED
Sector Status LEDs
To select the next Operating Mode, follow these
steps:
01 • Turn off the power supply photocells;
02 • On the photocell receiver (RX) cover sensors 6
and 9from the top and keep the others clear;
03 • Reconnect the photocells to the power supply.
The photocell will operate in the next Operating
Mode.
04 • Uncover sensors 6and 9again.
By default the photocells are in
SEQUENTIAL Mode (max speed of 1.4 m/s).
Whenever you carry out the steps to change the Operating Mode, the photocell assumes the
mode immediately following the mode that is active by the following order:
• SEQUENTIAL  STATIC  SEQUENTIAL FOR TRANSPARENT TARPAULINS  SEQUENTIAL 
To detect the current Operating Mode of the photocell, you must observe the behavior of the RX
Photocell Status LED:
Mode Status LED (RX Photocell)
SEQUENTIAL Blinks  time every  seconds
STATIC Always on
SEQUENTIAL FOR TRANSPARENT TARPAULINS Blinks  times every  seconds

10A 10B
(RX) (TX)
ENEN
06. TROUBLESHOOTING
INSTRUCTIONS FOR CONSUMERS AND SPECIALIZED TECHNICIANS
LED Status
Solution
Green TX
LED Green RX LED Yellow RX LED
• Check electrical connections;
• Check if the power supplied to the control board is correct.
• Check the Sync Cable connection.
• Make sure the test input cable is connected correctly;
• If you are not using the test feature, connect this to the
photocell supply (V).
• Check the Sync Cable connection.
LED On LED Off Fast flashing LED
05. OPERATION
Green LED Yellow LED Photocell Status
The light curtain is functional
No communication between photocells
Test input off
Without power
Green LED Red LED Sector State
Clear sector
Obstructed sector
Green LED Photocell Status
With power
Without power
LED SIGNALING
• Photocell RECEIVER (RX)
• Photocell EMITTER (TX)
LED On LED Off Blinking LED
Photocell Status
Sector  LED ( sensor board)
Sector  LED ( sensor board)
Sector  LED ( sensor board)
Sector  LED ( sensor board)
Sector  LED ( sensor board)
In the mm column
there are  sectors.
The status of sector 
is represented on the
same LED as sector  (
sensors).
