Nav TV GVIF-CTS User manual

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 | P a g e
3950 NW 120th Ave, Coral Springs, FL 33065 TEL [phone] FAX [phone]
www.nav-tv.com i[email protected]m
GVIF-CTS
NTV-KIT201
Overview
The GVIF-CTS Kit allows the user to add up to 3 video inputs and a backup camera input to the
factory media screen in select GM vehicles. Audio integration requires that the vehicle have a
factory audio input.

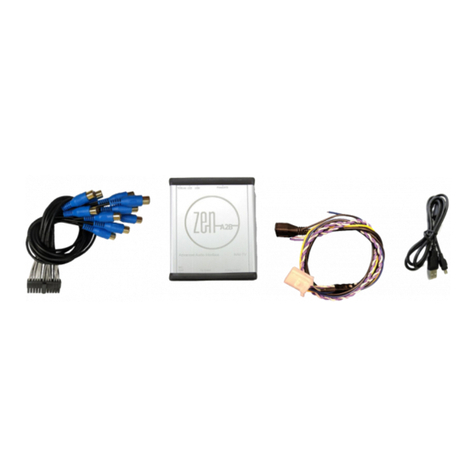

Kit Contents
AV Input Harness
Power/CAN Harness
GVIF Video cable
GVIF-CTS Interface
Remote
RGB Input cable
Input Toggle Switch
IR Eye Harness

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e
Interface Connectors
Dip Switch Settings* Configure prior to installation
Dip SW:
1
2
3
4
5
6
7
8
UP
Enables
RGB
Enables
V1
Enables
V2
Enables
V3
Resolution
adjust
Keep UP
Factory or
no Rev-Cam
N/A
DOWN
Skips
RGB
Skips
V1
Skips
V2
Skips
V3
Resolution
adjust
Keep UP
Activates
aftermarket
Rev-Cam
N/A
AV IN/OUT
OUOUT
Power/CAN
OUOUT
Dip Switches
Status LEDs
*Note: If the dip switches are not configured prior to
installation you must remove power to the unit prior to
making adjustments to the dip switches. When power is
reconnected after the dip switch adjustment the new
settings will be stored into memory.
LCD IN/OUT
(LVDS Cable)
Touch
IN/OU
T
OUOU
T
TX/RX

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
3 | P a g e
OEM GVIF Radio
Installation
1. Remove the factory radio. This usually requires pulling panels and removing a series of
screws. Disconnect any associated harnesses and set the radio aside.
2. Gather the provided ‘Power/CAN Harness’ from the GVIF-CTS kit. Connect the
following wires to the car:
Note: CAN connection is not supported at this time. You must connect the GRAY wire
to a reverse lamp for reverse activation!
3. Disconnect the factory GVIF cable from the factory
radio, this is square, blue connector.
4. Connect the male side (labeled ‘LXIN’) of the
provided GVIF video cable to the factory radio.
5. Connect the free end (removed in step 3) of the factory
GVIF video cable to the female side of the provided GVIF
video cable (labeled ‘LXOUT’).
6. Connect the white end of the GVIF video cable to the
interface at the port labeled ‘LVDS IN/OUT’.
7. Connect the AV Input cable to the port on the GVIF-CTS interface labeled ‘AV IN/OUT’. If
you’re only connecting a reverse camera (and no other
inputs), the signal input from the camera must connect
to the RCA labeled ‘REAR-C’. Refer to the dip-
switch settings chart to skip/enable AV sources
upon toggle switch presses (optional. Page 2).
8. Adjust dip switches on the GVIF-CTS interface properly, refer to the chart on page 2 for
qualifications.
9. Connect the white plug from the ‘Power/CAN Harness’ to the port on the GVIF-CTS
interface labeled ‘Power/CAN’.
Interface wires
Connect to car
Black (GND)
Chassis Ground
Red (ACC)
Accessory
Gray (Rear)
Reverse lamp 12v (Pin 2, Pink conn @ BCM)
(only if adding rear camera)

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
4 | P a g e
10. Optional: Connect the remote eye to the port labeled ‘IR’ (on the power harness) and
leave it in clear view of the driver (often it can be stuck inside a vent). This connection
would be necessary if you want to be able to adjust anything from the GVIF-CTS
interface’s menu. Refer to ‘Menu Adjustments’ for menu options.
11. Optional: Connect the provided momentary toggle switch to the port on the GVIF-CTS
interface labeled ‘MODE’. Pressing this switch with the ignition on will cycle the screen
modes as follows: factory screen > NAVI (RGB) > AV1 > AV2 > AV3 > factory screen.
Please refer to the dipswitch section on page 2 for input
settings.
12. Start the car and test for proper functionality before replacing dash pieces.
13. Note: All other included harnesses not mentioned in this manual are not needed for most
installations. If you would like to know more about the full capability of this interface,
contact NAV-TV tech support at 561-955-9770. Additional features not mentioned in this
manual are not supported by NAV-TV at this time.

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
5 | P a g e
Menu Adjustments
Before you start:
•Make sure the car’s ignition is on and radio is booted/settled
•You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on
display screen)
•Use the remote ‘OK’ button to switch modes, or use the
provided input toggle switch
•Hold the LEFT ARROW for 3 seconds. The Menu of FACTORY will
appear on screen.
v
IMAGE MENU
-The only setting that may need
necessary adjustment here would
be CAR MODEL (BMW/AUDI KITs)
Note: on some kits, this option is
located under ‘UTIL’
-The remaining settings are
optional and install dependent.
PARK MENU
PARK ENABLE: Rear-CAM
guidelines ON/OFF
PARK SETUP: Rear-CAM guideline
positioning
REAR SELECT: Change rear camera
activation from CAN to LAMP (gray
wire) Note: on some kits, this
option is located under ‘UTIL’
SAFE ENABLE: If ‘ON’, prevents AV
sources from showing (unless you
ground Blue ‘PARKING’ wire)
Rear-Select CAN to LAMP adjustment
1
2

BHM
11/01/18
NTV-DOC163
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
6 | P a g e
FAQs
Q. I cannot switch A/V sources.
A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit
up with vehicle ignition, check power/ground connections.
Q. All I see on the display is a black screen (no factory image pass-through).
A. Make sure the video cables (IN/OUT) are connected at the proper location
(Screen/Radio/NAV DRIVE).
B. Make sure the video cables are seated all the way.
C. Make sure Dip Switches 5 & 6 are set correctly (resolution or screen size).
Q. Displayed image color is not proper (too dim or color seems wrong).
A. Try to select ‘INITIAL’ in OSD menu.
Q. Rear camera image does NOT appear.
A. Make certain Dip Switch #7 in set down for aftermarket camera, or up for a factory
camera.
B. Try swapping the CAN connection wires. This will not do damage, if it is hooked up
wrong it will only not work.
C. Make certain the camera is properly powered. Check voltage at the camera itself.
D. Try an alternative video source, don’t assume the power/ground is correct unless
you’ve checked it with a multi-meter!
E. If this is a CAN-connected module and you’ve connected the CAN wires, try using the
gray wire (not all interfaces have this wire!) instead of the CAN connection for reverse
activation. You’ll also need to change the Rear Select option in the Menu of Factory (MENU 2)
under UTIL or PARK. Refer to the Menu Adjustments section.
Q. Unwanted A/V mode is displayed upon a toggle press (A/V source switching order:
OEM->RGB->AV1->AV2->AV3->OEM).
A. Check DIP Switch Setting. Refer to page 2.
