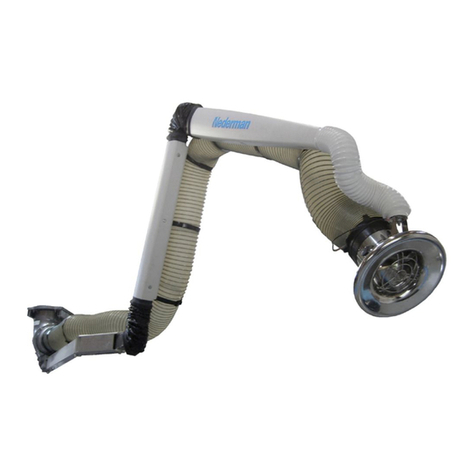

Nederman NEX D 2m User manual

User Manual
Extraction Arms, NEX D/DX
NEX D/DX
NEX 5 m
NEX 4 m
NEX 3 m
NEX 2 m
Originaluser manual
EN USER MANUAL
Translation of originaluser manual
DA BRUGERVEJLEDN NG
DE BED ENUNGSANLE TUNG
ES MANUAL DE USUAR O
F KÄYTTÖOHJE
FR MANUEL DE L'UT L SATEUR
T MANUALE DELL'UTENTE
NL GEBRU KERSHANDLE D NG
NO BRUKERMANUAL
PL NSTRUKCJA OBSŁUG
SV ANVÄNDARMANUAL
2022-10-28 2130038 (06)
EN
DA
DE
ES
FI
FR
IT
NL
NO
PL
SV

NEX D/DX
Trace back information:
Workspace Main version a68
Checked in 2022-10-28
Skribenta version 5.5.022

NEX D/DX
Declaration of Conformity ........................................................ 4
Figures .......................................................................................... 7
English ........................................................................................... 17
Dansk ............................................................................................. 24
Deutch ........................................................................................... 31
Español .......................................................................................... 38
Suomi ............................................................................................ 46
Français ......................................................................................... 53
taliano .......................................................................................... 61
Nederlands ................................................................................... 69
Norsk ............................................................................................. 77
Polski ............................................................................................. 84
Svenska ......................................................................................... 93
3

NEX D/DX
De laration of Conformity
EN English
De laration of Conformity
We, AB Ph. Nederman & Co., declare under our sole responsibility that
the Nederman product:
NEX D/DX (Part No. **, and stated versions of **) to which this declara-
tion relates, is in conformity with all the relevant provisions of the fol-
lowing directives and standards:
Dire tives
2006/42/EC
Standards
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (excluding 11 Marking), 80079-37:2016 (excluding 10
Marking).
The name and signature at the end of this document is the person re-
sponsible for both the declaration of conformity and the technical file.
DA Dansk
Overensstemmelseserklæring
AB Ph. Nederman & Co., erklærer som eneansvarlige, at følgende pro-
dukt fra Nederman:
NEX D/DX (Artikel nr. **, og erklærede versioner af **), som denne er-
klæring vedrører, er i overensstemmelse med alle de relevante be-
stemmelser i de følgende direktiver og standarder:
Direktiver
2006/42/EC
Standarder
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (eksklusive 11 Marking), 80079-37:2016 (eksklusive
10 Marking).
Navnet og underskriften sidst i dette dokument tilhører den person,
der er ansvarlig for såvel overensstemmelseserklæringen som den tek-
niske dokumentation.
DE Deut h
Konformitätserklärung
Wir, AB Ph. Nederman & Co., erklären in alleiniger Verantwortung, dass
das Nederman Produkt:
NEX D/DX (Art.-Nr. **, und bauartgleiche Versionen **), auf welches
sich diese Erklärung bezieht, mit allen einschlägigen Bestimmungen
der folgenden Richtlinien und Normen übereinstimmt:
Ri htlinien
2006/42/EC
Standards
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (ohne 11 Marking), 80079-37:2016 (ohne 10 Marking).
Der Name und die Unterschrift am Ende dieses Dokuments sind die für
die Konformitätserklärung und die technischen Unterlagen verant-
wortlichen Personen.
ES Español
De lara ión de Conformidad
Nosotros, AB Ph. Nederman & Co., declaramos bajo nuestra exclusiva
responsabilidad que el producto de Nederman,
NEX D/DX (Ref. n.º ** y las versiones indicadas de **), al que hace refe-
rencia esta declaración, cumple con todas las provisiones relevantes de
las Directivas y normas que se indican a continuación:
Dire tivas
2006/42/EC
Normas
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (sin incluir 11 Marking), 80079-37:2016 (sin incluir 10
Marking).
El nombre y firma que figuran al final de este documento corresponden
a la persona responsable, tanto de la declaración como de la ficha técni-
ca.
FI Suomi
Vaatimustenmukaisuusvakuutus
Me, AB Ph. Nederman & Co., vakuutamme yksinomaan omalla vastuul-
lamme, että Nederman tuote:
NEX D/DX (tuotenro ** ja **:n määritetyt versiot), jota tämä vakuutus
koskee, on seuraavien direktiivien ja standardien kaikkien sovelletta-
vien määräysten mukainen:
Direktiivit
2006/42/EC
Standardit
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (pois lukien 11 Marking), 80079-37:2016 (ilman 10
Marking).
Tämä asiakirjan lopussa oleva nimi ja allekirjoitus ovat henkilön, joka
vastaa sekä vaatimuksenmukaisuusvakuutuksesta että teknisestä tie-
dostosta.
FR Français
Dé laration de Conformité
Nous, AB Ph. Nederman & Co., déclarons sous notre seule responsabili-
té que le produit Nederman :
NEX D/DX (réf. ** et versions indiquées de **) auquel fait référence la
présente déclaration est en conformité avec toutes les dispositions ap-
plicables des directives et normes suivantes :
Dire tives
2006/42/EC
Normes
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (hors 11 Marking), 80079-37:2016 (hors 10 Marking).
Le nom et la signature à la fin de ce document sont ceux de la personne
responsable de la déclaration de conformité et du fichier technique.
4

NEX D/DX
IT Italiano
Di hiarazione di Conformità
AB Ph. Nederman & Co., dichiara sotto la propria esclusiva responsabili-
tà che il prodotto Nederman:
NEX D/DX (Art. N. **, e le versioni di detto **) al quale è relativa la pre-
sente dichiarazione, è conforme alle disposizioni delle seguenti diretti-
ve e normative:
Direttive
2006/42/EC
Normative
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (esclusi 11 Marking), 80079-37:2016 (esclusi 10 Mar-
king).
l nome e la firma in calce al presente documento appartengono al re-
sponsabile della dichiarazione di conformità e della documentazione
tecnica.
NL Nederlands
Conformiteitsverklaring
Wij ,AB Ph. Nederman & Co., verklaren onder onze verantwoordelijkheid
dat het Nederman product:
NEX D/DX (artikelnr. **, en vermelde uitvoeringen van **) waarop deze
verklaring betrekking heeft, in overeenstemming is met alle relevante
bepalingen van de volgende richtlijnen en normen:
Ri htlijnen
2006/42/EC
Normen
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (exclusief 11 Marking), 80079-37:2016 (exclusief 10
Marking).
Naam en handtekening onder dit document zijn van degene die verant-
woordelijk is voor zowel de Verklaring van Overeenstemming als het
technische document.
NO Norsk
Erklæring om Överensstemmelse
Vi, AB Ph. Nederman & Co., erklærer under vårt eneste ansvar at Neder-
man-produktet:
NEX D/DX (delenr. **, og angitte versjoner av **) som denne erklærin-
gen vedrører, er i samsvar med alle relevante bestemmelser i følgende
direktiver og standarder:
Direktiver
2006/42/EC
Standarder
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (unntatt 11 Marking), 80079-37:2016 (unntatt 10
Marking).
Navnet og signaturen på slutten av dette dokumentet er den som er
ansvarlig for både samsvarserklæringen og den tekniske filen.
PL Polski
Deklara ja Zgodnoś i
My, AB Ph. Nederman & Co. niniejszym oświadczamy na naszą własną
odpowiedzialność, że Nederman produkt:
NEX D/DX [nr części ** oraz wskazane wersje **], który jest przedmio-
tem niniejszej deklaracji, spełnia wszystkie odpowiednie wymagania
wymienionych niżej dyrektyw i norm:
Dyrektywy
2006/42/EC
Normy
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (bez 11 Marking), 80079-37:2016 (bez 10 Marking).
Na końcu niniejszego dokumentu znajdują się imię i nazwisko oraz pod-
pis osoby odpowiedzialnej za deklarację zgodności oraz dokumentację
techniczną.
SV Svenska
Överensstämmelsedeklaration
Vi, AB Ph. Nederman & Co., förklarar under vårt fulla ansvar att Neder-
man-produkten:
NEX D/DX (artikelnummer **, och angivna versioner av **) som denna
deklaration avser, är i överensstämmelse med alla relevanta bestäm-
melser i följande direktiv och standarder:
Direktiv
2006/42/EC
Standarder
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019,
80079-36:2016 (exklusive 11 Marking), 80079-37:2016 (exklusive 10
Marking).
Namnet och signaturen i slutet av detta dokument är den person som
ansvarar för både försäkran om överensstämmelse och den tekniska fi-
len.
**
10500232, 10500332, 10501232, 10501332, 10502232, 10502332, 10503232, 10503332, 10500432, 10500532, 10501432, 10501532,
10502432, 10502532, 10503432, 10503532
AB Ph. Nederman & Co.
P.O. Box 602
SE-251 06 Helsingborg
Sweden
Anna Cederlund
Product Center Manager
Technical Product Management
2022-10-28
5

NEX D/DX
UK De laration of Conformity
We, AB Ph. Nederman & Co., declare under our sole responsibility that the Nederman product:
NEX D/DX (Part No. **, and stated versions of **) to which this declaration relates, is in conformity with all the relevant provisions
of the following regulations and standards:
Relevant legislation
Supply of Machinery (Safety) Regulations 2008
Standards
EN SO 12100:2010, EN 1127-1:2019, EN SO 20607:2019, 80079-36:2016 (excluding 11 Marking), 80079-37:2016 (excluding 10
Marking).
The name and signature at the end of this document is the person responsible for the declaration of conformity.
The UK importer is authorised and responsible to compile the technical file.
**
10500232, 10500332, 10501232, 10501332, 10502232, 10502332, 10503232, 10503332, 10500432, 10500532, 10501432,
10501532, 10502432, 10502532, 10503432, 10503532
AB Ph. Nederman & Co.
P.O. Box 602
SE-251 06 Helsingborg
Sweden
Anna Cederlund
Product Center Manager
Technical Product Management
2022-10-28
UK mporter:
Nederman Ltd
91 Seedlee Road,
Walton Summit Centre,
Bamber Bridge,
Preston,
Lancashire,
PR5 8AE
6

NEX D/DX
Figures
6
1
7

NEX D/DX
max. 2000
NEX 2m
NEX 3m
NEX 3m
NEX 4m
NEX 5m
Ø 160
R 1100 (NEX 2m)
R 1600 (NEX 3-4-5m)
230
320
225
160
2300
500 (NEX 2m)
1000 (NEX 3-4-5m)
Ø 11
max. 3000 max. 4000 max. 5000
1400
2
8

NEX D/DX
1
2
3
4
5
6
7
8
9
1
0
1
1
12
13
14
3
A
NEX 2 m / 3 m
A1
B1
NEX 2 m / 3 m
B
NEX 4 m / 5 m
A2
NEX 4 m / 5 m
B2
4
9

NEX D/DX
230
287
225
220
Ø11
NEX 4 m / 5 m
1
A
Ø7,5 mm
C
B
M8x16
5
10

NEX D/DX
~2300 mm
~1900 mm
A
B
2b
2a
6
4NEX 2 m
NEX 3 m
3NEX 5 m
5
7
11

NEX D/DX
NEX 4 m
NEX 5 m
4
NEX 4 m
NEX 5 m
6
7
8
Y
X
8
A
B
10
11
9
9
12

NEX D/DX
NEX D: 1x
NEX DX: 2x
14
12
13
10
15
16
17A
17B
< 10 ohm Ω
*
11
13

NEX D/DX
360 °
A
12
A
B
5
5
or
oder
ou
o
of
tai
eller
13
14

NEX D/DX
or
oder
ou
o
of
tai
eller
14
A
13 mm
B
13 mm
C1
C2
C3
15
15

NEX D/DX
C5
C4
C7
C6
C8
16
16

NEX D/DX
English
User Manual
Table of ontents
Figures ............................................................................................................................................................................. 7
1 Preface ............................................................................................................................................................................ 18
2 Safety .............................................................................................................................................................................. 18
3 Description ..................................................................................................................................................................... 18
3.1 ntended use ....................................................................................................................................................... 18
3.1.1 ATEX products ..................................................................................................................................... 18
3.2 Technical data ..................................................................................................................................................... 19
4 nstallation ...................................................................................................................................................................... 19
4.1 90°-bend in hanging or standing position ..................................................................................................... 19
4.2 Mounting NEX D/DX ........................................................................................................................................... 19
4.2.1 Rotary stop ........................................................................................................................................... 19
4.3 Earth control measurement ............................................................................................................................. 20
5 Using NEX D/DX ............................................................................................................................................................. 20
6 Maintenance .................................................................................................................................................................. 20
6.1 nternal cleaning of hood, hose and 90°-bend ............................................................................................. 20
6.2 nternal cleaning, arm system .......................................................................................................................... 20
6.3 Regular maintenance ........................................................................................................................................ 20
6.4 Adjusting the links ............................................................................................................................................. 21
7 Spare Parts ..................................................................................................................................................................... 21
7.1 Ordering spare parts .......................................................................................................................................... 21
8 Recycling ......................................................................................................................................................................... 21
9 Appendix A: nstallation protocol ............................................................................................................................... 22
10 Appendix B: Service protocol ...................................................................................................................................... 23
EN
17

NEX D/DX
EN 1Prefa e
Thank you for using a Nederman product!
The Nederman Group is a world-leading supplier and
developer of products and solutions for the environ-
mental technology sector. Our innovative products
will filter, clean and recycle in the most demanding of
environments. Nederman's products and solutions will
help you improve your productivity, reduce costs and
also reduce the impact on the environment from in-
dustrial processes.
Read all product documentation and the product iden-
tification plate carefully before installation, use, and
service of this product. Replace documentation imme-
diately if lost. Nederman reserves the right, without
previous notice, to modify and improve its products
including documentation.
This product is designed to meet the requirements
of relevant EC directives. To maintain this status, all
installation, maintenance, and repair is to be done
by qualified personnel using only Nederman original
spare parts and accessories. Contact the nearest au-
thorized distributor or Nederman for advice on tech-
nical service and obtaining spare parts. f there are
any damaged or missing parts when the product is de-
livered, notify the carrier and the local Nederman rep-
resentative immediately.
2Safety
This document contains important information that
is presented either as a warning, caution or note, ac-
cording to the following examples:
WARNING!Risk of personal injury
Warnings indicate a potential hazard to the
health and safety of personnel, and how that
hazard may be avoided.
CAUTION!Risk of equipment damage
Cautions indicate a potential hazard to the
product but not to personnel, and how that
hazard may be avoided.
NOTE!
Notes contain other information that is import-
ant for personnel.
3Des ription
3.1Intended use
The NEX D/DX is designed to be used in environments
where the atmosphere could be explosive as a res-
ult of mixing air with dust. NEX D is equipped with an
earthed ventilation hose made of FDA-approved in-
gredients. NEX DX has a double-earthed system, an
antistatic earthed ventilation hose that prevents stat-
ic electricity and sparks. Both products are suitable for
industries where hygiene is a top priority.
3.1.1ATEX produ ts
NEX D/DX is not marked with the EX symbol since
it does not fall under the scope of the directive
2014/34/EU. Even if NEX D/DX does not have the EX
marking, it is highly suitable for use in zones listed in
the Table according to ATEX-work directive 1999/92/
EC.
WARNING!Risk of explosion
The NEX-arm must not be used for extracting
dust/air mixtures with:
1M E < 3 MJ for NEX D/DX
CAUTION!Risk of equipment damage
NEX D/DX must not be used for extracting dust
that could affect the materials that are part of
NEX D/DX, see Figure3 and the following bul-
let list.
NEX D/DX contains the following materials, see Fig-
ure3:
1 Aluminium
2 PP (Polypropylene)
3 PVC
4 Nozzle: EPDM
5 NEX D: PVC
NEX DX: Polyester/Polyurethane
6 PVC
7 Nozzle: EPDM
8 Stainless steel
9 PP
10 Arm system: Aluminium and spring steel
11 Nozzle: EPDM
12 PVC
13 Nozzle: EPDM
14 Aluminium
1M E = Minimum gnition Energy
18

NEX D/DX
3.2Te hni al data
NEX D/DX
Noise level*:54–81 dB(A)
Weight:
• NEX D/DX 2m 17 kg
• NEX D/DX 3m 21 kg
• NEX D/DX 4m 28 kg
• NEX D/DX 5m 32 kg
Hose diameter Ø 160 mm
Recommended airflow** Maximum 1700 m3/h
Recommended temperature use Maximum 70 °C
Zone, dust***:
• NEX DX 21, 22 ***
• NEX D 22 ***
*Measured according to SO 11201.
** Also, apply to local directions.
*** For use in respective zones according to ATEX-work directive 1999/92/EEC.
4Installation
Mounting examples: see Figure1
4.190°-bend in hanging or standing po-
sition
The NEX D/DX arm is recommended to be mounted
according to Figure4 item A, with the 90°-bend in
hanging position.
The NEX D/DX arm can also be mounted according to
item B, with the 90°-bend in standing position. How-
ever, the arm holder must then be revolved 180°. Re-
volve the arm holder in the following way:
1 Loosen the four screws fitting the arm holder to
the 90°-bend.
2 Move the arm holder approximately 17 mm away
from the 90°-bend.
3 Revolve the arm holder 180°.
4 Move the arm holder back towards the 90°-bend.
5 Fasten the four screws.
4.2 Mounting NEX D/DX
See, Figure5–Figure11. The extraction arm can be
mounted on a wall or ceiling together with a wall
bracket. Ensure that the surface, on which to mount
the arm, is level and use the wall bracket to mark the
holes.
Use locking fixing bolts and nuts suitable for the wall
material. The bolts must each stand a torque force of
a minimum of 1200 N (2m), 1900 N (3m), 3200 N (4m),
and 4500 N (5m). Use a spirit level and make sure that
the extraction arm is fitted in a horizontal position.
Check that proper measures have been taken to avoid
all types of electrical stray currents to and/or from the
piping system and electrical wiring.
NOTE!
• n Figure8, item X means "joint arm in this
direction" and item Y: "NEX DX" only.
• n Figure9, the hose should be stretched on
lengths A and B.
• Make sure the NEX D/DX housing is prop-
erly grounded. See Figure11 and Sec-
tion4.3Earth control measurement.
• Fill out the installation protocol when fin-
ished installing the NEX D/DX.
4.2.1Rotary stop
Should only be fitted when the arm is mounted in a
360° rotating position, see Figure5.
EN
19

NEX D/DX
EN 4.3Earth ontrol measurement
Check for proper earth connection, after both main in-
stallation and regular maintenance, as follows:
• NEX D has one earth wire. Measure according to Fig-
ure11 item 16.
• On NEX DX both the hose and the arm system are
connected to earth. Measure according to Figure11
item 16 and the following sequence:
1 Remove and isolate the earth wire of the hose
(see Figure13 item 5) from the connector.
2 Check earth continuity according to Figure11
item 16.
3 Reattach the earth wire, see Figure13 item 5.
4 Remove and isolate the earth wire of the arm,
see Figure11 item 17A and 17B.
5 Check earth continuity according to Figure11
item 16.
6 Reattach the earth wire, see Figure11 item 17A
and 17B.
5 Using NEX D/DX
WARNING!Ignition risk for some dust or
solvents
• Do not collect material that is caustic, explos-
ive, highly flammable, chemically unstable,
spontaneously ignitable, or which can re-
lease sparks.
• Check that no objects which can cause spark-
ing or fire are sucked into the arm, or impact
against the hood.
• Avoid mixing dust from different processes,
for example, service works and plastic grind-
ing mixed with metal grinding.
See Figure12. The extractor arm can easily be posi-
tioned at any point within its working area. t can be
rotated 180° when wall mounted and 360° when ceil-
ing mounted. For best capture, the hood should be po-
sitioned as near the fume or dust-generating process
as possible. The hood (on some models) is equipped
with a damper which can be adjusted with a lever.
Recommended airflow: 1700 m3/h (1000 cfm). Also,
check the local directions.
Always check that the airflow is sufficient in the hood
before work begins. nsufficient airflow is depending
on:
• The fan impeller rotating in the wrong direction.
• Hood, hose or 90°-bend are blocked.
• Filter cartridges are blocked.
6Maintenan e
Treat NEX D/DX as a part of other machinery and clean
it according to the cleaning procedure plan. n addi-
tion, clean and check it periodically according to the
instructions in Section6.1 nternal cleaning of hood,
hose and 90°-bend to Section6.4Adjusting the links.
WARNING!Risk of personal injury
• Use a dust filter mask and other necessary
safety equipment when cleaning the NEX D/
DX.
• Squeeze/crush risk at the horizontal link on
4m and 5m NEX-arm.
NOTE!
Fill out the service protocol for all maintenance
performed on the NEX D/DX.
The NEX D/DX can be dry or wet cleaned:
• Dry cleaning: Vacuum and wipe the components ex-
ternally and even internally if necessary.
• Wet cleaning: Use a detergent solution that will
not damage NEX D/DX, see Section3.1.1ATEX
products’. Follow the advice from the manufacturer
of the detergent solution regarding dosage and
washing method. Rinse with clean water. Use low
pressure and a water temperature of 40–50 °C.
Avoid directly rinsing sleeves, joints and so on. Let the
NEX-arm dry before it is used again.
6.1Internal leaning of hood, hose and
90°-bend
1 Detach hood and hose.
2 Carry out dry or wet cleaning according to instruc-
tions in Chapter6Maintenance.
3 Let the components dry.
4 Re-fit the components. Stretch the hose along the
lengths A and B.
5 Connect the hose spiral to earth, see Figure13.
Make sure the NEX D/DX is properly connected
to the earth. See Figure11 and Section4.3Earth
control measurement.
6.2Internal leaning, arm system
nternal cleaning is recommended approximately once
a year, see Figure14
1 Hold the arm in a straight, slight angle.
2 Detach hose, arm covers and bellows but not the
arm system, see Figure13
3 Carry out dry or wet cleaning according to instruc-
tions in Chapter6Maintenance.
4 Let the components dry.
5 Re-fit the components. (Hose: see Figure13.)
6 Make sure the NEX D/DX is properly connected
to the earth. See Figure11 and Section4.3Earth
control measurement.
6.3Regular maintenan e
Regular maintenance is recommended at least once a
year.
