Thanks for purchasing NORCO products. Please check the
accessories as per the packing list when you open its package. If you find
any defect components or anything damaged or lost, please contact your
vendor ASAP.
■ EMB-7540 V1.0 Motherboard
1pcs

Chapter
One
Product
Introdu
ction

EMB-7540 V1.0
1
Chapter 1 Product Introduction
1.1 Hardware Specification
Size
●Platform：HiSilicon ARM platform
●Size：120mmX80mm
Processor
●CPU ：Adopts HiSilicon Hi3559A 2*A73+3*A53+1*M7+2*G71+4*DSP+2*NNIE multi-core
heterogeneous processors
System Memory
●On board：4GB DDR4
Display
●1xHDMI port
Storage
●Provides 1xTF card slot，up to 64G
●On board 16GB iNAND Flash
AUDIO
●Provides 1xMic(Header)
●Provides 1x Line out，1x Mic (3.5mm 4 section headphone jack)
LAN
●Provides 1x 1000M RJ45(General terminal)，support 10/100/1000Mbps
I/O
●Serial Port：1xDebug UART 232，1*COM232, 1*COM485

EMB-7540 V1.0
2
●CMOS Sensor: (Design adapter board according to lens specifications)，1x 8K30fps input，
Or 2x 4K60fps input，Or 4x4K30fps input，Or 8x1080P30fps input,（with ACP-250 adapter
board，up to 4*4Kx4K input）
●USB：Provides 1x Mini USB2.0 (Micro USB)，1xUSB3.0 (TYPE A)
Expansion Port：
●Provides 2x DI，1x DO（Relay control output）；
●Provides 2x Gyroscope；
●Support GPIO，I2C，SPI expansion
●Provides 1xRST BUTTON，1x PWR LED
Power Supply
●12V single supply，supports hardware and software switch for system auto boot upon power
on
Watchdog
●Support hardware reset function
Operating Environment
●Operating Temperature：-20℃～+65℃
●Storage Temperature：-40℃～+85℃
●Operating Humidity：5%~95%，RH, non-condensing

Chapter
Two
Hardware
Function

EMB-7540 V1.0
Chapter Two
Hardware Function
2.1 Interface Location and Dimensional Drawing
Following is the front interface location and dimensional drawing of EMB-7540
V1.0.Please be careful during the installation. Improper installation may lead to system failure.
Note: In case of any electrostatic damage caused to some components, please wear
anti-static gloves to install the motherboard.
2.2 Installation
Please refer to following steps to assemble your computer:
1．Adjust all jumpers on board EMB-7540 V1.0 according to the user manual.
2．Install other expansion card.
3．Connect all signal line, cable, ,panel control circuit, and power supplier.
Key components of this motherboard are Integrated circuit and these components
could be easily damaged by electrostatic influence. So, before installing this unit, please
always keep the following precautions in mind:

EMB-7540 V1.0
1．Hold the board by edges and don’t touch any components, plugs or socket pins.
2．Wear anti-static gloves/wrist strap while touching the integrated circuit components, such as
CPU, RAM, etc.
3．Put those unused or uninstalled components in static shielding bags or trays.
4．Please first check the power switch is off before connecting the power plug.
Before installing the computer accessories
Following the instructions below will help to prevent your computer from being
damaged, and also ensuring your personal safety.
1．Please make sure your computer is disconnected from the power supply.
2．Please always wear anti-static strap or gloves to operate the board in case that you may
touch the integrated circuit components, such as RAM.

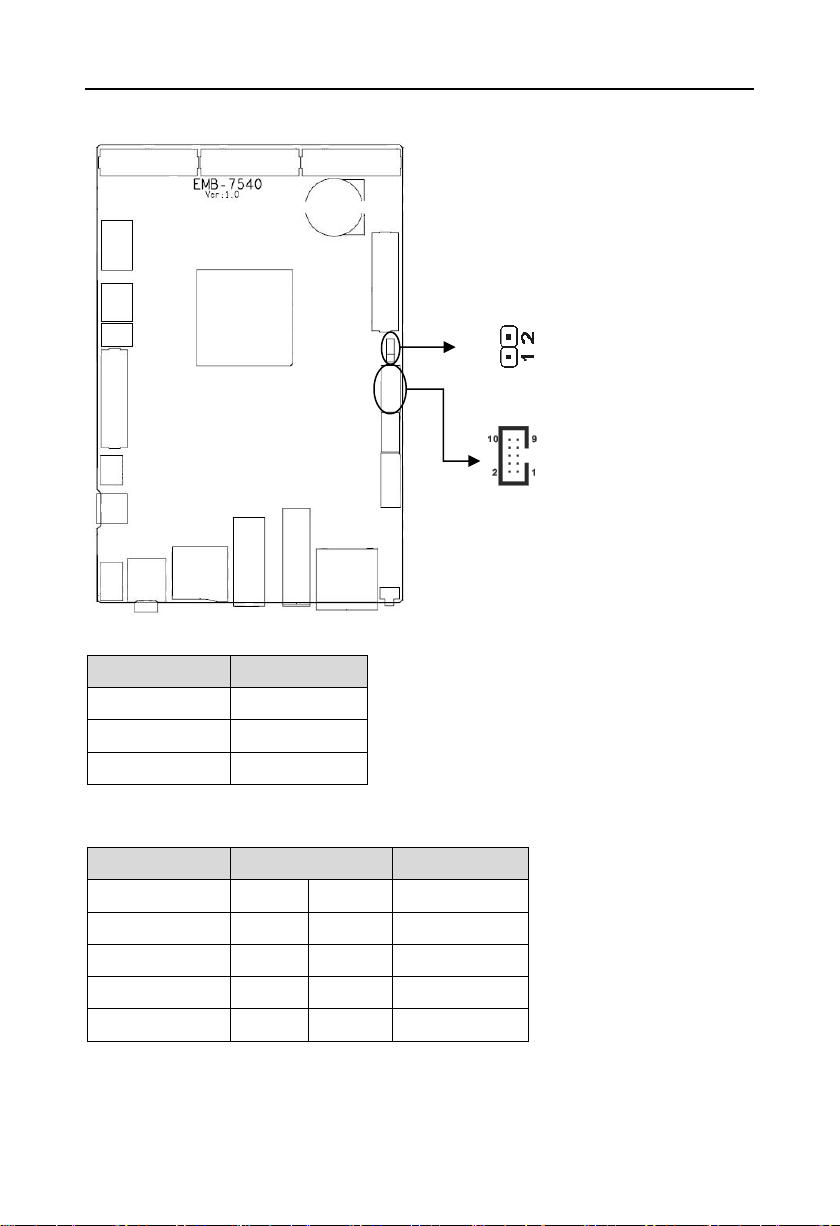

2.3 Jumper Settings
Please refer to following instructions to do jumper settings before installing your hardware
devices.
Remark: How to identify the PIN1 of all jumpers and interfaces: Please observe the
mark near the plug and socket, which is a “1”or bold line or triangular symbol; And
please look at the back of PCB, the one in the shape of square is the PIN 1; and PIN1 for
every jumper is remarked by a white narrow near it.
2.4 Interface Specification
When connecting external connectors, please read this manual carefully to avoid
damage to the motherboard!
2.4.1 Serial Port,DI/DO
Provides 3xserial ports，Uart0 is the debugging port（not used as common serial port），
J17 support 1*RS232，1*RS485，2x DI，1x DO（relay control output）.

EMB-7540 V1.0
UART0：
Pin
Signal Name
1
COM0_TX
2
COM0_RX
3
GND
J17：
Signal Name
Pin
Signal Name
COM3_TXD
1
2
DO1
COM3_RXD
3
4
NO1
GND
5
6
GND
COM4_485+
7
8
IO_IN1
COM4_485-
9
10
IO_IN2
UART0
J17

EMB-7540 V1.0
2.4.2 USB Port（USB，OTG)
Provides 1x Mini USB2.0 (MICRO USB) port，1x USB3.0 (TYPE A) port.
USB: Standard USB3.0 TYPE A interface definition.
2.4.3 Ethernet interface（LAN）
Provides 1x RJ45 network interface ，the yellow one indicates data transmission status,
and the green one indicates network connection status.
USB
Micro USB

EMB-7540 V1.0
RJ45 LAN LED Status Description：
LILED（Green）Status
Function
ACTLED（Yellow）status
Function
ON
100/1000M link
FLASH
Data transmission
OFF
10M link or closed
OFF
Data stopped

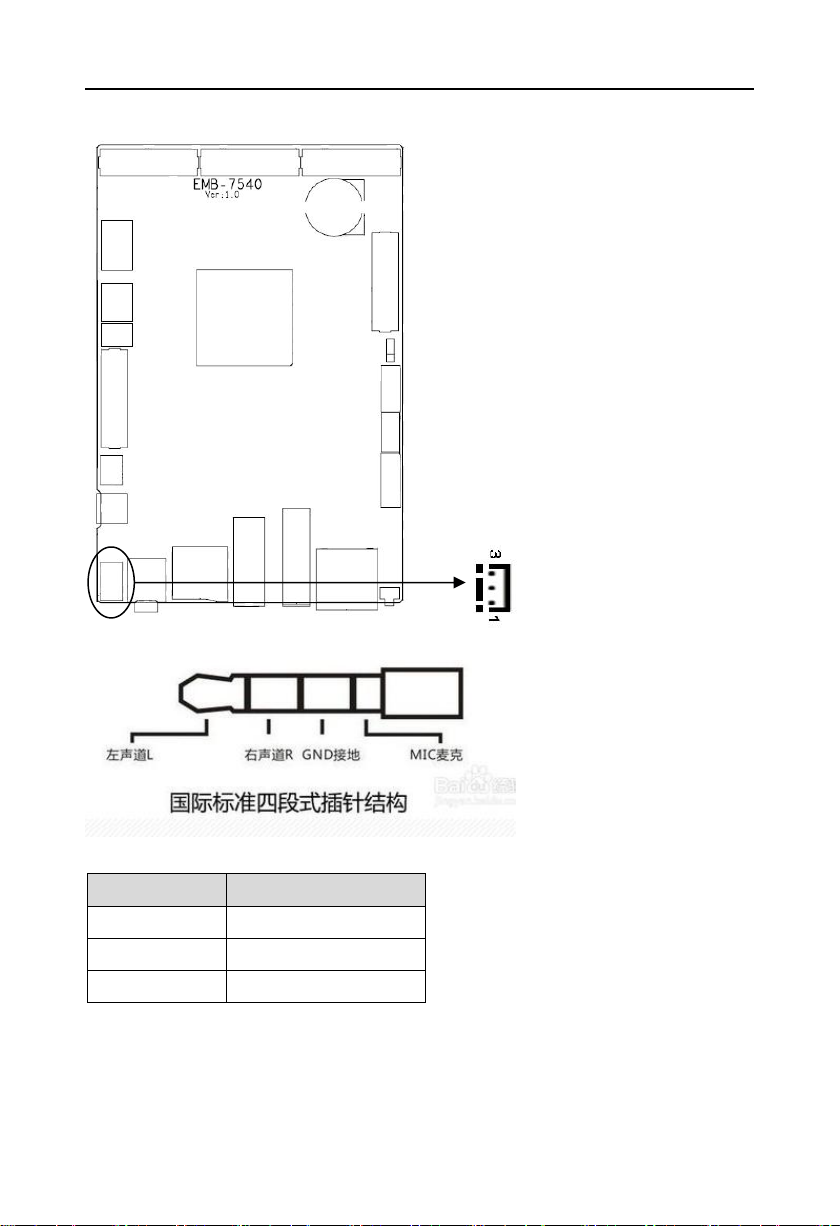

2.4.4 Headphone Jack（MIC1）
Support 2xMIC IN，1xheadpone output，provide 1x four-section headphone jack and 1x
single MIC IN connector.
LAN

EMB-7540 V1.0
HP: International standard interface definition for standard four-section headphones
MIC1：
Pin
Signal Name
1
MIC1_R
2
MIC1_L
3
GND
MIC1

EMB-7540 V1.0
2.4.5 RESET
2.4.6 Display Port HDMI
1xHDMI Display Interface
RESET

EMB-7540 V1.0
HDMI
J8
J16
J9
J10
J15

EMB-7540 V1.0
HDMI：
Signal Name
Pin
Signal Name
D2+
1
2
D2 Shield
D2-
3
4
D1+
D1 Shield
5
6
D1-
D0+
7
8
D0 Shield
D0-
9
10
CK+
CK Shield
11
12
CK-
CE Remote
13
14
NC
DDC CLK
15
16
DDC DATA
GND
17
18
+5V
HP DET
19
20
SHELL0
SHELL1
21
22
SHELL2
SHELL3
23
24
SHELL4
SHELL5
25
26
SHELL6
SHELL7
27
28
SHELL8
SHELL9
29
30
SHELL10
SHELL11
31
J8: OUTPUT FOR AI Control
Pin
Signal Name
1
DAMP-
2
DAMP+
3
DRIVE+
4
GND
MFTS：
Pin
Signal Name
1
LSLDP
2
LSB2A
3
LSCK
4
LSDIO
5
LSL2B

EMB-7540 V1.0
6
LSB2L
7
LSRST
8
LSDET
9
GND
10
GND
11
VCC4
12
VCC4
J16:Touch Control
Pin
Signal Name
1
GND-
2
3.3V
3
TP_INT/GPIO16_7
4
TP_I2C10_SCL
5
TP_I2C10_SDA
6
TP_RST/GPIO16_4
J9:
Signal Name
Pin
管脚
Signal Name
UART1_RXD/CAN1_RXD_1V8
1
2
SDIO2_CDATA1
UART1_TXD/CAN1_TXD_1V8
3
4
SDIO2_CDATA2
UART2_RXD/UART1_RTSN
5
6
SDIO2_CDATA0
UART2_TXD/UART1_CTSN
7
8
SDIO2_CCLK_OUT
SHUB_I2C0_SCL
9
10
SDIO2_CCMD
SHUB_I2C0_SDA
11
12
SDIO2_CDATA3
SHUB_SPI1_SDO
13
14
GND
SHUB_SPI1_SCLK
15
16
SHUB_I2C1_SDA
SHUB_SPI1_CSN
17
18
SHUB_I2C1_SDA
SHUB_SPI1_SDI
19
20
GND
GND
21
22
SHUB_UART0_RXD
