Norco EMB-4850 User manual

EMB-4850
EPIC Embedded Board
USER' Manual V1.2

Headquarter (China）：86-0755-27331166
Shenzhen：86-0755-27331166
Beijing：86-010-82671166
Shanghai：86-021-61212088
Chengdu：86-028-85259319
Nanjing: 025-58015489
Shenyang：86-024-23960846
Xi’an：86-029-88338386
Wuhan：86-027-87858983
TianJin：86-022-23727100
Singapore：65-68530809
Website：www.norco.com.cn
EMB-4850
EPIC Embedded Board
USER' Manual V1.2

EMB-4850 EPIC Embedded Board
Place/Data: HONG KONG/2008
Shenzhen NORCO Intelligent Technology Co.,Ltd.
Shenzhen NORCO Intelligent Technology Co.,Ltd.

Data: 2008
Trade Name：Shenzhen NORCO Intelligent Technology Co.,Ltd.
Model Name：EMB-4850
Responsible Party：Shenzhen NORCO Intelligent Technology Co.,Ltd.

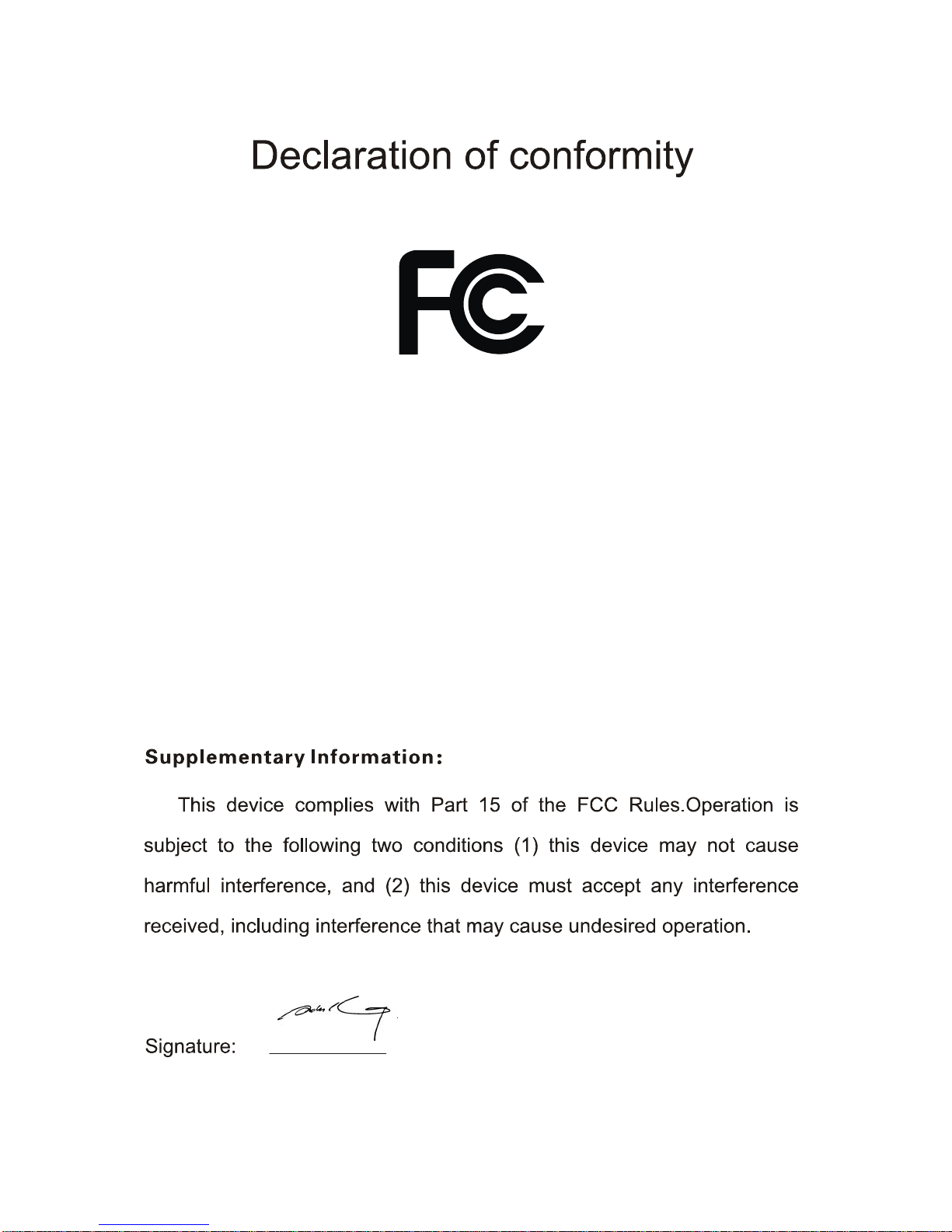

Equipment Classification：FCC Class B Subassembly
Type of Product：EPIC Embedded Board
Manufacturer：Shenzhen NORCO Intelligent Technology Co.,Ltd.

Content
Chapter1 General Information ................................................................................................ 1
1.1 Introduction ................................................................................................................. 1
1.2 Ordering Information................................................................................................... 1
1.3 Environmental and Dimensions .................................................................................. 1
1.4 Specifications..............................................................................................................1
Chapter 2 H/W Installation....................................................................................................... 3
2.1 Connector Locations................................................................................................... 3
2.2 Dimensions ................................................................................................................. 4
2.3 Installation step...........................................................................................................5
2.4 CPU & Cooling Fan Installation .................................................................................. 5
2.5 Jumper settings .......................................................................................................... 6
2.5.1 CMOS Clear (JCC) .................................................................................................. 6
2.5.2 Virus-Avoided Jumper (JAV) ................................................................................... 7
2.5.3 COM2 setting(J7、J8、J9)...................................................................................... 8
2.5.4 PC104+ select voltage setting (J5).......................................................................... 9
2.6 External Connector ................................................................................................... 10
2.6.1 mini IDE Connector（J12）................................................................................... 10
2.6.2 Parallel Port Connector（J13）............................................................................. 11
2.6.3 Serial port Connector（CONN1、COM2）........................................................... 12
2.6.4 Display Connector(VGA1、LVDS1、J3、J2)........................................................ 13
2.6.5 USB Connector (USB1、CN1) .............................................................................. 15
2.6.6 SATA Connector (SATA1、SATA2)........................................................................ 16
2.6.7 IrDA(IRDA)............................................................................................................. 17
2.6.8 Audio Connector(J11) ............................................................................................ 18
2.6.9 CPU FAN Connector (CPUFAN)............................................................................ 19
2.6.10 Power Connector (JP2) ....................................................................................... 19
2.6.11 Ethernet Connector (LAN1、LAN2) .................................................................. 20
2.6.12 PS/2 KB/MS connector(KBM1)............................................................................ 21
2.6.13 Front Panel Connector (J10) ............................................................................... 21
2.6.14 PC/104+............................................................................................................... 23
2.6.15 GPIO (J6)............................................................................................................. 24

2.6.16 System Memory................................................................................................... 25
Chapter 3 BIOS Setep............................................................................................................ 27
3.1 Main Menu ................................................................................................................ 28
3.2 Advanced Menu ........................................................................................................ 29
3.2.1 CPU Configuration................................................................................................. 30
3.2.2 IDE Configuration .................................................................................................. 31
3.2.3 SupperIO Configuration ......................................................................................... 33
3.2.4 Hardware Health Configuration ............................................................................. 34
3.2.5 ACPI Configuration ................................................................................................ 35
3.2.6 APM configuration.................................................................................................. 36
3.2.7 Intel AMT Configuration ......................................................................................... 38
3.2.8 MPS Configuration................................................................................................. 39
3.2.9 PCI Express Configuration .................................................................................... 40
3.2.10 Smbios Configuration .......................................................................................... 41
3.2.11 Remote Access Configuration.............................................................................. 42
3.2.12 USB Configuration ............................................................................................... 43
3.3 PCIPNP .................................................................................................................... 45
3.4 Boot Menu ................................................................................................................ 46
3.4.1 Boot Settings Configuration ................................................................................... 47
3.4.2 Boot Device Priority ............................................................................................... 49
3.4.3 Hard Disk Driver .................................................................................................... 50
3.5 Security Menu........................................................................................................... 51
3.6 Chipset Menu............................................................................................................ 52
3.6.1 North Bridge Configuration .................................................................................... 53
3.6.2 South Bridge Configuration.................................................................................... 54
3.6.3 Video Function Configuration ................................................................................ 55
3.7 Exit Menu.................................................................................................................. 57
Appendix................................................................................................................................. 58
Appendix 1: Driver Installation ........................................................................................ 58
Appendix 2：Watchdog programmer guide.................................................................... 59
Appendix 3: Glossary...................................................................................................... 61

Copyright
With the exception of showing the accessories of product configuration, This manual do
not create any commitment of our company. We retained the rights to change it without prior
notice. We will not be responsible for any installation, the result of improper use of direct,
indirect, intentional or unintentional damage or hidden dangers.
Before buying products, please learn about product performance from the seller to see if it
is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent
Technology CO., LTD. Other trademarks involved in this manual, their ownership are owned by
its respective owners. The contents of this manual are protected by copyright law. All rights are
strictly reserved. Any form of unauthorized reproduction including but not limited to carbon copy,
facsimile transmission and electronic copy or email should be destroyed immediately.

Common Sense in Safety Application
1. Before using this product, be sure to read carefully this user’s manual;
2. Any plate cards not ready to be installed shall be kept in the anti-static protective bags;
3. Before taking out the plate cards from the anti-static protective bags, first place hands on the
grounding metal object for a while (e.g. 10 seconds) so as to release static electricity in body
and hands;
4. While fetching plate cards, you should wear static protective gloves and have the habit of
contacting brims of them;
5. In order to prevent bodily electric shock or damage to products, first turn off the AC power or
unplug the power cord out of power sockets while inserting main boards or plate cards or
configuring again;
6. Before it is necessary to move plate cards or the unit, be sure to unplug the AC power cords
out of the power sockets;
7. Be sure to unplug AC power cords when there is an increase/decrease in plate cards for this
product;
8. Before you connect or unplug any equipment, be sure to determine whether all power cords
are unplugged in advance;
9. To prevent any unnecessary injuries to products due to frequent power on/off to the products,
after the unit is shut down, you must wait at least 30 seconds before you restart up the unit.
10: If anything unexpected exists during Equipment used, please contact the professionals.

Packing List
Thank you very much for choosing our products. Please check your package completely
as the following item checklist first, if you find any components lost or damaged, please contact
your retailer.
■EMB-4850 Mainboard
■User’s Manual
■driver CD
■jumper header
■VGA cable
■Parallel Port cable
■Serial port cable
■Double USB cable
■SATA cable
■IDE cable
■Audio cable
1pcs
1 pcs
1 pcs
1bag
1 pcs
1 pcs
1 pcs
1 pcs
2 pcs
1 pcs
1pcs

Chapter 1
General Information

EMB-4850 EPIC Embedded Board
1
Chapter1 General Information
1.1 Introduction
The EMB-4850 is an EPIC Embedded industry motherboard with a high performance
based on Intel Core Duo processors. The EMB-4850, in conjunction with Intel 945GM+ICH7M
chipset, support Intel core Duo processor, 533/667MHz Font Side Bus. Support for dual
channel DDR2 667MHz memory technology, capacity up to 2GB;integrated Intel GMA 950
graphic controller, support VGA、LVDS 、TV-OUT Display output mode, VGA+LVDS and
TVOUT+LVDS dual independent display; supply 1 Mini-IDE interface,1 AUDIO interface,1
parallel interface,2 Serial ports(COM2 support RS232/422/485 mode);2 SATAⅡports;4 USB
2.0 Ports(supply ESD protect);2 1000/MB Ethernet interface. It also provides with other
advanced functions, IrDA，WatchdogTimer,PC/104+ extend function and GPIO function （8Bit
Input/Output）.EMB-4850 with EPIC spec can provide the most advanced design of volume and
function. It can work without fans. Provide the perfect solution for your built-in application.
1.2 Ordering Information
Model Number Description
EMB-4850
EPIC Embedded Industry Board with
VGA/LVDS/TV-OUT/2LAN/2COM/LPT/AUIDO/GPIO
1.3 Environmental and Dimensions
Operating Environmental
Temperature:0～60℃
Humidity: 5%～95%
Dimensions
115mm×165mm (W×H)
1.4 Specifications
1) EPIC Embedded Industry Motherboard

EMB-4850 EPIC Embedded Board
2
2) Support FSB with 533/800MHz Intel® Core Duo Processors(Socket 479)
3) Chipset: Intel® 945GM+ICH7M
4) Memory: support dual channel 200-pin SO-DIMM slot, memory up to 2GB (DDR 533/667)Ⅱ
5) BIOS：4M bit Flash BIOS, ACPI power management support
6) Watchdog Timer: 256 levels, 1 (s/m) programmable, timeout interrupt or system reset
7)Graphic Display: Intel945GM integrated Graphic controller, memory size optimized Shared
Memory architecture, support up to 224MB frame buffer using system memory. Support
VGA/LVDS/TV-OUT, VGA+LVDS and TVOUT+LVDS dual independent display
8) Expansion slot: 1x PC/104+ slot
9) IDE Controller: Standard mini IDE Interface
10) SATAⅡInterface: 2 SATAⅡInterface, data transmission speed up to 300MB/s
11) LAN: 2x1000Mbps Ethernet Interface, REALTEK 8111B Network chipset, 2×RJ-45
12) USB: Motherboard provide a standard dual-layer USB port and a set of 2×5 header USB
ports, which both support USB 2.0 at a high speed of 480Mbps.
13) Audio: Realtek ALC888 Audio, Support 7.1 channels HD audio output
14) Support IrDA transfers
15) I/0 Interface: Winbond W83627HF I/0 chipset, on board provide 1 Parallel port、2 serial
ports（COM1->RS232，COM2->RS232 /RS422/RS485，Supply ESD protect）、1 IrDA Port 、
1PS/2 keyboard/mouse interface
16) Power supply: +12V single power supply
17) GPIO: 8Bit Input/Output

Chapter2
Product Installation

EMB-4850 EPIC Embedded board
3
Chapter 2 H/W Installation
2.1 Connector Locations
The following picture is interface index for MITX-6852, when you install your devices,
please consult it and read the following guide. During installation please care: for some devices,
if incorrectly install, it will not work normally.
Notice：During installation, in order to protect the part of board, please put on antistatic gloves。

EMB-4850 EPIC Embedded board
4
2.2 Dimensions

EMB-4850 EPIC Embedded board
5
2.3 Installation step
Please consult the following step to install your computer:
1: Adjust all jumpers on the EMB-4850 per this manual
2: Install CPU
3: Install memory
4: Install Expand card (PC/104+ card)
5: Connect all of the signal line, cable, panel-control circuitry and power supply
6. Boot computer, Finish BIOS setup
Remind！Key components of this motherboard are Integrated circuit, and these components will
be easily damaged by electrostatic influence. So, before installing motherboard, you should
always follow the following precautions:
1. Disconnect your Computer from the power supply before handling it.
2. Hold side by the edges, don't touch any components or pins on the board
3. Use a grounded wrist strap while getting in touch with integrated circuit component (such as
CPU, RAM).
4. Place components on a grounded antistatic bag that came with the Single Board Computer,
when these components are separated from the system.
2.4 CPU & Cooling Fan Installation
Installing CPU complied following steps：
1: Twist the screws above the CPU socket with a screwdriver, and turn this pointer on screw
aimed at "Open" from the "Locked" position.
2: Hold the CPU by both sides, adjust the 1st pin (Marked as golden triangle) to be align with
the "missing" pin, then put the CPU in place. Check and adjust the CPU until it lays on the
Locked
Open

EMB-4850 EPIC Embedded board
6
socket paralleled, then twist the pointer on screw aimed at "Locked" from the "Open" position.。
Notice：Ensure this motherboard support the CPU you choose, if the direction you inserted was
wrong, CPU may be damaged. After system boot, BIOS will examine CPU type and frequency
automatically, BIOS setting won’t allow you change the CPU frequency, in order to make
system work steadily, please set your CPU exterior frequency by its specification, and we don’t
suggest you over clock your CPU. At present most Intel ® CPU frequency multiplication have
been set when them leave factory, can not be changed.
Install CPU cooling fan complied steps following：
1. Fix the heat sink go with fan on motherboard, keep heat sink & CPU wafer tangent.
2. Connect fan cable with on-board CPUFAN socket.
Notice：
Before fixing, daub coolant on the surface of the heat sink connect CPU first to swell the
cooling function, check CPU work on or not regularity, to insure the CPU in good ventilate
situation.
2.5 Jumper settings
*Note：
Jumpers are located on the motherboard, they represent clear CMOS jumper JCC etc.
pin1 for all jumpers are located on the side with a thick white line refer to the motherboard’s
silkscreen , jumpers with three pins will be shown as 1-2 to represent pin1&pin2 connected and
2-3 to represent pin2&pin3 connected.
2.5.1 CMOS Clear (JCC)
This jumper is used to erase CMOS data and reset system BIOS information.
The procedure for clearing CMOS is:
1. Turn off the system.
2. Push clear CMOS button and wait for 4 second.
3. Turn on the system. The BIOS is now reset to its default setting

EMB-4850 EPIC Embedded board
7
Setting JCC：
Setting JCC1
2-3 Normal(default)
1-2 Clear
Do not clear CMOS when power on, it harm to the motherboard.
2.5.2 Virus-Avoided Jumper (JAV)
The BIOS is contained inside the Flash ROM. If the jumper JAV is set as dosed, you can
not upgrade the BIOS. However in this status, the system BIOS can avoid being attacked by
virus, such as CIH virus.

EMB-4850 EPIC Embedded board
8
Setting JAV:
Setting JAV1
Open Update BIOS
Close BIOS write-protect（default）
2.5.3 COM2 setting(J7、J8、J9)
COM2 can be configured to operate in RS-232, RS-422, or RS-485 mode (RS232 for
default.). This is done via J7、J8 and J9.

EMB-4850 EPIC Embedded board
9
Mode J7 J8 J9
RS232 3-5,4-6 3-5,4-6 1-2
RS422 1-3,2-4 1-3,2-4 3-4
RS485 1-3,2-4 1-3,2-4 5-6,7-8
2.5.4 PC104+ select voltage setting (J5)
1 standard PC104+ expansion slot, the user may act according to own demand to choose
the different PC/104+ expansion module, the different module input voltage is dissimilar, you
may through jump the line to the PC/104+ module voltage to carry on the select
Setting J5
Open default
1-2 3.3V
2-3 5V
