Norco EMB-3682 User manual

EMB-3682
3.5 EmbeddedBoard
USER'Manual

Shenzhen NORCOIntelligentTechnologyCO.,LTD.:0755-27331166
Beijing 010-82671166
Shanghai 021-61212088
Chengdu 028-85259319
Shenyang 024-23960846
Xi’an 029-88338386
Nanjing 025-58015489
Wuhan 027-87858983
Tianjin 022-23727100
Singapore 65-68530809
Formoreinformation, pleasevisitourwebsite http:// www.norco-group.com
EMB-3682
3.5 EmbeddedBoard
USER'Manual

Place/Data:HONG KONG/2008
EMB
-
3682
EmbeddedBoard
ShenzhenNORCOIntelligentTechnologyCO.,LTD.
ShenzhenNORCOIntelligentTechnologyCO.,LTD.

Data: 2007
Trade Name ShenzhenNORCOIntelligentTechnologyCO.,LTD.
ModelName EMB-3682
ResponsibleParty ShenzhenNORCO IntelligentTechnologyCO., LTD.
Equipment Classification FCC Class BSubassembly
Type of Product Embedded Board
Manufacturer ShenzhenNORCOIntelligentTechnologyCO.,LTD.

Content
Chapter1ProductIntroduction.........................................................................1
1.1Overview...............................................................................................1
1.2KeyFeatures.........................................................................................1
Chapter2QuickInstallationGuide....................................................................4
2.1Layout...................................................................................................4
2.2JumperSetting.......................................................................................4
2.2.1CMOSContentClearance/HoldSetting（JCC）..................................4
2.2.2CFCardFunctionMaster/SlaveSelection（JCF）...............................5
2.2.3COM2JumperSetting(J16, J17,J18)..................................................6
2.2.4Anti-virusBIOS-protectJumperSetting（JAV）...................................7
2.2.5PC104+VoltageSetting(J3V, J5,J5V,J12V)......................................8
2.2.6PanelVCC SelectionJumperSetting(J2, J3)......................................10
2.3ExternalInterfaces................................................................................10
2.3.1MiniIDE.............................................................................................11
2.3.2CFCardSocket(CompactFlash).......................................................12
2.3.3SerialPorts........................................................................................12
2.3.4ParallelPort.......................................................................................14
2.3.5DisplayInterface(VGA,LVDS, TFT)...................................................15
2.3.6LCDBacklight Control........................................................................17
2.3.7Ethernet Port(LAN1/2).......................................................................18
2.3.8GPIO (JGP).......................................................................................19
2.3.9AudioInterface(J9)............................................................................19
2.3.10 USBPorts(USB_12, USB_34).........................................................20
2.3.11KB/MSConnector(KBM)..................................................................22
2.3.12 IrDAInterface(IrDA).........................................................................22
2.3.13 PowerInterface(VIN).......................................................................23
2.3.14 Front PanelConnector(J1)...............................................................24
2.3.15 MemorySocket(DDR)......................................................................25
2.3.16 PC104PlusSocket(PC104+).........................................................25
Chapter3AMIBIOS..........................................................................................27
3.1BIOSUpgrading.....................................................................................27

3.2AMI BIOSDescription............................................................................27
3.3BIOSParameterConfiguration..............................................................27
3.4MainMenu............................................................................................28
3.5AdvancedMenu....................................................................................29
3.5.1CPUConfiguration.............................................................................30
3.5.2IDEConfiguration...............................................................................31
3.5.3SuperI/O Configuration......................................................................32
3.5.4USB Configuration..............................................................................34
3.5.5USBMassStorageDeviceConfiguration............................................35
3.5.6PCI PnP.............................................................................................36
3.6BootMenu............................................................................................38
3.7SecurityMenu.......................................................................................40
3.8Chipset Menu........................................................................................42
3.9PowerMenu.........................................................................................44
3.10ExitMenu............................................................................................45
Chapter4. DriversInstallation..........................................................................46
4.1Installation Steps................................................................................47
Appendix...........................................................................................................48
Appendix1:Glossary..................................................................................48
Appendix2:Watchdogprogramming guide..................................................51

Chapter1
ProductIntroduction

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
1
Chapter1ProductIntroduction
1.1Overview
NORCO-3682isalowerconsume3.5 embeddedmotherboard,It utilizesAMD
LX700 CPUandCS5536chipset,433MHzCPUfrequency.Power-consumeisonly
1.8W,fanlessdesign,singlepowersupply(+5Vto+24V)with6W
power-consumption onlyonthewholeboard.Italsoutilizesone200-pinDDR
SO-DIMM supporting 333/400MHzDDR memoryupto1GB.OnboardIntegrated
twoRealtekRTL8100Cchipsetnetworkadapters；oneMiniIDEslot；FourUSB2.0,
fourserialports,oneparallelport, providingusersahigh-performance, high-security
and high-stabilitynetworkplatform.
RichI/O portsprovided:twoIDEconnectors,oneCFsocketforallmainstream
CompactFlashCards.
Inaddition,otheradvancedfunctionsisprovided,suchasACPI,makehostwith
lowest powerconsumed,CRT,TFT&LVDSdisplayoutputsupported,oneIrDAone
PC104 plus.WatchdogTimersupported.
1.2KeyFeatures
1.2.1Dimension
●145mm 102mm
1.2.2MircroProcessor
●AMDLX700433MHz, 1.3Wpowerconsumptionandfanless
1.2.3Chipset
AMDLX700 integrated
●SupportDDR SO-DIMM
●SupportCRT,LCD displaymode
AMDCS5536
●ProvidefourUSB2.0(480MB/S)port
●SupportoneMINI IDE

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
2
1.2.4SystemMemory
●OneDIMM slot
●SupportDDR 333/400
●Upto1GB
1.2.5DisplayInterface
●LX700integrateVGAandLCD controller
●DB15 CRT, graphicmemorycanbeadjustedinBIOS
●18/24bitTFTLCD(TTL)
●LVDS(optional) singlechannel18bitLVDS,adjustable-brightness
●NotsupportTFTLCD&LVDSsynchronouslydisplay
1.2.6Audio
●AC’97 DODEC
●ProvideSpeakout, MIC-IN
1.2.7On-boardLAN
●RealtekRL8100C
●Supporttwo10/100MbpsLANports
●TwoRJ45
1.2.8ON-boardIDE
●One2×22HeaderDIP, 2.00mmIDEconnector
●CompactFlash:50PINSocket,supportsDMA
1.2.9SupperI/O
●UsingWinbondW83627HFchipset
●GPIO supported
●Two2x5Headerinterface,4*USB2.0
●KB/MSconnectorsupportsp/s2MINI-DINinterface
●OneIRDAconnector
●Oneparallelconnector,PRINT:2x10 Header

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
3
1.2.10 BIOS
●4MbitFlashBIOS
1.2.11SerialCommunicationPort
●COM1: StandardDB9interface
●COM2/3/4adopt2x5Header2.54mm interface
●COM1/3/4->RS232,COM2->RS232/422/485
●COM3/4adoptW83627HFexpansions
1.2.12 WatchdogTimer
●Supporthardwareresetfunction
1.2.13 PowerSupply
●Singlepowersupply+5V~+20V
●FloppyDriverConnector
1.2.14AdvancedFeatures
●Provide1*CompactFlashsocket
●ProvideonePC104PLUS
●8-layerPCB
1.2.15 Environment
●OperatingTemp 0-60
●Operating Humidity:5%-95%nocondensation

Chapter2
Quick Installation Guide

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
4
-
Chapter2Quick InstallationGuide

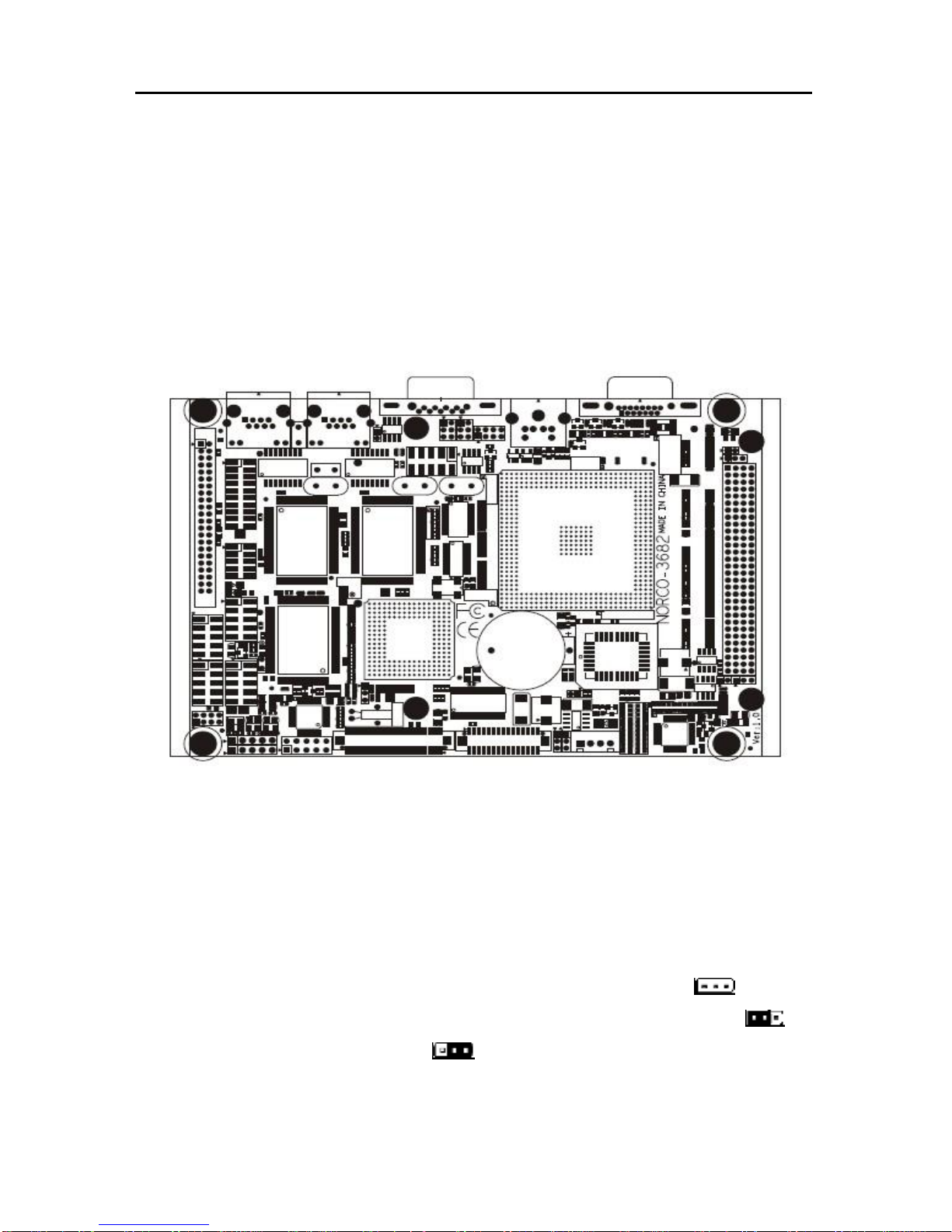

2.1Layout
ThefollowingpictureisinterfaceindexforEMB-3682,whenyou installyourdevices,
pleaseconsultitandread thefollowingguide.Duringinstallationpleasecarefor
somedevices. Incorrectinstallationwill lead tomalfunctions.
Remark Duringinstallation,pleaseputon antistaticglovesincaseofanydamage
EMB-3682InterfaceLocation
2.2JumperSetting
*REMIND
Jumpersarelocated onthemainboard,theyrepresent clearCMOSjumperJCC etc.
pin1 foralljumpersarelocatedonthesidewithathick whiteline(pin1 .)referto
themainboard′ssilkscreen,jumperswiththree pinswillbeshownas to
represent pin1&pin2connectedand torepresent pin2&pin3connected.
2.2.1CMOSContentClearance/ HoldSetting（JCC）
BoardcontainsaCMOSRAM,wheretheinstoredCMOSdataismaintainedbyan

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
5
-
externalbattery.IfyouwanttoresettheCMOSdata,firstdisconnectthepower
supply(10V/220V)andsetJ1to1-2closedforjustafewseconds,thenmovethe
jumperJCCbacktothedefaultstatuswithpin2-3closedandpoweronthesystem
again.
Setting state
1-2 ClearCMOS(retrievetheinitialset)
2-3 Normal(default)
＊Donot clearCMOSwhen poweron,otherwisethemotherboardwillbedamaged
2.2.2CFCardFunction Master/SlaveSelection（JCF）
ThejumperisusedforsettingCFcard’sslaveormasterdisk.WhenJCFisclosed，
CFcardisMasterdevice. Whenyou removejumper,it willbeslave.

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
6
-
Setting JCF
Close Set CFcardasmaster(Default)
Open Set CFcardasslave
2.2.3COM2JumperSetting（J16,J17, J18）
J16,J17,J18areusedtoconfigCOM2transmissionmode.COM2supports
RS232/422/485three transmissionmodes. Userscan choosedifferent configuration
accordingtotheactualrequirements. Defaut asRS232.

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
7
-
COM2RS232(Defaut）
COM2RS422 COM2RS485
J16 3-44-6 J16 1-32-4 J16 1-32-4
J17 3-54-6 J17 1-32-4 J17 1-32-4
J18 1-2 J18 3-4 J18 5-67-8
2.2.4Anti-virusBIOS-protectJumperSetting (JAV)
TheBIOSoftheboardiscontainedintheFlashROM.Ifthe jumperJAVissetas
closed,youwill beunabletoflashtheBIOSandthesystemBIOSisalsoprotected
frombeingattackedbyseriousvirussuchasCIHvirus. If youwanttoflashtheBIOS,
pleaseopenthisJumper.

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
8
-
JAV WRITEFLASH
close Disabled(default)
open Enabled
2.2.5PC104+VoltageSetting（J3V,J5,J5V,J12V）

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
9
-
J3Voffersvoltagesupplyselection forPinVCC3ofPC104+.
J3V SETUP
Close Boardoffers3V
Open Otherwaytooffer3V
J5offersvoltageforPinVIO1-VIO5of PC104+.
J5 SETUP
Open Nooffer(default)
1-2 3.3V
2-3 5V
J5Voffersvoltagesupplyselection forPinVCC5ofPC104+.
J5V SETUP
Open Nooffer(default)
1-2 Boardoffers5V
2-3 Otherwaytooffer5V
J12V
J12V SETUP
Close Boardoffers12V
Open Otherwaytooffer12V

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
10
-
Note:
When usingJ5V(2-3),J12Vcannotbeclosed (1-2); When J12Visclosed(1-2),J5V
can not beclosed（2-3）.WhenJ12Visclosed(1-2), PC104+can alsoprovidepower
forEMB-3682.
2.2.6PanelVCC SelectionJumperSetting(J2,J3)
BeforeswitchingonLCDdisplay,getinformationfromLCD vendorforratedvoltage,
and selectitsvoltagebyJ2&J3setting.
PANELVCC SELECTION
1-2 5V
J3 2-3 3V
1-2 5V
J2 2-3 12V
2.3External Interfaces

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
11
-
2.3.1MiniIDE(IDE)
ThisminiIDEconnectorisfor2IDEdevices.If youhavetwoIDEharddisksin
system,theseconddisk mustbeset asslavediskbyjumpersetting.
DEFINE PIN# DEFINE
Reset IDE 1 2 Ground
Host data7 3 4 Host data8
Host data6 5 6 Host data9
Host data5 7 8 Host data10
Host data4 9 10 Host data11
Host data3 11 12 Host data12
Host data2 13 14 Host data13
Host data1 15 16 Host data14
Host data0 17 18 Host data15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground

EMB-3682 AMDLX700, supportVGA+LVDSorTTL
-
12
-
Host IOR 25 26 Ground
IOCHRDY 27 28 HostALE
DACK0 29 30 Ground
IRQ14 31 32 Noconnect
Address1 33 34 Noconnect
Address0 35 36 Address2
Chipselect0 37 38 Chipselect1
Activity 39 40 Ground
+5v(logic) 41 42 +5v(motor)
Ground 43 44 Reserved
2.3.2CFCardSocket(CompactFlash)
StandardCompactFlashsocket,50PIN
Remark: CF CardsocketadoptsthesamechannelasIDE. IDEconnectoriscapableof
connecting twoharddisks,whileCF cardsocketisused,IDEcanbeusedsimutaneously,but
onlyabletoconnect oneIDEdevice.
2.3.3SerialPorts(COM1/2/3/4)
Boardprovides6*serialports. COM1adoptsDB9interface, COM2/3/4needconvert
cable(DB10 toDB9)toconnect externaldevices.COM1-4support RS-232mode,
whileCOM2supportsRS422/485. COM2-COM4adopt2x5Headerinterface.
