USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTEL91411.1
Serial No.
Write the serial number in the space
above for reference.
www.nordictrack.com
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com

2

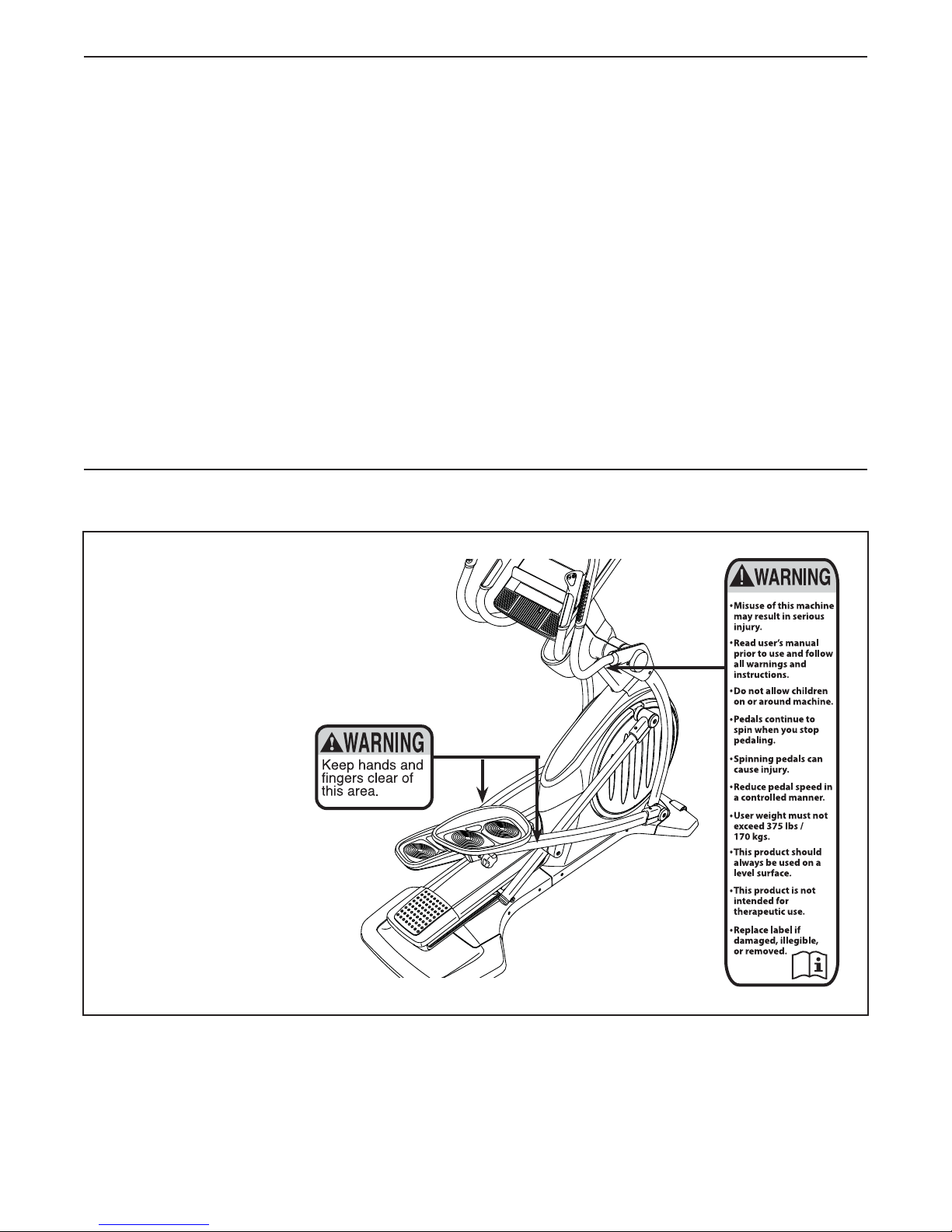

This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
FREEMOTION is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 375 lbs. (170 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the ellip-
tical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Heart Rate Monitor
Resistance Control
Console
Upper Body Arm
Handlebar
Ramp Control
Wheel
Pedal
Roller
Pedal Knob
Accessory Tray
Ramp
Fan
Length: 5 ft. 9 in. (175 cm)
Width: 2 ft. 2 in. (66 cm)
Thank you for selecting the revolutionary
NORDICTRACK®E 15.0 elliptical. The E 15.0 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

5

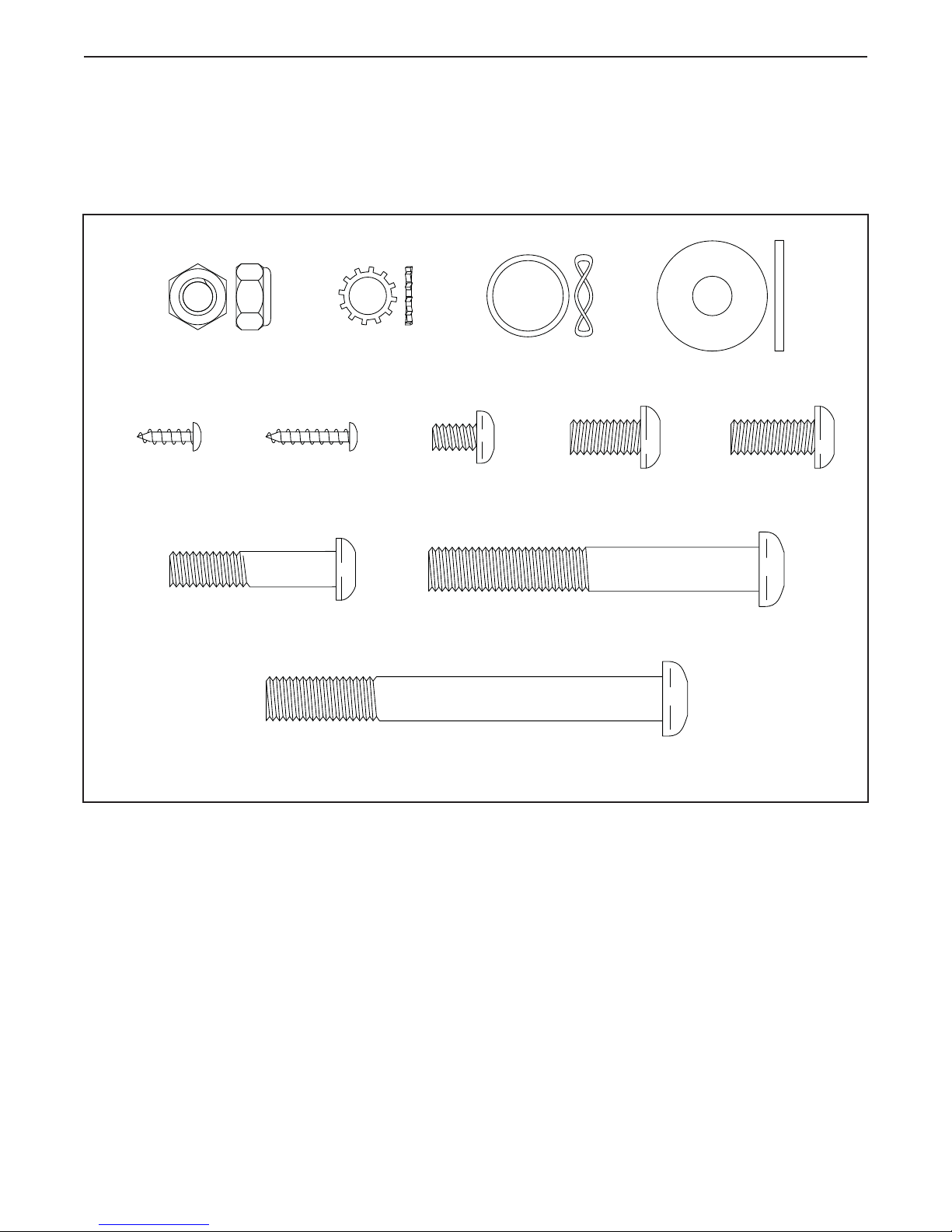

M8 x 35mm
Bolt (96)–4
M10 x 75mm Screw
(119)–2
M10 x 90mm
Screw (84)–2
M8 Locknut
(102)–4 Wave Washer
(95)–2
M8 x 25mm
Washer (98)–6
M8 Star
Washer (122)–4
#8 x 1/2"
Screw (124)–4
M8 x 16mm
Screw (120)–8
M8 x 19mm
Screw (82)–4
M6 x 10mm
Screw (121)–12
#8 x 3/4"
Screw (123)–11
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
• Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the front of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the front of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 90mm Screws (84). Then,
remove and discard the shipping bracket (not
shown).
2. Orient the Front Stabilizer Cover (8) as shown.
Press the Mounts (117) (only three are shown)
on the underside of the Front Stabilizer Cover
(8) into the Frame (1). Then, press the Front
Stabilizer Cover into place.
1
2
6
1
1
84
8
117

7
3
5
1
119
Welded Tubes
3. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the rear of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the rear of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Orient the Rear Stabilizer (5) so that the welded
tubes are in the locations shown.
Attach the Rear Stabilizer (5) to the Frame (1)
with two M10 x 75mm Screws (119).
Then, remove and discard the shipping bracket
(not shown).
4
5
2
117
4. Orient the Rear Stabilizer Cover (2) as shown.
Press the Mounts (117) on the underside of the
Rear Stabilizer Cover (2) into the Rear Stabilizer
(5). Then, press the Rear Stabilizer Cover into
place.
5. Have a second person hold the Upright (4) near
the Frame (1).
See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Main Wire (110). Then, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie.
5
1
4
110
Wire
Tie
Wire
Tie
110

8
6. Tip: Avoid pinching the Main Wire (110). Set
the Upright (4) on the Frame (1).
Attach the Upright (4) with four M8 x 19mm
Screws (82) and four M8 Star Washers (122).
6
Avoid pinching the
Main Wire (110)
1
82
4
122
110
7
56
75
7. Orient the Lower Upright Cover (56) as shown.
Press the Lower Upright Cover (56) into the
Shield Cover (75).

9
8
68
55
4
8. Identify the Left and Right Inner Covers (55, 68),
which are marked with “Left” and “Right” stick-
ers, and orient them as shown.
Slide the Left Inner Cover (55) onto the left side
of the Upright (4). Then, slide the Right Inner
Cover (68) onto the right side of the Upright.
9. Using a small plastic bag to keep your fingers
clean, apply some of the included grease to the
Pivot Axle (35) and to two Wave Washers (95)
(only one is shown).
Insert the Pivot Axle (35) through the Upright (4)
and then center it. Tip: It may be helpful to use
a rubber mallet.
Identify the Right Upper Body Arm (61), which
is marked with a “Right” sticker, and orient it as
shown.
Slide a Wave Washer (95) and the Right Upper
Body Arm (61) onto the right side of the Pivot
Axle (35).
Repeat these actions for the Left Upper Body
Arm (not shown).
61
95
35
4
Grease
9

10
10. Tighten an M8 x 16mm Screw (120) and an M8
x 25mm Washer (98) into each end of the Pivot
Axle (35) at the same time.
10
120
120
98
98
35
11. Identify the Right Pedal (49) and the Right Pedal
Arm (58), which are marked with “Right” stickers,
and orient them as shown.
Attach the Right Pedal (49) to the Right Pedal
Bracket (139) on the Right Pedal Arm (58) with
six M6 x 10mm Screws (121).
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
11
58
49
121
121
139

11

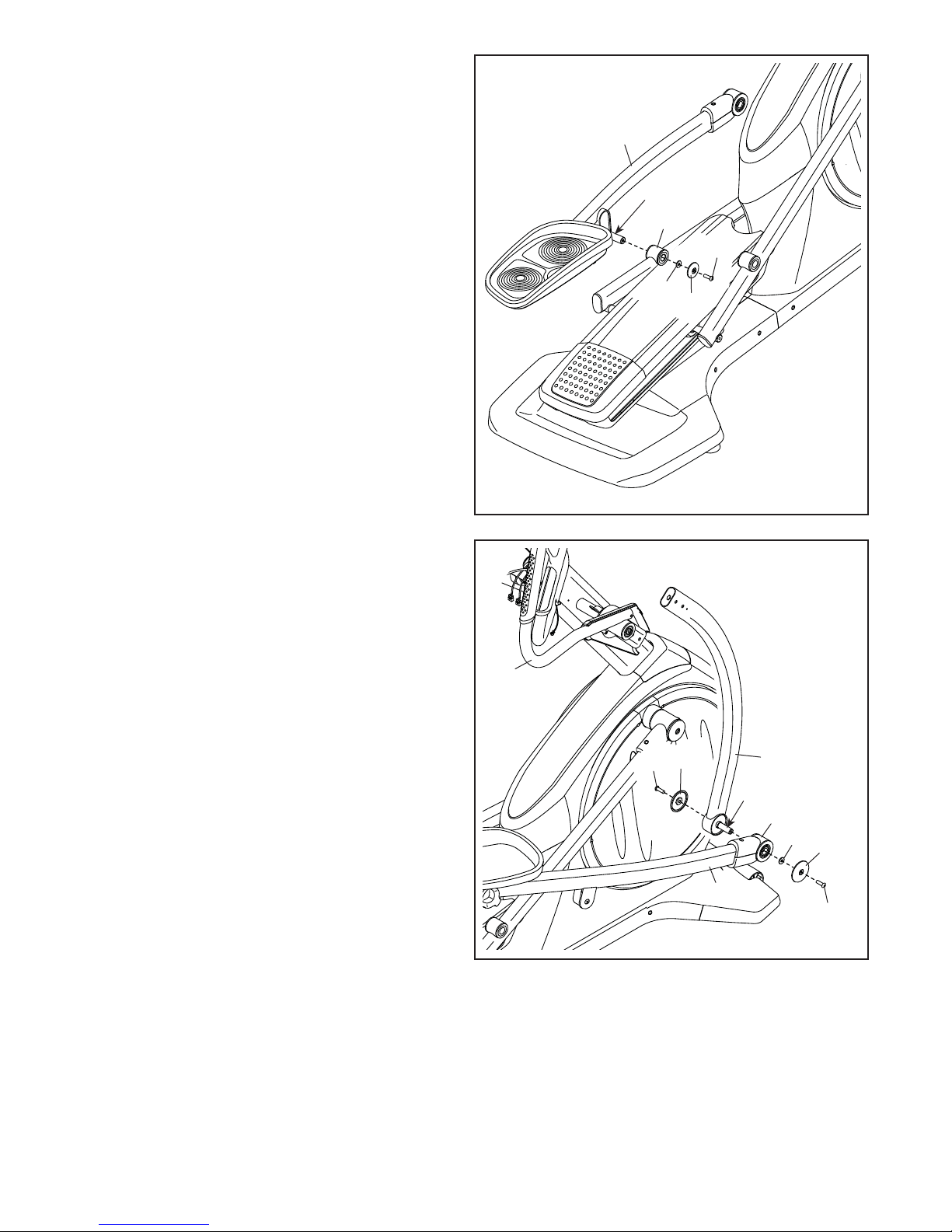

12. Orient the Left Pedal Arm (44) as shown.
Apply grease to the axle on the Left Pedal Arm
(44).
Attach the Left Pedal Arm (44) to the Left Roller
Arm (12) with an M8 x 16mm Screw (120), a
Roller Arm Cover (81), and an M8 x 25mm
Washer (98).
Repeat this step for the Right Pedal Arm (not
shown).
12
81
98
44
12
120
Grease

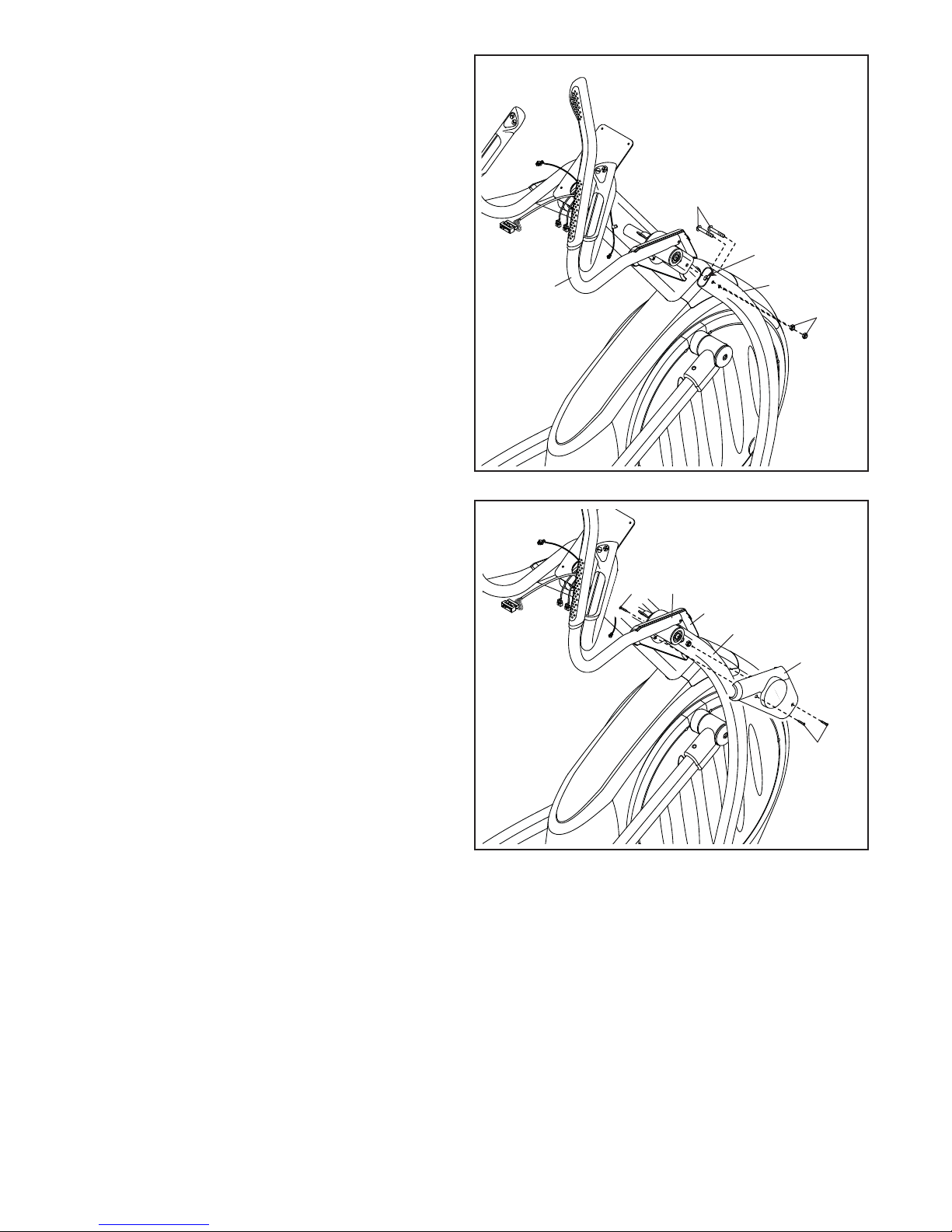

13. Tip: Do not insert the Right Upper Body Arm
(61) into the Right Upper Body Leg (36) until
step 14.
Orient the Right Upper Body Leg (36) as shown.
Apply grease to the axle on the Right Upper
Body Leg.
Slide the Pedal Arm Flex Bracket (136) on the
Right Pedal Arm (58) onto the Right Upper Body
Leg (36).
Attach the Pedal Arm Flex Bracket (136) to the
Right Upper Body Leg (36) with two M8 x 16mm
Screws (120), two Axle Covers (53), and an M8
x 25mm Washer (98). Do not fully tighten the
Screws yet.
Repeat this step on the other side of the
elliptical.
53
98 53
Grease
120
120
36
58
136
13
61

12
36
61
96
102
Hexagonal
Holes

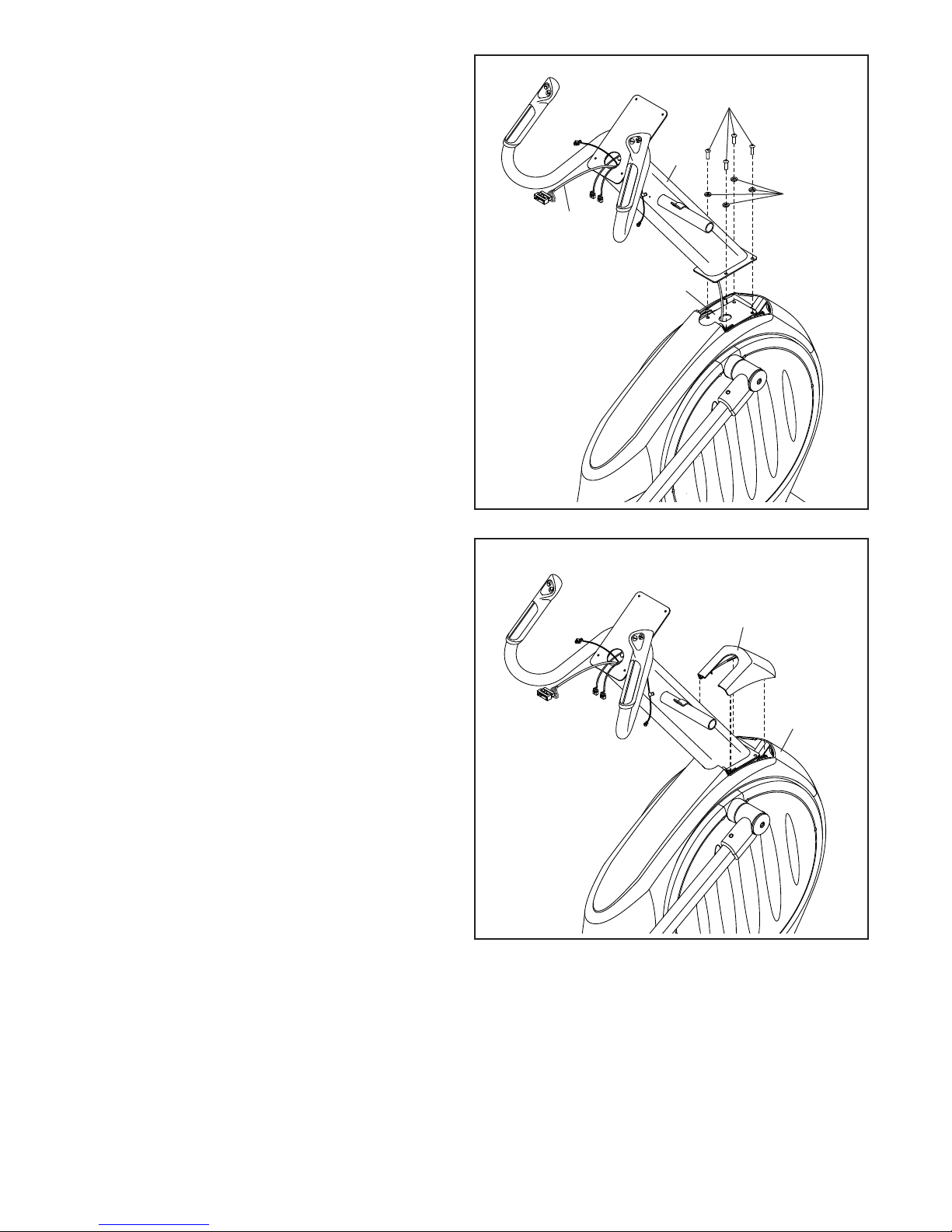

14. Insert the Right Upper Body Arm (61) into the
Right Upper Body Leg (36).
Attach the Right Upper Body Arm (61) with two
M8 x 35mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step on the other side of the
elliptical.
See step 13. Tighten the M8 x 16mm Screws
(120).
67
68
36
123
123
15. Attach the Right Inner Cover (68) to the Right
Upper Body Arm (61) with a #8 x 3/4" Screw
(123).
Identify the Right Outer Cover (67), which is
marked with a “Right” sticker, and orient it as
shown.
Attach the Right Outer Cover (67) to the Right
Inner Cover (68) and the Right Upper Body Leg
(36) with two #8 x 3/4" Screws (123).
Repeat this step on the other side of the
elliptical.
61
14
15

13
17
16. Untie and discard the wire tie on the Main Wire
(110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110), to the Right and
Left Sensor Wires (63, 69), and to the Extension
Wire (150).
Insert the excess wire into the Upright (4) or into
the Console (7).
16
7
17. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four #8 x 1/2"
Screws (124).
18
Avoid pinching
the wires
Avoid
pinching
the wires
124
124
4

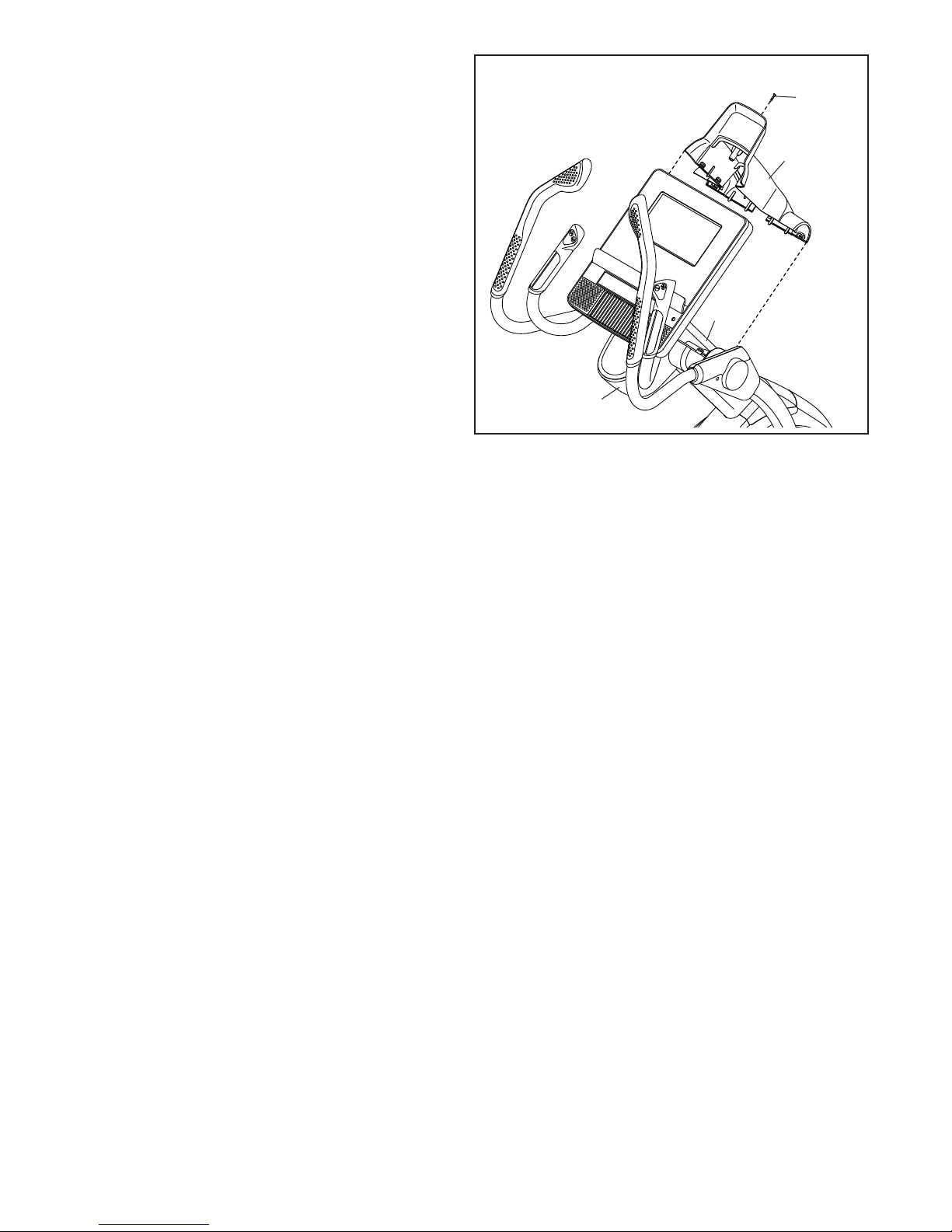

18. Orient the Rear Upright Cover (80) as shown.
While a second person holds the Rear Upright
Cover (80) near the Upright (4), connect the
Extension Wire (150) to the receiver wire (A).
Tip: Avoid pinching the wires. Attach the Rear
Upright Cover (80) to the Upright (4) with four #8
x 3/4" Screws (123).
80
123
123
4
150 A
4
110
7
63, 69
150

14
20. Make sure that all parts are properly tightened before you use the elliptical. Note: After assembly is com-
pleted, some extra parts may be left over. Place a mat beneath the elliptical to protect the floor.
19. Orient the Front Upright Cover (91) as shown.
Press the Front Upright Cover (91) into the Rear
Upright Cover (80).
Attach the Front Upright Cover (91) to the
Upright (4) with a #8 x 3/4" Screw (123).
19
80
91
123
4

15

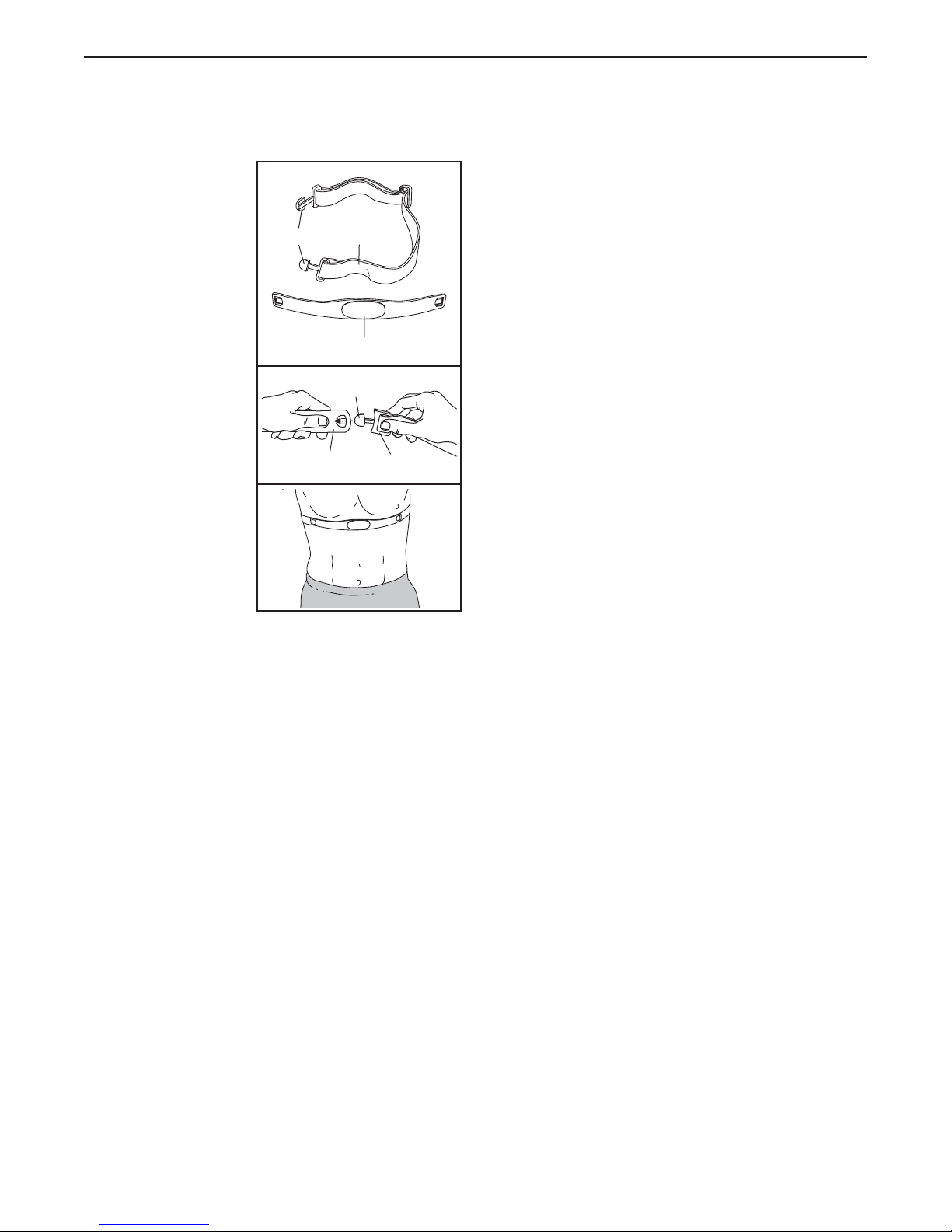

HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
The heart rate moni-
tor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is right-
side-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct sun-
light for extended periods of time; do not expose it to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
THE CHEST HEART RATE MONITOR
Sensor
Tab
Buckle
Chest
Strap
Tabs
Sensor

16

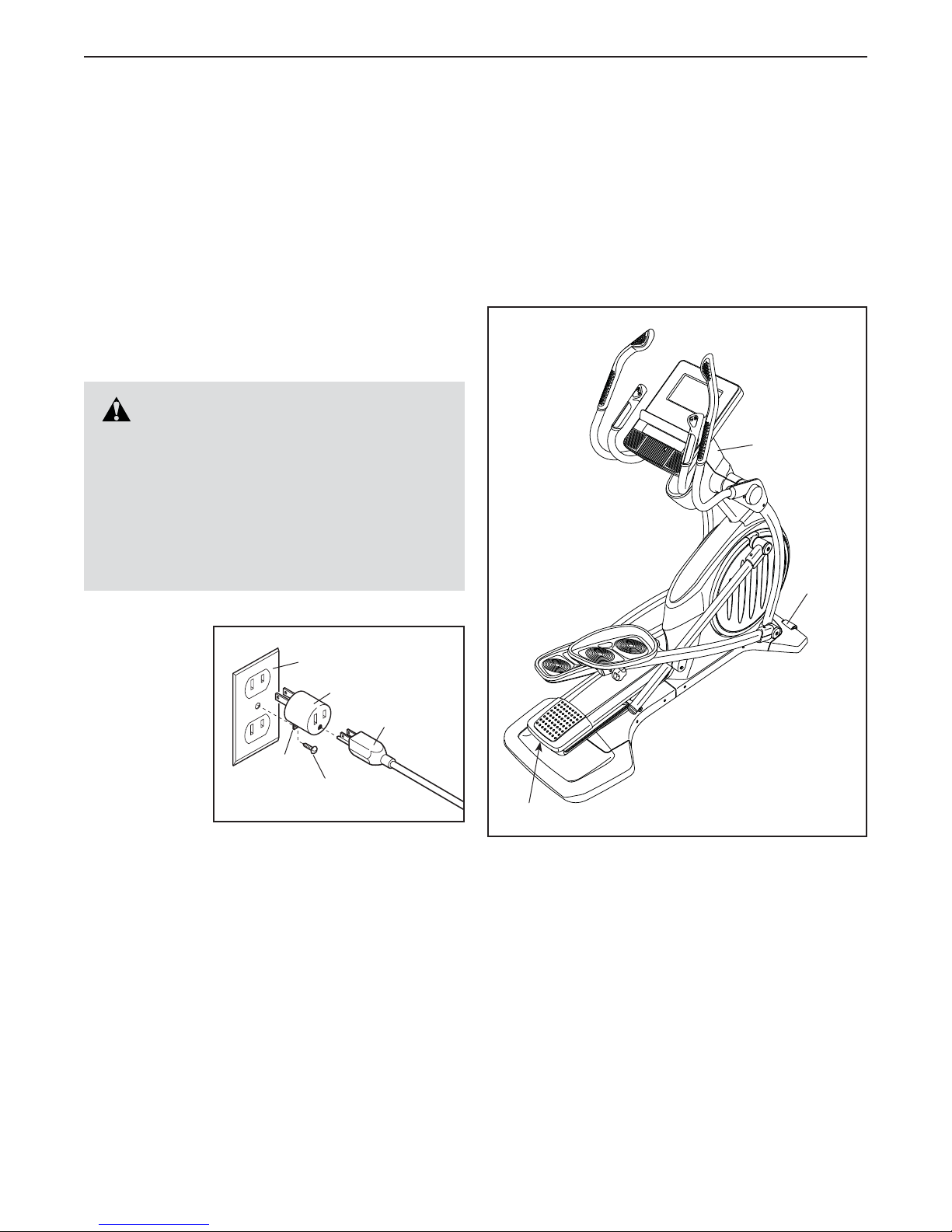

HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug.
Plug the power cord into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances. This product
is for use on a nominal 120-volt circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a prop-
erly grounded
outlet is not
available.
The temporary adapter should be used only until a
properly grounded outlet can be installed by a qualified
electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician
to determine if the outlet box cover is grounded before
using an adapter.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
front wheels. Pull on the upright and have a second
person lift the handle on the ramp until the elliptical will
roll on the front wheels. Carefully move the elliptical to
the desired location, and then lower it to the floor.
HOW TO USE THE ELLIPTICAL
Place
your foot
here
Pull on the
upright
Lift here
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
Grounded Outlet Box
Adapter
Power Cord
Lug
Metal Screw

17

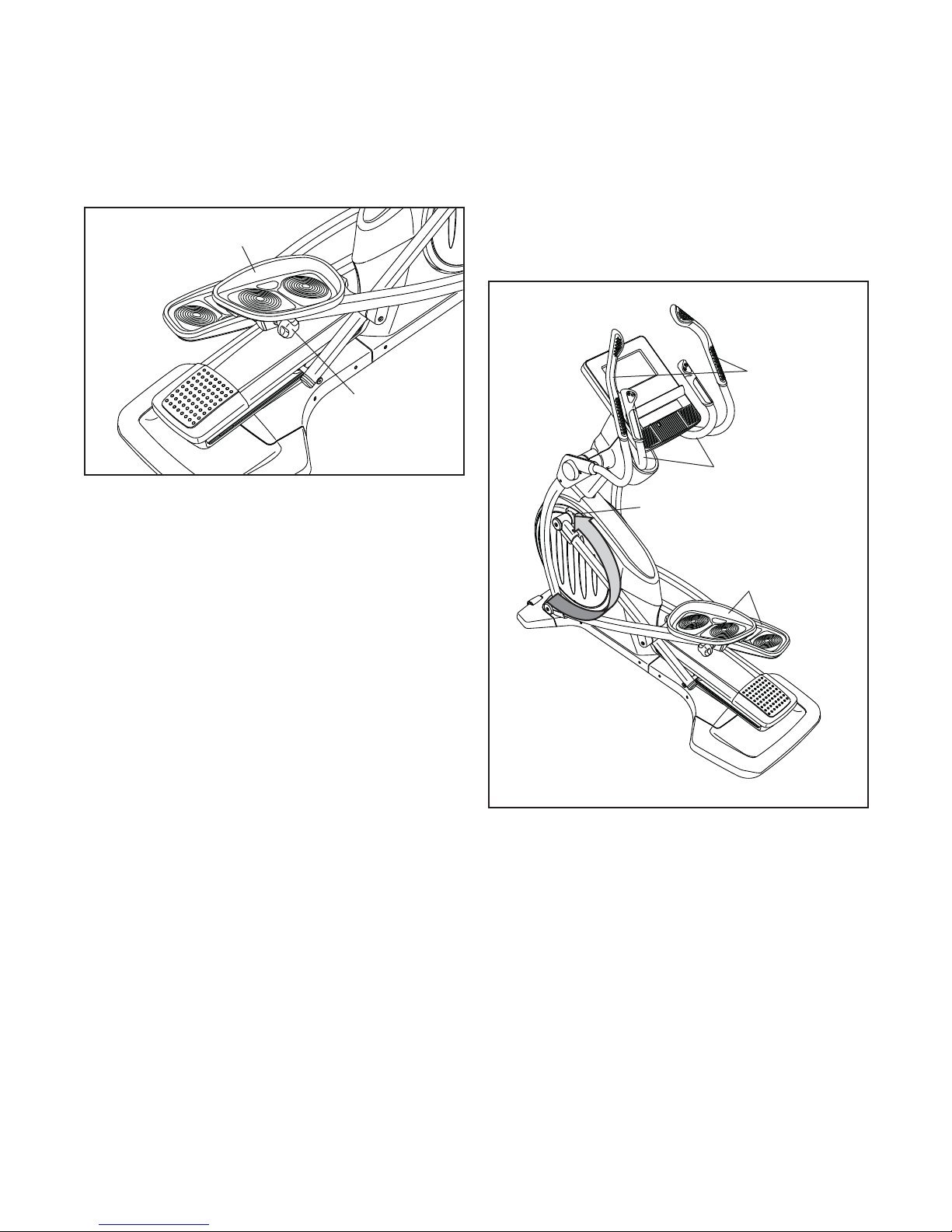

HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply lift the pedal and turn the
pedal knob beneath the pedal. Make sure to adjust
both pedals to the same position.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or
the handlebars and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The crank arms can turn in either
direction. It is recommended that you turn the
crank arms in the direction shown by the arrow;
however, for variety, you can turn the crank arms in
the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pedals
Crank Arm
Upper Body
Arms
Handlebars
Pedal
Knob
Pedal

18
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features revolutionary iFit Live technol-
ogy that enables the console to communicate with
your wireless network. With iFit Live technology, you
can download personalized workouts, create your
own workouts, track your workout results, and access
many other features. See www.iFit.com for complete
information.
In addition, the console features thirty-six onboard
workouts designed to work different muscle groups.
Each onboard workout automatically changes the
resistance of the pedals and the incline of the ramp
and prompts you to vary your pedaling speed as it
guides you through an effective workout. You can also
set a time, distance, calorie, or rpm goal. Eight iFit Live
demo workouts are also included.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button. While you
exercise, the console will display continuous exercise
feedback. You can also measure your heart rate using
the handgrip heart rate monitor or the chest heart rate
monitor.
You can even browse the Internet or listen to your
favorite workout music or audio books with the console
sound system while you exercise.
Note: The console can display distance in either miles
or kilometers. To find which unit of measurement is
selected, see step 7 on page 26.

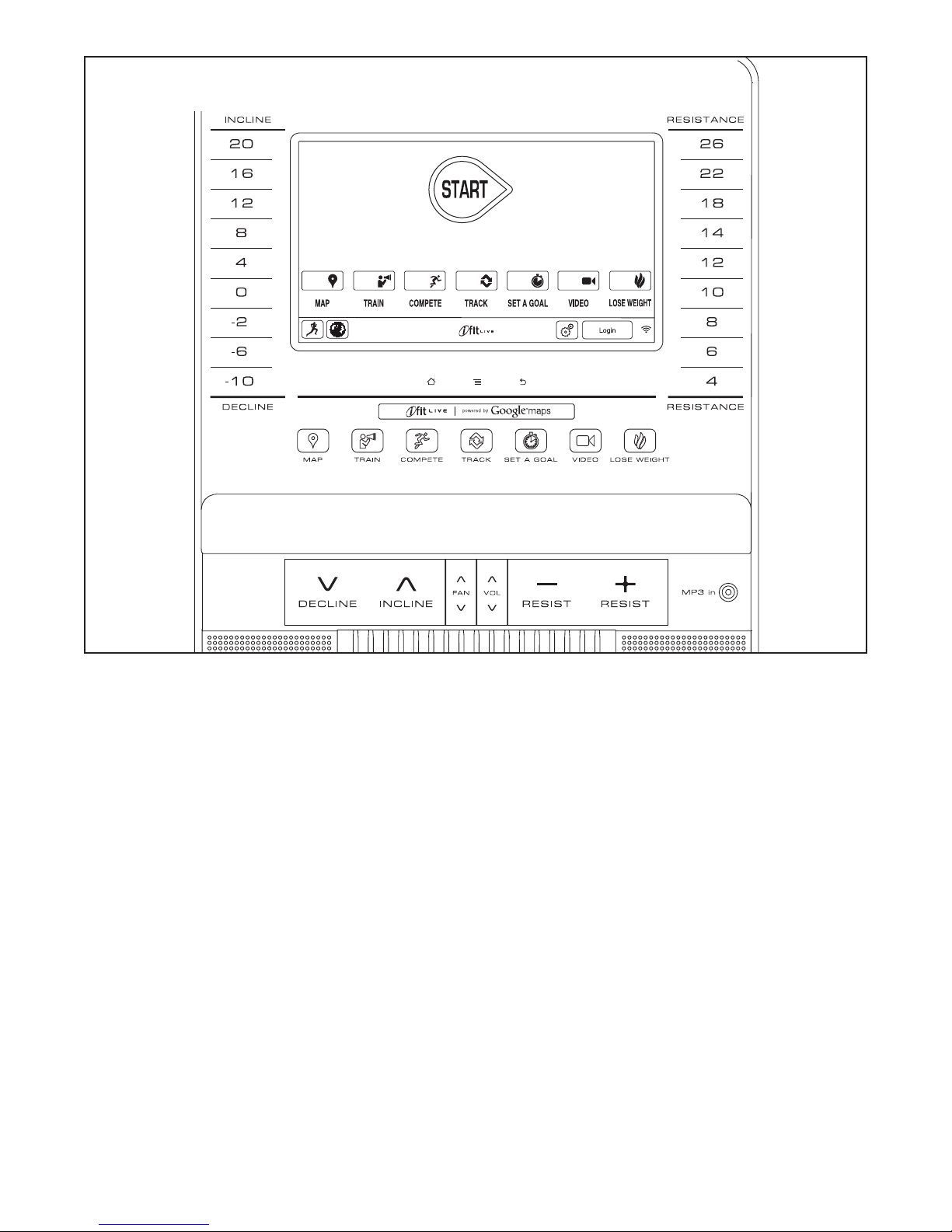

CONSOLE DIAGRAM

19
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
16). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then light and the console will be ready
for use.
Note: When you turn on the power for the first
time, the incline of the ramp will calibrate automati-
cally. The ramp will move upward and downward as it
calibrates. When the ramp stops moving, the ramp is
calibrated.
IMPORTANT: If the incline of the ramp does not
calibrate automatically, see step 4 on page 27
and manually calibrate the ramp.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the device’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout (see step 4 on page 21).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch the ?123 but-
ton. To view more characters, touch the Alt button.
Touch the Alt button again to return to the number
keyboard. To return to the letter keyboard, touch the
ABC button. To use a capital character, touch the
button with an upward-facing arrow. To use multiple
capital characters, touch the arrow button again. To
return to the lowercase keyboard, touch the arrow
button a third time. To clear the last character, touch
the button with a backward-facing arrow and an X.
• Use the buttons at the bottom of the screen to
navigate the console menus. Touch the Back button
to return to the previous screen. Touch the Home
button to return to the main menu. Touch the Runner
button to select the onboard workouts menu. Touch
the Globe button to select the Internet browser.
Touch the Gears button to select the settings menu.
Touch the Login button to log in to iFit Live.
• Use the buttons on the console to navigate the
tablet. Press the Home button to access the tablet
desktop. Press the center button to access a desk-
top menu. Press the Back button to return to the
previous screen.
Reset
Position

20
HOW TO SET UP THE CONSOLE
Before using the elliptical for the first time, set up the
console.
1. Connect to your wireless network.
Note: In order to access the Internet, download iFit
Live workouts, and use other features of the con-
sole, you must be connected to a wireless network.
See HOW TO USE THE WIRELESS NETWORK
MODE on page 28 to connect the console to
your wireless network.
2. Check for firmware updates.
First, see step 1 on page 26 and step 2 on page
27 and select the maintenance mode. Then,
see step 3 on page 27 and check for firmware
updates.
3. Calibrate the incline of the ramp.
See step 4 on page 27 and calibrate the incline
of the ramp.
4. Create an iFit Live account.
Touch the Globe button near the lower-left corner
of the screen and then touch the iFit Live button.
Note: For information about navigating in the
Internet browser, see page 29.
The Internet browser will open to the iFit.com home
page. Touch the Register button in the upper-right
corner of the screen.
The Internet browser will open to the iFit.com
registration page. Touch an entry box to view the
keyboard. Slide your finger up or down the screen
to scroll up or down the page.
Next, enter a username and password and your
e-mail address. Enter the activation code from the
iFit Live flier that came with the elliptical. Touch the
Place of Purchase drop-down menu for a list of
options; then, touch the location where you pur-
chased your product. Touch the words MEDICAL
DISCLAIMER, read the medical disclaimer,
touch the I Accept button, and check the medi-
cal disclaimer checkbox. Then, touch the Confirm
Activation Code button.
Enter the requested personal information. When
you have entered all of the information, touch the
Finish button. Then, touch the Home button on the
screen to exit the Internet browser.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 21. To use an
onboard workout, see page 22. To use a set-a-
goal workout, see page 24. To use an iFit Live
workout, see page 25.
To use the equipment settings mode, see page
26. To use the maintenance mode, see page
27. To use the wireless network mode, see page
28. To use the sound system, see page 29. To
use the Internet browser, see page 29.
Note: If there is a sheet of plastic on the display,
remove the plastic.
