Nuna ivvi User manual

1
Usage / Utilisation
instruction manual
Mode d’emploi
Thanks for
choosing Nuna!
Nuna designs distinctive, smart and exciting
products.
18
nuna.eu

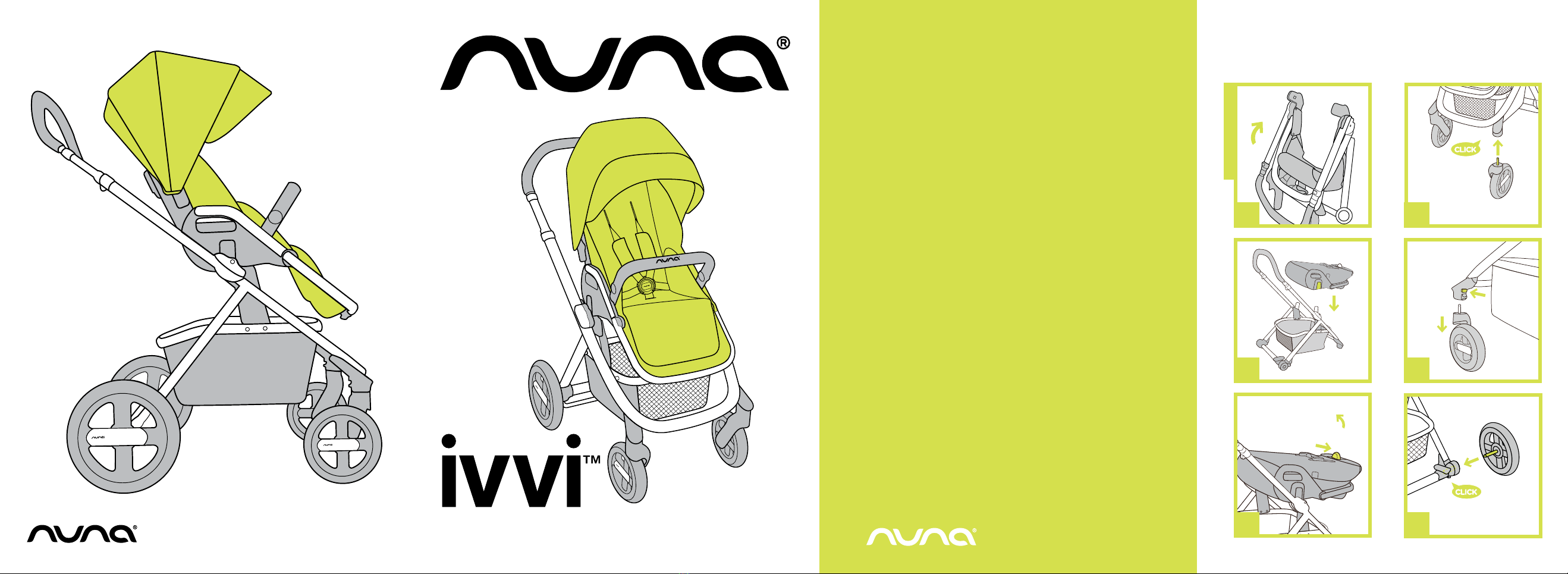

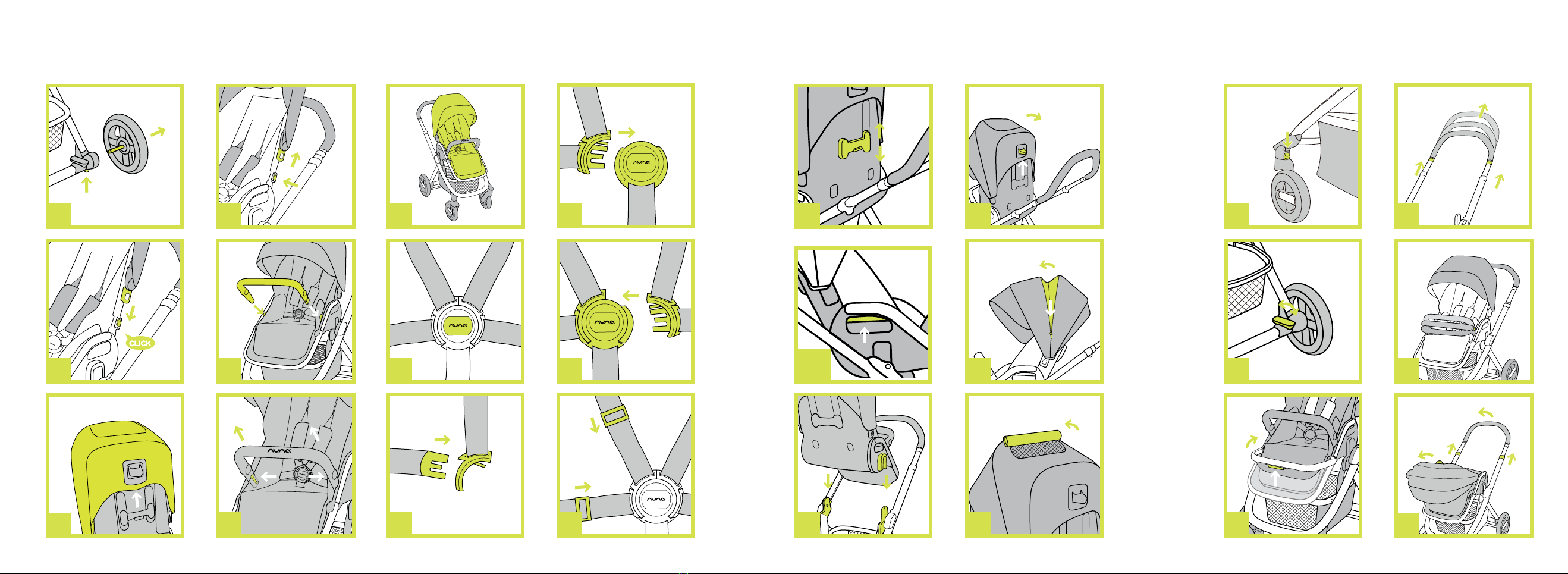

Illustrations
IM-0104J
2
63
4
5
1
2
1
2

11
2 3 4 5
12
29
14 17
15 18
16
137 10 28
20
30
927
826
25
19
21
22
23
24
1
2
1
2
1
2
1
2
1
2
1
12
1 2
2
3
Illustrations

31
33
32
36
35
34
38
37
1
2
1
2
6 7 9
nuna.eu
39

1110
EN EN
Contents
Illustrations 1-7
English
(EN) 8
Safety and recommendations 11
Warnings 12
Further Warnings 13-14
Parts list 15
Contents of the box 16
How to set up the Nuna IVVI 16
How to use the Nuna IVVI 18
Accessories 21
Cleaning and maintenance 22
Warranty and service 23
Where to find Nuna products 25
Nederlands (NL) 26
Français (FR) 44
Deutsch (DE) 60
Italiano (IT) 76
Español (ES) 92
Türkçe (TR)
108
Korean (KO)
124
Safety and
recommendations
Please take note of the following before using the Nuna IVVI.
Safety is very important to us and you can be assured that our products
comply with the relevant standards and that they have been tested by a
number of independent testing panels and laboratories.
The Nuna IVVI is a patented product and complies with European safety
standards EN 1888:2012.
If you have any questions or comments regarding the Nuna IVVI, we will be
glad to hear them through our web site www.nuna.eu
IMPORTANT! KEEP THESE
INSTRUCTIONS FOR FUTURE
REFERENCE!
Read these instructions carefully before use and keep them for
future reference. Your child’s safety may be affected if you do not
follow these instructions.
This vehicle is intended for children from birth and up to 15 kg
maximum. (33 lbs) and maximum height of 114.3 cm (45 in.)

1312
EN EN
WARNINGS
Failure to follow these warnings and instructions could result in
serious injury or death.
WARNING Never leave you child unattended.
WARNING A child’s safety is your responsibility.
WARNING Ensure that all the locking devices are
engaged before use.
WARNING Suitable from birth and designed to
accommodate your child from infant to toddler to a
maximum weight of 15 kg (33 lbs) and 114.3 cm (45 in).
in height.
WARNING To avoid finger entrapment, use extra care
when folding and unfolding the Ivvi stroller.
WARNING Never carry more than one child at a time in
this vehicle.
WARNING Any load attached to the handle affects the
stability of the stroller/pram/pushchair.
WARNING Always use the crotch strap in combination
with waist belt.
WARNING This product is not suitable for running or
skating.
WARNING To avoid any danger of suffocation, remove
all plastic covers before using this item and destroy or
keep away from babies and children!
WARNING Do not let your child play with this product.
FURTHER WARNINGS
WARNING Always use the restraint system.
Children must always be harnessed in at all times and
never be left unattended.
The harness must always be correctly fitted and
adjusted. The harness is not a substitute for a proper
adult supervision.
Always set the parking brake on the IVVI when you
stop.
Never leave a child in the IVVI when ascending or
descending stairs or escalators, or when traveling on
other forms of transport.
Do not carry additional children, goods, accessories in
or on this IVVI except as permitted in this leaflet. They
may cause the IVVI to become unstable.
Do not place any item on the canopy.
Overloading, incorrect folding, and the use of
accessories e.g. child seats, bag hooks, rain covers,
buggy boards, etc… other than those approved by
Nuna may damage or make this IVVI unsafe.
Any damage caused by the use of accessories not supplied
by Nuna will not be covered in terms of warranty.
Never allow children to stand on the footrest.
WARNING Do not use the vehicle if any parts are
damaged or missing.
WARNING Use original Nuna parts and accessories
only.

1514
EN EN
Negotiate curbs and rough ground carefully. Repeated
impact will cause damage to the IVVI.
The tires may leave black marks on some surfaces,
particularly smooth floors like parquet, laminate and
linoleum.
Do not leave the IVVI exposed in the vicinity of a strong
source of heat i.e. a radiator or open fire.
Do not store your IVVI in a damp place. Always allow
the fabric to dry naturally away from direct heat.
Keep small parts away from children as they pose a
choking hazard.
The maximum weight to be placed in the basket is
4.5 kg (9.9 lbs).
WARNING Check that the seat unit, the pram body, and
car seat attachment devices are correctly engaged
before use.
WARNING To avoid injury ensure that your child is kept
away when unfolding and folding this product.
This pushchair has been designed to use from birth.
We recommend using the most reclined position for
newborn babies.
This vehicle does not replace a cot or a bed. Should
your child need to sleep, then it should be placed in cot
or bed.
The parking device should be engaged when placing
and removing child.
Parts list
Make sure all parts are available before assembly. If any part is missing,
please contact local retailer. No tools are required for assembly.
19
x2 x2
5
2
13
4
7
6
8
9
10
11
15
14
16
12
13
17
18
20
1 Front Wheel (x2)
2 Rear Wheel (x2)
3 Rain Cover
(Stroller Mode)
4 Car seat adapter
5 Stroller
6 Hood
7 Seat Pad
8 Arm Bar
9 Calf Support
10 Front Wheel
11 Rear Wheel
12 Seat Mount
13 Seat Release Button
14 Buckle
15 Shoulder Harness Pads
16 Folding Button
17 Handle Adjustment
Button
18 Storage
19 Brake Lever
20 Handle

1716
EN EN
Contents of the Box
Chassis
Seat
Seat rain cover
Car seat adapter
Front wheels
Rear wheels
Tools Needed: None
How to set up the
Nuna IVVI
Opening the Nuna IVVI
Check that you have all the parts for this product before using it.
The assembly should be performed only by adults.
1 Rotate handle upward. (1) Attach the seat to the frame. (2)
2 Press the recline adjust button and rotate the seat back to the vertical
position.
(3)
3 Check that the stroller is completely latched open before continuing.
Assemble Front Wheel
1 Assemble front wheels to front legs. Check that wheels are securely
attached by pulling down. (4)
2 To disassemble front wheel, detach front wheel from front leg (5)-2
while pressing the release button. (5)-1
Assemble Rear Wheels
1 Assemble rear wheels to rear legs. Check that wheels are securely
attached by pulling outward. (6)
2 To disassemble rear wheel, detach rear wheel from rear wheel mount
(7)-2 while pressing the release button. (7)-1
Assemble Hood
1 Insert the clips on either side of the canopy into the mounts (8), then
attach the rear panel around the recline plastic. (9)
2 To remove the canopy, press the buttons on either side of the canopy,
then remove the rear panel from the recline plastic. (10)
Assemble Armbar
1 Align the armbar ends with the armbar mounts, and then insert to lock.(11)
2 To disassemble armbar, press armbar release button (12)-1, and then
pull out the armbar. (12)-2
3 The completely assembled stroller is shown as (13)

1918
EN EN
How to use the
Nuna IVVI
Securing child
1 To release the buckle latch, push on center button and remove the
clips. (14)
2 To secure child, assemble buckle. (15, 16, 17)
3 Fit harness snugly to child by sliding each adjustment buckle. (18)
Adjusting the shoulder harness position
1 There are 5 positions for the shoulder harness.
2 To adjust the shoulder harness position, squeeze the adjustment
button, and then adjust the shoulder harness position to a desired
height. (19)
Switch Seat
1 The seat can be switched to face front or to face the parent.
2 Squeeze the seat release buttons while lifting the seat. (20) Turn the
seat to reverse direction, and then insert the seat to seat mounts. (21)
Adjust Recline
1 There are 5 positions for the backrest.
2 To recline the backrest, squeeze the adjustment button (22)-1, and
then adjust the backrest to a desired angle. (22)-2
3 To raise the backrest, squeeze the adjustment button (22)-1, and push
up.
Use Canopy
1 To open the canopy, unzip the zipper, pull canopy toward front. (23)
2 To fold the canopy, pull canopy toward back.
3 To open the canopy window, roll fabric and secure with magnet. (24)
Front Swivel Locks
1 Push down the front swivel locks to lock front wheles facing forward. (25)
2 It is recommended to use swivel locks on uneven surfaces.
Brake
1 To lock wheels, step on brake lever and push downwards. (26)
2 To release wheels, lift the brake lever upwards.
3 Always apply brake when stroller is in stopped position.

2120
EN EN
Adjust Calf Support
1 The calf support has 2 positions.
2 To raise the calf support, push it upwards.
3 To lower calf support, press the adjusting button in the middle of
footrest, and rotate the footrest downwards. (27)
Adjust Handle
1 The handle has 6 positions.
2 To adjust the height of the handle, pull the handle upward or downward
(28)-2 while pulling up both handle adjustment buttons. (28)-1
Use Arm bar
1 There are 2 positions for the armrest.
2 Press the adjusting buttons on two sides of the armrest ,and rotate the
armrest to the suitable position.
! Adjust the armrest to the second position as needed.
! Positioning the arm rest in the first position before folding will provide a
more compact fold. (29)
Fold Stroller
Please fold the hood before folding the stroller.
1 Press the recline adjusting button to fold the stroller seat back down.
(30)-1
2 Lift the folding button and rotate the handle for (30)-2, (30)-3.
3 To trolley stroller, grab handel at the bottom of the seat. (38)
4 The stroller seat can also be removed before folding (37)
5 Lift the webbing in the basket of the stroller to transport after folding. (37)
! Please rotate the front wheels to the suitable position to make the
stroller stand alone. (31)
Accessories
! Not all accessories are included on some models.
Use Rain Cover
1 To assemble the stroller rain cover, place it over the stroller seat. (39)
! Please always check ventilation, especially in hot weather when
the rain cover is on the product.
! Please check that the rain cover has been cleaned and dried before
folding.

2322
EN EN
Use with Nuna Pipa Infant Car Seat
When using with Nuna Car Seat , please refer to the following instructions.
1 To attach adapters, place adapters onto mounts as show. A "click"
sound means the adapter is locked. (32)
2 To attach car seat, place car seat onto adapter as show. (33)
A "click" sound means the car seat is locked. (34)
3 To remove car seat, lift the car seat upwards (35)-2 while pressing
the two stroller release buttons. (35)-1
4 To remove adapters, lift the adapters upwards (36)-2 while pulling
the two release buttons. (36)-1
! If you have any problems using the car seat, please refer to the car seat
instruction manual.
! Please don’t fold the IVVI when the car seat is attached.
Cleaning and
maintenance
Your IVVI is a valuable piece of equipment and deserves careful handling.
You can clean the frame, the plastic parts, and the fabric with a damp
cloth, but don’t use abrasives or bleach. Fabric is machine washable, Line
dry. Continued and extended exposure to sunlight can change the colour
of many materials.
For reasons of safety, only use original Nuna parts.
Clean the wheels regularly with water and remove the dirt.
To ensure the long-lasting use of your IVVI, wipe it off with a soft,
absorbent cloth after using it in rainy weather.
It is normal for fabric to discolour from sunlight and to show wear and tear
after a long period of use, even when used normally.
Check regularly if any parts are torn, broken, or missing and that everything
functions properly.
Warranty
and service
The Nuna IVVI is covered by a one-year warranty. If this product shows
a defect during the warranty period, please contact your retailer. If the
retailer is unable to help you, they will make contact with the local Nuna
distributor.
Please be aware that the model number and serial number located under
the seat of the stroller, and on the bottom of the carry cot will be required
in the event of a warranty claim.
To register your product, please go to our website at www.nuna.eu
Terms of warranty
The warranty takes effect at the date of purchase of the product and is
valid for one year. The warranty provides you with a right of repair but not
a product exchange or return. The warranty will not be extended even if
some repairs have been made. Nuna has the right to improve the design
of the product without any obligation to update the products manufactured
previously.
