Oki MPS610c Service manual

Handy Reference
Guide de référence pratique
MPS610c
59406801 my.okidata.com

2
Contents Table des matières
Ordering Replacement
Supplies . . . . . . . . . . . . . . . 3
Using the Printer Menu . . . . 4
Navigating. . . . . . . . . . . . . 4
Menu Summary . . . . . . . . . 5
Print Media Settings. . . . . . . 6
Print Media Settings. . . . . . . 7
Exit Trays . . . . . . . . . . . . . . . 8
Tray 1 and Optional Trays 2
and 3, . . . . . . . . . . . . . . . . . 9
Usable Print Media . . . . . . . 9
Loading Paper . . . . . . . . . .10
Multi-Purpose Tray. . . . . . . 11
Usable Print Media . . . . . . .11
Loading Print Media . . . . . .12
Power Save Mode. . . . . . . . 13

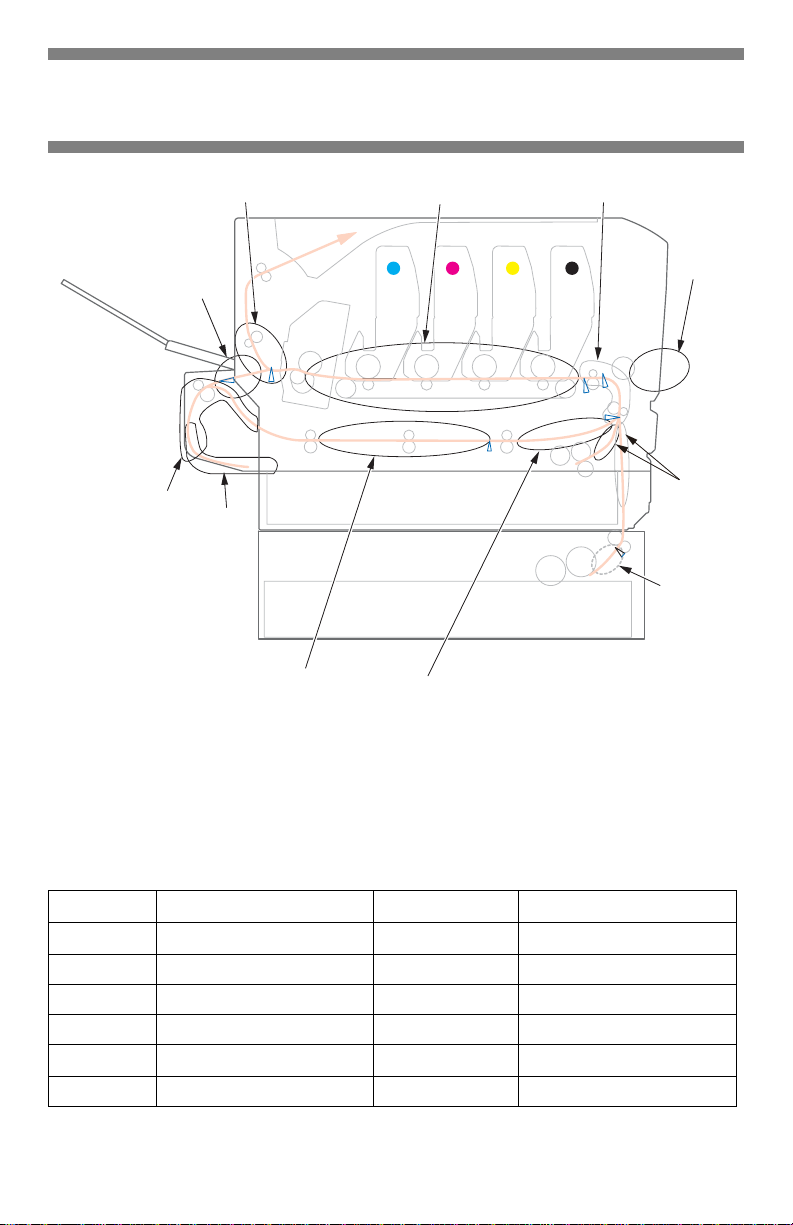

Clearing Media Jams. . . . . . 14
Troubleshooting . . . . . . . . . 22
Service & Support. . . . . . . . 23
Commande de fournitures24
Utilisation des menus de
l'imprimante . . . . . . . . . . .25
Déplacement. . . . . . . . . . . 25
Sommaire des menus. . . . . 26
Paramètres de support
d’impression . . . . . . . . . . .27
Paramètres de support
d’impression . . . . . . . . . . .28
Bacs 1, 2 et 3 optionnel . . .29
Supports d'impression
utilisables . . . . . . . . . . . . 29
Chargement des supports
d'impression . . . . . . . . . . 30
Bac multifonction . . . . . . . .31
Supports d'impression
utilisables . . . . . . . . . . . . 31
Chargement des supports
d'impression . . . . . . . . . . 32
Bacs de sortie . . . . . . . . . . .33
Mode d'économie d'énergie 34
Dégagement des bourrages35
Dépannage . . . . . . . . . . . . .43
Service et support . . . . . . .44
59406801

3 • MPS610c • English
English
Ordering Replacement Supplies
How to Order
• Consult the dealer where you
purchased your printer.
• Consult an Oki Data Authorized
Sales or Service Dealer. For
your nearest dealer, call
1-800-654-3282.
•U.S., Puerto Rico, Guam,
U.S. Virgin Islands only: Order
on the Internet at
WWW.OKIPRINTINGSOLUTIONS.COM
•U.S. only: Order toll-free by
phone at 1-800-654-3282,
using VISA
®
, MasterCard
®
, or
AMEX
®
.

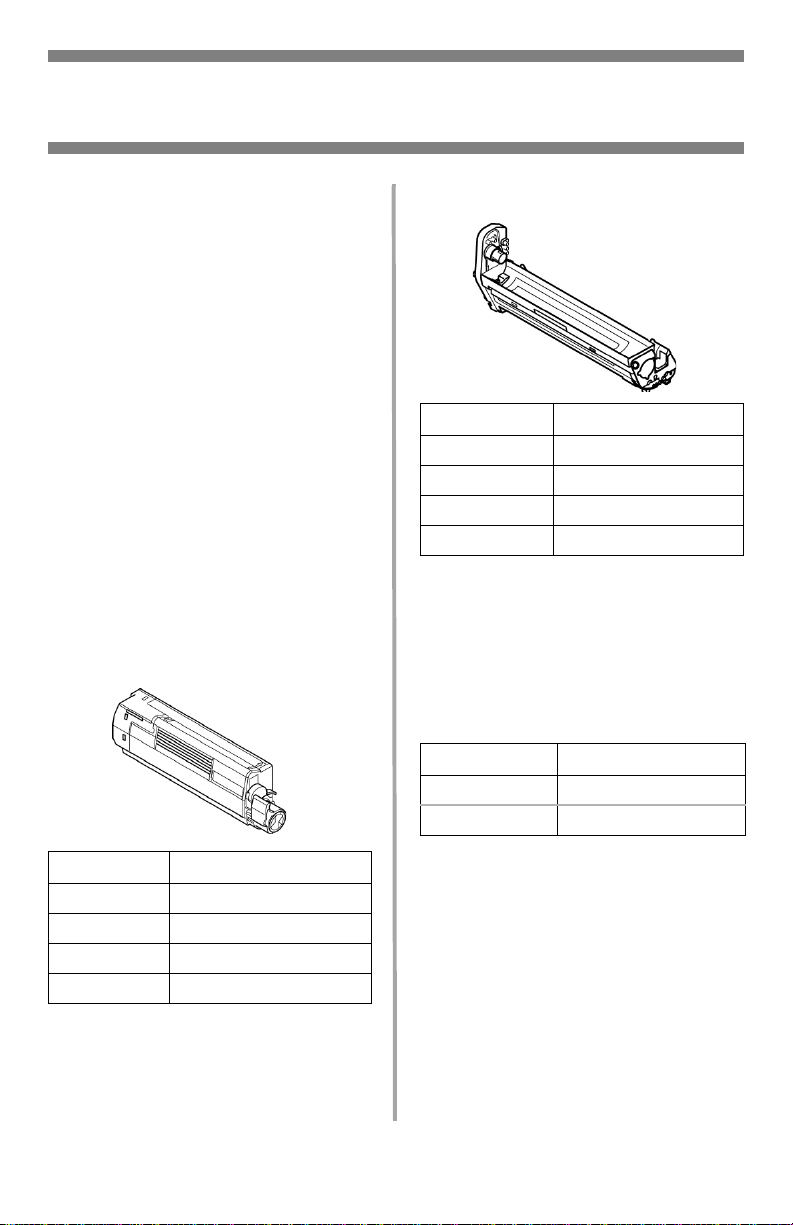

Order Numbers
Toners, Type C15
Important! Use only genuine Oki
Toner Cartridges.
Drums, Type C15
Maintenance Items: Fusers
and Transfer Belt
Maintenance items are warranted
against defects for 90 days. When
the printer display indicates that
they are near end of life, a
replacement must be purchased.
Installation
These items include installation
instructions.
Toner Order No.
Black 52123704
Cyan 52123703
Magenta 52123702
Yellow 52123701
Image Drum Order No.
Black 56125704
Cyan 56125703
Magenta 56125702
Yellow 56125701
Item Order No.
Fuser, 120V 57106002
Transfer Belt 57106302

4 • MPS610c • English
Using the Printer Menu
Navigating
Note
Settings made in the printer
driver will override the printer
menu settings.

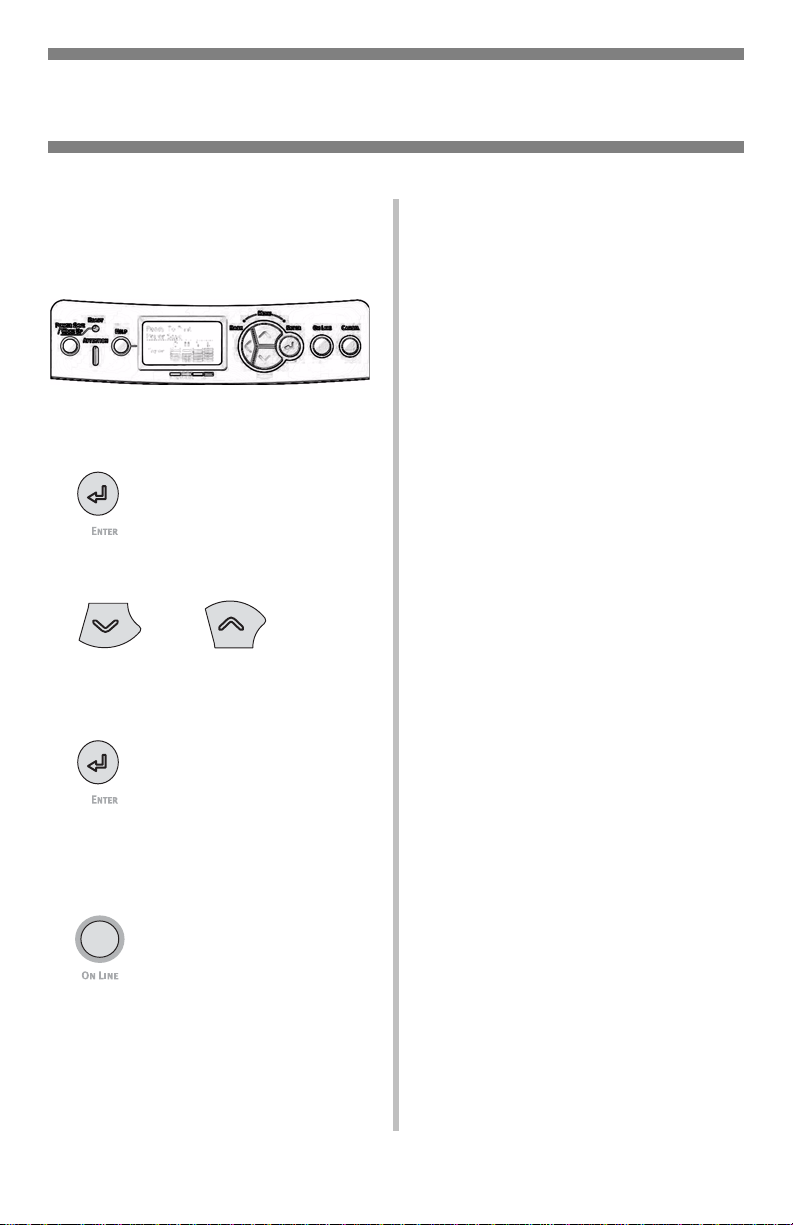

Navigating the Menu
1. Press
to enter the Menu mode.
2. Press
or
repeatedly to scroll through the
Categories, Items and Values.
3. Press
to select a Category, Item or
Value to change, or to engage
the new setting for a Value.
4. Press
to exit the Menu mode.
For Example
If the MP Tray will normally be
loaded with index cards, set the
printer menu as follows:
1. Press
E NTER .
2. Press the down arrow key to
move down to
Menus . Press
E NTER
3. Press E NTER to select Tray
Configuration
.
4. Press the down arrow key to
move down to
MPTray Config .
Press
E NTER .
5. Press the down arrow key to
move down to
Media Type .
Press
E NTER .
6. Press the down arrow key to
move down to
Card Stock .
Press
E NTER .
An asterisk appears next to
your selection. The setting is
engaged.
7. Press
O N L INE .

5 • MPS610c • English
Using the Printer Menu
Menu Summary
Summary of Menu
Categories
 Configuration
•TrayCount
• Supplies Life
•Network
•System
 Print Information
 Shutdown Menu
 Print Secure Job Menu
 Menus
• Tray Configuration
•SystemAdjust
 Admin Setup
For use by the System
Administrator. To access this
menu you must enter the
password. If you have no
administrator, the default
password is aaaaaa.
 Calibration
 Boot Menu
 Parallel Setup
 USB Setup
 Security Setup
 Storage Setup
 Power Setup
 Language Setup
 Print Statistics
Printing the
Configuration Report
The Configuration report provides
a listing of the current printer
menu settings.
1. Press
E NTER .
2. Press the down arrow key to
select
Print Information .
3. Press
E NTER .
4. Press E NTER to select
Configuration .
5. Press E NTER to select Execute .
The Configuration report prints
and the printer goes back on
line.

6 • MPS610c • English
Print Media Settings
Always make sure the media setting
matches the print media you are
using.
Improper media settings:
• cause poor quality printing
• cause flaking
• can damage the printer
Note
Printer driver settings override
printer menu settings.
Default Settings
The default media weight setting
for Tray1 is Light.
The default setting for the MP
(Multi Purpose) Tray is Medium.
Resetting to the Defaults
Note
A password is required to
access this area of the printer
menu. If you have a System
Administrator, only they can
reset the defaults.
1. Press
E NTER .
2. Press the down arrow key to
move down to
Admin Setup .
Press
E NTER .
3. Enter the administrative
password (the default
password is aaaaaa).
a. Press the up arrow key (a to
z, 0 to 9) or the down arrow
key (9 to 0, z to a) to scan
through the various
numbers and letters of the
alphabet.
b. Press
E NTER .
c. Repeat a and b above for
each digit of the password.
4. Press
E NTER .
5. Press the down arrow key to
move down to
Settings . Press
E NTER .
6. Press
E NTER to select Reset
Settings
.
7. Press
E NTER to select Execute .
The printer resets and returns
to the on-line state.

7 • MPS610c • English
Print Media Settings
Temporarily Changing the
Media Weight for an
Individual Print Job
If you are printing a job on
special media, you can
temporarily load the media in a
tray and change the media
settings for that tray in the driver
as you print the job.
Media Weight Settings
Media weight settings can be
made in the printer menu or the
printer driver.
• Light: 16–17 lb. US Bond
(60–63 g/m²)
• Medium Light: 18 lb. US Bond
(64–74 g/m
2
)
• Medium: 20–24 lb. US Bond
(75–89 g/m
2
)
• Medium Heavy: 24–28 lb. US
Bond (90–104 g/m
2
)
•Heavy:28–32 lb. US Bond
(105–120 g/m
2
)
• Ultra Heavy 1 (Tray 1):
32–50 lb. US Bond (121–
188 g/m
2
)
• Ultra Heavy 2: 50–59 lb. US
Bond (189–220 g/m
2
)
• Ultra Heavy 3: 59–67 lb. US
Bond (221–250 g/m
2
)

8 • MPS610c • English
Exit Trays
Top (Face Down) Exit
Tray
This is the exit tray that is
normally used.
• For papers up to 50 lb. US
Bond (188 g/m
2
).
• Holds up to 250 sheets of
21-lb. US Bond (80 g/m
2
)
paper.
• Sheets exit face down.
Rear (Face Up) Exit Tray
• Provides straight-through,
curl-free print path for
transparencies, envelopes,
labels and heavy paper.
• Handles paper from 16 to 67
lb. US Bond (60 to 250 g/m
2
).
• Holds up to 100 sheets of
21-lb. US Bond (80 g/m
2
)
paper.
• Sheets exit face up (for
multi-page documents, select
reverse order printing in your
application Print dialog box).
Note
If the rear tray is open, all
printed pages will exit there
regardless of the printer driver
setting.
Opening the Rear-Feed Tray

9 • MPS610c • English
Tray 1 and Optional Trays 2 and 3,
Usable Print Media
Media Specifications
Weight Range
16–67 lb. US Bond (60–250 g/m
2
)
Standard Sizes:
Letter, Legal-14, Legal-13.5, Legal-13, Executive,
A4, A5, A6, B5.
Custom Sizes:
•Min.: 5.5 x 8.3'' (140 x 211 mm)
•Max.: 8.5 x 14'' (216 x 356 mm)
Must be defined in driver before printing: see your
on-line User’s Guide.
Capacity:
250 sheets of 21-lb. (80 g/m
2
) paper

10 • MPS610c • English
Tray 1 and Optional Trays 2 and 3 (cont.)

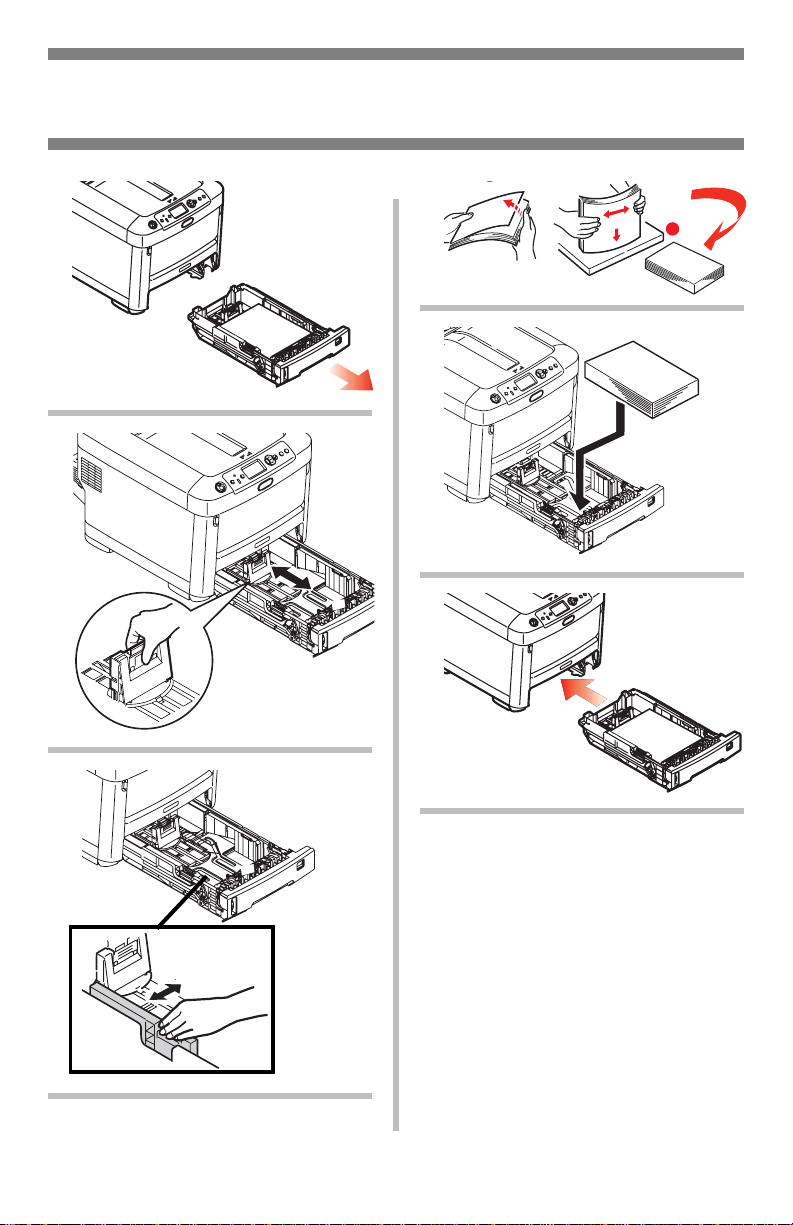

Loading Paper
1
2
3
4
5
6
3
