Olimpia splendid ClimaPiu 8 HE HP Specification sheet

MANUALE D'INSTALLAZIONE
MANUALE D'USO
MANUAL FOR INSTALLATION
INSTRUCTIONS FOR USE

37
Manual for Installation

38
INSTALLATION
1 Premise 39
2 Tecnical details 40
2.1 Overall dimensions 41
2.1.1 Internal units 41
2.1.2 External units 41
2.2 List of supplied accessories 42
3 Installation mode 42
3.1 Location selection of internal unit 42
3.2 Internal unit assembly 43
3.2.1 Fixing plate 43
3.2.2 Internal unit assembly 44
3.3 Location selection of external unit 46
3.4 External unit assembly 48
3.5 Laying and connection of cooling lines 49
3.6 Laying and connection of condensate
removal lines 51
3.6.1 For models 12 - 15 51
3.6.2 For Models 8 52
3.7 Laying and connection of electric lines 52
3.7.1 Power supply link up 53
3.7.2 Connecting the connection cable 53
4 Starting the appliance and topping
up the charge 54
5 Running tests and identifying
any malfunctions 55
6 Periodic Maintenance 57
7 Conclusion 57
USE
1 Presentation 59
2 Precautions 59
2.1 Nomenclature of parts 60
3 Display console 60
3.1 Air deflector 60
4 Use of appliance by remote control 61
4.1 Appliance activation/disactivation 62
4.2 Well-being function (Automatic) 62
4.3 Cooling function 62
4.4 Dehumidification function only 63
4.5 Fan function only 63
4.6 Heating function 63
(heat pump models only)
4.7 Direction positioning of air emission 64
4.8 Selection of fan speed 64
4.9 External air inlet 65
4.10 Well-being function (Night) 65
4.11 Setting of operating programmes 66
4.12 Activation and disactivation of operating
programmes 67
4.13 Resetting of all remote control functions 67
4.14 Use of appliance without remote control 67
5 Maintenance 68
5.1 Cleaning of internal unit filter 68
5.2 Cleaning of external unit battery 69
5.3 Cleaning of Bodywork 69
6 Malfunction diagnosis 70
6.1 Functional aspects not to be interpreted
as malfunctions 70
6.2 How to identify and deal with the causes
of malfunctions 70

39
1 Premise
Theinstallationandmaintenanceofair-conditioningdevices
suchasthisonecouldprovedangerousduetothepresence
of cooling gas and live electrical parts within the appliance.
It would therefore be wise to leave the installation, initial
start-upandmaintenanceexclusivelytotrainedandqualified
fitters, naturally after having read and understood this
handbook. When in doubt contact the service assistance.
Maintenance such as cleaning and filter substitution may,
however, be carried out by the user in that such tasks are
neither particularly difficult nor dangerous.
Duringinstallationandmaintenanceallprecautionsspecified
in this handbook and on the labels inside each appliance
must be observed as should normal common sense and
also the security standards in force on the installation site.
Furthermore, it is always neccessary to wear gloves and
securityglasseswhenincontactwiththecoolingpartofthis
appliance.
Pay attention to avoid burns during welding.
IMPORTANT: Before making any electrical connections
and before carrying out maintenance jobs it is essential to
open the general disconnector in order to avoid electric
shocks.
For repairs only original spare parts available from you
supplier must be used.
These fixtures may not be installed in the presence of
explosive or flammable gases.

40
2 Tecnical details
This part of the handbook contains all details necessary for a correct installation.
Model
Cooling capacity in cooling mode (1)
Heating capacity in heat pump mode (1)
Power input in cooling mode (1)
Power input in heating mode (1)
Rated input (1)
Dehumidification capacity
Power supply
Maximum power input (2)
Maximum input (2)
Protection index (outdoor unit)
Max. working pressure
COP
E.E.R
Indoor unit Air delivery in cooling mode (max-mid-min.)
Airdelivery in heating mode (max-mid-min.)
Dimensions (L x H x D)
Noise level
Weight
Outdoor unit Dimensions (L x H x D)
Air delivery (max.)
Noise level
Weight
Ø connection lines (fluid)
Ø connection lines (gas)
Total limit
Vertical limit
Additional charge (over 8 m)
Refrigerant gas/charge
Power supply cable
Connection cable
Maximum remote control range
Working temperatures in cooling mode (In÷Out)
Working temperatures in heating mode (In÷Out)
Energy efficiency class in cooling mode
Energy efficiency class in heating mode
(1) Test conditions to verify yield (EN 814)
(2) High load test conditions (EN 814)
ClimaPiù 8 HE HP ClimaPiù 12 HE HP ClimaPiù 15 HE HP
KW 2,20 3,38 4,05
KW 2,31 3,54 4,25
W670 1.120 1.440
W660 1.098 1.411
A (cold-hot) 3,0/2,9 5,2/5,2 6,5/6,7
l/h 1,0 1,5 1,9
V-Hz 230-50 230-50 230-50
kW (cold-hot) 780-810 1360/1400 1710/1750
A (cold-hot) 3,5/3,6 6,0/6,2 7,6/7,8
IP24 IP24 IP24
MPa 4,0 4,1 4,2
3,50 3,22 3,01
3,28 3,02 2,81
m3/h 440 - 380 - 320 480 - 410 - 330 510 - 420 - 340
m3/h 440 - 380 - 320 480 - 410 - 330 510 - 420 - 340
mm 880 x 350 x 165 880 x 350 x 165 880 x 350 x 165
db(A) min-max 33 - 42 34-44 35-47
Kg 10 10 10
mm 810 x 530 x 220 810 x 530 x 220 810 x 530 x 220
m3/h 1700 1700 1700
db(A) max 54 54 54
Kg 34 36 38
inches - mm 1/4"-6,35 1/4"-6,35 1/4"-6,35
inches - mm 3/8"-9,52 1/2"-12,7 1/2"-12,7
m151515
m555
g/m 20 20 20
Type/kg R410A/0,950 R410A/0,91 R410A/0,90
Sect. N°of Poles 2,5-3 2,5-3 2,5-3
Sect. N°of Poles 2,5-4 2,5-4 2,5-4
m888
°C min/max (b.s.) 18/32 ÷15/43 18/32 ÷15/43 18/32 ÷15/43
°C min/max (b.s.) 12/25 ÷-8/15 12/25 ÷-8/15 12/25 ÷-8/15
ABC
BCD
Indoor Unit Outdoor Unit
Cooling Heating Cooling Heating
DB 27°C - WB 19°C DB 20°C - WB 15°C DB 35°C - WB 24°C DB 7°C - WB 6°C
DB 32°C - WB 24°C DB 27°C DB 43°C - WB 32°C DB 24°C - WB 18°C

41
2.1.1 Internal units
for cooling only and with
heat pump for systems
from the Split series.
2.1.2 External units
for cooling only and with
heat pump for systems
from the Split series.
MAIN ON/OFF SWITCH

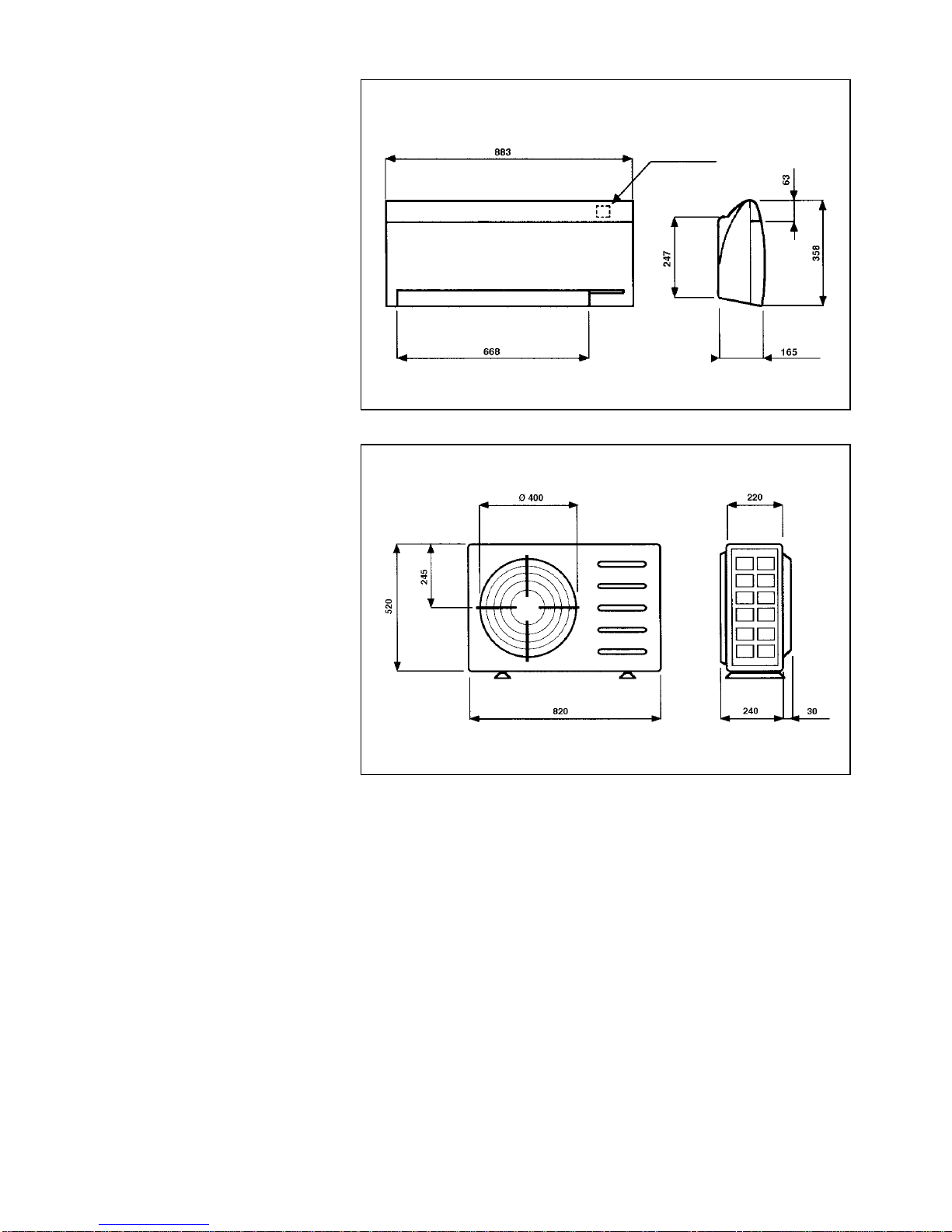

2.1 Overall dimensions

42
3 Installation mode
In order to insure that the appliance is installed correctly, it
is essential to follow all the guidelines specified in this part
of the handbook. If these instructions are not followed the
applianceiscorrect function cannot be garanteed. In such a
casemalfunctioncannotbeattributedtoproductqualityand
hence the manufactureris garantee is rendered void.
3.1 Location selection of internal unit
The internal unitis location must be selected so that:
- The bottom of the appliance is neither less than 2 m nor
more than 3 m from the ground.
- The wall onto which the appliance is to be fixed is strong
enough to support such a weight.
- Enoughspaceisleftaroundtheapplianceinordertoallow
theairtocirculatefreelyand topermit maintenanceofthe
appliance as specified in the overall dimensions.
- Neitherair-intakenorair-outletisobstructed;thepresence
of walls or barriers with in 2 m from the outlet of the
appliance, could result in air bypasses and a consequent
reduction in the applianceis output (fig. 1 - fig. 1 bis).
- Condensate drainage is facilitated.
- Theemissionofairdoesnothitpeopledirectly,especially
those within 1,5 m from the appliance.
- Theapplianceisnotinthevicinityofradios,HI-FIsystems,
television sets, etc.
- The remote controlsis signals may be received be the
appliance.
2.2 List of supplied accessories
The consignment consists of all parts specified in the following table. It would be wise to check that all the articles are near
at hand before proceeding with assemblage.
Name Q.ty Outline Packed together with
Int. unit ext. unit
External unit 1 X
Internal unit 1* X
Remote control with infrared rays 1 X
Alkaline batteries for remote control 2 X
Support for wall mounting of remote control 1 X
Internal unit fixing plate 1 X
Screws and blocks for fixing plate to wall 1 set X
Useris Instructions Handbook 1 X
Nuts for cooling connections (for Multisplit mod. only) 1 set X
Fixing template for the wall plate 1 X
Air Deflector 1 X
Fig. 1

43
3.2 Internal unit assembly
IMPORTANT: The cooling and condensate pipes may be
connected only in the positions indicated in the overall
dimensions.
3.2.1 Fixing plate
The fixing plate onto which the internal unit is to be hooked
must be positioned keeping in mind the applianceis
dimensionsindicated.Assemblageshouldbecarriedoutas
follows:
a) The plate is fixed to the wall in the selected location by
means of the four blocks and screws supplied. Other
typesof screws and blocks may also be used(Ø 8 mm),
aslongastheyhavearaisedhead.Ifthewallontowhich
the plate is to be fixed is made of wood then the plate
must be attached with wooden screws with a raised
head and a 5,5 mm diameter.
b) Tighten the screws slightly.
c) Use a water level to level the plate (fig. 3).
d) Tighten the srews completely.
e) Checktheplateisstabilitybypullingitdownwardsandto
the side.
120 mm
350 mm
Fig. 1 bis
CEILING
Fig. 2
Fig. 3
CEILING

44
3.2.2 Internal unit assembly
Once the plate has been fixed, assemble the internal unit
using the following preocedure:
a) If the connection lines are at the back of the appliance,
a100mmholemustbedrilledinthewallwithanoutward
5% gradient (fig. 4) in order to facilitate condensate
removal. The position of the hole is indicated in fig. 2.
The best procedure is to make a preliminary hole in the
wall with a 8-10 mm nail in correspondence with the
centre of the hole to be drilled and then bore the
definitive hole using a drill with a guided cup. If there is
an "external air intake" included in the appliance, then a
holemustbedrilledforthisalso,inthepositionindicated
in the instructions supplied with the accessory and
assemble it in accordance with these instructions.
b) Insert the condensate removal line, cooling line and the
wires for electrical connection or the raceway in which
they are contained into the hole.
c) Remove the applianceis front panel in the following
manner (fig. 5):
- remove the three screws from the air outlet and the
other two from under the upper door,
- grip the frontal panel from below, turn it upwards to
free it from the lower part,
- lift the panel in such a way as to unhook it from the
two hooks under the upper door.
d) Bend the lines to the right (fig. 6) in the direction of the
connections. Use a tube bending spring to avoid
"pinching" the lines.
ESTERNO
INTERNO
Fig. 4
Fig. 5
Fig. 6
CEILING
INSIDE OUTSIDE
5% SLOPE

45

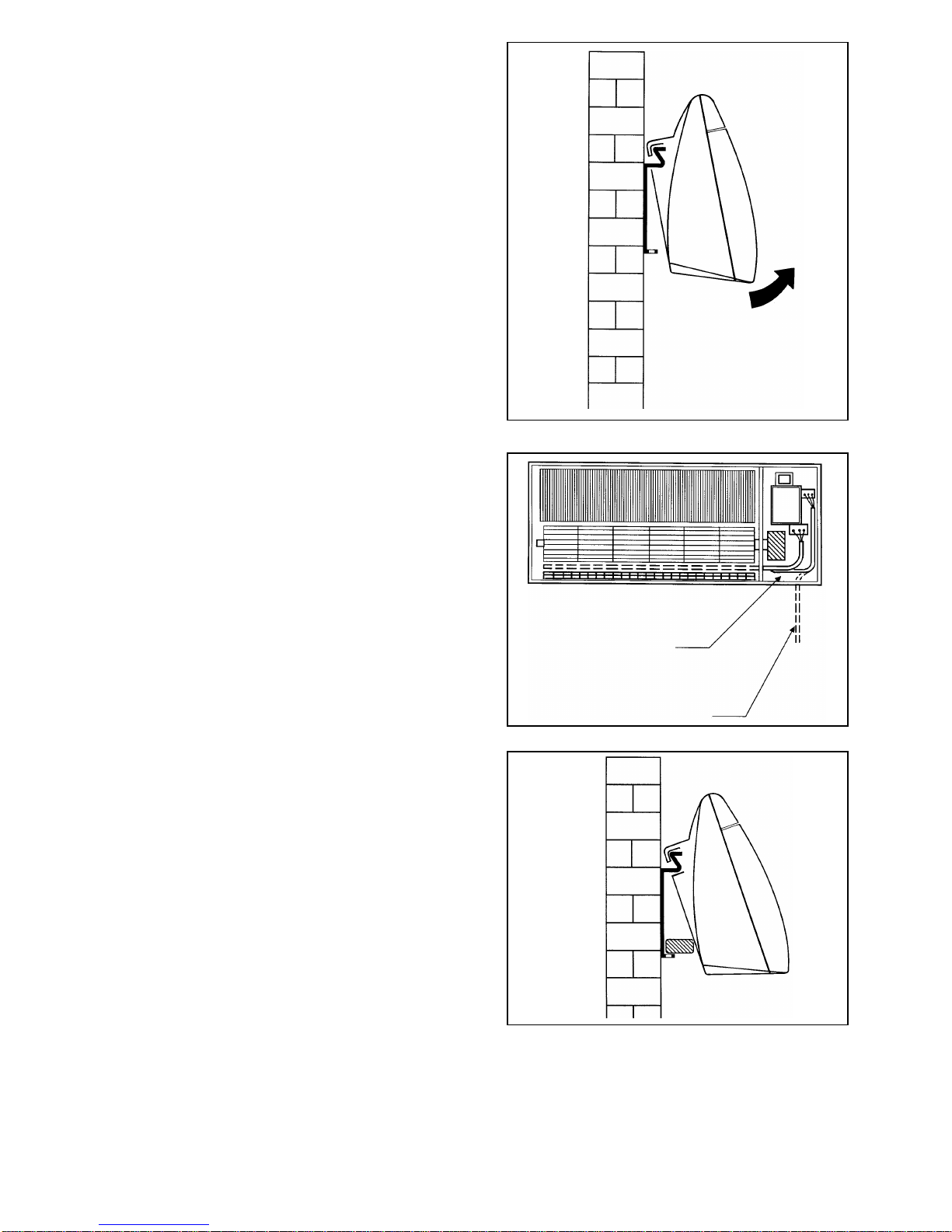

e) Hook the appliance to the upper part of the plate (fig. 7)
in such a way that the lower part may be lifted.
f) Pass the external unit connecting wires inbetween the
motor and the electronic card casing and connect them
uptotheconnectingterninalboard(fig.8)inaccordance
with the modes indicated in the electric circuit
arrangement (see paragraph 3.7).
g) Placeastopperbetweentheapplianceandthewall(fig.
9) to create sufficient space for the cooling and conden-
sate connections to be carried out according to the
modes specified in paragraph 3.5 and 3.6.
Fig. 7
Fig. 9
Fig. 8

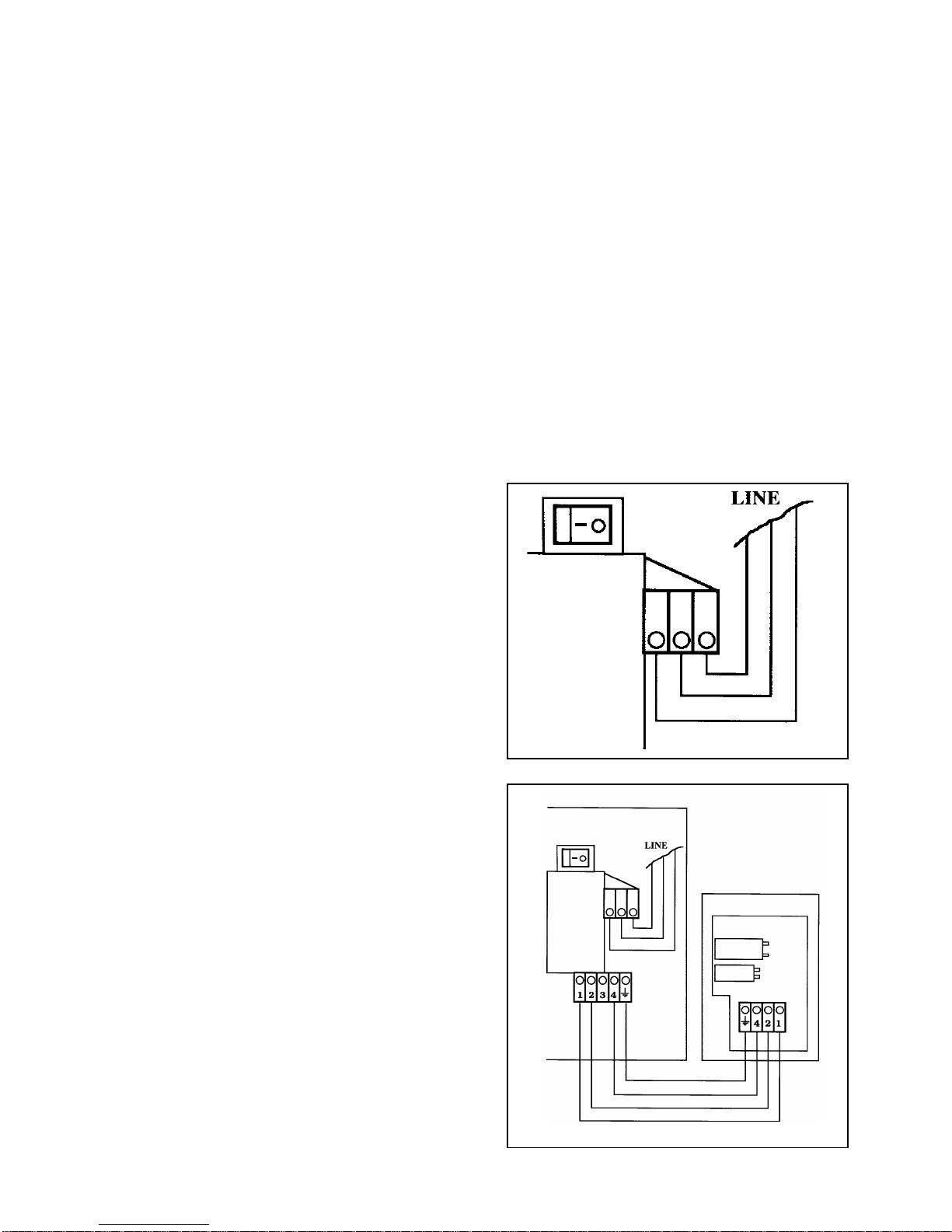

SOLUTION WITH POWER
SUPPLY FROM THE OUTSIDE
SOLUTION WITH POWER
SUPPLY FROM THE INSIDE

46
h) Remove the stopper, lift the device slightly and lower it
in order to connect it to the plateis lower hooks resulting
in a perfectly sturdy fixture (fig. 10).
i) Pull the appliance downwards and to the side to check
that it has been hooked up properly to the plate.
j) Connect to the mains as indicated in paragraph 3.7.
k) Close the front panel once more, tighten the screws
inside the air outlet and the two screws within the upper
door.
l) Check once again that the unit is perfectly level or,
at most, that it slants 2 mm towards the side where
condensation is drained.
3.3 Location selection of external unit
The external unitis location must be selected so that:
- The appliance is protected from direct sunlight.
- The base is strong enough to hold the weight of the
appliance; if, in order to carry out maintenence jobs, it is
necessary to stand on the base, then the said base will
havetobestrong enough to hold both the person and the
appliance.
- The appliance remains above the base at a distance
equal to that of the maximum foreseeable snowfall.
- Theapplianceneverremainsexposedtoheavydownpours
(ascanhappenwhenadrainpipegetscloggedupandthe
gutter overflows).
- Sufficient space is left around the appliance to inable air
circulation and maintenance as specified in the overall
dimensions.
- Pathways are not obstructed.
- The appliance can be securely fixed to the base.
- Neither fumes nor noise emissions can disturb the
neighbourhood in any way. As regards noise levels, the
Hygiene Regulations in force on the site must always be
respected. If noise levels are too high, soundproofing
should be installed without obstructing neither air-
circulation nor maintenance.
- The appliance is facing prevalent winds according to fig.
11.
- Theapplianceisnotinaleewardpositionasregardsburnt
gas smoke stacks and does not undergo contact with
vapours and oily or corrisive gas emissions.
- The condensate can be easily removed (in the case of
heat pump appliances).
- The internal unit connecting lines (or internal units in the
case of the Multisplit series) are not longer than 15 m in
eachdirection(whenmorethan10m, thechargemust be
topped up with 25 g of R410A for each extra meter).
Furthermore, the maximum difference in height between
the external and internal unit (or in the case of Multisplit,
the internal units) is not more than 5 meters.
Theexternal unit must be perfectly horizontal and therefore
before going ahead with its positioning it is essential to
ensure that the support surface is perfectly level.
If the appliance has to be installed in an overhanging
position on the wall it is advisable to use an "Assembly
Fig. 10
Fig. 11
AIR
VENTING AIR INTAKE

47
bracket for the external unitis wall-mounting" which is
available on request. As regards the assembly follow the
instructions enclosed in each respective box.
Wewouldalsoliketoindicatesomeprecautionstobetaken
during assembly:
In areas susceptible to snowfalls
By means of support walls or a base of metal sections the
appliance must be lifted above ground level at a distance
greater than the height of a maximum foreseeable snowfall
because:
- if the appliance does not work by heat pump, during the
thaw,thewatercouldgetintothesystemcausingdamage
to the electrical devices,
- if the appliance works by heat pump, the drifting snow
could obstruct the regular air circulation and make con-
densate drainage difficult.
Appliance assembly on ground level, roof, terrace, etc.
in not easily accessible locations
Thebasemustbelifted toavoid stagnantrain waterand dirt
accumulation underneath the appliance. It is therefore
advisabletoraisetheapplianceapproximately15cmoffthe
groundbymeansoftwosmallwallsontowhichtheappliance
is fixed with two anchor bolts. The above is not necessary,
however, if the appliance is to be installed on a balcony as
balconies already slope to aid rainwater drainage and are
usuallyfoundinfairlyprotectedlocationshencethereshould
be no danger of dirt accumulation under the appliance.
Onarigidmetalbase(Brackets,metalsupportsections,
etc.)
In this case the appliance must always be fixed to the base
by means of elastic vibration-damping blocks (not supplied
with the appliance) underneath the four support points
which are selected in relation to the applianceis weight.
Furthermore, the base must be rigid enough to avoid
amplifying the vibrations caused when the appliance is
running.
Heat pump appliances
When the heating is on, a condensate or water is produced
in the external unit due to defrosting. Such water must be
eliminated to avoid stagnation. In particular, when the
appliance is assembled directly on the ground a drainage
channel should be made around the base of the appliance
which depends on the drainage system running from the
building. If the appliance is installed on a balcony it is
possible to position it over a tray in galvanized sheet iron or
betterstillinstainlesssteel(notincludedwiththeappliance)
which remains above ground level and which is equipped
witha drainpipe fromwhichthecondensate can be madeto
flow using the most opportune method (for example, into a
gutter).
Furthermore, even if the appliance is resistant in inclement
weather, itshouldbeassembledinalocationwhichremains
protected or it should be covered with its own roof which
permits the air to circulate freely through the appliance.

48
3.4 External unit assembly
After checking the suitability of the base (if prepared by a
third party) mount the external unit adopting the following
precedure:
a) Position the appliance on the base using the elastic
vibration-damping blocks if necessary.
b) Tighten the anchor bolts slightly.

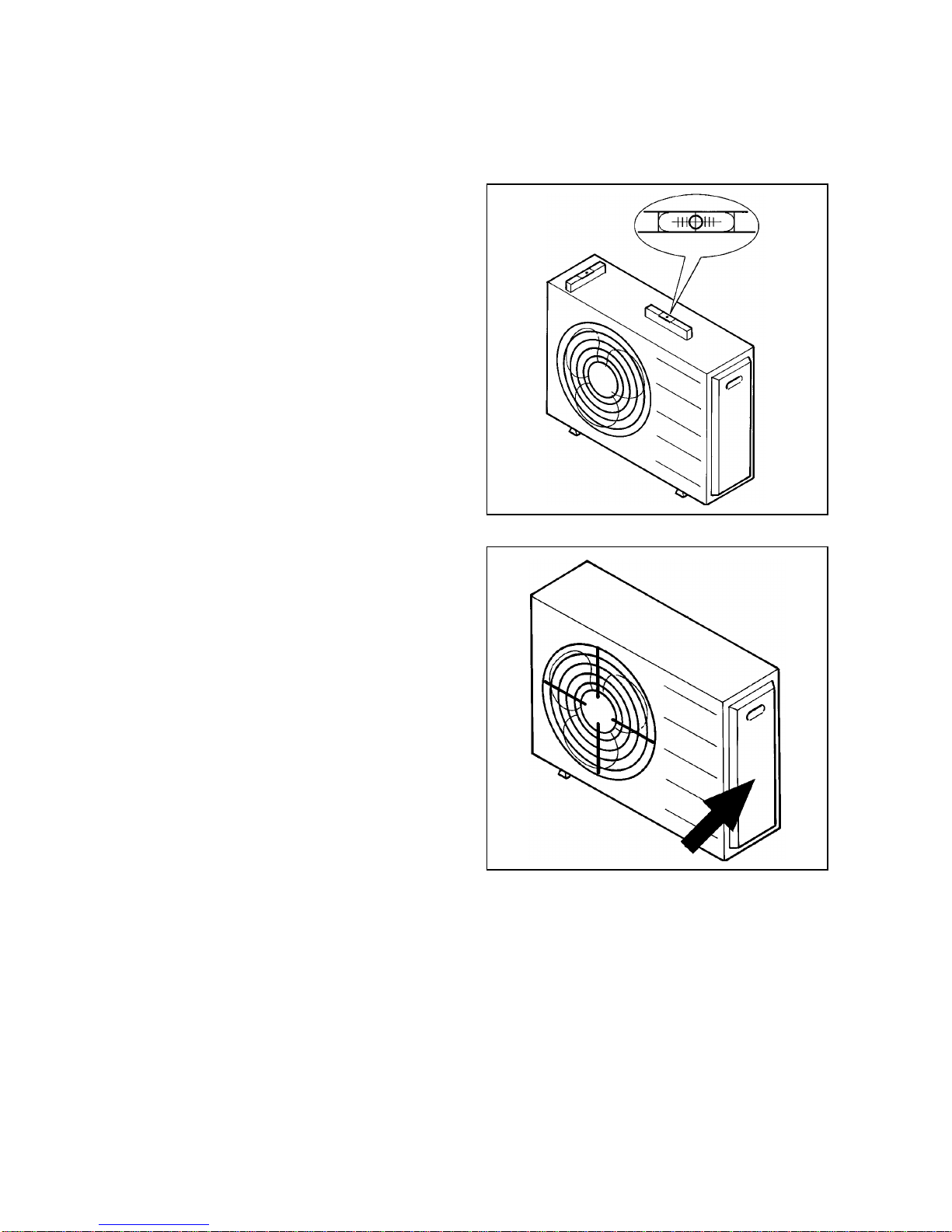

c) Check that the appliance is horizontal in both directions
(fig. 12). If necessary, shim the supports until the
appliance is level.
d) Tighten the anchor bolts.
e) Open the attachment access door (fig. 13).
f) Connectupthecoolinglinesaccordingtoparagraph3.5.
g) Connectuptheelectricallinesasspecifiedinparagraph
3.7.
h) Reassemble the access door to the connections.
Fig. 12
Fig. 13

49
3.5 Laying and connection of cooling lines
IMPORTANT:Thepresenceofdirtorwaterinsidethepipes
to be used for the cooling lines could have a negative effect
onthe applianceiscorrectrunning. Normal copperpipesfor
thermohydraulic purposes do not offer the necessary
garantees for such a task. It is therefore essential to use
copper pipes for cooling purposes only which have
been cleaned and sealed within the factory. Such pipes
are annealed and delivered in rolls with the ends sealed.
Before assembling and after cutting off the required pieces
it is essential to seal both the ends of the roll and of the cut-
off pieces. Furthermore, the installation may be quickened
by using preinsulated refrigeration copper pipes which do
not require further lagging.
Granted that the pipes employed have to have the same
diameters and thicknesses as indicated in paragraph 2.2
"Technical Particulars", the installation and connection of
the lines must be carried out according to the following
procedure:
a) Identifytheshortestroutelinkingtheinternalandexternal
unit creating as few bends as possible (the shorter the
routeandthefewerthebends,thebettertheapplianceis
output). The length of the internal unit connecting lines
(or of the lines connecting up all the internal parts of the
Multisplit) must not be more than 15 m in each direction
(inanycase,for morethan 10mitisnecessary totop up
the charge with 20 g of R410A for each extra meter).
b) Cut off the required piping - it is better to cut off a little
more than required - and seal the ends.
IMPORTANT: The pipes should on no account be cut with
a saw as the shavings could get into the piping. The cutting
should therefore be carried out using a wheel pipe cutter
(fig. 14).
c) Insert the pipes into the lagging sheaths if preinsulated
pipesarenotused.Eachsheathendmustbejoinedand
sealedwithadhesivetape.Thelaggingsheathsmustbe
made of polyurethane closed cell foam and must have
the following characteristics:
- maximum trasmission coefficient: 0,45 W(Kxm2) or
0,39 kcal/(hx°Cxm2),
- the liquid lines must have a thickness of at least 7
mm,
- the gas lines must have a thickness of at least 10
mm. Avoid putting both lines into the same lagging:
the applianceis efficiency could be compromised as
a result.
d) Lapthelineswiththeracewaywithinwhichtheelectrical
cables are housed (see paragraph 3.7) fixing it with
adhesive tape or plastic clamps at regular intervals.
e) Laydownthe piping from the internal unit through tothe
externalunit(orviceversa)makingsurethatthelagging
doesnot get damagedinanyway when passedthrough
the walls.
f) If the piping is not connected up to the appliance
Fig. 14

50
immediately, before leaving the site remember to:
- seal the ends of the piping,
- Askthepersoninchargeofthesitetomakesurethat
the piping does not get squashed, bent or damaged
in any way.
g) The piping and the appliances (internal and external
units) are connected by means of binders. After the
piping has been cut and the nut which is found on the
connection has been inserted onto the piping (fig. 15),
thepipingmustbebindedinaccordancewiththenorms.
h) In order to tighten each joint it is necessary to:
- grease the thread with refrigeration oil (do not use
other types of oil),
- close the joint initially by hand,
- tighten the joint with a dynamometrically calibrated
spanner with the following torque values:
- 14“18Nxm(1,4“1,8kgxm)forlineattachmentsfrom
6,4“ 6 mm.
- 33“40Nxm(3,3“4,0kgxm)forlineattachmentsfrom
9,5“ 10 mm.
- 50“60Nxm(5,0“6,0kgxm)forlineattachmentsfrom
12,7“ 12 mm.
IMPORTANT: To avoid deforming the internal unitis
attachments when tightening, hold the welded part of the
joint with a spanner and tighten the other part with the
dynamometric spanner.
i ) Once the attachments have been tightened, the lineis
seal must be tested. In order to test the seal a cylinder
ofanhydrousnitrogenisconnectedtotheexternalunitis
gas pipe service connection (fig. 16) (after having
unscrewed the cap) (it is connected to the service
connections in the case of the Multisplit external units)
by means of a flexible with a 1/4" attachment and a
pressure reducer.
Open the cylinder and the pressure reducer until the
pressurein the circuitreaches3 bars andthenclose the
cylinder.Ifthepressuredoesnotdescendafter3minutes,
thismeansthattherearenomajorleaksandthepressure
canbe raised to 15bars.After the cylinder isclosed,the
pressuremustremainconstantforanother3minutes.In
any case, to be completely sure it is advisable to apply
a solution of soap suds and check that bubbles do not
formedinthesolution. Ifthepressuredescendsandthe
solutiontestgivesnoresults,insertsomeR410Aintothe
circuitandidentifytheleakagebymeansofaleakfinder.
Since there should be no weldings in the system, the
leaksarenearlyalwaysfoundaroundthejoints.Elimina-
te all gas leaks by tightening or repairing the joints and
repeat the seal test. Once the operation has been
concluded,reassemblethecaps,checkingcarefullythat
they have been closed properly.
IMPORTANT: In the case of Multisplit this operation must
becarriedoutonalltheconnectionsoneaftertheother.The
search for gas leaks must be carried out each time on the
circuit which depends on the connection in question.
j) Once the seal test has been passed, every trace of air,
nitrogen and humidity must be completely extracted
from the circuit. Lower the pressure within the circuit by
meansof a vacuum pump until the pressure reaches an
absolute value equal to 50 Pa and, leaving the pump
Fig. 15
Fig. 16
1 CUT THE PIPE WITH A
WHEEL TYPE PIPE CUTTER
PERPENDICULAR CUT
2 DEBURR
PREVENT
CHIPS FALLING
INSIDE THE
PIPE
4 THE END OF THE PIPE MUST
PROTRUDE BY 0.5 mm
3 INSERT THE NUT IN THE
PIPE
6 THE FLARE MUST BE
CIRCULAR
SERVICE FITTING AND
PIPE FITTING
TAP MECHANISM
SERVICE FITTING

51
connected, maintain this pressure for a while until sure
thatallimpuritieshavebeenremoved.Tocarryoutsuch
an operation it is necessary to procure a vacuum pump
with a capacity equal to at least 40 l/min (0,66 l/s) and:
- Bymeansofa flexiblewitha1/4attachmentconnect
aheadergaugetotheexternalunitisgaslineservice
connection(afterunscrewingthecap).Seefig.16for
the connection modes. Activate the vacuum pump
and leave it running for at least 2 hours.
- If after 2 hours the pressure continues to be greater
than50Pathismeansthattherewasalotofhumidity
in the circuit and that there is a leak in the same
circuit. Leave the pump running for another 3 hours.
If at the end of this time the pressure still has not
descended to 50 Pa, it will be necessary to carry out
a search for possible leakages.
- Once the suction has been concluded, remove the
flexiblefromtheserviceconnectionwhilethevacuum
pump is still running.
- Finally,put thecapbackon checkingthatit is closed
properly.
k) After opening the relevant cap, slowly open the tap on
the intake line and also the tap on the liquid line which
are found in the external unit, in order to allow the
diffusion of the cooler within the appliance.
3.6 Laying and connection of condensate removal
lines
3.6.1 For models 12 - 15
The appliance features an automatic system that
automatically drains any condensate fed by gravity (or a
pump) to the outdoor unit.
In the heat pump version, connect the fitting provided so
the water produced in defrosting mode can be discharged
into a drain.
The indoor unit must be provided with its own condensate
drainage line. One end must be connected to the
condensatedrain connection on the indoor unit and theother
end must be connected to the condensate drain system
located on the outdoor unit in the position indicated in the

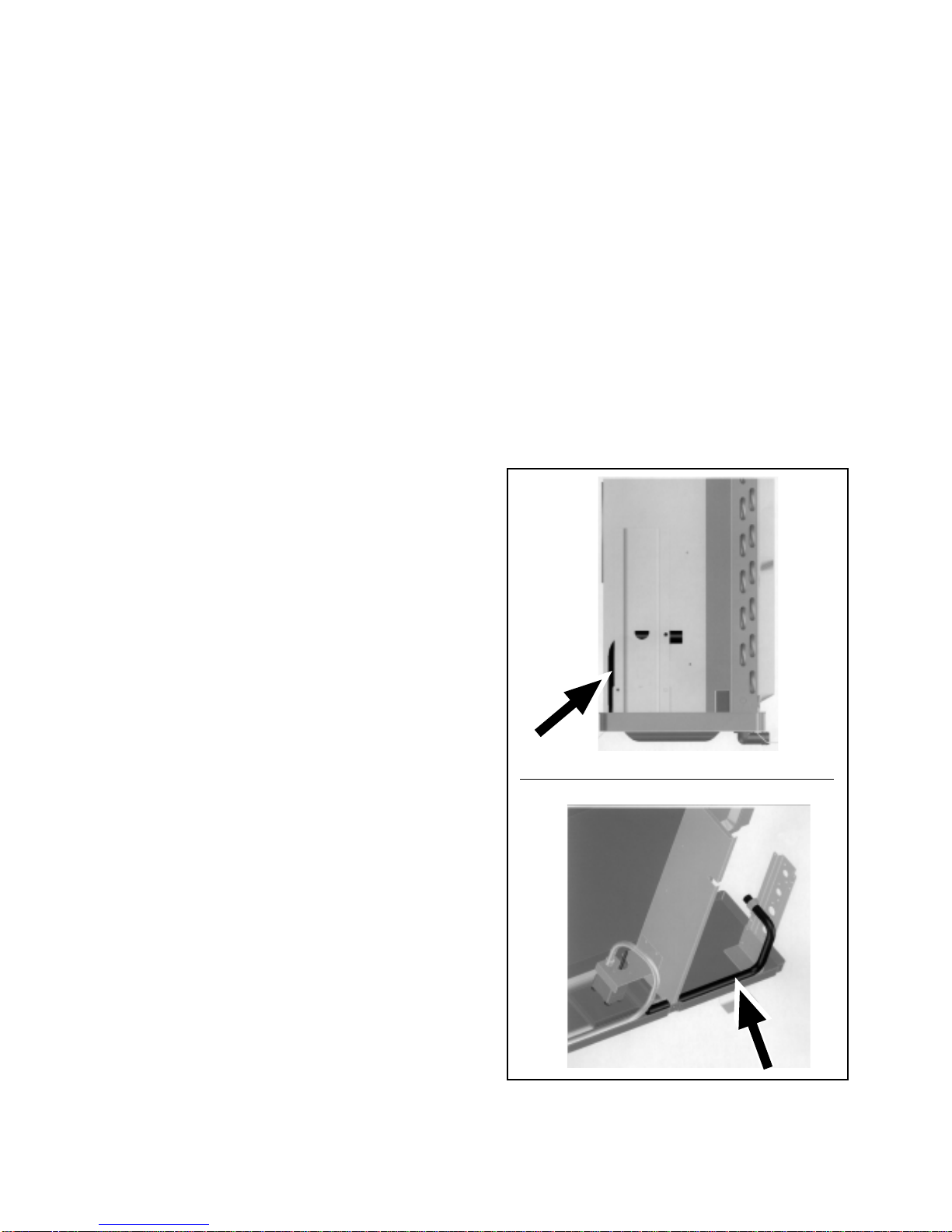

photograph (Fig. 17). The condensate is drained from the
condensate drain tank only by the force of gravity. Due to
the restricted space available, the tank is not very high and
therefore the drainage head is somewhat limited. The
drainage line must always feature at least a 3% gradient in
the direction of the flow and must avoid any ascents or
reverse gradients. The condensate drainage line can be
made using any rigid or flexible pipe with a 16 mm minimum
inside diameter.
IMPORTANT: After the condensate drainage line has been
connected to the internal unit it is essential to check that it
functions properly by slowly pouring half a liter of water into
the tray and observing that the resulting flow is regular.
Fig. 17

52
3.6.2 For Models 8
Eachinternal unitmustbe equippedwithits owncondensa-
te drainage line which on one side depends on the internal
unitis condensate drainage connection and on the other
sidedepends onthebuildingis waterdrainagesystem oron
an open receptacle.
Condensate drainage from the drain tray takes place
exclusivelyduetogravity.Since,forencumbrancereasons,
the tray is not very high, the drain head as a result, is
somewhat limited. The drainage line should always have a
gradientofatleast3%withtheflowandmustbeconstructed
without any upward or counterslopes.
The condensate drainage line may be constructed with any
type of rigid or flexible pipe with an internal diameter of at
least 16 mm.
Ifthe line leads into a sewerage system a seal-trap must be
fitted before entrance into the sewer in order to avoid the
diffusionof badsmellsintotheair-conditionedatmosphere.

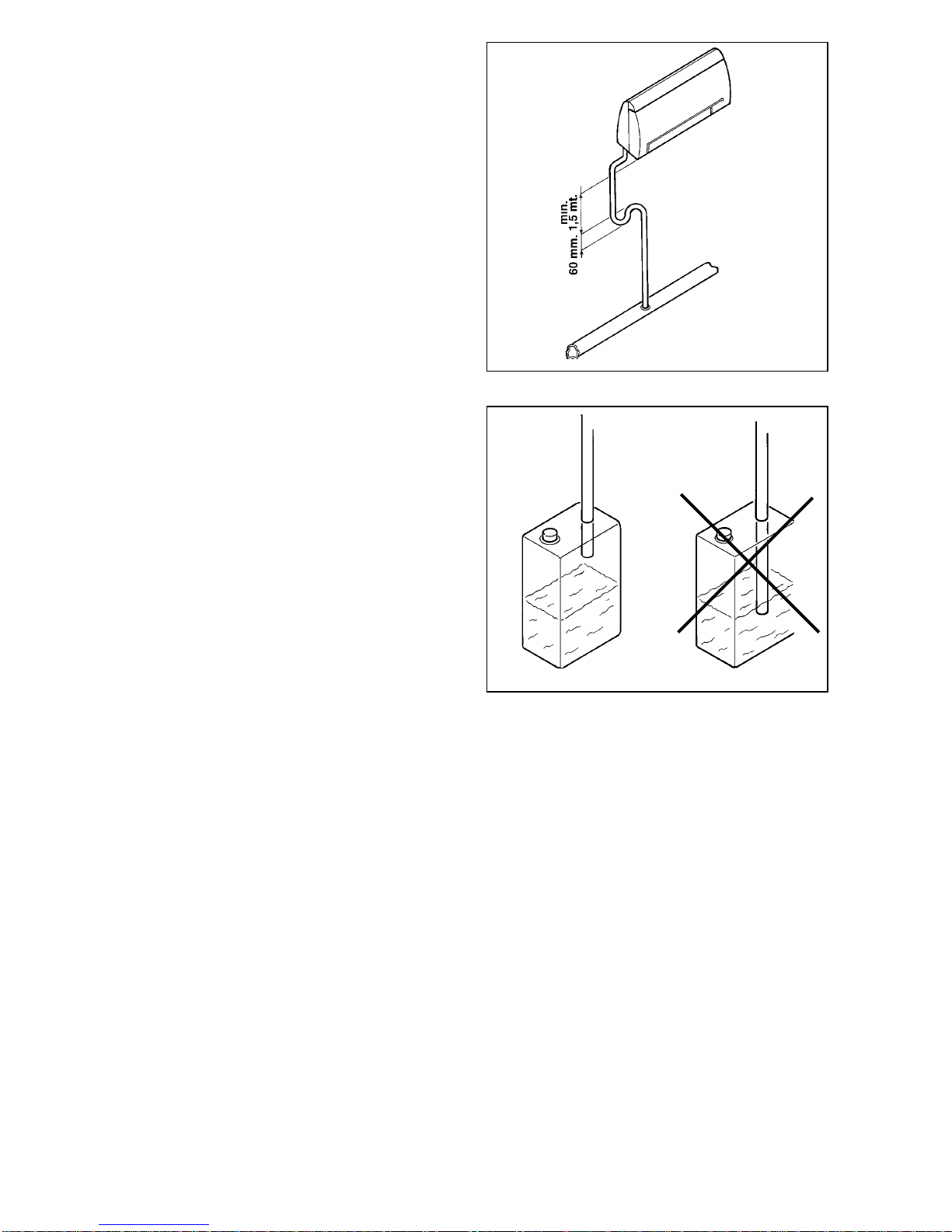

The seal-trap must on no account have a 1,5 m difference
in height less than the applianceis lower wire (fig. 18).
If, on the contrary, the condensate drainage line flows into
a receptacle (can etc.) such receptacle must be open in
order to avoid backpressure which would make drainage
difficult and the line end must never get completely
submersed in the water (fig. 19).
IMPORTANT: After the condensate drainage line has been
connected to the internal unit it is essential to check that it
functions properly by slowly pouring half a liter of water into
the tray and observing that the resulting flow is regular.
3.7 Laying and connection of electric lines
IMPORTANT: The applianceis connection to the mains
must be carried out in conformity with the following
instructions and with the norms in force in the place of
installation. The appliance is equipped with an earthing
system which must be connected to a fully efficient ground
line according to the local norm.
The earthing must on no account be connected up
neither to the water pipeline nor to the gas pipeline.
Fig. 18
Fig. 19

53
3.7.1 Power supply link up
The power must be supplied to the appliance by means of
ageneral disconnectorequippedwithdelayed fusesorwith
athermomagneticautomaticcircuitbreaker withthefollowing
current capacities:
Model Capacity
ClimaPiù 8 HE : 10 A
ClimaPiù 12 HE : 10 A
ClimaPiù 15HE : 10 A
For security reasons the general disconnector should be
near the feeder and should also be in a clearly visible
location.
Thesupplycordonsmustbeprovidedwithcopperconductors
with the following unitary sections (the under indicated
valuesrefer to a maximum lenght ofthe lines fo 15 meters).
BesidesthecordonsmustbeofthetypeH07-RR-Fandthey
must have a minimum diameter of 11,5 mm.
Model Conductor section mm2
Earth Input
(phase and neutral)
ClimaPiù 8 HE: 2,5 3
ClimaPiù 12 HE: 2,5 3
ClimaPiù 15 HE: 2,5 3
The power supply cable and earth wire must be connected
to the power supply terminal board on the indoor unit as
indicated in Fig. 20 featuring three terminals: one for the
phase, one for neutral and a third for the earth connection.
3.7.2 Connecting the connection cable
(seealsothediagrams insidethe sideofthe sheetin
front of the electric panel)
A connection must be set up between the two units so that
the outdoor unit features the same controls as the indoor
unit.
Allthese connections must becarriedoutwith copper wires
which connect the applianceis connection terminals
accordingtothediagramin fig.21(Split),22(Splitwithheat
pump).
Fig. 20
Fig. 21

54
Theconnection cordonsmustbe of thetypeH07-RR-F with
outerdiameterof14,5mmandtheymusthavethefollowing
section (the under indicated values refer to a maximum
lenght of the lines of 15 meters.
Split appliances
Cable
1 2,5 2,5 2,5 2,5
2 2,5 2,5 2,5 2,5
3 — 1,5 — 1,5
4 1,5 1,5 1,5 1,5
5 2,5 2,5 2,5 2,5
IMPORTANT: If the cables have to be walled then install
raceways to facilitate their removal in the future.
SENSOR CONNECTION WARNING: Do not connect the
sensor to live terminals, as this would irreparably damage
the electronic board.
4 Startingtheapplianceandtoppingupthecharge
Before turning on the appliance it is essential to make sure
that:
- the input voltage remains within the limits specified in
paragraph2.2"Technicalparticulars".Theappliancemust
not be turned on if the voltage is greater or less than that
specifiedasitcouldundergoseriousdamagenotcovered
by the garantee.
- the cooling charge inserted in the external unit within the
factory has been introduced into the installation. If the
charge has been introduced, the faucets on the external
unitis gas and liquid connections should be open.
- the charge has not leaked due to the appliance being left
off immediately after installation is completed. To carry
outthisoperationitisnecessarytounscrewthecaponthe
service valve which can be found on the external unitis
gas line connection (or on one of the external unitis gas
line connections in the case of the Multisplit appliance)
andseeifthecircuitispressurecorrispondsat leastto the
saturation pressure at atmospheric temperature. If there
is a possibility that a part of the charge has leaked it will
benecessarytocheckthechargeaccordingtothemodes
indicated in the Technical Handbook.
- the air can circulate without difficulty through the internal
(ortheinternalunitsinthe case of Multisplit) and external
units.
Theapplianceisgeneraldisconnectorcanthenbeclosedas
can its circuit breaker which is found on the right hand side
at the inside of the upper door and check that the consoleis
greenLEDontheleftlightsup.Then,followingtheinstructions
enclosed in the Useris Instructions Handbook, turn the
appliance on using the remote control.
Acoupleofminutes afterthe appliancehas beenturnedon,
the compressor is activated and the internal unit starts to
give out cold air.
In the case of hot pump appliances, one must also check
that the appliance starts to pump hot air after switching the
workingmode.One must not forget that once the appliance
Fig. 22 HEAT PUMP

55
has been turned on, hot or warm air is not given off
immediately but after approximately 3 minutes.
If the cooling lines exceed eight metres (in one direction),
introduce20grams of charge into the system for everyextra
metre.
Topping up is carried out in the following manner:
a) Procure a charging station with a cylinder graduated in
grams,agaugecollectorwithtwoflexibles,oneofwhich
must be connected on the gas side of the charging
station and the other must be connected to the service
valveontheexternalunitisgaslineconnection (orinthe
caseof Multisplit, connected totheservicevalve on one
ofthegaslineisconnections). Shoulda chargingstation
not be available, the gauge collector may be connected
to a R410A cylinder placed on a balance. The service
valve is accessible once the cap has been removed.
b) Turn the appliance on and leave it running for a couple
of minutes.
c) Slowly open the charging stationis or cylinderis faucet
until the right quantity of R410A has entered into the
system (the quantity can be observed from the index
scale on the cylinder or from the balance).
IMPORTANT: The air conditioner must be recharged with
R410A ecological refrigerant while the refrigerant is in its
liquid state. Once charged, wait for at least 10” before
starting the compressor to allow the fluid to evaporate.
e) Whenthe operation isfinished,remove the flexiblefrom
the service valve and close the cap firmly one more.
IMPORTANT: Avoid using more cooling liquid than is
absolutely necessary as doing so could have a negative
effect on the applianceis output. Additionally, surplus
charging can be dangerous for the applianceis functioning.
5 Running tests and identifying any malfunctions
Themicroprocessorintheapplianceisprogrammedto carry
outabriefself-testto make sure the appliance runs correctly
by activating the various internal components.
To run the self-test proceed as follows:
- Connect the appliance to the power supply.
- With a pointed instrument press for at least 10 seconds
the micro pushbutton located under the hole on the left
of the display console.
- At the start and end of the self-test procedure the
configuration status of the appliance is displayed for a
few seconds in accordance with the following diagram:
red LED (filter): off = COLD ONLY
on = HP (with heat pump)
green LED (compressor): off = with ambient temperature
correction
on = without ambient temp.
correction
yellow LED (timer): off = without ambient temp.
correction
on = with ambient temperature
correction
green LED (power supply) off = stand-by in case of a
blackout
on = restart in case of a
blackout
