olympia electronics GR-579/L/90/WP User manual

GENERAL
These luminaires are used in places where
emergency luminaires are needed.
E a c h l u m i n a i r e m u s t b e p e r m a n e n t l y
connected to mains power supply. In normal
operation (L1 connected to L) the led strip
lights and the battery is charging. In case of
a mains power supply failure the luminaire will
light the led strip automatically in emergency
mode (powered by its battery). When the
mains power supply is restored the device
turns to normal operation.
OPERATION
Battery Charging
The battery charging is completely controlled.
In this case, the best possible battery
maintenance is achieved, as well as the
elongation of its duration. When the battery
has completely charged, it charges with a
maintenance current.
Battery Cut-off
The luminaire enters in this operation when
the mains power supply fails and battery has
lost its energy. During this operation the
luminaire enters the idle state and battery
consumption is negligible, in order to be
protected from deep discharge.
Manual Test
This test can be done by placing the test card
on the side of the indications (page 4) and
remove it instantly. An operation test is initiated
and the light source and the emergency circuit
of the device is monitored. The manual test can
be conducted only if the mains power supply
and the battery is connected. During this test
period all indication LEDs are OFF.
Automatic Operational Test
This test includes all the operations that provide
the manual test and is conducted automatically
every 15 days. In order to be performed, the
mains power supply and the battery should be
connected.
Automatic Autonomous Test
The Automatic Autonomous Test is conducted
and measures the device’s back up operation
and emergency duration. This test is conducted
automatically every 6 months. In order to be
performed, the mains power supply and the
battery should be connected and fully charged.
If the battery is not fully charged, the test is
postponed until the battery is completely
charged. If during this test, the autonomy is less
than nominal, then the battery fault led turned
on continuously and the battery must be
replaced.
Congratulations for your selection to buy this product.
Olympia Electronics - European manufacturers.
220-240V AC/50-60Hz
180 min90 min
11550gr 11730gr
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
CONSTRUCTION MATERIALS
TYPICAL WEIGHT
GUARANTEE
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERIES (Ni-Cd)
CHARGING TIME
INDICATIONS - CONTROLS
BATTERY PROTECTION
MINIMUM AUTONOMOUS DURATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
LIGHT SOURCE INTENSITY (230V AC/emerg.)
ILLUMINATION SOURCE
24 h
Charge LED, Lamp Fault LED, Battery LED
From overcharge and deep discharge
White LEDs
o
5 to 40 C
Up to 95%
3 years (1 year for the batteries)
Painted steel plate (RAL 7036), ABS/PC, PC
IP66
EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
740 x 400 x 185 mm
2x4.8V/1.5Ah 2x4.8V/3Ah
2x9W / 2x9.5VA - PF: 0.95/230V
2x680lm / 2x340lm
GR-579/L/90/WP GR-579/L/180/WP
TECHNI CAL CH AR ACTER IS TICS
(for L ED MO DUL E Spe cs. s ee pa ge 4 )
Page 1 from 4923579000_09_004
WATERPROOF SELF TESTING MAINTAINED EMERGENCY LED LUMINAIRES
Page 4 from 4
LED MODULE CHARACTERISTICS
Manufacturer
Model Number
Voltage Range
Connections
Nominal Power
Temperature (tc)
Olympia Electronics S.A
50 °C max. across the board
Cable connection with polarity
11.6-14.4VDC
10.4W
0105153
GR-579/L/90/WP GR-579/L/180/WP
A-1900
Test card

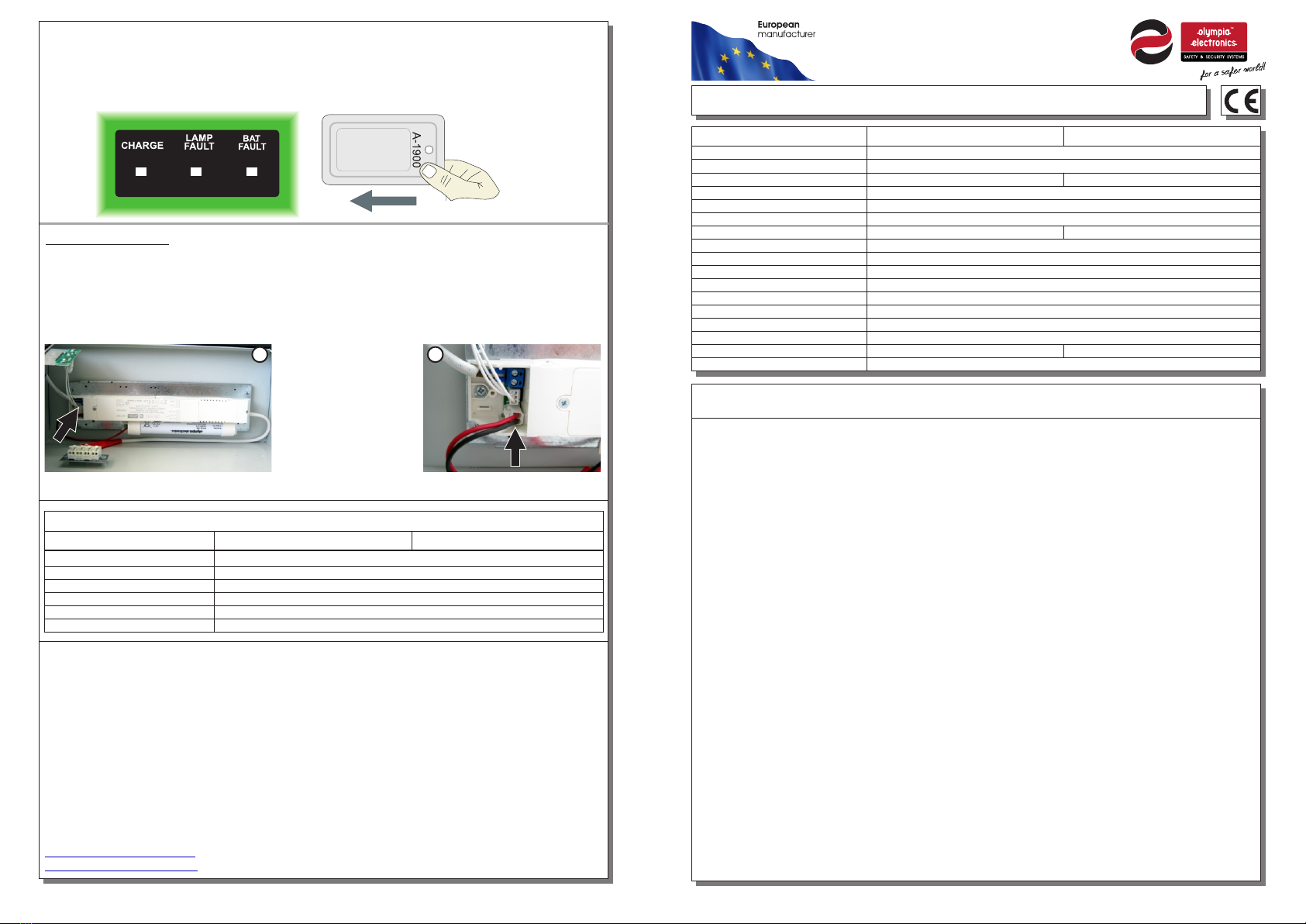

Manual TEST or Resetting Errors with the A-1900 Test card (not included and is available
only after request). In order to test or reset the device you must place the card on the side of the
indications and remove it instantly for TEST or remove it after the reset is conducted (the
indications light in sequence).
LED INDICATIONS
Battery replacement
It can be done only by a competent person and after the mains interruption.
Step 1. Remove the front cover by unscrewing the retaining screws. Remove the acrylic plate.
Step 2. Unfasten the screws to remove the plastic cap and the battery’s plastic holder (photo 3).
Step 3. Remove the old battery and place a new on of the same type and characteristics.
Connect the battery’s cable as shown in the photo 4.
Step 4. Replace the removed parts (previous steps 1,2).
2 3
Photo 3 Photo 4
WARRANTY
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty
is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which
accompanies each product. This warranty ceases to exist if the buyer does not follow the technical
instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods
provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully
agreed to them in writing. Products that have been damaged can be returned to the premises of our
company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the
buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the
buyer the transportation cost.
HEAD OFFICE
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
[email protected]
923579000_09_004

Page 2 from 4
Back Up Operation
The autonomous duration of battery during
emergency mode is at least the one that is
stated in the list of the technical
characteristics. During emergency mode, a
light source test is also performed.
Resetting Errors
Place the test card A-1900 on the side of the
indications (page 4) and remove it after the
reset is conducted (the indications light in
sequence), to delete all the indicated LED
errors. Then the luminaire enters regular
operation mode.
Indication LED status (with connected
mains power supply).
Charge
On: Good charge current.
Οff: No battery (No charging current
or disconnected battery).
Lamp Fault (with L1 connected to L)
Οn (with LED strip off): Faulty LED strip
(must be replaced).
Οn (with LED strip on): Problem in the back
up circuit of the LED strip (must be checked
by an authorized personnel).
Off: Good LED strip.
Battery Fault
Οff: Battery OK.
Blink (With Charge LED ON): Autonomy or
low battery problem (the battery must be
replaced).
Blink (With Charge LED Off): No charging
current or disconnected battery.
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation, maintainance or
testing must be done by authorized personnel
only, after a mains interruption.
2. The device must be connected to the
mains p o w e r supp l y t h rough a f u se
dependent on the total amount of the line’s
power load.
3. In case of battery or lamp replacement,
these must be replaced by parts of the same
type, by the manufacturer or by a competent
person.
4. In case of inactive use for a period greater
than 2 months, disconnect the batteries by
pulling out the battery’s connectors.
5. I s not allowed to discard batteries t i
into common trash bins, they must
be d i s car d e d on l y in b a t ter y
recycling points. Do not incinerate.
INSTALLATION
To install the luminaire follow the installation
instructions below.
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
1: Maintained (*)
A: Including test device
G: Internally illuminated
90: 1.5 hour duration
180: 3 hour duration
(*) Maintained operation: The luminaire lights
its illumination source, when it is powered by
the mains power supply or not.
Non Maintained operation: The luminaire
lights its illumination source, only in power
supply’s failure.
The light source contained in this
luminaire shall only be replaced by the
manufacturer, or his agent, or a similar
qualified person.
NOTE! The light source is non-user
replaceable.
INSTALLATION INSTRUCTIONS
1. Remove the front cover by unscrewing the retaining screws. Remove the acrylic plate.
2. Always use in any case round mains cable, with a diameter of 12-14mm (H05RN-F type
4x1mm² or any other type, at least equal to it’s mechanical and electrical properties).
ATTENTION!! The cable must not be deformed in any way (This requirement is important
to ensure the tightness isolation IP66). Pass the round cable through the cable gland and
tighten it all the way.
3. Unfasten the screw to remove the plastic cap (photo1) and connect the battery’s cable as
shown in the photo 2. Replace the plastic cap and fasten the retaining screw.
4. Connect the mains cables as shown in figures 5 and 6. Yellow wire to GND, blue to N, brown
to L and black for maintained operation. The black wire can be connected to an external switch
to control the maintained or non maintained operation of the luminaire. For permanent
maintained operation use three wires to power the luminaire, GΝD for ground N for neutral, L for
live wire and link the brown and black wire to the same terminal.
5. Refit the acrylic plates and the front cover by srewing the removed screws in step 1.
6. Power on the device.
Page 3 from 4
56
N
L
External
switch
Controlled maintained operation
Link
Permanent maintained operation
L1
L
N
N
L
L1
L
N
L1
L
N
4
74 cm
64,5 cm
40 cm
46,5 cm
18,5cm
cable gland
1 1
130m 70m
TYPICAL SYMBOLS
Except for typical symbols all luminaires can be constructed after request with
any other symbols.
Escape routes Escape exit Emergency phone
3
Photo 2Photo 1
