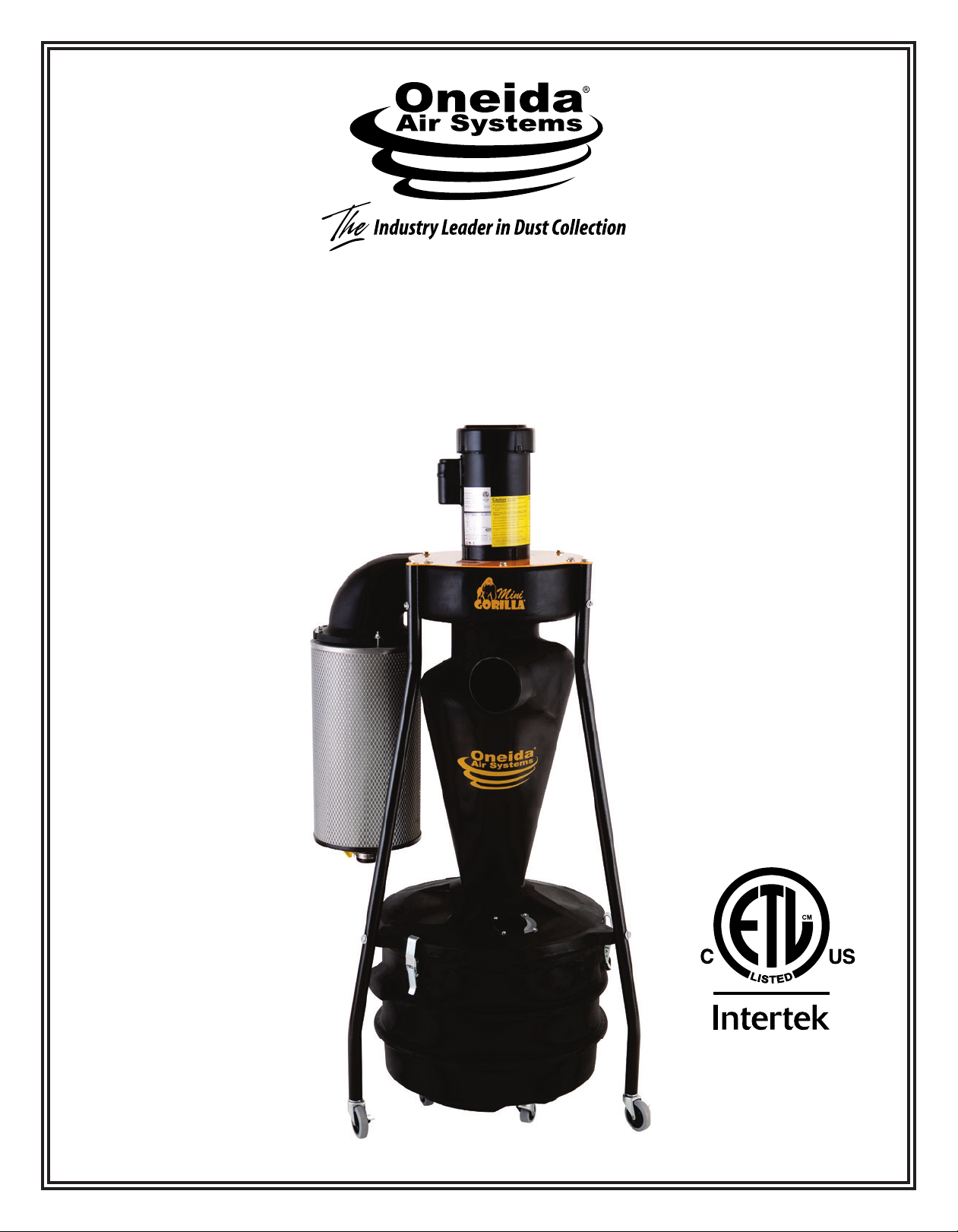

Oneida Air Systems Mini-Gorilla User manual

Rev: 12/12/2019 Doc. #ZBM000024A
Appearance may vary slightly
U.S. Patent: # #7824457,
#8377160, #8491686,
#8496719, #7937803
OWNER’S MANUAL
Mini-Gorilla
110V / 220V
# XXPM010100H
# XXPM010100H220

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 4
System Dimensions 5
System Contents 6
Assembly Instructions 8
Maintenance 14
Troubleshooting 15
FAQ 16
Recommended Accessories 18
Warranty Information 20
Notes 21

2 Oneida Air Systems
System Start-Up Information
1. Install ductwork completely before operating collector
a. Seal ductwork with silicone sealant or duct tape.
b. Have dust drum in place and sealed.
2. DO NOT operate Fan / Blower unless Fan Housing is attached to Cyclone body and Dust Drum is in place. Dust Drum and
Cyclone must be in place and sealed or motor will overheat!
3. DO NOT operate without lter in place. Fan blade can cause serious injury.
4. e Direct Drive Fan / Blower makes the system top heavy! Use extreme care when setting the unit up! It is recommended
that at least two people li the system up.
5. Check amperage draw on motor with all gates open. Current draw should not exceed maximum motor amperage as stated
on motor plate. (Oneida Air Systems is not responsible for damage to motors caused by improper installation, wiring or
failure to follow these directions).
6. is equipment incorporates parts such as switches, motors or the like that tend to produce arcs or sparks that can cause an
explosion.
7. To reduce the risk of Electric Shock, DO NOT use outdoors or on wet surfaces.
8. Exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
9. To reduce the risk of injury from moving parts - unplug BEFORE servicing.
 WARNING 
 FIRE HAZARDS 
1. Wood shaping and cutting processes generate wood chips, shavings and dust. ese materials are considered combustible.
Air borne wood dust below 420 microns in size (0.17 of an inch) in certain concentration ranges when ignited can deagrate
(burn quickly). An ignition source such as a spark or ember can ignite a dust mixture resulting in an expanding ame
front, which can cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated ne dust can raise
additional dust clouds, which can cause a series of explosions that can level an entire building. Until this type of re has been
witnessed, it is dicult to believe the devastation. is type of re is rare but worth safeguarding against.
2. e best way to avoid a wood shop re is to keep the shop clean. A shop ankle deep in dust with layers of ne dust
everywhere is an accident waiting to happen. A good dust collection system reduces overall re hazards but also adds new
concerns. A re hazard is still present. Combustible material is now in the dust collector and storage container.
3. e following points are worth heeding:
a. It is the buyer’s responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction
codes and regulations when installing and operating this dust collector.
b. Fire Marshals may want the unit located outside of the building. If the collector is located inside the facility, controls
such as spark detection, suppression, or explosion venting may be required.
c. Most local jurisdictions consult or adopt NFPA (National Fire Protection Agency) codes. However, other codes may
apply. Local codes may vary from jurisdiction to jurisdiction.
Make sure to read and understand the installation and maintenance instructions as well as all
recommended safety practices.


3oneida-air.com
System Start-Up Information (Continued)
d. NFPA664 Code book, “Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities”, applies to woodworking operations that occupy areas of more than 5,000 sq. . or to areas where dust
producing equipment requires an aggregate dust collection ow rate of more than 1,500 cfm (cubic feet per minute).
is exempts some small operators from the NFPA code 664, but other codes may apply in your jurisdiction. Consult
your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664.
4. e customer assumes the responsibility for contacting their insurance underwriter regarding specic application
requirements of explosion venting or if additional re protection and safety equipment may be required.
5. DO NOT use this product to collect other types of ammable dust or ammable vapors! - Fire or explosion may occur!
6. NEVER collect sparks from a bench grinder into a wood dust collector.
7. NEVER introduce sparks or sources of ignition into the dust collector.
8. Personnel should be kept at least 20 . away from unit.
9. Check dust bin frequently and before leaving the shop for smoldering material.
10. Keep portable re extinguishers handy.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
11. Be especially careful with sanding units. ey can produce concentrations of dust in the combustible range. Make certain
enough air volume is at the suction point to capture all the particulate generated.
12. is high air volume will dilute the mixture below the lower limit of ammability. Be careful not to generate sparks into the
sanding dust.
13. Empty dust bin and clean lter oen, especially when sanding.
14. DO NOT overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
15. Sparks can be generated in several ways:
a. High speed sanders and abrasive planers may strike foreign material.
b. Saws and edgers may strike foreign material and create a red-hot metal fragment.
c. Knots in hardwood can create frictional sparks.
d. Trapped metal when drawn into the collector can spark against ductwork.
e. Check wood stock for old nails and screws which can create red hot metal fragments.
16. Avoid using excessively large wood waste bins.
17. ALWAYS check storage bins for smoldering material before leaving for the day.
18. Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drain pipe.)
19. DO NOT allow accumulation of layers of ne dust on horizontal surfaces (especially overhead lights, electrical boxes and
fuse panels which can ignite dust.)
20. UNPLUG UNIT BEFORE SERVICING OR CLEANING
OAS Customer Service Dept.
1-866-387-8822 • [e-mail]

4 Oneida Air Systems
System Specications
OPERATION
Fan Rating (with Cyclone & Filter) 583 CFM at 2" SP (990.5 m/hr at 51 mmHO )
Maximum Suction Rating 9" HO (229mmHO)
MOTOR AND ELECTRICAL
MotorType U.S. MadeTEFC Motor
Motor Insulation Class F
Motor Service Factor 1.15
Horsepower 1.5 HP (1.1 kW)
Motor Speed 3,450 RPM
Phase Single-Phase (1ph)
Voltage 110V / 220V
Cycle 60Hz
Listed FLA 110v: 16A/ 220v: 8A
On/O Switch Rocker Switch
Power Cord 20 ft (6 m)
Power Connector 110v: NEMA 5-20 / 220v: NEMA 6-20
Recommended Circuit Size 20A
Recommended CircuitType HACR
Sound Emission 80.5 dBA @ 10 ft (3m)
IMPELLER
Size 13" (330 mm)
Material Single-piece, backward inclined, non-sparking/non-ferrous
CARTRIDGE FILTER
Filter MediaType G.E. H12 HEPA
Filter Eciency 99.97% @ 0.3 microns
Filter Surface Area 40 Sq. Ft. (3.7 sq m)
SYSTEM DIMENSIONS AND CONSTRUCTION
Barrel/Cyclone Body Molded Static Conductive Resin
Inlet 5" (127 mm) Outer Diameter
Overall Height 64.25" (1,632 mm)
OverallWeight 85 lbs (38.5 kg)

5oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.

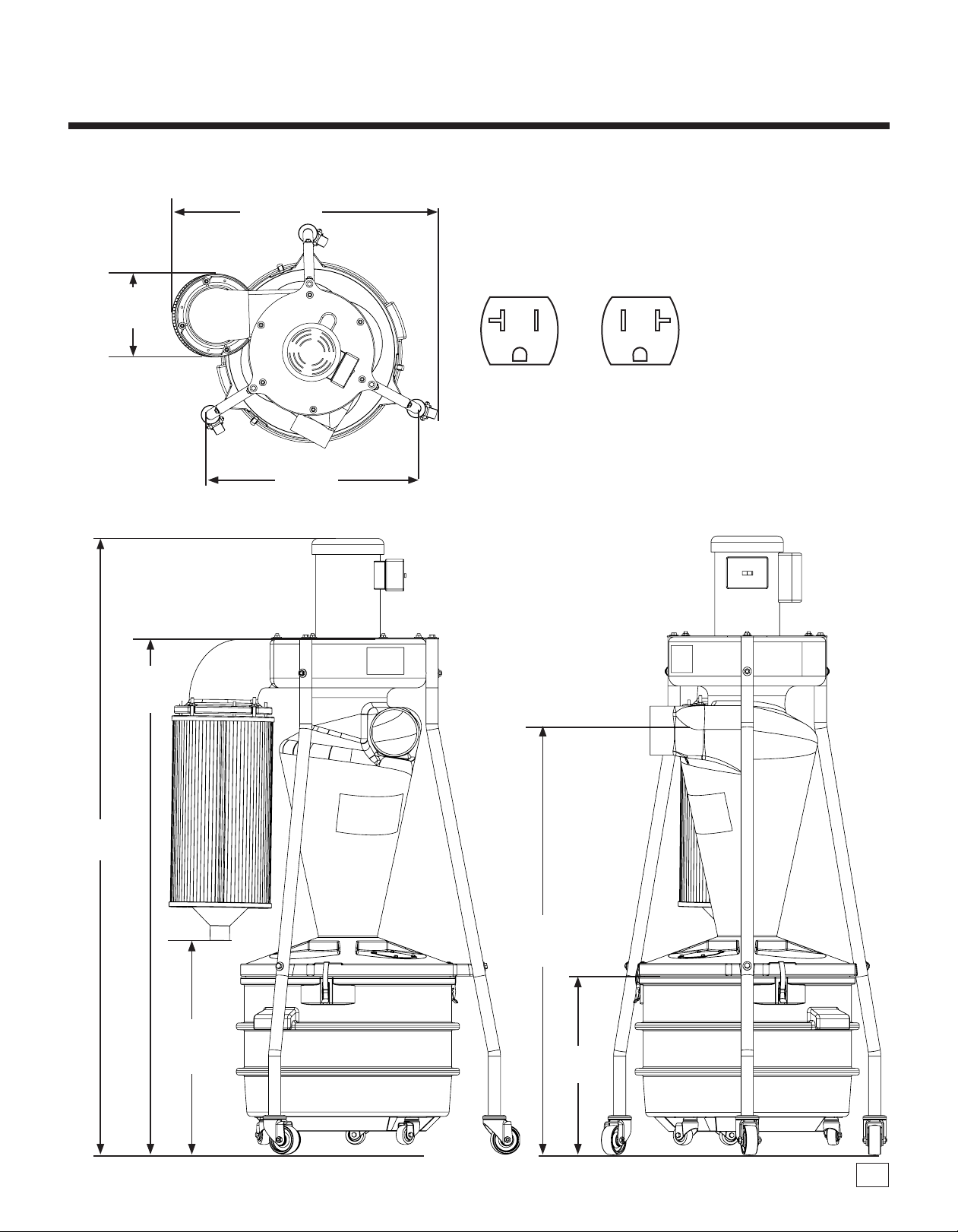

System Dimensions
Top View
10.5"
457 mm
28"
711 mm
43"
1,092 mm
18"
457.2 mm
24.75"
629 mm
52.25"
1,327 mm
23"
584 mm
110V 220V
e Mini-Gorilla requires a 20 Amp outlet receptacle
to be installed by a licensed electrician. See below outlet
receptacles needed based on the voltage of your unit.
64.25"
1,632 mm

6 Oneida Air Systems
System Contents
Please unpack the parts carefully and conrm you have
received each item listed here.
*Some components are pre-installed at the factory and
are listed here for your convenience.
**e U-Spring Nuts come in a pack of eight, but you will
only need six for your installation.
You will need the following:
• 7/16" Wrench
• 7/16" Socket Wrench
• 1/2" Wrench
• 1/2" Socket Wrench
• Small Hammer
• Phillips Head Screwdriver
• Flat-head Screwdriver
• Razor Blade
• Channel Lock Pliers+
ID Part number Part description Qty
A BXI001605C
BXI001604C
Motor Assembly 1.5 HP 110V
Motor Assembly 1.5 HP 220V
1
B FCS101935HFA
10.5" x 19.5" HEPA Cartridge
Filter with molded sound
absorber
1
C SXM010100C Cyclone and Drum Assembly 1
C1 SMM010100 Molded Cyclone and Drum 1
C2* AFL990001 Latches 3
C3* AFS501032 10-32 1/2" Phillips Pan Head
Screws 10
C4* AFT901032 10-32 Nylock Nut 1
C5* AFW200000 #10 Flat Washer 10
C6* RHL000604 Drum Window 1
C7* RGZ025050 Gasket 6 ft.
C8 STG491616 Leg Assembly 3
C9 AHX001605B Mini Gorilla Hardware Kit 1
C9A VAB363602 22 Gal. Heavy-Duty Plastic
Liner Bags 2
C9B VRV050500 1/2" ID Vinyl Tubing 5 ft.
C9C RGZ025050 Gasket 6 ft.
C9D ABF500000 1/2" Straight Fitting 2
C9E AFW180508 5/8" Rubber Washer 2
C9F RCP060000 PVC Tube Cap For Inlet Cover 1
C9G RHC000007 3" Casters with 5/16-18 x 1"
Stems 3
C9H AFB025175 1/4"-20 x 1 3/4" Carriage Bolt 3
ID Part number Part description Qty
C9I AFW025000 1/4" Flat Washer 3
C9J AFT000005 1/4" Whiz-Lock Nut 3
C9K AFB155195 5/16-18 x 2" Hex Head Bolt 3
C9L AFW180000 5/16" Flat Washer 3
C9M RHC000000 2" Drum Casters 3
C9N AFS015920 1/4"-20 x 3/4" Hex Head Bolt 6
C9O AFW180516 5/16" Rubber Washer 6
C9P AFW025000 1/4" Flat Washer 6
C9Q AFT000005 1/4" Whiz-Lock Nut 6
C9R** AFT051618 5/16-18" U-Spring Nut 8
C9S AFB155190 5/16-18 x 1" Hex Head Bolt 9
C9T AFW180000 5/16" Flat Washer 9
C9U ACB360000 1/2" Turn-Key Band Clamp 1
C9V RCP101935 Filter Outlet Cap 1
C9W AFW180000 5/16" Flat Washer 4
C9X AFT900006 1/4"-20 Nylock Nut 4
If you cannot find an item on the list, examine the packaging materials very carefully.
Certain components have been pre-installed.* There may be hardware leftover.

+e pliers are optional and are recommended for ease of installation.

7oneida-air.com

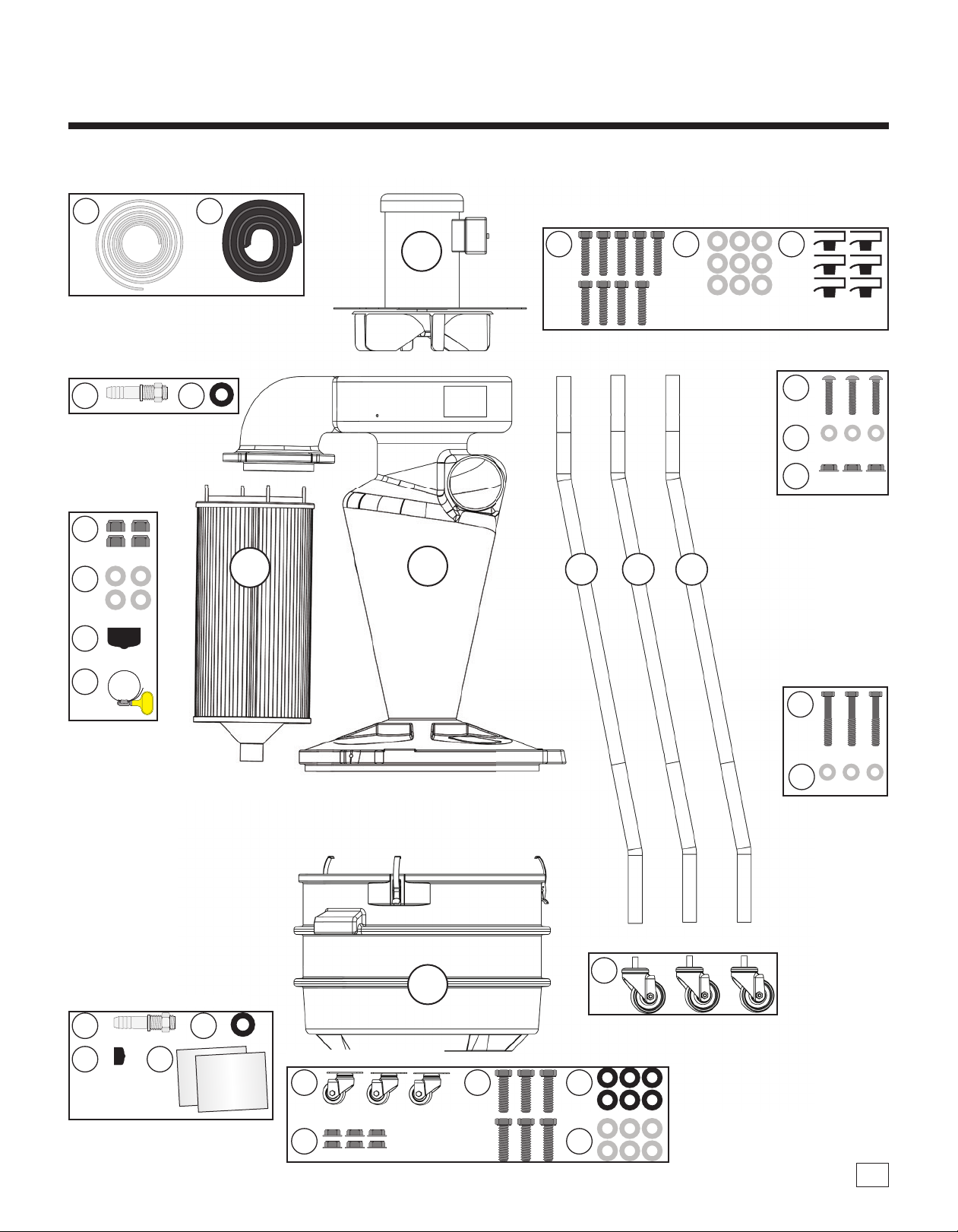

System Contents (Continued)
A
BC1
C9D C9E
C9D C9E
C9F
C1
C9C
C9X
C9W C8 C8 C8
C9G
C9V
C9U
C9M
C9Q
C9N C9O
C9P
C9K
C9L
C9H
C9I
C9J
C9S C9T C9R
C9B
Gasket & Bag Components
Gasket & Bag Components
Gasket & Bag Components
Leg Hardware
& Casters
Leg Hardware & Casters
Motor Attachment Hardware
Leg Hardware
& Casters
Filter
Attachment
Hardware
Leg Hardware & Casters
C9A

8 Oneida Air Systems
Assembly Instructions

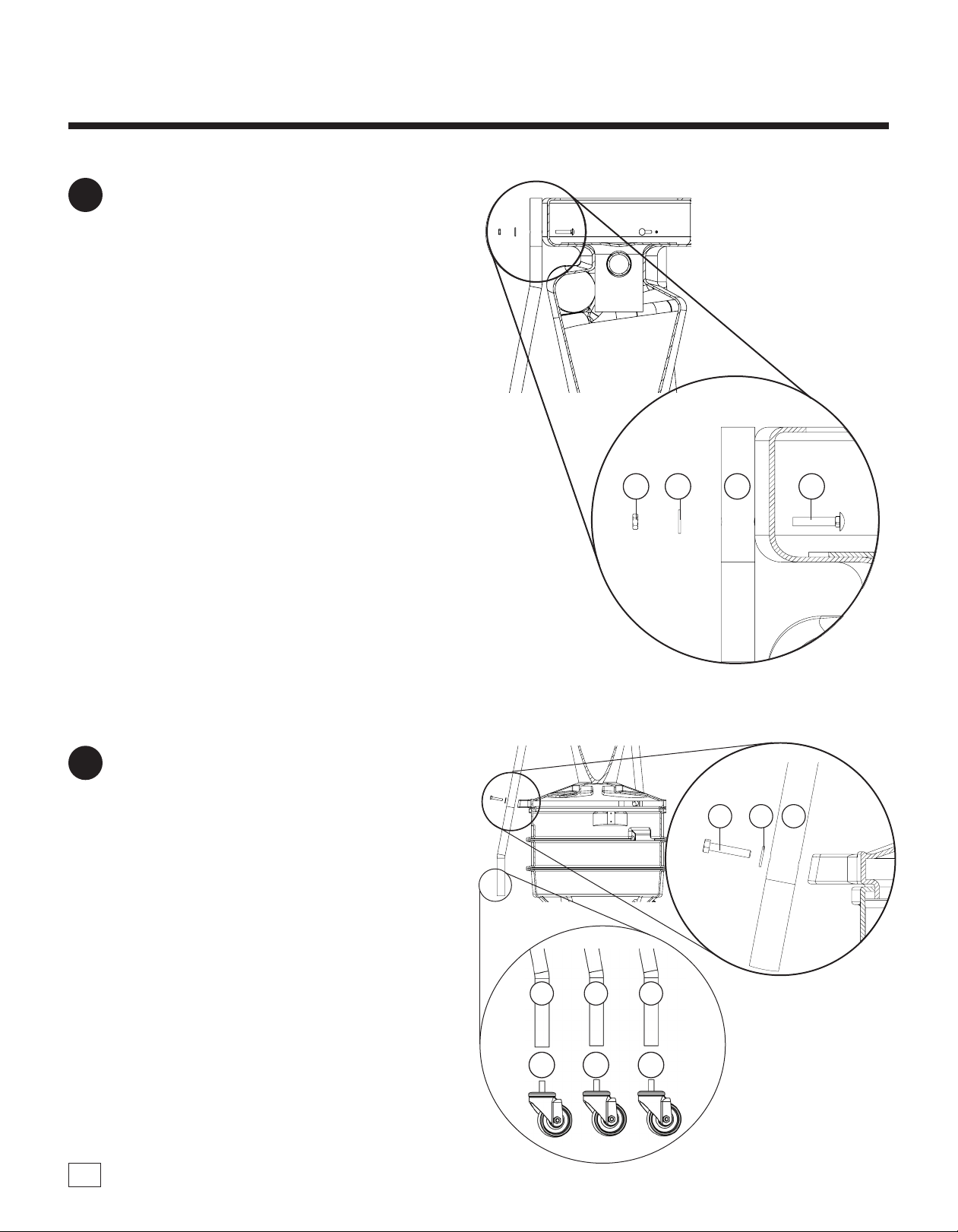

Push three Carriage Bolts (C9H) through the
inside wall of the fan housing section of the
molded cone. read the top hole of the Legs
(C8) over the bolt and secure with a 1/4" Flat
Washer (C9I) and 1/4" Whiz-Lock Nut (C9J).
Finger tighten. [FIG. 1]
Note: e top of the leg is indicated by a hole
located 3.5" from the end. e bolt’s square shank
must go through the round housing hole. For
ease of assembly, tighten the nut on the carriage
bolt without the washer - this will pull the square
shank through the round housing hole. Once the
carriage bolt is fed through the leg's hole, remove
the nut. Secure in place with the washer and nut.
1
Secure each Leg (C8) to the threaded inserts on
the lid using three 5/16" Flat Washers (C9L) and
three 5/16" x 2" Hex Head Bolts (C9K). [FIG.
2a] Secure Stem Casters (C9G) to the threaded
insert on the bottom of the legs. Finger tighten.
[FIG. 2b]
Note: For ease of assembly, we recommend
channel lock pliers to tighten the casters.
2
FIG. 1
G
G

SECTI GG
DETAIL 
SCALE 1 : 1
G
G

SECTI GG
DETAIL 
SCALE 1 : 1
G
G
I
SECTI GG
DETAIL I
SCALE 1 : 1
G
G
I
SECTI GG
DETAIL I
SCALE 1 : 1
C8
C8
C9J C9I C9H
C9K C9L
FIG. 2a
C9G
C8 C8C8
C9GC9G
FIG. 2b

9oneida-air.com
Assembly Instructions (Continued)
Install Straight Fittings (C9D) into the recessed
holes under the fan housing and near the bottom
of the drum. [FIG. 3a] [FIG. 3b] Secure in place
using the tting’s nut on the inside; using a
Rubber Washer (C9E) between the nut and the
inner wall. [FIG. 3c]
Note: For ease of assembly, when installing to the
bottom of the drum, we recommend to wedge
a at screwdriver between the Straight Fitting
(C9D) and the inner wall to secure it in place
when securing the nut.
3
4Install each of the three Drum Casters (C9M) to
the drum using two 1/4" Hex Head Bolts (C9N),
two Rubber Washers (C9O), two 1/4" Flat
Washers (C9P), and two 1/4" Whiz-Lock Nuts
(C9Q) as shown in [FIG. 4]. Use the bolt holes
on opposing sides of the caster plate as shown in
[FIG 4b]
Note: Be sure to use the rubber washer under the
steel washers to assure an airtight seal. It is very
important that there are no leaks.
FIG. 3a
FIG. 4a
FIG. 3c



SECTI 
A
DETAIL A
SCALE 1 : 1
DETAIL 
SCALE 1 : 1



SECTI 
A
DETAIL A
SCALE 1 : 1
DETAIL 
SCALE 1 : 1
INCORRECT
CORRECT
FIG. 4b
INCORRECT
C9M
C9N
C9O
C9Q
C9D
C9E
C9P
FIG. 3b

10 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 6a
FIG. 5
Align the legs so that they are square and even
with the drum and body. [FIG. 5]
Note: Hardware attaching the Legs (C8) to the
Molded cyclone and Drum (C1) should be nger
tightened to help align the Motor Assembly (A) in
Step 10.
5
Insert a Drum Liner Bag (C9A) into the Drum,
making sure it fully expands against the sides
and the bottom of the drum. e top edges of
the bag should fold out and over the drum’s
upper rim. [FIG. 6a]
Note: If you do not want to use bags you MUST
use the Cap (C9F) to close o the tting inside the
drum. [FIG. 6b]
6
CORRECT INCORRECT
G
G
I
SECTI GG
DETAIL I
SCALE 1 : 1
FIG. 6b
C9D C9F

11oneida-air.com
Assembly Instructions (Continued)
FIG. 7
Tap the U-Spring Nuts (C9R) onto each of the
holes around the circle of the Fan Housing with
a ball peen hammer. [FIG. 8]
Note: Make Sure the U-Spring Nut (C9R) is
pushed all the way on by checking that the bolt
holes are in alignment with the clip holes and
installed in the correct orientation. Otherwise
you will not get the seal needed for complete dust
collection! ere will be two leover U-Spring
Nuts that are not needed for the installation.
8
Latch the Drum to the cone assembly and
connect the Vinyl Tubing (C9B) onto both
Straight Fittings (C9D). Push tubing on until all
barbs are covered. [FIG. 7]
7
FIG. 8
Top View
C9R
C9B

12 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 9
Carefully li the Motor Assembly (A) on top of
the unit and align the motor plate holes with the
fan housing holes and the threaded inserts on
top of the legs [FIG. 10]. read and tighten the
nine 5/16" x 1" Hex Head Bolts (C9S) and nine
5/16" Flat Washers (C9T).
Tighten all of the hardware; this includes the
pre-installed parts used on the Drum Latches
(C2) and the Drum Window (C6)
Note: If U-Spring Nuts (C9R) don't align with
the motor plate holes, use a screwdriver to adjust
misalignment. Hand tighten rst and then tighten
down.
10
The motor assembly is very heavy and cumbersome; Be sure to have adequate help to lift the
motor assembly up!

Apply the Gasket (C9C) to the motor plate as
shown in [FIG 9], making sure that there is no
gap where the ends meet.
Note: Dust collection systems cannot operate
eectively if there isn’t a complete seal. ere must
be NO air leaks.
9
Motor Plate
PLACE GASKET AROUND OUTER PERIMETER
OF MOTOR PLATE.
C9S
C9T
Fan Housing
Motor Plate
C9S
C9T
FIG. 10
C8
C9C

13oneida-air.com
Assembly Instructions (Continued)
FIG. 11a
FIG. 12
Li the Filter (B) up to the plenum elbow,
slotting the lter’s bolts into the four grooves.
shown in [FIG. 11a]. Secure in place with four
5/16" Flat Washers (C9W) and four Nylock Nuts
(C9X). [FIG. 11b]
Note: DO NOT overtighten.
11
Place Filter Cap (C9V) onto the bottom port
of the Filter (B) and secure in place using Band
Clamp (C9U).
12
Installation is complete! Plug in your collector
and turn on the rocker switch mounted on the
motor. [FIG. 13]
13
FIG. 11b
FIG. 13
B
C9V C9UC9V
G
DETAIL G
SCALE 1 : 1
G
DETAIL G
SCALE 1 : 1
C9W
C9X
B

14 Oneida Air Systems
Maintenance
UNPLUG YOUR UNIT BEFORE SERVICING OR CLEANING. KEEP THE TOP VENTS IN THE
COWLING CLEAN. THESE ARE FOR BOTH EXHAUST AND INCOMING COOLING AIR FOR THE
MOTOR.


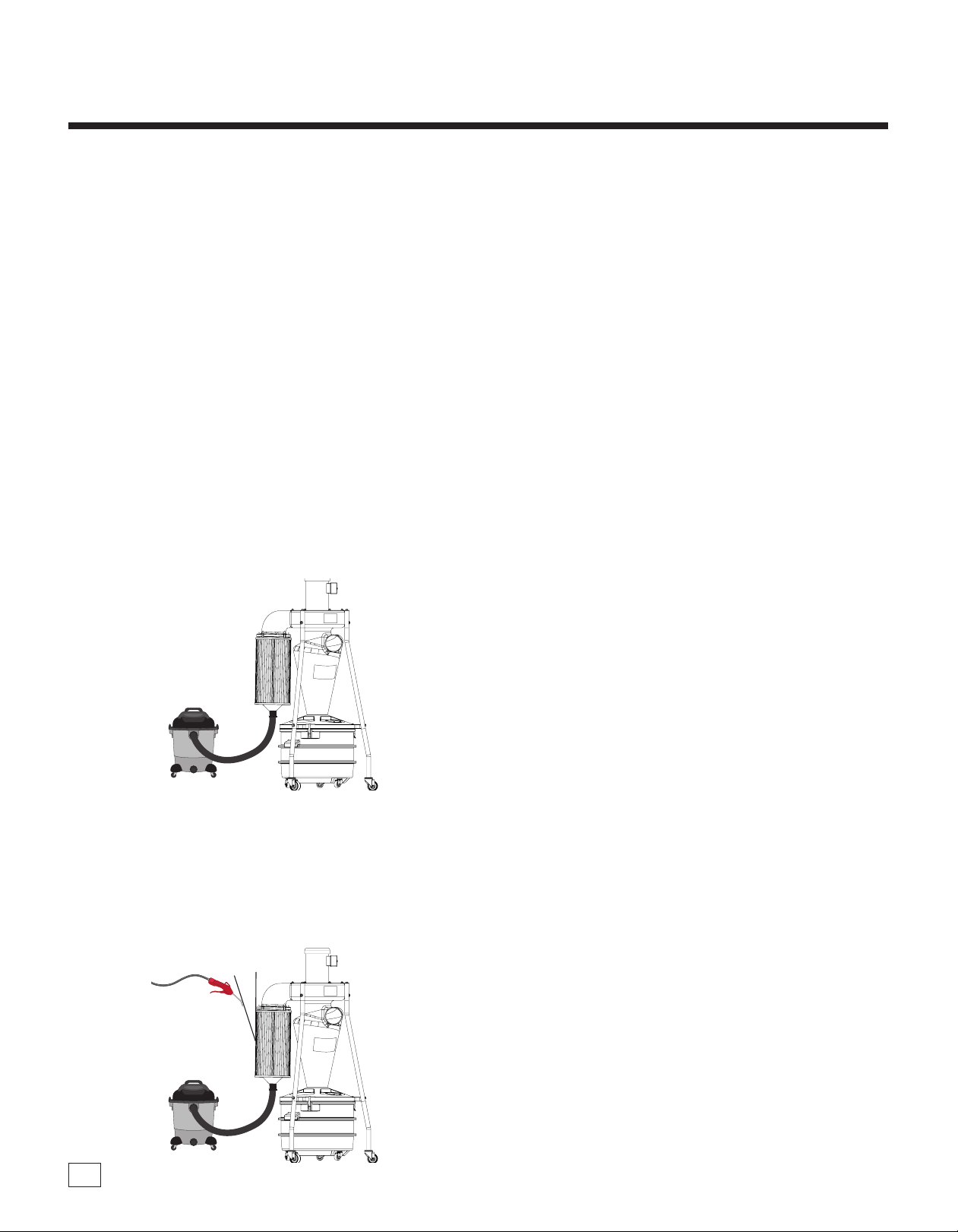

Cleaning the lter
Proper lter cleaning should not be neglected as a
dirty lter can signicantly aect your dust collector’s
performance and the overall lifespan of your lter.
1. Wear a dust mask and eye protection.
2. Turn o and unplug the dust collector and wait for the
fan blower to come to a complete stop and for the dust
to settle.
3. Remove the Filter Cap (C9V) from the bottom of the
lter. Attach your wet/dry vacuum’s hose to the outlet.
Turn on your wet/dry vacuum.
Note: e lter’s outlet measures 1.9" ID and 2.1" OD; You
may need an adapter depending on your hose. If you don’t
have a shop vacuum available you can clamp a bag over
the outlet to collect excess dust.
4. While the wet/dry vacuum is running. Use a hand-held,
compressed air nozzle with a pressure between 30 to
60 PSI to blast air along the lter’s exterior pleating.
Hold the air nozzle at a 20 degree angle and at least
6” away from the lter; closer blasts may damage the
lter material. Direct air out and away from anyone in
the area. Do not use this method when any hazardous
material has been vacuumed up.
5. Check to make sure lter is in good condition with
no torn media or cracks or tears in the seal. A broken
lter can leak material into the motor and cause severe
damage! You cannot operate the system without a proper
lter in place. (See Accessories page for the replacement
lter part.) Operating without a sucient lter will cause
severe damage to the motor and will void the warranty!
Note: To help see damage from the outside, a ashlight can
be used.
Emptying the Drum
When rst using the dust collector, check the drum
window regularly to get an idea of how oen it needs
to be emptied. If the drum becomes overlled, the
dust will be sucked into the collector and into the
lter. To clean the view window ONLY use a clean,
so cloth. NEVER use solvents. Using a ashlight
will make viewing the dust levels easier.
1. Wear a dust mask and eye protection.
2. Turn o the dust collector and wait for the fan blower to
come to a complete stop and for the dust to settle before
unlatching the drum from the cyclone body.
3. Dispose of waste safely and properly.
4. Replacement bags should be 36" x 36" and at least 1.5
mils thick. See Accessories page for replacement bags
needed for your system. When you are not using a bag in
your drum then you must use the Cap (C9F).
20º

15oneida-air.com
?
Troubleshooting
If you continue to experience difficulty with your dust collector, call Oneida Air Systems’
Customer Service Department at 1-866-387-8822 or email [e-mail].
PROBLEM CAUSE SOLUTION
Motor Overheating/System
Tripping
(The motor’s internal circuit
breaker will trip if the
motor is overheating)
Air leaks between the dust
collector and dust bin
1. The lid of the dust drum must be in place, have a foam seal, and be well seated
when operating the dust collector
2. Check for holes or leaks in the dust barrel
3. Check the vinyl hose connection and the lter cap.
Motor not properly wired 1. Check wire connections
2. Check motor rotation
3. Check breaker box to make sure power supply is correct for motor
4. Ensure the unit is not installed on a GFCI outlet/breaker.We recommend a 20A
HACR-type circuit breaker.
Circuit breaker tripped 1. The Mini-Gorilla draws approximately 15 amps. Make sure your wiring can
accommodate this load. Never compromise the grounding pin on any plug.
2. Check for clogs or debris jamming the fan blade.
3. Ensure the unit is not installed on a GFCI outlet/breaker.We recommend a 20A
HACR-type circuit breaker.
Poor dust pick-up atTools System and ductwork
connections
1. Check length of duct runs, duct diameters, and hood design compared to ductwork
design guidance
2. Make sure all connections to the system are sealed. Large air losses will occur
even through small cracks in the ductwork. Use silicone, duct tape or duct mastic
compound as a sealant.
3. Check for air leaks between collector and dust drum.
4. Be sure that your lter is clean.
Filter Clogging Large Chips Clogging the Filter 1. Check for a leak in the dust bin or lid.
2. Make sure dust bin has not over lled. Dust bin should be emptied before the dust
reaches top of container.
Fine dust clogging the lter 1. Air ow to the collector may be restricted.The collector needs the equivalent
of at least a 4" diameter cross-section open to allow adequate air volume and
speed for pre-separation in the cyclone stage of the collector. If you are using
a woodworking machine with only one 2" diameter dust port, partially open
another blast gate to compensate.
2. Heavy sanding with a drum sander or ne grit paper will cause the pleated lter
media to bind sooner than with larger size dust. Clean lter more often with
compressed air.

16 Oneida Air Systems
FAQ
How is the Mini Gorilla lter cleaned? I don't see the typical hand crank.
e use of hand cranks that "beat" the lter can damage the lter's pleating material overtime, so our systems are
not built with such systems. Please see the Maintenance section titled Cleaning the lter.
Can this be used for wet applications?
No. is system is designed for collecting dry materials only.
What dust can be collected?
Oneida Air Systems' dust collectors are designed and tested for wood and wood dust. ey can and have been be
used eectively for various other dusts and chips such as drywall dust, paper dust, agricultural dust, metal chips
and other forms of debris. e customer is however, cautioned that some common materials when cut, ground
or processed by machinery may become very dangerous: highly toxic, ammable, or deagrable and explosive
and they should therefore ensure that you use your particular use of a dust collection system in accordance to
national, state, local, NFPA, OSHA and all other applicable codes.
Can I wall mount my Mini Gorilla to the wall?
Currently, we do not have any wall mount solution available.
Is this product compatible with Quick-Clamp Duct?
Yes, but you will need both a 5" Female Hose Quick Connect (DQF050000) and a Machine Adapter
(GAM050000) into the dust collector's inlet. e Machine adapters are smaller on the raw end than traditional
ducting. A 5" Quick-Clamp Duct Machine Adapter will measure ~4.9" O.D. on the raw end.
How do I connect the Mini Gorilla to my tools?
e Mini-Gorilla's inlet measures 5" on the outer diameter, making it ideal for accepting raw (uncrimped)
ductwork ttings over the inlet such as reducers and quick-connects. Crimped ductwork will not usually t into
the inlet but can be done when necessary and secured in place with foil tape. Flex hose can also be pulled over
the inlet but will generally be a tight t.
What size tool ports will this work with?
e Mini Gorilla is designed for use with tools that have a single 4" or 5" dust collection port. We do not
recommend the Mini Gorilla dust collector be used with ports smaller than 4" in diameter.

17oneida-air.com
FAQ (Continued)
How many tools can I collect from simultaneously?
We recommend to run one tool with a 4" or 5" port at a time. If you have mutlitple tools connect to your system,
close o the ports to unused tools with blast gates when they are not in use.
Do you have a ductwork kit that includes everything I need to get started?
Yes, we have a Mini-Gorilla Quick-Start Ductwork Kit (KDZ010100) that includes:
a. DHF051000: Ten feet of 5" ex hose
b. ACB060000: Two 3-6" clamps
c. DZX990504: One 5-4" reducer crimped on the 5" end.
Can I connect Flex Hose directly to the inlet?
Yes, it will be a secure and rm t.
I'm having trouble attaching ex hose to the inlet, do you have any tricks?
Start with the cut end of the hose and pull the hose ends up little by little to work the hose onto the cyclone’s
discharge. Pliers can be used to grab the reinforcing wire and aid in pulling the hose over the opening. Using
heat (such as a hair dryer) can be gently applied to the molded inlet to make the resin more malleable and allow
for easier hose ttings - exercise caution when heat-treating so as not to damage the system.
What's the furthest length and diameter of hose that I can run?
You can run up to twenty-ve feet of ve inch ex hose.

18 Oneida Air Systems
Recommended Accessories
22 Gallon Heavy-Duty Plastic Liner Bag
#VAB363602
• Lines the inside of medium sized, 22 gallon containers for fast and simple waste disposal.
• Heavy thickness protects against tearing from wood chips or other sharp debris.
• 36"H x 36" Dia.
Dust Sentry Bin Level Indicator
#AXB999110B
• High intensity strobe light can be mounted anywhere in your shop!
• Low voltage - Works on standard 110V power
• User controlled ll-level can be adjusted for distances 1" to 20" from the lid
10.5" x 19.5" HEPA Cartridge Filter with FlameGuard
#FCS101935HF
• Independently tested G.E. Certied H12 HEPA lter media.
• Wide-spaced pleated lters with teon-like coating for quick and easy dust removal.
• Equipped with patented FlameGuard™ arrestor mesh for added safety.
115V iVAC Pro Automated Dust Control Switch
#ARS115200
• Detects when your power tools are on and automatically turns on the dust collector for you!
• Includes 1 Remote Control with belt-clip.
• Switch receives signals from up to 40' away in any direction.
iVAC Pro Tool Plus Automatic Power Sensor
#STZ212301
• Up to 8 tool sensors can be synced to the same switch.
• Transmits radio frequency signal to the iVAC Pro Switch from up to 40' away.
• Multiple operating modes for automatic or direct manual control of the system.
