Oneida Air Systems V1500 User manual

Rev: 11/20/2019 Doc. #ZBM000101A
Appearance may vary slightly
U.S. Patent 8377160, 9370740,
8514090, 8496719, 7247180
OWNER’S MANUAL
V-System
Dust Collector
1.5 HP/3 HP
#XXVM001500
#XXVM003000
#XXVM003000W
#XXVM003055
#XXVM003055W

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 4
System Dimensions for V1500 and 35 Gal.
Drum 5
System Dimensions for V-3000 and 35 Gal.
Drum 6
System Dimensions for V-3000 and 55 Gal.
Drum 7
System Contents 8
Assembly Instructions 10
Maintenance 18
Troubleshooting 19
Recommended Accessories 20
Warranty Information 22

2 Oneida Air Systems
System Start-Up Information
1. Install ductwork completely before operating collector.
a. Seal ductwork with silicone sealant or duct tape.
b. Have dust drum in place and sealed.
2. DO NOT operate Fan / Blower unless Fan Housing is attached to Cyclone body and Dust Drum is in place. Dust Drum and
Cyclone must be in place and sealed or motor will overheat!
3. DO NOT operate without lter in place. Fan blade can cause serious injury.
4. e Direct Drive Fan / Blower makes the system top heavy! Use extreme care when setting the unit up! It is recommended
that at least two people li the system up.
5. Check amperage draw on motor with all gates open. Current draw should not exceed maximum motor amperage as stated
on motor plate. (Oneida Air Systems is not responsible for damage to motors caused by improper installation, wiring or
failure to follow these directions).
6. is equipment incorporates parts such as switches, motors or the like that tend to produce arcs or sparks that can cause an
explosion.
7. To reduce the risk of Electric Shock, DO NOT use outdoors or on wet surfaces.
8. Exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
9. To reduce the risk of injury from moving parts - unplug BEFORE servicing.
 WARNING 
 FIRE HAZARDS 
1. Wood shaping and cutting processes generate wood chips, shavings and dust. ese materials are considered combustible.
Air borne wood dust below 420 microns in size (0.17 of an inch) in certain concentration ranges when ignited can deagrate
(burn quickly). An ignition source such as a spark or ember can ignite a dust mixture resulting in an expanding ame
front, which can cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated ne dust can raise
additional dust clouds, which can cause a series of explosions that can level an entire building. Until this type of re has been
witnessed, it is dicult to believe the devastation. is type of re is rare but worth safeguarding against.
2. e best way to avoid a wood shop re is to keep the shop clean. A shop ankle deep in dust with layers of ne dust
everywhere is an accident waiting to happen. A good dust collection system reduces overall re hazards but also adds new
concerns. A re hazard is still present. Combustible material is now in the dust collector and storage container.
3. e following points are worth heeding:
a. It is the buyer’s responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction
codes and regulations when installing and operating this dust collector.
b. Fire Marshals may want the unit located outside of the building. If the collector is located inside the facility, controls
such as spark detection, suppression, or explosion venting may be required.
c. Most local jurisdictions consult or adopt NFPA (National Fire Protection Agency) codes. However, other codes may
apply. Local codes may vary from jurisdiction to jurisdiction.
Make sure to read and understand the installation and maintenance instructions as well as all
recommended safety practices.


3oneida-air.com
System Start-Up Information (Continued)
d. NFPA664 Code book, “Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities”, applies to woodworking operations that occupy areas of more than 5,000 sq. . or to areas where dust
producing equipment requires an aggregate dust collection ow rate of more than 1,500 cfm (cubic feet per minute).
is exempts some small operators from the NFPA code 664, but other codes may apply in your jurisdiction. Consult
your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664.
4. e customer assumes the responsibility for contacting their insurance underwriter regarding specic application
requirements of explosion venting or if additional re protection and safety equipment may be required.
5. DO NOT use this product to collect other types of ammable dust or ammable vapors! - Fire or explosion may occur!
6. NEVER collect sparks from a bench grinder into a wood dust collector.
7. NEVER introduce sparks or sources of ignition into the dust collector.
8. Personnel should be kept at least 20 . away from unit.
9. Check dust bin for smoldering material frequently and before leaving the shop.
10. Keep portable re extinguishers handy.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
11. Be especially careful with sanding units. ey can produce concentrations of dust in the combustible range. Make certain
enough air volume is at the suction point to capture all the particulate generated.
12. is high air volume will dilute the mixture below the lower limit of ammability. Be careful not to generate sparks into the
sanding dust.
13. Empty dust bin and clean lter oen, especially when sanding.
14. DO NOT overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
15. Sparks can be generated in several ways:
a. High speed sanders and abrasive planers may strike foreign material.
b. Saws and edgers may strike foreign material and create a red-hot metal fragment.
c. Knots in hardwood can create frictional sparks.
d. Tramp metal when drawn into the collector can spark against ductwork.
e. Check wood stock for old nails and screws which can create red hot metal fragments.
16. Avoid using excessively large wood waste bins.
17. ALWAYS check storage bins for smoldering material before leaving for the day.
18. Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drain pipe.)
19. DO NOT allow accumulation of layers of ne dust on horizontal surfaces (especially overhead lights, electrical boxes and
fuse panels which can ignite dust.)
20. UNPLUG UNIT BEFORE SERVICING OR CLEANING
OAS Customer Service Dept.
1-866-387-8822 • [e-mail]

4 Oneida Air Systems
System Specications
OPERATION
Fan Rating (Free Fan) 1.5 HP: 1,518 CFM (2,579.1 m/hr)
3 HP: 2,940 CFM (4,995.1 m/hr)
Fan Rating (with Cyclone & Filter) 1.5 HP: 949 CFM @ 1.8" SP (1,612.4 m/hr at 45.7 mmHO )
3 HP: 1349 CFM @ 2.3" SP (2,292 m/hr at 58.4. mmHO )
Maximum Suction Rating 1.5 HP: 8" HO (203 mmHO)/ 3 HP: 8" HO (203 mmHO)
MOTOR AND ELECTRICAL
MotorType U.S. MadeTEFC Motor
Motor Insulation Class F
Motor Service Factor 1.5 HP: 1.15 / 3 HP: 1.0
Horsepower 1.5 HP (1.1 kW)/ 3 HP (2.2 kW)
Motor Speed 3,450 RPM
Phase Single-Phase (1ph)
Voltage 1.5 HP: 110V / 3 HP: 220V
Cycle 60Hz
Listed FLA 1.5 HP: 8 / 3 HP: 13
On/O Switch Magnetic Starter with On-O Switch
Preset for Included Remote
Power Cord 10 ft (3 m)
Power Plug Included 1.5 HP: NEMA 5-15 / 3 HP: NEMA 6-20
Recommended Circuit Size 20A
Recommended Circuit Type HACR
Sound Emission With Stacking Sound Filter: 72 - 76 dBA @ 10 ft (3 m)
IMPELLER
Size 1.5 HP: 12" (305 mm) Diameter / 3 HP: 15" (381 mm) Diameter
Material Single-piece, backward inclined, non-sparking/non-ferrous
CARTRIDGE FILTER
Filter MediaType G.E. H12 HEPA
Filter Eciency 99.97% @ 0.3 microns
Filter Surface Area 95 Sq. Ft. (8.83 sq m)
SYSTEM DIMENSIONS AND CONSTRUCTION
Barrel/Cyclone Body Molded Static Conductive Resin
Inlet 7" (177.8 mm) Diameter
Overall Height (with 35 Gallon Drum) 1.5 HP: 87" (2,209.8 mm) / 3 HP: 88" (2,235.2 mm)
OverallWeight 1.5 HP: 189 lbs (85.7 kg) / 3 HP: 202 lbs (91.6 kg)

5oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
System Dimensions for V1500 and 35 Gal. Drum
Top View
1.5 HP
87"
2210 mm
13"
330 mm
75"
1905 mm
30"
762 mm
27"
686 mm
8"
203 mm
56"
1422 mm
63"
1600 mm
25"
635 mm
14"
356 mm
36"
914 mm
30"
762 mm
32-1/2”
762 mm
47"
1194 mm

6 Oneida Air Systems
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
System Dimensions for V-3000 and 35 Gal. Drum
Top View
13"
330 mm
47"
1194 mm
75"
1905 mm
30"
762 mm
27"
686 mm
8"
203 mm
56"
1422 mm
63"
1600 mm
25"
635 mm
14"
356 mm
36"
914 mm
88"
2235 mm
30"
762 mm
32-1/2”
762 mm

7oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
System Dimensions for V-3000 and 55 Gal. Drum
Top View
13"
330 mm
87"
2210 mm
30"
762 mm
27"
686 mm
8"
203 mm
68"
1727 mm
75"
1905 mm
25"
635 mm
14"
356 mm
36"
914 mm
99"
2515 mm
30"
762 mm
32-1/2"
762 mm
10"
254 mm
47"
1194 mm

8 Oneida Air Systems
System Contents
* ere will be leover gasket
†Additional parts are included in your hardware
package (AHX000005).
‡Combined inside hardware package (AHX000516).
ID Part number Part description Qty
A BXI010107
BXI030107A
Motor Assembly 1.5 HP 1PH
Motor Assembly 3 HP 1PH
1
B BHX020005B Fan Housing 1
C SXI002107 Barrel 1
D SCX002107B Cone 1
E SEX550700 Steel Drum Lid
with 7" Collared Lid 1
FSES350000
SES550000
35 Gallon Steel Drum with Clamp
55 Gallon Steel Drum with Clamp 1
G AHX180002 V-System Accessory Pack 1
G1 ACB080000 6"-8" Clamp Band 2
G2 DHF070001 7" Diameter Flex Hose 1
G3 STX180003 Plenum Support Brace 1
G4 AHX000003C V-System Hardware Kit 1
G4A* RGZ000000 Neoprene Foam Gasket Roll 25'
G4B RGZ125075 Gasket Roll 6'
G4C AFT051618A Pack of eight 5/16-18" U-Spring Nuts 1
G4D† AFB155114 5/16-18" x 1.25" Flange Bolt 46
G4E† AFT155175 5/16"Whiz-Lock Nut 46
G4F‡ AFT900516 5/16-18" Nylock Nut 8
G4G‡ AFW180000 5/16" FlatWasher 8
G4H FGA000002 14" Grounding Cable withTwo 8-18 x
3/8”Self-tapping Screws 1
ID Part number Part description Qty
H FCS133695HF 13" x 36" HEPA Cartridge Filter 1
I GXF010013 13" Plenum Kit 1
I1 FPX000001 Filter Plenum Elbow 1
I2 FPX010013 13" Filter Plate 1
I3 BSC130000 Drop-in Silencer 1
I4 FPZ000013 Fine Dust Bin 1
I5 AHX001318 Plenum Hardware Kit 1
I5A AFJ051602 5/16-18" x 2" J Bolt 8
I5B AFT000001 5/16-18"Thumb Nut 8
I5C AFB516125 5/16-18" x 1.25" Bolt 9
I5D AFW180000 5/16" FlatWasher 9
I5E AFT155175 5/16-18"Whiz-Lock Nut 9
JSTZ180001
SMS1800000B
Stand
Wall Bracket 1
K BSS131400 13" Dia. Stacking Sound Filter 1
L AMR000000 Remote 1
M AXB999110B Dust Sentry 1
You will need the following tools:
GENERAL FAN HOUSING FILTER
8" Ladder Razor Knife Flathead Screwdriver 7/16"Wrench
Level Diagonal Cutters Hammer 7/16" SocketWrench
Scissors Tape Measure / Ruler
1/2"Wrench 1/4" Socket
1/2" SocketWrench Impact Driver
If you cannot find an item on the list, examine the packaging materials very carefully.
Certain components have been pre-installed. *There may be hardware leftover.

9oneida-air.com
System Contents (Continued)
A
B
D
F
H
I1
E
G2
C
I2
I3
I4
I5A
I5B
I5A
I5B
I5C
I5D
I5E
G4G
K
G3
G4A
G4B
G4D
L
M
G4E
G4D
G4D
G4C
G4D
G4G
G4F
G1

10 Oneida Air Systems
Before you start, determine which direction you want your filter to hang and which direction
you want your duct work to enter the collector. The fan housing and cyclone barrel bolt holes
are drilled at 45 degree increments; Some orientations are not possible.
Assembly Instructions
Tip: e collector will seem quieter if the outlet is aimed away from primary work area.
Filter will
obstruct
inlet pipe
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INCORRECTCORRECT CORRECT

FIG. 1a
FIG. 1b
1To assemble the supplied support system (e.g.
stand [FIG 1a] or wall-bracket [FIG 1b] refer
to the included instruction sheets:
• Stand Instruction Sheet # ZBI000018
• Leg Extension Instruction Sheet #
ZBI000013
• Wall Bracket Instruction Sheet and
Template # ZBI010018A and ZBT010018

11oneida-air.com
Assembly Instructions (Continued)
FIG. 3a
Top View
FIG. 3b
FIG. 3c
FIG. 3d
Top View
Top View
B
FIG. 2
G4C

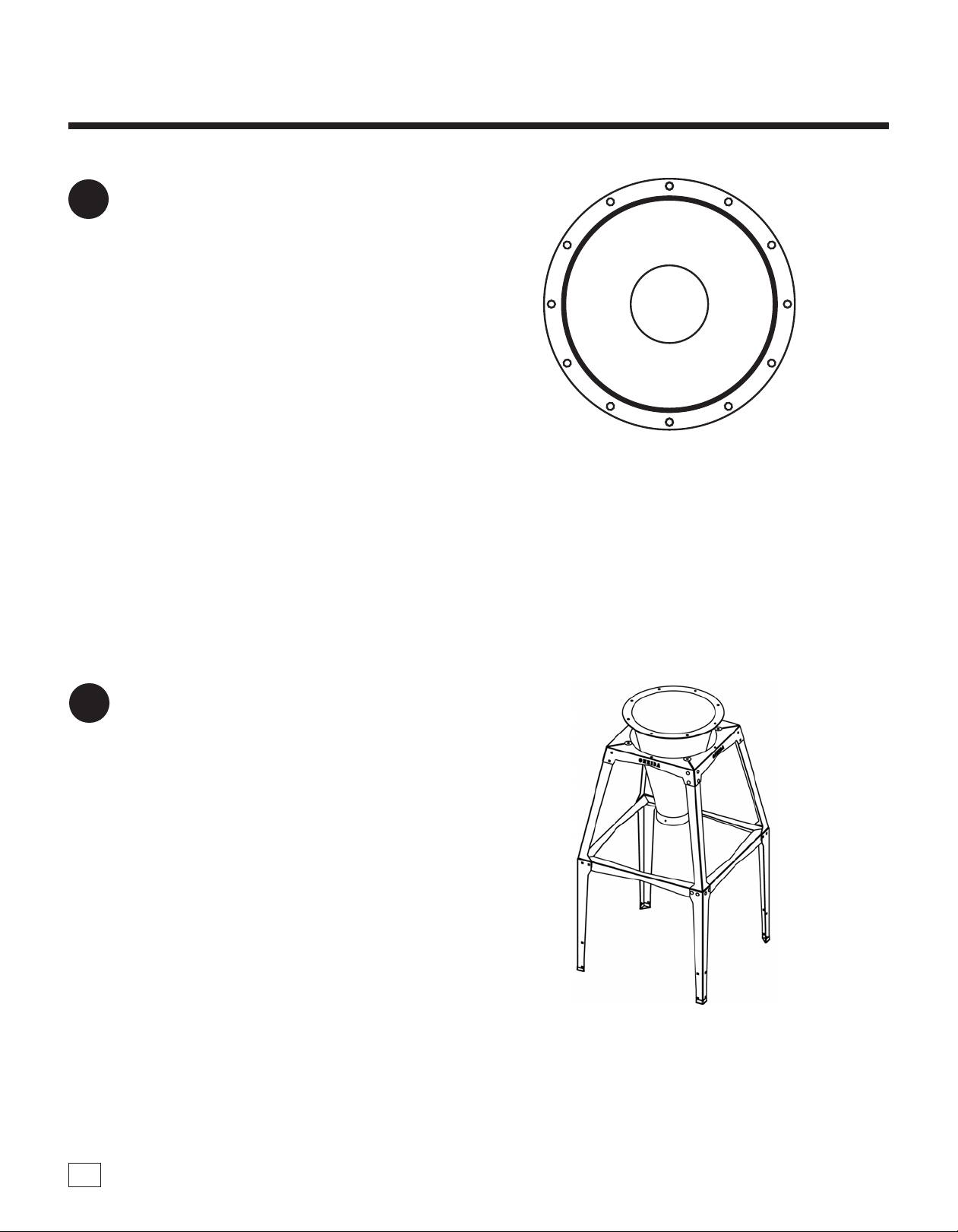

2 Orient the Fan Housing (B) so that the molded
“UP” text is visible and facing towards you.
Push the U-Spring Nuts (G4C) onto each of
the holes lining the inside circle of the Fan
Housing, making sure that the U-Spring Nuts
align into the bolt holes of the housing. [FIG.
1] Use a athead screwdriver if necessary, to
pry open the U-Spring Nuts (G4C) to facilitate
installation and use a hammer to tap into
place.
Note: Make Sure the U-Spring Nut (G4C) is
pushed all the way on by checking that the bolt
holes are in alignment with the clip holes and
installed in the correct orientation. Otherwise
you will not get the seal needed for complete
dust collection!
3 Apply Gasket (G4A) making sure that there is
no gap where the ends meet:
a. Apply to the top rim of the Barrel (C)
outside of the bolt holes [FIG. 3a].
b. Apply to the Fan Housing (B) outlet inside
the bolt holes [FIG. 3b].
c. Apply to the top of the Fan Housing (B)
outside the bolt holes and not covering up
the U-Spring Clips (G4C)[FIG. 3c].
d. Apply to the Filter Plate (I2); it may
partially cover the bolt holes. Make sure
that there is enough room for the bolts to
push through [FIG. 3d].
Note: Dust collection systems cannot operate
eectively if there isn’t a complete seal. ere
must be NO air leaks.

12 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 4
4Apply Gasket (G4B) to the top ange of the
Cone (D) inside the bolt holes making sure
that there is no gap where the ends meet [FIG.
4].
Note: Dust collection systems cannot operate
eectively if there isn’t a complete seal. ere
must be NO air leaks.
5 Li the Cone (D) onto the stand, making sure
to align the Cone’s ange holes with those on
the stand [FIG 4].
FIG. 5

13oneida-air.com
Assembly Instructions (Continued)
FIG. 6a
FIG. 6b
C
B
G4E
G4D
G4G
6Once your cone is aligned with the stand, li
the Barrel (C) onto the Cone (D), making sure
to align the corresponding ange holes. [FIG.
6a]
Secure both components to the stand using
eight Flange Bolts (G4D) and eight 5/16" Flat
Washers (G4G), and eight Nylock Nuts (G4F).
[FIG. 6b]
Note: Hand tighten rst, once your Fan
Housing installed in the preferred orientation
you will need to remove one bolt to install the
Support Brace (G3) shown in step 11. DO NOT
OVERTIGHTEN.
7 Li the Fan Housing (B) onto the Barrel (C),
making sure it is oriented so that the molded
“UP” text is visible. Align the housing’s holes
with the holes in the barrel and keep in mind
the direction you want your outlet to face.
[FIG 6].
Secure the Fan Housing (B) onto the Barrel
(C) using eight Flange Bolts (G4D).
FIG. 7

14 Oneida Air Systems
Assembly Instructions (Continued)
Fan
Blower
Outlet
Smaller
Radius
Corner
Larger
Radius
Corner
UP
FIG. 8
THE MOTOR ASSEMBLY IS VERY HEAVY AND CUMBERSOME; BE SURE TO HAVE ADEQUATE
HELP WHEN LIFTING!
8 Carefully li Motor Assembly (A) to top of
Fan Housing (B) and align the Fan Housing
holes with the motor plate holes following the
orientation shown in [FIG. 8].
Secure the Motor Assembly (A) to the Fan
Housing (B) using eight Flange Bolts (G4D).
FIG. 9b
I1
I2
FIG. 9a
9Secure Filter Plate (I2), gasket side up, to Filter
Plenum Elbow (I1) with nine Bolts (I5C), nine
Flat Washers (I5D), and nine Whiz-Lock Nuts
(I5E). [FIG. 9a]
Note: Ensure holes on the Filter Plate line
up with those on the Plenum Elbow. e
hole pattern is asymmetrical. [FIG. 9b] e
rectangular sha on the Bolt (I5B) must push
through the holes on the Filter Plate (I2).
I5C
I5D
I5E

15oneida-air.com
Assembly Instructions (Continued)
FIG. 10
10 Secure the Filter Plenum Elbow (I1) to the
outlet on the Fan Housing (B) using six Flange
Bolts (G4D) and six Whiz-Lock Nuts (G4E).
Leave lower outer corner empty for Step 10.
[FIG. 10]
Note: e Plenum Elbow should be oriented so
that the support hanger ringlet is closest to the
Filter Mounting Plate (I2)
Outlet Support
Hanger
Ringlet
I1
B
G4D
G4E
FIG. 11
A
A
G4DG4E
11 Attach the at top of the Plenum Support
Brace (G3) to the lower outer corner of the
Fan Housing (B) and Filter Plenum Elbow
(I1). Secure with one Flange Bolt (G4D) and
one Whiz-Lock Nut (G4E). [FIG. 11]
G3
I1
B

16 Oneida Air Systems
Assembly Instructions (Continued)
A
A
FIG. 12
I3
H
12 Install other end of the Support Brace (G3) to
the ange of the Barrel (C) using the hardware
installed in Step 5. [FIG. 11] Tighten all
hardware on the ange that was previously
hand tightened.
Note: Tighten bolts until snug but not so tightly
that the gasket extrudes outside the ange.
13 Insert the Drop-In Silencer (I3) into the top of
the Filter (H) [FIG. 12].

17oneida-air.com
Assembly Instructions (Continued)
FIG. 13
FIG. 14
I5A
I5B
K
14 To install the Stacking Sound Filter (K) [FIG.
13] refer to the included instruction sheet:
• StackingSoundFilterSheet#ZBI131816
15 Attach the Fine Dust Bin (I4) to the Filter (H)
with four J-Bolts (I5A) and four umb Nuts
(Ih5B) as in [FIG. 14].
I4
H

FIG. 15
18 Oneida Air Systems
Assembly Instructions (Continued)
The flex hose connects the cyclone to the dust bin below and only requires enough height to
allow the lid to be lifted from the bin. You may shorten the provided 1’hose length as needed.

D
G2
F
E
16 Attach Hose (G2) to the Cone’s (D) discharge,
and secure it in place with the Clamp Band
(G1). [FIG. 15]
Note: e hose is a snug t. Pull ends up little
by little to work the hose onto the cyclone’s
discharge. Pliers can be used to grab the
reinforcing wire and aid in pulling the hose over
the opening.
Position the Drum (F) under the Cone (D)
and repeat the process to attach the opposite
end of the Hose (G2) onto the drum’s collared
inlet.
Unclamp the Drum Lid (E) and test to see
if the Drum (F) is easy to remove from
underneath the Cone (D).
If there is insucient clearance for removing
the drum, you may trim the Flex Hose (G2)
using a razor knife and diagonal cutter to cut
through the clear lining and reinforcing wire.
Note: Be careful to only remove 0.5” at a time so
as not to over trim.
G1
