Oneida Air Systems XCKM010000 User manual

Rev: C 20230814LL Doc. #ZBM000025B
Appearance may vary slightly
Patents: www.oneida-air.com/patents
OWNER’S MANUAL
Dust Cobra
Dust Collector
Standard /Industrial/
Oneida Vortex
#XCKM010000
#XCKM013500
#XCKM010000-IND
#XCKM013500-IND
#XCKM010000-VOR
#XCKM013500-VOR
#EXP-XCKM010220
#EXP-XCKM010220-IND

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 6
System Dimensions with 17 Gallon Drum 8
System Contents 10
Industrial and Oneida Vortex Contents 12
Assembly Instructions 14
Oneida Vortex Assembly Instructions 21
Maintenance 24
Troubleshooting 26
Warranty Information 27
F.A.Q. 28
Recommended Accessories 30
Notes 32

Oneida Air Systems, Inc.2
System Start-Up Information
 WARNING 
1. READ and understand ALL instructions and warning labels BEFORE using the dust collector.
2. REPLACE warning labels if they become obscured or removed.
3. ALWAYS follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and
regulations when installing and operating this dust collector.
4. ENSURE that all users of this dust collector are informed of all warnings and precautions, safe use, and maintenance
procedures.
5. FULL mental alertness is required. e machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
6. DO NOT allow use by or near children.
7. DO NOT allow it to be used as a toy.
8. NEVER leave the dust collector running while unattended.
9. TURN OFF and UNPLUG the dust collector BEFORE walking away, servicing, or cleaning. Allow the fan blower
motor to come to a COMPLETE STOP before walking away or performing any maintenance, service, cleaning, or
adjustments. is eliminates the risk of injury from unintended startup or contact with live electrical components.
10. ENSURE that your dust collector is turned OFF and UNPLUGGED during installation. is eliminates the risk of
injury from unintended startup or contact with live electrical components.
11. COMPLETELY INSTALL ductwork/ex hose before operating collector.
a. Seal ductwork with silicone sealant or duct tape if leaks are found.
b. Have dust drum in place and sealed.
c. NEVER operate without lter and cowling in place. is machine has high speed rotating elements than can cause
severe injury.
12. ONLY use the dust collector for its intended purpose as described in this manual. DO NOT force it or an attachment
to do a job for which it was not designed. Consult this owner’s manual or reach out for recommended accessories.
13. ENSURE enough air volume is at the suction point to capture all the particulate generated.
14. NEVER make modications without prior approval from Oneida Air Systems. Modifying the dust collector or using
it dierently than intended will void the warranty and may result in malfunction or mechanical failure that leads to
serious personal injury or death! DO NOT allow use as a toy.
Before Purchasing or installing a dust collection system the process owners/operators
are cautioned to do so in accordance with prescribed Federal, State, Local, OSHA, NFPA,
and any other applicable codes or regulations relating to the type of dust(s) you are
collecting.
This manual contains specific precautionary statements relative to worker safety. Read
thoroughly and comply as directed. The most up to date safety information can be found
on our website: oneida-air.com/safety

oneida-air.com 3
System Start-Up Information (Continued)
15. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these areas
can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan of the dust
collector.
16. DO NOT install in classied hazardous atmospheres without an enclosure rated for the application. System location
must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable locations for installing
dust collectors. Consult with the appropriate authorities having jurisdiction to ensure compliance with all national
and local codes regarding dust collector installation. Equipment must be anchored in a manner consistent with local
code requirements. Anchors must be sucient to support dead, live, seismic, and other anticipated loads. Consult a
qualied engineer for nal selection of anchorage.
17. ENSURE exhaust air is properly vented. It should NOT be vented into a wall, a ceiling, or a concealed space of a
building. Personal injury, death, and/or property damage can result from material discharge during venting. e risk of
personal injury and/or property damage can be minimized or avoided by locating vented equipment outside buildings
and away from normally occupied areas. If exhaust air is vented outside, you must provide make up / return air. Flue
gases (carbon monoxide) can be drawn into the shop from furnaces, water heaters, or other appliances.
18. INSPECT and MAINTAIN REGULARLY. Keep the dust collector in proper working order. A machine that isn’t
properly maintained, not working as it should, has been dropped, damaged, le outdoors, or dropped in water could
malfunction leading to serious personal injury or death!
19. AVOID CORD DAMAGE. DO NOT pull or carry by cord. DO NOT use cord as handle. DO NOT unplug by pulling
on cord. To unplug, grab the plug, NOT the cord. DO NOT close door on cord or pull cord around sharp edges or
corners. DO NOT run dust collector over cord. DO NOT handle cord/plug with wet hands. Keep cord away from
heated surfaces. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
20. ALWAYS check for damaged parts. A part that is damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Immediately repair or replace damaged or mis-adjusted parts before
operating machine.
21. DO NOT put any object in openings. DO NOT use with any opening blocked. (Except when pulsing - See
Maintenance Section for more information.)
22. ALWAYS wear a NIOSH approved respirator when emptying dust bins and during operation. Some dust created by
power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer,
birth defects or other long-term respiratory damage.
23. ALWAYS keep hair, loose clothing, ngers, and all parts of body AWAY from openings and moving parts.
24. ALWAYS wear ANSI-approved safety glasses or a face shield when operating or observing machinery and when
emptying dust bin.
25. ALWAYS wear hearing protection during extended periods of operation.

Oneida Air Systems, Inc.4
System Start-Up Information (Continued)
1. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.
2. DO NOT operate the dust collector in areas where explosion risks are high. Areas of high risk include, but are not
limited to, areas near pilot lights, open ames, or other ignition sources.
3. ONLY operate dust collector in locations that include a re suppression system or have a re extinguisher available
nearby.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire
Extinguishers).
4. DO NOT allow accumulation of layers of ne dust on horizontal surfaces. Especially overhead lights, electrical boxes
and fuse panels which can ignite dust. Keep the oor around the system clean and free of scrap material, oil, grease.
5. ENSURE all equipment and ductwork is electrically grounded.
6. DO NOT use PVC drain pipe.
7. ALWAYS consult an electrician or qualied service personnel about wiring practices and electrical codes in your area.
ONLY allow an electrician or qualied service personnel to do electrical installation or repair work.
8. ALWAYS disconnect power before accessing or exposing electrical equipment. Improper wiring can cause re,
electrocution, injury, or death.
9. DO NOT use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
10. DO NOT use to pick up liquids, ammable liquids, or combustible liquids, such as gasoline, or use in areas where they
may be present.
11. DO NOT use excessively large wood waste bins. Wood dust mixtures are highly ammable and can be explosive
12. ALWAYS check your dust bin for smoldering materials before leaving the shop.
13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several ways:
a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot metal
fragment.
 FIRE HAZARDS 
Process owners/operators retain all responsibility for the suitability of fire and explosion
hazard mitigation, suppression, and isolation strategies and to follow all applicable
federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and regulations
when installing and operating this dust collector.
Improper operation of a dust control system may contribute to conditions in the work
area or facility that could result in severe personal injury and product or property
damage.
Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/
or explosion mitigation strategy, or any items incorporated into a collector as part of an
owner/operators hazard mitigation strategy.

oneida-air.com 5
Customer Service Dept.
1-866-387-8822 • [e-mail]
System Start-Up Information (Continued)
b. Knots in hardwood can create frictional sparks.
c. Trapped metal, when drawn into the dust collection system, can spark against ductwork.
d. Check wood stock for old nails and screws which can create red-hot metal fragments.
14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can spontaneously ignite
dust. Sanders can produce concentrations of dust well into the combustible range.
15. ALWAYS check that all dust collection equipment is properly selected and sized for the intended use. Authorities with
jurisdiction should be consulted before installing to verify local codes and installation procedures. In the absence
of such codes, install collector according to the National Electric Code, NFPA No. 70-latest edition and NFPA 91,
NFPA664 Code (NFPA 654 if combustible dust is present).

6Oneida Air Systems
System Specications
OPERATION
Fan Rating (Free Fan) 245CFM (416.3 m/hr)
Fan Rating (with Cyclone & Filter) 245 CFM @ 23"WC (416.3 m/hr at 584.2 mmHO)- Maximum Flow Rate
202 CFM @ 34"WC - with 25’of 2.5"diameter ex hose
(343.2 m/hr at 863.6 mmHO - with 7.6 m of 63.5 mm diameter ex hose )
Maximum Suction Rating 70"WC
MOTOR AND ELECTRICAL
MotorType UL listed Industrial motor
Voltage 110vV / 220V
Amperage 15.5A / 7.75A
Power Cord Length* 20' (6.1 m)
Sound Emission 73 dBA @ 10 ft (3 m)
CARTRIDGE FILTER
FilterType GORE Cleanstream® HEPA Filters
Filter Rating 99.97% ltration eciency at 0.3 microns (µm)
PulseType Manual Internal Rapid Pulse Filter Cleaner System
Pulse Interval ~30 Minutes or as needed based on the situation
SYSTEM DIMENSIONS AND CONSTRUCTION
Cyclone Body Industrial, Static Conductive Resin
Inlet Size 2.5" O.D. and 2.25" I.D. (63.5 mm O.D. and 57.2 mm I.D.)
Inlet Dimensions 2.3" ID (58.42 mm ID)
DrumType Reinforced Steel Drum with Painted Exterior
Container Size 17 Gallons (64.4 l) /35 gallons (132.5 l)
Overall Height 17 Gallon : 53.5" (1358.9 mm) / 35 Gallon: 59.25" (1504.95 mm)
Drum Dolly Height Add 4-7/8" (123.83 mm)
OverallWeight 17 Gallon: 45 lbs (20.4 kg) / 35 Gallon: 55.8 lbs (25.3 kg)
*e export units (#EXP-XCKM010220 and #EXP-XCKM010220-IND) do not include a power connector and a
licensened electrician is required.

7oneida-air.com
System Specications
WARNING
This motor can expose you to chemicals,
including carbon black, which is known to
the State of California to cause cancer.
For more information go to
www.P65Warnings.ca.gov
Keep the Certicate of Compliance on hand while doing lead remediation

8Oneida Air Systems

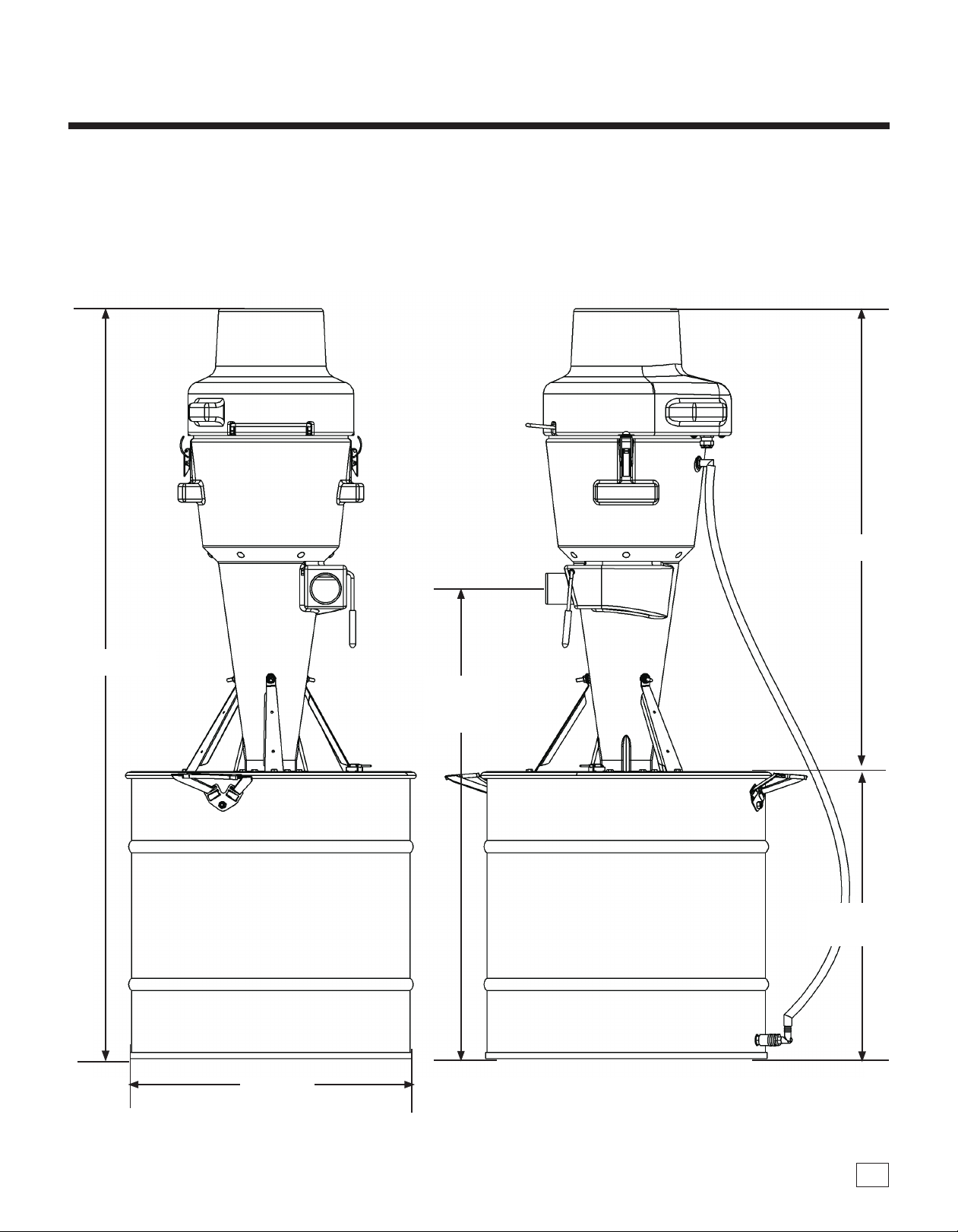

System Dimensions with 17 Gallon Drum
Note: Drum Dolly adds 4.25" (108 mm) to height. Larger casters add 1/2" (25 mm) to height.
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
53 - 1/2"
1359 mm
31-1/4"
794 mm
to center
of inlet
53.5"
1359 mm
18.25"
464 mm
16.5"
419 mm

9oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
System Dimensions with 35 Gallon Drum
59-1/4"
1505 mm 37"
940 mm
to center
of inlet
37"
939.8 mm
22"
559 mm
22-1/4"
565 mm
Note: Drum Dolly adds 4.25" (108 mm) to height. Larger casters add 1/2" (25 mm) to height.

10 Oneida Air Systems

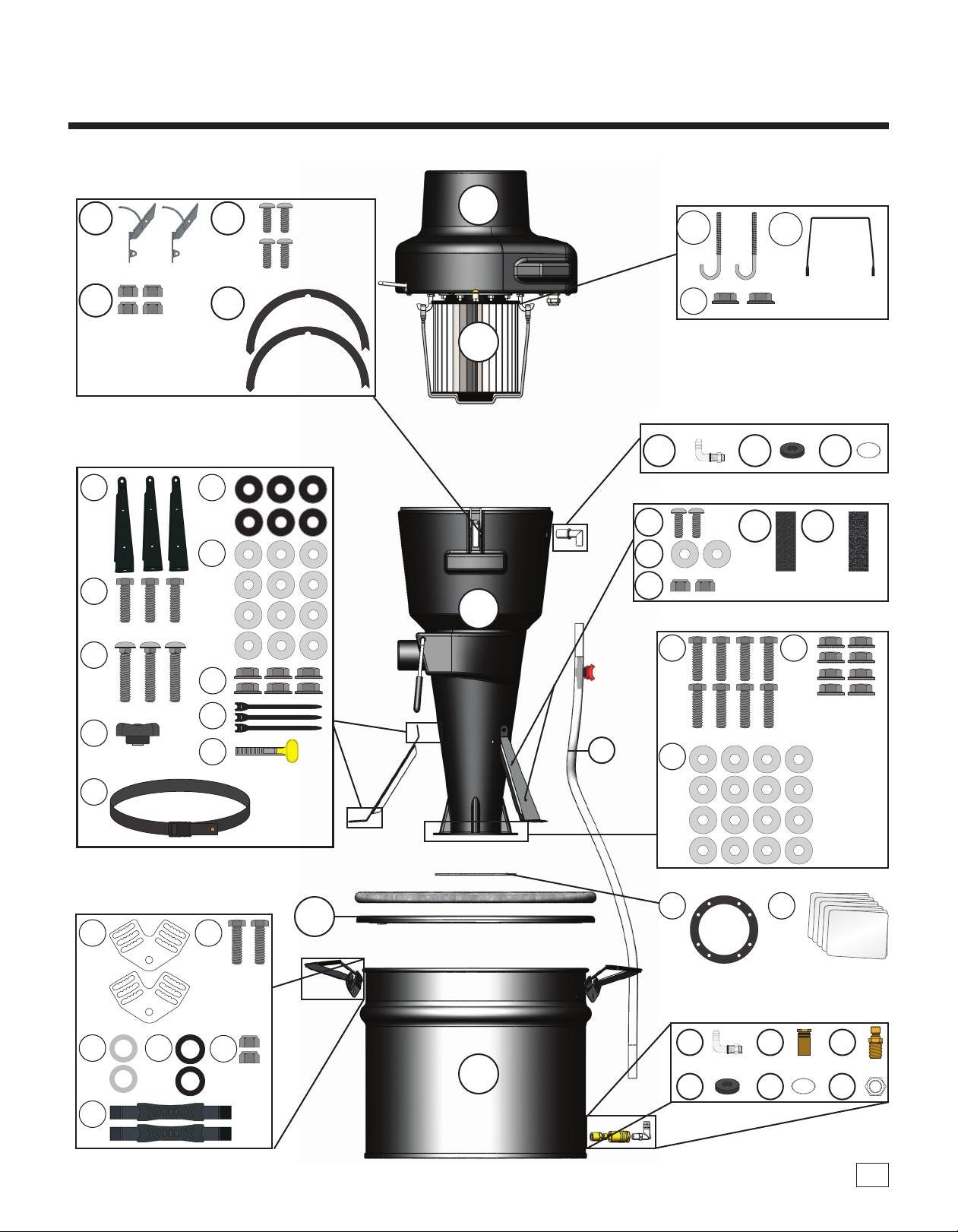

System Contents
Please unpack the parts carefully and conrm you have
received each item listed here.
ID Part number Part description Qty
ABXI001205H
BXI001205F35
EXP-BXI001207D
110V Cobra Motor Assembly for 17 Gal
110V Cobra Motor Assembly for 35 Gal
220V CE Cobra Motor
1
B SCX001205D Molded Cobra Cone Assembly 1
C FCH000004 GORE® CleanStream Pro HEPA Filter 1
DSES170002
SES350005
17 Gal Steel Drum Kit
35 Gal Steel Drum Kit 1
ESEX170400A
SEX350400A
17 Gal Drum Lid
35 Gal Drum Lid 1
FAHX001205D
AHX001205F35
17 Gallon Cobra Hardware Kit
35 Gallon Cobra Hardware Kit 1
F1 STP000006 Handle Plate 2
F2 AFB155175 5/16"-18 x 3/4" Hex Head Bolt 2
F3 AFW180000 5/16" FlatWasher 2
F4 AFW180516 5/16" RubberWasher 2
F5 AFT900516 5/16" - 18 Nylock Nut 2
F6 RHS009043 Webbing Handle 2
F7 RBB000003 Struts 3
F8 AFS015920 1/4”-20 X 3/4" Hex Head Bolt 3
F9 AFB250125 1/4"-20 x 1 1/4" Carriage Bolt 3
F10 AFW180516 5/16" RubberWasher 6
F11 AFW025000 1/4" FlatWasher 12
F12 AFT000005 1/4" Whiz-Lock Nut 6
F13 AFT000006 1/4"-20 Thumb Nut 1
F14 VSC001205 VelcroTie Straps 1
F15 RHS000000 Vacuum Hose Storage Strap 1
F16 AFJ051602 5/16"-18 x 2" J Bolt 2
F17 AFT155175 5/16" Whiz-Lock Nut 2
F18 RHS000010 Filter Retainer Strap 1
ID Part number Part description Qty
F19 AFS501032 #10 Phillips Drive Pan Head Screw 2
F20 AFW200000 #10Washer 2
F21 AFT901032 10-32 Nylock Nut 2
F22 AXD000006 1" HookTape .16'
F23 AXD000007 1" LoopTape .16'
F24 AFL001205 Motor Assembly Draw Latches 2
F25 AFS632438 6-32 x 7/16" Phillips Pan Head Screw 4
F26 AFT900632 6-32 Nylock Nut 4
F27 RGM250000 Cobra Motor Gasket 2
F28 ABF000500 1/2" Nylon Elbow 1
F29 RLH000006 1/4" NPT Nylon Elbow 1
F30 RLH000005 3/8" Socket 1
F31 RLH000004 3/8" Male Plug 1
F32 RLH000002 Nylon Washer 2
F33 RLH000003 Rubber O Ring 2
F34 RLH000007 Nylon Nut 1
F35 AHX000033 Tubing Assembly 1
F35A VRV050500 1/2" ID ClearVinylTubing 1/3'
F35B AWV000050 1/2" ID SwitchValve 1
F35C VRV050500 1/2" ID ClearVinylTubing 7'
F36 RGZ190000 Cobra Gasket 1
F37 AFS015920 1/4"-20 X 3/4" Hex Head Bolt 8
F38 AFW025000 1/4" FlatWasher 16
F39 AFT000005 1/4" Whiz-Lock Nut 8
F40 AXD600300
VAB251555
9-17 Gallon Drum Liner Bag
35-55 Gallon Drum Liner Bag 5
F41 ACB360000 Turn Key Hose Clamp 1
If you cannot find an item on the list, examine the packaging materials very carefully.
Certain components have been pre-installed. * There may be hardware leftover.

Filter Attachment Hardware
11oneida-air.com
System Contents (Continued)
A
B
D
F1
C
F17
F9
F16 F18
F35
F2
F5
F6
F4F3
Dust Sentry mount options
F28
F10
F12
F8
F7
Handle Hardware
Strut Hardware
Filter Attachment Hardware
Dust Sentry Hardware
Motor Attachment Hardware
Vent Tube Quick Disconnect Pack
Mounting Hardware
F11
F13
F15
F14
F41
F29
F33 F34
F30 F31
F32
F33F32
F38
F37
F36
F39
F40
F24 F25
F26 F27
F19
F20
F21
F22 F23
E

12 Oneida Air Systems
Industrial and Oneida Vortex Contents
Please unpack the parts carefully and conrm you have
received each item listed here.
Note: e 3/16" x 1/4" x 28" Poron Gasket (S4I) are
replacement gaskets for the top of Clear Polycarbonate
Cone Assembly (S3).
ID Part number Part description Qty
G AXC000003 Cobra Strap Pack 1
G1 RHS000050 Vacuum Hose Tether Strap 1
G2 AFB155180 5/16-18 x 2-1/2" Hex Head Bolt 1
G3 AFT051602 5/16"-18 Square Nut 1
G4 RHS000002 HoseTether Strap Plate 1
G5 RHS203016 Ladder Lock Slider 2
H SDD990000 Molded Drum Dolly 1
I AXB999110B Dust Sentry Automatic Dust Bin Level
Indicator 1
J AXC000004 3" Cobra Caster Pack 1
J1 RHC000012 3" Caster with 5/16-18 x 3/4" stems 5
INCLUDED ONLY WITH IND SYSTEMS
K VSHRFB250 2-1/2" x 25' Hose 1
L ASV000000 Accessory CleanShop Kit 1
M DRL040212 4 to 2-1/2" Reducer 1
INCLUDED ONLY WITH VOR SYSTEMS
N AXD900001 2" X 50' Hose with Molded Cus 1
O VSKCSZ000B
Vortex Sander Cyclone Kit
1
O1 VSFSHZ000A Sander Cyclone HEPA Filter 1
O2 VXCSXZ000B MoldedVortex Barrel
1
ID Part number Part description Qty
O3 VRS080113 Clear Polycarbonate Cone Assembly 1
O4 AHX000011 Vortex Sander Hardware kit 1
O4A AFT000001 5/16"-18 Thumb Nut 2
O4B AFW000150 Rubber Spacer 2
O4C YSS000011 11"Threaded Rod 2
O4D AFT155175 5/16"Whiz-Lock Nut 2
O4E QCZ080000 8" Quick-Clamp with Locking Pin 1
O4F AFC270250 2-1/2" Rubber Coupling 1
O4G VRC480000 Rubber Coupling Band Clamp 2
O4H ACB360000 Turn Key Hose Clamp 2
O4I RGZ180250 3/16 x 1/4 x 28" Poron Gasket 2
If you cannot find an item on the list examine the packaging materials very carefully. Certain
components may have been pre-installed for shipping purposes. There may be hardware
leftover.

Note: NEVER use any solvents, cleansers, or abrasives on the plastic components . Solvents will cause
the clear polycarbonate cyclone to crack and abrasives will cause scratching. Use a clean so cloth
for cleaning.

13oneida-air.com
Industrial and Oneida Vortex Contents (Cont.)
O1
G1
I
O3
O2
L
K
O
N
O4A
O4B
O4C
O4D
O4E
O4F
O4G
O4H
O4J
H
G2
G4
G5
G3
J
M
Cobra Strap Pack

14 Oneida Air Systems
Assembly Instructions
1
2
3
1
2
3
You will need the following tools:
GENERAL VORTEX
Utility Knife Two 7/16”Wrenches Tape Measure Pliers
Phillips Head Screwdriver 1/2”Wrench Utility Knife
5/16" Wrench AdjustableWrench
1 Place steel drum (D) on a at level surface
[FIG. 1].
If you purchased an Industrial (#IND) or
Vortex (#VOR) kit, install Drum Dolly (K) per
included instructions:
 
Note: Larger 3" Casters (N) are included with
#IND and #VOR Kits to replace the 2” Casters
packaged with the Drum Dolly (L).
2 Pull the le and right ends of the Webbing
Handle (F6) through loop 1 of the Handle
Plate (F1). en thread up through loop 2 and
into loop 3 [FIG. 2a]. Tuck the excess behind
the Handle Plate (F1) so that the end of the
Webbing Handle (F6) is captured between
the Drum (D) and the Handle Plate (F1). See
[FIG. 2b]
FIG. 1
FIG. 2a
FIG. 2b
F1
F1
F6

15oneida-air.com
Assembly Instructions (Continued)
FIG. 3
Back
Front
B
F7
F9
FIG. 5a

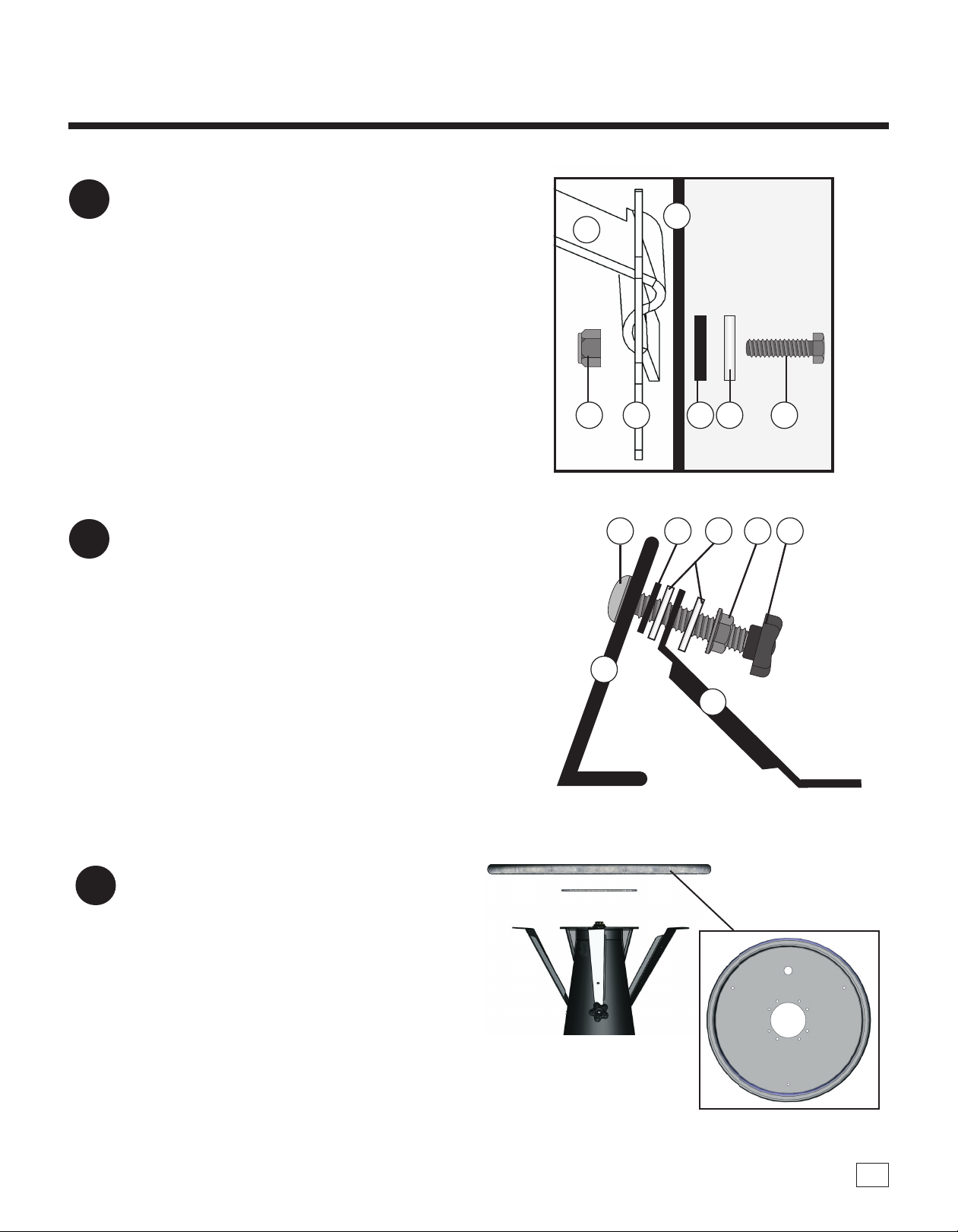

3 Secure both Handle Assemblies to pre-drilled
holes on the sides of the Drum (D) using a
Hex Head Bolt (F2), Flat Washer, (F3), Rubber
Washer (F4), and Nylock Nut (F5) as shown in
[FIG 3].
Firmly Tighten.
4 Turn Cone Assembly (B) upside down and
install Strut (F7) using one Carriage Bolt (F9),
Rubber Washer (F10), two Flat Washers (F11),
and fasten with a Whiz-Lock Nut (F12) as
shown in [FIG. 4].
Install umb Nut (F13) onto one of the Struts
(F7).
Note: is umb Nut (F13) will be used to
secure the Vacuum Hose Storage Strap (F15) to
the system.
5 Align the Cobra Gasket (F36) along the
bottom ange of the Cone Assembly (B).
Align the Drum Lid (E) with the Cobra Gasket
(F36), three Struts (F7), and Cone Assembly
holes as shown in [FIG. 5a].
Note: e plugged hole (for the Dust Sentry
(M)) in the lid MUST be in the back [FIG. 5b].
F11F10 F12 F13
Drum
F1
D
F5 F11F10 F13
F6
FIG. 4
FIG. 5b

16 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 6
B
F7
E
F36

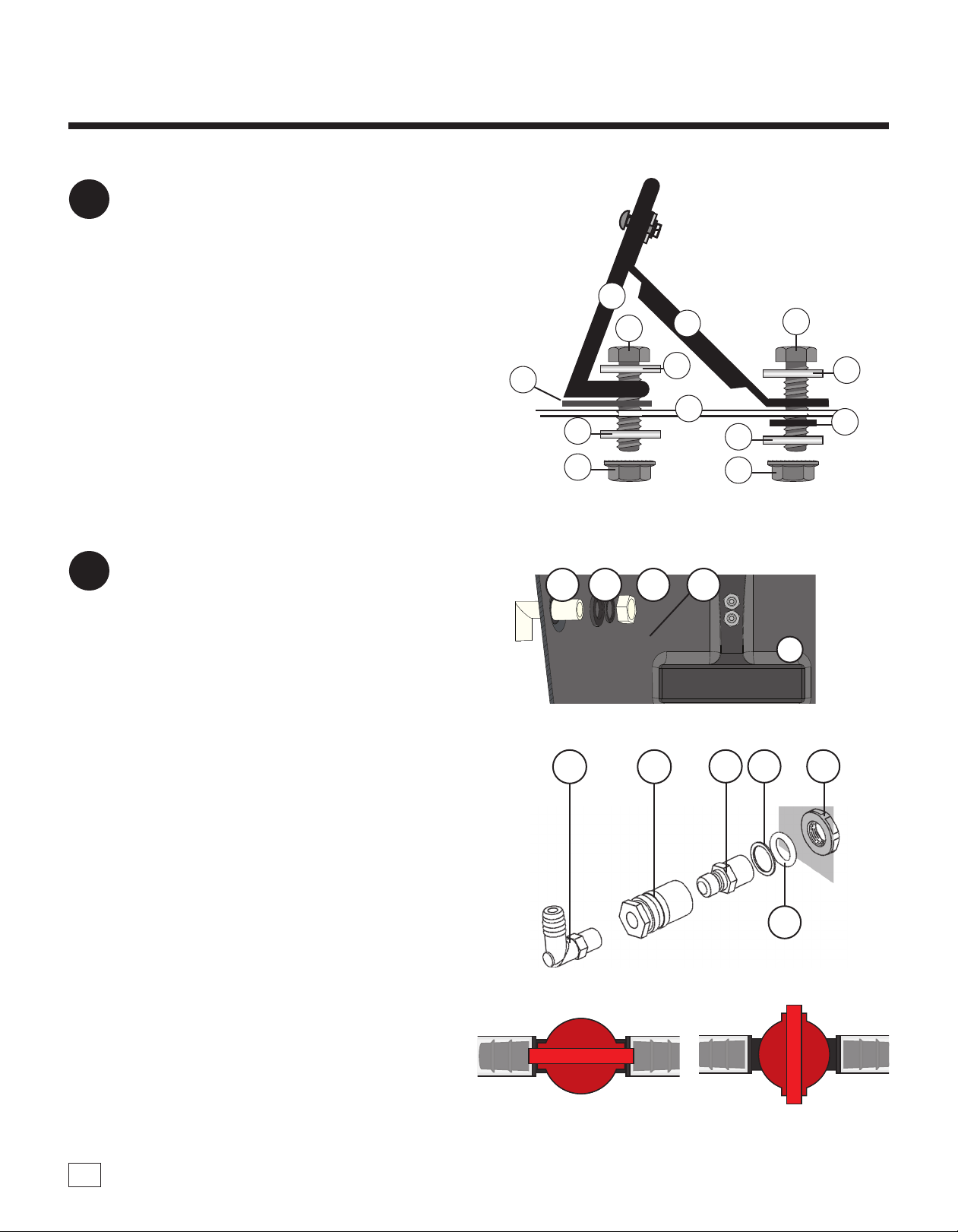

6 Secure the Cone Assembly (B) to the Drum
Lid (E) with a Hex Bolt (F37), two Flat
Washers (F38), and a Whiz-Lock Nut (F39) as
shown in [FIG. 6].
Secure the Strut (G3) to the Drum Lid (E)
with a Hex Bolt (F8), two Flat Washers (F11),
a Rubber Washer (F10) and a Whiz-Lock Nut
(F12) as shown in [FIG. 6].
FIG. 6
F39
F38
F38
F37
F12
F11
F11
F8
F10
7 Turn Cone Assembly (B) right side up and
secure Nylon Elbow (F28) into upper drilled
hole with Rubber O Ring (F33), Nylon Washer
(F32), and the Nut included on the Nylon
Elbow (F28) [FIG. 7a].
Install the Quick-Disconnect Kit (F29, F30,
F31, F32, F33, F34) onto the pre-drilled hole
near the bottom section of the Drum (D)
[FIG. 7b].
• Refer to the Quick Disconnect Installation
Sheet (#ZBI000019) for more information.
Note: If you are not using the automatic bag
holding feature of the system, the Valve of the
Tube Assembly (F35) MUST be in the closed
position [FIG. 7c].
FIG. 7b
FIG. 7c
F34
F33
F32F31F30F29
B
F28F32F33F28
FIG. 7a
Closed
Open

17oneida-air.com
Assembly Instructions (Continued)
111/16”
FIG. 9
FIG. 10a FIG. 10b
FIG. 10c
FIG. 8
Front (Top View)
Notches
F27
8 Install Gasket (F27) around the top outer rim
of the Cone Assembly (B) [FIG. 8.]
Note: Align the gasket notches over the notches
in the rim. Dust collection systems cannot
operate eectively if there isn’t a complete seal.
ere must be NO air leaks.
9 Secure Draw Latches (F24) to Cone Assembly
(B) with Pan Head Screws (F25) and Nylock
Nuts (F26). [FIG. 9.]
10 Screw two Whiz-Lock Nuts (F17) up the sha
of two J Bolts (F16). en screw J Bolts (F16)
onto the motor plate with the J Bolts (F16)
pointing out as shown in FIG. 10a.
Note: When properly installed, the distance
between the motor plate and the top of the
5/16"-18" x 2" J bolt is 1-11/16". [FIG. 10b]
Install Filter Retainer Strap (F18) onto the J
Bolts (F16) [FIG. 10c]
Note: If your lter retainer strap has steel
S-hooks on the ends, remove and discard. ey
are not needed for the install.
F16
F17
F18
F24 F26
F25

18 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 12a
Retaining
Stud
Retaining
Stud
FIG. 12b
FIG. 11
THE FAN BLOWER ASSEMBLY IS HEAVY AND CUMBERSOME. BE SURE TO HAVE ADEQUATE
HELP WHEN LIFTING!

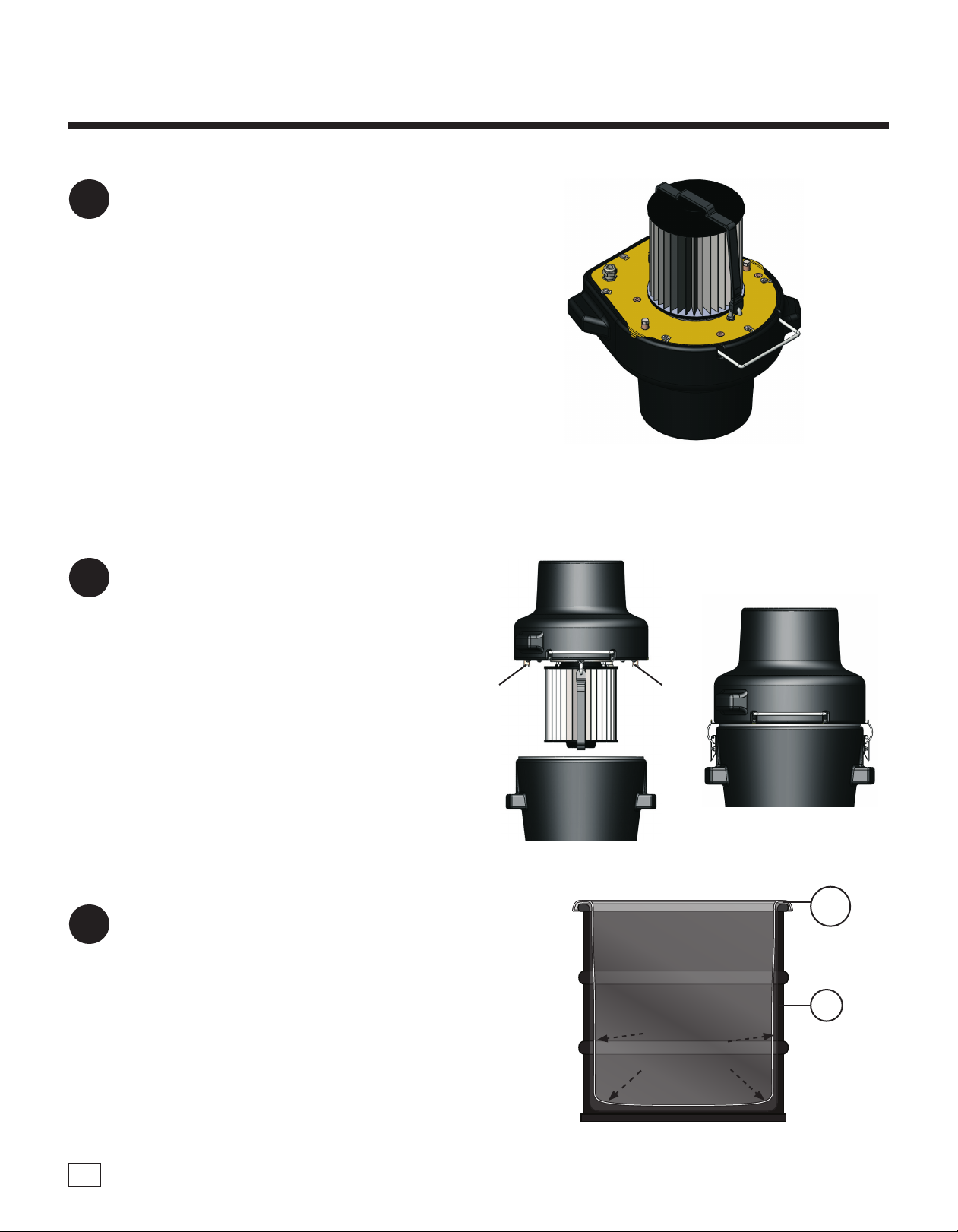

11 Carefully install the GORE® CleanStream Pro
HEPA Filter (C) onto the ring and then slip
lter retainer strap (F18) to secure. [FIG. 11]
Note: It is VERY important that the strap be
tight enough to hold the lter snugly in place
yet not so tight as to pull down and damage the
lter. Be careful not to crush the ame arrestor
mesh.
12 Align the two retaining studs on the bottom of
the Motor Assembly (A) with the two notches
on the Cone Assembly (B) [FIG 12a] and
fasten these components together with Draw
Latches (F24) on either side. [FIG 12b.]
Note: Clean, HEPA ltered air will exit from the
Motor Assembly during operation to aid with
heat dissipation.
13 Insert a Drum Liner Bag (F40) into the Drum
(D), making sure it fully expands against the
sides and the bottom of the Drum. e top
edges of the bag should fold out and over the
Drum’s upper rim [FIG. 13].
FIG. 13
F40
D
