Oneida Air Systems XSK000114 User manual

Patents: www.oneida-air.com/patents
Supercell®
Supercell® Turbo
High-Pressure
Dust Collector
14 Gallon Portable Freestanding
# XSK000114
# XSK414001
Rev: A 20230421LL Doc. #ZBM000045 Appearance may vary slightly
OWNER’S MANUAL
Read and undeRstand aLL instRuctions and waRning LabeLs befoRe
using the dust coLLectoR.

oneida-air.com 1
Table of Contents
System Start-Up Information 2
Supercell/Supercell Turbo System Specications 6
System Dimensions 7
System Contents 8
Assembly Instructions 10
Maintenance 22
Troubleshooting 24
F.A.Q. 26
Recommended Accessories 27
Warranty Information 29

Oneida Air Systems, Inc.2
System Start-Up Information
 WARNING 
1. READ and understand ALL instructions and warning labels BEFORE using the dust collector.
2. REPLACE warning labels if they become obscured or removed.
3. ALWAYS follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and
regulations when installing and operating this dust collector.
4. ENSURE that all users of this Dust Collector are informed of all warnings and precautions, safe use, and
maintenance procedures.
5. FULL mental alertness is required. NEVER operate under the inuence of drugs or alcohol, when tired, or
when distracted.
6. DO NOT allow use by or near children.
7. DO NOT allow to be used as a toy. Close attention is necessary when used by or near children.
8. NEVER leave the dust collector running while unattended.
9. TURN OFF and UNPLUG the dust collector BEFORE walking away, servicing, or cleaning. Allow the fan
blower motor to come to a COMPLETE STOP before walking away or performing any maintenance, service,
cleaning, or adjustments. is eliminates the risk of injury from unintended startup or contact with live
electrical components.
10. ENSURE that your dust collector is turned OFF and UNPLUGGED during installation. is eliminates the
risk of injury from unintended startup or contact with live electrical components.
11. COMPLETELY INSTALL ductwork/ex hose before operating collector.
a. Seal ductwork with silicone sealant or duct tape if leaks are found.
b. Have dust drum in place and sealed.
c. NEVER operate without lter and cowling in place. is machine has high speed rotating elements than
can cause severe injury.
12. ONLY use the dust collector for its intended purpose as described in this manual. DO NOT force it or
an attachment to do a job for which it was not designed. Consult this owner’s manual or reach out for
recommended accessories.
13. ENSURE enough air volume is at the suction point to capture all the particulate generated.
Before Purchasing or installing a dust collection system the process owners/operators
are cautioned to do so in accordance with prescribed Federal, State, Local, OSHA, NFPA,
and any other applicable codes or regulations relating to the type of dust(s) you are
collecting.
This manual contains specific precautionary statements relative to worker safety. Read
thoroughly and comply as directed. The most up to date safety information can be found
on our website: oneida-air.com/safety

oneida-air.com 3
System Start-Up Information (Continued)
14. NEVER make modications without prior approval from Oneida Air Systems. Modifying the dust collector
or using it dierently than intended will void the warranty and may result in malfunction or mechanical
failure that leads to serious personal injury or death!
15. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these
areas can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan
of the dust collector.
16. DO NOT install in classied hazardous atmospheres without an enclosure rated for the application. System
Location must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable
locations for installing dust collectors. Consult with the appropriate authorities having jurisdiction to ensure
compliance with all national and local codes regarding dust collector installation. Equipment must be
anchored in a manner consistent with local code requirements. Anchors must be sucient to support dead,
live, seismic, and other anticipated loads. Consult a qualied engineer for nal selection of anchorage.
17. ENSURE exhaust air is properly vented. It should NOT be vented into a wall, a ceiling, or a concealed space
of a building. Personal injury, death, and/or property damage can result from material discharge during
venting. e risk of personal injury and/or property damage can be minimized or avoided by locating vented
equipment outside buildings and away from normally occupied areas. If exhaust air is vented outside, you
must provide make up / return air. Flue gases (carbon monoxide) can be drawn into the shop from furnaces,
water heaters, or other appliances
18. INSPECT and MAINTAIN REGULARLY. Keep the dust collector in proper working order. A machine that
isn’t properly maintained, not working as it should, has been dropped, damaged, le outdoors, or dropped in
water could malfunction leading to serious personal injury or death!
19. AVOID CORD DAMAGE. DO NOT pull or carry by cord. DO NOT use cord as handle. DO NOT unplug
by pulling on cord. To unplug, grab the plug, DO NOT close door on cord or pull cord around sharp edges or
corners. DO NOT run dust collector over cord. DO NOT handle cord/plug with wet hands. Keep cord away
from heated surfaces.
20. ALWAYS check for damaged parts. A part that is damaged should be carefully checked to determine that
it will operate properly and perform its intended function. Immediately repair or replace damaged or mis-
adjusted parts before operating machine.
21. DO NOT put any object in openings. DO NOT use with any opening blocked. (Except when pulsing - See
Maintenance Section for more information.)
22. ALWAYS wear a NIOSH approved respirator when emptying dust bins and during operation. Some dust
created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other long-term respiratory damage
23. ALWAYS keep hair, loose clothing, ngers, and all parts of body AWAY from openings and moving parts.
24. ALWAYS wear ANSI-approved safety glasses or a face shield when operating or observing machinery and
when emptying dust bin.
25. ALWAYS wear hearing protection during extended periods of operation.

Oneida Air Systems, Inc.4
System Start-Up Information (Continued)
1. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.
2. DO NOT operate the dust collector in areas where explosion risks are high. Areas of high risk include, but
are not limited to, areas near pilot lights, open ames, or other ignition sources.
3. ONLY operate dust collector in locations that include a re suppression system or have a re extinguisher
available nearby.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire
Extinguishers).
4. DO NOT allow accumulation of layers of ne dust on horizontal surfaces. Especially overhead lights,
electrical boxes and fuse panels which can ignite dust. Keep the oor around the system clean and free of
scrap material, oil, grease.
5. ENSURE all equipment and ductwork is electrically grounded.
6. DO NOT use PVC drain pipe.
7. ALWAYS consult an electrician or qualied service personnel about wiring practices and electrical codes
in your area. ONLY allow an electrician or qualied service personnel to do electrical installation or repair
work.
8. ALWAYS disconnect power before accessing or exposing electrical equipment. Improper wiring can cause
re, electrocution, injury, or death.
9. DO NOT use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
10. DO NOT use to pick up liquids, ammable liquids, or combustible liquids, such as gasoline, or use in areas
where they may be present.
11. DO NOT use excessively large wood waste bins. Wood dust mixtures are highly ammable and can be
explosive
 FIRE HAZARDS 
Process owners/operators retain all responsibility for the suitability of fire and explosion
hazard mitigation, suppression, and isolation strategies and to follow all applicable
federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and regulations
when installing and operating this dust collector.
Improper operation of a dust control system may contribute to conditions in the work
area or facility that could result in severe personal injury and product or property
damage.
Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/
or explosion mitigation strategy, or any items incorporated into a collector as part of an
owner/operators hazard mitigation strategy.

oneida-air.com 5
Customer Service Dept.
1-866-387-8822 • [e-mail]
System Start-Up Information (Continued)
12. ALWAYS check your dust bin for smoldering materials before leaving the shop.
13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several
ways:
a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot
metal fragment.
b. Knots in hardwood can create frictional sparks.
c. Trapped metal, when drawn into the dust collection system, can spark against ductwork.
d. Check wood stock for old nails and screws which can create red-hot metal fragments.
14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can
spontaneously ignite dust. Sanders can produce concentrations of dust well into the combustible range.
15. ALWAYS check that all dust collection equipment is properly selected and sized for the intended use.
Authorities with jurisdiction should be consulted before installing to verify local codes and installation
procedures. In the absence of such codes, install collector according to the National Electric Code, NFPA No.
70-latest edition and NFPA 91, NFPA664 Code (NFPA 654 if combustible dust is present).

Oneida Air Systems, Inc.6
Supercell/Supercell Turbo System Specications
OPERATION
Maximum Suction Rating 97.8" WC
MOTOR AND ELECTRICAL
Motor Type 3x 1300W Modular Motors/ 4x 1300W Modular Motors
Horsepower 5HP Total / 6.7 HP Total
Motor Speed 48,880 RPM
Phase 1-Phase
Voltage 208-230V
Cycle 60HZ
Listed FLA 18A / 22A
On/O Switch Magnetic Starter with On-O Switch and RF Remote
Power Cord Length 10 feet
Power Connector NEMA 6-20 / BareWiring
Recommended Circuit Size 20A / 30A
Recommended Circuit Type HACR
Sound Emission 80 dBA @ 10 ft / 85 dBA @ 10 ft
CARTRIDGE FILTER
Filter Media Type HEPA Certied
Filter Eciency 99.97% @ 0.3 microns
Filter Surface Area 40 sq ft
SYSTEM DIMENSIONS AND CONSTRUCTION
Primary Build Materials Cold Rolled Steel, Static Dissipative Polyethylene
Inlet 4" O.D.
Discharge to Drum 5" O.D.
Overall Height 14 Gallon: 60-7/8"
Overall Weight 14 Gallon: 76 lbs
e Supercell requires a 20 Amp outlet
receptacle to be installed by a licensed
electrician.
Bare Wiring
Two HotWires & Ground
Licensed Electrician
REQUIRED
Bare Wiring
Two HotWires & Ground
Licensed Electrician
REQUIRED
e Supercell Turbo requires that
it be installed to a 30 Amp breaker
(minimum) by a licensed electrician.

oneida-air.com 7
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
Allow for an additional 24" of clearance above the Motor Assembly to allow for its removal during lter replacement and
other maintenance. Allow for an additional 3" of clearance around the system for ease of access to the latches.

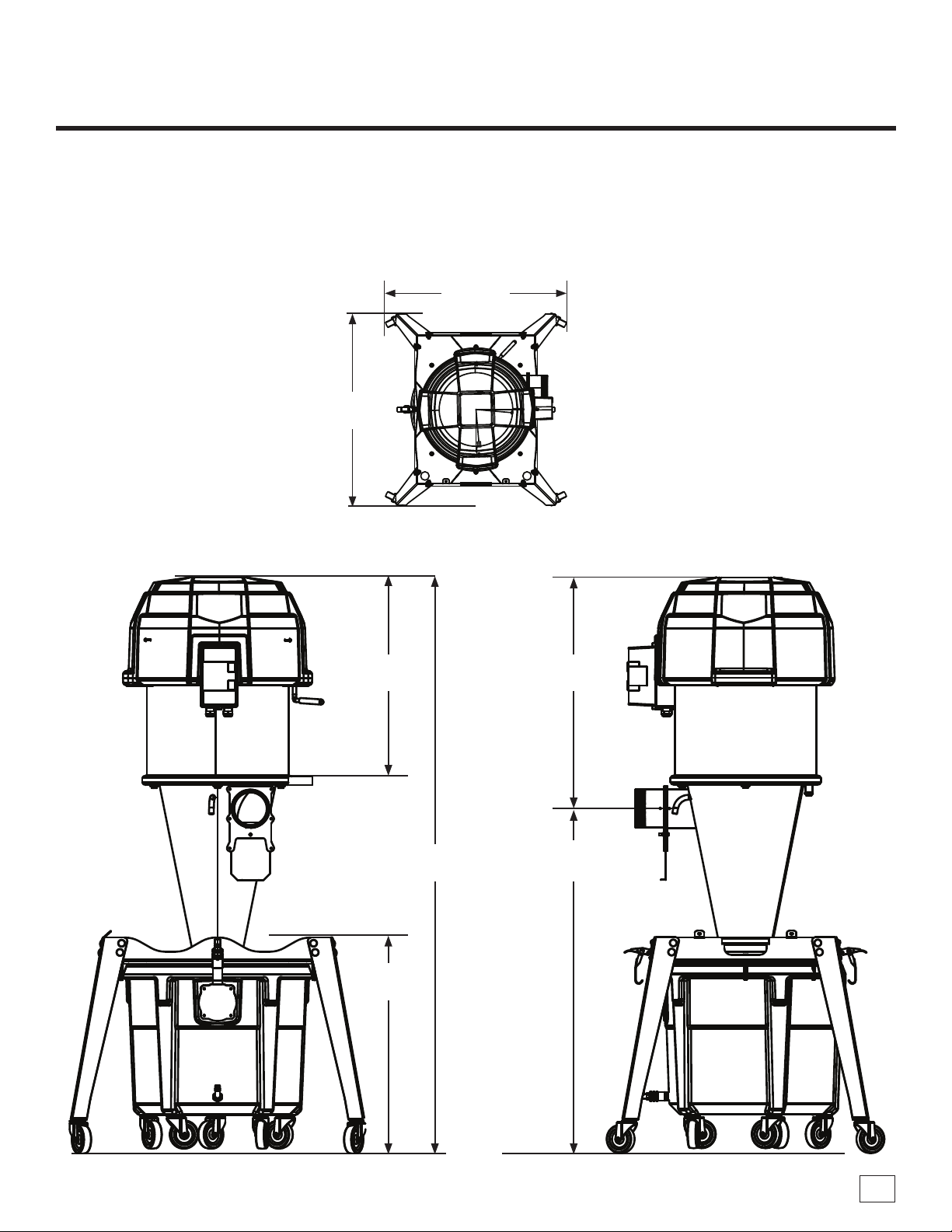

System Dimensions
36-5/8"
930 mm
Floor
21-9/16"
548 mm
22-13/16"
579 mm
26-1/16"
661 mm
31-1/16"
789 mm
24-1/4"
616 mm
60-7/8"
1,546 mm

Oneida Air Systems, Inc.8
System Contents
Please unpack the parts carefully and conrm you have received each item listed here.
* Some components are pre-installed at the factory and are listed here for your convenience.
ID Part number Part description Qty
ABXI001501
BXI441501
Supercell Motor Assembly
SupercellTurbo Motor Assembly 1
B FPX040001 Filter Hold Down Plate 1
C FCS131040H 13" x 13" Conical HEPA Cartridge Filter 1
D GCZ150000 15" Ring Clamp 1
E SCX040000 Cyclone 1
E1* DGA040000 4" Aluminum Blast Gate 1
E2* DAB040000 4" Male Duct Adapter 1
E3* AFR316066 Rivets 5
F STX000005 Stand Body 1
G STX041419 Stand Legs 4
H AHX000037 Supercell 14 Gal. Stand Hardware Pack 1
H1 RGZ040014 1/4" x 2" x 72" Lid Gasket 1
H2 STX000006 Handle Gasket 1
H3 RGF000015 15" Barrel Gasket 1
H4 RGZ051820 Supercell Flange Gasket 1
H5 AFS015920 1/4"-20 x 3/4" Hex Head Bolt 6
H6 AFW025000 1/4" Flat Washer 6
H7 AFT900006 1/4"-20 Nylock Nut 6
H8 AFB155180 5/16-18 x 2-1/2" Hex Head Bolt 4
H9 AFW180000 5/16" Flat Washer 4
H10 AFW180516 5/16”Rubber Washer 4
H11 AFT155175 5/16 " Whiz-Lock Nut 4
H12 AFT900516 5/16" - 18 Nylock Nut 4
H13 AFL990001 Latches 2
H14 AFS501032 10-32 1/2" Phillips Pan Head Screws 4
H15 AFT901032 10-32 Nylock Nut 4
H16 AFB155180 5/16-18 x 2-1/2" Hex Head Bolt 6
H17 AFS156075 5/16-18 X 3/4" Carriage Bolt 16
ID Part number Part description Qty
H18 AFW180000 5/16" Flat Washer 16
H19 AFT900516 5/16" - 18 Nylock Nut 16
H20 RHC000012 3" Caster with 5/16"-18 x 3/4" Stems 4
H21 AHX000033 Tubing Assembly 7
H21A VRV050500 1/2" ID Clear Vinyl Tubing 1/3'
H21B AWV000050 1/2" ID SwitchValve 1
H21C VRV050500 1/2" ID Clear Vinyl Tubing 7'
H22 ACH000058 Double Spring Clamp 1
H23 AHX000018 Quick Disconnect Kit 1
H23A RLH000006 1/4" NPT Nylon Elbow 1
H23B RLH000005 3/8”Socket 1
H23C RLH000004 3/8" Male Plug 1
H23D RLH000002 Nylon Washer 1
H23E RLH000003 Rubber O Ring 1
H23F RLH000007 Nylon Nut 1
H24 AXD600300A 9-17 Gallon Drum Liner Bag 5
H25 RLH000023 23 mm Button Plug 1
H26 ACB640000 4-1/2" Turn-Key Band Clamp 2
H27 AMR000000 Remote Control Key Fob 1
I DHF042502 4" x 25' Vacuum Pressure Rated Flex Hose 1
J AXB999110B Dust Sentry Automatic Bin Level Indicator 1
K SMD140400 Drum Assembly 1
K1 SDS140000 14 Gallon Molded Drum 1
K2* RHL000604 Drum Window 1
K3* AFS103258 10-32 5/8" Phillips Pan Head Screws 4
K4* AFT901032 10-32 Nylock Nuts 4
K5 RHC000012 3" Caster with 5/16"-18 x 3/4" Stems 5
If you cannot find an item on the list, examine the packaging materials very carefully for nested items. Please
note that certain components have been pre-installed. There may be hardware leftover.

SHEET 1 OF 1
NAME:
14Ga Galv
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Oneida Air Systems Inc. AND SHALL
NOT BE USED OR DISCLOSED TO
OTHERS, IN WHOLE OR IN PART,
WITHOUT THE WRITTEN AUTHORIZATION
OF Oneida Air Systems Inc.
5 4
3
2
1
PART NO.
SIZE
A
DO NOT SCALE
DRAWN DATE: 7/18/2019
ONEIDA AIR SYSTEMS INC.
1001 WEST FAYETTE STREET
SYRACUSE, NEW YORK 13204
1-800-732-4065
MFG APP:
DRAWN BY:
ENG APP:
TOL:
.XX
.10
.XXX .015
PROPRIETARY AND CONFIDENTIAL
MATERIAL: FINISH:
DIMENSIONS
ARE IN
INCHES
REV:
FPX040001
3RD ANGLE
FPX040001 - Filter Hold Down 14ga rev 3
3
KWG
H13 H14
H15
oneida-air.com 9
H8
H9
H10
H11
H12
System Contents (Continued)
H2
KH23
H21
H23A
H21A
H23E
H23D H23F
H23B
H21B
H23C
H21C
H24
D
K5
J
H3
B
H25
H1
H1
H7
H6
H5
H4
× 16
H18 × 16 H19
H27
H26
H22
I
G
H16
Filter Attachment Hardware
Filter Attachment Hardware
Mounting Hardware & Remote
Drum Hardware
Vent Tube Quick Disconnect Pk
A
C
E
F
× 16
H17
H20

Oneida Air Systems, Inc.10
Assembly Instructions

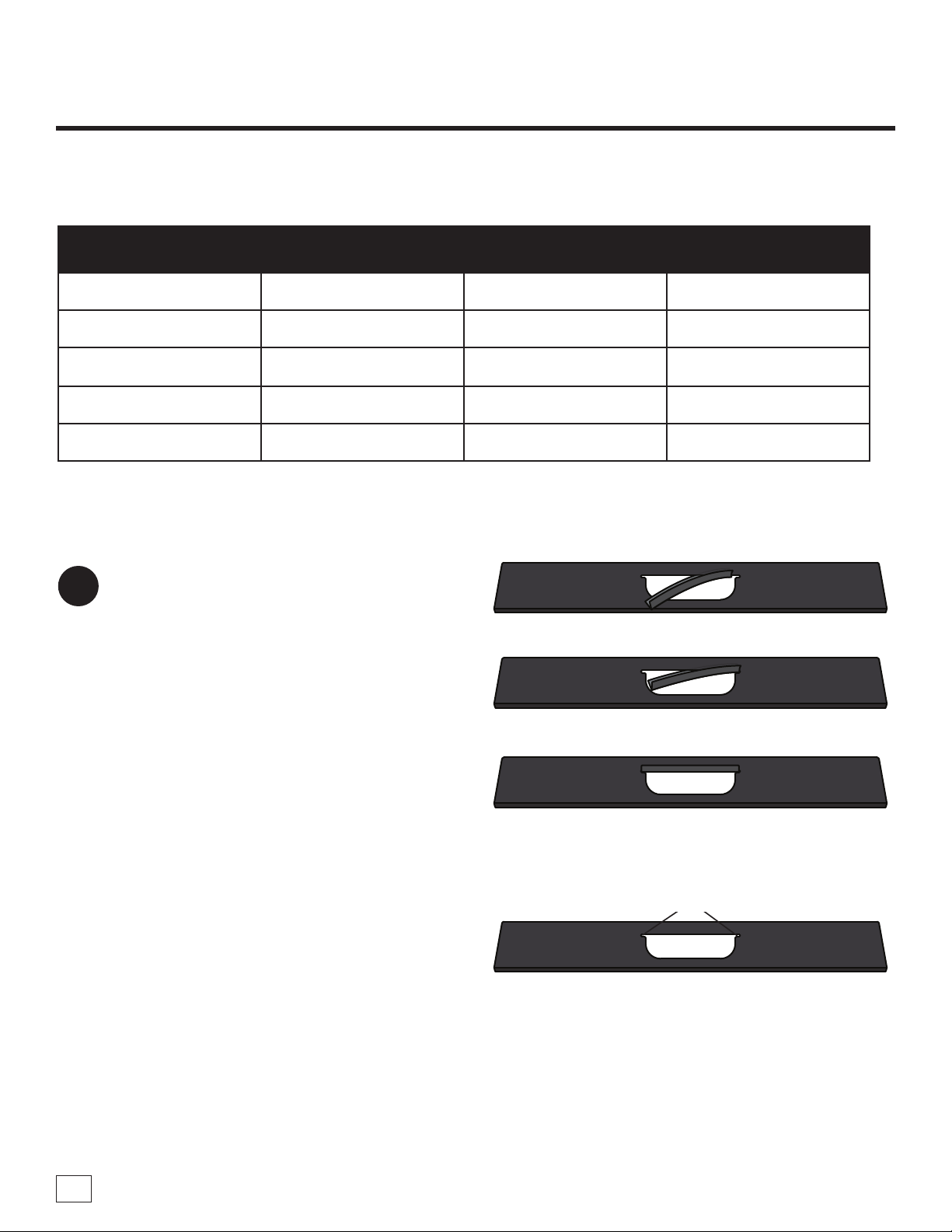

1 Insert the Handle Gasket (H2) into the
Handle's opening (open, ribbed-side facing
upwards) and push it onto the Stand Body's
handle (F) so that it is fully covering the top
edge [FIG. 1a].
e Handle Gasket should be nested within
the divots on each side of the Handle [FIG.
1b]. Repeat for both Handles.
FIG. 1a
FIG. 1b
You will need the following tools:
WALL MOUNTING BRACKET CYCLONE BODY DRUM LATCHES
Stud Finder Light Adhesive Tape 7/16" Wrench 3/8" Wrench
Tack / Center Punch / Nail Tape Measure / Ruler 7/16" Socket Wrench #2 Phillips-Head Screw Driver
Wall Mounting Fasteners * Level 1/2" Wrench
Power Drill Pencil / Marker 1/2" Socket Wrench
Drill Bit (for your wall fastener)
*You will need to supply your own wall mounting hardware. Use appropriate fasteners for the wall type you are installing your
system onto (e.g. lag bolts, drywall anchors, etc.).
Divots

oneida-air.com 11
Assembly Instructions (Continued)

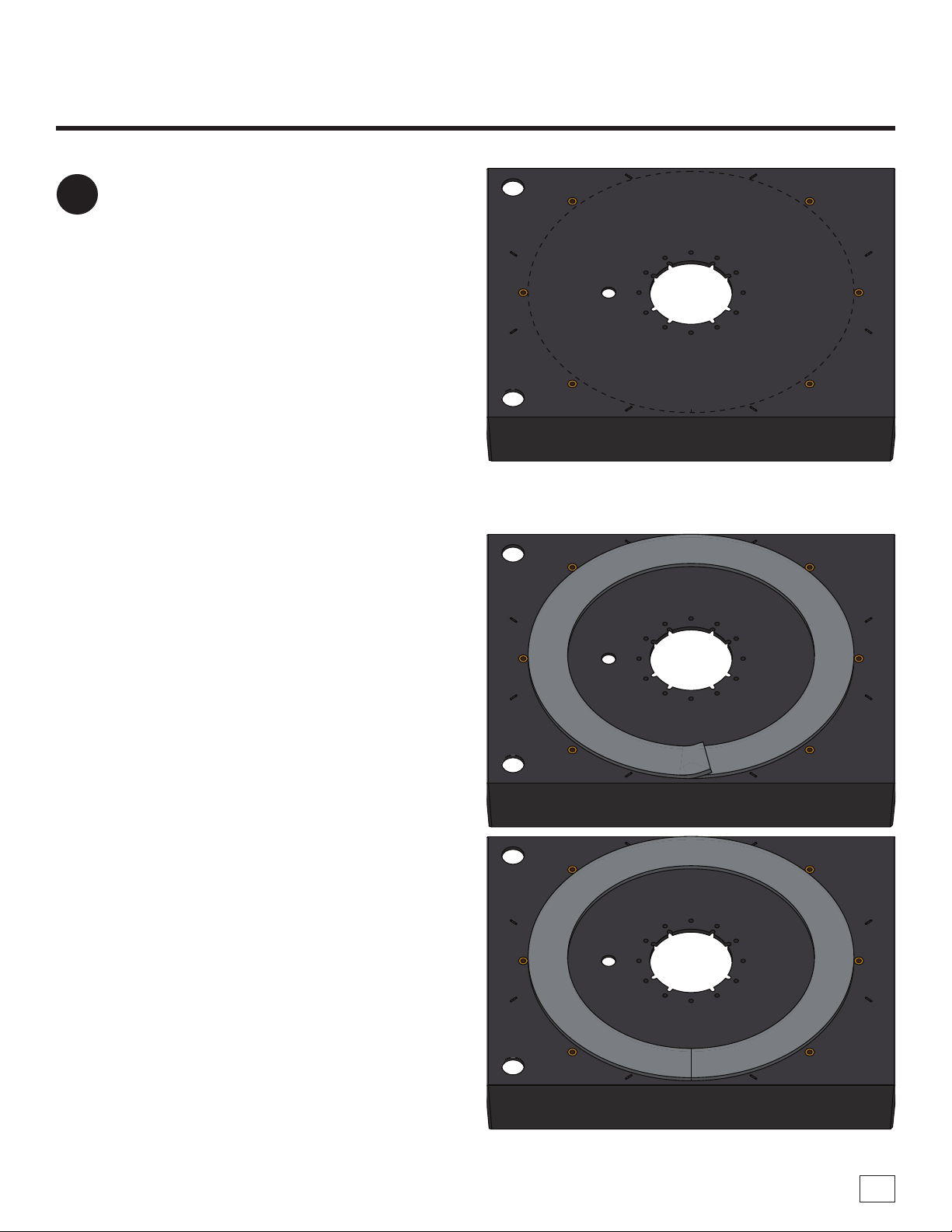

2 Apply the Lid Gasket (H1) to the bottom of
the Stand Body (F) in a circular shape using
the rivnuts as a guideline. e Lid Gasket must
be as close to the rivnuts as possible to ensure
a wide surface area for sealing the Drum (K1)
to the Stand Body [FIG. 2a].
Note: We recommend removing the Lid Gasket's
backing paper as you go, rather than removing
it all at once. Once you've completed the gasket
circle, overlap the ends and then trim o the
excess so the ends are ush with one another
[FIG. 2b]. Press gasket rmly onto the bracket
to ensure a long-lasting, airtight seal. FIG. 2a
FIG. 2b

Oneida Air Systems, Inc.12
Assembly Instructions (Continued)
FIG.3

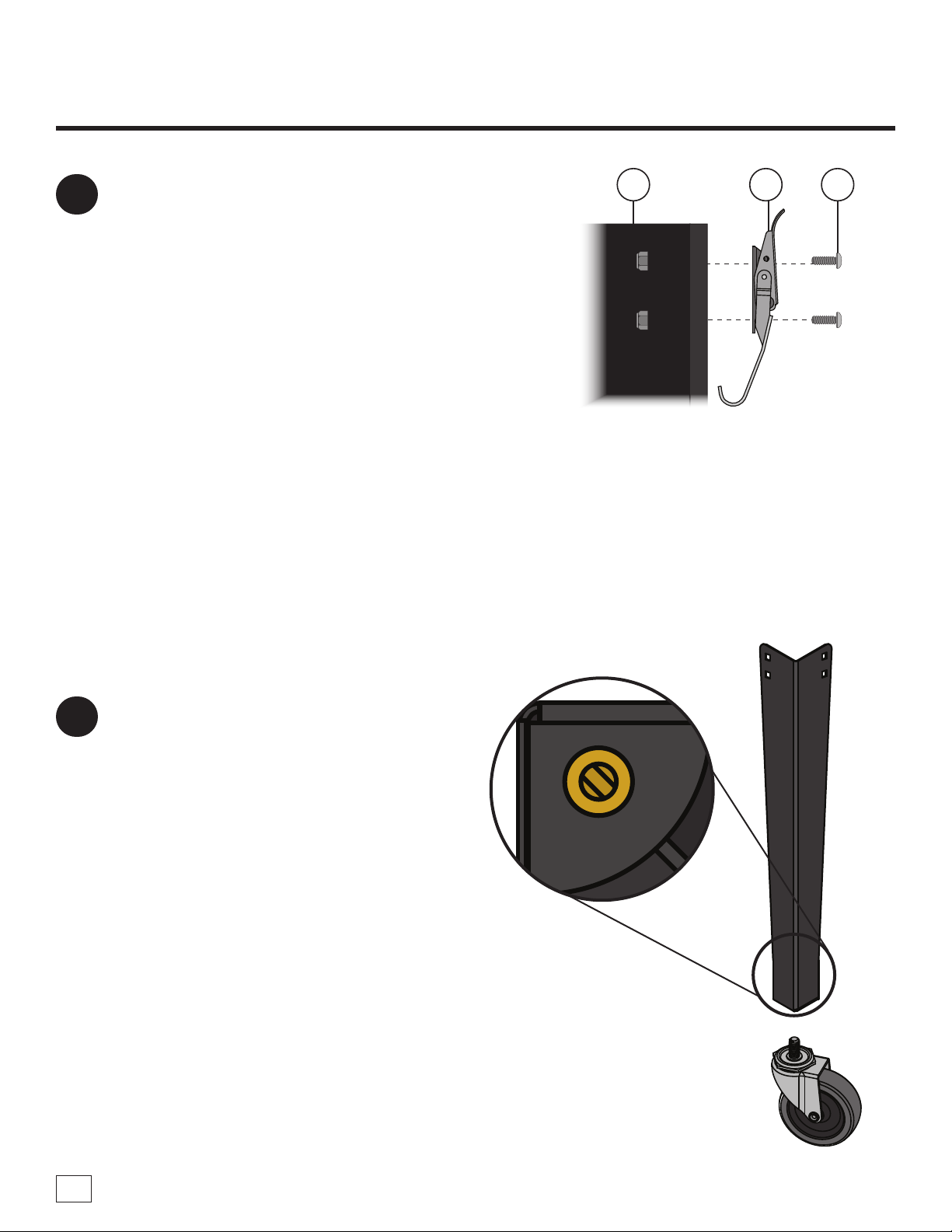

3 Align the Latches (H13) onto the holes on
either side of the Stand Body (F) and secure
them in place using two Pan-Head Screws
(H14) and Nylock Nuts (H15) [FIG 3].
Note: Firmly tighten this hardware. You may
need to open the latch to access the screw holes
for mounting. Allow for an additional 3" of
clearance around the system for ease of access to
the latches.
4 Secure Casters (H20) to the threaded insert
[FIG. 4a] on the bottom of each of the four
Stand Legs [FIG. 4b].
Note: For ease of assembly, we recommend
channel lock pliers to tighten the casters. Over
torquing can damage the connection point.
H15 H13 H14
FIG. 4

oneida-air.com 13
Assembly Instructions (Continued)
5 Align the Stand Leg (G) to the Stand Body (F)
[FIG. 5a] then secure using four Carriage Bolts
(H17), four Washers (H18), and four Nylock
Nuts (H18) [FIG. 5b].
FIG. 5a
FIG. 5b

Oneida Air Systems, Inc.14
Assembly Instructions (Continued)
Inlet
Facing
Right
Inlet
Facing
Forward
Inlet
Facing
Left
FIG. 7a
FIG. 7b
H5
H4
H6
H7
E
FIG. 6
6 e Cyclone's inlet (E) can be rotated in
30-degree increments to best connect to your
ductwork and/or tools. [FIG. 11].
7 Place the Flange Gasket (H4) and the Cyclone
(E) onto the Stand Body (F) and align the hole
patterns on all three items. Secure together
using six Hex Head Bolts (H5), six Flat
Washers (H6), and six Nylock Nuts (H7) as
shown in [FIG. 7a].
Make sure to install the hardware to the outer
set of six holes, not the eight notches, for
proper alignment.
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the gasket is rmly
compressed - this will prevent air leaks.

oneida-air.com 15
Assembly Instructions (Continued)
FIG. 8
H11
H10
E
H9
H8
8 Install the four Hex Head Bolts (H8), Flat
Washers (H9), Rubber Washers (H10), and
Whiz-Lock Nuts (H11) to the holes in the
Cyclone’s (E) upper ange [FIG. 14].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.
FIG. 9
C
E
9 Place the Filter (C) on top of the Cyclone (E)
with the open side facing down [FIG. 16].
Note: Position the Filter (C) on the Cyclone (E)
so that is centered between all four Hex Head
Bolts (H8).

Oneida Air Systems, Inc.16
Assembly Instructions (Continued)
FIG. 10
FIG. 11
H12
B
C
C
E
D
H8
10 Slide the Filter Hold-Down Plate (B) over the
Filter (C) and the previously installed Hex
Head Bolts (H8) and secure in place using four
Nylock Nuts (H12) [FIG. 10].
Note: Tighten hardware so that the Filter's pre-
installed foam gasket is rmly compressed (by
roughly 50%).
11 Open and slide the Ring Clamp (D) over the
assembly so that it rests outside the upper
ange of the Cyclone (E) [FIG. 11].

oneida-air.com 17
Assembly Instructions (Continued)
FIG. 13
H3
A
DO NOT TURN ON OR PLUG IN YOUR DUST COLLECTOR UNTIL INSTALLATION IS COMPLETED.
NEVER RUN THE SYSTEM WITHOUT THE MOTOR COWLING IN PLACE.
FIG. 12a
FIG. 12b
FIG. 12c
H22
H21
12 Using pliers, squeeze and open the Double
Spring Clamp (H22) and slip it onto the
shorter end of the Tubing Assembly (H21A).
en, with the clamp still open, slide the Tube
Assembly (H21) onto the vent tube near the
Cyclone’s (E) inlet, closing the Spring Clamp
once the hose is fully seated [FIG. 12a].
Note: If you are not using the automatic bag
holding feature of the system, the Switch Valve
(H21B) of the Tube Assembly MUST be in the
closed position [FIG 12b]. Otherwise leave the
Tube Assembly in the open position [FIG 12c].
13 Install the Barrel Gasket (H3) onto the
rounded, bottom edge of the Motor Assembly
(A). e Barrel Gasket should be oriented so
that the "ribbed" side is facing downwards
[FIG. 13].
Closed
Open

Either Hole
Oneida Air Systems, Inc.18
Assembly Instructions (Continued)
THE MOTOR ASSEMBLY IS HEAVY AND CUMBERSOME; BE SURE TO HAVE ADEQUATE HELP WHEN LIFTING!
14 Carefully li the Motor Assembly (A) up
and over the Filter (C) and down onto the
Cyclone's (E) upper ange. Align the Motor
Assembly so its perimeter is ush with the
Cyclone's (E) ange below it [FIG. 14].
Note: e Motor Assembly can be freely rotated
to best position the Magnetic Starter and Pulse
Bar to suit your needs. Some positions will not
work as these items may impact with the wall.
15 Li and close the Ring Clamp (D) over the
Barrel Gasket (H3) and the Cyclone's (E)
upper ange.
Secure the Ring Clamp (D) using the Clamp's
cotter pin [FIG. 15].
16 Take the Tubing Assembly (H21) and route it
through the closest retaining hole located in
the back corner of the Stand Body (F) [FIG.
16].
Note: Which hole you use will be determined
by the orientation of your Motor Assembly (A).
Use whichever hole is closest to ensure adequate
length for the Tubing Assembly (H21) to connect
to the Drum (K1).
H21
F
E
A
C
H21
FIG. 14
FIG. 15
FIG. 16
Pulse Bar
Magnetic
Starter
