Oneida Air Systems 8491685 User manual

Rev: 05/17/2021 Doc. #ZBM000104
Appearance may vary slightly
U.S. Patent: #8491685,
#8496719, #7247180
OWNER’S MANUAL
High Vacuum
Dust Collector
with SMART Boost
and Air Lock
5 HP
# XXS050334

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 4
System Dimensions 5
System Contents 6
Assembly Instructions 8
Maintenance 18
Troubleshooting 19
F.A.Q. 20
Recommended Accessories 22
Warranty Information 24
Notes 25

2 Oneida Air Systems
System Start-Up Information
1. Install ductwork completely before operating collector
a. Seal ductwork with silicone sealant or duct tape.
b. Have Air Lock in place and sealed.
2. DO NOT operate Fan / Blower unless Fan Housing is attached to Cyclone body and Air Lock is in place. Air Lock and
Cyclone must be in place and sealed or motor will overheat!
3. DO NOT operate without lter in place. Fan blade can cause serious injury.
4. e Direct Drive Fan / Blower makes the system top heavy! Use extreme care when setting the unit up! It is recommended
that at least two people li the system up.
5. Check amperage draw on motor with all gates open. Current draw should not exceed maximum motor amperage as stated
on motor plate. (Oneida Air Systems is not responsible for damage to motors caused by improper installation, wiring or
failure to follow these directions).
6. is equipment incorporates parts such as switches, motors or the like that tend to produce arcs or sparks that can cause an
explosion.
7. To reduce the risk of Electric Shock, DO NOT use outdoors or on wet surfaces.
8. Exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
9. To reduce the risk of injury from moving parts - unplug BEFORE servicing.
 WARNING 
 FIRE HAZARDS 
1. Wood shaping and cutting processes generate wood chips, shavings and dust. ese materials are considered combustible.
Air borne wood dust below 420 microns in size (0.17 of an inch) in certain concentration ranges when ignited can deagrate
(burn quickly). An ignition source such as a spark or ember can ignite a dust mixture resulting in an expanding ame
front, which can cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated ne dust can raise
additional dust clouds, which can cause a series of explosions that can level an entire building. Until this type of re has been
witnessed, it is dicult to believe the devastation. is type of re is rare but worth safeguarding against.
2. e best way to avoid a wood shop re is to keep the shop clean. A shop ankle deep in dust with layers of ne dust
everywhere is an accident waiting to happen. A good dust collection system reduces overall re hazards but also adds new
concerns. A re hazard is still present. Combustible material is now in the dust collector and storage container.
3. e following points are worth heeding:
a. It is the buyer’s responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction
codes and regulations when installing and operating this dust collector.
b. Fire Marshals may want the unit located outside of the building. If the collector is located inside the facility, controls
such as spark detection, suppression, or explosion venting may be required.
c. Most local jurisdictions consult or adopt NFPA (National Fire Protection Agency) codes. However, other codes may
apply. Local codes may vary from jurisdiction to jurisdiction.
Make sure to read and understand the installation and maintenance instructions as well as all
recommended safety practices.


3oneida-air.com
System Start-Up Information (Continued)
d. NFPA664 Code book, “Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities”, applies to woodworking operations that occupy areas of more than 5,000 sq. . or to areas where dust
producing equipment requires an aggregate dust collection ow rate of more than 1,500 cfm (cubic feet per minute).
is exempts some small operators from the NFPA code 664, but other codes may apply in your jurisdiction. Consult
your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664.
4. e customer assumes the responsibility for contacting their insurance underwriter regarding specic application
requirements of explosion venting or if additional re protection and safety equipment may be required.
5. DO NOT use this product to collect other types of ammable dust or ammable vapors! - Fire or explosion may occur!
6. NEVER collect sparks from a bench grinder into a wood dust collector.
7. NEVER introduce sparks or sources of ignition into the dust collector.
8. Personnel should be kept at least 20 . away from unit.
9. Check dust bin frequently and before leaving the shop for smoldering material.
10. Keep portable re extinguishers handy.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
11. Be especially careful with sanding units. ey can produce concentrations of dust in the combustible range. Make certain
enough air volume is at the suction point to capture all the particulate generated.
12. is high air volume will dilute the mixture below the lower limit of ammability. Be careful not to generate sparks into the
sanding dust.
13. Empty dust bin and clean lter oen, especially when sanding.
14. DO NOT overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
15. Sparks can be generated in several ways:
a. High speed sanders and abrasive planers may strike foreign material.
b. Saws and edgers may strike foreign material and create a red-hot metal fragment.
c. Knots in hardwood can create frictional sparks.
d. Trapped metal when drawn into the collector can spark against ductwork.
e. Check wood stock for old nails and screws which can create red hot metal fragments.
16. Avoid using excessively large wood waste bins.
17. ALWAYS check storage bins for smoldering material before leaving for the day.
18. Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drain pipe.)
19. DO NOT allow accumulation of layers of ne dust on horizontal surfaces (especially overhead lights, electrical boxes and
fuse panels which can ignite dust.)
20. UNPLUG UNIT BEFORE SERVICING OR CLEANING
Customer Service Dept.
1-866-387-8822 • [e-mail]

4 Oneida Air Systems
System Specications
OPERATION
Fan Rating (with Cyclone & Filter) 1,789 Actual CFM at 5.4”S.P.
Maximum Suction Rating 23”WC
MOTOR AND ELECTRICAL
Motor Type U.S. Made TEFC Motor
Motor Insulation Class F
Motor Service Factor 1.15
Horsepower 5 HP
Motor Speed 3,500-4,500 RPM
Phase Three-Phase (3ph)
Voltage 208-230V
Cycle 60Hz
Listed FLA 15A
On/O Switch Remote Starter with Push button On/O Switch and RF Keyfob
Power Cord 10 ft
Power Connector Wire
Recommended Circuit Size 30A
Recommended Circuit Size HACR
Sound Emission 84-85 dBA @ 10 ft
IMPELLER
Size 15"
Material Single-piece, backward inclined, non-sparking/non-ferrous
CARTRIDGE FILTER
Filter Media Type Izumi Axtar Spunbond Media
Filter Eciency 99.9% @ 0.2-2.0 microns
Filter Surface Area 220 Sq. Ft.
SYSTEM DIMENSIONS AND CONSTRUCTION
Barrel/Cyclone Body Heavy-gauge cold-rolled steel
Inlet 7" Diameter
Overall Height 143-1/2"

5oneida-air.com
143-1/2"
3,646 mm
39"
991 mm
82-3/4"
2,101 mm
X"
mm
30-1/2"
775 mm
39"
914 mm
106-1/4"
2,699 mm
X"
mm
57-1/2"
1,461 mm
8"
203 mm
56"
1,422 mm
60-9/16”
1538 mm
Nominal dimensions shown using Height Position 3; Telescoping Stand can be adjusted to accommodate smaller
waste containers. Dimensions subject to slight variations in manufacturing.
Top View
System Dimensions

6 Oneida Air Systems
ID Part number Part description Qty
A BXI050318C Motor Assembly 5 HP 3 PH 1
B BHX020005B Fan Housing 1
C SXI002108 Barrel 1
D SCX002109 Cone 1
E DEF080099 8" Outlet Adapter 1
F FAX140033 Plenum Extension 2
G QCZ080000 8" Duct Clamp 4
H DES900899 8" Plenum Elbow 1
I DWP877099 8x7x7 Pants Wye 1
J ACB080000 6-8" Hose Clamp 4
K DHF070500 7" Diameter x 5' Flex Hose 1
L FPX020019 Dual Filter Plenum Plate 1
MAHX021819 Filter Accessory Pack 1
M1 BSC180000 Drop-in Silencer 2
M2 AFT000001 5/16"-18 Thumb Nut 16
M3 AFW180000 5/16" Flat Washer 8
M4 AFJ051602 5/16"-18 x 2" J Bolt 16
M5* AHX186200A Filter Stacking Hardware Kit 2
M6 FPZ000018 Fine Dust Bin 2
ID Part number Part description Qty
N FCS183900 18" x 39" Filter 2
O AHX001800 Hardware Kit 1
O1 RGZ025050 Poron Gasket Roll 29'
O2 AFB155155 5/16"-18 x 1" Flange Bolt 15
O3 AFW180000 5/16" Flat Washer 39
O4* AFS015700 3/8-16" x 1-1/4" Hex Head Bolt 3
O5* AFW190000 3/8" Flat Washer 20
O6* AFT000004 3/8” Whiz-Lock Nut 10
O7 AFB155190 5/16-18" x 1" Hex Head Bolt 12
O8 AFT155175 5/16-18” Whiz-Lock Nut 12
O9* AFS015100 3/8-16" x 1" Hex Head Bolt 7
O10* FGA000002 14" Grounding Cable with Two
8-18 x 3/8” Self-tapping Screws 1
P STZ210000 Stand 1
Q SAZ100000C 10" Airlock 1
If you cannot find an item on the list, examine the packaging materials very carefully. Certain
components may have been pre-installed for shipping purposes. There may be hardware
leftover.
System Contents

You will need the following tools:
GENERAL FAN HOUSING FILTER
8" Ladder Razor Knife Flathead Screwdriver 7/16" Wrench
Level Diagonal Cutters Hammer 7/16" Socket Wrench
Scissors Tape Measure / Ruler
1/2" Wrench 1/4" Socket
1/2" Socket Wrench Impact Driver
Please unpack the parts carefully and conrm you have
received each item listed here.
*Not all included parts are required for assembly.

7oneida-air.com
× 8
× 8
× 7
× 7
× 8
× 12
× 12
× 8
× 8
× 8
× 8
× 4
× 4
× 4
× 24
System Contents (Continued)
A
B
D
E
F
F
C
O2
O2
O3
O3
O3
O5
O8
O6
O7
O9
G
Q
J
L
I
M4
M1
M4
M3
NP
M2
M6
M2
K
H
O1 Note: Comes
attached to
the Motor
Assembly (A)

8 Oneida Air Systems
Before you start, determine which direction you want your filter to hang and which direction
you want your duct work to enter the collector. The fan housing and cyclone barrel bolt holes
are drilled at 45 degree increments. Some orientations are not possible.
Assembly Instructions
Tip: Aim the dust collector's outlet away from the area where people tend to work to reduce noise.
Filter will
obstruct
inlet pipe
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INLET
INCORRECTCORRECT CORRECT

FIG. 1
1 Assemble the Stand (P) [FIG 1]. Refer to the
instruction sheet included:
• Stand Instruction Sheet
# ZBI282321

9oneida-air.com
Assembly Instructions (Continued)
FIG. 3
FIG. 2a
FIG. 2b
FIG. 2dFIG. 2c
Top View
2 Apply Gasket (O1) making sure that there is
no gap where the ends meet:
a. Apply to the top ange of the Cone (D)
inside the bolt holes [FIG. 2a].
b. Apply to the top rim of the Barrel (C)
outside of the bolt holes [FIG. 2b].
c. Apply to the Fan Housing's (B) outlet
inside the bolt holes [FIG. 2c].
d. Apply to the top of the Fan Housing (B)
outside the bolt holes [FIG. 2d].
Note: Dust collection systems cannot operate
eectively if there isn’t a complete seal. ere
must be NO air leaks.
3Li the Cone (D) onto the Stand (P), making
sure to align the Cone’s ange holes with those
on the Stand [FIG 3].
Top View

10 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 4
FIG. 5
4Once your Cone (D) is aligned with the Stand
(P), li the Barrel (C) onto the Cone, making
sure to align the corresponding ange holes.
Secure both components to the stand using
twelve Hex Head Bolts (O7), twenty-four Flat
Washers (O3), and twelve Whiz-Lock Nuts
(O8) [FIG 4].
5Li the Fan Housing (B) onto the Barrel (C),
making sure it is oriented so that the molded
“UP” text is visible. Align the housing’s holes
with the holes in the barrel and keep in mind
the direction you want your outlet to face.
[FIG 5].
Secure the Fan Housing onto the Barrel using
eight Flange Bolts (O2) and eight Flat Washers
(O3).

x
11oneida-air.com
Assembly Instructions (Continued)
FIG. 6a
THE MOTOR ASSEMBLY IS VERY HEAVY AND CUMBERSOME; BE SURE TO HAVE ADEQUATE
HELP WHEN LIFTING!
FIG. 6b
FIG. 6c
FIG. 6d
6 Carefully li Motor Assembly (A) to top of
Fan Housing (B) and align the Fan Housing
holes with the motor plate holes following the
orientation shown in [FIG. 6a].
Secure the Motor Assembly to the Fan
Housing using seven Flange Bolts (O2) and
seven Flat Washers (O3). [FIG. 6b]
Note: e eighth hole on the Fan Housing (B)
does not require a bolt because it is inaccessible
[FIG. 6a].
Unwrap the braided lter grounding wire
from the Motor cowling and let hang loose for
future grounding steps [FIG. 6c]. Also, unclip
the Remote from the Filter Grounding Wire
[FIG. 6d].

12 Oneida Air Systems

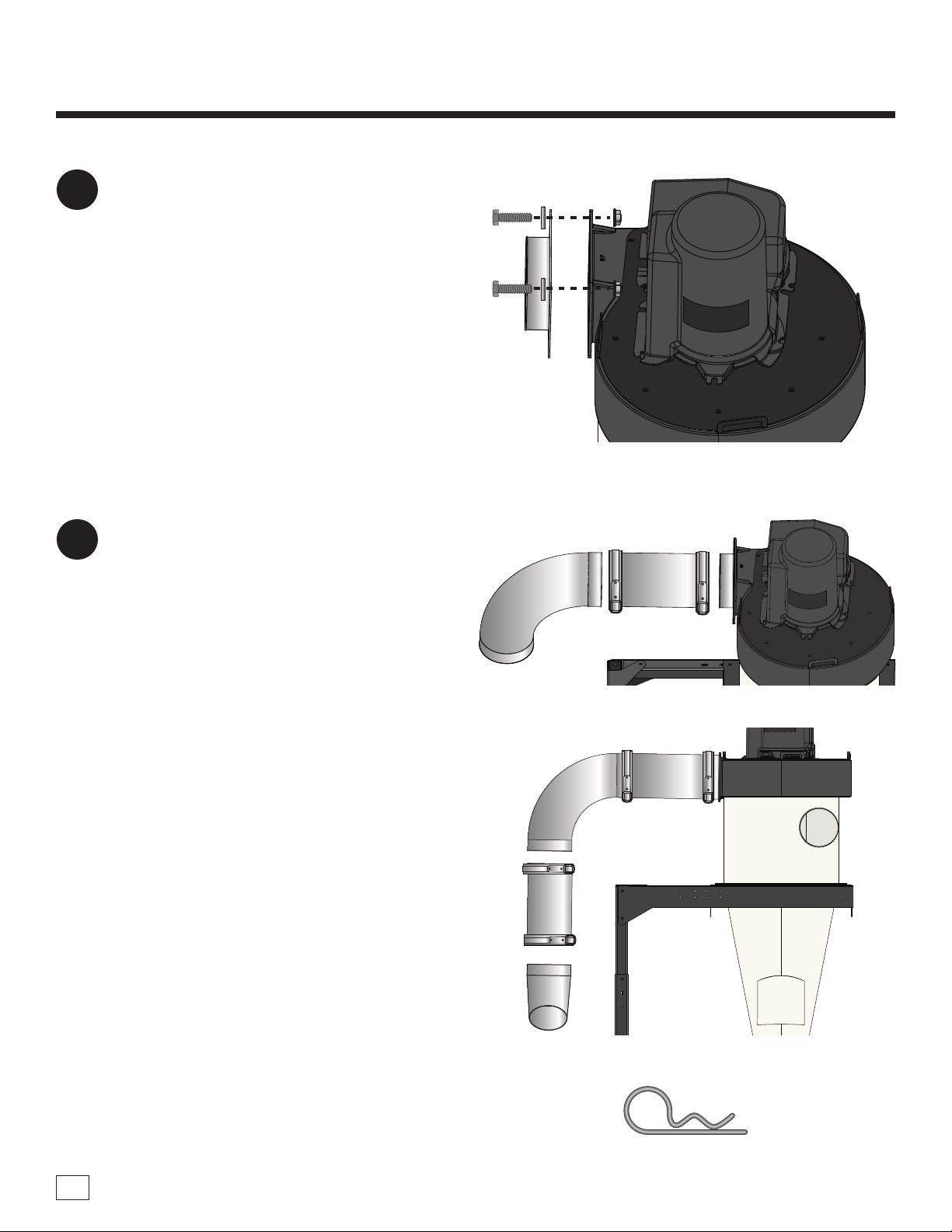

Assembly Instructions (Continued)
FIG. 8a
FIG. 8b
FIG. 8c
FIG. 7
7Attach the 8" Outlet Adapter (E) onto the
outlet of the Fan Housing (B) with four Hex
Head Bolts (O9), eight Flat Washers (O5), and
four Whiz-Lock Nuts (O6) as shown in [FIG.
7].
Note: Tighten rmly but do not over compress
the gasket.
8Open two 8" Duct Clamps (G) and slip them
over the Plenum Extension (F) [FIG. 8a].
Mate the Plenum Extension to the 8" Outlet
Adapter (E) then the Elbow (H) and close the
Clamps over the rolled ends.
Open two 8" Duct Clamps and slip them over
the Plenum Extension [FIG. 8b]. Mate the
Plenum Extension to the Elbow (H) then the
8x7x7 Pants Wye (I) and close the Clamps over
the rolled ends.
Lock the Clamps in place using the provided
cotter pins [FIG. 8c].


13oneida-air.com
FIG. 9
Assembly Instructions (Continued)
9 Attach the Dual Filter Plate (L) to the stand
using the stand's pre-installed hardware as
shown in [FIG. 9].
Note: Hardware should be nger tightened rst
for ease of assembly when securing Filter Plate
Assembly.
10 Cut the 7" Diameter Flex Hose (K) in half
using a razor knife and diagonal cutter to cut
through the clear lining and reinforcing wire.
[FIG. 10a].
Attach both pieces of 7" Diameter Flex Hose
to the 8x7x7 Pants Wye (I), and secure them
in place with the 6-8" Hose Clamps (J). Repeat
the process to attach the opposite end of each
Hose onto the openings on the Dual Filter
Plate (L) [FIG. 10b].
Note: e hose is a snug t. Pull ends up little by
little to work the hose onto the Pants Wye and
Dual Filter Plate. Pliers can be used to grab the
reinforcing wire and aid in pulling the hose
over the opening.
Bolts Washers Whiz-Lock Nuts
L
Cut
Here
FIG. 10b
FIG. 10a

14 Oneida Air Systems
Assembly Instructions (Continued)
11 Insert the Drop-In Silencer (M1) into the top
of each Filter (N) [FIG. 11].
FIG. 12
FIG. 11
12 Attach each Filter (N) to the Dual Filter Plate
(L) with four J-Bolts (M4), four Flat Washers
(M3) and four umb Nuts (M2) as shown in
[FIG. 12].

15oneida-air.com
FIG. 13
FIG. 14
13 Attach a Fine Dust Bin (M6) to each Filter (N)
with four J-Bolts (M4) and four umb Nuts
(M2) as shown in [FIG. 13].
14 To ground the lter, attach the ring terminal
on the braided ground wire from the Motor
Assembly (A) to a J-bolt (M4) on the Dual
Filter Plate (L) under the umb Nut (M2),
then attach the alligator clip to the lter’s cage
[FIG. 14].
Note: If you need to extend the wire, you can
use any 16 gauge copper stranded wire and
connect with wire nuts.
Assembly Instructions (Continued)

ENSURE THAT ALL ELECTRICAL POWER TO THE SYSTEM IS DISCONNECTED BEFORE
PROCEEDING WITH FURTHER STEPS.
16 Use the adhesive of your choice to temporarily
secure the starter to the wall [FIG. 16].
To permanently secure the starter to the wall
proceed to Step 17.
16 Oneida Air Systems
Wall
Adhesive
15 Assemble the Airlock (Q) [FIG 15]. Refer to
the Owner's Manual included:
• Air Lock Owner's Manual
#ZBM000035
FIG. 15
FIG. 16
Assembly Instructions (Continued)

17 To permanently secure the starter to the wall,
take off the starter cover by removing the top
and bottom screws and exposing the overload
and contact connections [FIG 17a]. Set aside
the screws.
a. Place a mark through the four mounting
holes [FIG 17b].
b. Use appropriate fasteners for the wall type
you are installing your system onto.
c. Drill into the wall at the marked locations.
d. Secure the starter to the wall.
18 Reattach the cover with the screws set aside in
Step 17 [FIG 18].
START
STOP
START
STOP
17oneida-air.com
FIG. 18
FIG. 17a FIG. 17b
Top
Screws
Mounting
Holes
Bottom
Screws
Mounting
Holes
Assembly Instructions (Continued)

18 Oneida Air Systems
Cleaning the Filter
Proper lter cleaning should not be neglected as a
dirty lter can signicantly aect your dust collector’s
performance and the overall lifespan of your lter.
e following steps should be done while the lter is
still attached to your system:
1. WEAR A DUST MASK AND EYE PROTECTION
WHILE CLEANING THE FILTER.
2. Turn o the dust collector and wait for the system’s fan
blower to come to a complete stop.
3. Use a hand-held, compressed air nozzle with a pressure
between 30 to 60 PSI to blast air along the lter’s exterior
pleating. Hold the air nozzle at a 20 degree angle and at
least 6” away from the lter; Closer blasts may damage
the lter material. Direct air out and away from anyone
in the area.
4. Wait a few minutes for dust to settle, then remove the
ne dust bin at the bottom of the lter.
5. Dispose of dust carefully and then reconnect the dust
bin.
Lubricating the Motor
Per Baldor’s specications, their 2-pole motors (3,600
RPM) are to be lubricated every 5,500 hours. Refer
to the Table below to determine if your motor’s
Lubrication Interval must be adjusted. For example,
a system operating in a moderately corrosive area
with an ambient temperature of 109° F (43° C) would
qualify as the “Severe” service condition, and should
instead be lubricated every 2,750 hours.
A right angled grease coupler will be needed for
this operation.
1. Motors can be greased while stopped, at less than 176° F
(80° C), or while running.
2. Clean the motor’s grease tting, or if equipped with
slotted grease screws, clean the area around the grease
hole. If the motor has a purge plug, remove it.
3. Apply grease gun to tting (or grease hole). Add 0.3
ounces (8.4 grams) of Mobil Polyrex grease by weight,
or 0.6 cu. in. (2 teaspoons) of Mobil Polyrex grease by
volume.
4. Slowly apply the recommended amount of grease, taking
one minute or so to apply. Too much grease or injecting
grease too quickly can cause premature bearing failure.
5. Operate the motor for 20 minutes; Reinstall purge plug if
previously removed.
Caution: Keep grease clean. Mixing dissimilar grease is
not recommended.
Maintenance
UNPLUG YOUR UNIT BEFORE
SERVICING OR CLEANING
LUBRICATION INTERVAL TABLE
Severity of
Service
Maximum
Ambient
Temperature
Atmospheric
Contamination
Lubrication
Interval
Multiplier
Standard 104° F (40° C) Clean; Little
Corrosion 1.0
Severe 122° F (50° C) Moderate Dirt;
Corrosion 0.5
Extreme > 122° F (50° C)
or Class H Insulation*
Severe Dirt;
Abrasive Dust;
Corrosion
0.1
Low
Temperature < -22° F (-30° C)** 1.0

* Special HIGH temperature grease is recommended
** Special LOW temperature grease is recommended
