Oneida Air Systems XCKM013000 User manual

Rev: A 20230614LL Doc. #ZBM000064
Appearance may vary slightly
Patents: www.oneida-air.com/patents
OWNER’S MANUAL
Dust Cobra
Dust Collector
Industrial
30/35 Gallon Freestanding
#XCKM013000
#XCKM013511

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 6
System Dimensions 8
System with Dolly and Stand Dimensions 9
System Contents 10
Assembly Instructions 12
Maintenance 23
Troubleshooting 25
Warranty Information 26
Recommended Accessories 27
Recommended Accessories 28
Notes 29

Oneida Air Systems, Inc.2
System Start-Up Information
 WARNING 
1. READ and understand ALL instructions and warning labels BEFORE using the dust collector.
2. REPLACE warning labels if they become obscured or removed.
3. ALWAYS follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and
regulations when installing and operating this dust collector.
4. ENSURE that all users of this dust collector are informed of all warnings and precautions, safe use, and
maintenance procedures.
5. FULL mental alertness is required. e machine is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge
6. DO NOT allow use by or near children.
7. DO NOT allow to be used as a toy.
8. NEVER leave the dust collector running while unattended.
9. TURN OFF and UNPLUG the dust collector BEFORE walking away, servicing, or cleaning. Allow the fan
blower motor to come to a COMPLETE STOP before walking away or performing any maintenance, service,
cleaning, or adjustments. is eliminates the risk of injury from unintended startup or contact with live
electrical components.
10. ENSURE that your dust collector is turned OFF and UNPLUGGED during installation. is eliminates the
risk of injury from unintended startup or contact with live electrical components.
11. COMPLETELY INSTALL ductwork/ex hose before operating collector.
a. Seal ductwork with silicone sealant or duct tape if leaks are found.
b. Have dust drum in place and sealed.
c. NEVER operate without lter and cowling in place. is machine has high speed rotating elements than
can cause severe injury.
12. ONLY use the dust collector for its intended purpose as described in this manual. DO NOT force it or
an attachment to do a job for which it was not designed. Consult this owner’s manual or reach out for
recommended accessories.
13. ENSURE enough air volume is at the suction point to capture all the particulate generated.
Before Purchasing or installing a dust collection system the process owners/operators
are cautioned to do so in accordance with prescribed Federal, State, Local, OSHA, NFPA,
and any other applicable codes or regulations relating to the type of dust(s) you are
collecting.
This manual contains specific precautionary statements relative to worker safety. Read
thoroughly and comply as directed. The most up to date safety information can be found
on our website: oneida-air.com/safety

oneida-air.com 3
System Start-Up Information (Continued)
14. NEVER make modications without prior approval from Oneida Air Systems. Modifying the dust collector
or using it dierently than intended will void the warranty and may result in malfunction or mechanical
failure that leads to serious personal injury or death!
15. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these
areas can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan
of the dust collector.
16. DO NOT install in classied hazardous atmospheres without an enclosure rated for the application. System
Location must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable
locations for installing dust collectors. Consult with the appropriate authorities having jurisdiction to ensure
compliance with all national and local codes regarding dust collector installation. Equipment must be
anchored in a manner consistent with local code requirements. Anchors must be sucient to support dead,
live, seismic, and other anticipated loads. Consult a qualied engineer for nal selection of anchorage.
17. ENSURE exhaust air is properly vented. It should NOT be vented into a wall, a ceiling, or a concealed space
of a building. Personal injury, death, and/or property damage can result from material discharge during
venting. e risk of personal injury and/or property damage can be minimized or avoided by locating vented
equipment outside buildings and away from normally occupied areas. If exhaust air is vented outside, you
must provide make up / return air. Flue gases (carbon monoxide) can be drawn into the shop from furnaces,
water heaters, or other appliances
18. INSPECT and MAINTAIN REGULARLY. Keep the dust collector in proper working order. A machine that
isn’t properly maintained, not working as it should, has been dropped, damaged, le outdoors, or dropped in
water could malfunction leading to serious personal injury or death!
19. AVOID CORD DAMAGE. DO NOT pull or carry by cord. DO NOT use cord as handle. DO NOT unplug
by pulling on cord. To unplug, grab the plug, DO NOT close door on cord or pull cord around sharp edges or
corners. DO NOT run dust collector over cord. DO NOT handle cord/plug with wet hands. Keep cord away
from heated surfaces.
20. ALWAYS check for damaged parts. A part that is damaged should be carefully checked to determine that
it will operate properly and perform its intended function. Immediately repair or replace damaged or mis-
adjusted parts before operating machine.
21. DO NOT put any object in openings. DO NOT use with any opening blocked. (Except when pulsing - See
Maintenance Section for more information.)
22. ALWAYS wear a NIOSH approved respirator when emptying dust bins and during operation. Some dust
created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other long-term respiratory damage
23. ALWAYS keep hair, loose clothing, ngers, and all parts of body AWAY from openings and moving parts.
24. ALWAYS wear ANSI-approved safety glasses or a face shield when operating or observing machinery and
when emptying dust bin.
25. ALWAYS wear hearing protection during extended periods of operation.

Oneida Air Systems, Inc.4
System Start-Up Information (Continued)
1. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.
2. DO NOT operate the dust collector in areas where explosion risks are high. Areas of high risk include, but
are not limited to, areas near pilot lights, open ames, or other ignition sources.
3. ONLY operate dust collector in locations that include a re suppression system or have a re extinguisher
available nearby.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire
Extinguishers).
4. DO NOT allow accumulation of layers of ne dust on horizontal surfaces. Especially overhead lights,
electrical boxes and fuse panels which can ignite dust. Keep the oor around the system clean and free of
scrap material, oil, grease.
5. ENSURE all equipment and ductwork is electrically grounded.
6. DO NOT use PVC drain pipe.
7. ALWAYS consult an electrician or qualied service personnel about wiring practices and electrical codes
in your area. ONLY allow an electrician or qualied service personnel to do electrical installation or repair
work.
8. ALWAYS disconnect power before accessing or exposing electrical equipment. Improper wiring can cause
re, electrocution, injury, or death.
9. DO NOT use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
10. DO NOT use to pick up liquids, ammable liquids, or combustible liquids, such as gasoline, or use in areas
where they may be present.
11. DO NOT use excessively large wood waste bins. Wood dust mixtures are highly ammable and can be
explosive
 FIRE HAZARDS 
Process owners/operators retain all responsibility for the suitability of fire and explosion
hazard mitigation, suppression, and isolation strategies and to follow all applicable
federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and regulations
when installing and operating this dust collector.
Improper operation of a dust control system may contribute to conditions in the work
area or facility that could result in severe personal injury and product or property
damage.
Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/
or explosion mitigation strategy, or any items incorporated into a collector as part of an
owner/operators hazard mitigation strategy.

oneida-air.com 5
Customer Service Dept.
1-866-387-8822 • [e-mail]
System Start-Up Information (Continued)
12. ALWAYS check your dust bin for smoldering materials before leaving the shop.
13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several
ways:
a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot
metal fragment.
b. Knots in hardwood can create frictional sparks.
c. Trapped metal, when drawn into the dust collection system, can spark against ductwork.
d. Check wood stock for old nails and screws which can create red-hot metal fragments.
14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can
spontaneously ignite dust. Sanders can produce concentrations of dust well into the combustible range.
15. ALWAYS check that all dust collection equipment is properly selected and sized for the intended use.
Authorities with jurisdiction should be consulted before installing to verify local codes and installation
procedures. In the absence of such codes, install collector according to the National Electric Code, NFPA No.
70-latest edition and NFPA 91, NFPA664 Code (NFPA 654 if combustible dust is present).

6Oneida Air Systems
System Specications
OPERATION
Fan Rating (Free Fan) 245CFM
Fan Rating (with Cyclone & Filter) 245 CFM @ 23" WC - Maximum Flow Rate
202 CFM @ 34" WC - with 25’of 2.5"diameter ex hose
Maximum Suction Rating 70" WC
MOTOR AND ELECTRICAL
Motor Type UL listed Industrial motor
Voltage 110V
Amperage 15.5A
Power Cord Length 20'
Power Plug Included Yes
Power Plug Type 110V: NEMA
Recommended Circuit Size 20A
Sound Emission With Standard Silencer & Filter: 73 dBA @ 10 ft
CARTRIDGE FILTER
Filter Type GORE Cleanstream® HEPA Filters
Filter Rating 99.97% ltration eciency at 0.3 microns (µm)
Pulse Type Manual Internal Rapid Pulse Filter Cleaner System
Pulse Interval ~30 Minutes or as needed based on the situation
SYSTEM DIMENSIONS AND CONSTRUCTION
Cyclone Body Industrial, Static Conductive Resin
Inlet Size 2.5" O.D. (2.25" I.D.)
Inlet Dimensions 2.3" ID
Drum Type Reinforced Steel Drum with Painted Exterior
Container Size 30 Gallons/35 gallons
Overall Height 30 Gallon: 53.5" / 35 Gallon: 59.25"

7oneida-air.com
System Specications
WARNING
This motor can expose you to chemicals,
including carbon black, which is known to
the State of California to cause cancer.
For more information go to
www.P65Warnings.ca.gov
Keep the Certicate of Compliance on hand while doing lead remediation

8Oneida Air Systems
System Dimensions
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
52-3/16"
1,326 mm
34-1/2"
875 mm
39-1/2"
1,002 mm
54-3/16"
1,376 mm
30 Gallon:
29-9/16"
751 mm
35 Gallon:
22-1/4"
565 mm

Floor
39-1/2"
1,004 mm
43-1/2"
1,105 mm
9oneida-air.com
56-1/8"
1,426 mm
58-1/8"
1,476 mm

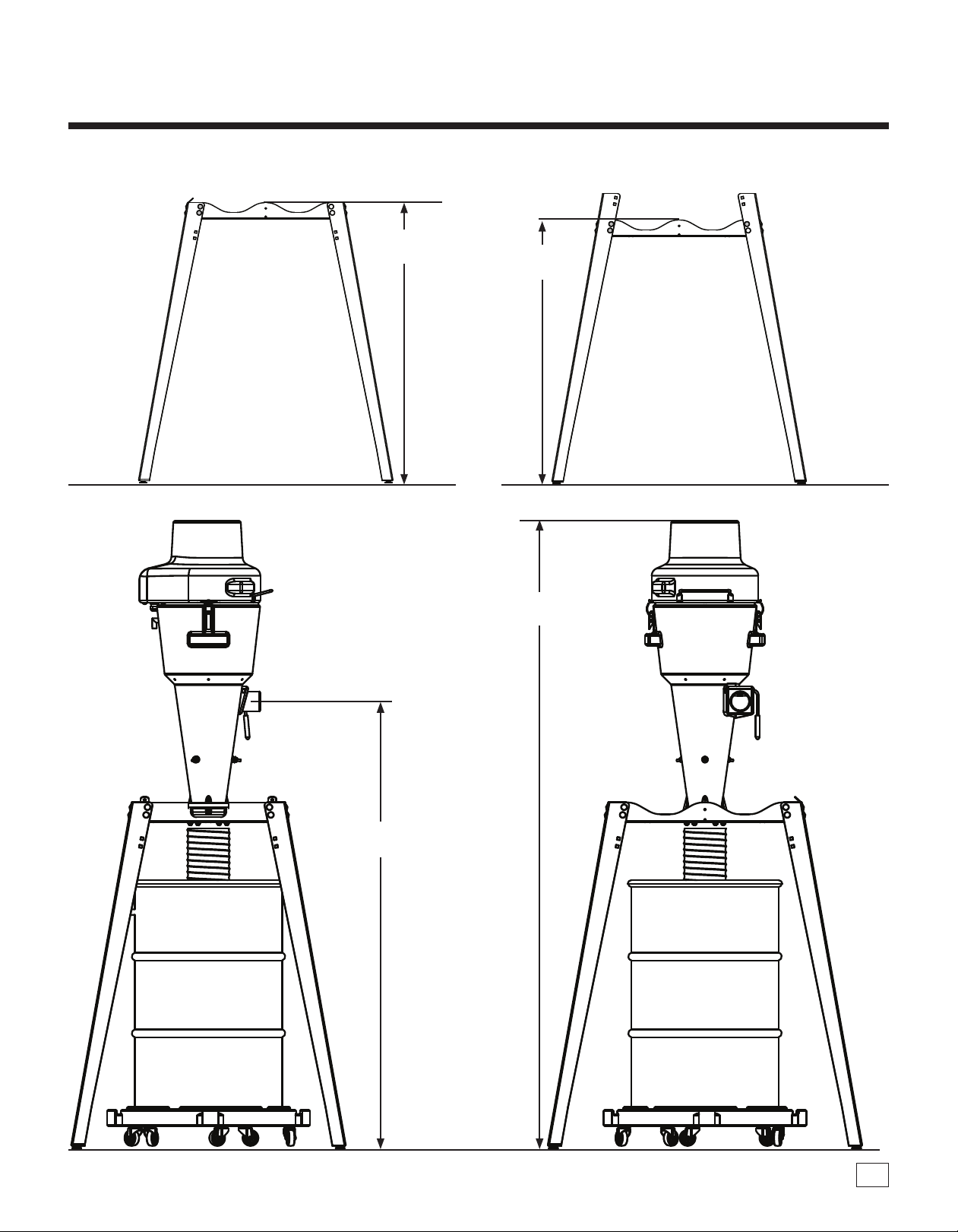

System with Dolly and Stand Dimensions
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.

10 Oneida Air Systems

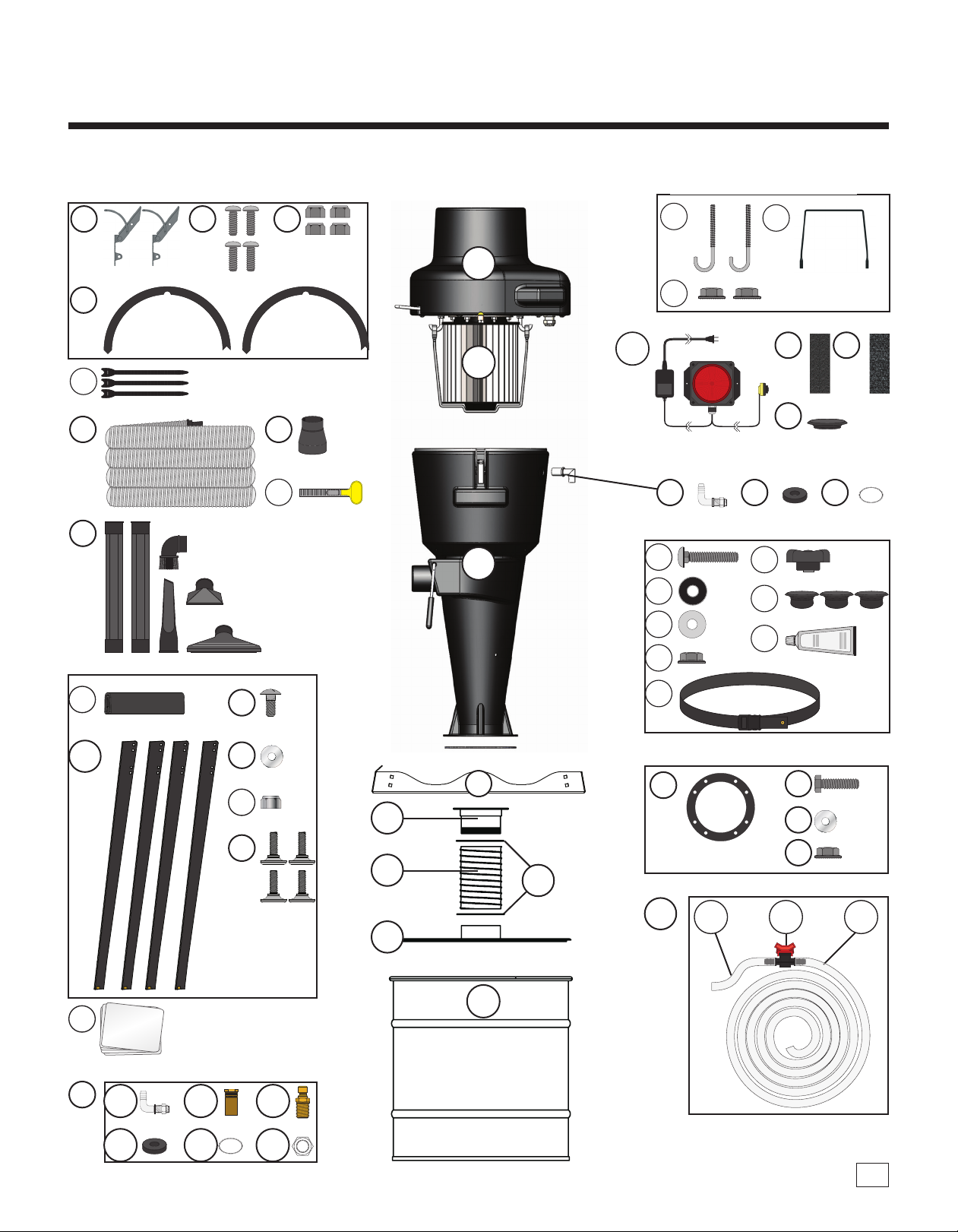

System Contents
Please unpack the parts carefully and conrm you have received each item listed here.
* Some components are pre-installed at the factory and are listed here for your convenience.
ID Part number Part description Qty
ABXM001205 110V Cobra Motor Assembly 1
B SCX001205D Molded Cobra Cone Assembly 1
C FCH000004 GORE® CleanStream Pro HEPA Filter 1
D STX000005 Stand Body 1
E STX043540 Stand Legs 4
F AHX000008 30/35 Gallon Cobra Hardware Kit 1
F1 AFS156075 5/16-18 X 3/4" Carriage Bolt 16
F2 AFW180000 5/16" Flat Washer 16
F3 AFT900516 5/16" - 18 Nylock Nut 16
F4 STF516184 Mounting Foot (4 Pack) 1
F5 STX000010 Handle Gasket 1
F6 AFB250125 1/4"-20 x 1 1/4" Carriage Bolt 1
F7 AFW180516 5/16" Rubber Washer 1
F8 AFW025000 1/4" Flat Washer 1
F9 AFT000005 1/4" Whiz-Lock Nut 1
F10 AFT000006 1/4"-20 Thumb Nut 1
F11 RHS000000 Vacuum Hose Storage Strap 1
F12 RLH000516 5/16" Push-In Plug 3
F13 ASC000015 Silicone Tube 1
F14 VSC001205 Velcro Tie Straps 3
F15 AFL001205 Motor Assembly Draw Latches 2
F16 AFS632438 6-32 x 7/16" Phillips Pan Head Screw 4
F17 AFT900632 6-32 Nylock Nut 4
F18 RGM250000 Cobra Motor Gasket 2
F19 AFJ051602 5/16"-18 x 2" J Bolt 2
F20 AFT155175 5/16" Whiz-Lock Nut 2
F21 RHS000010A Filter Retainer Strap 1
F22 ABF000500 1/2" Nylon Elbow 1
F23 RLH000002 Nylon Washer 1
F24 RLH000003 Rubber O Ring 1
F25 AHX000018 Quick Disconnect Kit 1
F25A RLH000006 1/4" NPT Nylon Elbow 1
ID Part number Part description Qty
F25B RLH000005 3/8”Socket 1
F25C RLH000004 3/8" Male Plug 1
F25D RLH000002 Nylon Washer 1
F25E RLH000003 Rubber O Ring 1
F25F RLH000007 Nylon Nut 1
F26 AHX000033 Tubing Assembly 1
F26A VRV050500 1/2" ID Clear Vinyl Tubing 1/3'
F26B AWV000050 1/2" ID SwitchValve 1
F26C VRV050500 1/2" ID Clear Vinyl Tubing 7'
F27 RGZ190000 Cobra Gasket 1
F28 DLC050000 5" Collared Flange 1
F29 AFS015920 1/4"-20 X 3/4" Hex Head Bolt 8
F30 AFW025000 1/4" Flat Washer 8
F31 AFT000005 1/4" Whiz-Lock Nut 8
F32 ACB360000 Turn Key Hose Clamp 1
F33 AXD000006 1" Hook Tape .16'
F34 AXD000007 1" Loop Tape .16'
F35 RLH000023 23 mm Button Plug 1
F36 VAB251555 35-55 Gallon Drum Liner Bag 5
F37 ACB640000 4-1/2"Turn-Key Band Clamp 2
G DHF050001 5" Diameter x 1' Flex Hose 1
HSEX300500
SEX350500
30 Gallon Steel Drum Lid with 5" Collar
35 Gallon Steel Drum Lid with 5" Collar 1
H1* RHL000604 Drum Window 1
ISES300000
SES350000
30 Gallon Drum with Clamp
35 Gallon Drum with Clamp 1
J AXB999110B Dust Sentry Bin Level Indicator 1
K ASK000000 Accessory ShopVac Kit 1
K1 VSHRFB250 2.50" x 25' Hose 1
K2 ASV000000 CleanShop Accesories 1
K3 DRL040212 4 to 2-1/2" Reducer 1
If you cannot find an item on the list, examine the packaging materials very carefully for nested items. Please
note that certain components have been pre-installed. There may be hardware leftover.

J
K1
K2
K3
H
G
F28
F26
F37
F36
11oneida-air.com
System Contents (Continued)
A
C
B
D
I
F20
F6
F19 F21
F7 F12
F9
Hose Storage Hardware
Filter Attachment Hardware
Motor Attachment Hardware
Vent Tube Quick Disconnect Pack
Mounting Hardware
F8
F10
F13
F11
F14
F32
F25A
F25E F25F
F25B F25C
F25D
F24F23
F15 F16 F17
F18
F33
F35
F34
× 8
F29
× 8
F31
× 8
F30
F22
F26A F26B F26C
× 16F1
F5
F27
× 16F2
× 16F3
E
F4
F25

Oneida Air Systems, Inc.12
Assembly Instructions
1 Insert the Handle Gasket (F5) into the
Handle's opening (open, ribbed-side facing
upwards) and push it onto the Stand Body's
handle (D) so that it is fully covering the top
edge [FIG. 1a].
e Handle Gasket should be nested within
the divots on each side of the Handle [FIG.
1b]. Repeat for both Handles.
FIG. 1a
FIG. 1b
Divots
You will need the following tools:
GENERAL STAND
#2 Phillips Head Screwdriver 7/16" Wrench 1/2" Socket Wrench Channel Lock Pliers
3/8" Wrench 7/16" Socket Wrench Utility Knife Power Drill
5/16" Wrench 1/2" Wrench Drill Bit

FIG. 2
2 Install a Mounting Foot (F4) into the threaded
insert located on the bottom of each Stand Leg
(E) [FIG. 2].
Note: Firmly hand-tighten but do not over
torque as this may damage the connection point.
3 Locate the lower grouping of four mounting
holes on each of the Stand Legs (E). ese will
be used to secure each Stand Leg to the Stand
Body (D) [FIG. 3a].
Note: e upper grouping of holes should be
only be used if you require the additional 4" of
height to attach the optional Drum Dolly to the
Drum (H) [FIG. 3b].
FIG. 3a FIG. 3b
oneida-air.com 13
Assembly Instructions (Continued)

FIG. 4a
FIG. 4b
Oneida Air Systems, Inc.14
Assembly Instructions (Continued)

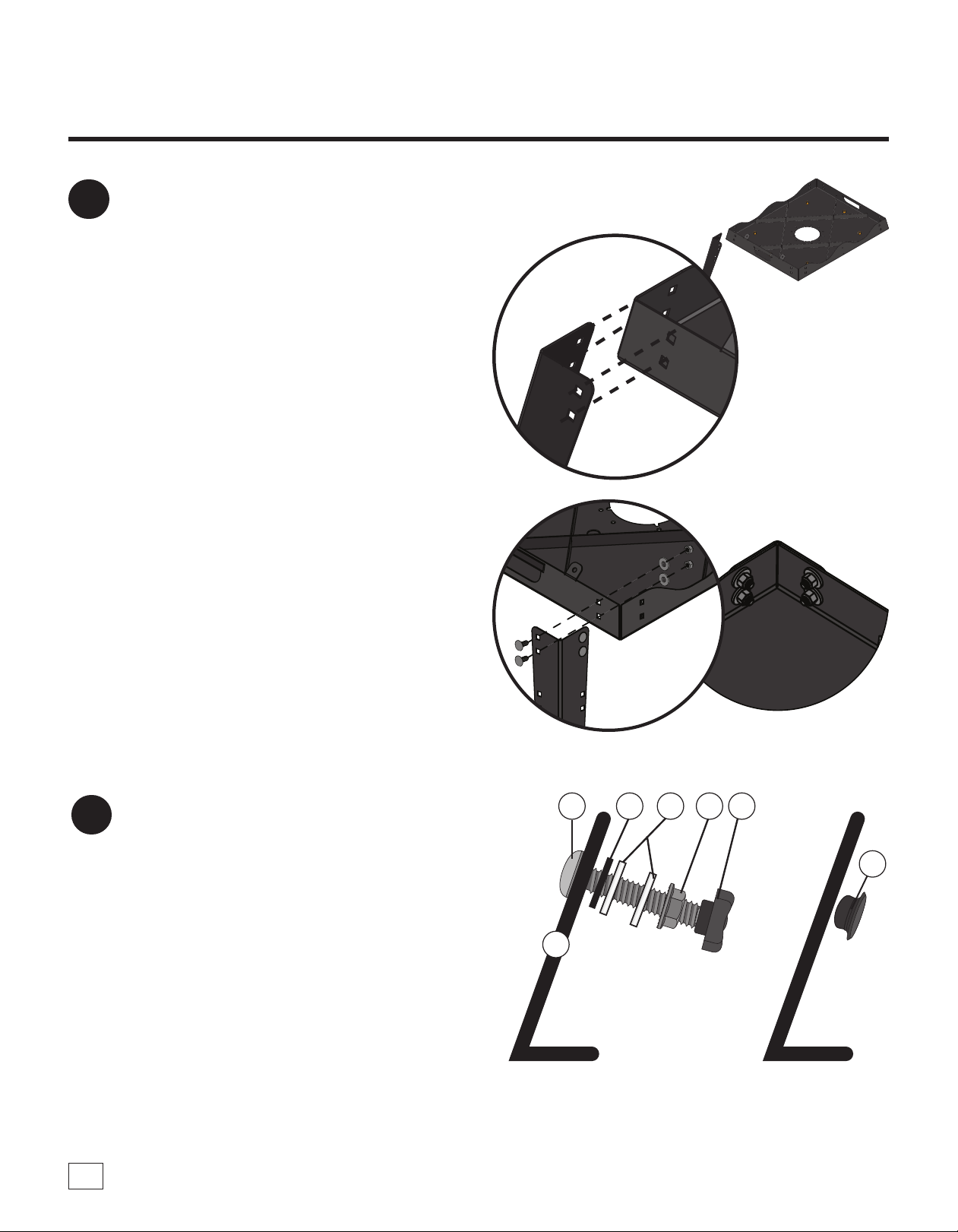

4 Align each Stand Leg (E) to the Stand Body
(D) [FIG. 4a] and secure using four Carriage
Bolts (F1), four Washers (F2), and four Nylock
Nuts (F3) [FIG. 4b].
B
F11
F6 F8F7 F9 F10
FIG. 5bFIG. 5a
5 Choose one of the three holes on the Cone
Assembly (B) to store the Hose (K1) onto.
Turn Cone Assembly upside-down and install
one Carriage Bolt (F6), one Rubber Washer
(F7), two Flat Washers (F8), and a Whiz-Lock
Nut (F9) into the chosen hole as shown in
[FIG. 5a].
en attach Vacuum Hose Storage Strap (F11)
to the Carriage Bolt and secure in place with
the umb Nut (F10) [FIG. 5a].
Insert a Push-in Plug (F12) into the two
remaining holes [FIG. 5b].
Note: Silicone (F13) can be applied to the Push-
In Plugs for a more permanent installation.

15oneida-air.com
Assembly Instructions (Continued)
B
B
G32
F27
FIG. 7
F31
F30
F28
D
F29
FIG. 6

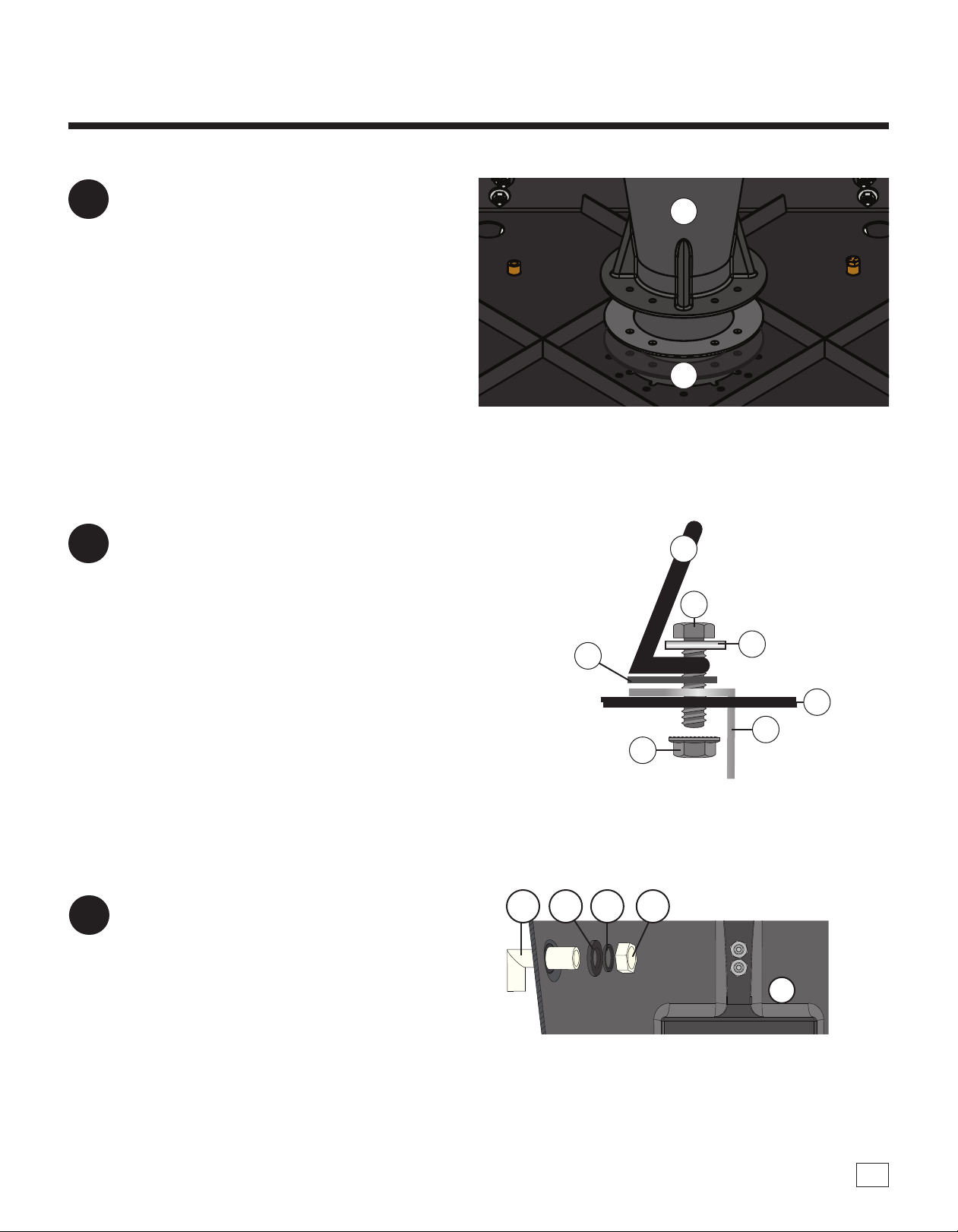

6 Align the Cone Assembly (B), right side up
and align the Cobra Gasket (F27), the bottom
ange of the Cone Assembly (B), and the
Stand Body (D) [FIG. 6].
7 Secure the Cone Assembly (B) to the Stand
Body (D) with eight Hex Head Bolts (F29),
sixteen Flat Washers (F30), and eight Whiz-
Lock Nuts (F31) as shown in [FIG.7].
8 Secure Nylon Elbow (F22) into upper drilled
hole with Nylon Washer (F23), Rubber O Ring
(F24), and the Nut included on the Nylon
Elbow (F22) [FIG. 8].
Refer to the Quick Disconnect Installation
Sheet (#ZBI000019) for more information.
B
F22F24F23F22
FIG. 8

Either Hole
16 Oneida Air Systems
Assembly Instructions (Continued)
9 Slide the shorter end of the Tube Assembly
(F26A) onto the Nylon Elbow (F22) as shown
in [FIG. 9a].
Note: If you are not using the automatic bag
holding feature of the system, the Switch Valve
(F26B) of the Tube Assembly MUST be in
the closed position. Otherwise leave the Tube
Assembly in the open position [FIG 9b].
FIG. 9b
FIG. 9a
ClosedOpen
10 Take the Tubing Assembly (F26) and route it
through the closest retaining hole located in
the back corner of the Stand Body (D) [FIG.
10].
Note: Which hole you use will be determined
by the orientation of your Cone Assembly (B).
Use whichever hole is closest to ensure adequate
length for the Tubing Assembly to connect to the
Drum (I).
F26
D
F26
FIG. 10

oneida-air.com 17
Assembly Instructions (Continued)

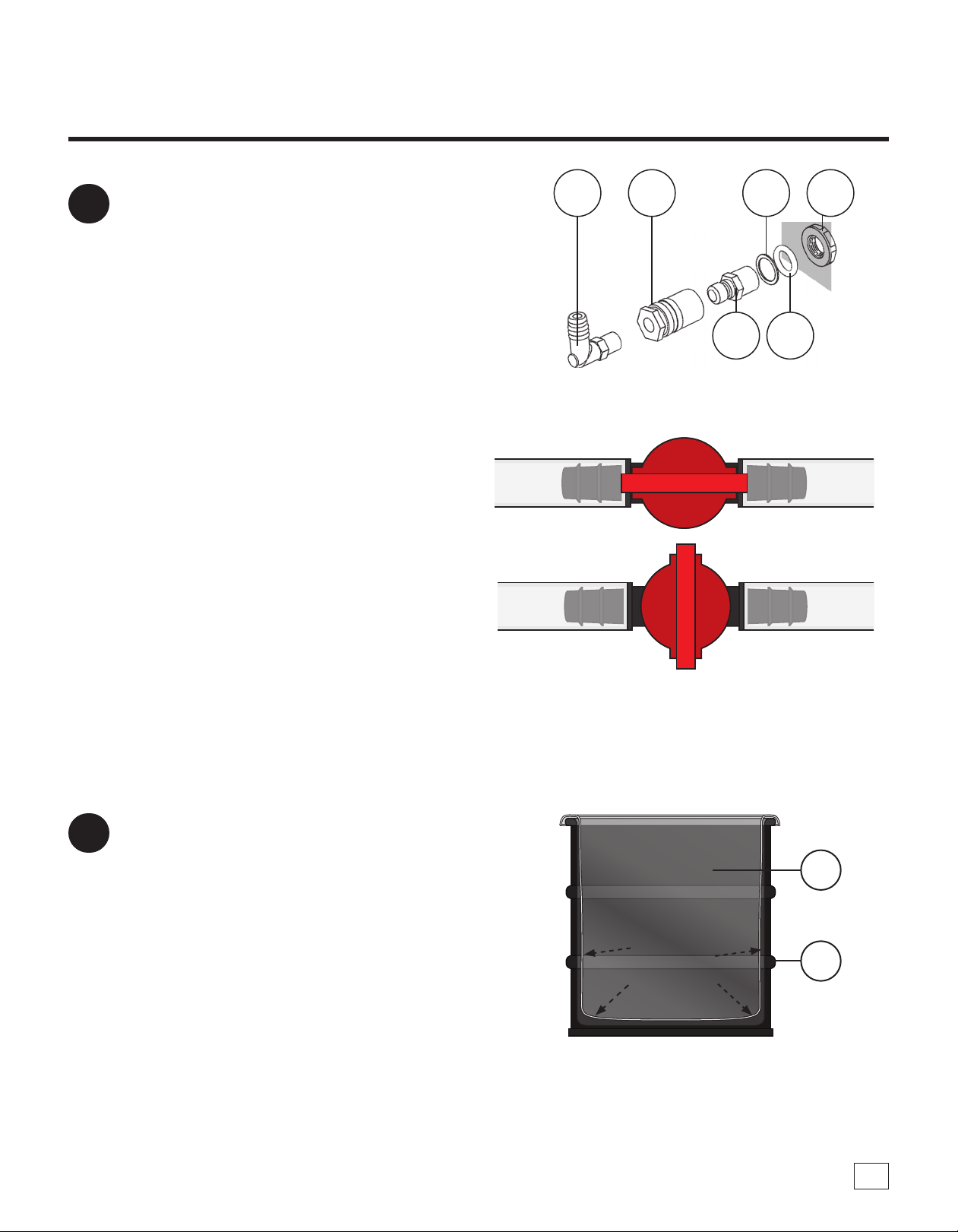

11 Install the Quick-Disconnect Kit (F25) onto
the pre-drilled hole near the bottom section of
the Drum (I) [FIG. 11a].
Refer to the Quick Disconnect Installation
Sheet for more information.
Note: If you are not using the automatic bag
holding feature of the system, the Valve of
the Tube Assembly MUST be in the closed
position [FIG. 11b].
F25F
F25E
F25D
F25C
F25BF25A
FIG. 11a
FIG. 11b
Closed
Open
F36
I
12 Place a Liner Bag (F36) inside the Drum
(I). Take care to ensure that the bag is fully
expanded to the inside of the Drum and that
the upper edge of the Liner Bag is folded out
and over the lip of the Drum [FIG. 12].
FIG. 12

18 Oneida Air Systems
Assembly Instructions (Continued)
FIG. 14

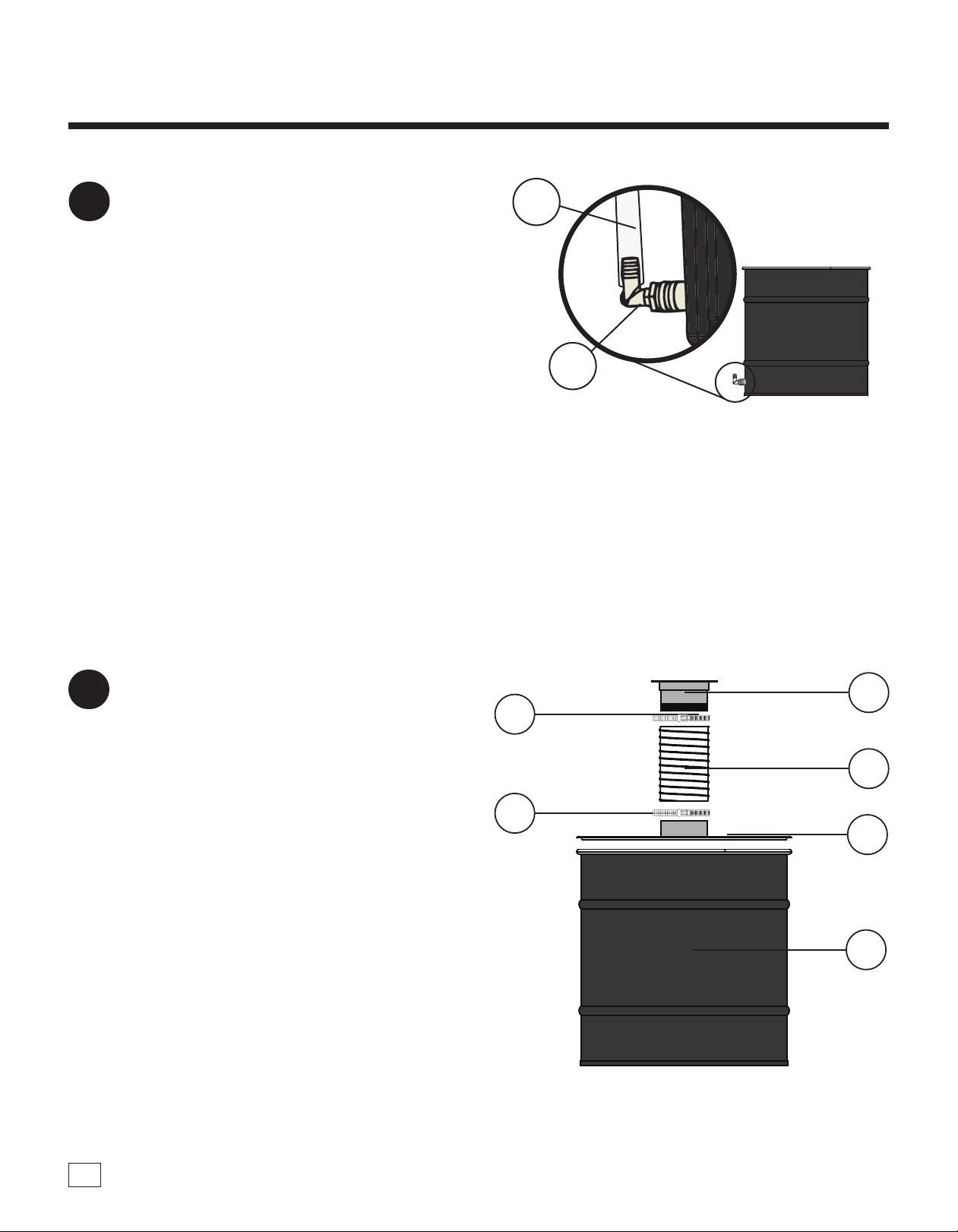

13 Attach the long end of the Tube Assembly
(F26C) onto the Nylon Elbow (F25A) installed
on the lower section of the Drum (I). Push
the Hose onto the tting so that all barbs are
covered [FIG. 13].
Note: If you are not using the automatic bag
holding feature of the system, the Valve of
the Tube Assembly MUST be in the closed
position.
FIG. 13
F25A
F26C
14 Attach the Flex Hose (G) to the inlet on the
Drum Lid (L) and secure it in place using a
Hose Clamp (F37). Loosely place a second
Hose Clamp onto the hose and then move the
Drum (I) underneath the Stand Body (D).
Connect the Flex Hose to the Collar (F28) and
secure in place. [FIG. 14].
Note: e Drum should be rotated so that the
inlet is closest to the wall to provide the best
visibility to the ll viewing window on the
Drum Lid.
G
H
I
F28
F37
F37
