Orient UG1R002B User manual

1
ENGLISH
ENGLISH
ANALOGUE QUARTZ WATCHES WITH DAY/DATE
INDICATOR
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum
performance, please read this instruction manual carefully and familiarize
your-self with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to
prevent any possible physical danger and property damage to you as well as
other people concerned.
... A demarcation with this symbol represents the contents
assuming possibility for death or serious injury
when the product is used in any manner different from
given instructions.
... A demarcation with this symbol represents the contents
assuming possibility of causing human injury or
material damage only when a product is used in any
manner different from given instructions.
WARNING
!
CAUTION
!

2
ENGLISH
IN HANDLING THE WATCH
(1) Water-resistance
Conditions
of use
Type
Underwater
operation of
crown and
operation
of crown
with drops
of water
on it
Exposure
to small
amounts
of water
(face-
washing,
rain, etc.)
Water sports
(swimming,
etc.),
frequent
contact with
water (car-
washing,
etc.)
Skin diving
(air tanks
are not
used)
Scuba
diving
(air tanks
are used)
Mixed-gas
Diving
(using
helium
gas)
Non water resistant
Without
WATER
RESISTANT
(WATER
RESIST)
××××××
Water
resistant
watches
Water
resistant for
daily life
WATER
RESISTANT
(WATER
RESIST) ×××××
Reinforced
water
resistance
for daily
life I
WATER
RESISTANT
(WATER
RESIST)
50m (5bar)
××××
Reinforced
water
resistance
for daily
life II
WATER
RESISTANT
(WATER
RESIST)
100m (10bar)
200m (20bar)
×××
Diver’s
watches
Diver’s
watch for Air
Diving
AIR DIVER’S
100m / 150m
200m ××
Diver’s
watch for
Mixed-gas
Diving
He-GAS
DIVER’S
200m / 300m /...
×
* It is recommended that you use the watch correctly following the above-mentioned scope of usage
after ascertaining water resistance precautions marked on the dial or caseback.

3
ENGLISH
1A watch with water resistance for daily life 30m (3 bar) can be used during
face-washing, etc. but cannot be used in an environment in which it will be
submerged in water.
2A watch with reinforced water resistance for daily life I 50m (5 bar) can be
used while swimming, etc. but cannot be used during any type of diving
including skin diving.
3A watch with reinforced water resistance for daily life II 100m or 200m (10
or 20 bar) can be used while skin diving, but cannot be used while scuba
diving using oxygen tanks or saturation diving using helium gas, etc.
4Keep the crown pushed in at all times (in the normal position) while using
the watch. If the crown is the screwed-down type, check that it is securely
screwed down.
5Do not operate the crown underwater, or while the watch is wet. Water
may enter the interior of the watch and defeat the water resistance.
6If your watch is non-water resistant, beware of splashes of water (during
face washing, rain, etc.) and sweat. If the watch becomes wet from water
or sweat, wipe the moisture off with a dry, soft cloth.
7Even with a water resistant watch for everyday use, avoid directing strong
jets of mains water onto the watch. Water pressure above the limit can
apply, which may defeat the water resistance.
8With a water resistant watch for everyday use, rinse sea water off the case
after exposure, then wipe it thoroughly to avoid corrosion and other effects.
9The interior of the watch contains some amount of moisture, which may
cause fogging on the inside of the glass when the outside air is cooler than
the internal temperature of the watch. If the fogging is temporary it causes
no harm inside the watch, but if prolonged, or if water enters the watch,
consult your place of purchase and do not leave the problem untreated.
CAUTION
!
WARNING
!

4
ENGLISH
(2) Shock
1Be sure not to carry the watch when you engage in strenuous
sports, whereas playing such light sports as golf, etc., will not
adversely influence the watch.
2Avoid a violent shock such as dropping the watch on the
floor.
(3) Magnetism
1If the watch is left at a location with strong magnetism for an extended
period of time, the components may be magnetized, resulting in
malfunction. Be careful.
2The watch may temporarily speed up or slow down when exposed to
magnetism. Precision is restored when placed away from magnetism. In
such a case, reset the time.
(4) Vibration
The watch may lose precision if subjected to strong
vibrations such as from riding motorcycles, using
jackhammers, chain saws, etc.
(5) Temperature
In environments below and above normal temperatures (5°C-35°C), the
watch may malfunction and stop.
Do not use the watch at high temperatures, such as in a sauna. The watch
may heat and cause burns.
(6)Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases,
mercury, chemicals (paint thinner, gasoline, various solvents, detergents
containing such components, adhesives, paint, drugs, perfumes,
cosmetics, etc.), and so forth. Such may cause discoloration of the
watchcase, watchband, and dial face. Discoloration, deformation, and
damage to various resin-based component parts may also occur.
CAUTION
!

5
ENGLISH
(7) About accessory parts
Store the bracelet/strap pin and other small parts out of the reach of
children.
If any small parts are swallowed, immediately contact a doctor.
(8) Allergic reactions
If you develop a skin rash or your skin becomes abnormally irritated due to
contact with the watch or strap, stop wearing the watch immediately and
consult a doctor.
(9) About “luminous light”
Some products have luminous light on the hands and dial.
The luminous light is a safe paint that stores sunlight and artificial light
without using any radioactive material, and emits that light in a dark
setting. As the paint discharges the stored light, it will become dimmer
over time. The amount of light emitted and the time that light is emitted
depends on various factors when the light is stored, such as the shape
of the glass, the thickness of the paint, surrounding brightness level, the
distance from the watch to the light source, and the light absorption level.
Please note that when not enough light energy is stored, the watch may
emit weak light or emit light for only a short time.
(10)Water resistant watchband
Some products employ leather and nylon bands on which a special
treatment to resist perspiration and water absorption have been applied.
Please understand that the water resisting effect of this watchband can be
lost depending on the period and conditions of use.
WARNING
!
CAUTION
!

6
ENGLISH
HOW TO IDENTIFY THE CALIBER NUMBER
Check the caliber number by referring to the model number of your watch or
the case code on the watch’s case back.
1. Searching by 10-digit model number
Check the 10-digit model number on the guarantee supplied with your watch.
You can also see the number on the product tag put on the watch. Its second
and third digits indicate the caliber number of your watch.
Example: If the model number is “UNA5007B”, the caliber number is
“UN”.
2. Searching by the case code
See the case code on the case back of your watch.
The first two digits indicate the caliber number.
Case code
Example : When the case code is “UNA5-D0”, the caliber number is “UN”.
* The place of case code may vary and its letter size may be small and
difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual
appearance of your watch but the function and operation procedures are
the same.

7
ENGLISH
SPECIFICATIONS
(1) Quartz frequency: 32,768 Hz (One-second frequency)
(2) Drive method: Step motor
< 3-hands type with Date Display >
Caliber Loss/Gain (Monthly
rate)
Operating
Temperature
Range
Additional Functions
Battery Battery Life (with new
battery)
Reset
Switch
Second
Hand
Control
Battery
Life
Warning
Device
Date
Forwarding
Device
SZ HE7 ±20sec. -5°C~+50°C ○○ -○SR621SW
(SEIZAIKEN)
1 piece
Approx. 3 years
Some models,
2 years
UN HT7 ±15sec. -10°C~+60°C ○○○ ○
SR920SW
(SEIZAIKEN)
1 piece Approx. 5 years
WC KJ7 ±20sec. -5°C~+50°C ○○ -○SR621SW (SEIZAIKEN)
1 piece Approx. 3 years
< 3-hands type with Date and Day-of-week Display >
Caliber Loss/Gain (Monthly
rate)
Operating
Temperature
Range
Additional Functions
Battery Battery Life (with new
battery)
Reset
Switch
Second
Hand
Control
Battery
Life
Warning
Device
Date
Forwarding
Device
Day of
the week
Forwarding
Device
UG HS9
±15sec.
Some models,
±20sec.
-10°C~+60°C
Some models,
-5°C~+50°C ○○○○○
SR920SW
(SEIZAIKEN)
1 piece
Approx. 5 years
Some models,
3 years
UQ HE9 ±20sec. -5°C~+50°C ○○ -○○
SR621SW
(SEIZAIKEN)
1 piece
Approx. 3 years
Some models,
2 years
* When worn around the wrist at 5°C to 35°C
Product specifications may change without notice, for improvement.

8
ENGLISH

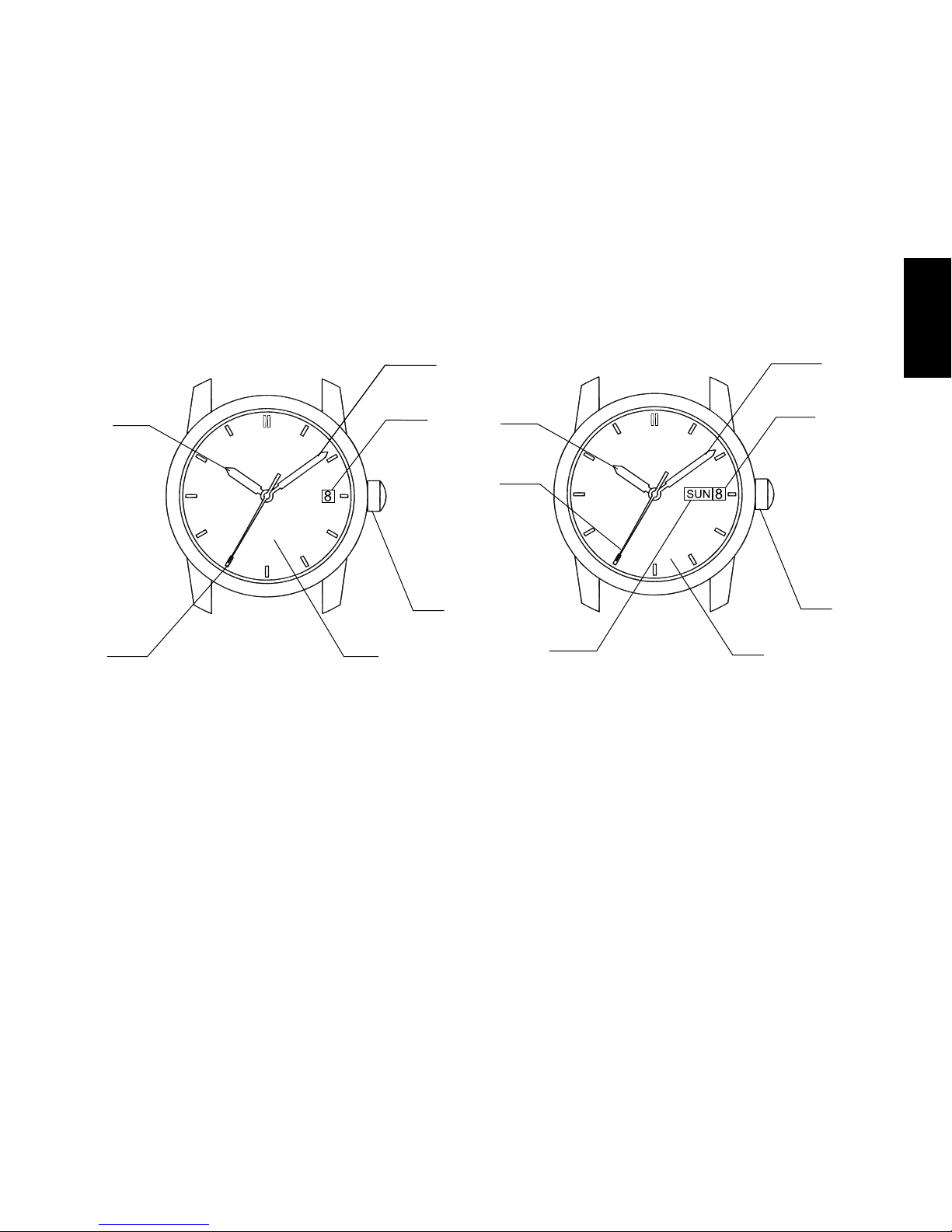

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS
A:Hour hand E: Dial
B:Minute hand F: Date
C:Second hand G:Day of the week
D:Crown
<With Date Display> <With Date and Day of the week Display>
D
C
B
A
E
F
D
B
A
E
F
G
C
* The position of the crown, date or day of the week indicator etc. may vary
on some models.
* Some watches may have the date indicator in a different position with either
separate ones and tens digits or a single date indicator.
MODELS WITH SCREWED-DOWN CROWN
Depending on the model, you may not be able to pull the crown out without
unscrewing it (models with screwed-down crown).
Operate this type of watch as follows:
(1) Before setting the time or calendar, first turn the crown to the left to loosen
the screw lock.
(2) After setting the time or calendar, turn the crown to the right while pressing
in, until it stops turning to securely tighten the screw.

9
ENGLISH
 HOW TO SET THE TIME
(1) When the second hand comes to a
position of 0 second (12 o’clock), pull the
crown out to the second clicks.
The second hand will stop.
(2) Turn the crown to set the time.
To set the time accurately, advance the
minute hand four or five minutes ahead
of the correct time, then move it back to
the correct time.
*Since the calendar changes at
midnight, take care not to confuse a.m.
and p.m. when setting the time.
(3) Press the crown back in to the normal
position.
 HOW TO SET THE CALENDAR
(1) Pull the crown out to the first click. The
crown on this watch can be pulled out to
the first and second clicks.
Turn
Counterclockwise
Turn Clockwise

10
ENGLISH
(2) Turning the crown, adjust to the today’s date and day of the week.
*On models with separate date indicators, the tens digit will increase by
one whenever the ones digit changes from 9 to 0.
For the crown turning directions, see the table below.
*Some watches may have crowns that rotate in the direction opposite that
shown in the table below.
Date Correction Day of the week Correction
Watch with Date Display Turn clockwise
Watch with Date and Day of the week Display Turn counterclocckwise Turn clockwise
WARNING
!
Do not set the calendar at the following time zone. Otherwise, the calendar
may not change properly. If it is necessary to set the calendar during that time
period, first change the time to any time outside it, set the calendar and then,
reset the correct time.
• Models with the date display … Between 8:00 p.m. and 2:00 a.m.
• Models with the date and day of the week display … Between 8:00 p.m.
and 5:00 a.m.
* The day of week can be displayed in
two languages (only one language may
be available depending on the product
specifications).
Select your desired language.
Turn
Counterclockwise
Turn Clockwise
