ARCHISHAPE®Media Tube
INSTALLATION GUIDE
V1.0
Cover:
ARCHISHAPE®Media Tube RGBW
ARCHISHAPE®Media Tube RGB
ARCHISHAPE®Media Tube DW
ARCHISHAPE®Media Tube Mono

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 2 of 27
CONTENT
1. INTRODUCTION 3
2. INSTALLATION 8
3. SAFETY AND OPERATION 15
4. SYSTEM CONFIGURATION 16
5. CARE AND MAINTENANCE 22
6. TROUBLESHOOTING 23
7. TECHNICAL SPECIFICATION 24
8. WARRANTY STATEMENT 26
For your own safety and that of the product, please read this installation guide
carefully before beginning setup and installation.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 3 of 27
1. INTRODUCTION
1.1 General
ARCHISHAPE®Media Tube Diffused View Length
(mm)
Maximum number of pixels
(PXL)
AS Media Tube RGBW 1000 10PXL DF R 1000 10
AS Media Tube RGBW 500 5PXL DF R 500 5
AS Media Tube RGBW 300 3PXL DF R 300 3
AS Media Tube RGB 1000 10PXL DF R 1000 10
AS Media Tube RGB 500 5PXL DF R 500 5
AS Media Tube RGB 300 3PXL DF R 300 3
AS Media Tube DW 1000 10PXL DF R 1000 10
AS Media Tube DW 500 5PXL DF R 500 5
AS Media Tube DW 300 3PXL DF R 300 3
AS Media Tube 830 1000 ONOFF DF R 1000 N/A
AS Media Tube 830 500 ONOFF DF R 500 N/A
AS Media Tube 830 300 ONOFF DF R 300 N/A
AS Media Tube 865 1000 ONOFF DF R 1000 N/A
AS Media Tube 865 500 ONOFF DF R 500 N/A
AS Media Tube 865 300 ONOFF DF R 300 N/A
ARCHISHAPE®Media Tube Direct View Length
(mm)
Maximum number of pixels
(PXL)
AS Media Tube RGBW 1000 10PXL CR 1000 10
AS Media Tube RGBW 500 5PXL CR 500 5
AS Media Tube RGBW 300 3PXL CR 300 3
AS Media Tube RGB 1000 10PXL CR 1000 10
AS Media Tube RGB 500 5PXL CR 500 5
AS Media Tube RGB 300 3PXL CR 300 3
AS Media Tube DW 1000 10PXL CR 1000 10
AS Media Tube DW 500 5PXL CR 500 5
AS Media Tube DW 300 3PXL CR 300 3

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 4 of 27
ARCHISHAPE®Media Tube fits into any wall, façade or media lighting application with
tight installation space, while the wide beam angle output and 10-pixels-per-meter ensures
a smooth illumination experience. This greatly simplifies the lighting installation for building
façades, media applications, bridges and more.
Features:
• Available lengths: 300mm (3PXL), 500mm (5PXL), and 1000mm (10PXL)
• Diffused view and direct view
• Three color options: RGBW, RGB, DW (2700K - 6500K), Mono
• DMX512 or ON / OFF
• Daisy Chain System with quick lock connectors
• Outdoor Applications

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 5 of 27

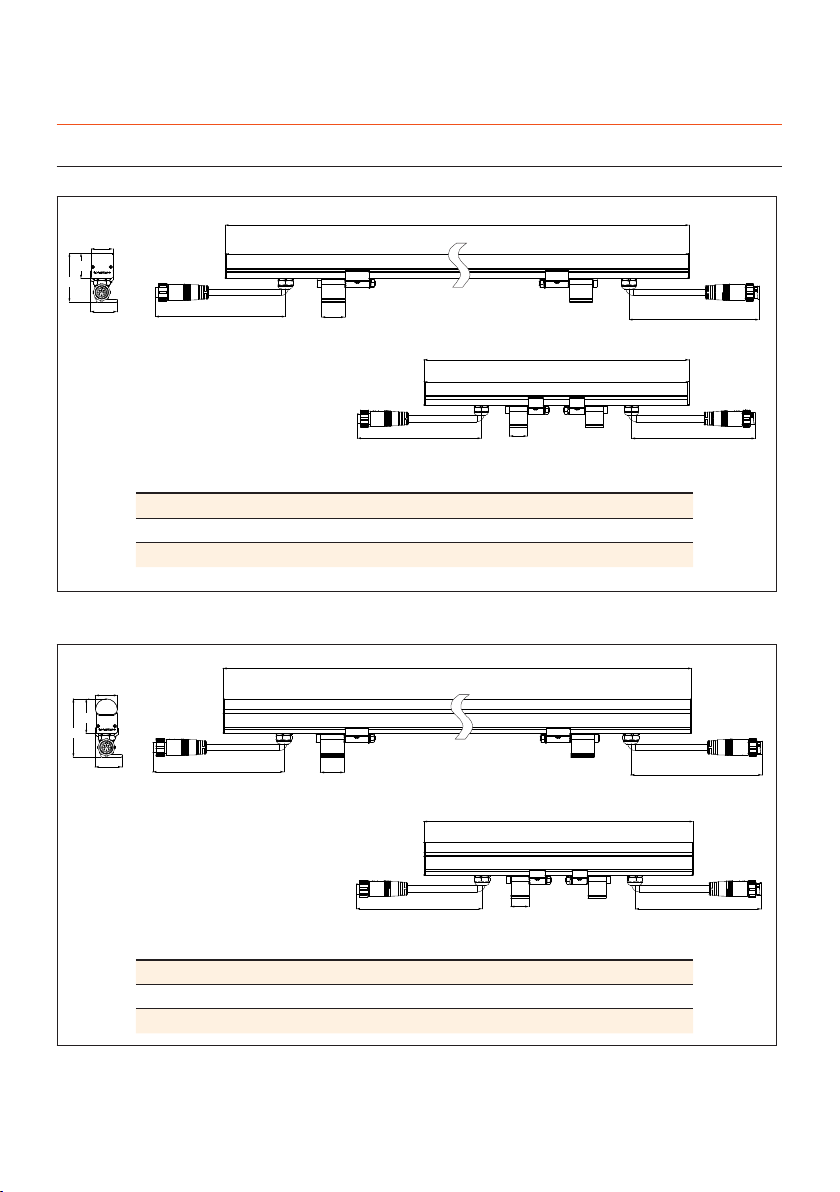

1.2 Dimensions
FIG.1: ARCHISHAPE®Media Tube Direct View
300mm
500mm, 1000mm
W1
W2
H2
H1
W1 W2 H1 H2
1000mm 23.5mm 28.4mm 52.4mm 27.2mm
500mm 23.5mm 28.4mm 52.4mm 27.2mm
300mm 23.5mm 28.4mm 52.4mm 27.2mm
FIG.2: ARCHISHAPE®Media Tube Diffused View
300mm
500mm, 1000mm
W1
W2
H2
H1
25mm
140mm 140mm
140mm 140mm
20mm
W1 W2 H1 H2
1000mm 23.5mm 28.4mm 62mm 37mm
500mm 23.5mm 28.4mm 62mm 37mm
300mm 23.5mm 28.4mm 62mm 37mm
25mm
140mm 140mm
140mm 140mm
20mm

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 6 of 27

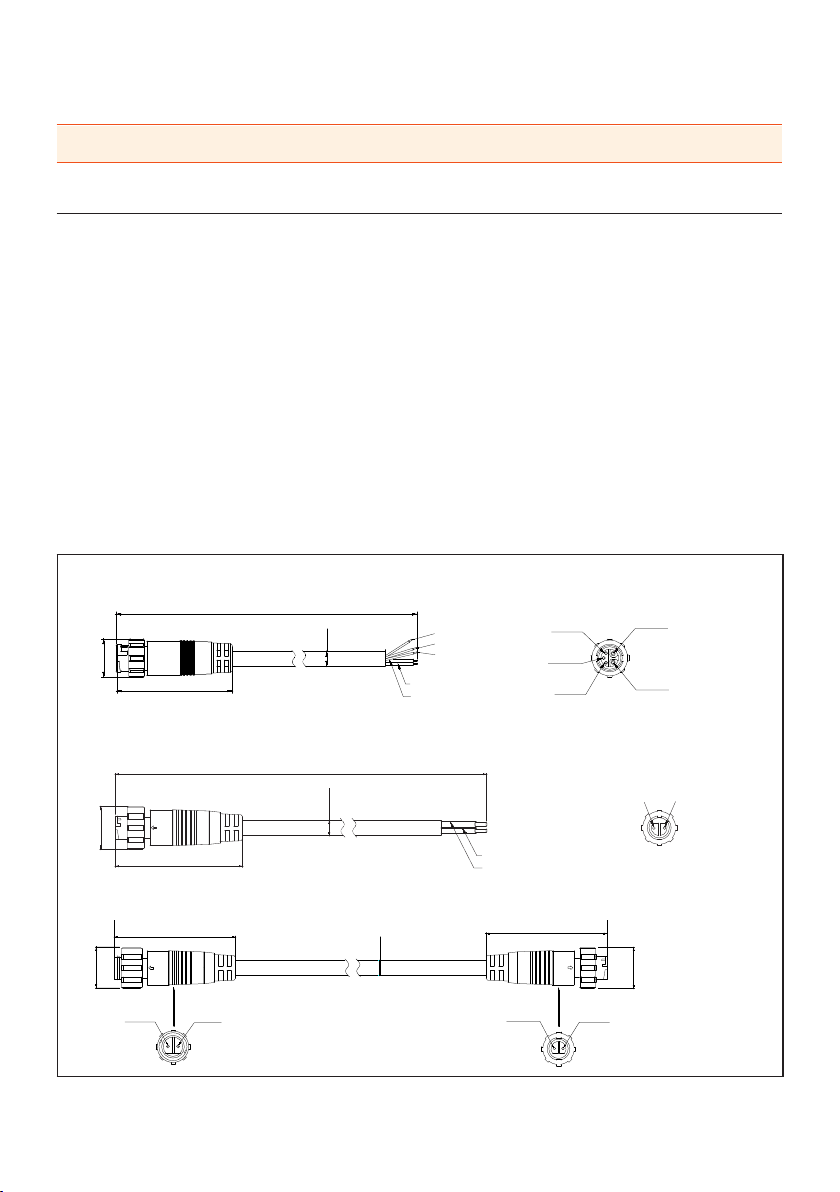

FIG.3: ARCHISHAPE®Media Tube Accessories
Start Cable, 5-wire, 2m (AM437890055)
2m
19.2mm
58.1mm
Ø7.8mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address Green: DMX+
Yellow: Address
Blue: DMX- Black: DC24V-
Red: DC24V+
Starter Cable, 2-wire, 2m (AM437930055)
19mm
Brown Blue
2m
Blue: DC24V-
Brown: DC24V+
57mm
Ø6.8mm
End Cap with 120Ω terminator (AM437910055)
19.1mm
57mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
1m
19.1mm
57mm
19.2mm
58.5mm
Inter cable, 5-wire,1m (AM437900055)
Ø7.8mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Y-cable, 0.15m (AM437920055)
19.1mm
19.2mm
58.5mm
57mm
19mm
Ø7.8mm
5-wire black rubber cable
2*1mm² power cable +
3*0.5mm² signal cable
37mm
Ø7.8mm
2-wire black rubber
cable 2*1mm²
57mm
150mm 150mm
Blue: DC24V-
Brown: DC24V+
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 7 of 27
Inter cable, 2-wire,1m (AM437950055)
1m
57mm
Ø6.8mm
Blue
Brown Blue Brown
19mm
19mm
57mm

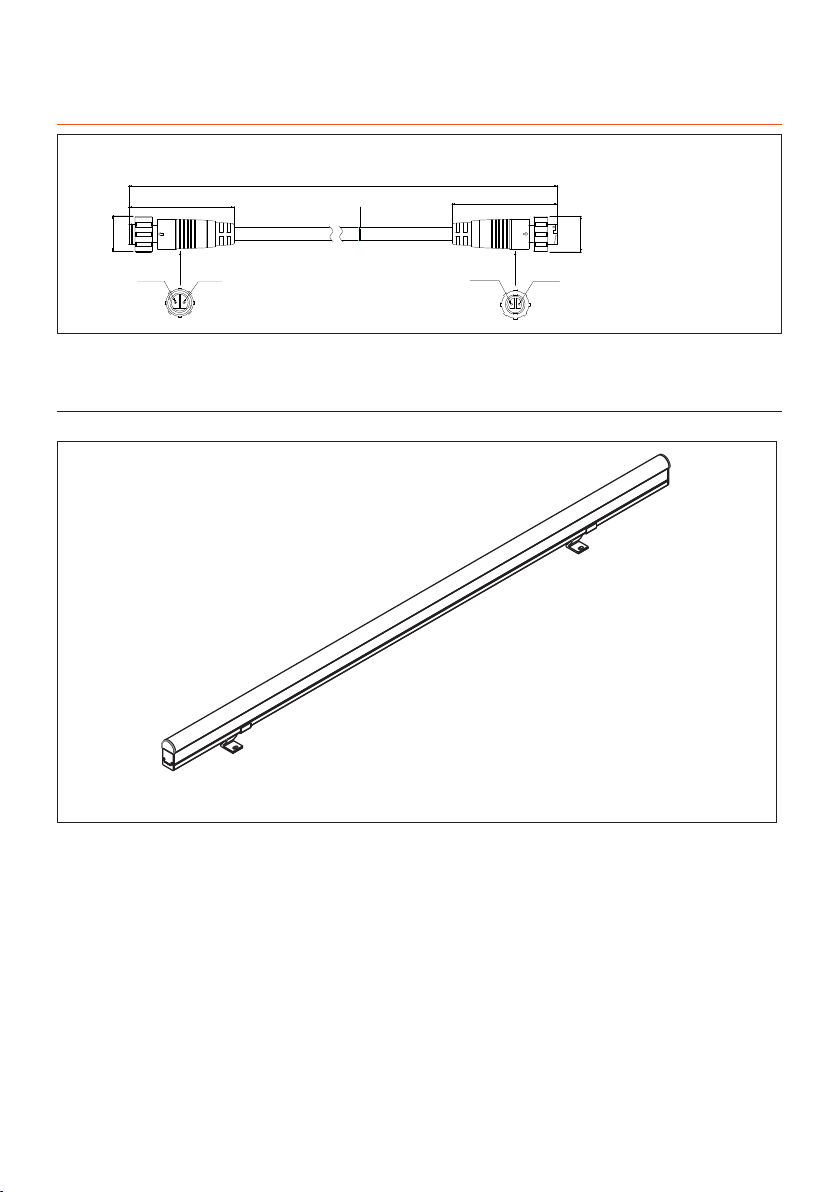

1.3 Packing Contents
FIG.4: Packing Contents
ARCHISHAPE®Media Tube Direct / Diffused View x 1
(Either one of the 300mm, 500mm, and 1000mm version)
For all versions of ARCHISHAPE®Media Tube, mounting bracket x 2

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 8 of 27

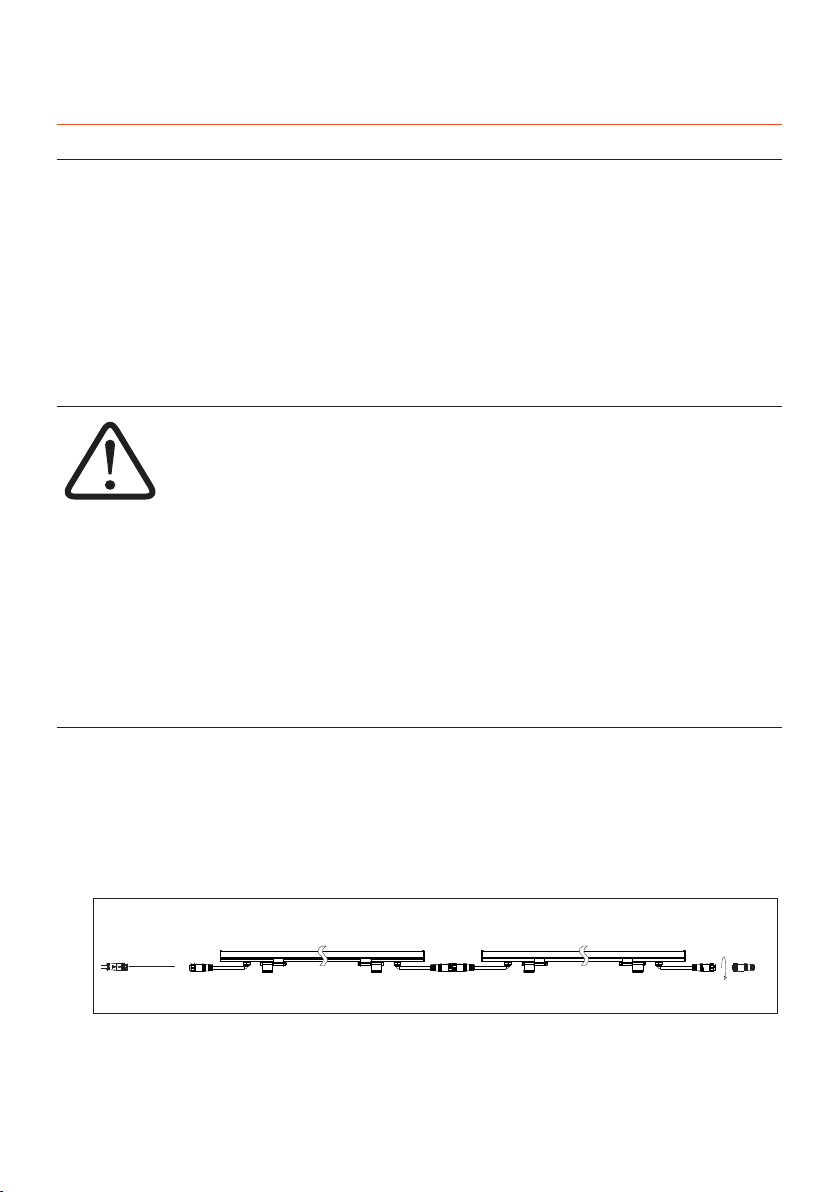

2. INSTALLATION
2.1 Points To Consider
Plan your installation before mounting the ARCHISHAPE®Media Tube. The following should
be considered for a successful installation.
• Weather conditions and ambient temperature of installation site.
• Appropriate cable lengths (cable gauges described in system diagram). Please consult your
local Traxon office or authorized agent for necessary aid.
• The number of the ARCHISHAPE®Media Tube and appropriate LED Engines.
• DMX512 to be used to control the ARCHISHAPE®Media Tube.
• Distance between each Tube for thermal expansion and maintaining pixel pitch.
• Mounting distances should be paid attention on.
• Proper surge protection.
FIG.5: ARCHISHAPE®Media Tube Cable System
Start Cable, 5-wire, 2m (AM437890055)
2m
19.2mm
58.1mm
Ø7.8mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address Green: DMX+
Yellow: Address
Blue: DMX- Black: DC24V-
Red: DC24V+
Starter Cable, 2-wire, 2m (AM437930055)
19mm
Brown Blue
2m
Blue: DC24V-
Brown: DC24V+
57mm
Ø6.8mm
Starter Cable - 5 wire, 2m
From terminal block to first ARCHISHAPE®Media Tube in chain
Starter Cable - 2 wires 2m
From terminal block to first ARCHISHAPE®Media Tube in chain
End Cap for ON/OFF
The end cap for ON/OFF control
Inter cable, 2-wire,1m (AM437950055)
1m
57mm
Ø6.8mm
Blue
Brown Blue Brown
19mm
19mm
57mm

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 9 of 27
1m
19.1mm
57mm
19.2mm
58.5mm
Inter cable, 5-wire,1m (AM437900055)
Ø7.8mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Y-cable, 0.15m (AM437920055)
19.1mm
19.2mm
58.5mm
57mm
19mm
Ø7.8mm
5-wire black rubber cable
2*1mm² power cable +
3*0.5mm² signal cable
37mm
Ø7.8mm
2-wire black rubber
cable 2*1mm²
57mm
150mm 150mm
Blue: DC24V-
Brown: DC24V+
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
End Cap with 120Ω terminator (AM437910055)
19.1mm
57mm
Red: DC24V+
Black: DC24V-
Green: DMX+
Blue: DMX-
Yellow: Address
Interconnection Cable - 5 wire, 1m
From ARCHISHAPE®Media Tube to another ARCHISHAPE®Media Tube
Y Cable - 0.15m
To combine power and data to ARCHISHAPE®Media Tube
End Cap with 120Ω Terminator
The end cap includes DMX data terminator

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 10 of 27
2.2 Pre-Installation Checks
2.2.1 Installation Checklist
1. Prepare cables and all necessary accessories (Waterproof Quick Lock End Caps etc).
2. Perform functional check of the ARCHISHAPE®Media Tube. Take care not to damage
cables/connectors during pre-installation checks.
3. Ensure all pre-installation checks laid out below have been followed.
4. Mount the ARCHISHAPE®Media Tube on-site. If the installation is to be left uncompleted
overnight, place all non-connected LED Engines and the ARCHISHAPE®Media Tube in
an indoor environment.
Ensure all the Interconnection Cables, ARCHISHAPE®Media Tube and LED Engines are
initially stored in a dry area to guarantee the complete sealing of the system from water before
installation.

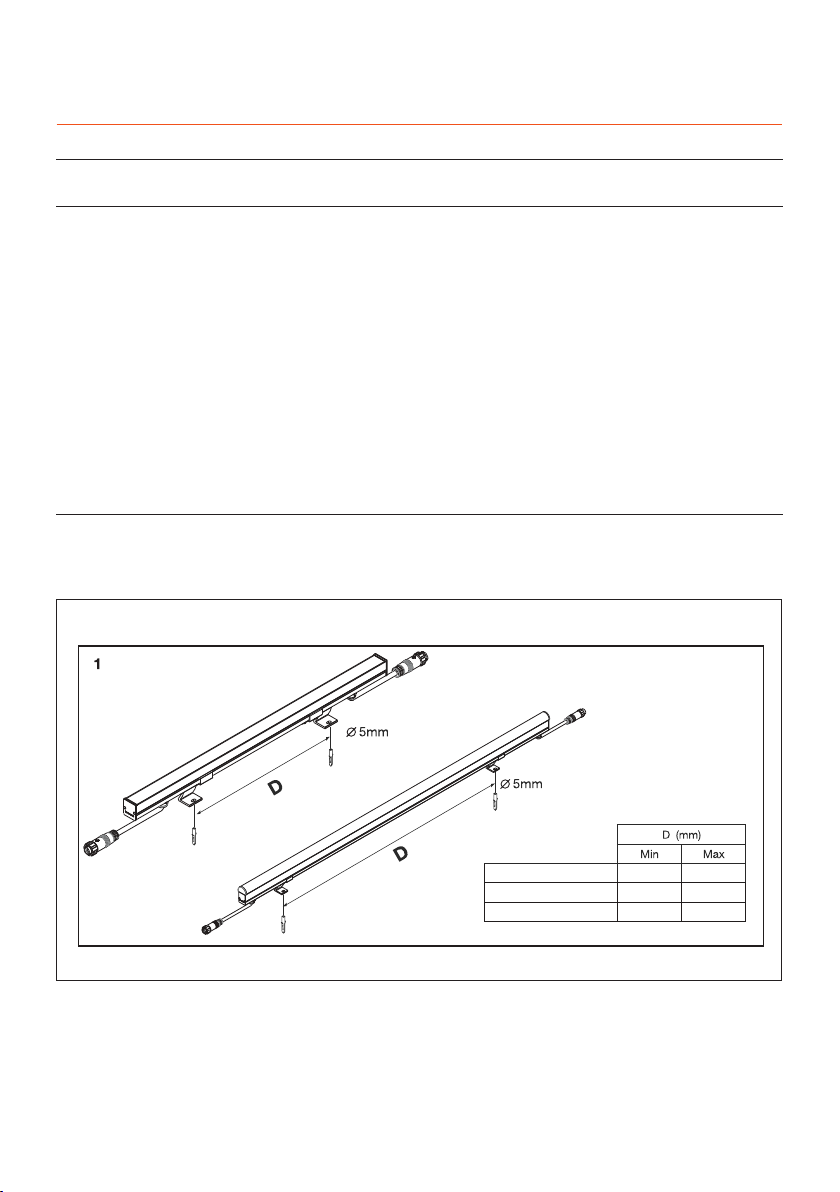

2.2.2 Mounting Bracket
5mm screws with spring washers and washers are needed to fix the mounting bracket. The
mounting brackets can be moved and the bracket distances are recommended values.
FIG.6: Mounting Bracket (RGBW, RGB, DW)
750
75
250
AS Media Tube300
AS Media Tube500
AS Media Tube1000
200
DMX+
60
650
Flat gasket and
spring gasket
(by others)
304 stainless steel
screw (by others)
NOTE: Clear view AS Media Tube and diffused view
AS Media Tube share the same mounting steps.
Address
DMX-

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

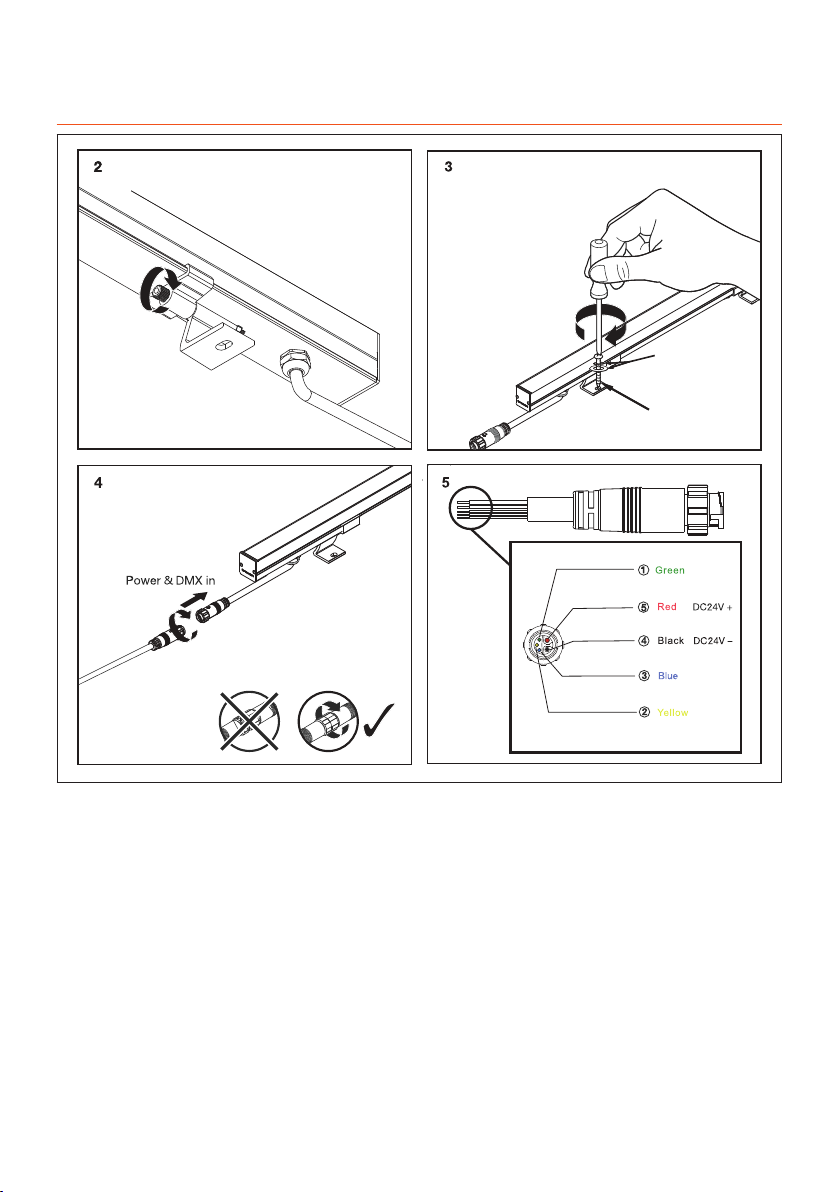

Installation Guide V1.0 10/21 11 of 27
750
75
250
AS Media Tube300
AS Media Tube500
AS Media Tube1000
200
DMX+
60
650
Flat gasket and
spring gasket
(by others)
304 stainless steel
screw (by others)
NOTE: Clear view AS Media Tube and diffused view
AS Media Tube share the same mounting steps.
Address
DMX-

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 12 of 27
FIG.7: Mounting Bracket (Mono)
750
75
250
AS Media Tube300
AS Media Tube500
AS Media Tube1000
200
60
650
Flat gasket and
spring gasket
(by others)
304 stainless steel
screw (by others)
Brown

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 13 of 27
2.2.3 Installation Sequence
1. Measure the correct distances for brackets and install the ARCHISHAPE®Media Tube
fixtures.

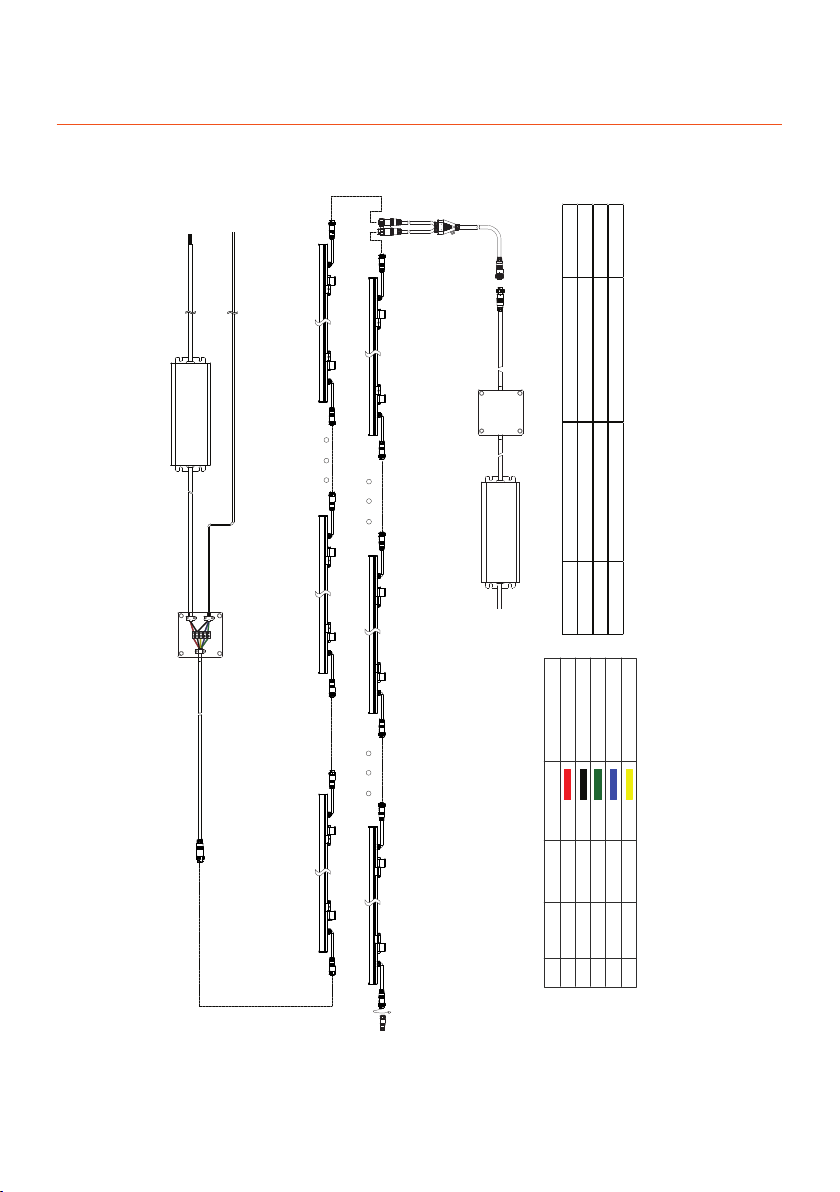

2. Connect the ARCHISHAPE®Media Tube in the daisy-chain manner outlined in the
System Diagram to form large installations.
3. Perform functional check on all the ARCHISHAPE®Media Tube and inspect cables and
brackets for any damage. Check for any abnormalities with the control signal.
4. Report any functional defect found to your nearest Traxon Technologies office. DO NOT
attempt to install the ARCHISHAPE®Media Tube with functional defects on-site.
2.3 On-Site Installation
• DO NOT attempt installation in wet or severe weather conditions.
• DO NOT leave and expose any ARCHISHAPE®Media Tube or LED
Engines unconnected under wet/raining or snowing environment.
• IP failure induced by stressed/damaged cables during or after installation
will not be under warranty by Traxon Technologies.
• ALWAYS keep the cables protected from sharp objects and ensure no
damage is generated on the cable.
Failure to keep ARCHISHAPE®Media Tube within the operating temperature range of –30°C
to +50°C / –22°F to +122°F and storage temperature range of –40°C to +70°C / –40°F to
+158°F will void the product’s warranty.
2.3.1 On-Site Installation
1. Fix brackets to installation surface with anchor bolts or screws.
2. The ARCHISHAPE®Media Tube are interconnected using the IN and OUT cables/
connectors on each end of the tube. Connectors will make an audible “click” when
connected. Gently pull on the cables in opposites directions to ensure they are fulled
locked and do not come loose. Below diagram shows the Tube connections. Always
remember to affix an Quick Lock Waterproof End Cap (sold separately) for the OUT
connector of the final Tube in each daisy chain. See System Diagram for details.
FIG.8: ARCHISHAPE®Media Tube Connections
Starter Cable End Cap

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 14 of 27
NOTE: Any water ingress incurred due to improper installation of cable connectors
or Waterproof Quick Lock End Caps will not be covered under warranty by Traxon
Technologies.
Be sure not to compress the IN/OUT cables.
NOTE: To keep LED pitch consistent and allow for thermal expansion, be sure to keep a
minimum distance of 4mm (0.16”) between consecutive ARCHISHAPE®Media Tube (see
below diagram).
FIG.9: Keep minimum distance between fixtures
To maintain consistent LED pitch and to allow for thermal expansion for Tubes.
End Cap Seal on Last Tube
>4mm
3. The first tube of the daisy-chain group has to be connected to the control system via
Waterproof Junction Box (not included).Starter cables, Data and Power cables, and
video fiber optic cables have to be installed through conduits.
4. Set up the control system indoors as detailed in the System Diagram and connect to the
ARCHISHAPE®Media Tube outside. Start up each unit and verify correct function.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 15 of 27
3. SAFETY AND OPERATION
• CAUTION - Unplug the power supply from the mains power before connecting any cables
as this can damage the products.
• CAUTION - Avoid looking directly into the LED light source at close range for your own
safety.
• Persons installing this product should make sure:
1. The installation complies with all applicable codes, state and local laws,
ordinances, standards and safety regulations.
2. The installation environment is carefully studied and suitable surge protection
measure(s) is taken.
3. He or she is qualified for the handling of electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels
are fully understood. This product is designed for indoor and outdoor use.
• Ensure product operates within the specified temperature range. (Refer to 7. TECHNICAL
SPECIFICATION for more details.)
• The Allegro Media Tube Lite does not contain any user-serviceable parts. Opening of the
luminaire will void the warranty.
• Do not use the product if any part of it, or the power cables are damaged.
• Only use product for specified voltage, do not exceed. (Refer to 7. TECHNICAL
SPECIFICATION for more details.)
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following
transportation, do not connect the fixture until it has reached room temperature, as
moisture condensation may cause electric shock and product damages.
• When installing the products and system power supplies, please ensure they will not be
exposed to moisture and extreme heat (and direct sunlight for outdoor products). Besides,
keep a clean operating environment for the fixtures and system power supplies.
• Please study this Installation Guide thoroughly and check the latest Technical Specification
Sheets available from the Traxon website www.traxontechnologies.com before setup.
• Any non-compliance of the Installation Guide will void the Traxon warranty.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 16 of 27
4. SYSTEM CONFIGURATION
4.1 LED CONTROL
The LEDs on the ARCHISHAPE®Media Tube are controlled by DMX512. For RGBW, each
pixel on the Tube uses six RGB 3 in 1 LEDs and six white LEDs, for R, G, B and W channels.
Pixel number 1 begin on the IN connector side, and it uses the first four channels. RGB and
DW work in a similar way, but use less pixels per length.
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGBW
Pixel n Control Channel Number
R +4(n-1) + 1
G +4(n-1) + 2
B +4(n-1) + 3
W +4(n-1) + 4
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGB
Pixel n Control Channel Number
R +3(n-1) + 1
G +3(n-1) + 2
B +3(n-1) + 3
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 17 of 27
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
DW
Pixel n Control Channel Number
WW + 2 (n-1) + 1
CW + 2n
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 18 of 27
FIG.10: System Diagram
Tubes are daisy chained
Signal
DC24V+
DC24V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC24V+
DC24V–and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
DMX In
300mm
LED Engine 24V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
Color Type Max. Signal Daisy Chain Max. Power Daisy Chain PSU Power
RGBW 12m 8m 150W
RGB 17m 8m 150W
DW 25m 8m 150W
AC In
LED Engine 24V Junction Box (by others)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 19 of 27
FIG.11: System Diagram-Snake Model (Direct View)
Signal
DC48V+
DC48V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC24V+
DC24V– and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
DMX In
300mm
LED Engine 24V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
End Cap
Tubes are daisy chained
Interconnection cable (optional)
Interconnection cable (mandatory)
Color Type Max. Signal Daisy Chain Max. Power Daisy Chain PSU Power
RGBW 12m 8m 150W
RGB 17m 8m 150W
DW 25m 8m 150W

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 10/21 20 of 27
FIG.12: System Diagram-Snake Model (Diffused View)
Signal
DC48V+
DC48V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC24V+
DC24V– and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
DMX In
300mm
LED Engine 24V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
Tubes are daisy chained
Interconnection cable (optional)
Interconnection cable (mandatory)
End Cap
Color Type Max. Signal Daisy Chain Max. Power Daisy Chain PSU Power
RGBW 12m 8m 150W
RGB 17m 8m 150W
DW 25m 8m 150W
