Panasonic KX-TD7590CE User manual

DECT Portable Station
Model No. KX-TD7590CE
Operating Instructions
– Thank you for purchasing a DECT Portable Station.
– Charge the battery for about 6 hours before initial use.
– For more details, please refer to the User Manual Addendum
for the KX-TD7590CE.
– In this manual, the last letter of each model number is omitted.
Getting Started................. 2
Display (LCD)................... 5
Key Operations ................ 7
Selecting the Display
Language ..................... 9
Making a Call ................. 10
Receiving a Call............. 12
Holding a Call................. 13
Transferring a Call.......... 14
Key Lock Setting............ 14
Using the Directory ........ 15
PS Programming............ 25
Editing Labels of Flexible
CO Button on LCD..... 32
Other information ........... 34
Safety Instructions.......... 37
CONTENTS
Regulations................... 40
Attention!!...................... 40
RF Specifications.......... 40
English .................... 1–40
Deutsch ................. 41–80
Français............... 81–120
Nederlands ........ 121–160
English Deutsch Français Nederlands
TD7590-E(01~24) 00.8.11 7:57 PM Page 1

2
GETTING STARTED
ACCESSORIES
PORTABLE STATION (PS)
Rechargeable Battery
PSP1F6122485
Operating Instructions
PSQX2035Z
HEADSET Jack
CALL/CHARGE
Indicator
UP/DOWN
Buttons DISPLAY
CANCEL/POWER
Button
INTERCOM
Button
CLEAR/TRANSFER
Button
MICROPHONE
SELECT Button
TALK Button
FLEXIBLE CO
Buttons
(F1 through F3)
I/O Port*
DIAL Buttons
FUNCTION/
KEY-LOCK Button
AUTO/OK
Button
RECEIVER
Antenna
KX-TD7590
*For service use only.
TD7590-E(01~24) 00.8.11 4:56 PM Page 2

3
Cord
(Red) Cord
(Black)

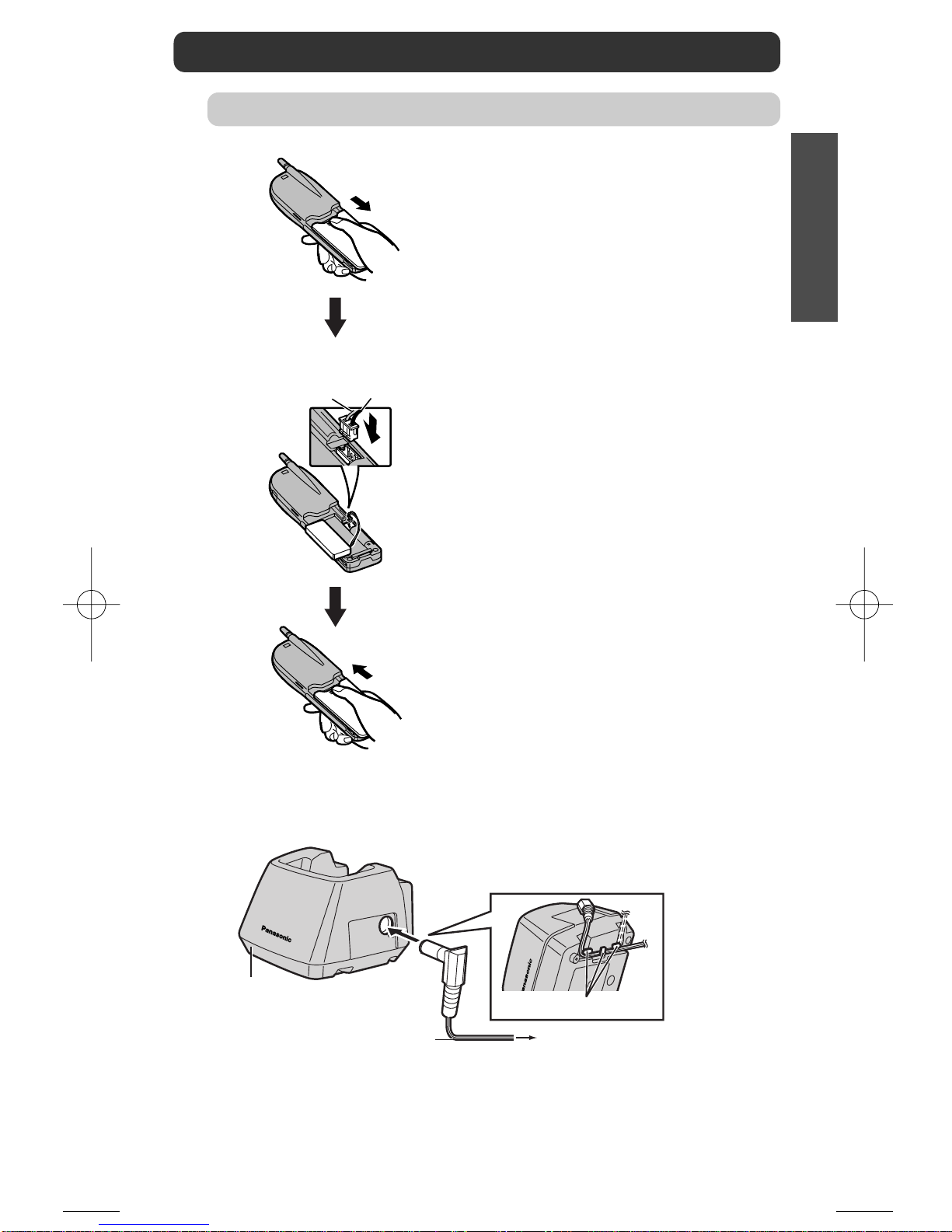

Connect the battery cord
and install the battery.
GETTING STARTED (CONT.)
SETTING UP
Connect the charger to a power outlet using
the AC adaptor.
2
1
Open the battery cover.
Close the cover.
Cord Holder
To Power Outlet
AC Adaptor
Charger
TD7590-E(01~24) 00.8.11 4:56 PM Page 3

4
To power “ON”, press (CANCEL/POWER) button
about 5 seconds, until “KX-TD7590” is displayed.
To power “OFF”, press button for a short time.
NOTE:
•The charger can be wall mounted.
•The PS and charger get warm during charging. This is
normal and not dangerous.
•Be sure to complete charging before initial use.
•Keep magnetically sensitive items away from the
charger.
•It takes longer to charge the PS if you put the backside
of the PS forward in the charger.
GETTING STARTED (CONT.)
4Register your PS in the system.
• Consult your dealer.
POWER
Charge the battery for about
6 hours.
• See pages 36 and 38 for more
details about the battery.
• When charging has been
completed, the charge indicator
will change from red to green.
3
To power
outlet
Charge indicator
Charger
TD7590-E(01~24) 00.8.11 4:56 PM Page 4

5
DISPLAY (LCD)
The display has 4 lines with 16 characters per line. At the
top of the display,the related symbols show information
for certain call activities.
The selected
function for F1 The selected function for F3
Battery strength:
fully charged
medium
low
needs to be
charged
The selected
function for F2
In the PS Programming mode:
(e.g.)
In Modify Book /
Edit Flexible CO buttons /
Enter Password mode:
In Modify Book / Select Directory mode
In PS Programming mode
The PS Programming menu number
A message from
another extension
has been received
In off-hook status
In off-hook status for intercom
The strength of radio signals from the Cell Station:
Press (OK).
Change the display by pressing or , if there are other
items out of the display
OK
Best
Good
Out of range
May catch noise
Catches noise easily
or disconnects
(flashing)
In function mode
— to use combination buttons
TD7590-E(01~24) 00.8.11 4:56 PM Page 5

6

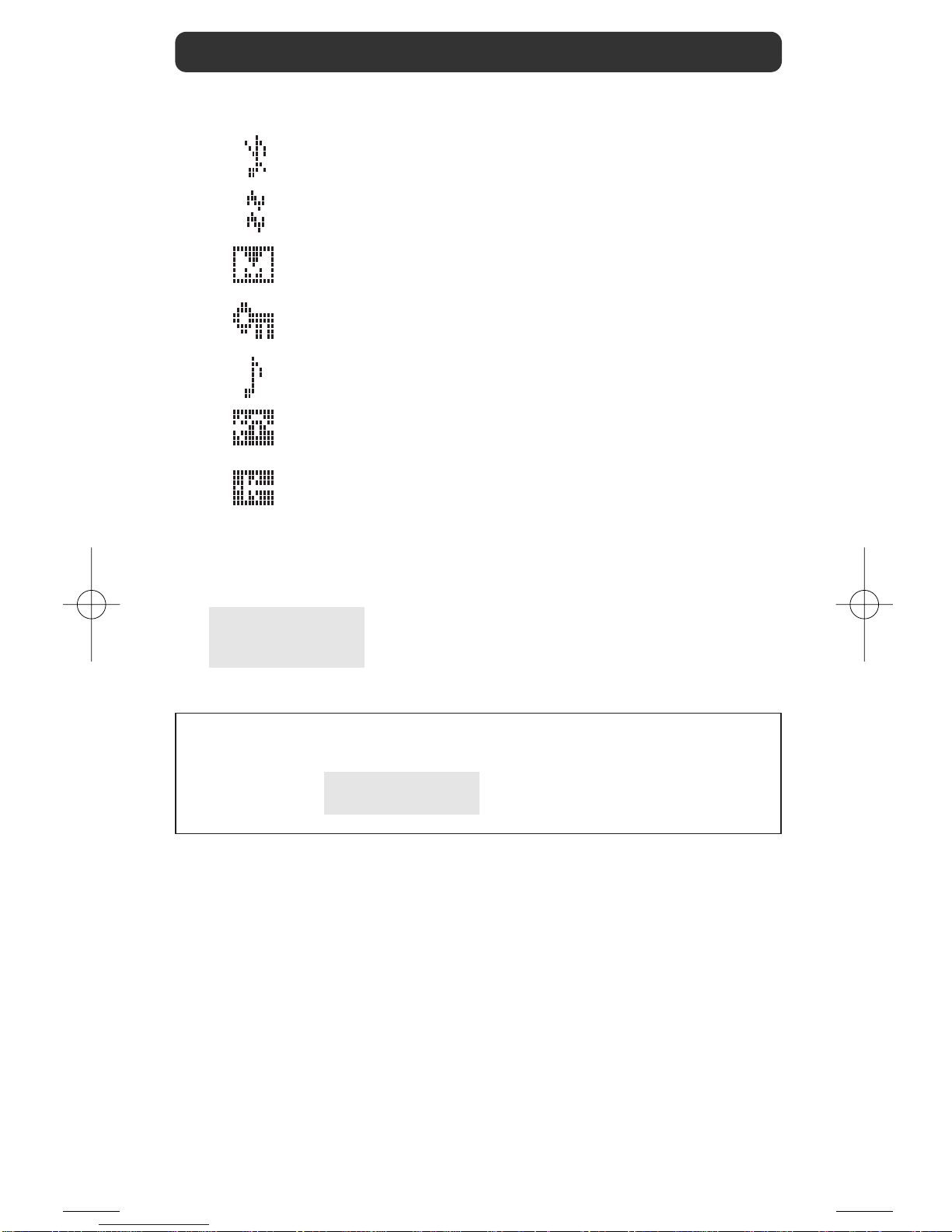

DISPLAY (CONT.)
After powering ON, the following display appears.
1 Jan 1:00
[1-290]
L-CO F2 F3
NEED REPAIR
N
Vibration mode
Meeting mode
Key Lock ON mode
Ringer ON mode
Ringer OFF mode
Other icons
FWD
DND
If the following display appears, consult your dealer.
(N: 1–3)
TD7590-E(01~24) 00.8.11 4:56 PM Page 6

7
The following buttons can be activated by display
operations when they are available. These buttons can
also be activated using a combination of buttons. The
description and button combinations are as follows.
PAUSE Button (+)
Used to insert a pause between numbers.
FWD/DND Button (+)
Used to set the Call Forwarding or Do Not Disturb
(DND) features.
MESSAGE Button (+)
Used to leave a notification for the called party or
call back the message sender.
CONFERENCE Button (+)
Used to establish a three party conversation.
TONE Button (+)*
Used to change the dialling mode temporarily to
tone (pulse to tone conversion).
FLASH Button (+)
Used to disconnect the current call and to make
another call.
HOLD Button (+)
Used to place a call on hold.
FKEY LIST Display Button (+)
Used to display the selected features of the Flexible
CO Buttons.
REDIAL Button (+)
Used to display the last 5 numbers you called.
PS-PROGRAM Button (+)
Used to enter the PS-Programming mode.
0
F
9
F
8
F
7
F
6
F
5
F
4
F
3
F
2
F
1
F
KEY OPERATIONS
TD7590-E(01~24) 00.8.11 4:56 PM Page 7

8
*The TONE button is not available on the KX-TD816/
KX-TD1232FR, KX-TD816/KX-TD1232NE,
KX-TD816/KX-TD1232SL.
You can shift F-KEY functions (see pages 7 and 8) by
pressing the (up) or (down) buttons.
For operations using these buttons, refer to “DPT
Features” in the KX-TD816/KX-TD1232 User Manual.
KEY OPERATIONS (CONT.)
Press (function).
Press or repeatedly until
the desired button is displayed.
Press (select).
Continue with the required
operations.
4
SELECT
3
2
F
1
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
PAUSE (KEY1)
TONE (KEY5)
FKEY LIST (KEY8)
T
WAVESEARCH Button (+)
Used to search the best Cell Station.
EDIT MODE Button (+)
Used to select a mode to edit on Directories (except
the PBX Extension Dialling Directory) or in
pre-dialling.
PROGRAM Button (+)
Used to enter programming mode.
Flexible CO Button ( +//)
Used to edit the Flexible CO buttons.
F3
F2
F1
F
F
F
F
F
TD7590-E(01~24) 00.8.11 4:56 PM Page 8

9

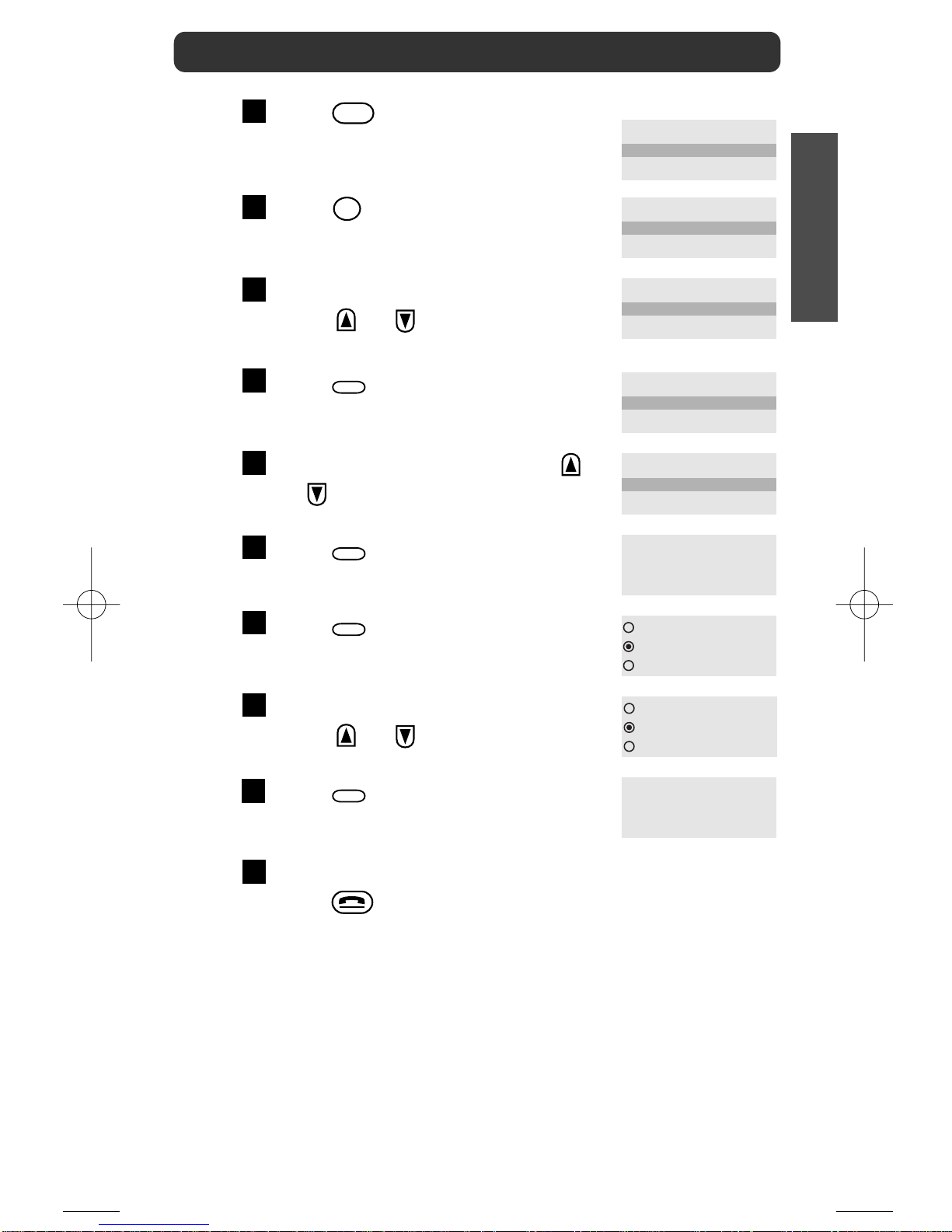

SELECTING THE DISPLAY LANGUAGE
Press .
Press .
To select “DISPLAY SETTING”,
press or repeatedly.
Press .
To select “LANGUAGE”, press
or repeatedly.
Press .
Press .
To select the desired language,
press or repeatedly.
Press .
To exit the Display Setting mode,
press (Cancel).
10
SELECT
9
8
SELECT
7
SELECT
6
5
SELECT
4
3
0
2
F
1
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
Back Menu
ANSWER SETTING
DISPLAY SETTING
ANSWER SETTING
DISPLAY SETTING
BEEP SETTING
Back Menu
BACKLIGHT
LANGUAGE
LANGUAGE
AUTO
CHANGE=SELECT
BACKLIGHT
LANGUAGE
STANDBY DISPLAY
NOTE:
•If your PS is assigned to the Digital Super Hybrid
System while the setting is still “AUTO”, the
displaying language will depend on the setting of the
system.
NEDERLANDS
AUTO
ENGLISH
Deutsch
FRANCAIS
ITALIANO
LANGUAGE
FRANCAIS
TD7590-E(01~24) 00.8.11 4:56 PM Page 9

10

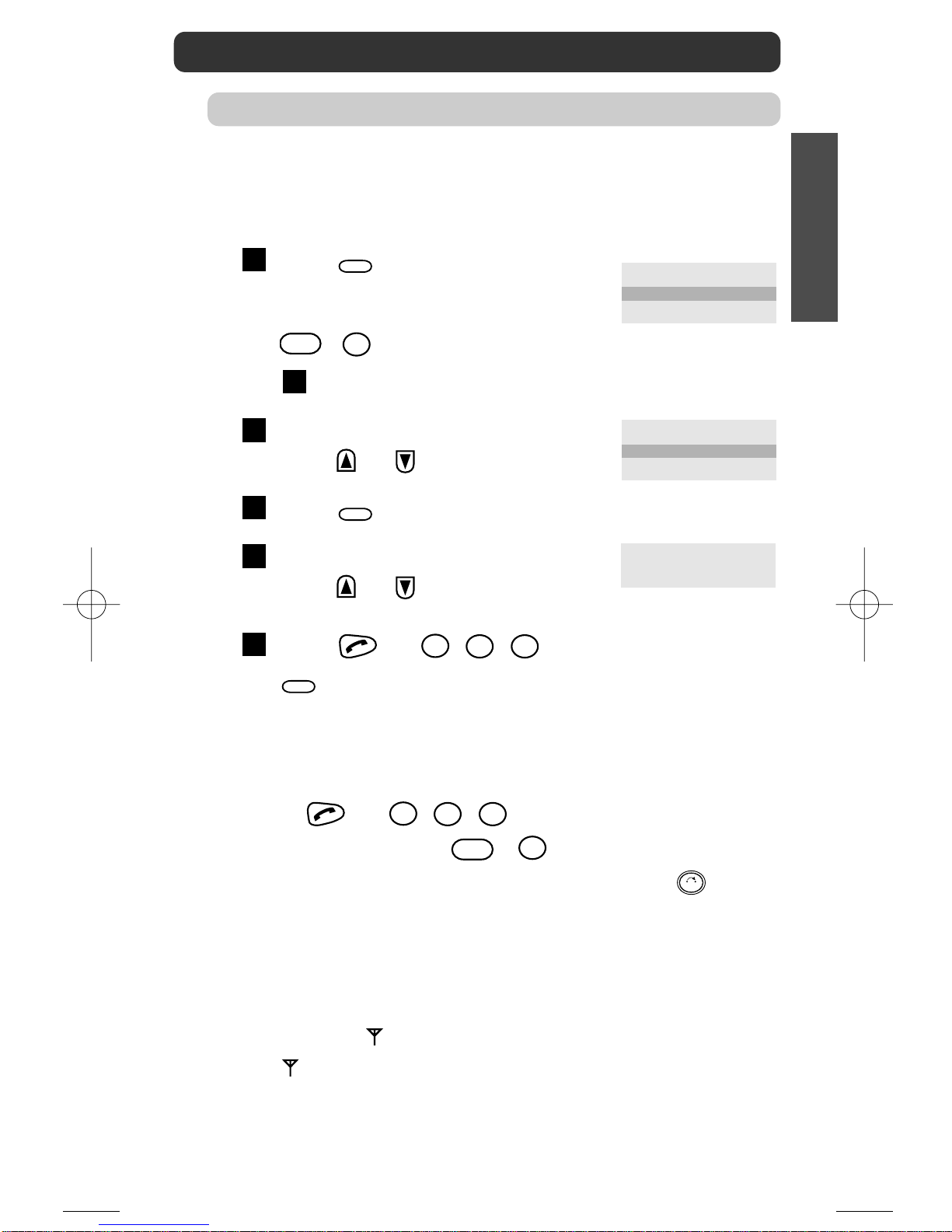

MAKING A CALL
Press (intercom).
Dial the extension number.
Talk after the called party answers.
Press after you
finish the conversation.
4
3
2
INT'
1
Display example
Press .
Dial the line access code.
Dial the phone number.
Talk after the called party answers.
Press after you
finish the conversation.
5
4
3
2
1
Press / / (assigned as
flexible CO).
Dial the phone number.
Talk after the called party answers.
Press after you finish the
conversation.
4
3
2
F3
F2
F1
1
Specific line access
INTERCOM CALLS
OUTSIDE CALLS
201
01234567
01234567
Automatic line access or Selecting a CO line group
Display example
Display example
TD7590-E(01~24) 00.8.11 4:57 PM Page 10
