881 LEG PRESS ADAPTER KIT
FOR 880 GYM SYSTEM
CLASSH
PART # 7168701
REV. C
Version: 881102
Revision: 3/08/02
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Parts list..........................4
Assembly Instructions.....5-26
Insert-Registration Card
©

IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the ParaBody 881 LEG PRESSADAPTER KIT. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* 9/16” wrench
* Ratchet with 9/16” socket and 6” Ratchet extension
* Adjustable wrench
* Tape measure
3

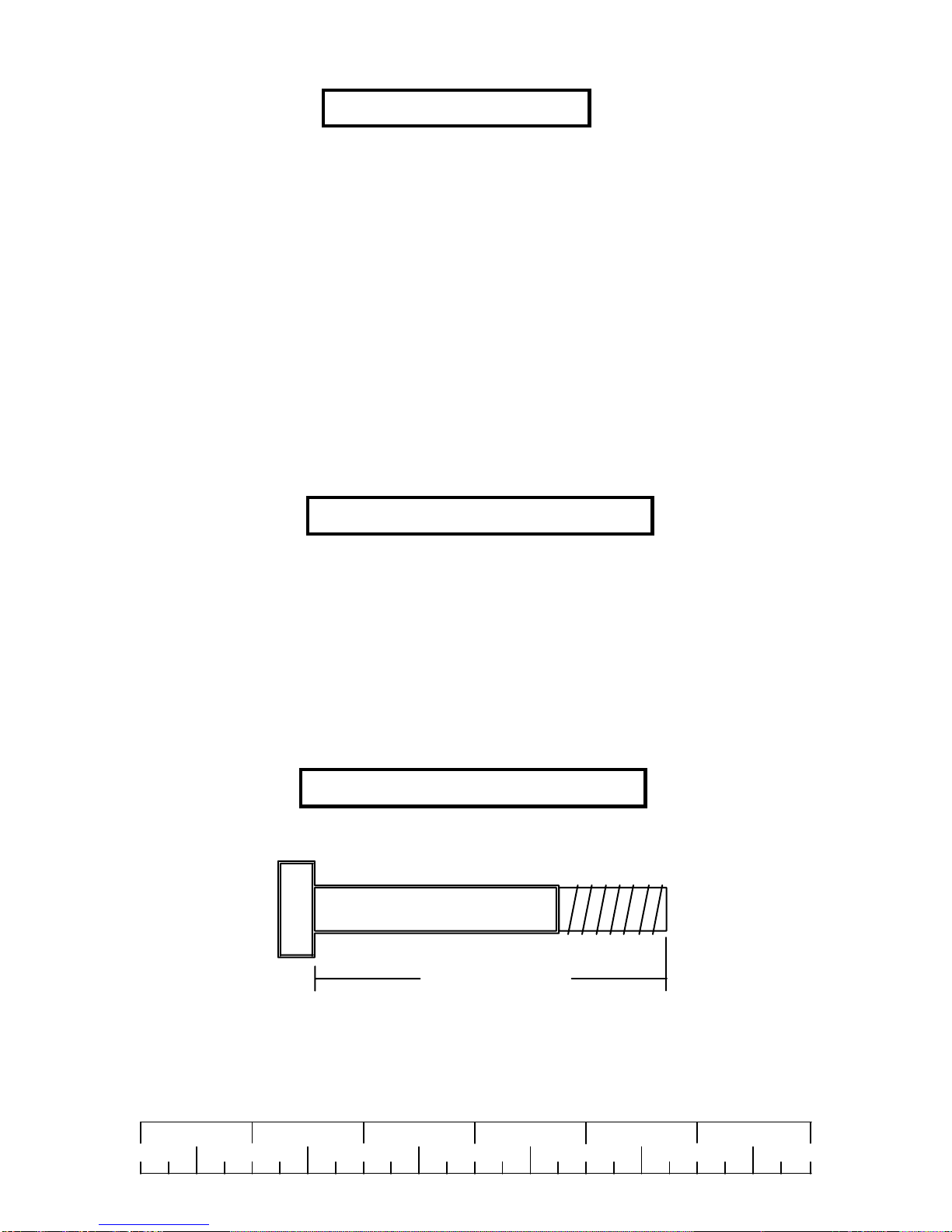

NOTE:BOLTLENGTHISMEASUREDFROMTHEUNDERSIDEOFTHEHEADOFTHEBOLT.
BOLTLENGTHRULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH

PARTS LIST
4
PART #
7160008
7156001
7156102
3116201
3102501
3102802
3102924
3102922
3102905
3102935
KEY
1
2
3
4
5
6
7
8
9
10
QTY
1
1
1
9
7
8
4
2
3
5
PART #
6533501
3102807
6122701
6480301
7242408
7245008
6995708
3102904
3102955
DESCRIPTION
CABLE CLIP
3/8” LOW HEIGHT LOCK NUT
3/8 X 1” SPACER
3/8” FLANGE SPACER
PULLEYBRACKET
PULLEYL-BRACKET
PULLEYPLATE
3/8 X 3”BOLT
3/8” X 4-1/4” BOLT
QTY
2
6
6
10
1
1
1
2
2
DESCRIPTION
LEG PRESSADAPTER
SHORT LEG PRESS CABLE
LONG LEG PRESS CABLE
3-1/2” PULLEY
3/8” WASHER
3/8” LOCKNUT
3/8 X 1-3/4” BOLT
3/8 X 2-3/4” BOLT
3/8 X 3-3/4” BOLT
3/8 X 4-1/2” BOLT
KEY
11
12
13
14
15
16
17
18
19
NOTE: The LEG PRESS ATTACHMENT (100102) must be assembled before
connecting it to the PARABODY 880 GYM SYSTEM
• NOTE: If assembling the LEG PRESS OPTION to a completely assembled (including cables) 880 GYM
SYSTEM without SECOND STACK OPTION , please refer to PAGE 5.
• NOTE: If assembling the LEG PRESS OPTION to a completely assembled (including cables) 880 GYM
SYSTEM with SECOND STACK OPTION , please referto PAGE 18.
• NOTE: It is recommeded that the SECOND STACK OPTION is assembled before the LEGPRESS
OPTION.

STEP 1:
FIGURE 1
0123456
1/2 1/2 1/2 1/2 1/2 1/2

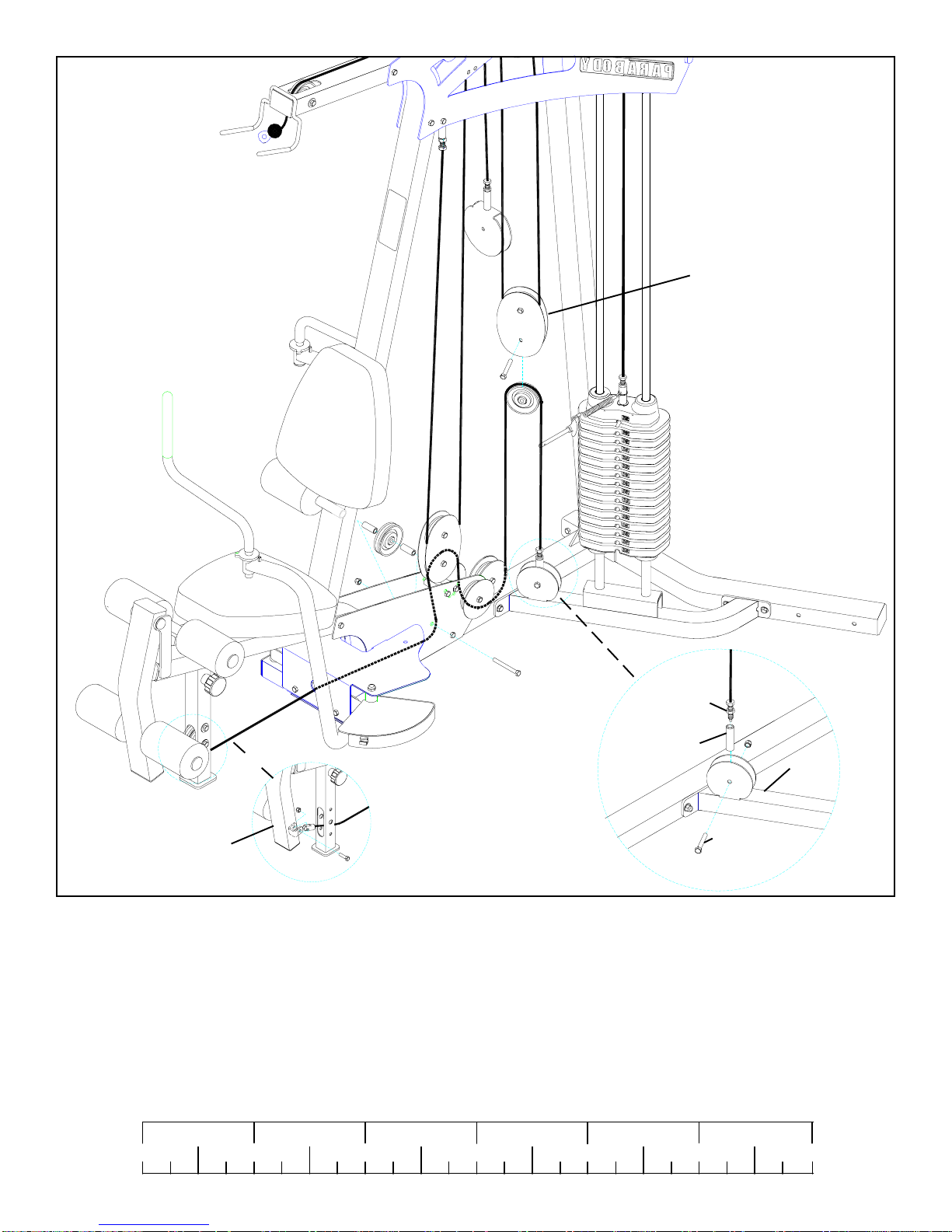

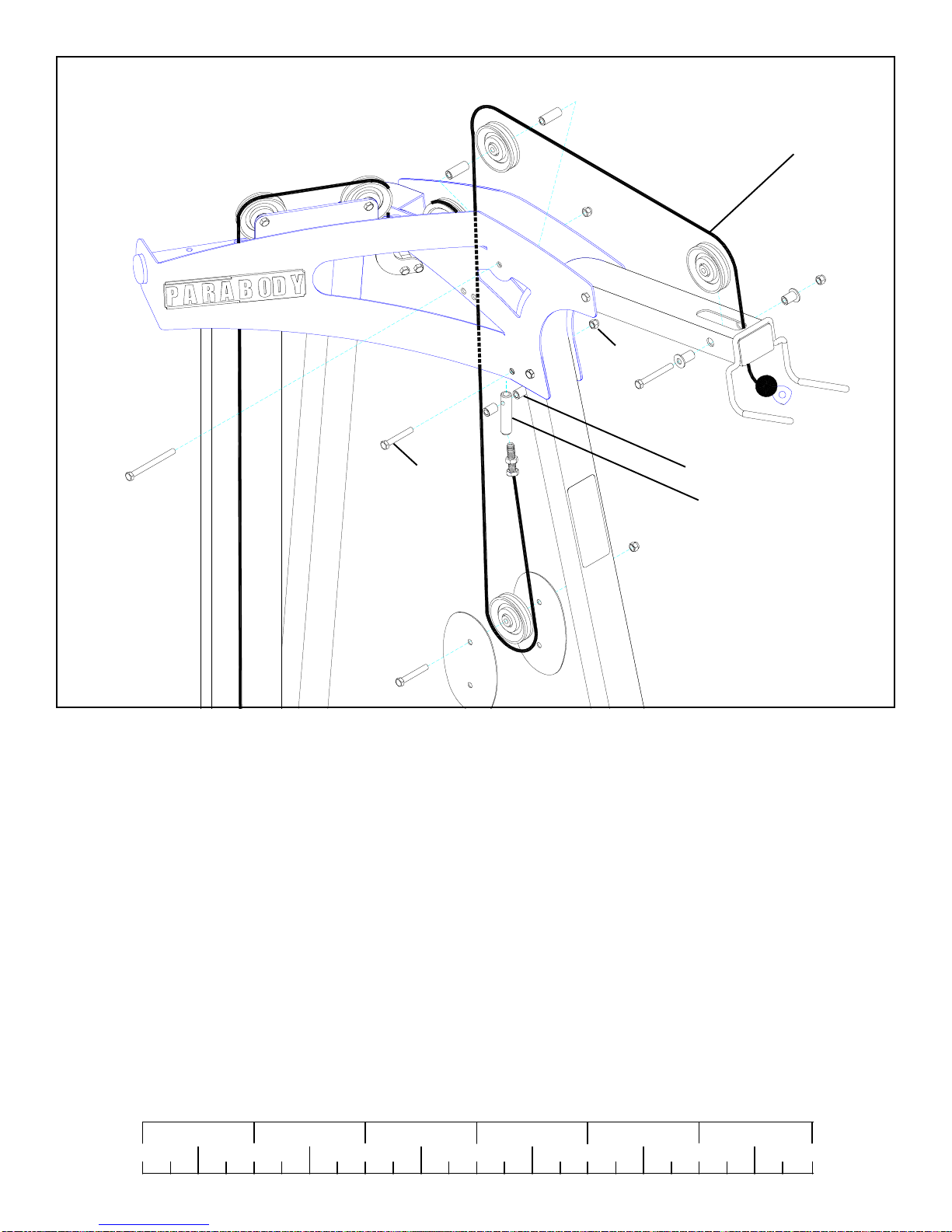

• REMOVE the LAT CABLE, THREADED HOUSING, 3/8 X 3-3/4” BOLT, two 3/8 X 1” SPACERS and one 3/8” LOCK NUT from
the 880 GYM SYSTEM. See FIGURE 1. Save the LAT CABLE if you ever plan to purchase the SECOND STACK OPTION.
Discard the 3/8 X 1” SPACERS. (NOTE: Remove pulleys for ease of removal.)
5
• NOTE: Follow these steps if assembling the LEG PRESS OPTION to a completely assembled (including cables) 880
GYM SYSTEM without SECOND STACK OPTION, otherwise if the SECOND STACK OPTION is assembled please
refer to PAGE 18.
THREADED
HOUSING
3/8 X 3-3/4”
BOLT
3/8 X 1”
SPACER
3/8”
LOCK
NUT

6
STEP 2:
FIGURE 2

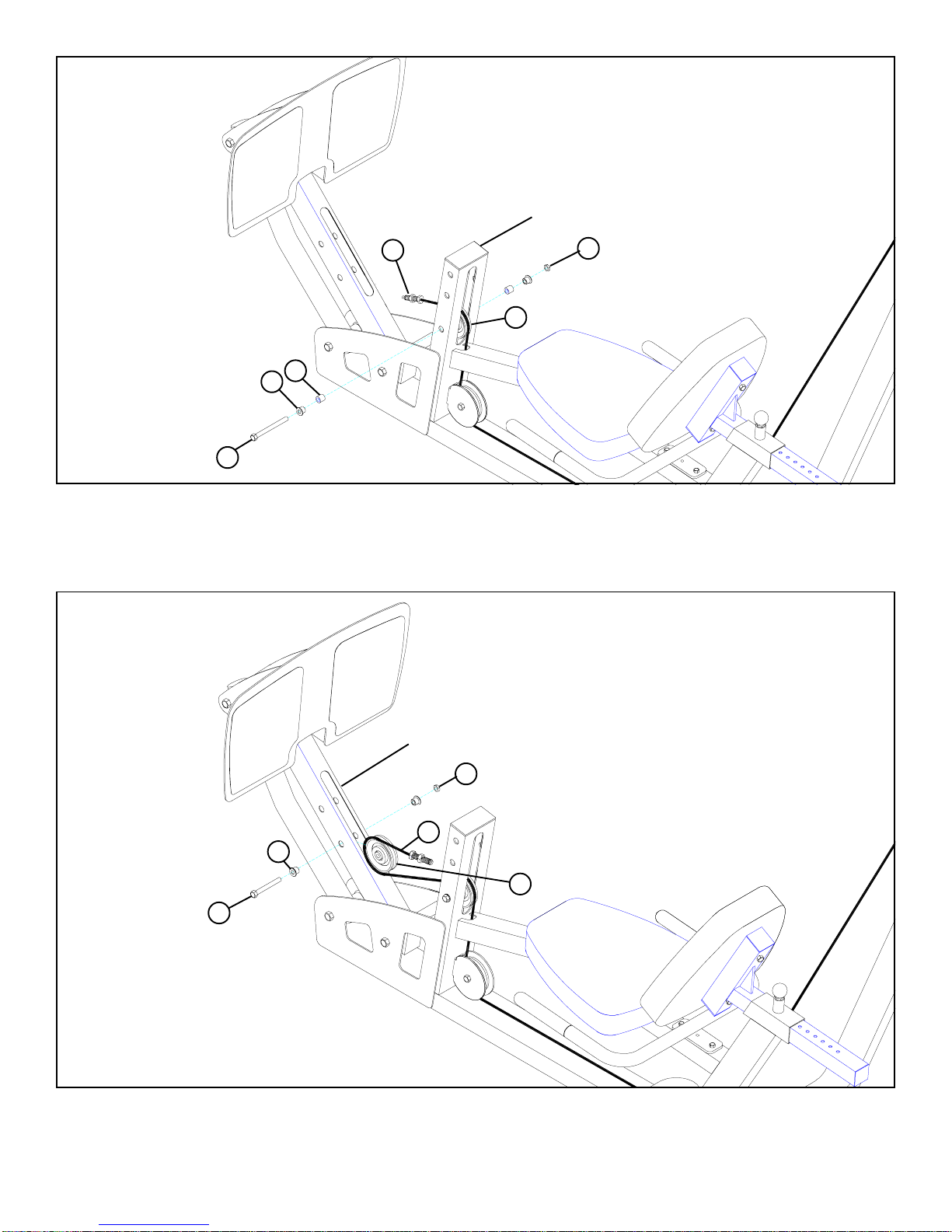

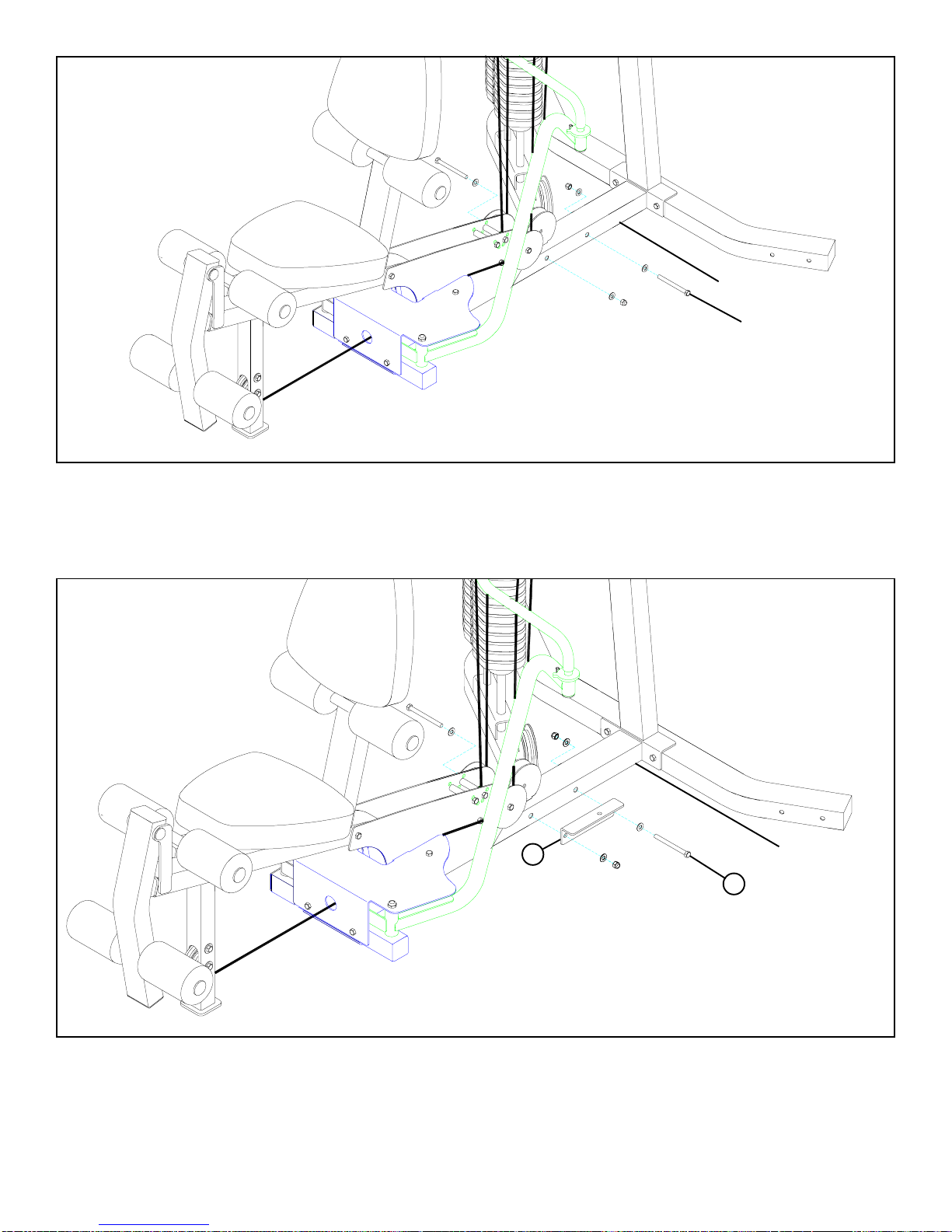

• Remove the PEC STATION PAD from the FRAME, then discard the two 3/8 X 2-3/4” BOLTS. See FIGURE 2.
3/8 X 2-3/4”
STEP 3:
FIGURE 3

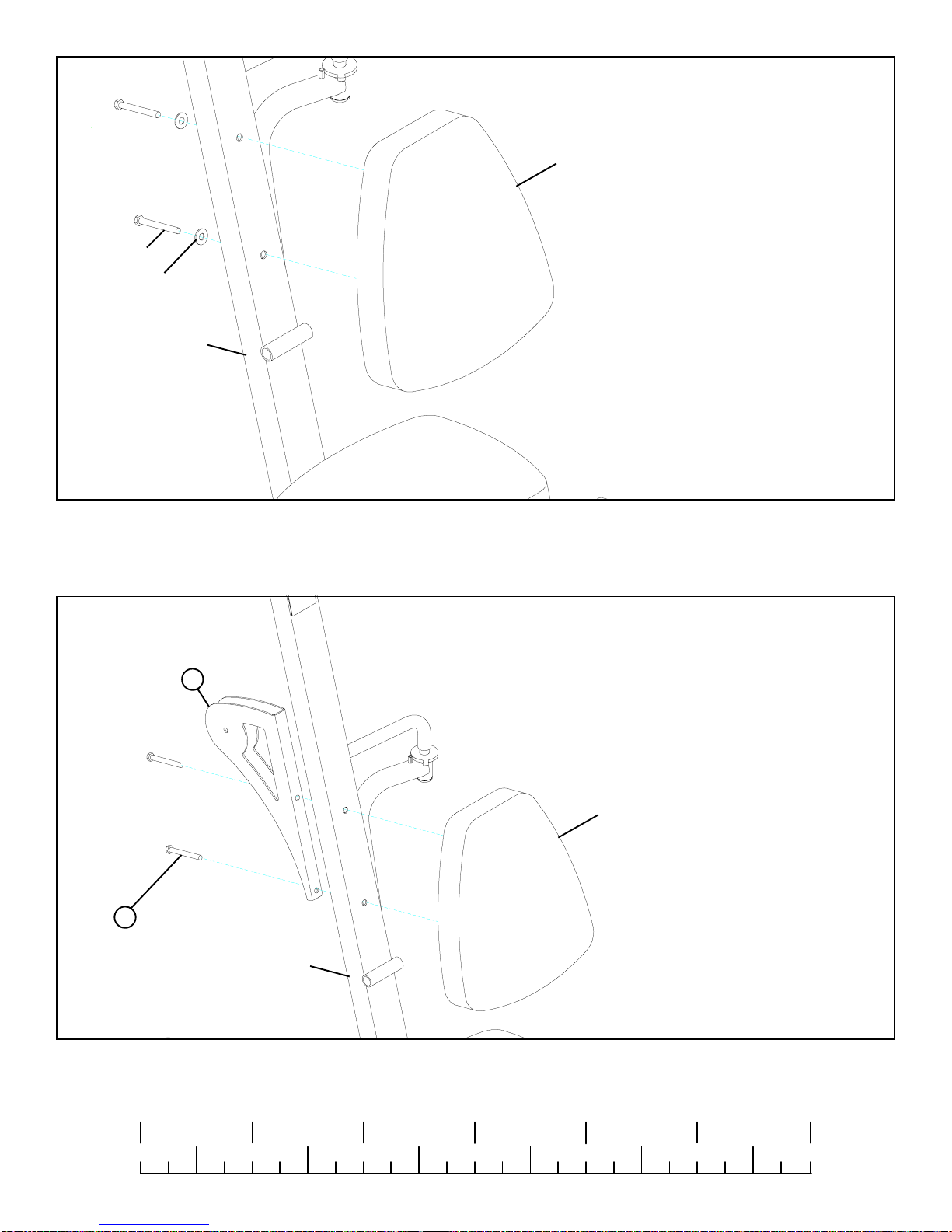

• SECURELY assemble the PULLEY BRACKET(15) and the PEC STATION PAD to the FRAME using two 3/8 X 3” BOLTS (18). See
FIGURE 3.
18 3/8 X 3”
15
3/8” WASHER
PECSTATION PAD
FRAME
PECSTATION PAD
FRAME
0123456
1/2 1/2 1/2 1/2 1/2 1/2

STEP 4:
FIGURE 4
7
• Remove the two 3/8 X 4” BOLTS, four 3/8” WASHERS and two 3/8” LOCK NUTS from the REAR UPRIGHT as shown in
FIGURE 4. Discard the 3/8 X 4” BOLTS.
3/8 X 4” BOLTS
STEP 5:
FIGURE 5
• SECURELY assemble the PULLEY L-BRACKET (16) to the REAR UPRIGHT using two 3/8 X 4-1/4” BOLTS (19), four
previously removed 3/8” WASHERS and two previously removed 3/8” LOCK NUTS as shown in FIGURE 5.
REAR UPRIGHT
19 3/8 X 4-1/4”
REAR UPRIGHT
16

STEP 6:
FIGURE 6
• Route the SHORT LEG CABLE (2) through the FRAME and BOOM BRACKET as shown in FIGURE 4. (NOTE: Remove
pulleys for ease of installation.)
8
FRAME
BOOM
BRACKET
2
0123456
1/2 1/2 1/2 1/2 1/2 1/2

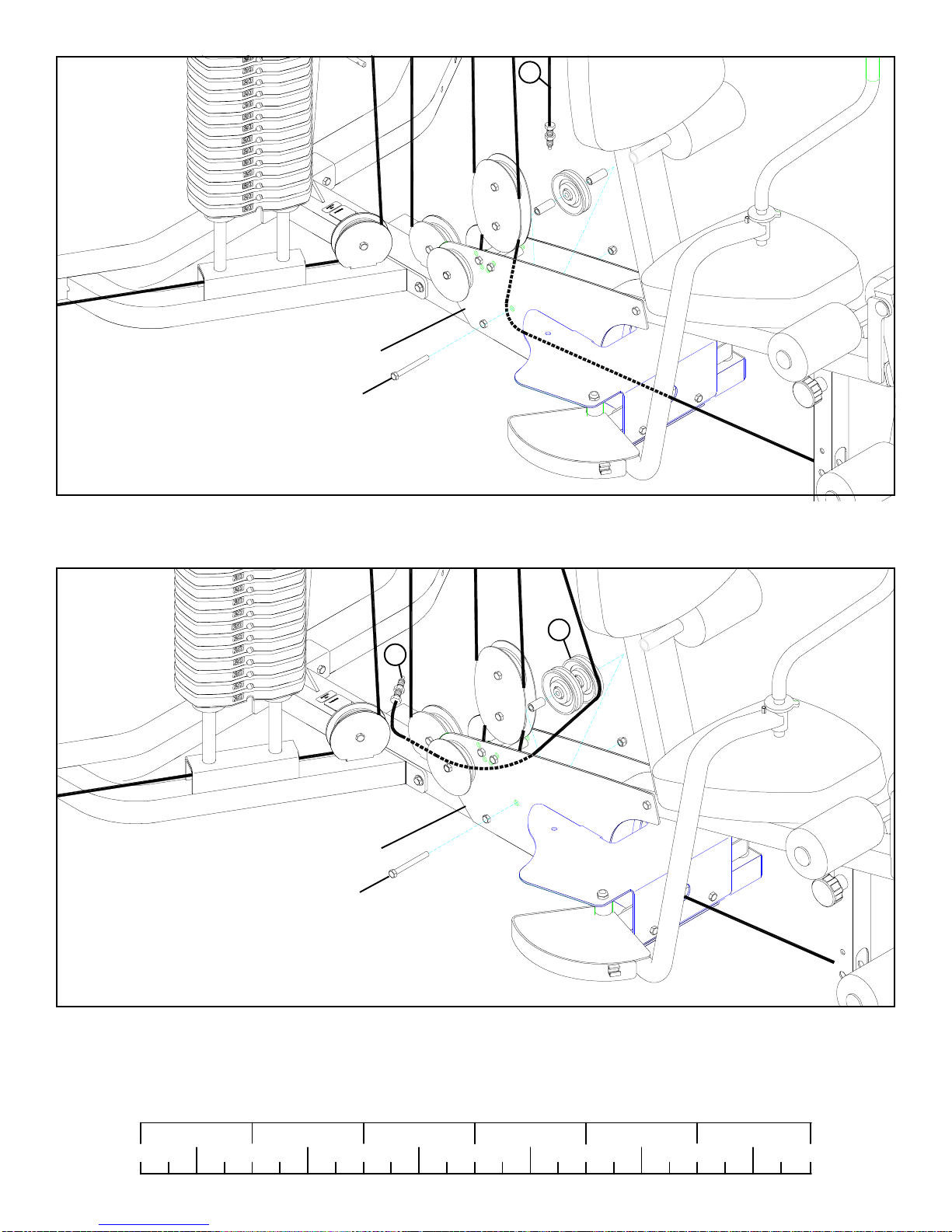

STEP 7:
FIGURE 7

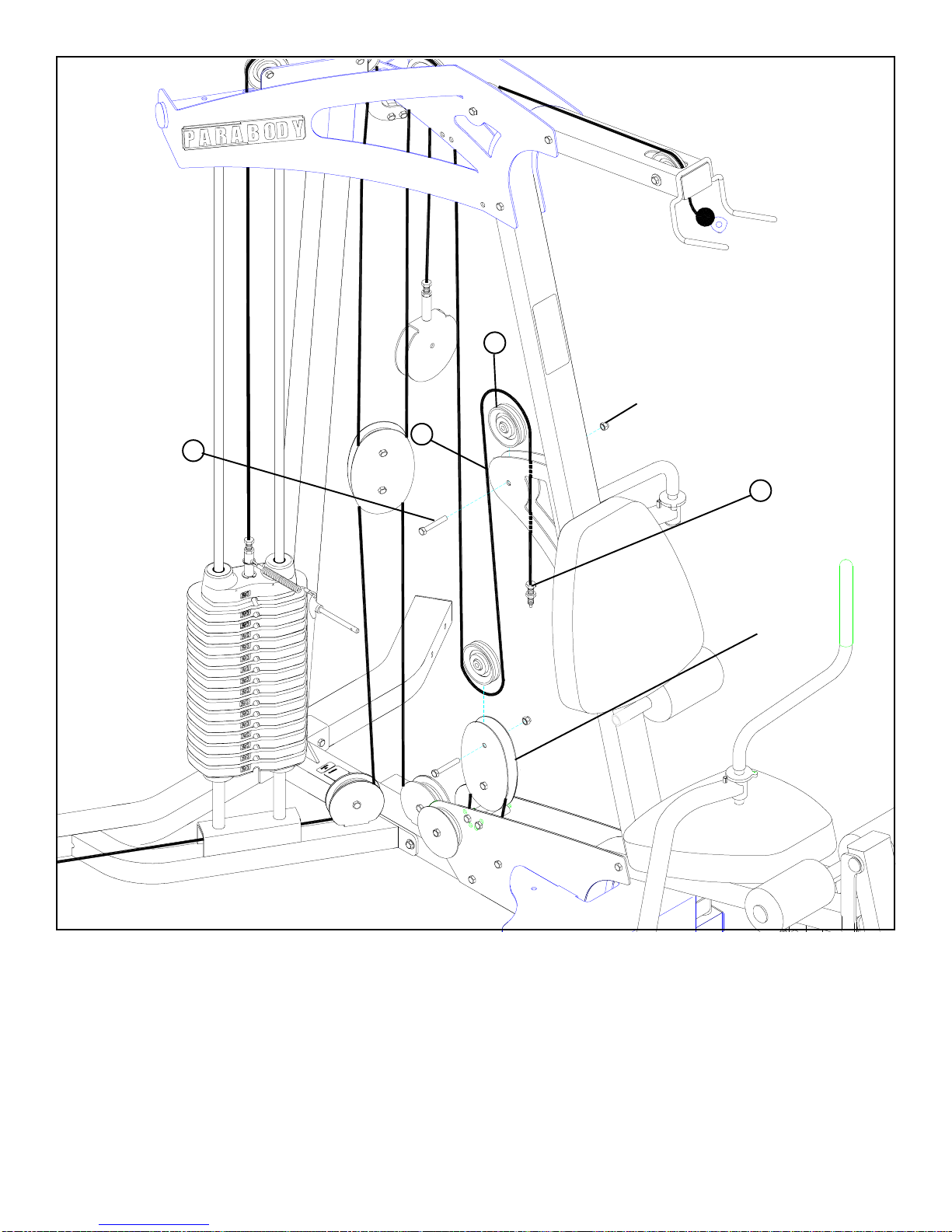

• Route the SHORT LEG PRESS CABLE (2) through the PULLEYPLATES as shown in FIGURE 7.
3/8 X 1-3/4” 7
• Route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and assemble the PULLEY to the PULLEYBRACKET
(15) using one 3/8 X 1-3/4” BOLT (7) and one previously removed 3/8” LOCK NUT. See FIGURE 7.(Note: Loop the SHORT
LEG CABLE (2) around the PULLEY prior to assembling the PULLEY to the PULLEY BRACKET.)
9
4
15
3/8” LOCK NUT
PULLEY
PLATES
2

STEP 8:
FIGURE 8

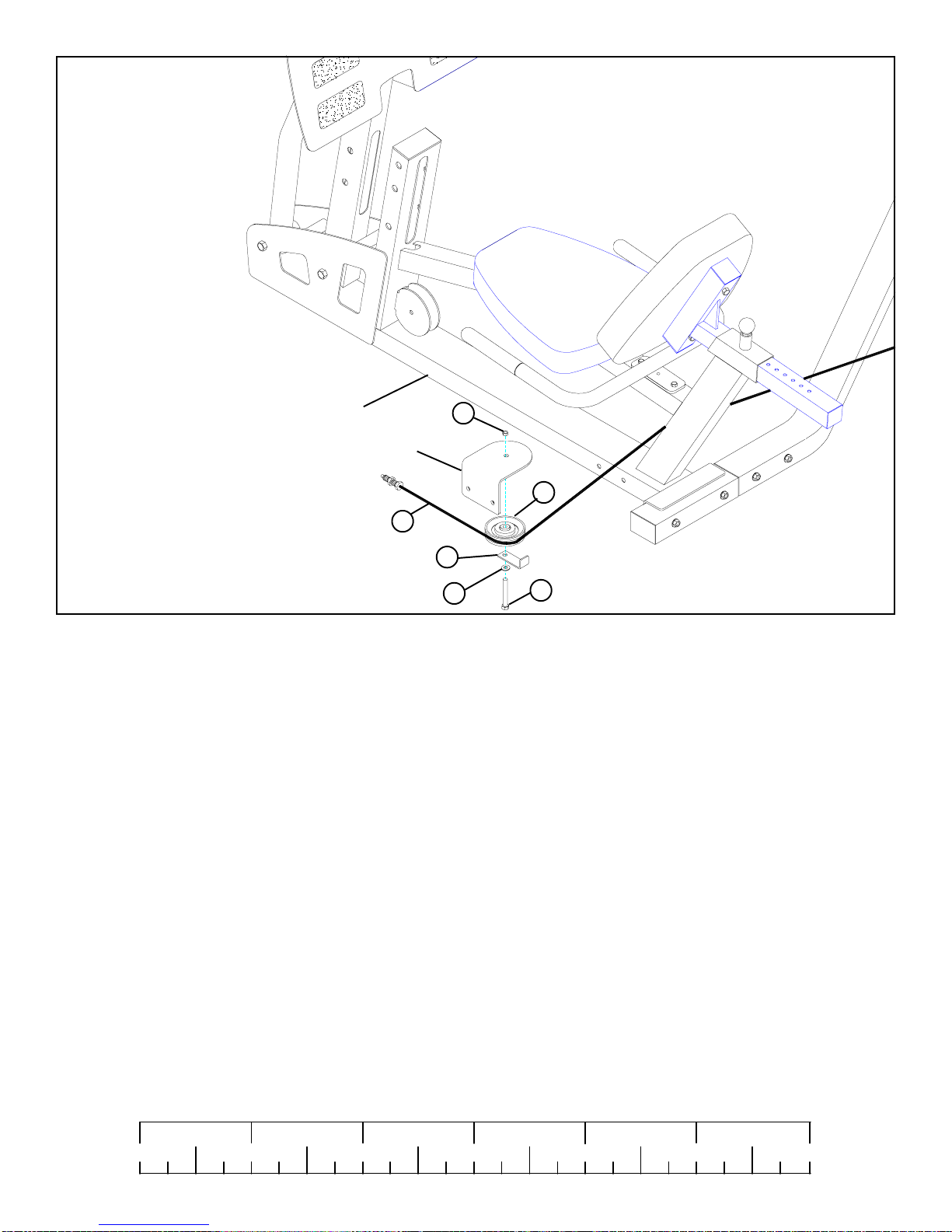

• Remove the 3-1/2” PULLEY, one 3/8 X 3-3/4” BOLT, two 3/8 X 1” SPACERS and one 3/8” LOCK NUT from the BASE PLATES as
shown in FIGURE 8. Discard one of the 3/8 X 1” SPACERS.
3/8 X 3-3/4”
2
BASEPLATES
10
0123456
1/2 1/2 1/2 1/2 1/2 1/2
STEP 9:
FIGURE 9
• SECURELYassemble the previously removed 3-1/2” PULLEY, one previously removed 3/8 X 1” SPACER and one 3-1/2” PULLEY
(4) to the BASE PLATES using one previously removed 3/8 X 3-3/4” BOLT and one 3/8” LOCK NUT. See FIGURE 9.(Note: Loop
the SHORT LEG PRESS CABLE (2) around the PULLEY prior to assembling the PULLEY to the BASE PLATES.)
4
3/8 X 3-3/4”
BASEPLATES
2

11
STEP 10:
FIGURE 10

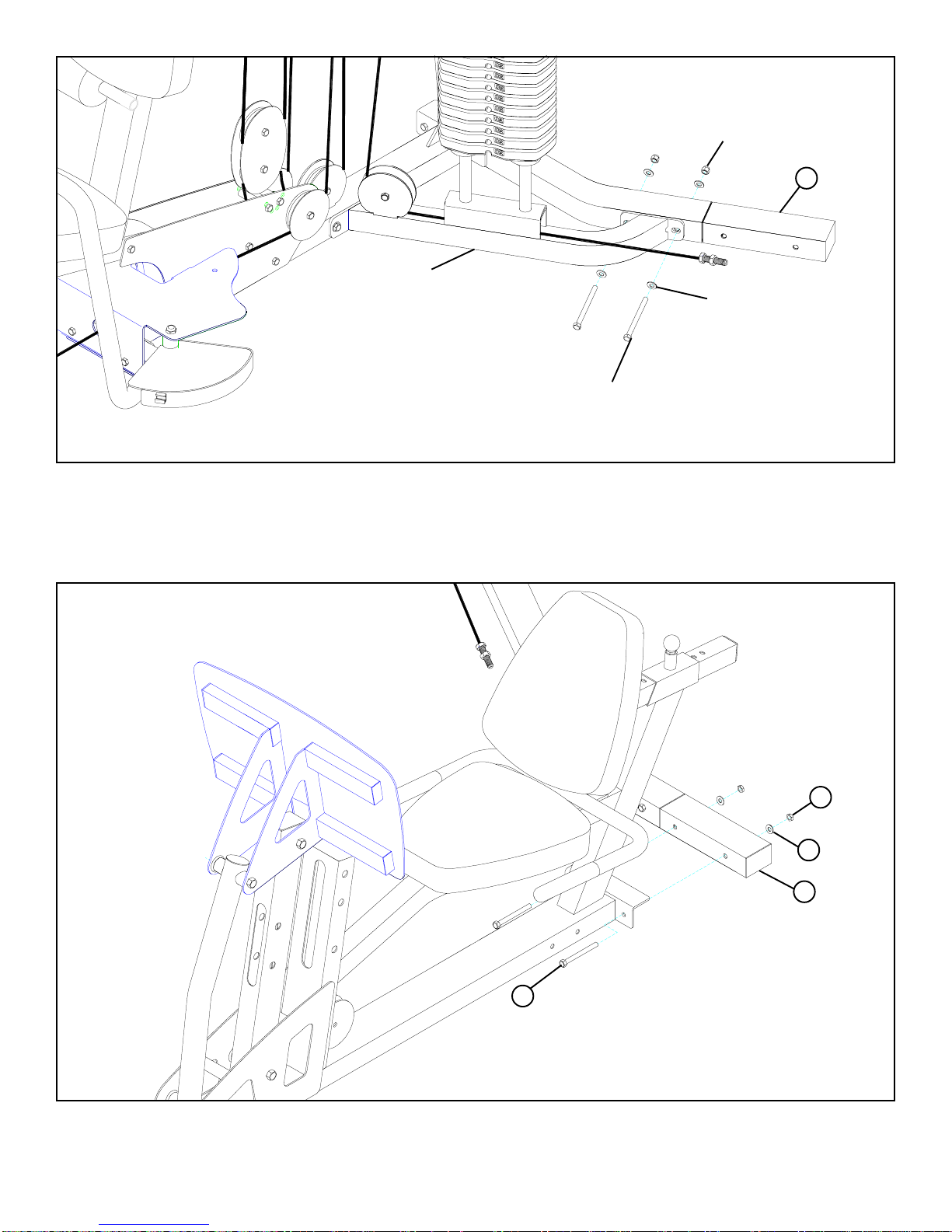

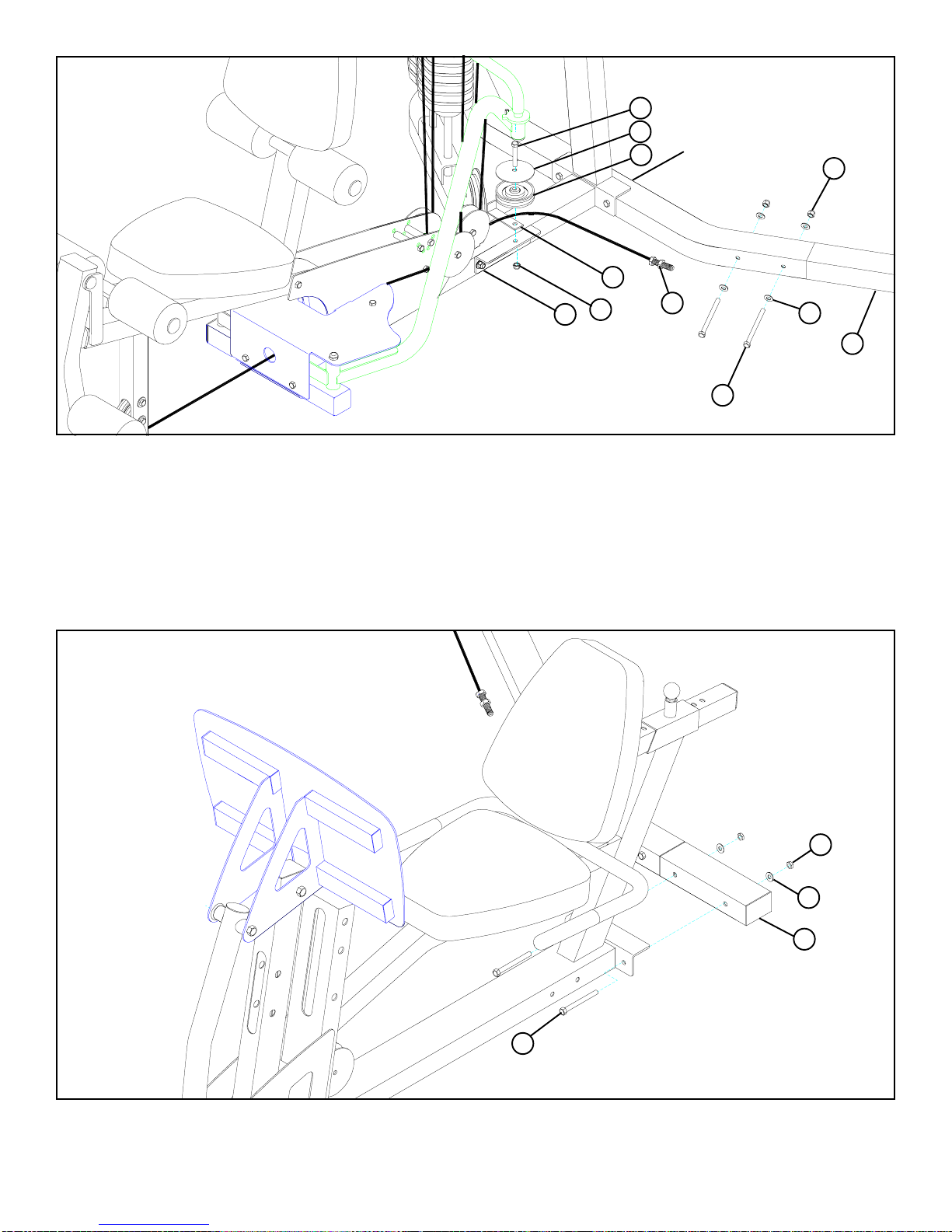

• SECURELY assemble the LEG PRESS ADAPTER (1) to the BASE FRAME using one 3/8 X 3-3/4” BOLT (9), one previously
removed 3/8 X 3-3/4” BOLT, two 3/8” WASHERS (5), two previously removed 3/8” WASHERS and two 3/8” LOCK NUTS (6) as
shown in FIGURE 10.
3/8 X 3-3/4” 9
BASE FRAME 6
1
5
FIGURE 11
STEP 11:
• SECURELY attach the 100 LEG PRESS to the LEG PRESSADAPTER (1) using two 3/8” X 3-3/4” BOLTS (9), two 3/8”WASHERS
(5) and two 3/8” LOCK NUTS (6). See FIGURE 11.
1
6
5
9 3/8 X 3-3/4”
• Route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and assemble the 3-1/2” PULLEY, PULLEY PLATE
(17) and one CABLE CLIP (11) to the PULLEY L-BRACKET (16) using one 3/8 X 1-3/4” BOLT (7) and one 3/8” LOW HEIGHT
LOCK NUT (12) as shown in FIGURE 10.
7 3/8 X 1-3/4”
4
11
17
12
16 2

12
FIGURE 12
STEP 12:
• Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY(4) and SECURELYassemble the 3-1/2” PULLEY
(4) to the BRACKET (from 100 LEG PRESS kit) using one 3/8 X 1-3/4” BOLT (7), one 3/8”WASHER (5), one CABLE CLIP (11)
and one 3/8” LOCK NUT (6) as shown in FIGURE 12. Make sure the CABLE is in the grooves of all the pulleys.
SEATFRAME 6
5
4
2
7 3/8 X 1-3/4”
11
BRACKET
0123456
1/2 1/2 1/2 1/2 1/2 1/2

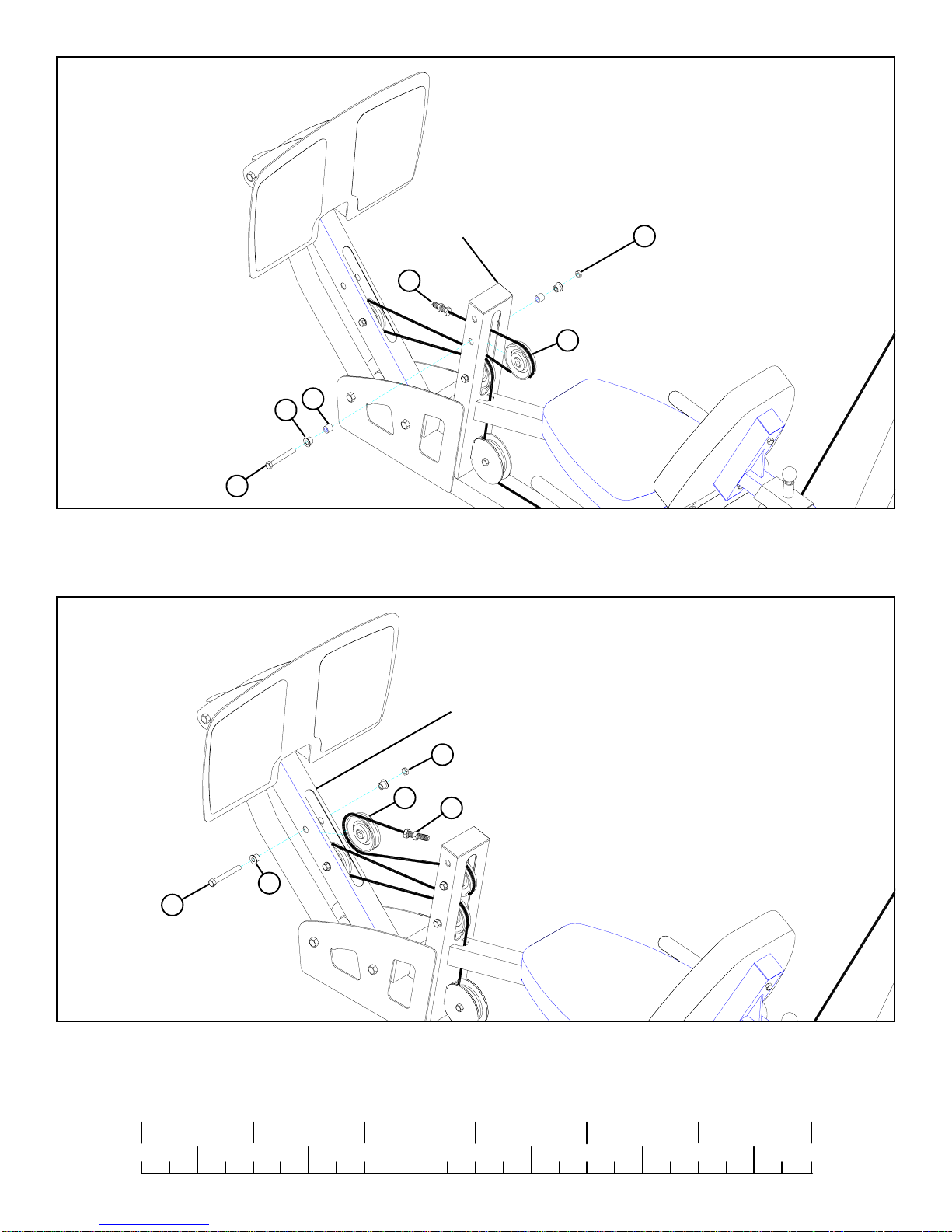

13
FIGURE 14
STEP 14:
• Carefully route the LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to
the bracket on the SEAT FRAME using one 3/8 X 1-3/4” BOLT (7) and one 3/8” LOCK NUT (6) as shown in FIGURE 14. Make
sure the CABLE is in the grooves of all the pulleys.
3/8 X 1-3/4” 7
2 6
SEATFRAME
FIGURE 13
STEP 13:
12
SEATFRAME
• SECURELY attach the BRACKET (from 100 LEG PRESS) to the SEAT FRAME using two 3/8” X 4-1/2” BOLTS (10), two 3/8”
WASHERS (5), and two 3/8” LOW HEIGHT LOCK NUTS (12). See FIGURE 13.
BRACKET
5
10 3/8 X 4-1/2”
4
3/8” LOW
HEIGHT

FIGURE 15
STEP15:
• Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2”
PULLEY (4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8” FLANGE SPACERS (14), two 3/8 X 1” SPACERS
(13) and one 3/8” LOW HEIGHT LOCK NUT (12) as shown in FIGURE 15. Make sure the CABLE is in the grooves of all the
pulleys.
3/8 X 4-1/2” 10
4
2 12
13
MAINARM
FIGURE 16
STEP 16:
• Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2”
PULLEY (4) to the MAIN ARM using one 3/8 X 2-3/4” BOLT (8), two 3/8” FLANGE SPACERS (14) and one 3/8” LOCK NUT
(6) as shown in FIGURE 16. Make sure the CABLE is in the grooves of all the pulleys.
3/8 X 2-3/4” 8
4
2
6
14
3/8” LOW HEIGHT
LOCK NUT
14
14
SEATFRAME

FIGURE 18
STEP 18:
• Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY(4) and SECURELYassemble the 3-1/2” PULLEY
(4) to the MAINARM using one 3/8 X 2-3/4” BOLT (8), two 3/8” FLANGE SPACERS (14) and one 3/8” LOCK NUT (6) as shown
in FIGURE 18. Make sure the CABLE is in the grooves of all the pulleys.
3/8 X 2-3/4” 8
4 2
6
14
MAINARM
FIGURE 17
STEP 17:
• Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY(4) and SECURELYassemble the 3-1/2” PULLEY
(4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8 X 1” SPACERS (13), two 3/8” FLANGE SPACERS (14) and
one 3/8” LOW HEIGHT LOCK NUT (12) as shown in FIGURE 17. Make sure the CABLE is in the grooves of all the pulleys.
3/8 X 4-1/2” 10
4
2
12
13
3/8” LOW HEIGHT
LOCK NUT
14
15
0123456
1/2 1/2 1/2 1/2 1/2 1/2
SEATFRAME

FIGURE 19
STEP 19:
3/8 X 4-1/2” 10
2 12
13
SEATFRAME
14
16
• SECURELY assemble the threaded end of the SHORT LEG PRESS CABLE (2) to the SEAT FRAME using one 3/8 X 4-1/2”
BOLT (10), two 3/8 X 1” SPACERS (13), one previosly removed THREADED HOUSING, two 3/8” FLANGE SPACERS (14)
and one 3/8”LOW HEIGHT LOCK NUT (12).
CABLE ROUTING DIAGRAM
3/8”LOW HEIGHT
LOCK NUT
THREADED
HOUSING

FIGURE 20
STEP 20:
• To set the correct amount of tension in the cables, push the HEAD PLATE down, insert the WEIGHT SELECTOR PIN and perform
several repititions at the leg press station.This will relax the cable system and prevent the HEAD PLATE from lifting up.
THIS CONCLUDES THE ASSEMBLY OF THE 880 LEG PRESS ADAPTER KIT
17
HEADPLATE
• If further CABLE ADJUSTMENT is needed, reference the 880 GYM SYSTEM USER’S GUIDE.
• Retain the LONG LEG PRESS CABLE if you plan to purchase the SECOND STACK OPTION in the future.

STEP 1:
0123456
1/2 1/2 1/2 1/2 1/2 1/2
• If the SECOND STACK OPTION has not been assembled to the 880, refer to the SECOND STACK OPTION USER’S
GUIDE. The SECOND STACK OPTION should be assembled before the LEG PRESS OPTION.
18
• NOTE: Follow these steps if assembling the LEG PRESS OPTION to a completely assembled (including cables) 880
GYM SYSTEM with SECOND STACK OPTION (already assemble to the 880), otherwise please refer to PAGE 5.

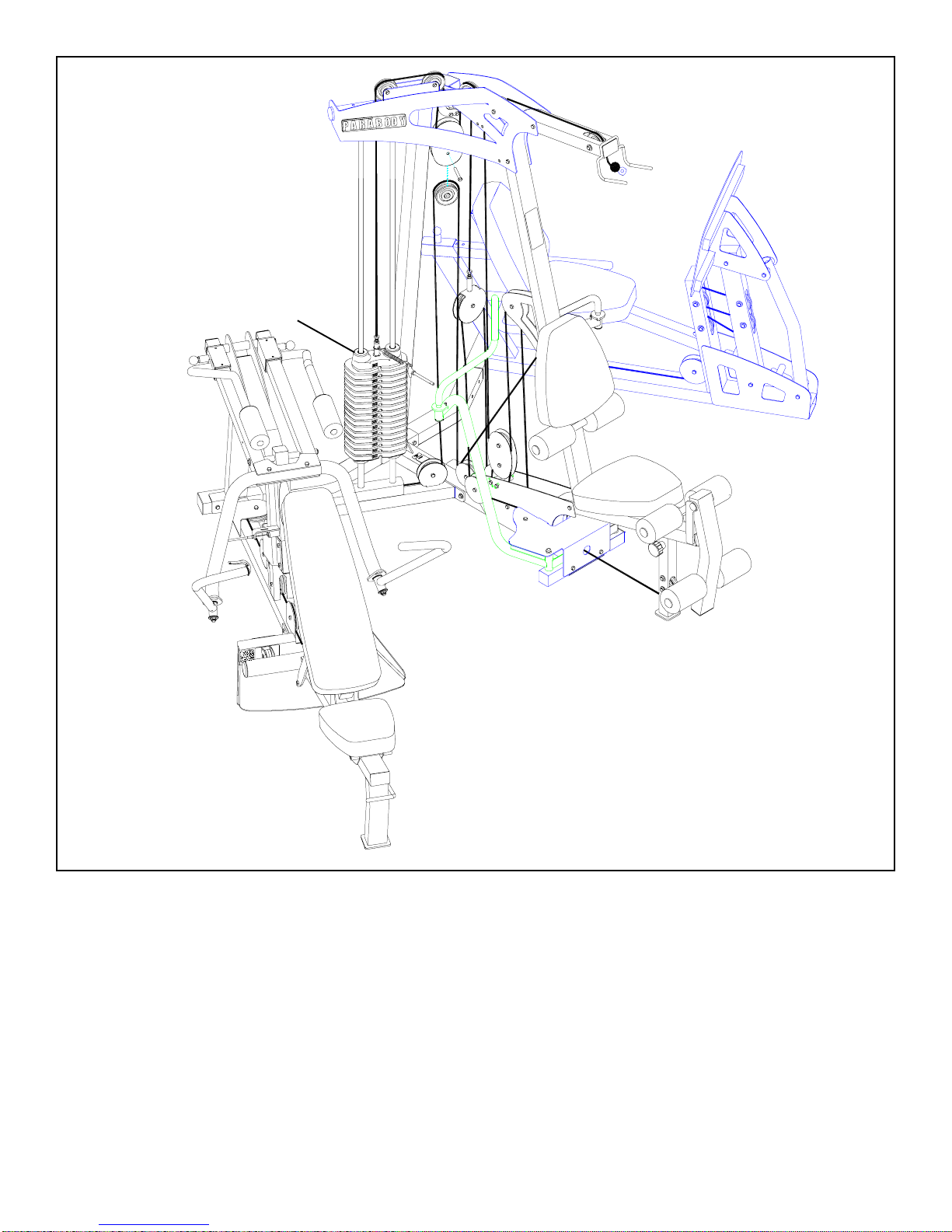

• REMOVE the LEG CABLE and THREADED HOUSING as shown in FIGURE 1. Discard the LEG CABLE. (NOTE: Remove
pulleys for ease of removal.)
FIGURE 1
LEG CABLE
PULLEYPLATES
STACK
BASE
THREADED
HOUSING
3/8 X 1-3/4”
PEDESTAL

STEP 2:
FIGURE 2
19
• Route the LONG LEG PRESS CABLE (3) around the 3-1/2” PULLEY on the PULLEY PLATES using one existing 3/8 X 1-3/4”
BOLT and one existing 3/8” LOCK NUT. See FIGURE 2.
STACK
BASE
PULLEYPLATES
• Assemble the LONG LEG PRESS CABLE (3) to the PEDESTAL and route the LONG LEG PRESS CABLE (3) thru the BASE
FRAME as shown in FIGURE 2. (NOTE: Remove pulleys for ease of installation.)
3
3/8 X 1-3/4”
SHORTLEG
PRESS CABLE
• Route the LONG LEG PRESS CABLE (3) around 3-1/2” PULLEY (4) and assemble to the bracket on the STACK BASE using one
existing 3/8 X 1-3/4” BOLT and one existing 3/8” LOCK NUT. See FIGURE 2.
4

20
STEP 3:
FIGURE 3

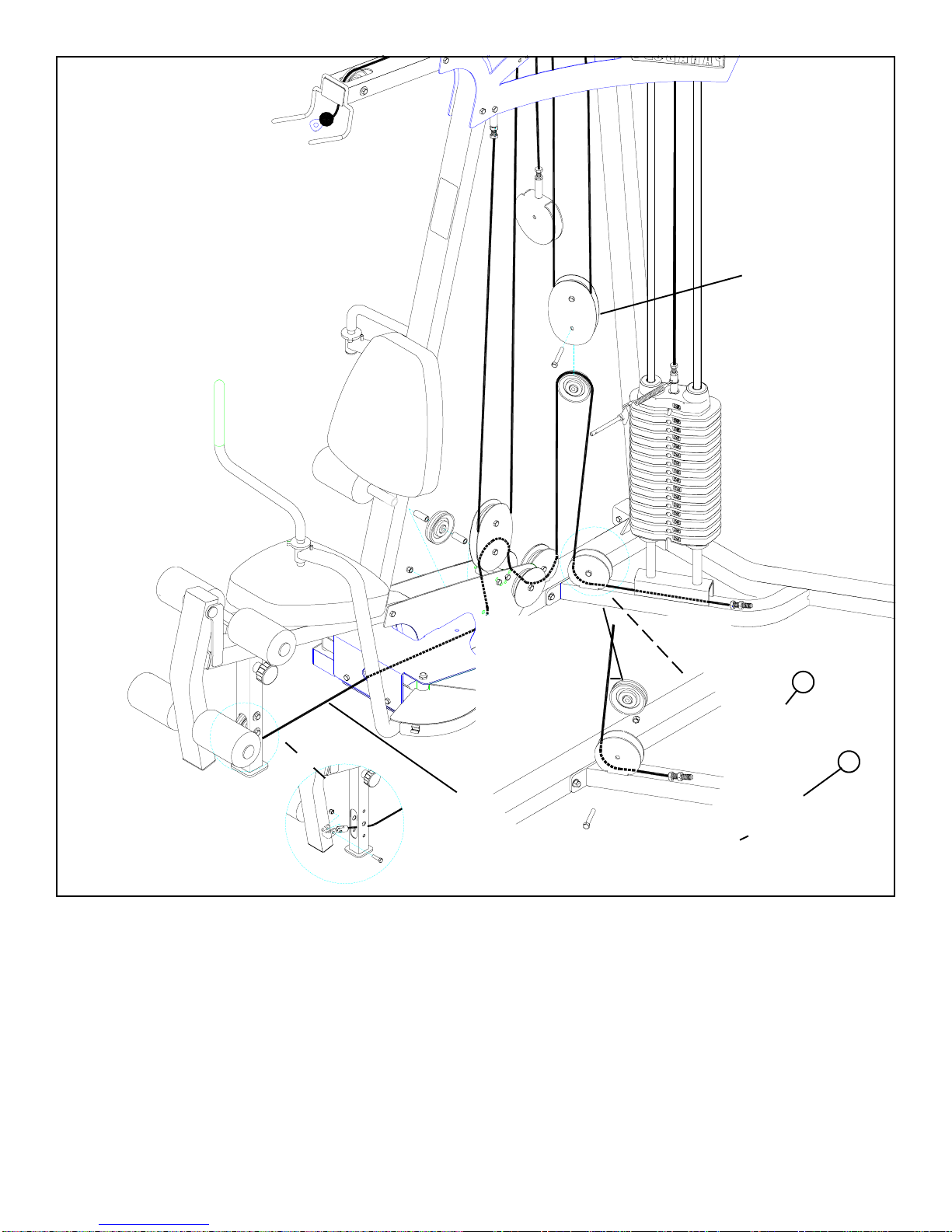

• Remove the two 3/8” BOLTS, 3/8” WASHERS and 3/8” LOCK NUTS from the STACK BASE as shown in FIGURE 3.
STACKBASE
• SECURELY assemble the LEG PRESS ADAPTER (1) to the STACK BASE using the previously removed 3/8” BOLTS, 3/8”
WASHERS and 3/8” LOCK NUTS as shown in FIGURE 3.
3/8” LOCK NUT
3/8” WASHER
3/8” BOLT
1
FIGURE 4
STEP 4:
• SECURELY attach the 100 LEG PRESS to the LEG PRESSADAPTER (1) using two 3/8” X 3-3/4” BOLTS (9), two 3/8”WASHERS
(5) and two 3/8” LOCK NUTS (6). See FIGURE 4.
1
6
5
9 3/8 X 3-3/4”
