Paramount Fitness 63049 User manual

DANGER
FOR YOUR SAFETY:
If you smell gas:
Shut off gas to the appliance.
If odor continues, keep away from the
appliance and immediately call your gas
DANGER
Failure to comply with the precautions and
instructions provided with this heater can result in
death, serious bodily injury and property loss or
damage from hazards
and/or carbon monoxide poisoning.
Only persons who can understand and follow the
instructions should use or service this heater.
WARNING
Do not store or use gasoline or other
vicinity of
this or any other appliance. An LP-cylinder
not connected for use shall not be stored in
the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing this
WARNING
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
which will be needed if you
need to contact us about warranty coverage.
Serial No.
Purchase Date
WARNING
Full Size Grey
Outdoor Patio Heater Item #: PH-100002
Model #: 63049
+
_
Requires (1) AAA
Battery
(Not Included)
Questions, problems, missing parts?
Before returning to your retailer, contact our exceptional customer service.
Contact us by email at [email protected] or call us toll-free at
[phone], 7:30 a.m. – 4:00 p.m., PST, Monday – Friday .

Contact us for assistance: [e-mail] | [phone]
www.jrhome.com
English Page 3
Français Page

TABLE OF CONTENTS
Before You Begin Page
Safety Information Page
Package Contents Page
Hardware Contents Page
Assembly Page -
Operating Instructions Page -1
Care and Maintenance Page 1
Troubleshooting Page 1
Replacement Parts List Page 1
Warranty Information Page 1
BEFORE YOU BEGIN
BEFORE YOU BEGIN
(8 ) Monday – Friday
a.m. – p.m., ST, c
Contact us for assistance: [e-mail] | [phone]

SAFETY INFORMATION
DANGER
EXPLOSION—FIRE HAZARD
Keepsolid combustibles, such as building
materials, paper, or cardboard
a safe distance away from the heater as
recommended by the instructions.
openings into the combustion chamber.
Never use the heater in spaces which
do or may contain volatile or airborne
combustibles, or products such as
gasoline, solvents, paint thinner, dust
particles, or unknown chemicals.
During operation, this appliance can be a
source of ignition. Keep heater area clear
and free from combustible materials,
gasoline, paint thinner, cleaning solvents
Do not use heater in areas with high dust
content. Minimum heater clearances from
combustible materials: 91.44 cm or three
feet or 36 inches from top and cm
or t ( ) feet or inches from sides.
Never store propane near highheat, open
ignition sources or where temperatures
exceed 120 degrees F (49 degrees C).
Propane vapors are heavier than air and
can accumulate in low places. If you smell
gas, leave the area immediately.
Never install or remove a propane cylinder
lights, or other ignition sources or while
heater is hot to the touch.
This heater is redhot during useand can
from top and feet (inches) from sides.
and vapors well away from heater.
Store the propane cylinder outdoors in a
well ventilated space out of the reach of
children.Never store the propane cylinder
in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect
the propane cylinder for outdoor storage.
WARNING
BURN HAZARD
Never leave heater unattended when hot
or in use.
Keep out of reach of children.
CAUTION
SERVICE SAFETY
sure propanecylinder valve outlet is clean.
During set up, check all connections and
Use as a heating appliance only. Never alter
in any way to use with any device.
WARNING
Certain materials or items, when stored
under the heater, will be subject to radiant
heat and could be seriously damaged.
WARNING
This product is fueled by propane gas.
Propane gas is invisible, odorless, and
to help detect leaks and can bedescribed
as having a “rotten egg” smell. The odorant
can fade over time so leaking gas isnot
always detectable by smell alone.
Store propane gas in compliance with local
ordinances and codes or with ANSI/NFPA
58. Turn off propane when not in use.
Alert children and adults to thehazards
of high surface temperatures. Stay away
from these surfaces to avoid burning
skin or igniting clothing.
Carefully supervise young children when
in the vicinity of the heater.
Do not hang clothing orany other
or place near the heater.
Replace any guard or protective device
removed for servicing the appliance prior
to placing back in service.
Installation and repair should bedone by a
be inspected before use and annually by
imperative that the control compartment,
burners, and circulating air passageway of
the appliance be kept clean.
DANGER
CARBONMONOXIDE HAZARD
This heater is a combustion appliance.
All combustion appliances produce carbon
monoxide (CO)during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained
in accordance with all warnings and
or
out of the heater.
Carbon Monoxide (CO) poisoning produces
dizziness, fatigue, and possibly death.
You can’t see and you can’t smell it. It is
an invisible killer.If thesesymptoms are
present during operation of this product, get
fresh air immediately!
Never use inside house or other unventilated
or enclosed areas.
This heater consumes air (oxygen). Do not
use in unventilated or enclosed areas to
avoid endangering your life.
WARNING
WARNING indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
Contact us for assistance: [e-mail] | [phone]

5
PACKAGE CONTENTS
Large Bolt
Qty: 6
(Step 3)
Small Bolt
Qty: 5
(Step 1 & 2)
Small Bolt
w/ Lock
Washer Qty: 4
Small Screw
Qty: 12
(Step 8)
Large Flat Washer
Qty: 9
(Step 6 & 9)
Cap Nut
Qty: 12
(Step 8)
Wing Nut
Qty: 3
(Step 9)
Small Flange Nut
Qty: 6
(Step 3)
Qty: 3
(Step 6)
Wrench
Qty: 1

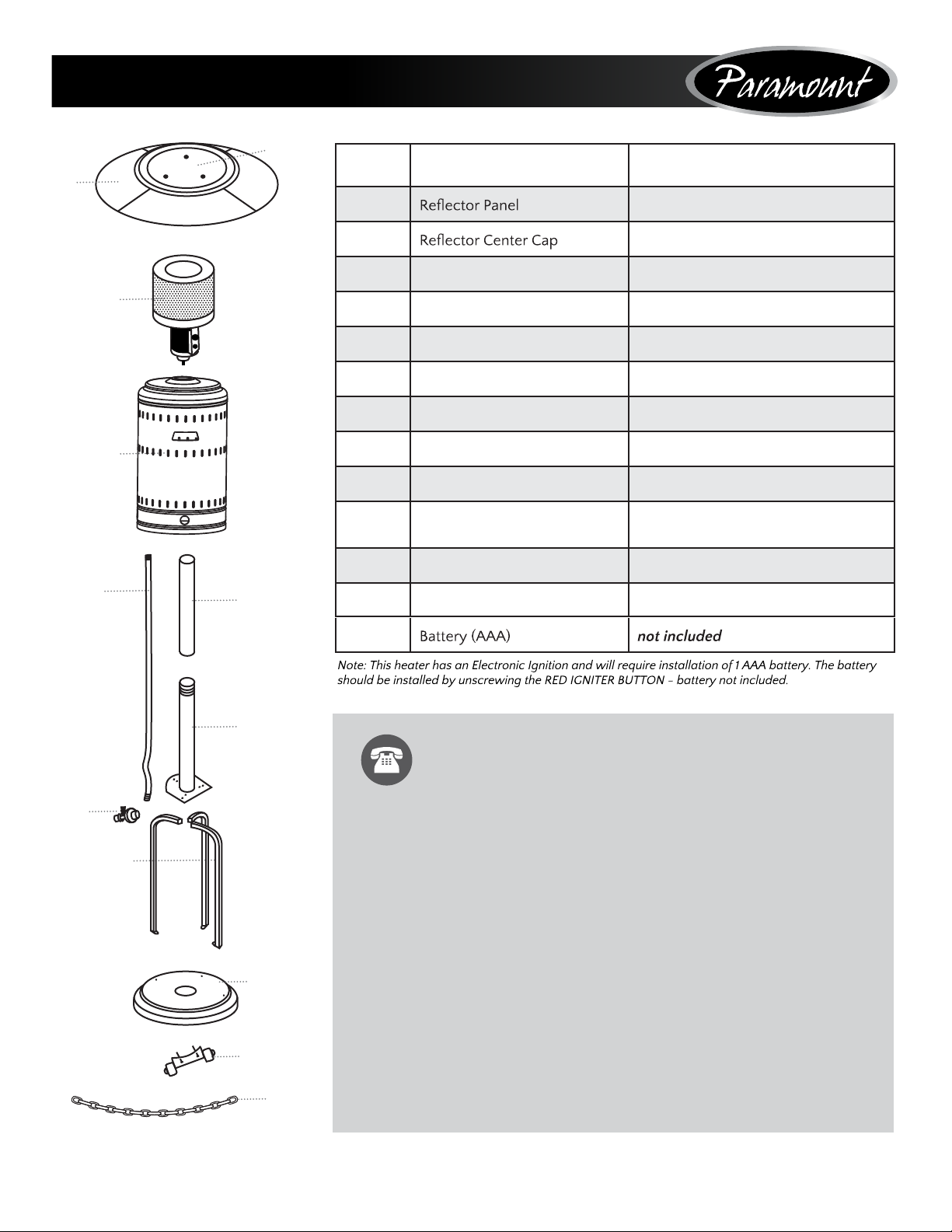

HARDWARE CONTENTS
PART DESCRIPTION QUANTITY
A4 packed in 2 inner cartons
B1
CHead Assembly 1 packed in 1 inner carton
DTank Housing 1
EGas Hose 1 attached to Head Assembly
FUpper Post 1
GLower Post 1
HRegulator 1 packed with Head Assembly
IPost Supports 3 packed in 1 inner carton
JBase with Pre-assembled
Waterbox 1
KWheel Assembly 1 packed with Head Assembly
LChain (Secures LPG Cylinder) 1 packed with Post Supports
A
B
C
D
EF
G
H
I
J
K
L
Contact us for assistance: [e-mail] | [phone]

ASSEMBLY
The Waterbox
1Attach Wheel Assembly Kto Base J. Align holes to the
Base, and insert 2 Small Bolts through the holes
Hardware Used: 2x Small Bolts
2Attach the Post Supports Ito the Base J. Align the holes in the bottom of each Post Support with the hole on the
Base. Insert 1 Small Bolt through the hole in the support
and into the Base and hand tighten. Repeat with the other 2
Post Supports and then tighten all bolts with the Wrench .
Hardware Used: 3x Small Bolts
Waterbox Cap
Base
PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents
list and hardware contents as listed on page of this manual. If any part is missing or damaged, do not attempt to
assemble this product. Contact customer service for replacement parts.
ESTIMATED ASSEMBLY TIME: 60 minutes
Tools Required for Assembly (NOT included):
Note: This heater has an Electronic Ignition and will require installation of 1 – AAA battery. The battery should be installed
by unscrewing the RED IGNITER BUTTON – battery not included.
Contact us for assistance: [e-mail] | [phone]

7
ASSEMBLY
3Attach the Lower Post Gto the Post Supports I. Once you have tightened the bolts holding the Post Supports I
to the Base J, align the holes in the Lower Post Gwith the
holes on the tops of the Post Supports and insert a Large
Bolt through the hole in the Post Support. Secure with a
Small Flange Nut . Repeat this in the 5 remaining holes (6
holes total—2 for each Post Support piece). Hand tighten
initially then tighten with the Wrench when all bolts
have been inserted.
Hardware Used: 6x Large Bolt
6x Small Flange Nut
4Attach Upper Post Fto Lower Post Gby screwing the two pieces of the post together.
Note: Bolts not needed to hold the posts in place.
5Slide Tank Housing Dover the assembled Upper/Lower Posts F/Gand down over the Post Supports I. Rest the
Tank Housing on the Base J.
6Attach to the top of the Head
Assembly C. Insert 1 through 1 Large Flat
Washer and into the hole on the top of the Head Assembly.
Tighten stud securely. Repeat with the other 2
Hardware Used:
3x Large Flat Washer
Contact us for assistance: [e-mail] | [phone]

ASSEMBLY

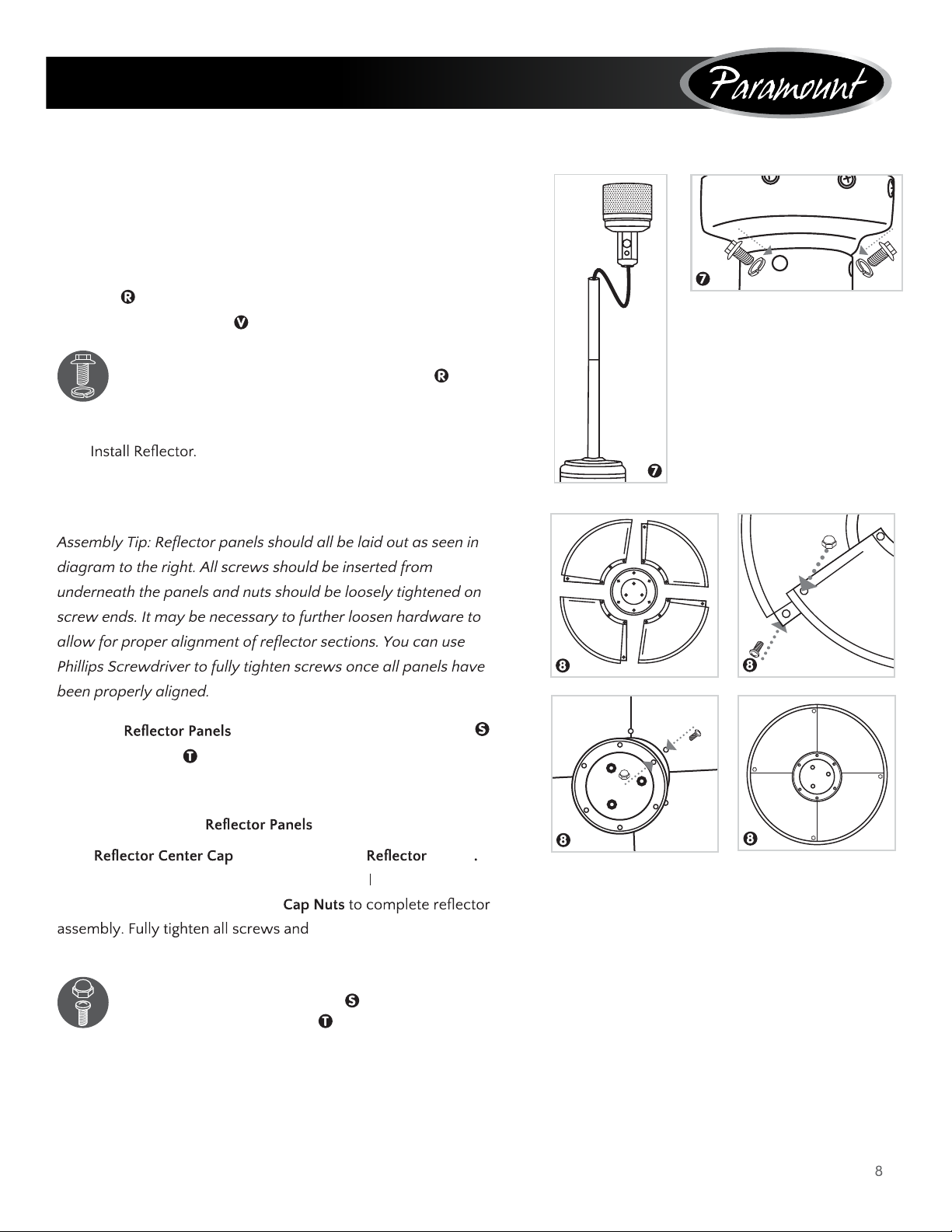

7Attach Head Assembly Cto Upper Post F. Route Gas Hose Edown into Upper/Lower Posts F/Gand
align 4 small holes on the Head Assembly Cwith 4 Small
holes in the Upper Post F. [HINT: Control knob should be
above decal on post.] Insert the 4 Small Bolts with Lock
Washers through the aligned 4 holes and tighten
securely with the Wrench .
Hardware Used: 4x Small Bolt w/Lock Washer
8NOTE: MAKE SURE TO REMOVE THE BLUE REFLECTOR TAPE ON REFLECTOR PIECES PRIOR TO
ASSEMBLY!
Slide two Atogether. Insert one Small Screw .
Screw on Cap Nut loosely.
Repeat with the other A.
Slide Bonto assembled Panels
Insert one Small Screw and screw on Cap Nut oosely. Repeat
with two more Small Screws and
cap nuts.
Hardware Used: 12x Small Screw
12x Cap Nut
Contact us for assistance: [e-mail] | [phone]

9
ASSEMBLY

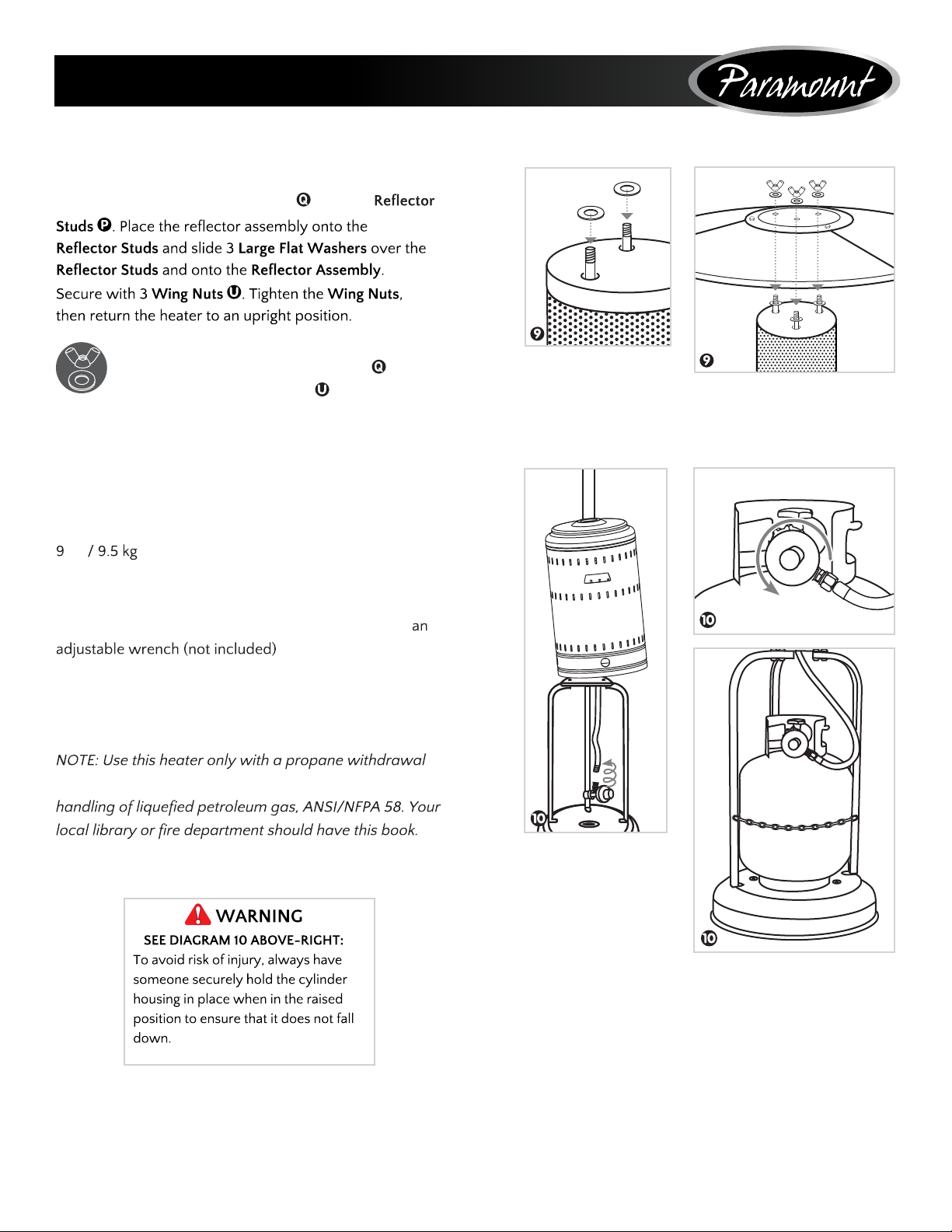

9While supporting heater, tilt the Head Assembly C
and slide 3 Large Flat Washers over the
Hardware Used: 6x Large Flat Washer
3x Wing Nut
10
Connect the hose and regulator to the LP cylinder.
The LP cylinder is sold separately. Use a standard
kg / 20 lb propane cylinder only. Lift the Tank
Housing Dup and rest it on the top of the assembled Post
Supports I. Screw Regulator Honto Gas Hose E. Do not
cross thread. Hand tighten securely then tighten with
. Attach the Regulator to the
valve on the LP cylinder and hand tighten securely. Place LP
tank onto base of heater. Secure the LPG tank by attaching the
Chain Lonto the post supports. Lower the Tank Housing.
supply
system. See chapter 5 of the standard for storage and
Contact us for assistance: [e-mail] | [phone]

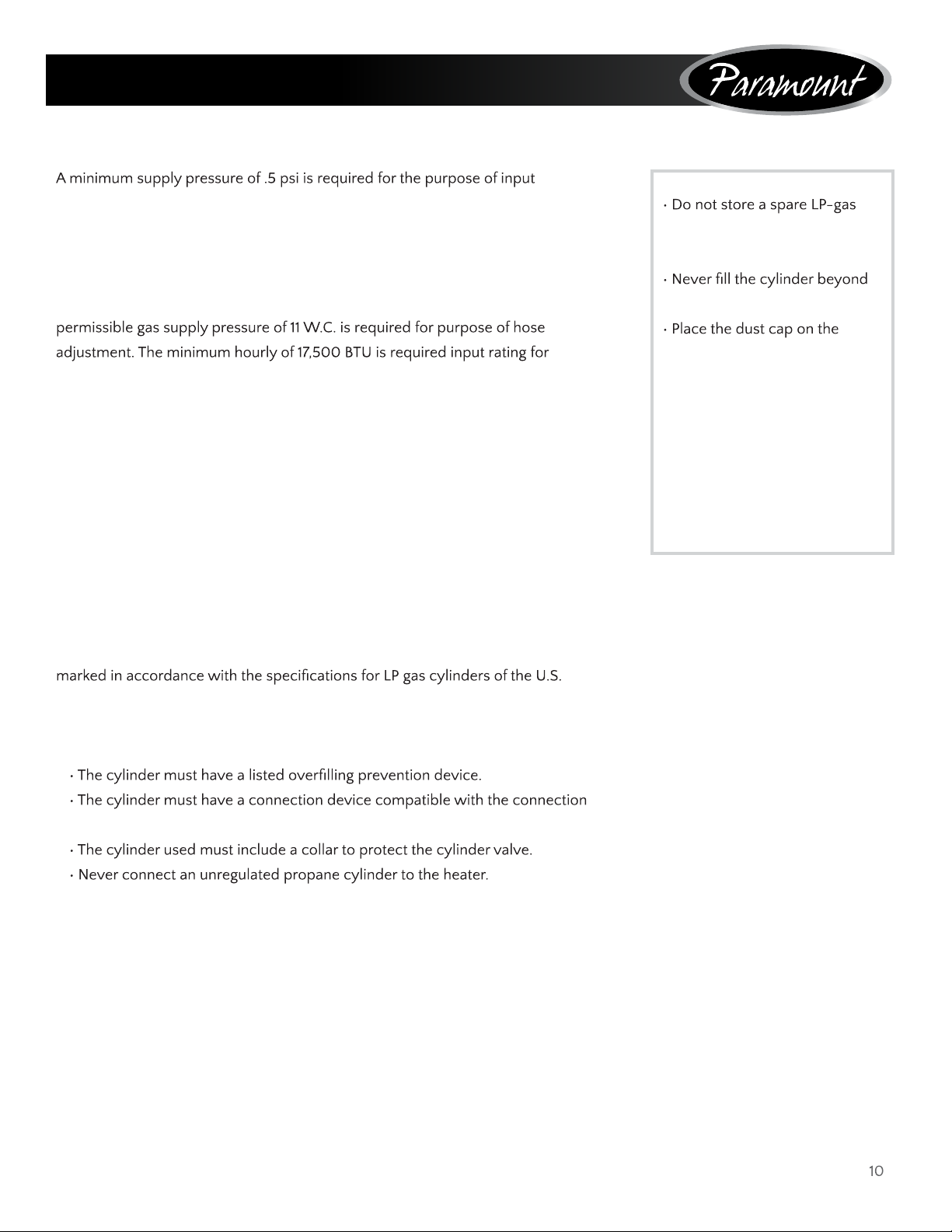

OPERATING INSTRUCTIONS
adjustment of propane gas. Storage of this patio heater indoors is permissible
only if the cylinder is disconnected and removed from the appliance. A cylinder
must be stored outdoors in a well-ventilated area out of the reach of children.
A disconnected cylinder must have dust caps tightly installed and must not
be stored in a building, garage, or any other enclosed area. The minimum
a heater for automatic operation rating less than full input rating.
The pressure regulator and hose assembly supplied with the appliance must
be used.
The installation must conform with local codes, or in the absence of local codes,
with national fuel gas code, ANSI Z223.1/NFPA54, natural gas and propane
Installation Code, CSA B149.1, or propane storage and handling code, B149.2
A dented rusted or damaged propane cylinder may be hazardous and should
be checked by your local cylinder supplier. Never use a propane cylinder with
a damaged valve connection. The propane cylinder must be constructed and
Department of Transportation (DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
for the appliance.
cylinder under or near this
appliance.
80 percent full.
cylinder valve outlet whenever
the cylinder is not in use. Only
install the type of dust cap
on the cylinder valve that is
provided with the cylinder
valve. Other types of caps or
plugs may result in leakage of
propane.
Contact us for assistance: [e-mail] | [phone]

LEAK TEST
1. Make 2-3 oz. of leak test solution
detergent and three parts water).
2. Apply several drops of solution
where hose attaches to regulator.
3. Apply several drops of solution
where regulator connects to cylinder.
4. Make sure all patio heater valves are OFF.
5. Turn cylinder valve ON.
IF BUBBLES APPEAR AT ANY CONNECTION, THERE IS A LEAK.
Turn cylinder valve OFF.
If leak is detected at hose/regulator connection, tighten connection and
perform another leak test. If bubbles continue to appear, our
customer service at .
If leak is detected at regulator/cylinder valve connection, disconnect,
reconnect, and perform another leak test. If you continue to see bubbles
after several attempts, cylinder valve is defective. C our customer
service at .
English & Spanish speaking.
IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS
ARE SECURE.
Note:
a complete leak test.
Caution: Do not attempt to operate this appliance until you have read and
understand all Safety Information in this manual and all assembly is complete
and leak tests have been performed.
OPERATING INSTRUCTIONS
WARNING
Perform all leak tests outdoors.
NEVER leak test whensmoking
Do not use heateruntil all connections
have been leak tested andshow no signs
of leakage.
BEFORE TURNING GAS SUPPLY ON:
1. Your heater was designed and
approved for OUTDOOR use
only. Do NOT use it inside a
building, garage, or any other
enclosed area.
2. Make sure surrounding areas are
free of combustible materials,
3. Ensure that there is no
obstruction to air ventilation. Be
sure all gas connections are tight
and there are no leaks.
4. Be sure the cylinder cover is
clear of debris. Be sure any
component removed during
assembly or servicing is
replaced and fastened prior
to starting.
BEFORE LIGHTING:
1. Heater should be thoroughly
inspected before each use, and
at least annually. If re-lighting a
hot heater, always wait at least
5 minutes.
2. Inspect the hose assembly for
evidence of excessive abrasion,
cuts, or wear. Suspected areas
should be leak tested. If the
hose leaks, it must be replaced
prior to operation. Only use the
replacement hose assembly
Contact us for assistance: [e-mail] | [phone]

OPERATING INSTRUCTIONS
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually
ignite this heater. Holdingin the control
knob for more than10 seconds before
upon ignition.
LIGHTING
NOTE:
minutes to purge air from all gas lines
before proceeding.
1. Turn the control knob to the “OFF”
position.
2. Fully open the LP cylinder valve.
3. Push in and turn the control knob
to HI.
4. While holding control knob in, push
the RED igniter button to ignite the
main burner.
knob counter clockwise towards LO.
knob clockwise to HI.
6. To turn the appliance OFF, push in the
control knob and turn clockwise to the
OFF position.
7. Wait at least 5 minutes before
attempting to re-light the heater.
8. Turn the gas cylinder valve to OFF
or closed.
If you experience any ignition
“Troubleshooting” on page 1 .
Caution: Avoid inhaling fumes
Smoke and odor from the burning
of oils used in the manufacturing
will appear. Both smoke and odor
will dissipate after approximately
30 minutes. The heater should
NOT produce thick black smoke.
WHEN HEATER IS ON:
Emitter screen will become bright
red due to intense heat. The color
is more visible at night. Burner will
display tongues of blue and yellow
be yellow or produce thick black
smoke, indicating an obstruction
yellow tops. If excessive yellow
and consult “Troubleshooting” on
page 1 .
RE-LIGHTING:
Note:
control knob and then rotating
1. Turn control knob to OFF.
2. Wait at least 5 minutes to
allow gas to dissipate before
re-lighting.
3. Repeat the “Lighting” steps
listed above.
PUSH &
HOLD
PUSH IN
TURN
PUSHING
IN BUTTON
WHILE
Contact us for assistance: [e-mail] | [phone]

OPERATING INSTRUCTIONS
WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with
OPERATION CHECKLIST:
For a safe and pleasurable heating experience, perform this check
before each use:
BEFORE OPERATING:
I amfamiliar with entire owner’s manual and understand all
precautions noted.
All components are properly assembled, intact and operable.
No alterations have been made.
All gas connections are secure and do not leak.
Wind velocity is below 10 mph.
Heater is for use outdoors (outside any enclosure).
Heater is away from windows, air intake openings,sprinklers and
other water sources.
Heater is at least 91.44 cm / 36 in on top and at least
on sides from combustible materials.
Heater is on a hard and level surface.
All burner passages are clear.
All aircirculation passages are clear.
Clothing or other protective material should not behung from the
heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater
must be replaced prior to operating the heater.
The heater should be inspected before each use and at least annually
OPERATION INFORMATION AND SAFETY:
surface
temperatures and should stay away to avoid burns or clothing ignition.
area of the heater.
imperative
that control compartment burner and circulating air passageways of the
heater be kept clean andfree of debris and/or spider or insect nests.
SHUT DOWN:
1. Turn control knob
clockwise to OFF while
depressing the knob.
(Normally, burner will
make a slight popping
noise when extinguished).
2. Turn cylinder valve
clockwise to OFF and
disconnect regulator
when heater is not in use.
NOTE:
discoloration of the
emitter screen is normal.
AFTER OPERATION:
1. Gas control knob is in
OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
4. Heater is stored upright
in a secure location.
Contact us for assistance: [e-mail] | [phone]

CARE AND MAINTENANCE
WARNING
FOR YOUR SAFETY
Do NOT touch or move heater for at least
45 minutes afteruse.
To enjoy years of outstanding performance from your heater, make sure you
perform the following maintenance activities on a regular basis:
KEEP EXTERIOR SURFACES CLEAN.
cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and
control compartment dry at all times. Do not submerge the control valve
assembly. If the gas control is submerged in water, do NOT use it. It must
be replaced.
air passageways clean. Signs of possible blockage include:
condition can damage heater and render it unsafe for use. Clean
burner holes by using a heavy-duty pipe cleaner. Compressed air
may help clear away smaller particles.
screen with warm soapy water if any carbon deposits develop.
Note:
and repair them promptly.
STORAGE:
Between uses:
sheltered from direct contact
with inclement weather (such
as rain, sleet, hail, snow, dust
and debris).
protect exterior surfaces and
to help prevent build-up in
air passages. Never leave LP
cylinder exposed to direct
sunlight or excessive heat.
(Cover not included.)
Note: Wait until heater is
cool before covering.
SERVICE:
should repair gas passages and
associated components.
Caution: Always allow heater to
cool before attempting service.
Contact us for assistance: [e-mail] | [phone]

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Main burner will
not light
Gas valve may be off Turn gas valve ON
Fuel tank may be empty
Air in supply system Purge air from lines. Open gas lines and depress control
knob for 2-3 minutes.
Loose connection
Igniter fails Use stick lighter to manually light
Gas pressure low with valve open full Replace cylinder or regulator
New cylinder or 1st ignition Purge air from lines
Replace hose/regulator assembly
AAA Battery behind igniter button
is dead Replace with a new AAA Battery
Pressure is low Replace LPG tank
Tank is low on fuel Fill LPG tank
Gas hose is kinked Check and straighten or replace
Burner unit
Clean components as needed
Thick black smoke Blockage in burner assembly—thoroughly clean burner
Contact us for assistance: [e-mail] | [phone]

16
REPLACEMENT PARTS LIST
PART DESCRIPTION QUANTITY
A4 packed in 2 inner cartons
B1
CHead Assembly 1 packed in 1 inner carton
DTank Housing 1
EGas Hose 1 attached to Head Assembly
FUpper Post 1
GLower Post 1
HRegulator 1 packed with Head Assembly
IPost Supports 3 packed in 1 inner carton
JBase with Pre-assembled
Waterbox 1
KWheel Assembly 1 packed with Head Assembly
LChain (Secures LPG Cylinder) 1 packed with Post Supports
A
B
C
D
EF
G
H
I
J
K
L
Questions, problems, missing or
replacement parts?
Before returning to your retailer, please contact our cus-
tomer service team.
Email us at [email protected]om or call toll free at
(800) 56-5550 Monday - Friday 7:30 a.m. - 4:00 p.m.,
PST or email us at [email protected]om
Contact us for assistance: [e-mail] | [phone]

IMPORTANT
For questions, concerns or problems with our product please
email our customer service department:
[email protected]
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
WARRANTY
This product is inspected, tested and carefully packaged to minimize
the chance of damage during shipment. If a part (excluding light
bulbs, glass and fuses*) within one year from the date of purchase
proves to be defective in material or fabrication under normal use,
the part will be repaired or replaced. The Company’s obligation under
the warranty is to replace or repair defective parts at our discretion.
Any expenses or damage resulting from the installation, removal or
transportation of the product will be the responsibility of the owner
and are not covered by this warranty. The owner assumes all other
risks arising from the use or misuse of the product. The warranty will
be void if the product damage or failure is deemed by the Company
to be caused by accident, alteration, misuse, abuse, incorrect
installation or removal, or connection to an incorrect power source
by the owner. The Company neither assumes, nor authorizes any
person or entity to assume for it any obligation or liability associated
with its products. Light bulbs and fuses are not covered under this
warranty. If you have any questions regarding the warranty or
service, please contact us at [email protected].
Customer Service :
JR Home Products
Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
Toll Free : 1-800-561-5550
E-mail : [email protected]
Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Registration can be completed online at
www.jrhome.com or by mailing this form.
Name / Nom :
Street / Adresse :
City / Ville :
Province / Province :
Postal Code / Code postal :
Daytime Phone # / No téléphone jour :
Evening Phone # / No téléphone soir :
E-Mail Address / Courriel :
Product/Produit :
Place of Purchase / Lieu de l’achat :
Date of Purchase / Date de l’achat :
Model # / No de modèle :
Serial # / Numéro de série :
You MUST register your product to receive
warranty service.
For warranty service, contact J&R Home
Products at the address, phone numbers listed
below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be
coordinated by
J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie.
Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Department, J&R Home Products Ltd. Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
You MUST register your product within 30 days of
purchase to receive warranty service.
Si vous éprouvez si vous avez des questions ou des
préoccupations, prière de faire parvenir un courriel à notre service à la clientèle
[email protected]
UNE PREUVE D’ACHAT DATÉE EST REQUISE POUR SE PRÉVALOIR DE LA GARANTIE.
AVERTISSEMENT
soigneusement
des verres,
s
demeurent
service,
contacter le service à la clientèle à : [email protected].
Service à la clientèle:
JR Home Products
Unit 306 - 19100 Airport Way, Pitt Meadows BC V3Y 0E2 Numéro
sans frais: 1-800-561-5550
Courriel: [email protected]
Vous DEVEZ enregistrer votre produit dans les 30 jours suivant l'achat
pour bénéficier du service de garantie.
L’enregistrement sera complet une fois que vous aurez postéce
formulaire ou que vous serez inscrit en ligne.
120920

No d’article PH-100002
No de modèle : 63049
Assoyez-vous, relaxez et restez au chaud.
Des questions, des problèmes, des pièces manquantes?
Avant de retourner l’appareil chez votre détaillant, appeler le service à la
clientèle Paramount du lundi au vendredi, de 7 h 30 à 16 h, HP, au
1-800-561-5550 ou écrire à customer[email protected]om
REMARQUE: Cet appareil
de chauffage utilise un a
llumage électronique et
nécessite l’installation
d’une pile AAA (non incluse).
+
_

AVANT DE COMMENCER
Interlocuteurs anglophones et
hispanophones.
Contactez-nous pour assistance: customercar[email protected] | [phone]

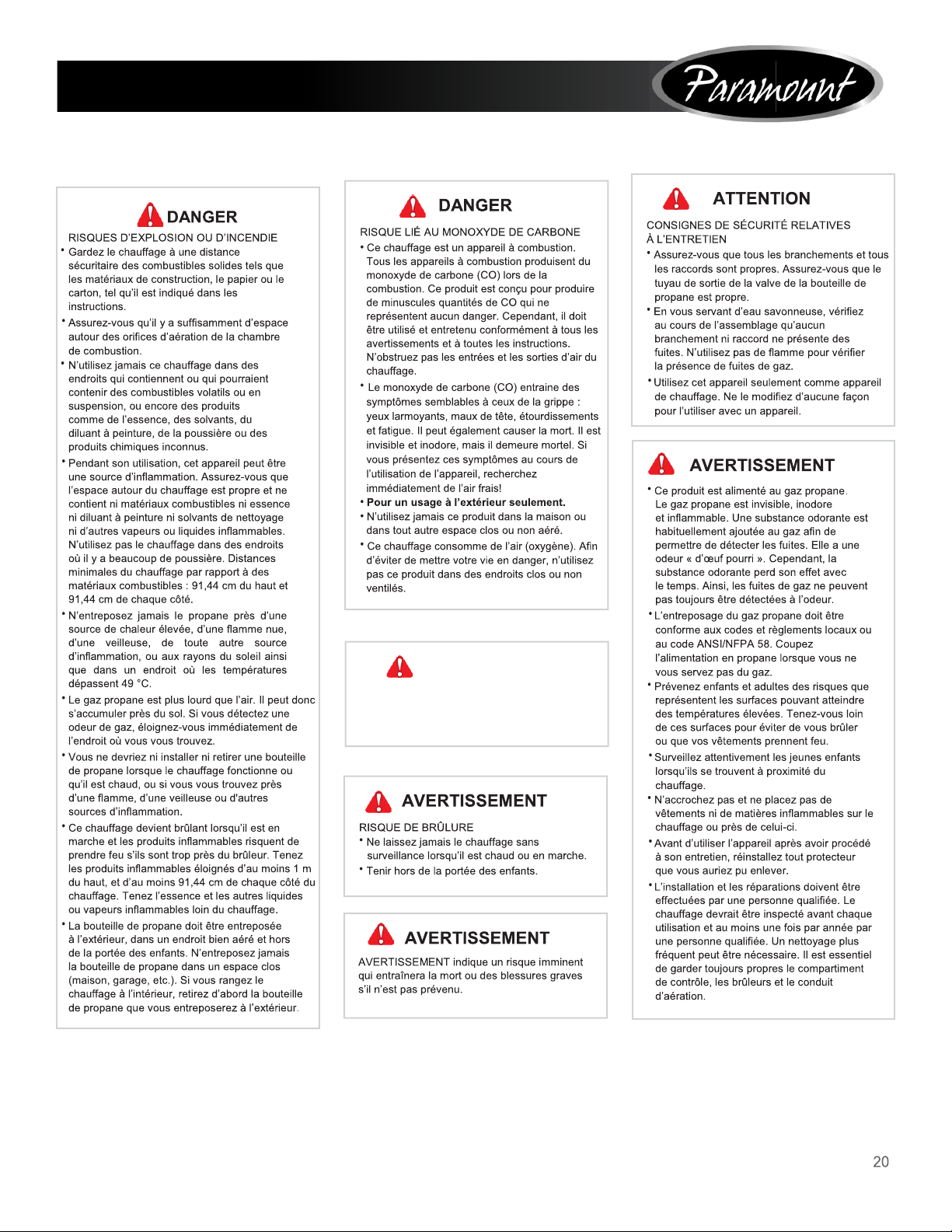

RENSEIGNEMENTS SUR LA SÉCURITÉ
AVERTISSEMENT
Certains matériaux ou objets placés sous le chauffage
pendant son ulisaon sont exposés à une chaleur
radiante et peuvent être considérablement
endommagés.
Contactez-nous pour assistance: customercar[email protected] | [phone]
