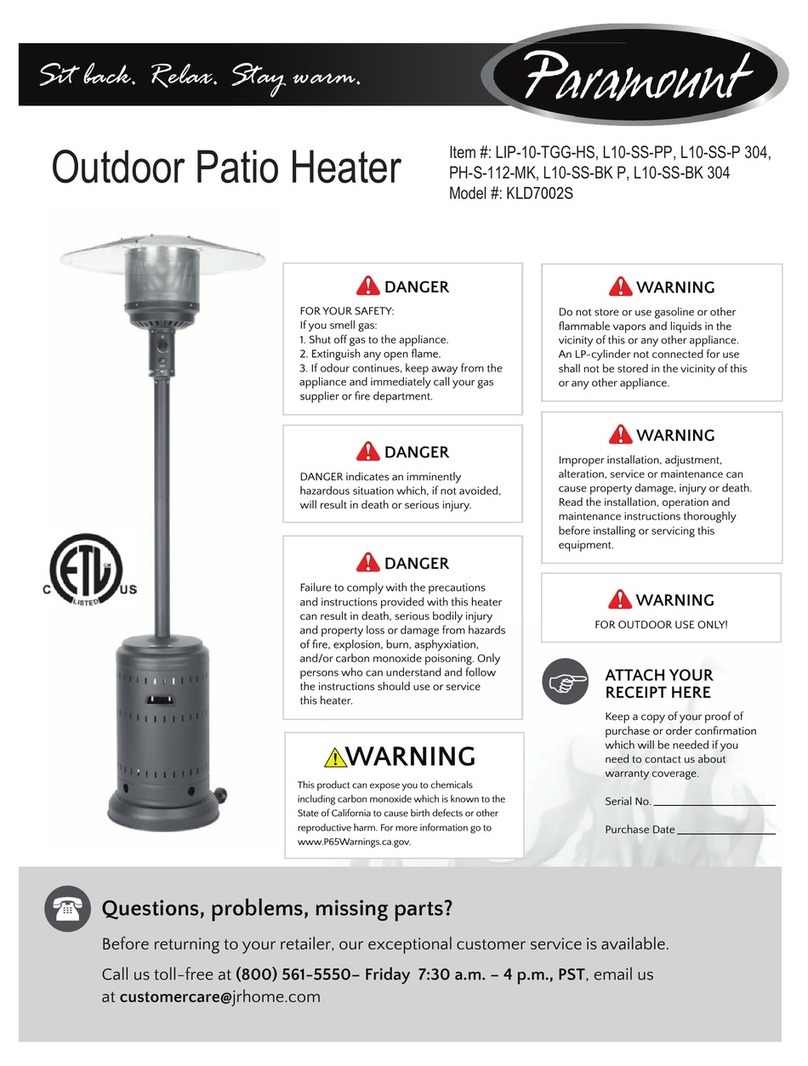

Paramount Fitness KLD7002S User manual

Model # KLD7002S,KLD7002SS
Item # LIP-10-TGG-HS,L10-SS-PP,
PATIO HEATER INSTRUCTION MANUAL
For customer service, parts
or warranty issues:
Call 1-800-561-5550 or e-mail
[email protected]
FOR OUTDOOR USE ONLY | USES PROPANE LPG ONLY
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
Made in China
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from
appliance and immediately call your gas
supplier or firedepartment
WARNING
Do not store or use gasoline or other
flammable vapours or liquids in the
vicinity of this or any other appliance.
An LP-Cylinder not connected for use
shall not be stored in the vicinity of this
or any other applience
NOTE: Please retain these instructions
for future use
WARNING: For outdoor use only
5000199
PH-S-112-MK,L10-SS-BK P

DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING :
For Outdoor Use Only
LPG Cylinders to be used must be constructed and
marked in accordance with US DOT specifications.
Storage of the heater indoors is permissible only
if the gas cylinder is turned off and removed.
N
The LP gas cylinder to be used must be provided
with a listed overfilling prevention device.
Do not store a spare LP-gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
The gas pressure regulator provided with this
appliance must be used. This regulator is set for
an outlet pressure of 11 inches water column.
OTE:
Use only 20lb LP-Gas tank with size of 18.1in
/ 46cm(Height)*12.5in / 32cm (Width).
Do not use if the environment temperature is
below 40 degrees F / 4.4 degrees C.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
Tools needed:
●Open end wrench 10 &
13mm (included)
NOT included:
●Adjustable opening wrench
8’’ long
●Philips screwdriver
w/ medium blade
●Spray bottle of soapy
solution for leak testing
Tools and parts needed for assembly
- 2 -

NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
PRECAUTIONS
This heater must only be used outdoors. Using this product in an enclosed area may
cause injury, death or property damage.
Only use in a well-ventilated space. Do not use in a building, garage, or any other
enclosed area.
Read the instructions before use. This heater must be installed in accordance
with local codes or, in the absences of local codes, with the National Fuel Code, ANSI
Z223.1. If applicable, the heater, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with The National
Electrical Code, ANSI/NFPA70.
Do not use the heater in an explosive atmosphere. Keep the heater away from areas
where gasoline or other flammable liquids or vapors are stored.
Prior to use, check for damaged parts such as hoses, regulators, or burner .
Turn off and disconnect LPG cylinder before moving the heater.
Do not attempt to alter this heater in any manner. EXAMPLE: Using the heater without
the top canopy reflector or radiant screen.
Do not shorten the burner post assembly.
Do not use this heater in basements or below ground level. It must always be placed on
a solid and level surface.
Always ensure there is ample fresh air ventilation. For outdoor use ONLY.
Never replace or substitute the regulator with any regulator other than the factory
suggested replacement.
Do not clean the heater with cleaners that are combustible or corrosive.
Do not paint radiant screen, control panel, or top canopy reflector.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
The LPG cylinder should be turned off when the heater is not in use.
At least once a year, the unit should be inspected for the presence of spiders, spider
webs or other insects.
- 3 -

be replaced prior to operating the heater.
Young children should be carefully superv
CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING
EXIST:
1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames.
2. The heater does not reach temperature.
3. The burner makes a popping noise during use (a slight popping noise is normal
when the burner is extinguished after using).
Children and adults should be aware of the hazards of high surface temperature,
and should stay away to avoid burns or clothing ignition.
ised when they are in the area of the heater.
Clothing or other flammable material should not be hung from the heater, or placed
on or near the heater.
Any guard or other protective device removed for servicing the heater must
Installation and repair should be done by a qualified service person. The heater should
be inspected before use and cleaning may be required at least once a year, or as
necessary. It is imperative that the control compartment, burner and circulating
passageways of the heater are kept clean.
Keep the heater area clear of combustible materials such as gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening of the LPG cylinder enclosure free and clear of debris.
Storage of a heater indoors is permissible only if the LPG cylinder is turned
off, disconnected and removed from the heater.
Cylinders must be stored outdoors in a well-ventilated area out of the reach
of children. Disconnected cylinders must have threaded valve plugs tightly
installed, and must not be stored in a building, garage or any other enclosed
area.
PRECAUTIONS
- 4 -

ASSEMBLY
- 5 -
1 Reflector 4 outer pcs and 1 center cap
1ylbmessAdaeH2
3 Gas Hose 1 pc (attached to head assembly)
4 Post Assembly 2 pcs
1rotalugeR5
1gnisuoHknaT6
1troppuStsoP7
scp3sgeLtroppuS8
9 1esaB
10 LPG Cylinder Holder 3
11 Anchoring Arms/Pins 3
12 Wheel Assembly 1 pc (hardware is pre-assembled
to wheel assembly)
M6 flange nut x 12pcs M8x16 washer x 6pcs
M6x12 screw x 10pcs
M4x10 screw x 4pcs
9

ATTACHING WHEEL ASSEMBLY
Step 1
1-1. Locate Wheel Assembly (17) and 2 nuts/bolts
contained in plastic bag with Wheel Assembly
(Fig. 1).
Step 2
2-1. Turn Base (15) so that holes for attachment of
Wheel Assembly are facing you (Fig. 2).
2-2. Align holes in Wheel Assembly (17) with
holes on Base (15) (Fig. 3).Insert bolts through both sets of holes
and secure nuts on end of bolt (Fig. 4).
Step 3
3-1. Wheel Assembly (17) should now be attached to Base (15)
as shown (Fig. 5).
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3 Fig. 4
Fig. 5
- 6 -

M6 Flange nut
3 - M8x12 screws,3 - M8 nuts
M8x45

8
ASSEMBLY
Attach the upper pole with the lower pole using 4 - M4x10mm screws

9
ASSEMBLY
4 5
412 12

10
ASSEMBLY
M8 x 16

Check for Leaks
Your patio heater has been checked at all factory connections for leaks, but
you should always check when you attach the LPG cylinder. To check for
leaks, following these instructions:
--Assemble all gas connections;
--Connect regulator assembly to the propane tank;
--Make sure the heater valve is turned OFF.
1) Make soapy solution by mixing 1 part liquid dish soap and 3 parts water.
2) Open the propane tank valve.
3) Spray of the soapy solution onto the
gas hose /regulator and regul ator/cylinder connection.
4) Inspect the connections and look for bubbles.
5) If no bubbles appear the connection is safe.
6) If bubbles appear, there is leakage. Close the propane tank valve, and
loosen and re-tighten this connection.
7) Check for leakage again.
ASSEMBLY
- 11 -

A. Lift the tank housing up above the LPG cylinder and rest it on the
If bubbles still appear, close the propane tank valve and contact your gas
supplier. If a leak is detected , DO NOT attempt to use the heater.
MAKE SURE to check all THREE connections between the cylinder and
gas line.
NOTE:
1) The cylinder must be provided with a shut off valve terminating in a LPG
supply cylinder valve outlet specified, as applicable, for connection NO 510
in the standard for compressed gas cylinder valve outlet and in let
connections, ANSI/CGA-v-1.
2) The cylinder supply system must be arranged for vapor withdrawal.
3) The cylinder used must include a collar to protect the cylinder valve.
Annually check operation:
support leg assembly.
B. Open the propane tank valve.
ASSEMBLY
- 12 -

C. Spoon several drops (or use squirt bottle) of the solution onto gas
hose connection and connection.
D. Inspect the connections and look for bubbles.
E. If no bubbles appear, the connection is safe.
F. If bubbles appear, there is a leak. Close the propane tank valve and loosen
and re-tighten this connection.
G. Check for leaks again.
H. If bubbles still appear, close the propane tank valve and call the gas
supplier. DO NOT attempt to use the heater.
WARNING:DO NOT attempt to operate heater until you have read
and understand all precautions. Failure to do so can result in serious
personal injury, death or property damage.
Before Turning Gas Supply ON.
Your heater was designed and approved for OUTDOOR USE ONLY.DO
NOT use it inside a building or any other enclosed area.
Make sure surrounding areas are free of combustible materials such as
gasoline and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or servicing is replaced
and fastened prior to starting.
Before Lighting
Heater should be thoroughly inspected before each use. Have a qualified
service person inspect the heater at least annually. If relighting a hot
heater, always wait at least 5 minutes.
OPERATION
ASSEMBLY
- 13 -

LIGHTING INSTRUCTIONS
TO TURN ON THE HEATER:
1. Turn the control knob “OFF” position.
2. Open gas valve fully.
3. Press and turn the control knob to
“HI” position (counterclockwise 90°).
Press down the control knob and hold for
3-5 seconds. While holding down the control knob,
press the igniter button several
times until the flame ignites.
Hold the knob about 30 seconds and then release.
Note: If the flame does not light or it goes out,
repeat Step 3 .
NOTE:
· If a new tank has just been connected, please
allow at least one minute or more for the air in
the gas pipeline to purge out through the
hole, or simply do Step 3.
· When lighting the flame make sure that the
variable control knob is continuously depressed
while pressing the igniter button. Variable
control knob can be released after the
flame has been lit for 20~30 seconds.
· Flame can be watched and checked from the
peephole located on the base of burner.
·If the flame does not light or it goes out,
repeat Step 3.
If the burner flame goes out accidentally or it is
blown out by wind, turn off the heater and wait
at least 5 minutes or more to let the gas
dissipate before relighting to avoid possible gas explosion.
Repeat steps 2 to 4.
TO TURN OFF THE HEATER.
1. Press and turn the control knob to “OFF” position.
2. Turn off the valve on the gas cylinder and
disconnect the cylinder.
WARNING
FOR YOUR SAFETY
If at any time you are
unable to light burner and
smell gas, wait 5 minutes
to allow gas to dissipate
before attempting to light
heater. If after 1 minute,
you are unable to light
burner, wait 5 minutes
and allow flammable
vapors to dissipate before
attempting to light heater
again.
OPERATION
- 14 -

CAUTON: Avoid inhaling fumes emitted from the heater’s first use.
Smoke and odor from the burning of oils used in manufacturing will
appear. Both smoke and odor will dissipate after approximately 30
minutes. The heater should not produce thick black smoke.
Note:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
“LO” position, then turn the knob to the level of heat desired.
Warning : White smoke may appear around the radiant
head during the first minutes of the initial burning.
When heater is ON:
Emitter screen will become bright red due to intense heat.
The color is more visible at night. Burner will display tongues
of blue flame. These flames should not be yellow or produce
thick black smoke, indicating an obstruction of airflow through
the burners. If the flame is very small, it indicates that
gass pressure is not enough.
Relighting the heater:
1) Turn the control knob to “OFF” position.
2) Wait five (5) minutes before attempting to relight flame.
3) Repeat steps beginning with step 2 on page 14.
Before leaving the heater unattended:
1) Turn the control knob to “OFF” position and turn LP
cylinder to “OFF” position.
2) Never leave the patio heater unattended while in use.
Shut down instructions
1) Push in and turn control knob clockwise to “OFF” position.
2) Turn LP tank gas valve clockwise to “OFF” position when
heater is not in use.
NOTE: After use, some discoloration of the emitter screen is
normal.
If you suspect gas leakage:
1) Turn the control knob to “OFF” position.
2) Turn LPG cylinder to “OFF” position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call your gas supplier.
Warning: Heater will be hot after use.
Handle with extreme care.
OPERATION
- 15 -

CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT UNDER
THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT
HEAT AND COULD BE SERIOUSLY DAMAGED.
This heater is to be used for the heating of outdoor patios, decks, spas,
pool, and open working areas. This heater is for OUTDOOR use ONLY.
Always make sure that adequate fresh air ventilation is provided and follow
the spacing tolerances shown in the picture below.
The minimum clearances must be maintained at all times.
This heater must be placed on level, firm ground.
Never operate in an explosive atmosphere. Keep away from areas
where gasoline or other flammable liquids or vapors are stored or used.
LOCATION OF HEATER WHILE IN USE
- 16 -
50” Ø33.5”
87”
50

CLEANING AND MAINTENANCE
To enjoy years of outstanding performance from your
heater, make sure you perform the following maintenance
on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While washing your heater, be sure to keep the area around the burner and assembly
dry at all times. If the gas control is exposed to water in any way, DO NOT try to use it.
It must be replaced.
Keep the heater area free and clean from combustible materials, gasoline or other
flammable vapors and liquids. Visually check burner flames.
Visually check the hose assembly inside the post and check for any cracks or worn sections.
1. Unscrew gas hose and regulator hose with 3/4’’ inch open end wrench and
adjustable wrench.
2. Unscrew the screws on pole, and take out the burner head assembly.
3. Check if there are any cracks or worn sections on hose. If yes, contact your gas
supplier to replace the hose.
4. At least once a year, the unit should be inspected for the presence of spiders,
spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean.
Signs of possible blockage include:
1. Gas odor with extreme yellow tipping of flame.
2. Heater does not reach the desired temperature.
3. Heater glow is excessively uneven.
4. Heater makes uneven popping noise.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage
heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner.
Compressed air may help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean hood and emitter with warm soapy water
if any carbon deposits develop.
MAINTENANCE
WARNING
FOR YOUR SAFETY
DO NOT touch or move
heater for at least 45
minutes after use.
Allow all burner elements
to cool before touching.
NOTE:
In a salt-air environment (such as near an ocean), corrosion occurs
more quickly than normal. If the heater is exposed to this type of
environment, you should frequently check for corroded areas and
repair them promptly.
BLUE LOW
HIGH
LOW
Incorrect flame
Correct flame
BLUE
YELLOW TIPS
- 17 -

Problem Cause solution
Burner will not light Pressure is low Fuel tank is near empty
Control valve not ON Turn valve to ON mode
Thermocouple bad Replace thermocouple
Light assembly bent
or not in correct location
Place in proper position
and retry
Burner flame is low The main gas house is
bent or twisted
Straighten hose and perform
leak test on hose
Blockage in burner
injector
Clean or replace burner
injector
Burner flame goes
off immediately
after ignition
Low gas pressure Let the flame stay lit for
10 minutes before setting
variable knob to “LO”
Emitter glows
unevenly
Blockage in burner
injector
Clean or replace burner
injector
Base is not on level
surface
Place heater in level surface
Low gas pressure
Refill the gas cylinder
Thick black smoke Blockage in burner Turn off the heater and let it
cool. Remove blockage and
clear burner inside and
outside.
Carbon build-up Dirt or film on reflector
and flame screen
Clean reflector and flame
screen
TROUBLESHOOTING
- 18 -

.
IMPORTANT
For questions, concerns or problems with our product please
email our customer service department:
[email protected] or call 1-800-561-5550.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please call our toll free number: 1-800-561-5550.
Customer Service
JR Home Products
Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
Toll Free: 1-800-561-5550
E-mail: [email protected]
Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Registration can be completed online at www.jrhome.com or by mailing this form.
Name / Nom:
Street / Adress:
City / Ville:
Province / Province:
Postal Code / Code postal:
Daytime Phone # / No téléphone jour:
Evening Phone # / No téléphone soir:
E-Mail Address / Courriel:
Product/Produit:
Place of Purchase / Lieu de l’achat:
Date of Purchase / Date de l’achat:
Model # / No de modèle:
Serial # / Numéro de série:
You MUST register your product to receive
warranty service.
For warranty service, contact J&R Home
Products at the address, phone numbers listed
below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be
coordinated by
J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie.
Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Department, J&R Home Products Ltd. Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
You MUST register your product to receive warranty service.
