Paramount Fitness YBT-VH01 User manual

FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, immediately
call gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapours or liquids
in the vicinity of this or any other
appliance.
For cus tomer service, parts
or warranty issues:
Call 1-800-561-5550
or e-mail [email protected]
Establishing a burner ignition for
the FIRST time or after changing
the cylinder tank may take up to
2-3 minutes in order for the gas
to purge through the feeder lines.
e-mail: [e-mail]
FOR OUTDOOR USE ONLY
PLEASE READ INSTRUCTIONSCAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR REFERENCE
WARNING: For outdoor use only.
INSTRUCTION MANUAL
Model#：YBT-VH01
Item#：PH-S-129-SS
1
OUTDOOR PATIO HEATER

Contents
Before You Begin
Security and Caution
Tools and accessories
Hardware Contents
Assembly
Operating Instructions
Care and Maintenance
Troubleshooting
Replacement Parts List
Warranty Information
Page 2
Page 2
Page 4
Page 5
Page 6
Page 6-10
Page 10-13
Page 13
Page 14
Page 15
Page 16
** WARNING **
Improper operation, installation, adjustment,
alteration, servicing or maintenance cause severe
property damage and /or serious damage and /or
serious injury or death. Please read the installation,
operating and maintenance instructions thoroughly
before installing, operating or servicing this
appliance.
** For Your Safety **
If you smell gas :
1. Shut off gas to appliance
2. Extinguish any open flame
** For Your Safety **
Do NOT store or use gasoline or other flammable
vapors in the vicinity of this or any other appliance.
** IMPORTANT NOTICE***
Do NOT return to place of purchase!!!
Please contact our Toll Free Hotline: [phone]
for customer service and warranty issues
e-mail: [email protected]
Hotline hours: Mon. to Fri. 7:00am - 4:00pm ( P.S.T.)
Establishing a burner ignition for the FIRST time or after
changing the cylinder tank may take up to 2-3 minutes
in order for the gas to purge through the feeder lines.
If stored indoors, detach and leave cylinder outdoors.
Keep this manual in your files for future refernce.
NOTE : 20 lb., 5 Gallon LPG tank is not included
TABLE OF CONTENTS
2
General Description Page 3

Water Column Diameter in mm
11’’ (2.75 Kpa) 1.9
This appliance is a propane portable heater.
The burner is controlled and adjusted by the gas control knob.
Gas supply is controlled by the valve on the gas cylinder.
The burner is made of stainless steel. Heat diffusion is assisted by the
reflector.
Technical specification:
** WARNING **
Improper operation, installation, adjustment,
alteration, servicing or maintenance can cause
severe property damage and/or serious damage
and/or serious injury or death. Please read the in-
stallation, operating and maintenance instructions
thoroughly before installing, operating or servic-
ing this appliance.
WARNING !
MADE IN TAIWAN
GENERAL DESCRIPTION
•Operating pressure : 11” W.C.
•Maximum output : 45,000 btu/h
•Minimum output : 25,000 btu/h
•Gas consumption at HIGH : 1kg/h
•Approx. weight : 27 kg
•Burner orifice size : 1.9 mm
3

FOR YOUR SAFETY
1. If you smell gas :
a Close gas supply at cylinder valve
b. Extinguish all open flames
c. Proceed to perform a leak test with a soapy water solution (50% soap/
50% water)
d If bubbles are detected, retighten connections. If no leaks are detected,
open gas valve at cylinder and verify if you smell gas.
e. If you still smell gas, shut-off heater completely and gas valve at cylinder
or contact a gas appliance service center
2. Never store or handle gas, or any other flammable vapors or liquids in the
vicinity of your Patio Heater or any gas appliance.
Faulty installation, modifications, repairs or maintenance to the appliance may
cause injury or damage to property, and will void the warranty.
Carefully read this User Guide before assembling and setting up the heater.
CAUTION
Keep this guide for future reference.
SECURITY AND CAUTION
4

TOOLS AND ACCESSORIES
*BEFORE ASSEMBLY : Remove the Reflector
Center Cap which comes packaged underneath
the heater Base and is protected by a styrofoam
insert.
5
CAUTION
PARTS LIST
1. reflector Center Cap
2. reflector Panels
3. Head Assembly
4. Burner Support
5. Tank Housing
6. Post/Post Support plate
7. Hose/Regulator
8. Post Supports
9. Base
10. Wheel Bracket
11. Wheel axle
12. Wheel
13. Grounding Brackets
14. Tank Chain
1
2
3
4
5
6
7
8
9
10
11
12
13
14
•DO NOT operate the heater in an explosive environment Keep this appliance away from areas where you
have stored gas or other vapors and flammable liquids.
•Before use verify that no parts are damaged, inspect gas hose.
•Never modify, this appliance in any way or it will void the warranty.
•Never use the heater without the reflector shield .
•Respect minimum clearance from combustibles top 36", sides 24".
•Always place heater on a leveled, stable and hard surface.
•Only use this heater outdoors.
•Never clean with abrasive, corrosive or flammable cleaners.
•Do not paint the heater or any of its parts.
•When fully assembled please perform a leak test, and every time you disconnect the hose, before lighting
up the heater.
•A leak test must be performed before operating the appliance. To perform a leak test, use a 50/50 mix of each
water and soap in a spray bottle.
•NEVER LEAK TEST with an open flame or while smoking.
•The gas cylinder must be closed at all times when not using the heater.
•Children and adults should be made aware of hot surfaces on the heater.
•Clothing and other accessories or objects are not to be hung or laid on the heater or near it to dry.
•Do not obstruct the ventilation opening on cylinder cover.
•Installation, maintenance and repair of this heater should always be performed by a qualified qas technician.
TOOLS AND EQUIPMENT REQUIRED
10 and 13mm wrench,
Philips screwdriver, medium blade
Leak test solution: MIX 50/50 water and soap
1Propane cylinder (not supplied), with QCC 1 valve

PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package
contents list and hardware contents as listed on page 5 of this manual. If any part is missing or damaged,
do not attempt to assemble this product. Contact customer service for replacement parts.
ESTIMATED ASSEMBLY TIME: 60 minutes
Tools Required for Assembly (NOT included):
Phillips screwdriver w/medium blade
Leak Detection Solution
Adjustable wrench (2) (Note: 10mm wrench or socket should fit M6 bolt; 13mm wrench or socket should fit M8
bolt.)
NOTE: This heater has an Electronic Ignition and will require installation of 1 – AAA battery. The battery should be installed
by unscrewing the RED IGNITER BUTTON.
6
TOOLS AND ACCESSORIES
are optional when consumers want to install
the heater on the ground w/o wheel kits
X3
B.
A.
The grounding kits as shown on the drawings
Before assembling heater，install
Wheel set first

7
ASSEMBLYAND INSTRUCTIONS
C.

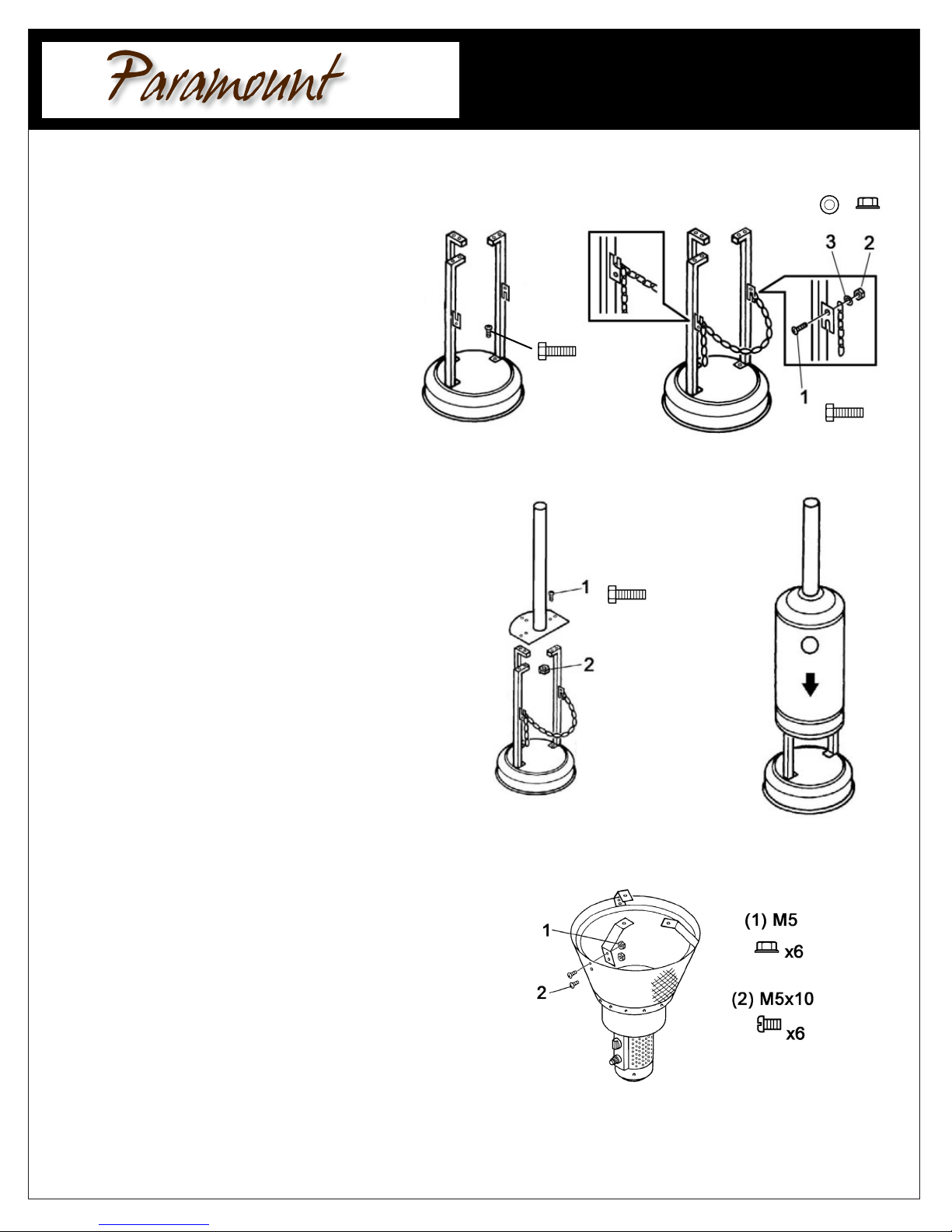

Fix 3 vertical support to the base
with 3 xM8*16 bolts.
D.
Fasten post to the vertical supports.
with 6 bolts M6 X 35 and 6 nuts M6.
And slide cylinder cover thru the post on
the base M6 x 35
x 6
x 1
M8x 16
x 3
x 1x 1
E.
Before assembling the burner head on
post, please fix the 3 supported brackets
onto burner head to assemble reflector

8
ASSEMBLY AND INSTRUCTIONS
F.
Slide hose through bottom of post and
connect to burner head, be sure it’s fixed
properly by wrench to avoid any gas leakage.
Then fasten burner on post with 4
bolts M6x10mm. Fasten it properly.
M6 x 10
x 4
G.
Sectional reflector ONLY
Assemble the reflector pieces to the
middle piece with wing nuts and bolts.
H.
Place a steel washer over each bolt on
the burner top
Lay reflector over the burner top bolts
add another steel washer to each bolt.

ASSEMBLY AND INSTRUCTIONS
I.

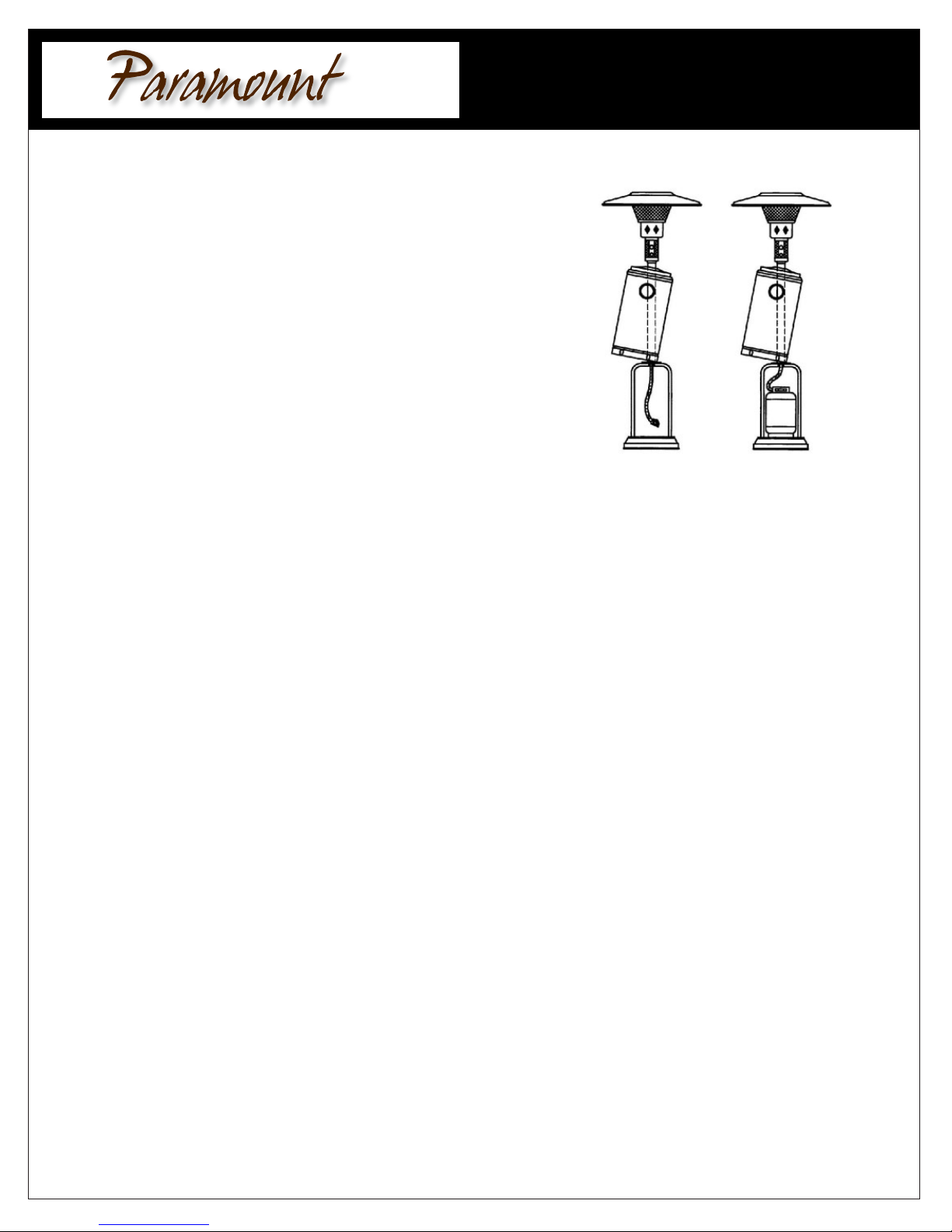

Install a full gas cylinder on the base.
Connect the gas regulator hose to the QCC1
Cylinder valve by turning the knob clockwise
manually.
Do not use a tool, tighten firmly by hand.
Replace cylinder cover.
LEAK TEST
Now that the heater is assembled, for your safety you must perform a leak test of all
connections and hoses.
Mix in a spray bottle equal parts of water and soap.
1. Ensure that the heater gas control knob is fully closed by turning completely clockwise
2. Open cylinder valve.
3. Apply generously the solution to all connections and hoses.
If you detect bubbles, there is a leak. Close cylinder valve completely. Retighten the
leaking connection and repeat leak test process.
If the leak cannot be repaired permanently, close cylinder valve completely and contact
the customer care department at [e-mail] or a qualified gas technician.
A SAFE LOCATION FOR THE HEATER
CAUTION
When objects are left under a heater in operation, they will be subject to radiant heat
and might be damaged.
This heater is approved for outdoor use only.
●Provide fresh air ventilation at all times
●Respect minimum clearances to combustibles 36” top, 24” side.
●Install heater on a level, solid and stable ground.
●Do not install in an explosive environment. Keep away from areas from where gas,
vapors or flammableliquids are stored or used.
●In case of high winds, completely shut-off the heater and the cylinder gas valve.
●Remove reflector dome.
●Do not move the heater when hot.
9

OPERATION
TO LIGHT：
1. From‘OFF’position, depress knob, turn 90° counter-clockwise and hold.
2. Press the igniter until flame is established.
3. Release the knob and check that the flame stays lit.
4. If the flame goes out, wait 5 minutes then repeat steps 1 & 2 above.
5. For maximum temperature, turn knob fully counter-clockwise.
TO TURN OFF：
1. Turn the knob clockwise tothe stop position.
2. Then depress knob and turn fully clockwise to completely
shut off the gas supply.
STORAGE
When heater is not in use for a prolonged period of time, remove
gas cylinder. Verify that the gas valve is closed tightly.
Do not store the gas cylinder indoors.
Store gas cylinder in a well ventilated area.
PREVENTIVE CARE AND MAINTENANCE
Once a year, the heater should be inspected for debris, insects, or spider webs that
could obstruct the burner. The burner area is likely to attract spiders. This may
damage the burner if it is not kept clean of debris.
HAVE HEATERINSPECTEDIF ……..
●You smell gas combined with yellow tipped flames on burner.
10
●Heater does not provide expected heat capacity.
●Burner makes little explosion sounds while operating.
This sound is normal when turning off the heater.
PRECAUTIONS
●Verify periodically for leaks in the system, or immediately when you smell gas.
●In case a leak is detected, put out all open flame in the area.
●Never leak test while smoking.
●If you cannot repair a leak, turn off gas supply at the cylinder valve and contact
a qualified technician.
●Do not alter or modify in any way.
●The installation of this appliance should be done by a certified gas technician in
accordance with all local, building and municipal codes.

FOR YOUR SAFETY
Be careful when attempting to manually
ignite this heater. Holding in the control
knob for more than 10 seconds before
igniting the gas may cause a ball of flame
upon ignition.
FOR YOUR SAFETY
Heater will be hot after use. Handle with
extreme care.
When heater is ON:
Emitter screen will become bright red due to intense heat. The color is more visible at
night. Burner will display tongues of blue and yellow flame. These flames should not be
yellow or produce thick black smoke, indicating an obstruction of airflow through the
burners. The flame should be blue with straight yellow tops. If excessive yellow flame is
detected, turn off heater and consult "Troubleshooting" on page 12.
OPERATIONS
11

TROUBLE SHOOTING GUIDE
If you are having this
problem If this condition exists: You will need to do the following:
Burner flame will
not stay on
1. Cylinder valve may be
OFF.
2. LPG tank empty
3. Orifice blocked
4. Loose connection
5. Thermocouple failed
6. Gas leak in line
7. Lack of fuel pressure
Open valve at cylinder. Turn cylinder
valve in counter-clockwise direction.
Burner flame
will not light
1. Pressure is low
2. Control not ON
3. Orifice blocked
Igniter does not work Electrode might have
accumulated black soot
Refill LPG tank
Clean Spider web or other blockage,
or replace orifice.
Check all fittings
Replace thermocouple
Refill fuel tank
Turn tank off. Wait 5 minutes.
Check fuel line connections.
Reinsert regulator tighten firmly
and re-try.
Tank is near empty
Turn valve to ON and push in.
Remove and clean out.
Light the burner manually or clean
the electrode, check wire
connections and re-try.
TROUBLE SHOOTING
** IMPORTANT NOTICE***
Do NOT return to place of purchase!!!
Please contact our Toll Free Hotline: [phone]
for customer service and warranty issues
e-mail: [email protected]
Hotline hours: Mon. to Fri. 7:00am - 4:00pm ( P.S.T.)
12

STORAGE AND MAINTENANCE
CUSTOMER SERVICE
ATTENTION :
Consumer ... Please use the customer information listed below for any questions concerning
assembly, care information, warranty issues and/or replacement parts.
To ensure your satisfaction and maintain high standards for quality and workmanship, we want to hear from
you should you have any questions or comments. You can contact : J&R Home Products at 1-800-561-5550
[email protected]4
Again, thank you for selecting our product line!
STORAGE & MAINTENANCE
STORAGE :
During the season :
Control knob must be in OFF position
Propane cylinder valve must be closed completely
Patio heater must be upright and sheltered from any harsh weather conditions (i.e. strong winds, rain, heavy
mist, snow, dust & debris)
Control knob must be in OFF position
Disconnect LPG cylinder and store in a well ventilated OUTDOOR area where the temperature will not ex-
ceed 125 degrees F.
Appliance should be upright and sheltered from outside weather conditions (i.e. rain, snow, hail, winds, dust,
debris).
It is recommended that the ‘’head components’’ be wrapped or covered to protect against debris, dust and
insects clogging air and gas passageways. Suggestion : use a poly trash can liner or polytarp material.
MAINTENANCE :
Outside metal surface – Clean with warm soapy water and soft rags or paper towels. Do NOT use abrasive or
corrosive cleaning agents. Be careful NOT to wet the burner or pilot ignition assemblies. Do NOT spray water
or cleaning agents directly onto head components as severe damage may result.
Possible signs of obstructed air and gas passageways :
Heat glow on head component is very UNEVEN1.
2.
Heating output (BTU) is noticeably reduced3.
Crackling or popping noises coming from heating components4.
NOTE : Locations near the ocean or saltwater will require more maintenance and frequent checking of components.
13

.
IMPORTANT
For questions, concerns or problems with our product please
email our customer service department:
[email protected]
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please contact us at [email protected].
Customer Service:
JR Home Products
Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
Toll Free: 1-800-561-5550
E-mail: [email protected]
Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Registration can be completed online at www.jrhome.com or by mailing this form.
Name / Nom:
Street / Adress:
City / Ville:
Province / Province:
Postal Code / Code postal:
Daytime Phone # / No téléphone jour:
Evening Phone # / No téléphone soir:
E-Mail Address / Courriel:
Product/Produit:
Place of Purchase / Lieu de l’achat:
Date of Purchase / Date de l’achat:
Model # / No de modèle:
Serial # / Numéro de série:
You MUST register your product to receive
warranty service.
For warranty service, contact J&R Home
Products at the address, phone numbers listed
below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be
coordinated by
J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie.
Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Department, J&R Home Products Ltd. Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
You MUST register your product to receive warranty service.
14
