Paramount Fitness LIP-09A-TGG User manual

FLAME HEATER
PATIO HEATER INSTRUCTION MANUAL
Model no. LIP-09A-TGG
For cus tomer service, parts
or warranty issues:
Call 1-800-561-5550
or e-mail [email protected]
Item no. PH-F-116-MK
WARNING
HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF
INSTRUCTIONS ARE IGNORED.
It is the consumer’s responsibility to see that the
patio heater is properly assembled, installed, and
taken care of. Failure to follow instructions in this
manual could result in bodily injury and/or
property damage.
PRECAUTIONS
vapours and liquids in the vicinity of this or any
other appliance.
•Any LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance
FOR YOUR SAFETY IF YOU SMELL GAS:
1.T
3.Do not operate any electrical appliances
4.Ventilate the area.
5.Check for leaks as detailed in this manual.
6.If odour persists, contact your dealer or gas
supplier immediately.
!
!
FOR OUTDFOOR USE ONLY | USES PROPANE LPG ONLY
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR REFERENCE

- 2 -

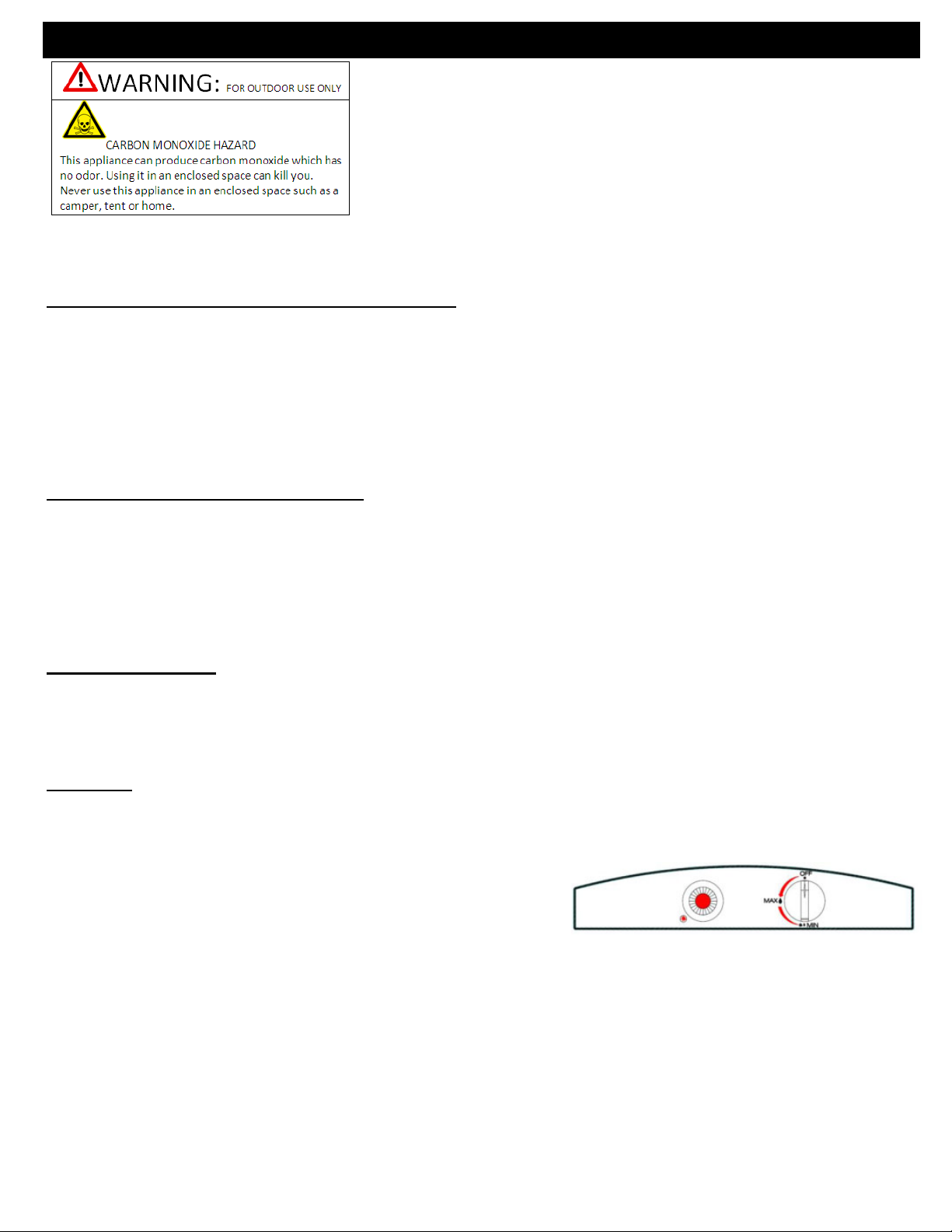

DANGERCARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
WARNING :
For Outdoor Use Only
LPG Cylinders to be used must be constructed and
marked in accordance with US/CA DOT specifications.
Storage of the heater indoors is permissible only
if the gas cylinder is turned off and removed.
NOTE:
Use only 20lb LP-Gas tank with size of
18.1in / 46cm(Height)*12.5in / 32cm
(Width).
Do not use if the environment temperature
is below 40 degrees F / 4.4 degrees C.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
Tools needed:
●Open end wrench 10 & 13mm
(included)
NOT included:
●Adjustable opening wrench 8’’
long
●Philips screwdriver w/ medium
blade
●Spray bottle of soapy solution
for leak testing
TOOLS AND PARTS NEEDED FOR ASSEMBLY

-3 -
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
This heater must only be used outdoors. Using this product in an enclosed area may
cause injury, death or property damage.
Only use in a well-ventilated space. Do not use in a building, garage, or any other
enclosed area.
Read the instructions before use. This heater must be installed in accordance
with local codes or, in the absences of local codes, with the National Fuel Code, ANSI
Z223.1. If applicable, the heater, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with The National
Electrical Code, ANSI/NFPA70.
Do not use the heater in an explosive atmosphere. Keep the heater away from areas
where gasoline or other flammable liquids or vapors are stored.
Prior to use, check for damaged parts such as hoses, regulators, pilot or burner.
Turn off and disconnect LPG cylinder before moving the heater.
Do not attempt to alter this heater in any manner. EXAMPLE: Using the heater
without the top canopy reflector or radiant screen.
Do not use this heater in basements or below ground level. It must always be placed
on a solid and level surface.
Always ensure there is ample fresh air ventilation. For outdoor use ONLY.
Never replace or substitute the regulator with any regulator other than the factory
suggested replacement.
Do not clean the heater with cleaners that are combustible or corrosive.
Do not paint radiant screen, control panel, or top canopy reflector.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
The LPG cylinder should be turned off when the heater is not in use.
At least once a year, the unit should be inspected for the presence of spiders, spider
webs or other insects.
PRECAUTIONS

-4 -
CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING
EXIST:
1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames.
2. The heater does not reach temperature.
3. The burner makes a popping noise during use (a slight popping noise is normal when
the burner is extinguished after using).
Children and adults should be aware of the hazards of high surface temperature, and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable material should not be hung from the heater, or placed on
or near the heater.
Any guard or other protective device removed for servicing the heater must be
replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should
be inspected before use and cleaning may be required at least once a year, or as
necessary. It is imperative that the control compartment, burner and circulating
passageways of the heater are kept clean.
Keep the heater area clear of combustible materials such as gasoline and other flammable
vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening of the LPG cylinder enclosure free and clear of debris.
Storage of a heater indoors is permissible only if the LPG cylinder is turned off,
disconnected and removed from the heater.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of
children. Disconnected cylinders must have threaded valve plugs tightly installed,
and must not be stored in a building, garage or any other enclosed area.
。
PRECAUTIONS

5
PACKAGE CONTENTS
ASSEMBLY
PART DESCRIPTION QTY
LTop Cap 1
AReflector 1
BEmitter 1
CUpper Supports 4
DLower Supports 4
EMesh Guards 8
F
Glass Tube
Connector 1
GGlass Tube 2 pcs
HBurner 1
I
*Tank Housing/Base
Assembly (with
wheels)
1
J
Regulator/Hose
assembly 1
KCylinder Holder 1
L
A
B
C
D
E
F
G
H
I
J
K

6
PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package
contents list and hardware contents as listed on pages 2 and 3 of this manual. If any part is missing or damaged,
do not attempt to assemble this product. Contact customer service for replacement parts.
ESTIMATE D ASSEMBLY TIME : 60 minutes
Tools Required for Assembly (NOT included):
Phillips screwdriver w/medium blade
Leak Test Solution
Adjustable wrench - Note : 14mm wrench or socket should fit M8 nut.
NOTE: This heater has an Electronic Ignition and will require the installation of 1 - AAA battery. The battery
should be installed by unscrewing the RED IGNITER BUTTON .
HARDWARE CONTENTS
ASSEMBLY
ASSEMBLY
INCLUDED IN PLASTIC BAG
WITH INSTRUCTION MANUAL

7

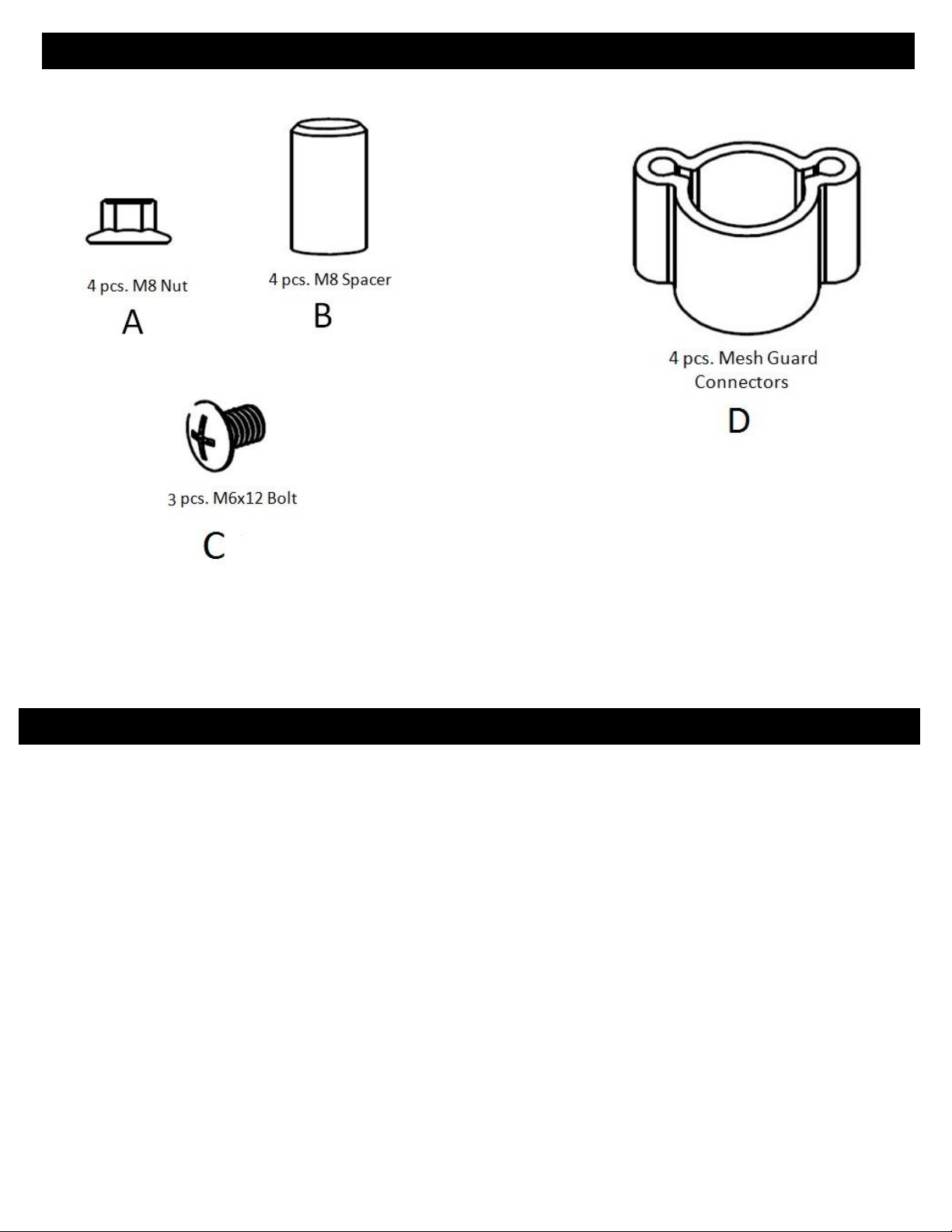

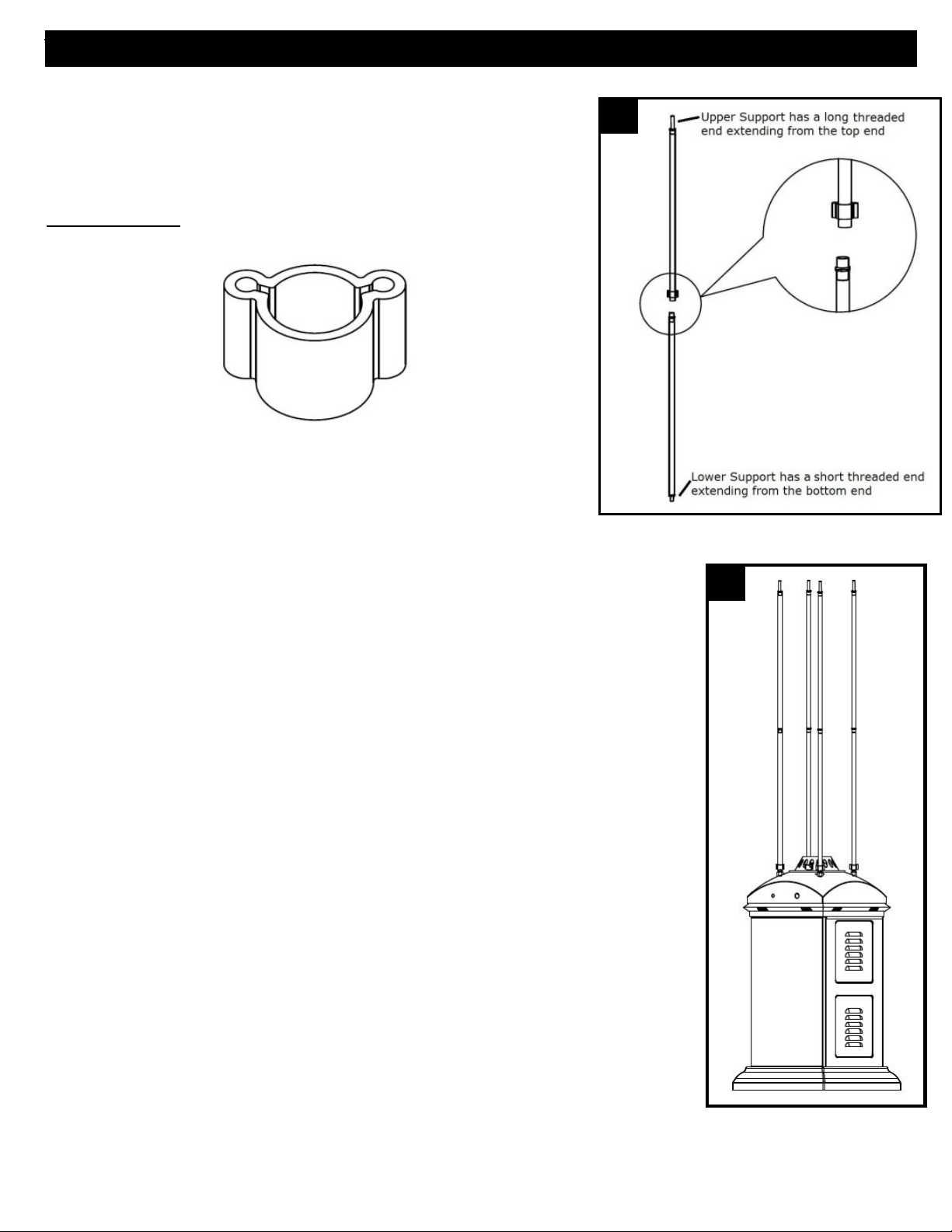

1. Locate 4 pieces of Upper Supports and 4 pieces of Lower Supports.
Slide 1 - Mesh Guard Connector over bottom end of Upper Support,
then screw Upper Support onto Lower Support (Note: Mesh Guard
Connector will remain loose and able to slide on the supports.)
Repeat with remaining Upper and Lower Supports and Mesh Guard
Connectors until you have 4 assembled Supports.
Hardware Used: 4 x D, Mesh Guard Connector
2. Attach the assembled Supports to the Tank Housing/Base Assembly.
Screw the assembled Supports into the holes located on the top of the
Tank Housing/Base Assembly Note: Make sure to use the short threaded end
located on the bottom of the Lower Support for attaching the Supports to the
Tank Housing/Base Assembly. The long threaded end on the Upper Support will be
needed to allow for attachment of Emitter and Reflector. (Mesh Guard Connectors
should rest on the top of Tank Housing after you attach the Supports to the Tank.)
ASSEMBLY
1
2

8
3.Fit the Emitter (B) down over the threaded end of the assembled Supports by
lining up the holes in the corners of the Emitter with the Supports and sliding
the Emitter down over the Supports.
4. Secure the Emitter to the Supports using 4 pieces of B - M8 Spacer.
Tighten with an open end wrench.
Hardware Used: 4 x B, M8 Spacer
ASSEMBLY
3
4

9
5. Attach Reflector (A) to top of Supports. Align holes in bottom of
Reflector with Supports and slide Reflector down over Supports.
6. Secure Reflector to Supports with 4 pieces A - M8 Nut.
Tighten with an open end wrench.
Hardware Used : 4 x A, M8 Nut
8. Assemble Glass Tube. Locate Glass Tube Connector (F) and
7. Place Top Cap (L) into Reflector.
two pieces of Glass Tube (G). Carefully insert one end of Glass
Tube Connector into open end of Glass Tube and then repeat with
other Glass Tube.
9. Insert Glass Tube into Emitter and Tank Housing/Base
Assembly. Carefully insert assembled Glass Tube into end
of Emitter and then into hole on top of the Tank Housing/Base
Assembly.
ASSEMBLY
5
6
8
7
9

10
10. Attach Mesh Guards to Supports.
Hint: It is best to begin with bottom pieces of Mesh
Guards.
Locate one Mesh Guard. Slide the Mesh Guard
Connectors up the Support and hold them in the
center of the Support. Then insert the longer tabs at
the bottom of the Mesh Guard into the holes on Tank
Housing/Base. Insert the shorter tabs at the top of the
Mesh Guard into the holes on the Mesh Guard
Connector. Repeat with three more Mesh Guards on
lower row. Attach upper Mesh Guards by inserting
longer tabs at the top of the Mesh Guard through the
holes in Emitter and slide the tabs on the bottom end
of the upper Mesh Guard into holes in the Mesh Guard
Connectors. Then secure the Mesh Guard by inserting
the top rung into the fastener piece pre-assembled on
the Emitter (see Fig A).
11.Before placing LP tank onto base of heater, attach Cylinder Holder (K)
to base using 3 pieces of M6x12 Bolts.
Hardware Used : 3 x C, M6x12 Bolt
Connect the Regulator/Hose assembly to the LPG cylinder. The LPG cylinder is
sold separately. Use a standard 20 lb. LPG cylinder only. Screw the
Regulator/Hose assembly to the LPG cylinder. Do not cross thread. Hand tighten
securely. Then attach the Regulator/Hose assembly to the end of the hose
that extends from the Burner. Do not cross thread. Hand tighten securely then
tighten with a wrench. Place LPG tank into the Cylinder Holders and tighten the
screws in the Cylinder Holders to secure LPG tank on base.
NOTE : Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for
storage and handling of liquefied petroleum gas, ANSI/NFPA 58. Your local library or fire department should have
this book.
ASSEMBLY
11
10
Fig. A

11
A minimum supply pressure of .5 psi is required for the purpose of input adjustment of propane gas. Storage of
an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A
cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder
must have dust caps tightly installed and must not be stored in a building, garage, or any other enclosed area.
The minimum permissible gas supply pressure of 11 W.C. is required for purpose of hose adjustment. The
minimum hourly of 17,500 BTU is required input rating for a heater for automatic operation rating less than full
input rating.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in the absence of local codes, with national fuel gas code, ANSI
Z223.1/NFPA54, natural gas and propane Installation Code, CSA B149.1, or propane storage and handling code,
B149.2
A dented rusted or damaged propane cylinder may be hazardous and should be checked by your local cylinder
supplier. Never use a propane cylinder with a damaged valve connection.
The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders
of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubes for
transportation of dangerous goods and commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention device.
The cylinder must have a connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve. Never connect an unregulated propane
cylinder to the heater.
Leak Test
1. Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all patio heater valves are OFF.
5. Turn cylinder valve ON.
IF BUBBLES APPEAR AT ANY CONNECTION, THERE IS A LEAK.
1. Turn cylinder valve OFF.
2. If leak is detected at hose/regulator connection, tighten connection and perform another leak test. If bubbles
continue to appear, call our customer service hotline at 1-866-985-7877, 9 a.m. –6 p.m., EST, Monday –
Friday.
3. If leak is detected at regulator/cylinder valve connection, disconnect, reconnect, and perform another leak
test. If you continue to see bubbles after several attempts, cylinder valve is defective. Call our customer service
hotline at 1-866-985-7877, 9 a.m. –6 p.m., EST, Monday –Friday
IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE. Note: Whenever
gas connections are loosened or removed, you must perform a complete leak check.
OPERATING INSTRUCTIONS
Do not store a spare LP-gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
Place the dust cap on the cylinder valve outlet whenever the cylinder
is not in use. Only install the type of dust cap on the cylinder valve
that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.

12
Caution: Do not attempt to operate this appliance until you have read and understand all Safety Information in
this manual and all assembly is complete and leak checks have been performed.
WARNING CONCERNING THE GLASS TUBE:
●NEVER use this heater when it is raining. The glass tube will break when it comes in contact with water.
●NEVER splash any liquid on the glass tube while the heater is in operation.
●The glass tube will be extremely hot when the heater is in operation. NEVER try to touch the glass tube or allow
children near the glass tube while the heater is in operation. Wait until the heater has cooled completely.
●Always ensure the heater is on firm, level ground. The glass tube will break if the heater falls and hits objects
or the ground.
●Always inspect the glass tube before each use of the heater and NEVER use the heater is the glass tube has a
chip or crack. The glass tube MUST be replaced before use if it has been damaged.
Before Turning Gas Supply ON:
1. Your heater was designed and approved for OUTDOOR use only. Do NOT use it inside a building, garage, or
any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other flammable vapors or
liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no
leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or servicing is
replaced and fastened prior to starting.
Before Lighting:
1. Heater should be thoroughly inspected before each use, and by a qualified service person at least annually. If
re-lighting a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak
tested. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly
specified by the manufacturer.
Lighting:
NOTE: For initial start or after any cylinder change, hold the control knob in for 2 minutes to purge air from all
gas lines before proceeding. NOTE: This heater has an Electronic Ignition and will require installation of 1 - AAA
battery. The battery should be installed by unscrewing the RED IGNITER BUTTON.
1. Turn the control knob to the “OFF” position.
2. Fully open the LP cylinder valve.
3. Turn the control knob counterclockwise to
small flame symbol (MIN).
4. Push control knob in and then push the RED igniter button to
ignite the main burner. Repeat until the burner ignites. Keep the control knob fully
pushed in for an additional 10-20 seconds after the burner ignites, then
release the control knob.
5. To increase the flame, turn the control knob clockwise toward the large
flame symbol (MAX). To decrease the flame, turn the control knob counter
clockwise towards the small flame symbol (MIN).
6. To turn the appliance OFF, turn the control knob clockwise to the OFF position.
7. Wait at least 5 minutes before attempting to re-light the heater.
8. Turn the gas cylinder valve to OFF or closed.
If you experience any ignition problems, please consult “Troubleshooting” on page 15.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning
of oils used in the manufacturing will appear. Both smoke and odor will dissipate after approximately
30 minutes. The heater should NOT produce thick black smoke.
OPERATING INSTRUCTIONS

13
When Heater is ON:
Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will display
tongues of blue and yellow flame. These flames should not be yellow or produce thick black smoke, indicating an
obstruction of airflow through the burners. The flame should be blue with straight yellow tops. If excessive yellow
flame is detected, turn off heater and consult “Troubleshooting” on page 15.
Re-Lighting:
1. Turn control knob to OFF.
2. Wait at least 5 minutes to allow gas to dissipate before re-lighting.
3. Repeat the “Lighting” steps listed on page 12.
Shut Down:
1. Turn control knob clockwise to OFF while depressing the knob.
(Normally, burner will make a slight popping noise when extinguished).
2. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
NOTE: After use, some discoloration of the emitter screen is normal.
Operation Checklist:
For a safe and pleasurable heating experience, perform this check before each use:
Before Operating:
1. I am familiar with entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40 degrees F.
7. Heater is for use outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Heater is away from gasoline or other flammable liquids or vapors.
10. Heater is away from windows, air intake openings, sprinklers and other water sources.
11. Heater is at least 36 in. on top and at least 24 in. on sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spider or insect nests in heater orifices.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the heater.
18. Clothing or other protective material should not be hung from the heater, or placed on or near the heater.
19. Any guard or other protective device removed for servicing the heater must be replaced prior to operating
the heater.
20. Installation and repair should be done by a qualified service person. The heater should be inspected before
each use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment burner and
circulating air passageways of the heater be kept clean and free of debris and/or spider or insect nests.
OPERATING INSTRUCTIONS

14
After Operation:
1. Gas control knob is in OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
1. Use soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and control compartment dry at all times.
Do not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be
replaced.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noise.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and burner screen with warm soapy water if any
carbon deposits develop. Always be careful when cleaning the glass tube.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently
check for corroded areas and repair them promptly.
Storage:
Between uses:
Turn control knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages. Never
leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until heater is completely cool before covering.
Service:
Only a qualified service person should repair gas passages and associated components.
Caution: Always allow heater to cool before attempting service.
CARE AND MAINTENANCE

15
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
Main burner will
not light
Gas valve may be off
Turn gas valve ON
Fuel tank may be empty
Refill LPG tank
Orifice blocked
Clean or replace orifice
Air in supply system
Purge air from lines. Open gas
lines and depress control knob
for 2-3 mins.
Loose connection
Check all fittings
Igniter fails
Use stick lighter to manually
light
Gas pressure low withvalve
open full
Replace cylinder or regulator
New cylinder or 1st ignition
Purge air from lines
Cylinder valve on, no gas
flow
Replace hose/regulator
assembly
AAA Battery behind igniter
button is dead
Replace with a new AAA Battery
Low burner flame
Pressure is low
Replace LPG tank
Tank is low on fuel
Fill LPG tank
Gas hose is kinked
Check & straighten or replace
Control knob at max
Check for obstruction at
passageways and orifices
Burner unit
Carbon on reflector &
emitter screen
Clean components as needed
Thick black smoke
Blockage in burner
assembly--thoroughly clean
burner

.
IMPORTANT
For questions, concerns or problems with our product please
email our customer service department:
[email protected] or call 1-800-561-5550.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please call our toll free number: 1-800-561-5550.
Customer Service
JR Home Products
Unit 1 - 5628 Riverbend Drive, Burnaby BC, V3N 0C1
Toll Free: 1-800-561-5550
E-mail: [email protected]
Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Registration can be completed online at www.jrhome.com or by mailing this form.
Name / Nom:
Street / Adress:
City / Ville:
Province / Province:
Postal Code / Code postal:
Daytime Phone # / No téléphone jour:
Evening Phone # / No téléphone soir:
E-Mail Address / Courriel:
Product/Produit:
Place of Purchase / Lieu de l’achat:
Date of Purchase / Date de l’achat:
Model # / No de modèle:
Serial # / Numéro de série:
You MUST register your product to receive
warranty service.
For warranty service, contact J&R Home
Products at the address, phone numbers listed
below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be
coordinated by
J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie.
Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Department, J&R Home Products Ltd. Unit 1 - 5628 Riverbend Drive, Burnaby BC, V3N 0C1 1.800.561.5550
You MUST register your product to receive warranty service.
