Parker 140R Series User manual

‘41114111111.111 •11.mar
(140R with optional metal bowl)
140R Series
Rigid Pipe Mount
Diesel Fuel Filter/Water Separators
Instruction Part Number 10192 Rev B
Overview:
140R series spin-on fuel filter/water
separators feature 1/4"-18 NPTF
fuel ports for mounting directly
into a rigid pipe fuel system. The
spin-on filter will handle fuel flows
up to 15 GPH (57 LPH), is simple
to replace, and the reuseable clear
plastic (or metal) contaminant
collection bowl features a self-
venting drain (or metal plug)
for draining captured solid
contaminants
and_water._ _
•
Contact Information
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone [phone]
209 521 7860
fax [phone]
[email protected]
www.racorcustomers.com
www.parker.com/racor
Product Features:
• Removes 99% of free water
• High-capacity Aquabloc ®
media
• 15 GPH (57 LPH) maximum
flow rate
•
Optional metal bowl and
plug available
• 2-port, die-cast aluminum
mounting head with 1/4"-18
NPTF threads
Racor
ENGINEERING YOUR SUCCESS.
WM-104R Rigid Pipe Mount
Rev.0
WM-104R Rigid Pipe Mount
Printed on 9/19/13
Page 1 of 4

Fuel Tank
(Ideal Vacuum
Side Installation)
Install a check valve
(with light or
no restriction)
when tank is lower than filter
to maintain prime.
Fuel transfer pump
(IDEAL vacuum side installation)
Maintain a service clearance below
filter assembly of at least 1.5 in. (3.8 cm)
for draining and servicing the bowl.
Unit Off-line
Open
Closed
2
Closed
Open
3
Open
Closed
Valves
Unit On-line
Fuel tanks above filter
Do not exceed 39' (11.9m)
of head feet or 15 PSI.
r --
Fuel Tank
I (Pressure Side Installation) I
A shut-off valve is
recommended When the
fuel tank is mounted higher
than the filter
 Suction (vacuum) Side:
Primary (first) filter - use
30 micron.
If it is the only filter in the system,
use 2 or 10 micron.
Engine
Fuel Tank
I (Vacuum Side Installation) I
Fuel tank below filter
Do not exceed 5' (1.5m) of lift
or 4 inches of mercury (inHg)
of inlet piping restrictions
 Pressure Side:
Fuel transfer pump not to exceed
maximum PSI or flow rate of filter.
Not ideal - pumps emulsify water
hindering filter performance.
Optional Bypass Instal ation and Operation
(allows user to service filter without shutting down engine.)
Installation Diagram
Installation Guidelines
1. Install the 140R assembly onto 2. Ensure a shut-off valve is

3. Maintain a minimum
rigid pipe on the vacuum side
 installed prior to the inlet side

clearance below the unit of
of fuel system.  of the 140 Assembly.

1.5" for servicing.
Priming The Unit
1. Carefully spin-off filter/
bowl as one and fill with
clean diesel fuel. On rebuild,
lubricate gasket with clean
diesel fuel or motor oil.
2. Spin filled filter/bowl with
seal onto mounting head,
tighten by hand—do
not use
tools.
3. Start engine and check for
leaks.
Note—If engine is
difficult to start or runs rough,
check that drain, bowl, and
filter are securely tightened.
Check all connections for
security and ensure there are
no sharp bends that would
create excessive restriction.
Draining the Bowl
Water is heavier than fuel and
will settle at bottom of bowl and
appear different in color. Check
collection bowl daily and drain
as required if water is present.
1.
Place a suitable container
below unit to collect
contaminants.
2.
Drain bowl - check for
consistency in color.
3. Prime fuel system following
your manufacturer's
recommended procedures -
refer to Priming The Unit.
WM-104R Rigid Pipe Mount
Rev.0
WM-104R Rigid Pipe Mount
Printed on 9/19/13
Page 2 of 4

RK 30476
RK 20022
6
01SP-2S
Self-venting Drain Kit
1/2"-20 SAE Drain Plug (not shown);
included in Metal Bowl Replacement Kit
1/8" NPTF Port Plug (not shown);
included in Metal Bowl Replacement Kit
Optional Parts Available
RK 10063

Complete Seal Service Kit
4
Filter Replacement
Filter replacement frequency is
determined by contamination
levels in fuels. Fuel flow to engine
becomes restricted as filter
slowly plugs with contaminants,
resulting in noticeable power
loss and/or hard starting.
Replace filter annually, every 500
hours, every other oil change, or
when there is a noticeable power
loss, whichever comes first.
Always carry extra replacement
filters as one tankful of excessively
contaminated fuel can plug a
filter.
Clean any debris or dirt away
from head/filter prior to removal.
1. Place a suitable container
below unit to collect
contaminants.
2.
Close valve at fuel tank (if
applicable) open or remove
drain (plug) to empty filter
of fuel.
3. Spin filter and bowl off
together, then remove bowl
from filter.
4. Clean sealing surface of
mounting head, of dirt,
debris, or gums.
5. Lubricate new gasket and
0-ring with clean diesel fuel
or motor oil.
6. Place new seal onto top of
new filter and 0-ring into
bowl gland.
7.
Spin bowl onto filter, then
both onto head. Tighten by
hand — do
not use tools.
8.
Prime fuel system following
your manufacturer's
recommended procedures -
refer to Priming The Unit.
Replacement Parts
Part Number 
Description
RK 10216

Mounting Head 1/4"-18 NPTF
2  RK 10503

Gasket
R12S (2 micron)
R12T (10 micronl
R12P (30 micron)
Replacement Filter
includeb.  2 end 4
4 
RK 10012

0-ring
Clear Bowl Replacement Kit;
includes: 6
Metal Bowl Replacement Kit (not shown);
includes: Drain Plug and Port Plug
RK 10222
RK 10109
OUT
WM-104R Rigid Pipe Mount
Rev.0
WM-104R Rigid Pipe Mount
Printed on 9/19/13
Page 3 of 4

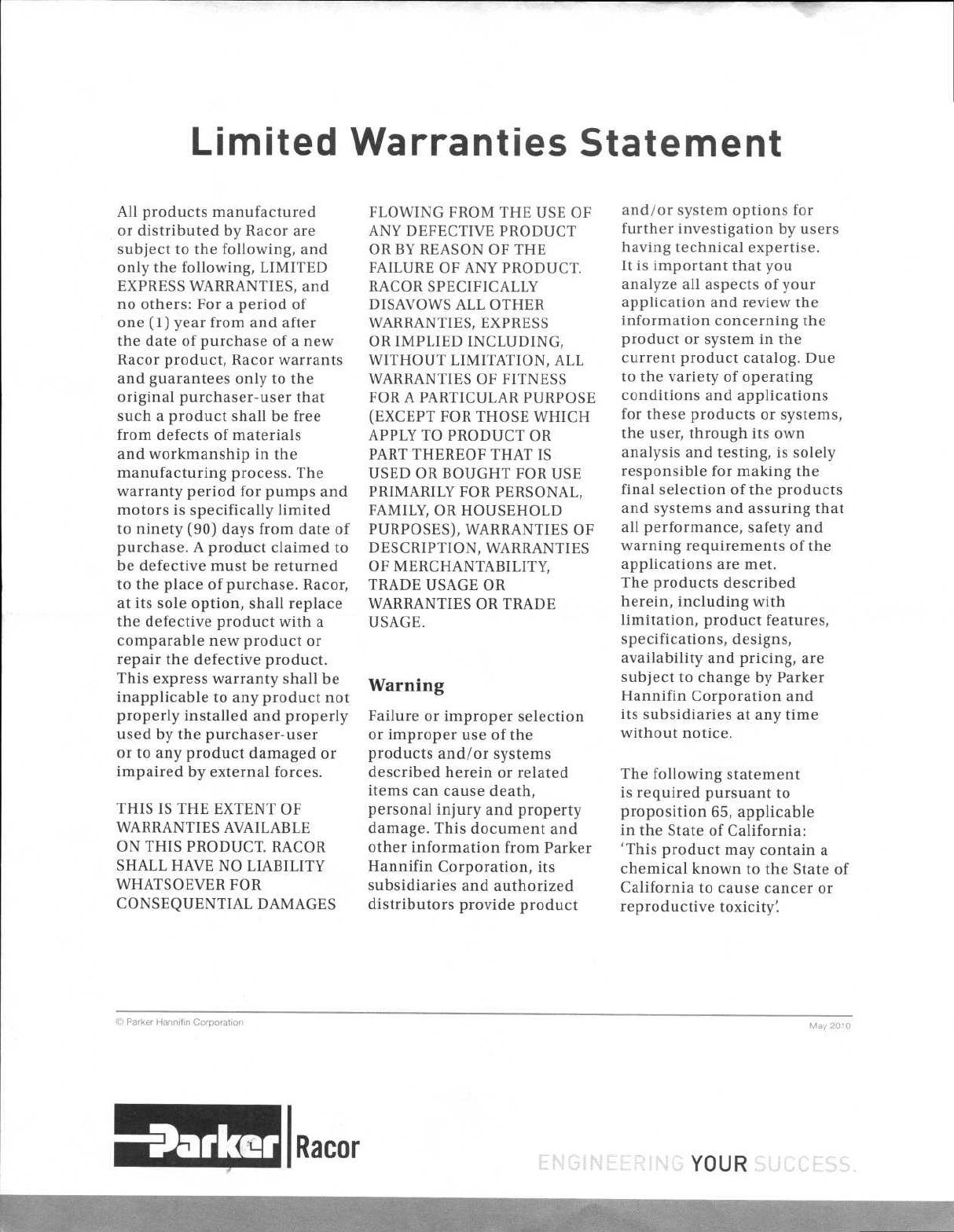

Limited Warranties Statement
All products manufactured
or distributed by Racor are
subject to the following, and
only the following, LIMITED
EXPRESS WARRANTIES, and
no others: For a period of
one (1) year from and after
the date of purchase of a new
Racor product, Racor warrants
and guarantees only to the
original purchaser-user that
such a product shall be free
from defects of materials
and workmanship in the
manufacturing process. The
warranty period for pumps and
motors is specifically limited
to ninety (90) days from date of
purchase. A product claimed to
be defective must be returned
to the place of purchase. Racor,
at its sole option, shall replace
the defective product with a
comparable new product or
repair the defective product.
This express warranty shall be
inapplicable to any product not
properly installed and properly
used by the purchaser-user
or to any product damaged or
impaired by external forces.
THIS IS THE EXTENT OF
WARRANTIES AVAILABLE
ON THIS PRODUCT. RACOR
SHALL HAVE NO LIABILITY
WHATSOEVER FOR
CONSEQUENTIAL DAMAGES
FLOWING FROM THE USE OF
ANY DEFECTIVE PRODUCT
OR BY REASON OF THE
FAILURE OF ANY PRODUCT.
RACOR SPECIFICALLY
DISAVOWS ALL OTHER
WARRANTIES, EXPRESS
OR IMPLIED INCLUDING,
WITHOUT LIMITATION, ALL
WARRANTIES OF FITNESS
FOR A PARTICULAR PURPOSE
(EXCEPT FOR THOSE WHICH
APPLY TO PRODUCT OR
PART THEREOF THAT IS
USED OR BOUGHT FOR USE
PRIMARILY FOR PERSONAL,
FAMILY, OR HOUSEHOLD
PURPOSES), WARRANTIES OF
DESCRIPTION, WARRANTIES
OF MERCHANTABILITY,
TRADE USAGE OR
WARRANTIES OR TRADE
USAGE.
Warning
Failure or improper selection
or improper use of the
products and/or systems
described herein or related
items can cause death,
personal injury and property
damage. This document and
other information from Parker
Hannifin Corporation, its
subsidiaries and authorized
distributors provide product
and/or system options for
further investigation by users
having technical expertise.
It is important that you
analyze all aspects of your
application and review the
information concerning the
product or system in the
current product catalog. Due
to the variety of operating
conditions and applications
for these products or systems,
the user, through its own
analysis and testing, is solely
responsible for making the
final selection of the products
and systems and assuring that
all performance, safety and
warning requirements of the
applications are met.
The products described
herein, including with
limitation, product features,
specifications, designs,
availability and pricing, are
subject to change by Parker
Hannifin Corporation and
its subsidiaries at any time
without notice.
The following statement
is required pursuant to
proposition 65, applicable
in the State of California:
`This product may contain a
chemical known to the State of
California to cause cancer or
reproductive toxicity'.
0) Parker Hannifin Corporation

May 2010
E5211Racor

