Pfeiffer Vacuum EVB Series User manual

Operating Instructions
BP 805 229 BE (0109) 1
Angle Valve
pneumatically actuated
bellows sealed
with position indicator, without pilot valve
EVB 016 … 040 P A/X

2BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
In all communications with Pfeiffer Vacuum, please specify the information on the
product nameplate. For convenient reference copy that information into the space
provided below.
Pfeiffer Vacuum, D - 35614 Asslar

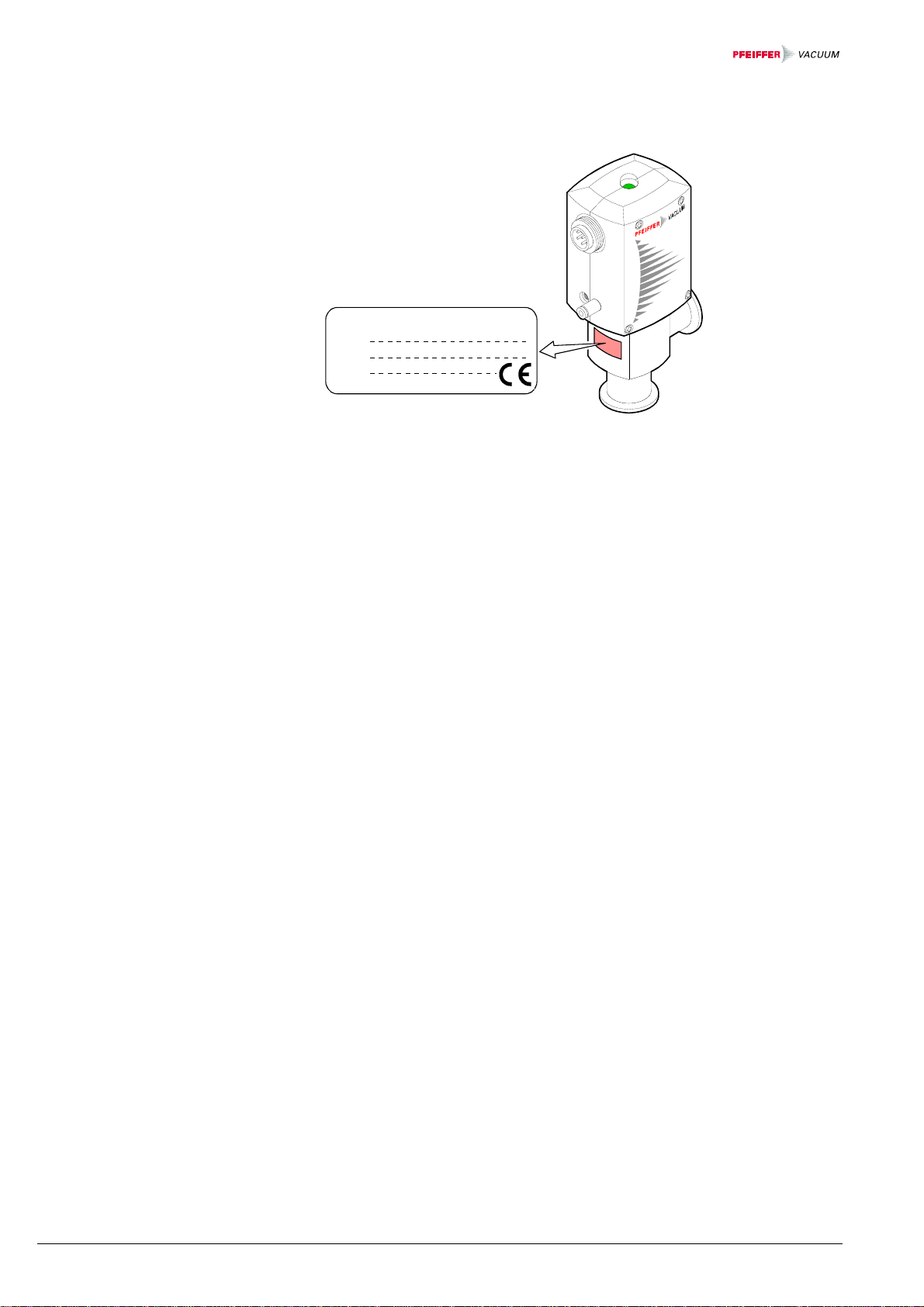

Typ:
No:
F-No:
This document applies to products with the following part numbers:
PFA36002
PFA46002
PFA56002
(DN 16 ISO-KF)
(DN 25 ISO-KF)
(DN 40 ISO-KF)
PFA36032
PFA46032
PFA56032
(DN 16 ISO-KF)
(DN 25 ISO-KF)
(DN 40 ISO-KF)
The part number can be taken from the product nameplate.
If not indicated otherwise in the legends, the illustrations in this document cor-
respond to the valve with the vacuum connection DN 25 ISO–KF. They apply to
valves with other vacuum connections by analogy.
We reserve the right to make technical changes without prior notice.
All dimensions are indicated in mm.
The angle valves are used as shut-off and venting devices for vacuum applications.
Product Identification
Validity
Aluminum body
Stainless steel body
Intended use

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 3
Contents
Product Identification 2
Validity 2
Intended use 2
1 Description 4
1.1 Overview 4
1.2 Functional Principle 4
2 Safety 5
2.1 Symbols Used 5
2.2 General Safety Instructions 5
2.3 Liability and Warranty 5
3 Technical Data 6
4 Installation 8
4.1 Vacuum Connection 8
4.2 Compressed Air Connection 9
4.3 Power Connection 11
5 Operation 14
6 Deinstallation 16
6.1 Power Connection 16
6.2 Compressed Air Connection 17
6.3 Vacuum Connection 18
7 Maintenance and Repair 19
7.1 Disassembling the Product 20
7.2 Checking and Cleaning the Parts 30
7.3 Reassembling the Product 31
8 Spare Parts 40
9 Returning the Product 42
10 Disposal 42
Declaration of Contamination 43

4BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
1 Description
Position indication
(visual)
Position indicator
(electrical)
Vacuum connection
DN 16…40 ISO-KF
Pneumatic
actuator
Compressed air
Connector
(enclosed)
Instant push-in fitting
(enclosed)

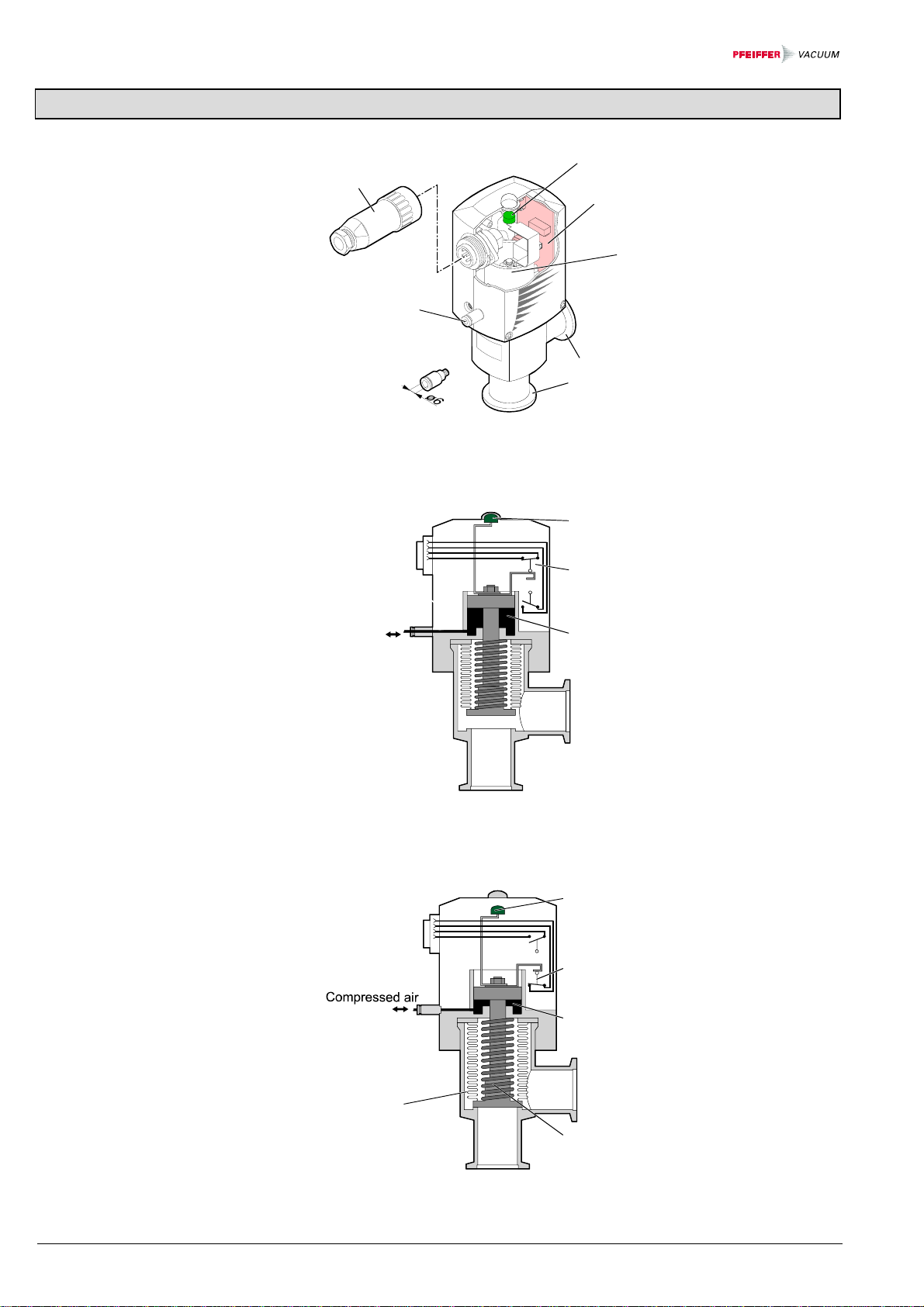

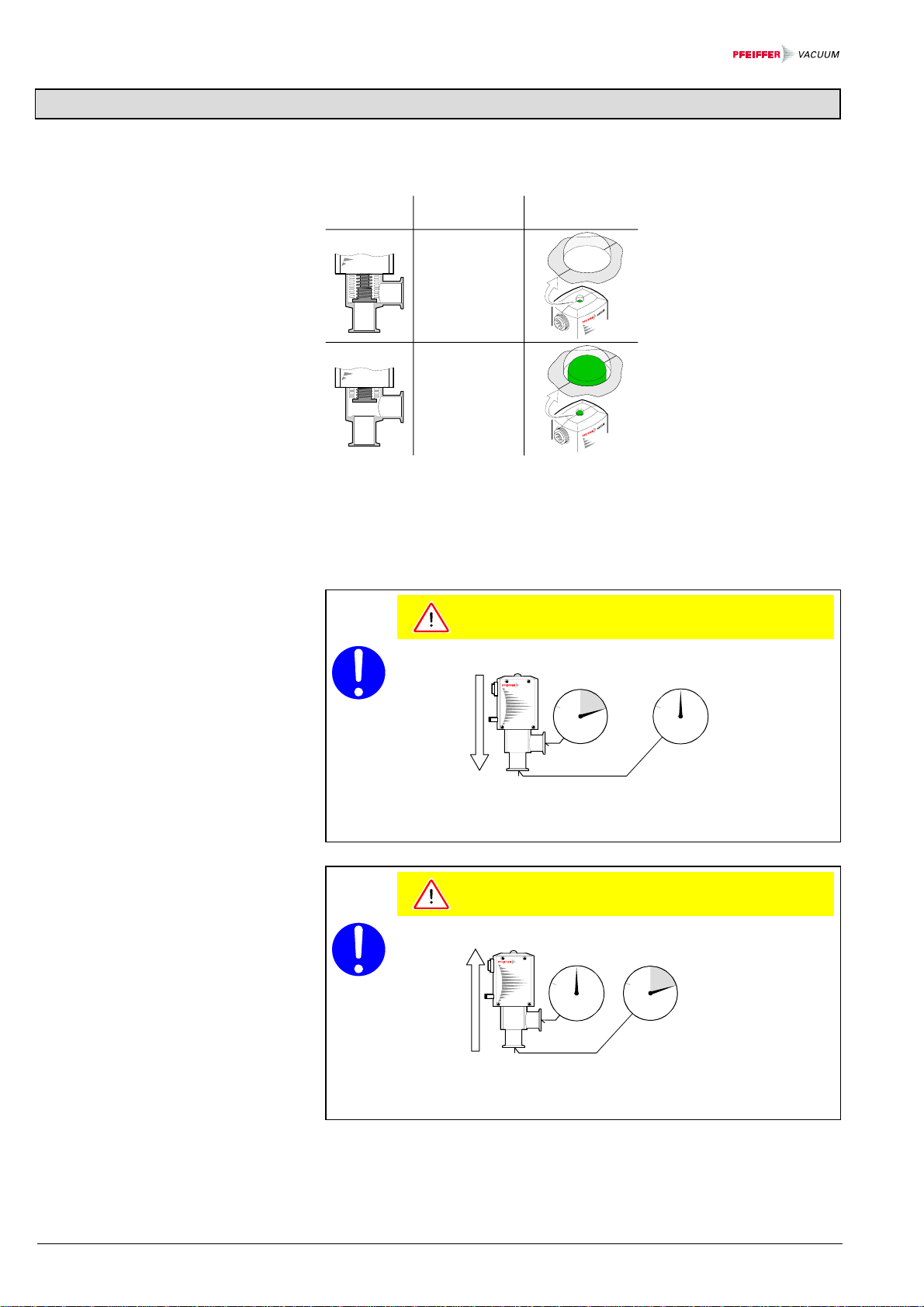

When compressed air is admitted, the angle valve opens. The visual position
indicator becomes visible and the electrical position indicator „valve open“ is
activated.
Pneumatic actuator
for opening the valve
Position indicator
"valve open"
activated
Position indicator
visible
Compressed air
When no compressed air is admitted, the angle valve ist closed by the pressure
spring. The visual position indicator ist no longer visible and the electrical position
indicator „valve closed“ is activated.
Bellows
sealing the valve
Position indicator
"valve closed"
activated
Pressure spring
for closing the
valve
Position indicator
invisible
Pneumatic
actuator
1.1 Overview
1.2 Functional Principle
Opening action
Closing action

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 5
2 Safety
DANGER
Information on preventing any kind of physical injury.
WARNING
Information on preventing extensive equipment and environmental damage.
Caution
Information on correct handling or use. Disregard can lead to malfunctions or
minor equipment damage.
→See page ...
•=Adhere to the applicable regulations and take the necessary precautions for the
process media used.
Consider possible reactions between the materials (→7) and the process
media.
•=Adhere to the applicable regulations and take the necessary precautions for all
work you are going to do and consider the safety instructions in this document.
•=Before beginning to work, find out whether any vacuum components are con-
taminated. Adhere to the relevant regulations and take the necessary precau-
tions when handling contaminated parts.
Communicate the safety instructions to all other users.
Pfeiffer Vacuum assumes no liability and the warranty becomes null and void if
end-user or third parties
•=disregard the information in this document
•=use the product in a non-conforming manner
•=make any kind of interventions (modifications, alterations etc.) on the product
•=use the product with accessories, options and add-ons not listed in the
corresponding product documentation.
The end-user assumes the responsibility in conjunction with the process media
used.
2.1 Symbols Used
2.2 General Safety
Instructions
2.3 Liability and Warranty

6BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
3 Technical Data
Connection
Rating soldered joints 250 VAC / 25 VA / 0.1 A
50 VDC / 12.5 W / 0.25 A
Connection flange DN 16 ISO-KF DN 25 ISO-KF DN 40 ISO-KF
Actuation opening: pneumatic
closing: by pressure spring
Tube connection
Pressure range ø4 mm or ø6 mm 3 ... 7 bar overpressure
Piston displacement 5.5 cm312.1 cm326.2 cm3
Stroke of valve plate 5 mm 10 mm 14 mm
Conductance 1) 4.5 l/s 16 l/s 40 l/s
Switching frequency 2)
Opening time 2)
Closing time 2)
100 / min
100 ms
200 ms
100 / min
110 ms
290 ms
75 / min
250 ms
500 ms
Cycle life 3) 10 million
Tightness 1×10-9mbar l/s
Pressure range min. 1×10-8mbar
Pressure range max. (abs.) 4 bar 2.5 bar
In closing direction
In opening direction
Opens to a pressure difference
∆p 4)
4 bar
2 bar
4 bar
2 bar
1.5 bar
2 bar
Ambiance
Bakeout
aluminum body
stainless steel body
actuator
0 °C ... 50 °C
80 °C
150 °C
50 °C
Type of protection
Protection class IP 50 according to DIN 40 050 II
Installation angle
Flow direction any any
Electrical position indicator
Vacuum connection
Compressed air supply
Pressure difference ∆p
Temperatures

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 7
Connection flange DN 16 ISO-KF DN 25 ISO-KF DN 40 ISO-KF
Aluminum body
Stainless steel body
Bellows / valve plate
Pressure spring
DN 16+25 ISO-KF
DN 40 ISO-KF
Seals
Shell
Cylinder unit
Protective lid
Packing material
3.2572
1.4301
1.4541 / 14301
1.4301
1.1200
FPM
PBTP
PBTP
PE
carton box, PE, PU
Aluminum body
Stainless steel body 0.28 kg 0.38 kg 0.42 kg 0.73 kg 0.88 kg 1.58 kg
1) For air with molecular flow
2) With pressure difference ∆p=0 and compressed air = 5 bar (overpressure)
3) Cycles without expendable parts (seals) and under clean operating conditions
4) Compressed air = 5 bar (overpressure)
DN
DN
M5
DN 16 ISO-KF
DN 25 ISO-KF
DN 40 ISO-KF
A
154
176
196.5
B
127
147.4
167.3
C
71
92.5
112
D
60
74
98
E
51
63
83
DN F G
100
108
120
40
50
65
Materials
Weight
Dimensions

8BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
4 Installation
Skilled personnel
The vacuum connection may only be established by persons who have
suitable technical training and the necessary experience or who have
been instructed by the end-user of the product.
DANGER
Caution: overpressure in the vacuum system >1 bar
Injury caused by released parts and harm caused by escaping process
gases can result if clamps are opened while the vacuum system is
pressurized.
Do not open any clamps while the vacuum system is pressurized. Use
the type clamps which are suited to overpressure.
Caution
Caution: dirt sensitive area
Touching the product or parts thereof with one's bare hands increases
the desorption rate.
Always wear clean, lint-free gloves and use clean tools when working
in this area.
Caution
Caution: vacuum component
Dirt and damages impair the function of the vacuum component.
When handling vacuum components, take appropriate measures to
ensure cleanliness and prevent damages.
Keep the protective lids.
4.1 Vacuum Connection
Personnel qualifications
Overpressure 1 bar
Dirt sensitive area
Handling of vacuum com-
ponents
Protective lids

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 9

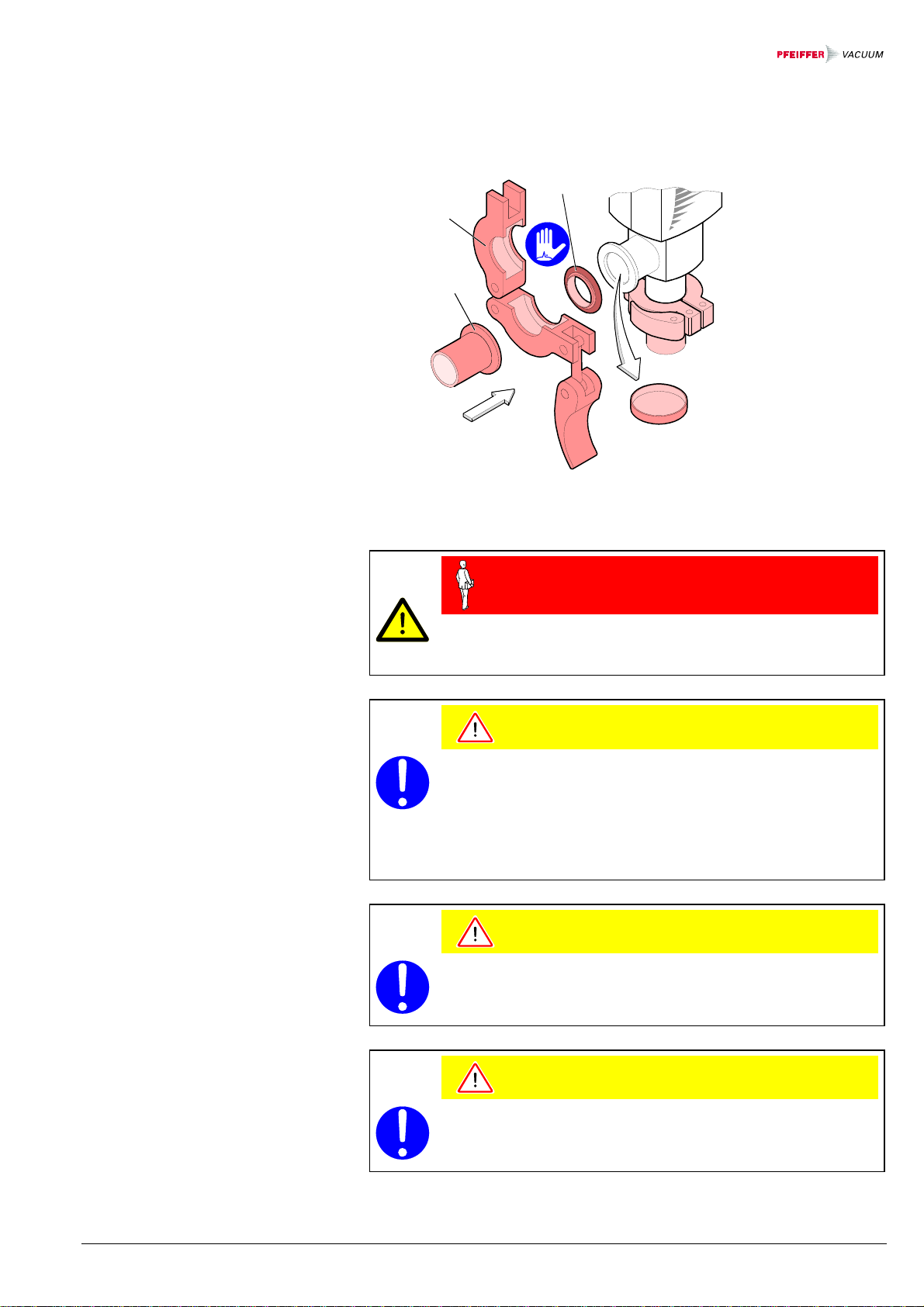

Remove the protective lids and install the valve to the vacuum system by means of
the small flange fittings.
Any installation angle and flow direction may be chosen.
Seal with
centering ring
Clamp
ISO-KF connection
flange
Protective lid
Skilled personnel
The compressed air connection may only be established by persons
who have suitable technical training and the necessary experience or
who have been instructed by the end-user of the product.
Caution
Specifications for the compressed air:
•=free of particles >5 µm
•=3 ... 7 bar overpressure
•=dry, free of oil or containing oil (Keep using the same quality).
If using compressed air which contains oil, dispose of it in accordance
with the relevant regulations.
Caution
Specifications for the plastic tube:
•=bursting pressure ≥10 bar overpressure (1 MPa)
•=material: PA soft or PU.
Caution
To ensure leak tightness of the instant push-in fitting
•=cut the plastic tube square
•=make sure the outside of the plastic tube is not damaged.
Vacuum connection
4.2 Compressed Air
Connection
Personnel qualifications
Specifications for compressed
air
Specifications for plastic tube
Tightness of connection

10 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
Caution
Caution: plastic thread
The plastic thread is damaged by tilting or overturning the instant
push-in fitting.
•=use the enclosed instant push-in fitting (with extra-long thread)
only.
•=screw in the instant push-in fitting without tilting it and without
exceeding the tightening torque of 0.5 Nm.
The compressed air control system has to be provided by the end-user.

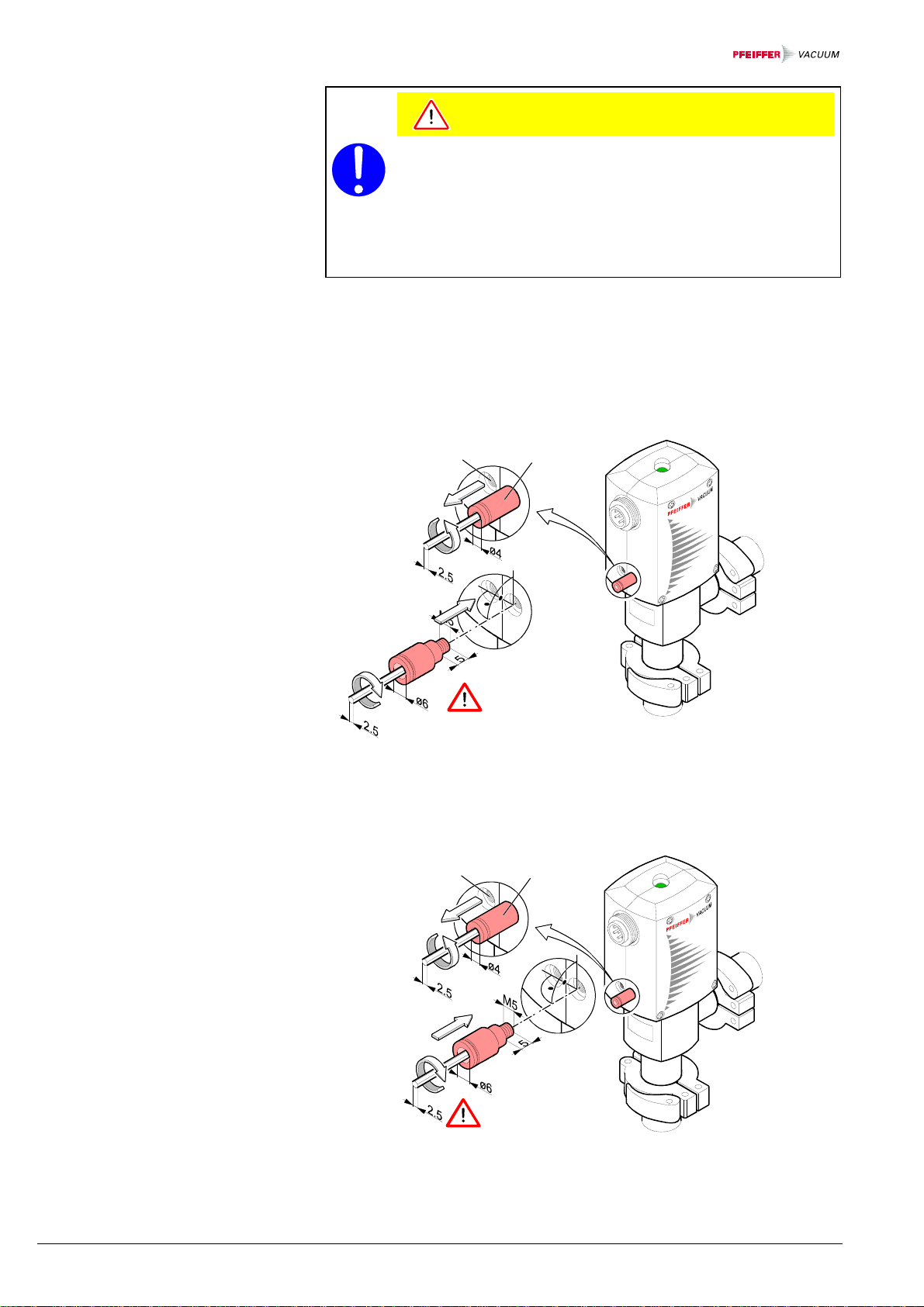

For connection of a ø6 mm plastic tube, exchange the instant push-in fitting.
Compressed air
outlet Compressed air inlet
Tightening torque 0.5 Nm
Unscrew ø4 fitting.
Install ø6 fitting.
Push the tube into the instant push-in fitting until the mechanical stop is reached.
Check that it is correctly mounted by slightly pulling.
Compressed air
outlet Compressed air inlet
Tightening torque 0.5 Nm
Plastic threads
Compressed Air Control
System
Procedure

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 11
Skilled personnel
The electrical connection, in accordance with the VDE 0100 guide-
lines, may be made only by a licensed electrician, qualified as per
VDE 0105. The line cables shall be isolated from the line supply during
all electrical work.
Caution
The cable must meet the following specifications:
•=flexible
•=conductor cross-section ≤0.75 mm2
•=cable cross-section ≤10 mm
•=4-pole without protective conductor or
5-pole with protective conductor.

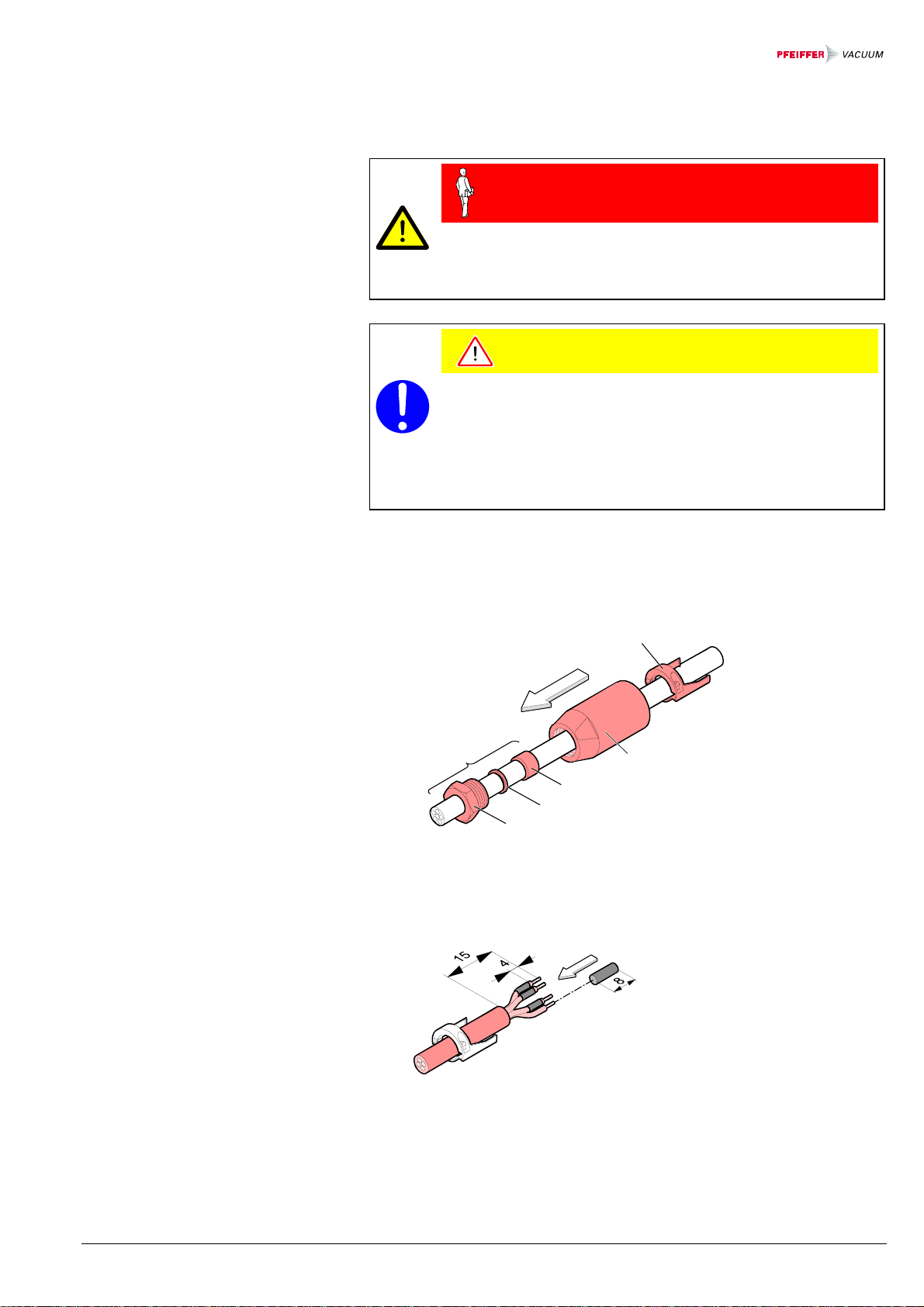

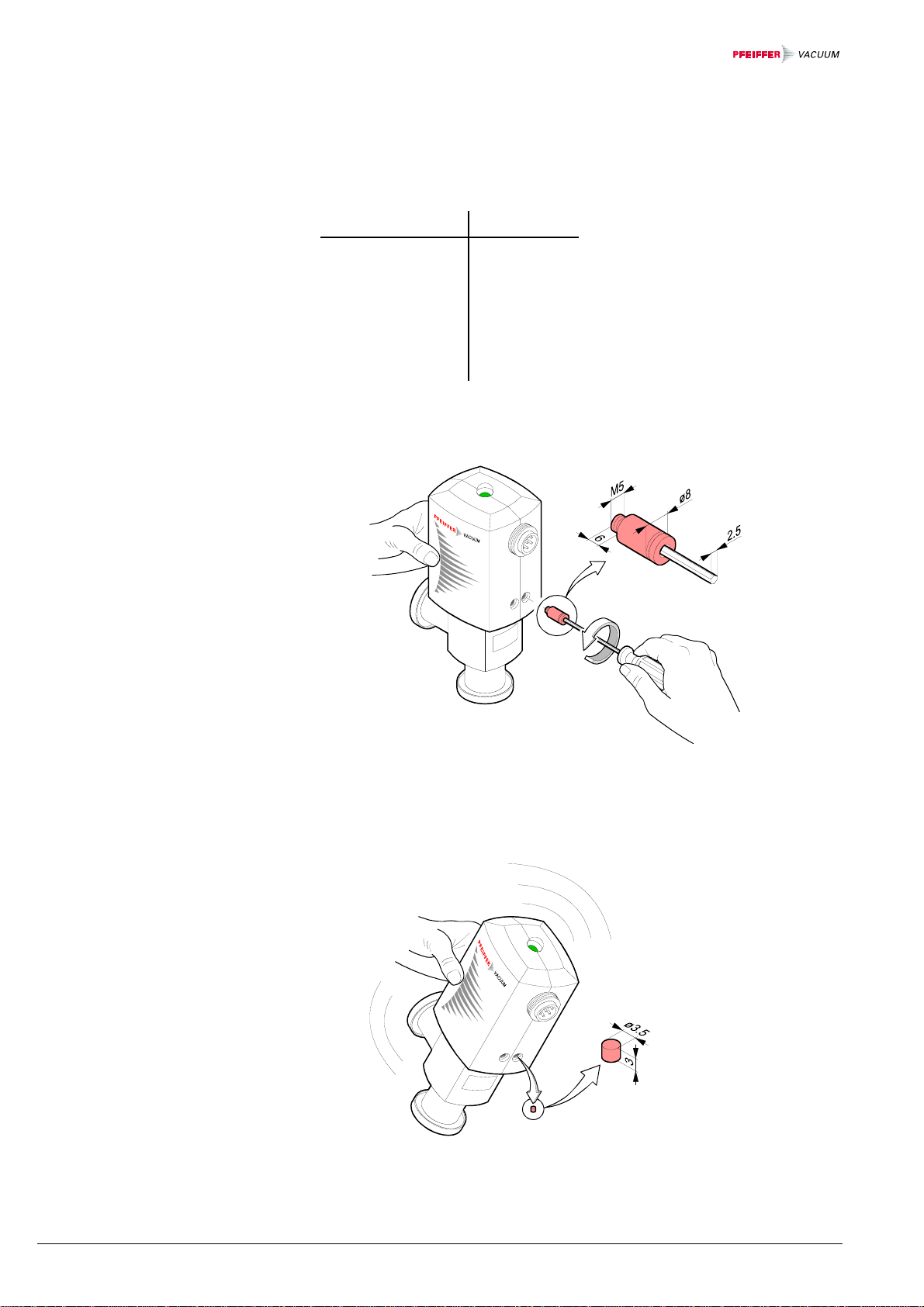

Slide the screw fitting, connector housing, and strain relief on the cable.
Screw fitting Connector housing
Strain relief
Seal
Metal washer
Hex head screw
Skin the cable and mount the insulating sleeves if required.
Insulating sleeves
(not included)
4.3 Power Connection
Personnel qualifications
Specifications for cable
Preparing the connector

12 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
Solder the cable. Slide the insulating sleeve over the soldered connections.
Not used
Protective
conductor


Position indicator
"valve closed"


Position indicator
"valve open"


Guide cam
Not used
Tighten the strain relief and insert it (it will catch).
Reassemble the connector and tighten the screw fitting (width across
17 mm).
hold stationary

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 13
Plug in the connector and secure it with the union nut.
Union nut

14 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
5 Operation
The product is ready for operation as soon as it has been installed.
Compressed
air Position indication
open
available
closed
not available
Valve
position
DN 16+25 ISO-KF: 1×10-8mbar ... 4 bar (absolute)
DN 40 ISO-KF: 1×10-8mbar ... 2.5 bar (absoute)
Caution
Caution: pressure difference ∆p
Closing direction
bar
p
VACUUM
∆p
bar
p+∆p
p
At ∆p >4 bar (DN 16+25 ISO-KF) and ∆p >2 bar (DN 40 ISO-KF) the
valve may no longer be tight.
Avoid bigger pressure differences.
Caution
Caution: pressure difference ∆p
Opening direction
p
bar
∆p
bar
p+∆p
p
VACUUM
With ∆p >2 bar (DN 16+25 ISO-KF) and ∆p >1.5 bar (DN 40 ISO-KF)
the valve is opened.
Avoid bigger pressure differences.
Valve position
Pressure range
Pressure difference ∆p in closing
direction
Pressure difference ∆p in
opening direction

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 15
Caution
Caution: pressure difference ∆p
Opening
p∆p
bar
p+∆p
p
bar
VACUUM
With ∆p >4 bar (DN 16+25 ISO-KF) and ∆p >2 bar (DN 40 ISO-KF) the
valve cannot open.
Avoid bigger pressure differences.
Opening against a pressure
difference ∆p

16 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
6 Deinstallation
Skilled personnel
The electrical power must be disconnected by a skilled electrician.
Caution
The control system must be disconnected from the power source
before any connection to the product is made or interrupted.
Loosen the connector and unplug it.
Union nut
6.1 Power Connection
Personnel qualifications
Controller disconnected

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 17
Skilled personnel
The compressed air may only be disconnected by persons who have
suitable technical training and the necessary experience or who have
been instructed by the end-user of the product.
DANGER
Caution: compressed air
Physical injury can result if a pressurized compressed air line is dis-
connected.
Before doing any work, turn off the compressed air supply and relieve
the compressed air lines.
Pull out the tube while depressing the thrust ring.
Thrust ring
6.2 Compressed Air
Connection
Personnel qualifications
Disconnection of the com-
pressed air line

18 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
Skilled personnel
The vacuum connection may only be disassembled by persons who
have suitable technical training and the necessary experience or who
have been instructed by the end-user of the product.
DANGER
Caution: contaminated parts
Contaminated parts can be detrimental to health and environment.
Before beginning to work, find out whether any parts are contaminated.
Adhere to the relevant regulations and take the necessary precautions
when handling contaminated parts.
Caution
Caution: vacuum component
Dirt and damages impair the function of the vacuum component.
When handling vacuum components, take appropriate measures to
ensure cleanliness and prevent damages.
Caution
Caution: dirt sensitive area
Touching the product or parts thereof with one's bare hands increases
the desorption rate.
Always wear clean, lint-free gloves and use clean tools when working
in this area.
Vent the vacuum system and disassemble the small flange connection. Place the
protective lids.
Protective cap
Seal with
centering ring Clamp
ISO-KF connection
flange
6.3 Vacuum Connection
Personnel qualifications
Possible contamination
Handling of vacuum com-
ponents
Dirt sensitive area

BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet 19
7 Maintenance and Repair
Skilled personnel
All work described in this document may only be carried out by per-
sons who have suitable technical training and the necessary experi-
ence or who have been instructed by the end-user of the product.
DANGER
Caution: contaminated parts
Contaminated parts can be detrimental to health and environment.
Before beginning to work, find out whether any parts are contaminated.
Adhere to the relevant regulations and take the necessary precautions
when handling contaminated parts.
p
DANGER
Caution: compressed air
Unprofessionally handling compressed air can cause physical injuries.
Adhere to the relevant regulations and take the necessary precautions
when handling compressed air.
Caution
Caution: vacuum component
Dirt and damages impair the function of the vacuum component.
When handling vacuum components, take appropriate measures to
ensure cleanliness and prevent damages.
Caution
Caution: dirt sensitive area
Touching the product or parts thereof with one's bare hands increases
the desorption rate.
Always wear clean, lint-free gloves and use clean tools when working
in this area.
Under clean operating conditions, the product requires no maintenance during the
rated cycle life (10 million cycles).
By carefully cleaning and reassembling the parts, another 10million cycles can be
reached before the next maintenance intervention becomes necessary.
The valve has been deinstalled (see Deinstallation, page 16 ff.)
Personnel qualifications
Possible contamination
Handling of compressed air
Handling of vacuum components
Dirt sensitive area
First Maintenance
Subsequent Maintenance
Precondition

20 BP 805 229 BE (0109) EVB 016 … 040 P A/X.bet
Maintenance and repair work comprises:
7.1 Disassembling the product
7.2 Checking and cleaning the parts
7.3 Reassembling the product
Parts Steps
Adapter ... 
Electrical position
indicator ... ë
Cylinder unit ... ô
Bellows ... ÷
Seals ... ÷
Unscrew the instant push-in fitting.
Remove the filter.
Procedure
7.1 Disassembling the
Product
