Pfeiffer Vacuum DualGauge TPG 262 User manual

Operating Instructions
Incl. Declaration of Conformity
BG 805 196 BE / B (2004-08) 1
DualGauge™
Dual-Channel Measurement and
Control Unit for Compact Gauges
TPG 262
VACUUM

2BG 805 196 BE / B (2004-08) TPG262.oi
In all communications with Pfeiffer Vacuum, please
specify the information on the product nameplate. For
convenient reference copy that information into the
space provided below.
Typ:
No:
F-No:
V Hz VA
Pfeiffer Vacuum, D-35614 Asslar
This document applies to products with part number
PTG28280.
The part number (No.) can be taken from the product
nameplate.
This manual is based on firmware version 302-510-A.
If your unit does not work as described in this document,
please check that it is equipped with the above firmware
version (→60).
We reserve the right to make technical changes without
prior notice.
All dimensions are indicated in mm.
Product Identification
Validity

BG 805 196 BE / B (2004-08) TPG262.oi 3
The TPG 262 is used together with Pfeiffer Vacuum
Compact Gauges (in this document referred to as
gauges) for total pressure measurement. All products
must be operated in accordance with their respective
Operating Instructions.
The scope of delivery consists of following parts:
1 TPG 262 Dual-Channel Measurement and Control
Unit
1 Power cord
1 Connector for control connection
4 Collar screws and plastic sleeves
2 Rubber feet
1 Rubber bar
1 Operating Instructions (this document)
1 Betriebsanleitung
DualGauge™ INFICON AG
FullRange™ INFICON GmbH
Intended Use
Scope of Delivery
Trademarks

4BG 805 196 BE / B (2004-08) TPG262.oi
Contents
Product Identification 2
Validity 2
Intended Use 3
Scope of Delivery 3
Trademarks 3
1 Safety 6
1.1 Symbols Used 6
1.2 Personnel Qualifications 7
1.3 General Safety Instructions 7
1.4 Liability and Warranty 8
2 Technical Data 9
3 Installation 14
3.1 Personnel 14
3.2 Installation, Setup 14
3.2.1 Rack Installation 14
3.2.2 Installation in a Control Panel 17
3.2.3 Use as Desk-Top Unit 18
3.3 Mains Power Connector 19
3.4 Gauge Connectors sensor 1, sensor 2 20
3.5 control Connector 21
3.6 relay Connector 22
3.7 Interface Connector RS232 23
4 Operation 24
4.1 Front Panel 24
4.2 Turning the TPG 262 On and Off 25
4.3 Operating Modes 26
4.4 Measurement mode 27
4.5 Parameter Mode 31
4.5.1 Switching Function Parameters 33
4.5.2 Gauge Parameters 38
4.5.3 Gauge Control 47
4.5.4 General Parameters 54
4.5.5 Test Parameters 58

BG 805 196 BE / B (2004-08) TPG262.oi 5
5 Communication (Serial Interface) 68
5.1 RS232C Interface 68
5.1.1 Data Transmission 68
5.1.2 Communication Protocol 70
5.2 Mnemonics 72
5.2.1 Measurement Mode 73
5.2.2 Parameter Mode 79
5.2.2.1 Switching Function Parameters 79
5.2.2.2 Gauge Parameters 80
5.2.2.3 Gauge Control 84
5.2.2.4 General Parameters 85
5.2.2.5 Test Parameters 86
5.2.3 Example 92
6 Maintenance 93
7 Troubleshooting 94
8 Repair 95
9 Storage 96
10 Disposal 96
Appendix 97
A: Conversion Tables 97
B: Default Parameter Settings 98
C: Firmware Update 99
D: Literature 102
E: Index 104
Declaration of Conformity 106
For cross-references within this document, the symbol
(→XY) is used, for cross-references to further docu-
ments, listed under "Literature", the symbol (→[Z]).

6BG 805 196 BE / B (2004-08) TPG262.oi
1 Safety
DANGER
Information on preventing any kind of physical injury.
WARNING
Information on preventing extensive equipment and
environmental damage.
Caution
Information on correct handling or use. Disregard can
lead to malfunctions or minor equipment damage.
The lamp/display is lit.
The lamp/display flashes.
The lamp/display is dark.
Press the key (example: PARA key).
Do not press any key.
1.1 Symbols Used
Symbols for residual
risks
Further symbols

BG 805 196 BE / B (2004-08) TPG262.oi 7
Skilled personnel
All work described in this document may only be car-
ried out by persons who have suitable technical train-
ing and the necessary experience or who have been
instructed by the end-user of the product.
Adhere to the applicable regulations and take the nec-
essary precautions for all work you are going to do and
consider the safety instructions in this document.
DANGER
Caution: mains voltage
Contact with live parts is extremely hazardous
when any objects are introduced or any liq-
uids penetrate into the unit.
Make sure no objects enter through the lou-
vers and no liquids penetrate into the equip-
ment.
Communicate the safety instructions to all other users.
1.2 Personnel
Qualifications
1.3 General Safety
Instructions

8BG 805 196 BE / B (2004-08) TPG262.oi
Pfeiffer Vacuum assumes no liability and the warranty
becomes null and void if the end-user or third parties
• disregard the information in this document
• use the product in a non-conforming manner
• make any kind of interventions (modifications, altera-
tions etc.) on the product
• use the product with accessories not listed in the cor-
responding product documentation.
1.4 Liability and
Warranty

BG 805 196 BE / B (2004-08) TPG262.oi 9
2 Technical Data
Voltage 90 … 250 VAC
Frequency 50 … 60 Hz
Power consumption ≤45 W
Overvoltage category II
Protection class 1
Connection European appliance connec-
tor IEC 320 C14
Temperature
storage
operation –20 … +65 °C + 5 … +50 °C
Relative humidity ≤80% up to +31 °C,
decreasing to 50% at +40 °C
Use indoors only
max. altitude 2000 m NN
Pollution degree II
Protection type IP30
Number 2
Compatible
Compact Gauges
Pirani
Pirani Capacitance
Cold Cathode
FullRange™ CC
Process Ion
FullRange™ BA
Capacitance
Piezo
TPR 261, TPR 265, TPR 280,
TPR 281
PCR 260
IKR 251, IKR 261, IKR 270
PKR 251, PKR 261
IMR 265
PBR 260
CMR 261 … CMR 275
APR 250 … APR 267
Number 2 (1 per channel)
sensor connector Amphenol C91B appliance
connector, female, 6-pole
(pin assignment →20)
Mains specifications
Ambiance
Compatible gauges
Gauge connections

10 BG 805 196 BE / B (2004-08) TPG262.oi
Voltage +24 VDC ±5%
Current 750 mA
Power 18 W
Fuse protection 900 mA with PTC element,
self-resetting after turning the
TPG 262 off or disconnecting
the gauge. The supply con-
forms to the requirements of a
grounded protective extra low
voltage (SELV-E according to
EN 61010).
Front panel
Remote control via 4 keys via RS232C interface
Measurement ranges depending on gauges
(→[1] … [14])
Measurement error
gain error
offset error ≤0.01% F.S.
≤0.01% F.S.
Measurement rate 50 / s
Display rate 10 / s
Filter time constant
slow
normal (nor)
fast
1.2 s (fg= 0.13 Hz)
400 ms (fg= 0.4 Hz)
20 ms (fg= 8 Hz)
Measurement units mbar, Pa, Torr
Offset correction for linear gauges
–5 … 110% F.S.
Calibration factor for logarithmic gauges
0.10 … 9.99
for linear gauges
0.500 … 2.000
A/D converter resolution 0.001% F.S.
Gauge supply
Operation
Measurement values

BG 805 196 BE / B (2004-08) TPG262.oi 11
Number 4 (user-assignable)
Reaction delay ≤20 ms if switching threshold
close to measurement value
(for larger differences con-
sider filter time constant).
Adjustment range depending on gauge
(→[1] … [14])
Hysteresis ≥1% F.S. for linear gauges,
≥10% of measurement value
for logarithmic gauges
Contact type floating changeover contact
Load max. 30 VAC, 30 W (ohmic)
60 VDC, 1 A, 30 W (ohmic)
Service life
mechanic
electric 5×107cycles
1×105cycles (at max. load)
Contact positions →22
Relay connector D-Sub appliance connector,
female, 15-pole
(pin assignment →22)
Number 1
Reaction time ≤20 ms
Contact type floating normally open contact
Load max. 30 VAC, 30 W (ohmic)
60 VDC, 1 A, 30 W (ohmic)
Service life
mechanic
electric 5×107cycles
1×105cycles (at max. load)
Contact positions →21
Control connector Amphenol C91B appliance
connector, female, 7-pole
(pin assignment →21)
Switching functions
Switching function relays
Error signal
Error signal relay

12 BG 805 196 BE / B (2004-08) TPG262.oi
Automatic
ON setpoint
OFF setpoint adjustable (→50)
adjustable (→52)
Manual
via keys
activation/deactivation (→28, 49, 51)
External
via control connector
ON condition
OFF condition signal ≤+0.8 VDC
signal +2.0 … 5 VDC or input
open
Hotstart
when mains power on (→50)
Self control
deactivation when
pressure is rising
OFF threshold adjustable (→52)
Control connector Amphenol C91B appliance
connector, female, 7-pole
(pin assignment →21)
Number 2 (1 per channel)
Voltage range 0 … +10 VDC
Internal resistance 660 Ω
Measuring signal vs.
pressure depending on gauge
(→[1] … [14])
Control connector Amphenol C91B appliance
connector, female, 7-pole
(pin assignment →21)
Standard RS232C
Protocol ACK/NAK, ASCII with
3-character mnemonics,
bi-directional data flow,
8 data bits, no parity bit,
1 stop bit
RS232C only TXD and RXD used
Transmission rate 9600, 19200, 38400 baud
RS232 connector D-Sub appliance connector,
male, 9-pole
(pin assignment →23)
Gauge control
Analog outputs
Interface

BG 805 196 BE / B (2004-08) TPG262.oi 13
228.5 2.5
≈310
VACUUM
ø3.5
55.9
70.8
122.5
128.5 111.6
68.1
For incorporation into a rack or control panel or as desk-
top unit.
1.06 kg

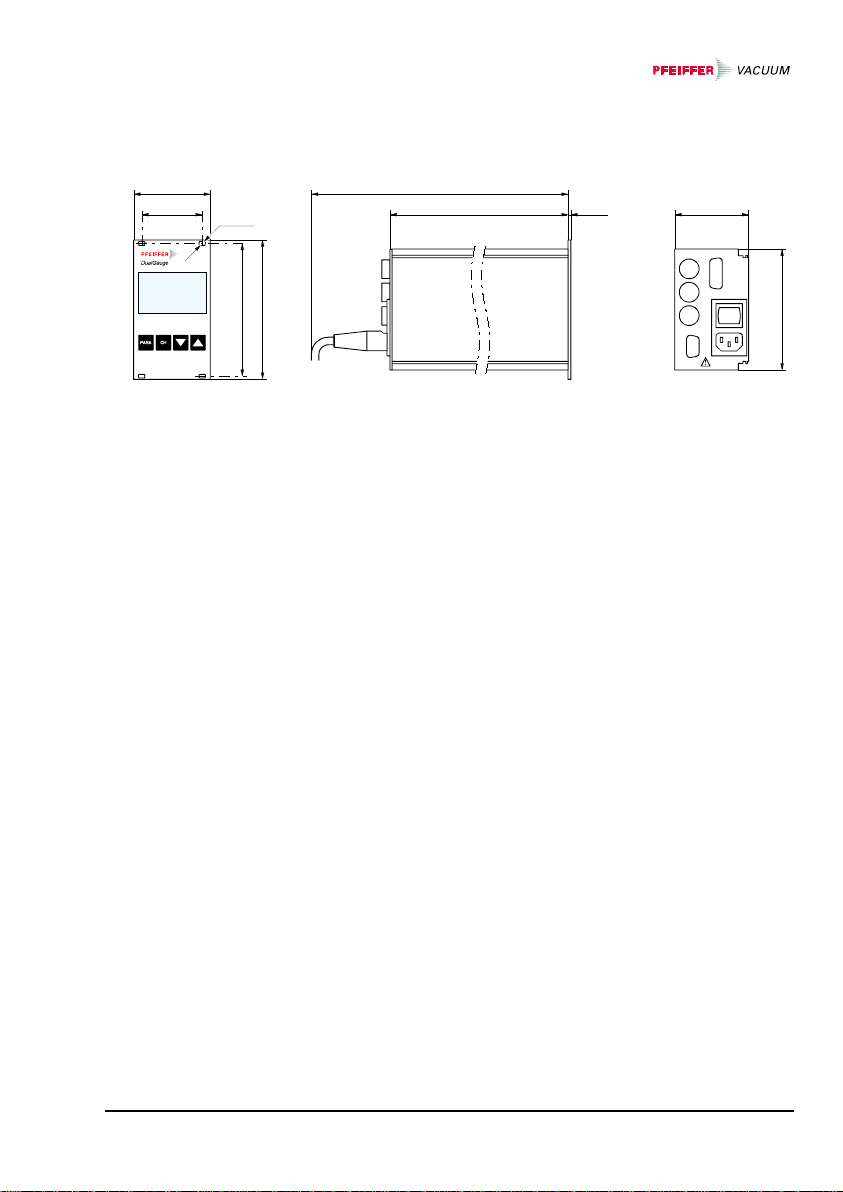

Dimensions [mm]
Use
Weight

14 BG 805 196 BE / B (2004-08) TPG262.oi
3 Installation
Skilled personnel
The unit may only be installed by persons
who have suitable technical training and the
necessary experience.
The TPG 262 is suited for incorporation into a 19" rack
or a control panel or for use as desk-top unit.

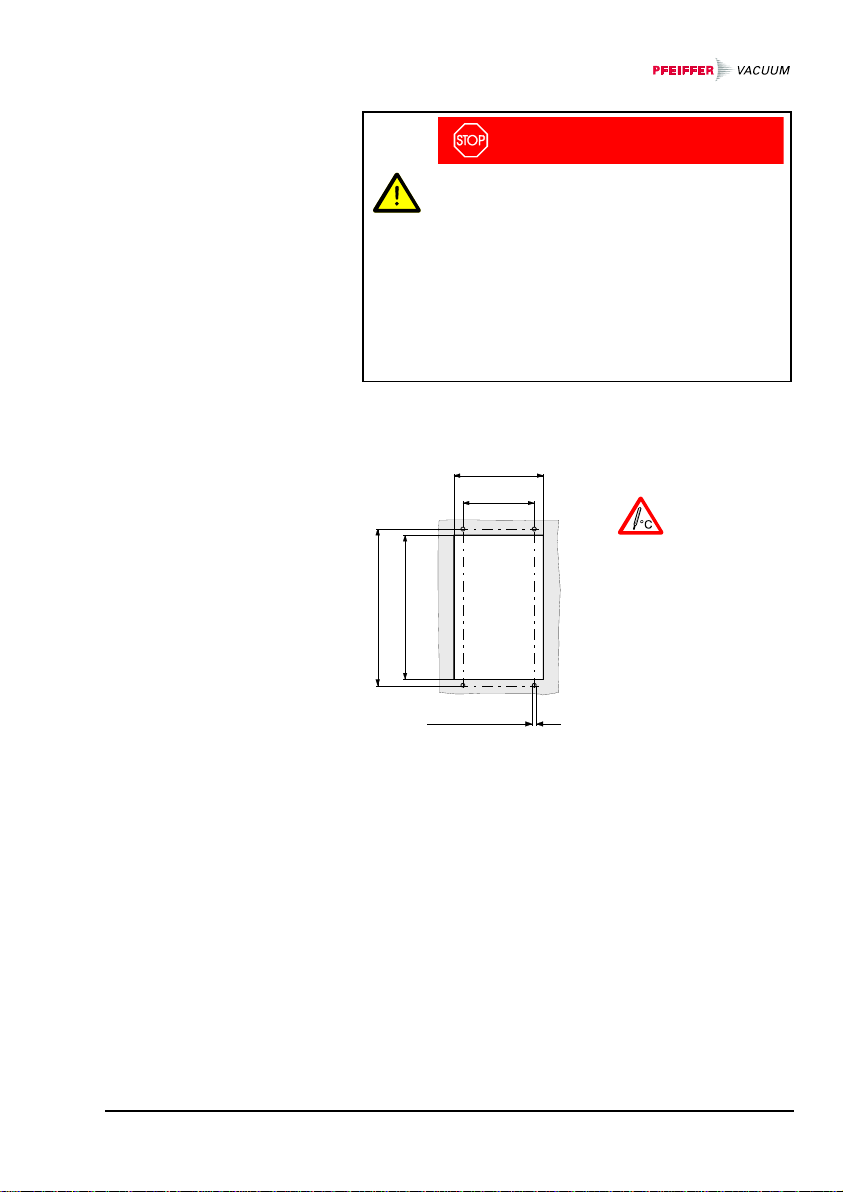

DANGER
Caution: damaged product
Putting a damaged product into operation can
be extremely hazardous.
In case of visible damages, make sure the
product is not put into operation.
The TPG 262 is designed for installation into a 19" rack
chassis adapter according to DIN 41 494. For this pur-
pose, four collar screws and plastic sleeves are supplied
with it.
DANGER
Caution: protection class of the rack
If the product is installed in a rack, it is likely
to lower the protection class of the rack
(protection against foreign bodies and water)
e.g. according to the EN 60204-1 regulations
for switching cabinets.
Take appropriate measures for the rack to
meet the specifications of the protection
class.
3.1 Personnel
3.2 Installation, Setup
3.2.1 Rack Installation

BG 805 196 BE / B (2004-08) TPG262.oi 15

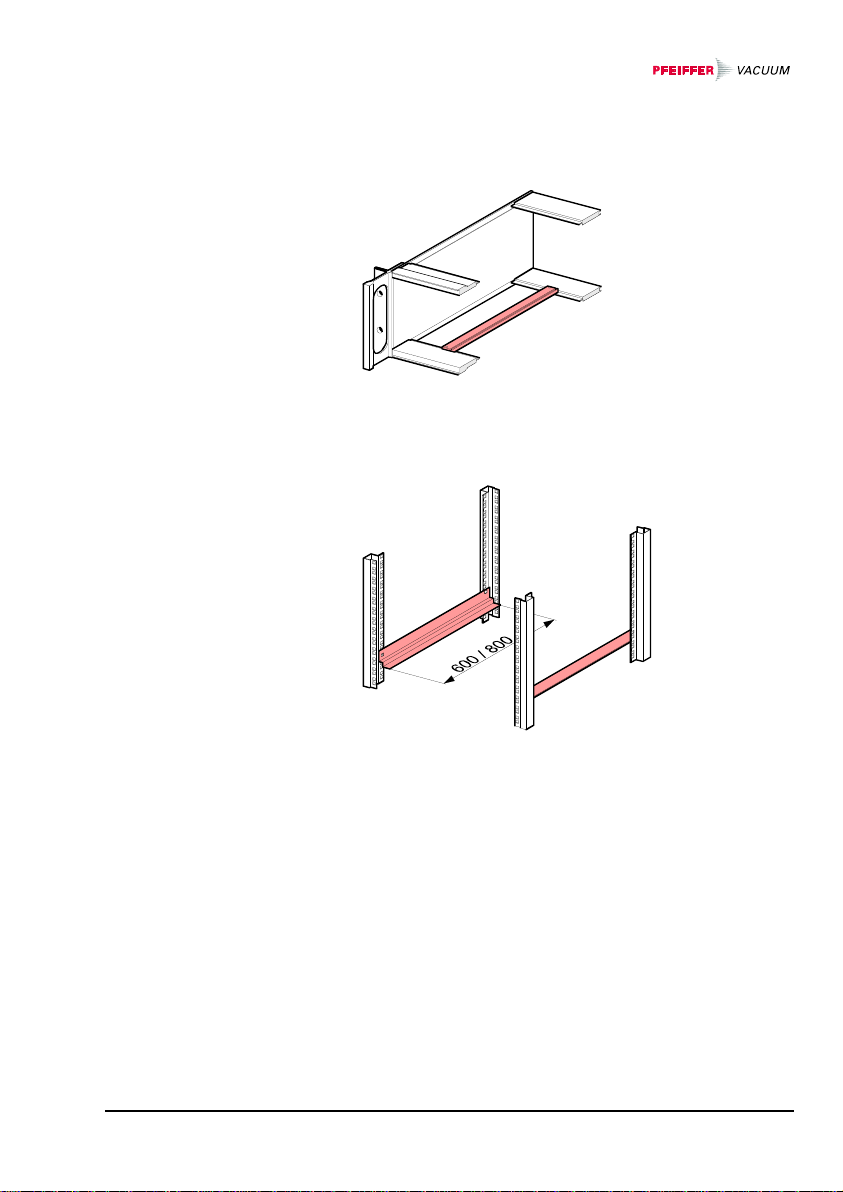

In order to reduce the mechanical strain on the front
panel of the TPG 262, preferably equip the rack chassis
adapter with a guide rail.
For safe and easy installation of heavy rack chassis
adapters, preferably equip the rack frame with slide rails.
Guide rail
Slide rails

16 BG 805 196 BE / B (2004-08) TPG262.oi

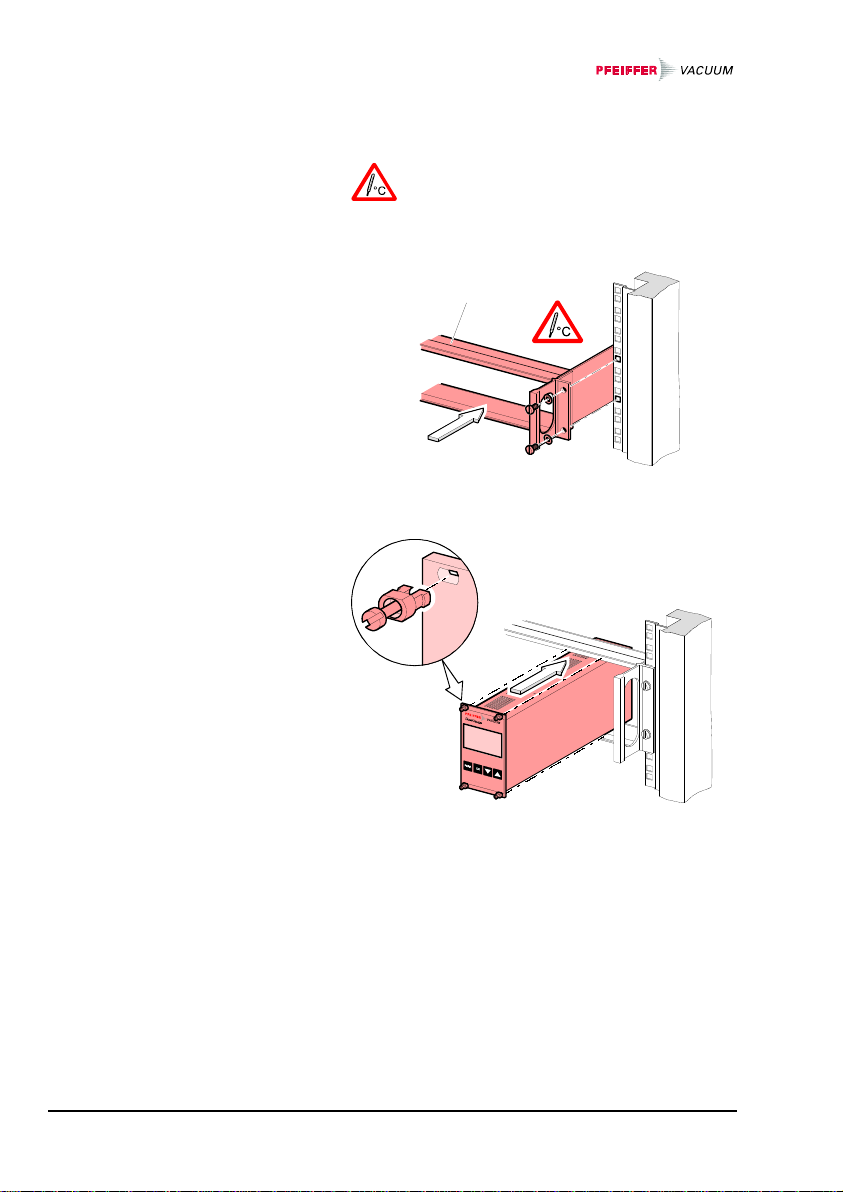

nSecure the rack adapter in the rack frame.
The admissible maximum ambient tem-
perature (→9) must not be exceeded
neither the air circulation obstructed.
Rack chassis adapter
Height 3 U
oSlide the TPG 262 into the rack chassis adapter …
… and fasten the adapter panel to the rack chas-
sis adapter using the screws supplied with the
TPG 262.
Height 3 U rack
chassis adapter

BG 805 196 BE / B (2004-08) TPG262.oi 17
DANGER
Caution: protection class of the control panel
If the product is installed in a control panel, it
is likely to lower the protection class of the
control panel (protection against foreign
bodies and water) e.g. according to the
EN 60204-1 regulations for switching cabi-
nets.
Take appropriate measures for the control
panel to meet the specifications of the pro-
tection class.
For mounting the TPG 262 into a control panel, the fol-
lowing cut-out is required:
M3 or ø 3.5
122.5
113
70
55.9
The admissible maxi-
mum ambient tem-
perature (→9) must
not be exceeded nei-
ther the air circulation
obstructed.
For reducing the mechanical strain on the front panel,
preferably support the unit.
3.2.2 Installation in a
Control Panel

18 BG 805 196 BE / B (2004-08) TPG262.oi
nSlide the TPG 262 into the cut-out of the control
panel …
… and secure it with four M3 or equivalent screws.
The TPG 262 is also suited for use as desk-top unit. For
this purpose, two self-adhesive rubber feet as well as a
slip-on rubber bar are supplied with it.
nStick the two supplied rubber feet to the rear part
of the bottom plate …
… and slip the supplied rubber bar onto the bot-
tom edge of the front panel.
3.2.3 Use as Desk-Top
Unit

BG 805 196 BE / B (2004-08) TPG262.oi 19
Select a location where the admissible maxi-
mum ambient temperature (→9) is not ex-
ceeded (e.g. due to sun irradiation).
DANGER
Caution: line voltage
Incorrectly grounded products can be ex-
tremely hazardous in the event of a fault.
Use only a 3-conductor power cable with
protective ground. The power connector may
only be plugged into a socket with a protec-
tive ground. The protection must not be nulli-
fied by an extension cable without protective
ground.
The unit is supplied with a power cord. If the mains con-
nector is not compatible with your system, use your own,
suitable cable with protective ground (3×1.5 mm3).
The socket must be
fuse-protected with
10 Amax
If the unit is installed in a switching cabinet, the mains
voltage should be supplied and turned on via a central
distributor.
3.3 Mains Power
Connector

20 BG 805 196 BE / B (2004-08) TPG262.oi
Do not unfasten
this screw
(internal ground
protection)
For each measurement channel, there is a female appli-
ance connector on the rear of the unit.
Connect the gauge to the sensor connector via
a sensor cable set available from us (→sales
literature) or your own, screened (electromag-
netic compatibility) sensor cable. Use com-
patible gauges only (→9).
Pin assignment of
the two female
6-pole Amphenol
C91B appliance
connectors:
1
2
3
4
56
12
54
63
Pin Signal
1
6
2
3
4
5
Identification
Supply +24 VDC
Supply common GND
Signal input (measuring signal+)
Signal common (measuring signal–)
Screening
3.4 Gauge Connectors
sensor 1, sensor 2
Pin assignment
sensor 1, sensor 2
