Philips HR2358/12 User manual

EN User manual 1
DE Benutzerhandbuch 32
FR Mode d’emploi 60
IT Manuale utente 88
NL Gebruiksaanwijzing 116
HR2358/12
Always here to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips

2English
Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Read this user manual carefully before you install and use the appliance.
Save it for future reference.
What's in the box
Shaping
discs
Shaping
discs
Cleaning
tools
Cleaning
tools
Thick
SpaghettiAngel hair
Tagliatelle Pappardelle
Lasagna/
Dumpling Penne
Spaghetti
Assembled on the
appliance upon purchase Fettuccine
Water cup
User manual Recipe bookMain unit
Flour cup
Flat cleaning tool
Use the flat
cleaning tool
Use the flat
cleaning tool
Use the flat
cleaning tool
Use the flat
cleaning tool

English 3
Quick Start
Guide
Disassembling and cleaning before rst use
2
3
4
5
1
1 2
4 5
3

4English
Assembling
Using the pasta maker
1
2
1
2 3 4
5
6 7 8
1
1
2
2 3 4
5 6 7 8
9 10 11 12
13 14

English 5
Table of
Contents
What's in the box ��������������� 2
Quick Start Guide ��������������� 3
Important ���������������������6
Overview �������������������� 10
Disassembling and cleaning
before first use ���������������� 12
Assembling ������������������ 14
Using the pasta maker ����������� 16
Cleaning �������������������� 23
Troubleshooting ��������������� 26
Product information ������������ 30
Recycling �������������������� 30
Guarantee and service ���������� 30

6English
• Before you connect the appliance to the power,
make sure that the voltage indicated on the
bottom of the appliance corresponds to the local
power voltage.
• Make sure that your hands are dry before you
insert the plug into the power outlet.
• Make sure that the plug is firmly inserted into the
power outlet.
• Never connect this appliance to a timer switch.
• Before you insert the plug into the power outlet,
make sure that the appliance is assembled
correctly.
• If the power cord, the plug, or other parts are
damaged, do not use the appliance.
• If the power cord is damaged, you must have it
replaced by Philips, a service center authorized
by Philips or similarly qualified persons to avoid
a hazard.
• Do not replace parts of the appliance yourself.
• This appliance shall not be used by children.
Keep the appliance and its cord out of reach of
children.
• This appliance can be used by persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
Warning
Safety
Read this user manual carefully
before you use the appliance, and
save it for future reference.
Important

English 7
Warning
use of the appliance in a safe way and if they
understand the hazards involved.
• For their safety, do not allow children to play
with the appliance.
• To prevent any accidents, do not use the
appliance if it is damaged for any reason.
• Always disconnect the appliance from the supply
if it is left unattended and before assembling,
disassembling or cleaning.
• Switch off the appliance and disconnect
from supply before changing accessories or
approaching parts that move in use.
• Before using the appliance for the first time,
disassemble and wash the accessories
thoroughly (see “Disassemble and cleaning
before first use” section.)
• The appliance is intended for household use
only.
• Do not use this appliance on an unstable or
uneven surface.
Caution

8English
• Do not disconnect the power cord before
processing is complete. If you have to stop
processing, disconnect the power cord before
you perform other operations.
• To better protect the lifetime of the appliance,
we recommend the continuous working time to
be less than 45 minutes. You can restart using
the appliance after 15 minutes.
• If you intend to use the appliance continuously,
clean the shaping disc with the supplied cleaning
tool each time after use. For cleaning ease, do
not soak the shaping disc into the water directly.
• Do not bend the power cord forcibly, jerk, twist,
bundle nor put under heavy items.
• Do not put metal or flammable objects in the
mixing chamber.
• Unplug the appliance when not in use.
• Do not use the appliance near flammable
objects such as table cloth or drapes.
• Pull out the power plug immediately when you
detect smoke.
• When unplugging the power cord, do not pull
the cable but grab the plug part.
• Keep the power plug clean.
• Do not put heavy objects on the appliance.
• This appliance is designed as consumer kitchen
appliance. Do not use for any other purpose
• Do not move the appliance while it is operating.
Caution

English 9
Caution
• Disconnect the power and remove the power
cord before cleaning or disassembling this
appliance.
• Do not immerse the main unit in water.
• Place the appliance in a dry and well ventilated
place after use.
• To prevent a short circuit or an electric shock,
do not pour water or any liquid into the safety
switch.
• Do not use a dishwasher to clean the machine or
the accessories.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.

10 English
Overview
Mixing
chamber
lid
Disc holder Front panel
Front panel
knobs
Shaping
discs
Disc holder
safety switch
lever
Mixing
chamber
Mixing
paddle

English 11
Control panel display
Power cord
Main unit
Disc holder safety switch
Shaping discs storage
Safety switch hole of the
mixing chamber lid
Program
selection
Liquid
calculation
Display
screen
Extra
extrusion
Start/
pause
Program selection - press to select "Plain
Pasta" or "Egg/Flavored Pasta".
Liquid calculation - press to show the required
liquid quantity based on the amount of flour
poured in.
Abbreviations
g = grams
~= approximately
ml = milliliters
mm = millimeters
lb = pound
kg = kilogram
in = inch

12 English
Important
1 Remove the mixing chamber lid from the
appliance.
2 Loosen the front panel control knobs.
Note:
• The front panel is heavy. Take extra caution
when removing it.
Disassembling
and cleaning
before first use
• Before using the appliance for the first time, remove and safely discard
any packaging material and /or promotional labels.
• Take out all the parts and accessories, wash and thoroughly dry all
parts and accessories (see chapter "Cleaning").
• Do not use water to rinse or soak the main unit.
• Do not use a scourer or similar cleaners as these will scratch the
plastic surface and affect the lifetime of the pasta maker.
• The shaping discs and all detachable parts of the appliance are
dishwasher safe. When you clean them in a dishwasher, make sure to
set the temperature below 60ºC (140ºF).
• This appliance is intended for household use only.

English 13

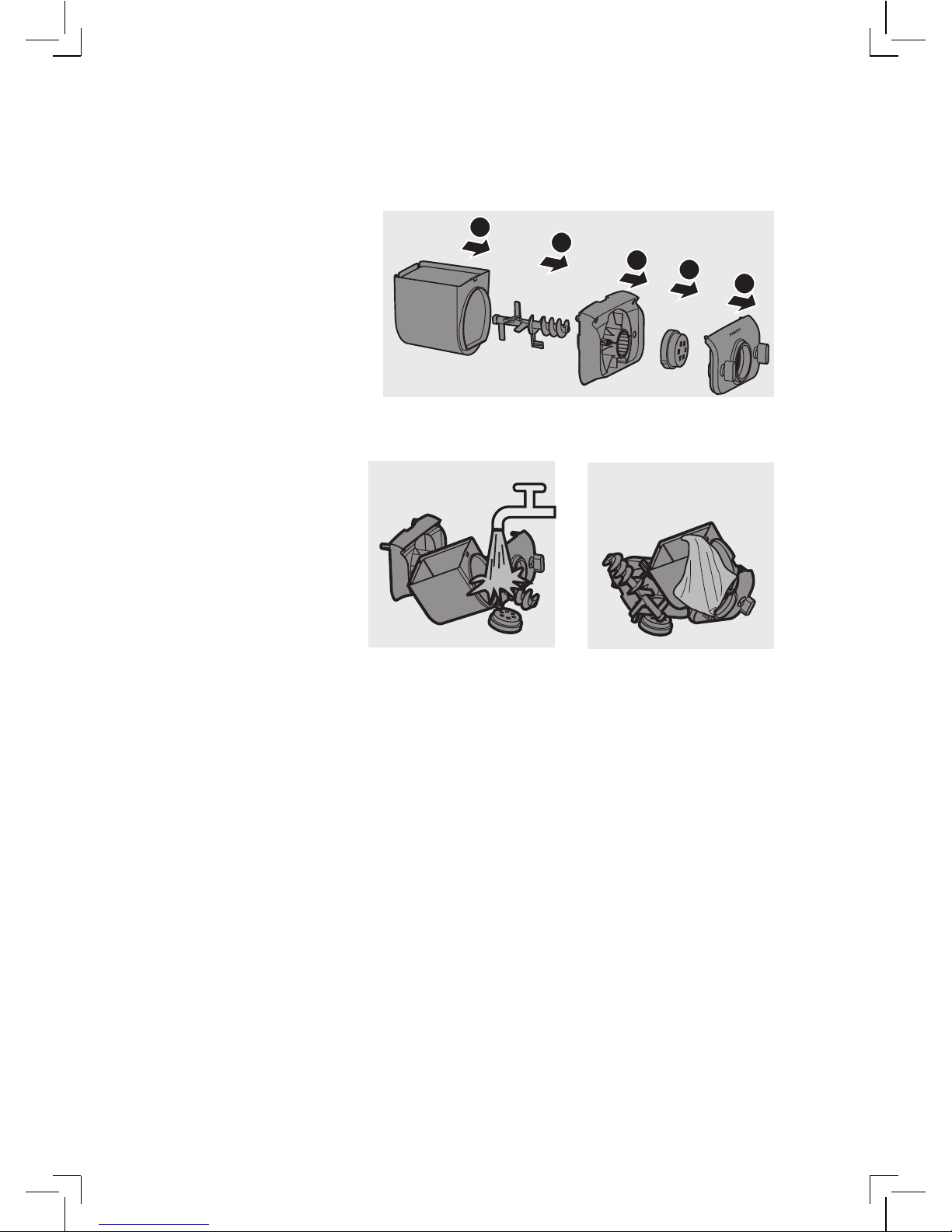

3 Disassemble the front panel, the shaping disc, the shaping disc holder,
the mixing paddle, and the mixing chamber in order.
4 Clean all detachable parts, and wipe them dry.
2
3
4
5
1

14 English
Important
Assembling Follow below assembling steps to
install the pasta maker.
1 Push the mixing chamber into the
appliance.
2 Point the mixing paddle to the hole in
the main unit. Insert the mixing paddle
all the way into the main unit.
3 Attach the disc holder onto the
appliance.
❶ Disc holder safety switch
❷ Disc holder safety switch lever
Note:
• Check that the safety switch ❶and
safety switch lever ❷are set as shown
in the illustration to the right.
1
2
• Make sure to tighten the front panel knobs during assembly.
• Make sure the appliance is not plugged in when assembling the
appliance.

English 15

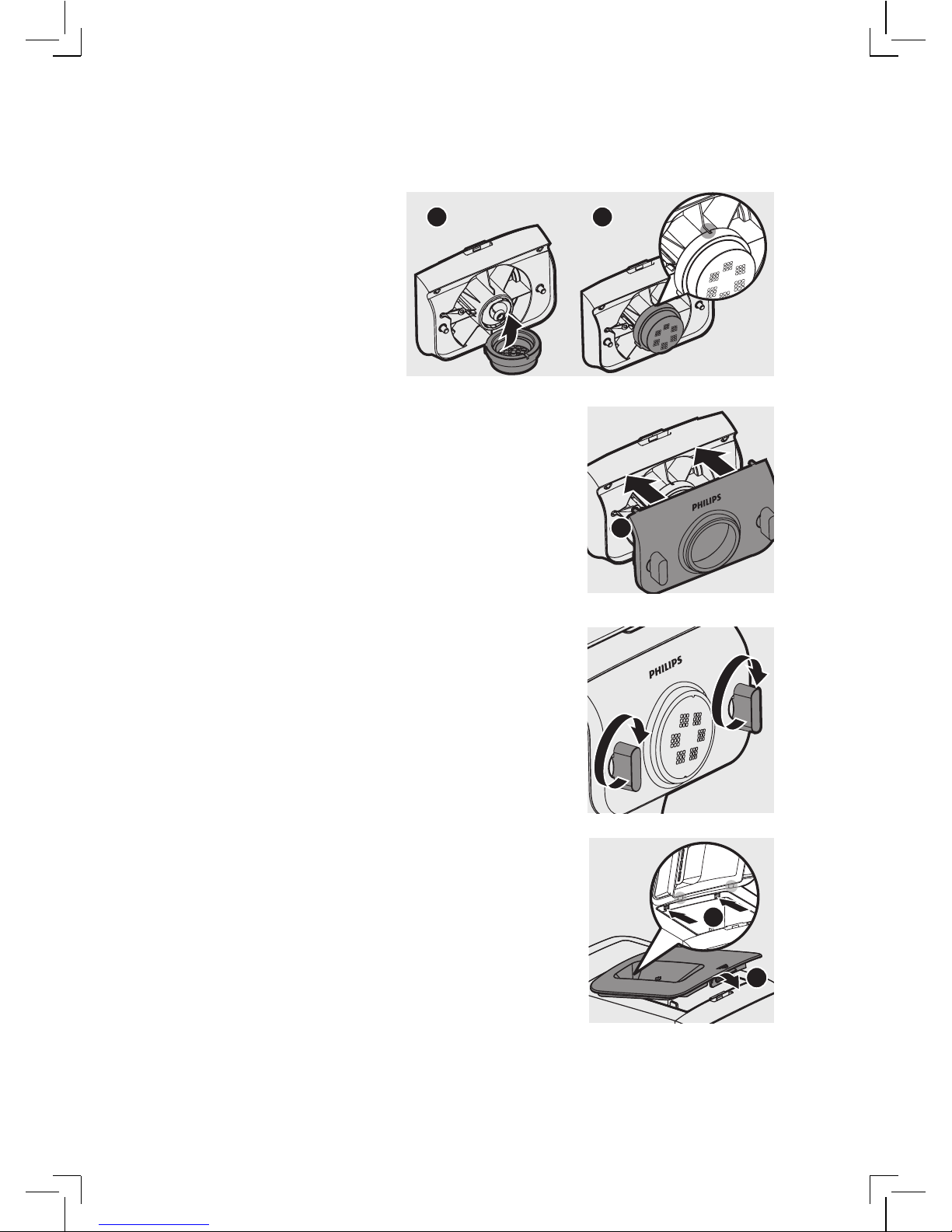

4 Put the shaping disc onto the disc holder ❶, and make sure it is firmly
fixed on the disc holder ❷.
Note:
• Make sure the inner
cavity of the shaping
disc and disc holder is
properly tted.
5 Attach the front panel to the main unit.
❶Disc holder safety switch lever
Note:
• Make sure the front panel is completely
fastened before using the appliance.
• The front panel is heavy. Take extra caution
when assembling it.
6 Fasten the front panel control knobs.
Note:
• If the front panel or the shaping disc is not
properly assembled, the safety switch will
prevent the appliance from working.
7 Close the mixing chamber lid properly.
Note:
• If the mixing chamber lid is not properly
installed, the safety switch will prevent the
appliance from working.
12
1
1
2

16 English
Important
Using the pasta
maker
Preparing the ingredients
1 Put the plug in the power socket. The
pasta maker will sound once, and all
indicators will flash once.
Note:
• Make sure that all the parts are well
assembled before plugging in.
• Place the product on a flat surface to prevent any shaking or vibration.
• Make sure that all the parts (including the chamber lid) are well
assembled before plugging in.
• Do not shake or move the appliance when it is weighing the flour.
• Do not put any object on the appliance when it is weighing the flour.
• Do not move or touch the power cord when the appliance is weighing
the flour.
• Do not put less than 200g or more than 500g (2 cups) of flour in the
chamber.
• Press the liquid calculation button after the flour weight is confirmed
on the display.
• Pour in the liquid slowly through the water slot after the appliance
starts kneading.
• If you want to dispose of the weighed flour before processing the next
batch, empty the chamber and restart the appliance by unplugging
and plugging in again.
• Do not put any ingredients that are 60°C / 140°F or above into the
pasta maker, nor place the pasta maker in surroundings with high
temperature (60°C / 140°F), for instance in a high temperature
sterilization. This will damage the appliance.
• Never pour water into the mixing chamber before you place the
chamber lid onto the chamber. Do not pour any liquids into the safety
switch hole.

English 17
2 Wait until displays on the screen.
3 Remove the chamber lid.
4 Wait until displays on the screen.
5 Measure the flour with the flour cup. One
full cup is equivalent to 1-2 servings.
Note:
• One full cup of flour weighs around 250
gram (1-2 servings).

18 English
6 Pour the flour into the chamber. If you
want to make 3-4 servings, add a second
cup of flour as you will need 2 cups
(~500g) of flour in total.
Note:
• Do not put less than 200g or more than
500g of flour in the chamber. If you put too
little or too much flour in the chamber, the
appliance will not operate.
7 The appliance automatically weighs the
flour, and shows the flour weight in
grams.
Note:
• Do not shake or move the appliance when it
is weighing the flour.
• Do not put any object on the appliance
when it is weighing the flour.
• Do not move or touch the power cord when
the appliance is weighing the flour.
• Some recipes (for example cookies, gluten free pasta) require you to
skip the weighing part. In this case, press the start/pause button
for 3 seconds, and the appliance will start kneading and extruding
directly.
8 Close the chamber lid properly.
Note:
• Insert the two hooks into the appliance first
❶, and then push the lid against the main
unit ❷.
• The appliance will not start working if the
chamber lid is not properly closed. During
the pasta making process, if the chamber
lid becomes loose, the appliance will
automatically stop working.
9 Press the program selection button to
choose the type of pasta you want to
make.
1
2

English 19
Program Tip Corresponding recipe
Plain
Pasta/
noodle
When you are making pasta
with flour and water only,
select the "Plain Pasta"
program .
Wheat noodle
Durum noodle
Ramen
Udon
Curried noodle
Egg/
Flavored
Pasta/
noodle
When you are making
pasta with flour and other
ingredients (eggs or veggie
juice), select the "Egg/
Flavored Pasta" program .
For dumpling sheet or soba,
select this program as well.
Wheat pasta
Durum pasta
Dumpling sheet
Whole wheat pasta/noodle
Spelt pasta/noodle
Carrot pasta/noodle
Tomato pasta/noodle
Soba
Beet pasta/noodle
Spinach lasagna/dumpling/
wonton
Fennel pepper pasta/noodle
Pasta nero
Herb pasta/noodle
10 Wait until the flour weight is confirmed,
and then press the liquid calculation
button and the required amount of
water or egg mixture displays on the
screen.
Note:
• Only press the liquid calculation button
after the flour weight is confirmed on the
display.
11 Measure the correct amount of water,
egg mixture or vegetable mixture with
the supplied water cup.

20 English
Note:
• Make sure to measure the liquid volume at eye level on a flat surface.
• When making the egg mixture, crack the
egg into the water cup. Add water up to the
required amount, and then whisk the water
and egg to combine.
• If preferred, 2 eggs can be used instead of 1.
• When making the vegetable mixture, crack
the egg into the water cup. Add vegetable
juice up to the required amount, and then
whisk the juice and egg to combine.
Starting the pasta making program
Important
• Do not select the extra extrusion program before the dough mixing is
complete. Otherwise, this will damage the pasta maker.
• Do not disconnect the power cord before the processing is complete.
If you have to stop processing, press the start/pause button to
stop the working process and then disconnect the power cord from
outlet before performing other operations.
• To prolong the lifetime of the appliance, the continuous working time
of the appliance should be less than 45 minutes. You can restart using
the appliance after a 15 minute rest.
• If you intend to use the appliance continuously, clean the shaping disc
with the supplied cleaning tool each time after each pasta making
session. For easy cleaning, do not soak the shaping disc directly in
water.
1 Press the start/pause button to start
processing, and the processing time
starts to count down.
