Phoenix Contact UM EN PSI-DATA/BASIC-MODEM/RS232 User manual

Order No.:
INTERFACE
Industrial Analog Modem
2888699
User Manual
UM EN PSI-DATA/BASIC-MODEM/RS232

Designation:
Revision:
Order No.:
This user manual is valid for:
08/2006
INTERFACE
102906_01_en PHOENIX CONTACT
Industrial Analog Modem
UM EN PSI-DATA/BASIC-MODEM/RS232
01
2888699
Designation Order No.
PSI-DATA/BASIC-MODEM/RS232 2313067
User Manual

PSI-DATA/BASIC-MODEM/RS232
PHOENIX CONTACT 102906_01_en
Please Observe the Following Notes
In order to ensure the safe use of the product described, we recommend that you read this
manual carefully. The following notes provide information on how to use this manual.
User Group of This Manual
The use of products described in this manual is oriented exclusively to
– qualified electricians or persons instructed by them, who are familiar with applicable
standards and other regulations regarding electrical engineering and, in particular, the
relevant safety concepts.
– qualified application programmers and software engineers, who are familiar with the
safety concepts of automation technology and applicable standards.
Phoenix Contact accepts no liability for erroneous handling or damage to products from
Phoenix Contact or third-party products resulting from disregard of information contained
in this manual.
Explanation of Symbols Used
The attention symbol refers to an operating procedure which, if not carefully followed, could
result in damage to hardware and software or personal injury.
The note symbol informs you of conditions that must strictly be observed to achieve
error-free operation. It also gives you tips and advice on the efficient use of hardware
and on software optimization to save you extra work.
The text symbol refers to detailed sources of information (manuals, data sheets, literature,
etc.) on the subject matter, product, etc. This text also provides helpful information for the
orientation in the manual.
We Are Interested in Your Opinion
We are constantly striving to improve the quality of our manuals.
Should you have any suggestions or recommendations for improvement of the contents
and layout of our manuals, please send us your comments.
PHOENIX CONTACT GmbH & Co. KG
Documentation Services
32823 Blomberg
Germany
Phone +49 - 52 35 - 30 0
Fax +49 - 52 35 - 34 20 21
E-mail [e-mail]

PSI-DATA/BASIC-MODEM/RS232
102906_01_en PHOENIX CONTACT
General Terms and Conditions of Use for Technical Documentation
Phoenix Contact GmbH & Co. KG reserves the right to alter, correct, and/or improve the
technical documentation and the products described in the technical documentation at its
own discretion and without giving any notice.
The provision of technical documentation (in particular data sheets, installation
instructions, manuals, etc.) does not constitute any further duty on the part of
Phoenix Contact GmbH & Co. KG to furnish information on alterations to products and/or
technical documentation. Any other agreement shall only apply if expressly confirmed in
writing by Phoenix Contact GmbH & Co. KG. Please note that the supplied documentation
is product-specific documentation only.
Although Phoenix Contact GmbH & Co. KG makes every effort to ensure that the
information content is accurate, up-to-date, and state-of-the-art, technical inaccuracies
and/or printing errors in the information cannot be ruled out.
Phoenix Contact GmbH & Co. KG does not offer any guarantees as to the reliability,
accuracy or completeness of the information provided. Phoenix Contact GmbH & Co. KG
accepts no liability or responsibility for errors or omissions in the content of the technical
documentation (in particular data sheets, installation instructions, manuals, etc.).
As far as is permissible by applicable jurisdiction, no guarantee or claim for liability for
defects whatsoever shall be granted in conjunction with the information available in the
technical documentation, whether expressly mentioned or implied. This information does
not include any guarantees on quality, does not describe any fair marketable quality and
does not make any claims as to quality guarantees or guarantees on the suitability for a
special purpose.
Phoenix Contact GmbH & Co. KG reserves the right to alter, correct, and/or improve the
information and the products described in the information at its own discretion and without
giving any notice.

PSI-DATA/BASIC-MODEM/RS232
PHOENIX CONTACT 102906_01_en
Statement of Legal Authority
This manual, including all illustrations contained herein, is copyright protected. Use of this
manual by any third party is forbidden. Reproduction, translation, or electronic and
photographic archiving or alteration requires the express written consent
of Phoenix Contact. Violators are liable for damages.
Phoenix Contact reserves the right to make any technical changes that serve the purpose
of technical progress.
Phoenix Contact reserves all rights in the case of patent award or listing of a registered
design. Third-party products are always named without reference to patent rights. The
existence of such rights shall not be excluded.
Windows 3.x, Windows 95, Windows 98, Windows NT, Windows 2000, Windows XP, and
MS DOS are trademarks of the Microsoft Corporation.
All other product names used are trademarks of the respective organizations.
Internet
PSI Hotline
Should problems occur that cannot be solved with the help of this documentation, please
contact our hotline:
+ 49 - (0) 52 35 - 3-19 89 0
+ 49 - (0) 52 35 - 3-19 89 9
[e-mail]
Up-to-date information on Phoenix Contact products can be found on the Internet at:
www.phoenixcontact.com
Make sure you always use the latest documentation.
It can be downloaded at:
www.download.phoenixcontact.com
A conversion table is available on the Internet at:
www.download.phoenixcontact.com/general/7000_en_00.pdf

102906_01_en PHOENIX CONTACT i
Table of Contents
1 PSI-DATA/BASIC-MODEM/RS232 Industrial Modem.............................................................1-1
1.1 Short Description................................................................................................1-1
1.2 Application..........................................................................................................1-2
1.3 Ordering Data.....................................................................................................1-3
1.4 Technical Data ...................................................................................................1-3
2 Quick Startup of a Dial-Up Line Connection............................................................................2-1
2.1 Hardware Installation .........................................................................................2-1
2.1.1 Default Configuration .......................................................................... 2-1
2.1.2 Mounting .............................................................................................2-1
2.1.3 V.24 (RS-232) Interface ......................................................................2-2
2.1.4 Connecting the Telecommunications Cable .......................................2-3
2.1.5 Supply Voltage ...................................................................................2-3
2.2 Software Installation........................................................................................... 2-4
2.2.1 System Requirements ........................................................................2-4
2.2.2 Driver Installation ................................................................................ 2-4
3 Hardware Installation...............................................................................................................3-1
3.1 Structure.............................................................................................................3-1
3.2 Operating Elements ........................................................................................... 3-2
3.2.1 Connection Terminal Blocks ............................................................... 3-2
3.2.2 Connectors .........................................................................................3-2
3.2.3 LEDs ...................................................................................................3-3
3.3 Electrical Connections........................................................................................3-3
3.3.1 Block Diagram ....................................................................................3-4
3.3.2 V.24 (RS-232) Interface ......................................................................3-5
3.3.3 Telecommunications Cable ................................................................3-6
3.3.4 Supply Voltage ...................................................................................3-7
4 Software Installation ................................................................................................................4-1
4.1 System Requirements........................................................................................4-1
4.2 Driver Installation ...............................................................................................4-1
4.3 Configuration Software.......................................................................................4-5
4.3.1 Installation ..........................................................................................4-5
4.3.2 Operation ............................................................................................4-9
5 Password Protection................................................................................................................5-1
5.1 Selecting a Password.........................................................................................5-1
5.2 Deactivating Password Protection ..................................................................... 5-1
5.3 Password-Protected Callback ............................................................................5-2
5.4 Dial In With Password Protection.......................................................................5-2

PSI-DATA/BASIC-MODEM/RS232
ii PHOENIX CONTACT 102906_01_en
6 AT Commands.........................................................................................................................6-1
6.1 Command Descriptions...................................................................................... 6-2
6.2 AT Commands for MNP and LAPM (V.42bis)....................................................6-9
6.3 S Registers.......................................................................................................6-11
6.4 Modulation Commands ....................................................................................6-17
6.5 Modem Confirmations ......................................................................................6-18
6.6 Processing the Break Character ......................................................................6-20
7 Configuration Help...................................................................................................................7-1
7.1 Programming Connection for Phoenix Contact Controllers................................7-1
7.2 Programming Connection for Siemens S7 300/400...........................................7-3

PSI-DATA/BASIC-MODEM/RS232 Industrial Modem
102906_01_en PHOENIX CONTACT 1-1
1 PSI-DATA/BASIC-MODEM/RS232 Industrial Modem
1.1 Short Description
The DIN rail-mountable PSI-DATA/BASIC-MODEM/RS232 V.24 (RS-232) modem is
specifically designed to meet industrial requirements for remote monitoring. It provides
access to machines and systems anywhere in the world via dial-up line connections
according to the V.34 standard. A wide range of security functions, such as connection
establishment with password protection and callback function, protect the system against
unauthorized access.
To ensure error-free operation even in harsh EMC conditions, the device has high-quality
3-way isolation and integrated surge protection. The modem also features an integrated
automatic "Sleep" function to increase battery life and a wide supply voltage range of 10 V
to 30 V, making it suitable for universal use.
Modem startup is very easy using plug and play and user-friendly configuration software.
The modem is approved for use in public telephone networks in Europe, the USA, and
Canada. Additional approvals can be provided on request.
Features
– For universal use
– Password-protected access/callback function
– Wide supply voltage range of 10 V to 30 V DC
– Power-saving sleep mode
– High-quality three-way isolation (VCC // V.24 (RS-232) // PTSN)
– Slim design width of 22.5 mm
– Easy startup using plug and play and user-friendly configuration software
– 3964R-compatible

PSI-DATA/BASIC-MODEM/RS232
1-2 PHOENIX CONTACT 102906_01_en
1.2 Application
The PSI-DATA/BASIC-MODEM/RS232 modem is suitable for universal and international
use as an analog dial-up modem.
Figure 1-1 Dial-up operation
The following modem applications can be implemented:
– Remote monitoring of systems and machines
– Remote control
– Remote system diagnostics
– Production data acquisition
This device is approved for operation in the following public telephone networks:
–Austria
– Belgium
– Canada
–Denmark
–Finland
–France
– Germany
–GreatBritain
–Greece
–Ireland
– Italy
– Luxembourg
–Norway
– Portugal
–Spain
–Sweden
–Switzerland
– The Netherlands
–USA
Approvals for other countries are available on request.
PSI-DATA/BASIC/
MODEM/RS232
Ord.-No. 23 13 067
RS232
DTR
DCD
OH
AA
LINE
PSI-DATA/BASIC/
MODEM/RS232
Ord.-No. 23 13 067
RS232
DTR
DCD
OH
AA
LINE
PSI-DATA/BASIC/
MODEM/RS232
Ord.-No. 23 13 067
RS232
DTR
DCD
OH
AA
LINE
102906A001
Telephone
network

PSI-DATA/BASIC-MODEM/RS232 Industrial Modem
102906_01_en PHOENIX CONTACT 1-3
1.3 Ordering Data
1.4 Technical Data
Modem
Description Type Order No. Pcs./Pck.
Industrial analog modem for mounting on EN DIN rails
Scope of supply: Modem, CD with configuration software, manual, and
RJ12/RJ12 cable
PSI-DATA/BASIC-MODEM/RS232 2313067 1
Accessories
Description Type Order No. Pcs./Pck.
System power supply unit,
primary-switched
Input voltage range
Nominal output voltage
Nominal output current
45 Hz ... 65 Hz
85 V AC ... 264 V AC
24 V DC ±1%
1.5 A
MINI-SYS-PS-100-240AC/24DC/1.5 2866983 1
DIN rail connector, to supply power to the modem via the DIN rail bus ME 22,5 TBUS 1,5/ 5-ST-3,81 GN 2707437 50
V.24 (RS-232) cable, 2 m, to connect the modem to
a 9-pos. device interface
9-pos. D-SUB/
9-pos. D-SUB
(female/female)
PSM-KA9SUB9/BB/2METER 2799474 1
V.24 (RS-232) cable, 0.5 m, to connect the modem
to a 9-pos. device interface
9-pos. D-SUB/
9-pos. D-SUB
(female/female)
PSM-KA9SUB9/BB/0,5METER 2708520 1
Power Supply
Supply voltage 10 V DC ... 30 V DC via COMBICON plug-in screw terminal
Frequency DC
Current consumption
Nominal operation
Sleep mode (can be configured via software)
< 100 mA (at 24 V)
< 40 mA (at 24 V)
Display Green LED (VCC), steady light during operation
V.24 (RS-232) Interface
Connection 9-pos. D-SUB pin strip
Device type Data Communication Equipment (DCE)
Data format/encoding Serial asynchronous UART/NRZ, 7/8 data,
1/2 stop, 1 parity, 10/11 bits character length
Data flow control/protocols Software handshake Xon/Xoff,
hardware handshake RTS/CTS
or 3964R
Serial transmission speed Automatic transmission speed detection for 300, 1200, 2400, 4800, 9600,
19200, 38400, 57600, 115200 bps
Data indicator Green LED (TD), data to modem (dynamic)
Yellow LED (RD), data from modem (dynamic)
Control signal indicator Yellow DTR LED, Data Terminal Ready
Yellow DCD LED, Data Carrier Detect

PSI-DATA/BASIC-MODEM/RS232
1-4 PHOENIX CONTACT 102906_01_en
PSTN Port (a/b Line)
Connection 6-pos. RJ12
Shield Via metal foot on EN DIN rail
Operating modes Dial-up modem, 2-wire half/full duplex
Dialing procedure Multiple frequency/pulse dialing, configuration via software
Transmission speed
DCE/DCE
Fax
Automatic adjustment according to V.8
300 baud ... 56 kbaud
2400 baud ... 14.4 kbaud
Compatibility ITU V.42bis, V.42, V.92, V.90, V.34 extended, ITU V.32bis, V.32, V.21,
V.22bis, V.22, V.23, ITU V.17
Command set compatibility AT standard command set and extended
V.250 basic command set
Error correction V.42 (LAPM or MNP 2 to 4)
Data compression V.42bis (throughput 4:1), MNP 5 (throughput 2:1)
Data indicator Green LED (OH), off the hook
Yellow LED (AA), automatic answer, flashes during selective call acceptance
Acoustic signal Integrated piezo
Startup diagnostics Selftest, visualization via LEDs (controller, RAM, EEPROM, DSP)
Telecommunications approvals TBR21, TIA-968-A, CS-03 for Europe, USA, and Canada
Telephone Number Memory
Telephone number memory 4 telephone numbers with a maximum of 36 digits
Tests/Approvals
UL In preparation
Telecommunications TBR21, TIA-968-A, CS-03 for Europe, USA, and Canada
General Data
Ambient temperature range (operation) 0°C ... +55°C
Housing
Material
Dimensions (H x W x D)
ME 22,5 with T-BUS and ground contact
ABS-V0, green
99 mm x 22.5 mm x 114.5 mm
Weight 165 g
Functional earth ground To EN DIN rail in the housing
Vibration resistance 5g according to DIN EN 60068-2-6, 1.5 h each in x, y, and z direction
Shock test according to IEC 60068-2-27
Operation
Storage
15g, 11 ms, half-sine shock pulse
30g, 11 ms, half-sine shock pulse
Free fall according to IEC 60068-2-32 1 m
Degree of protection IP20
3-way electrical isolation Supply // PSTN // V.24 (RS-232)
Test voltage 1.5 kV AC, 50 Hz, 1 min. between all ground levels according to
EN 61010-1/VDE 0411-1 and EN 60950

PSI-DATA/BASIC-MODEM/RS232 Industrial Modem
102906_01_en PHOENIX CONTACT 1-5
Conformance With EMC Directive 89/336/EEC
Noise Immunity Test According to EN 61000-6-21
Electrostatic discharge (ESD) EN 61000-4-2 Criterion B28 kV air discharge
6 kV contact discharge
Electromagnetic HF field
Amplitude modulation
Pulse modulation
EN 61000-4-3 Criterion A3
10 V/m
10 V/m
Fast transients (burst)
Signal
Supply
EN 61000-4-4
Criterion B2
Criterion A3
2 kV/5 kHz
1 kV/5 kHz
2 kV/5 kHz
Surge current load
Signal
Supply
EN 61000-4-5 Criterion B2
1 kV
2 kV
Conducted interference EN 61000-4-6 Criterion A310 V
Noise Emission Test According to EN 61000-6-4
Noise emission of housing EN 55022 Limiting curve B
1 EN 61000 corresponds to IEC 61000
2 Criterion B: Temporary adverse effects on the operating behavior, which the device corrects automatically.
3 Criterion A: Normal operating behavior within the specified limits.

PSI-DATA/BASIC-MODEM/RS232
1-6 PHOENIX CONTACT 102906_01_en

Quick Startup of a Dial-Up Line Connection
102906_01_en PHOENIX CONTACT 2-1
2 Quick Startup of a Dial-Up Line Connection
2.1 Hardware Installation
2.1.1 Default Configuration
The modem is preconfigured to dial-up line operation with automatic data rate detection
and automatic call acceptance by default upon delivery.
2.1.2 Mounting
•Mount the modem on a 35 mm EN DIN rail (see Figure 2-1).
Figure 2-1 Mounting
Quick startup refers only to a standard dial-up connection.
Only mount devices when the power supply is disconnected.
The DIN rail must be connected to PE to ensure safe operation.
102906A002

PSI-DATA/BASIC-MODEM/RS232
2-2 PHOENIX CONTACT 102906_01_en
2.1.3 V.24 (RS-232) Interface
The modem and the computer or another device are connected via the
PSM-KA-9SUB9/BB/... V.24 (RS-232) cable (see Section 1.3, "Ordering Data").
The cable is an interface cable with 1:1 connected contacts.
•Use this interface cable to connect the modem to a free COM interface on the PC.

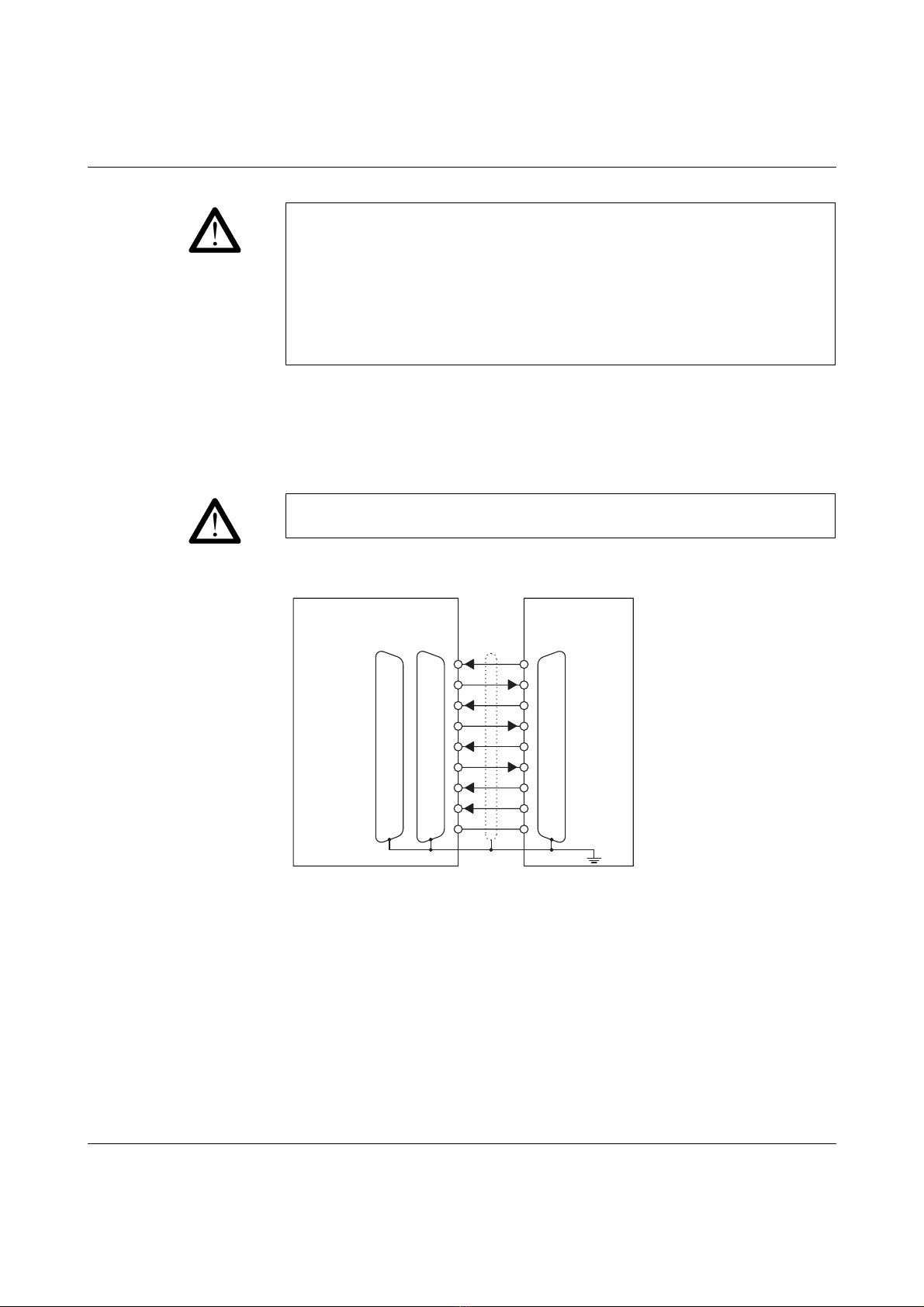

Figure 2-2 V.24 (RS-232) interface
Electrical connection
Only qualified personnel may connect the power, start up, and operate this device.
According to the safety instructions in this text, qualified personnel are persons who are
authorized to start up, to ground, and to mark devices, systems, and equipment
according to the standards of safety technology. In addition, these persons must be
familiar with all warning instructions and maintenance measures in this text.
Disregarding this warning may result in damage to equipment and/or serious personal
injury.
The modem may only be connected to devices, which meet the requirements of
EN 60950 ("Safety of Information Technology Devices").
32 3
23 2
74 7
85 8
42 0 4
66 6
57 5
T x D
R x D
R T S
C T S
D T R
D S R
G N D
T x D
R x D
R T S
C T S
D T R
D S R
G N D
S U B D
2 5 9
S U B D 9
6 9 2 3 A 0 3 5
M a x . 1 5 m
( 4 9 . 2 1 f t . )
92 2 9
R I R I
18 1
DCD DCD
C / L C M o d e m

Quick Startup of a Dial-Up Line Connection
102906_01_en PHOENIX CONTACT 2-3
2.1.4 Connecting the Telecommunications Cable
RJ12/RJ11 connector Connect the telecommunications cable to an RJ12/RJ11 connector on the front of the
device. Signals "a" and "b" are assigned to the middle pins, 3 and 4.
Figure 2-3 Connection using an RJ12/RJ11 connector
2.1.5 Supply Voltage
Connect the 24 V supply voltage to the "24V" and "0V" terminal points on the plug-in screw
terminal block.
Figure 2-4 Connecting the supply voltage
As soon as the "VCC" LED lights up, the modem is ready for dial-up line operation.
The PSI-DATA/BASIC-MODEM/RS232 is designed exclusively for SELV operation
according to IEC 60950/EN 60950/VDE 0805.
i n 1
i n 2
i n 3
i n 4
i n 5
i n 6
i n 7
i n 8
RD+
R D -
T D +
T D -
n . c .
n . c .
n . c .
n . c .
R J 4 5
i n 1
i n 2
i n 3
i n 4
i n 5
i n 6
R J 1 2
a 2
n . c .
a
b
b 2
n . c .
6 9 2 3 A 0 3 6
24V 0V NC NC
24 V 0V
102906A003

PSI-DATA/BASIC-MODEM/RS232
2-4 PHOENIX CONTACT 102906_01_en
2.2 Software Installation
2.2.1 System Requirements
In principle, any device can be connected to the modem via a free V.24 (RS-232) interface.
A terminal program, for example, can be used for configuration. More detailed information
can be found in later sections.
A PC with one of the following operating systems is required for the PSI-MODEM-CONF
configuration software and the plug and play function:
Windows 95, Windows 98, Windows 2000, Windows NT, Windows ME or Windows XP.
2.2.2 Driver Installation

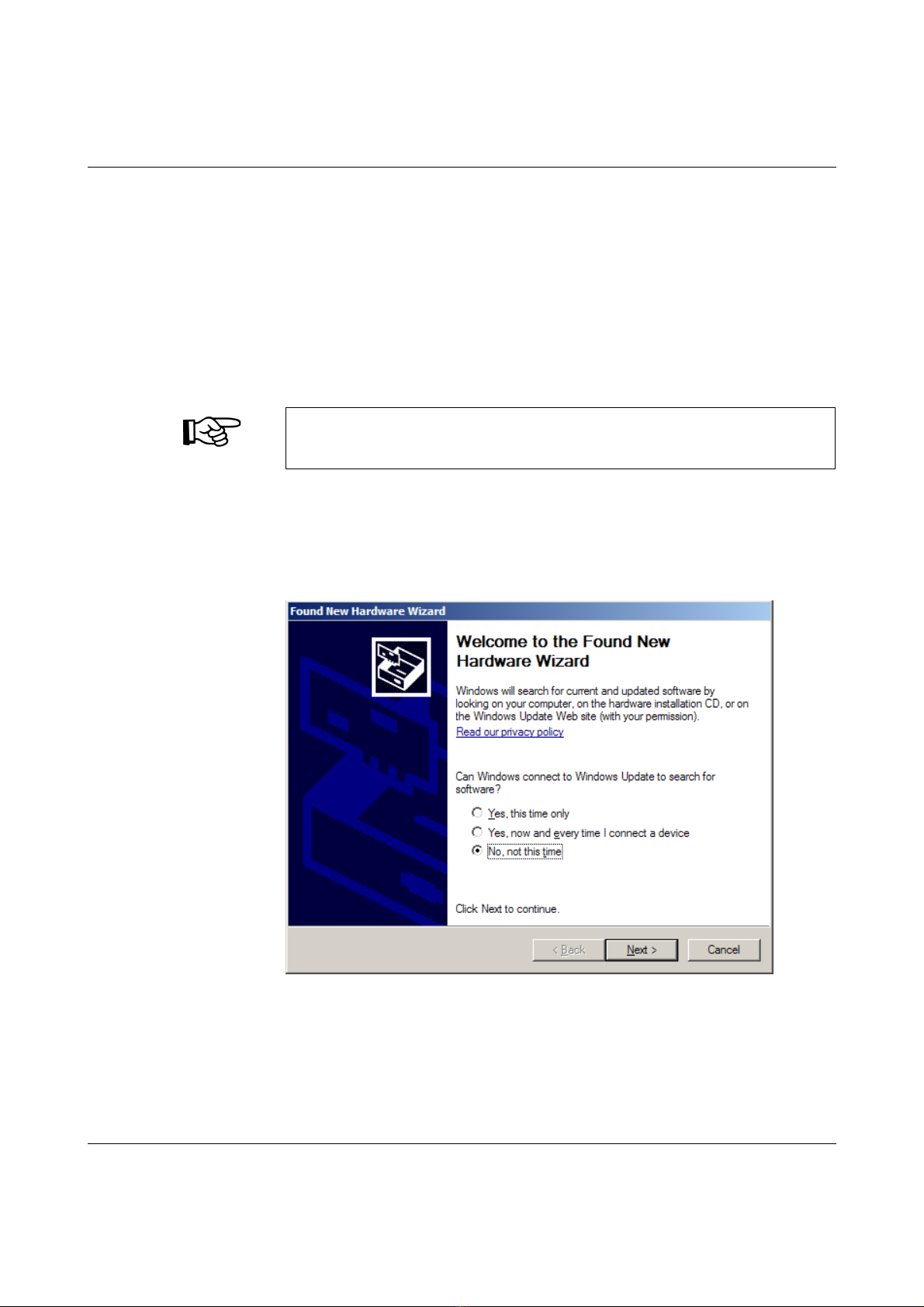

•Connect the modem to the PC as described above and switch on the supply voltage.
After the PC has been started, the modem is detected automatically and the driver can
be installed:
•Select "No, not this time" and click "Next".
The installation procedure for the driver varies depending on the operating system. In the
following, driver installation under Windows XP is described as an example. During
installation, please always follow the on-screen instructions.

Quick Startup of a Dial-Up Line Connection
102906_01_en PHOENIX CONTACT 2-5

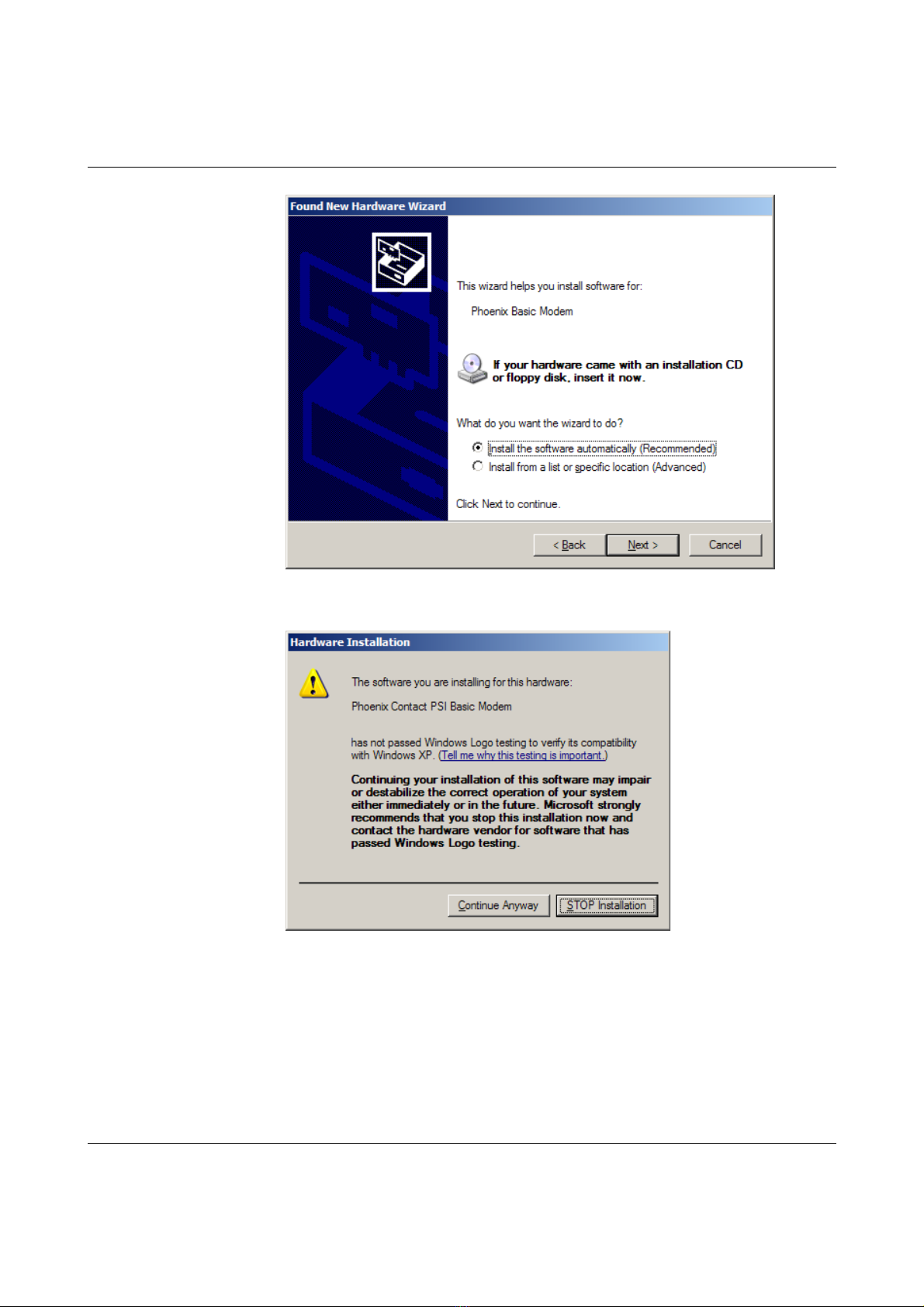

•Insert the "PSI-MODEM-CONF" CD provided in the drive.
•Select "Install the software automatically (Recommended)" and click "Next".
•Click on "Continue Anyway". Contrary to the message displayed, this will in no way
affect the operation of the software or your computer.

PSI-DATA/BASIC-MODEM/RS232
2-6 PHOENIX CONTACT 102906_01_en

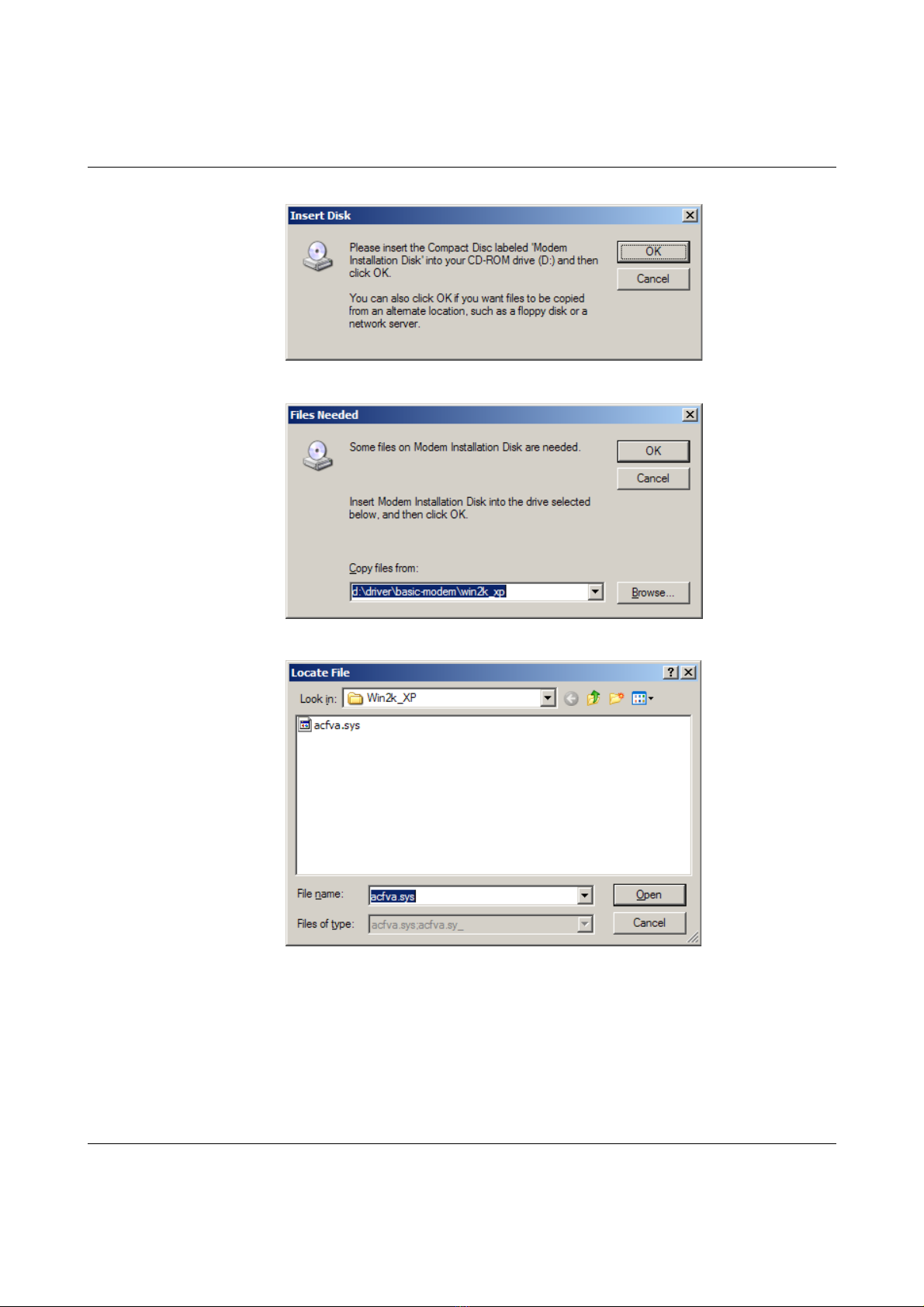

•Insert the "PSI-MODEM-CONF" CD in the corresponding drive and confirm with "OK".
•Select "Browse".
•Click on "acfva.sys" and confirm your selection with "Open".
