PLANET IP Phone VIP-152T
QUICK INSTALLATION GUIDE
For model: VIP-152T
Part No.: EMQ-VIP152TV1

1
Table of Contents
Chapter 1 Overview 1
1.1 Before Startup 1
1.2 Physical Details 1
Chapter 2 Basic Configuration 5
2.1 Initialize VIP-150T 5
Chapter 3 Making calls 11
3.1 IP address call (P2P mode): 11
Chapter 4 Quick reference in CD-ROM guide 15

1
Chapter 1
Overview
Thank you for purchasing PLANET IP Phone VIP-152T (VIP-152T, in the following terms).
You can now ease the cost of long distance call yet still enjoy the toll voice quality via
Internet.
1.1 Before Startup
Before your rst time start up, please check if the package comes with following items:
• VIP-152T
• Your manual CD
• Quick Installation Guide
• RJ-45 cable
And later, you are required to familiar your environment, your TCP/IP network and your
phone systems.
1.2 Physical Details
1.2.1 Front view and keypad function:

2
3
• System Indication LED: When VIP-152T didn t register to Proxy server or
having incoming call, system indication LED will be blinking.
• MENU: Press to enter LCD Menu when in standby mode; if already in LCD
Menu, press this button can return to standby mode
• MUTE:
1. Mute the voice of microphone and let others can’t hear from user in com-
munication.
2. Change input mode to be digit or character mode: When configuration in
LCD menu can change input mode to be input digit only or input character.
• pq: Move to up/down, left/right ; increase/decrease value.
• Flash:
1. Transfer a call. User A can press FLASH button when in communication with
user B, then input phone number can make call to User C, after talk with C,
A can hang up, User B and User C can communicate.
2. Back to upper level of menu: when in LCD Menu, press FLASH button can
jump to upper level of menu.
• REDIAL / HOLD:
1. Redial the last outgoing call or hold one call in communication.
2. Upper-case/Lower-case character: change input character mode to be upper
case or lower case.
• SPEAKER: Speaking without picking up handset.
• 5 Graphic Memory key: User presses these keys to do speed dial according
to phone book data 1-5.
• Number 1 - 10, * and #: The function is as the same as the general phone
set.
• Corresponding list of keypad and symbol:
1 “1”
2 “a” ; “ b” ; “c” ; “2”
3 “d” ; “e” ; “f” ; “3”
4 “g” ; “h” ; “i” ; “4”
5 “j” ; “k” ; “l” ; “5”
6 “m” ; “n” ; “o” ; “6”

2
3
7 “p” ; “q” ; “r” ; “s” ; “7”
8 “t” ; “u” ; “v” ; “8”
9 “w” ; “x” ; “y” ; “z” ; “9”
Ü“.” ; “@” ; “_” ; “-” ; “,” ; “!” ; “?” ; “‘” ; “+” ; “$” ; “*”
0 “Space” ; “0”
# “#”
 NOTE:
All function keys mentioned above (except dialing keypad)
are effective only in IP Phone mode.
1.2.2 Rear view
5V DC 5V DC Power input outlet
LAN RJ-45 connector, connected directly to Switch/
Hub through straight CAT-5 cable
PC RJ-45 connector, connected directly to the PC
through straight CAT-5 cable

4
5
This page is intentionally left blank

4
5
Chapter 2
Basic Configuration
This chapter shows you the starting point of VIP-152T to be integrated into your network
and/or Internet. Conguration steps in this quick guide will be focused on keypad
conguration. More detail conguration, including keypad, web, and telnet instructions
will be illustrated in respective chapters in user's manual.
2.1 Initialize VIP-152T
2.1.1 Start up
Power on VIP-152T, and wait about 15 seconds until VIP-152T nishes boot program
initialization.
Then VIP-152T will come into standby mode: The main LCD screen would be shown as
similar as following. The P2P word means VIP-152T is now in Peer-to-Peer Mode, and
when VIP-152T is connected to SNTP server, on LCD will show current time obtained from
SNTP server.
VIP-152T
P2P 10:10:10 AM
2.1.2 LCD conguration
Most functions may be directly congured via keypad operations in VIP-152T.
You may press ç or è to enter machine conguration menu. The OK button is used to
enter sub menus or conrm settings press FLASH can jump out current menu to previous
level.
G
Hint
• The REDIAL/HOLD key can be used to switch characters
between capitals and lowercase.
• Press MUTE before input data can switch input mode to
be character mode or IP mode; for example, user wants
to enter IP address, after pressing SPEED can enter digits
directly.
• When user is inputting data, press p will clear previous
input data.
VIP-152T has following conguration menus in the LCD control panel:
1. Call List
2. Forward
3. Phone Book

6
7
4. Ringer
5. Network
6. Advanced Set (can be protected by password)
7. Reboot
Please be sure to check and conrm the congurations you ve done. All the modied
parameters should be activated via the Reboot menu.
In this session, we will introduce the main conguration of VIP-152T for you to quickly and
easily establish voice communication.
G
Hint
• It is suggested to configure the Network settings first,
then you may log in machine via standard web browsers
to complete other machine configurations.
• Machine default IP address: 192.168.0.1
Default username/password: root / no password
2.1.2.1 System Conguration
(i) Call List
User can check all call records in this call list menu.
• Missed Calls:to see all missed calls in message box.
• Received:to see all received calls in message box.
• Dialed No.: to see all dialed numbers in message box.
• Exit: return to upper level of LCD Menu
(ii) Forward Type
There are 3 selections in Forward type, user must select under which condition
to forward calls.
(1) Busy
When VIP-152T is in busy status, the incoming call will be forwarded to the
assigned phone number.
Activate: Enter a forwarded phone number to activate busy forward func-
tion.
Deactivate: Deactivate Busy Forward function.
Exit: Return to upper level of LCD Menu
(2) No Response
When VIP-152T hasn’t been picked up for around 10 seconds, the incom-
ing call will be forwarded to the assigned phone number.

6
7
Activate: Enter a forwarded phone number to activate No Answer Forward
function.
Deactivate: Deactivate No Answer Forward function.
Exit: Return to upper level of LCD Menu
(3) Unconditional
It is included the above two types. Whether the VIP-152T is in which sta-
tus, calls will be automatically forwarded to the assigned phone number.
Activate: Enter a forwarded phone number to activate Unconditional
Forward function.
Deactivate: Deactivate Unconditional Forward function.
Exit: Return to upper level of LCD Menu
(4) Delete All: Delete all forward activated data.
The call forward feature can be disabled in this menu.
(5) Exit: Return to upper level of LCD Menu.
(iii) Phone Book
• List: List all records of name, telephone number, and IP address in the
phone address book.
• Edit / Del: Edit or delete a record of name, telephone number, and IP ad-
dress of the phone address book.
• New: Add a new record of name, telephone number, and IP address of the
phone address book.
• Exit: Return to upper level of LCD Menu
(iv) Ringer Settings
• Volume: User can adjust ring volume by press q or p on the keypad to
decrease or increase ringer volume.
• Style: There are three tone styles for VIP-152T. Move the “>” symbol by
press q or p on the keypad to select the tone style preferred, then press
OK to confirm it.
• Exit: Return to upper level of LCD Menu
(v) Network
• Information
User can press q or p to check current network status:
• Mode: Display current network connection mode of VIP-152T to be
Static (Fixed IP), DHCP, or PPPoE.

8
9
• IP, Mask, Gateway: display current IP information.
• IP, Mask, Gateway: display current IP information.
• Get IP Mode
Set network mode of VIP-152T to be Fix (Fixed IP), DHCP, or PoE (PPPoE).
• IP address
Set IP address of VIP-152T.
• Subnet Mask:
Set subnet mask address of VIP-152T.
• Default GW
Set default gateway address of VIP-152T.
• DNS (Domain Name Server)
Set IP address of Domain Name Server. Once VIP-152T can connect to DNS
server, user can set URL address for Proxy server or Phone book instead
of IP address.
(1) Primary
Set Primary DNS server IP address
(2) Secondary
Set Secondary DNS server IP address
(3) Exit: Return to upper level of LCD Menu
PoE Config (PPPoE Configuration)
• User Name
Set PPPoE connection authentication user name.
• Password
Set PPPoE connection authentication password.
• Reconnect
Select ON or OFF to enable or disable this function. If user enables
this function, after PPPoE disconnected, VIP-152T will automatically
reboot to re-connect, and after reboot, if VIP-152T still can t connect
with server, VIP-152T will keep trying to connect. On the other hand, if
user disables this function, VIP-152T won t reboot and keep trying to
connect.
• Exit: Return to upper level of LCD Menu

8
9
• SNTP Configuration
• SNTP Mode:
User can set SNTP function to be on or off, which means VIP-152T will
capture current time from SNTP server or not.
• Server IP:
User can specify a SNTP server for VIP-152T to capture current time.
• Time Zone:
User can set time zone via pressing ç or è according to the location
VIP-152T is. For example, in Taiwan the time zone should be set as
GMT+8:00.
• Behind IP-Sharing
If VIP-152T is allocated behind IP sharing or NAT device, please be sure
to check if the device support SIP communications and enable appropriate
settings, such as “DMZ” function or set “Virtual Server” to reserve com-
munication ports (UDP port: 5060 and 16384, 16385) for VIP-152T.
User must enter public IP address of the NAT / IP sharing device in this
field.
 NOTE:
It is suggested to configure the Advanced SIP settings in the
VIP-152T web management
More information about the Advanced SIP settings can be
found in the user’s manual.

10
11
This page is intentionally left blank

10
11
Chapter 3
Making calls
There are several ways to make calls to desired destination in VIP-152T. In this chapter,
we'll lead you step by step to establish your rst voice communication via keypad
operations.
3.1 IP address call (P2P mode):
Please refer to the descriptions in previous chapter to complete machine network
parameter congurations.
G
Hint
Please identify the proper network connection type on your
side, and find the appropriate connection method supported
by VIP-152T
G
Hint
When key in IP address/Subnet Mask/Gateway values,
please add 0 before IP address (ex.192.168.0.1 please key
in 192.168.000.001) for machine operation.

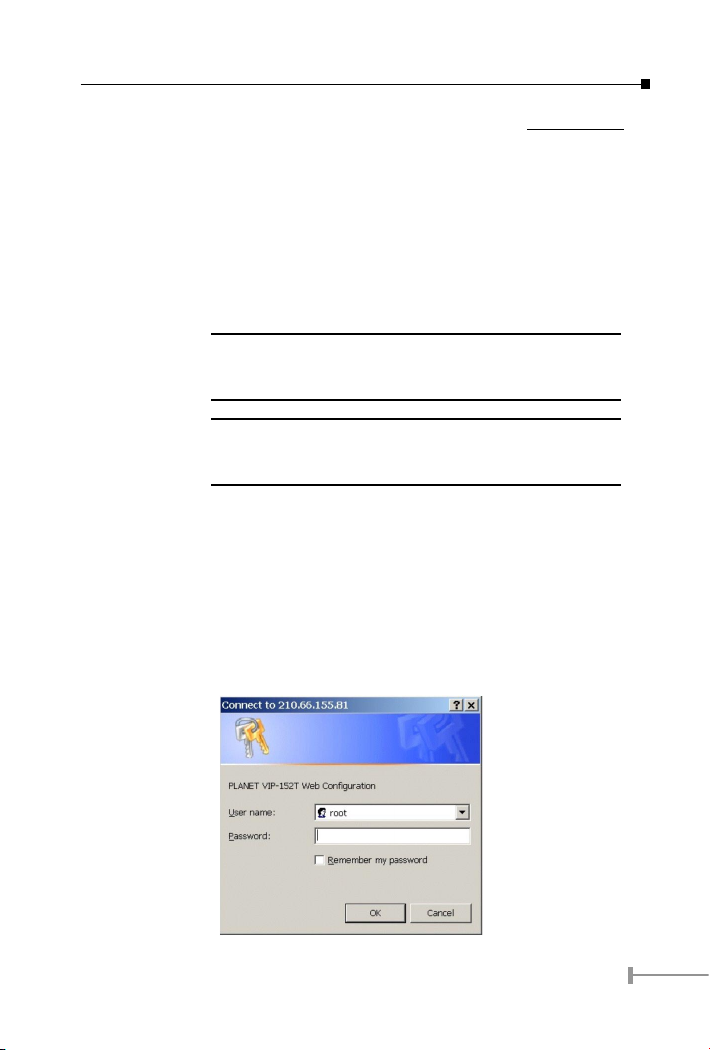

After machine network conguration is completed, you may now open web browser to
log in machine to add the remote calling party in machine phone book to establish voice
communications.
Before starting web browser to connect to VIP-152T, please check TCP/IP congurations
on PC: the PC must be congured either as a DHCP client and or xed IP allocation on
the intranet or Internet. After ensuring TCP/IP conguration on the workstation, you may
connect to web administration page of VIP-152T either from intranet, or Internet
After TCP/IP congurations on your PC, you may now open your web browser, and input
192.168.0.1 to logon VIP-152T web conguration page.
VIP-152T will prompt for logon username/password: root / null (without password)

12
13
Operation steps:
After logging in machine, please browse to the "Phone Book" conguration menu, and
assign the index, name, and the IP address/domain name of the calling party you d like
to connect to. For those who are making calls to PLANET VIP-160/ VIP -260 SIP voice
gateway
A call setup example could be as like following:
Supposing there is a telephone set connected with the rst FXS port on VIP-260 (which
default number is 201)
The Phone Book conguration on VIP-152T:
Index number: 01 Destination Name: VIP-260, IP address/Domain name: 192.168.0.2
E.164: 201.
After clicking on "Add Entry", you can just pick up the handset and dial 201 to establish
the voice communication toward the telephone set connected on FXS port 1 of VIP-260.
The phone book conguration should look like the following:
G
Hint
By default configuration, by pressing the symbol “#” will
send out the dialed digits immediately.
G
Hint
a) If the remote calling party is a voice gateway, you’ll need to
enter proper number to connect to the destination.
b) If the remote calling party is an IP phone, the digits will be
accepted and establish the voice communications.

12
13
G
Hint
If the call cannot be made, please check if all the TCP/IP
parameters are correctly configured, and matched with the
network environment or parameters assigned by your ISP.
If there is a NAT/firewall involved in the SIP application,
please be sure to check the SIP compatibility of the NAT/
firewall device.
G
Hint
The dialing numbers will vary to reflect the field application
settings.
Voice communication via SIP proxy:
PLANET VIP-152T able to establish voice communications via SIP proxy server. Users need
to apply voice account information while making calls.
Following steps will describe how to make calls via Internet Telephony Service Provider
(http://www.freeworlddialup.com)
a) Go to http://www.freeworlddialup.com to register testing accounts for evalua-
tions.

14
15
b) After signing up, browse to SIP configuration page of VIP-152T. Insert the
Proxy server, server communication port, username, and password field.
c) After these parameters are inserted, click “DONE”, and browse to “Reboot”
menu to reboot the VIP-152T and make the configuration effective.
d) After rebooting machine, the registration should be completed. You may now
refer to the test telephone number to make calls toward other calling parties
via VIP-152T. If the call cannot be made, please check the machine LED status,
the LED will be blinking when the registration failed.
G
Hint
The sample is using public IP address for voice communica-
tion, If there is NAT/firewall device
G
Hint
Machine default running mode is P2P mode. If you d like to
connect others via SIP proxy mode, please log in machine
via web browser, and modify machine mode to “Proxy” in the
“SIP Configuration” menu.

14
15
Chapter 4
Quick reference in CD-ROM guide
This guide is used to help you startup your VIP settings. It is also recommended to check
the user manual CD-ROM for more details information, and how to set the device back
to default value.

16
17
This page is intentionally left blank

16
17
This page is intentionally left blank

18
This page is intentionally left blank
