PNI SafeHouse HS550 User manual

Sistem de alarma fara fir
PNI SafeHouse HS550
Wifi GSM 3G
PNI SafeHouse HS550 WIRELESS 3G
alarm system
Manual de utilizare / User manual
RO Manual de utilizare..................... 2
EN User manual ............................... 22

EN
22
WARNING
Please read this user manual carefully before using the product.
To set up and use the alarm system correctly, we recommend that you read this manual
thoroughly and carefully. Conguring and installing this system requires basic technical
knowledge, IT and PC, in order to understand and interpret the technical terms and
procedures correctly.
Start with simple, step-by-step settings and test them after setup. Do not change settings
and parameters that you do not understand and already know.
1. FEATURES AND GENERAL INFORMATION
■ Voice announcement
■ Multi-language
■ Built-in Siren and External Siren
■ 3 Hardwire Zones (EOLR)
■ Up to 90 Wireless Zones and Keys
■ Event Log Storage
■ Phone Number
■ Built-in Case Tamper
■ GSM/3G Cellular and Wi-Fi Communications
■ Support Up to 8 Smart Sockets
■ Up to 10 RFID tags
■ Exit Alarm
■ Sensors Low Battery Alarm
■Burglary Protection
Your system provides two modes of burglary protection: STAY and AWAY. STAY mode
protects the perimeter only, allowing you to freely move inside the premises. AWAY mode
protects the entire system. Both modes provide an entry delay time that allows you to
reenter the premises without setting off an alarm.
■Zones
Your system’s sensing devices have been assigned to various “zones.” For example,
the sensing device on your entry/exit door may have been assigned to zone 01, sensing
devices on windows in the master bedroom to zone 02, and so on. These numbers
appear on the display when an alarm or trouble condition occurs.
■Exit/Entry Delays
Your security system has been programmed with delay times that allow you to exit the
premises after arming, and to disarm the system upon entry, before an alarm occurs. If
you leave the premises too late when exiting, or disarm too late when arriving home, it
will cause a false alarm. If an alarm occurs, you should disarm the system immediately.
■Alarms
When an alarm occurs,both the built-in and external sounders will sound until the system
is disarmed or until alarm bell timeout occurs, and a message on the display will identify
the zone(s) causing the alarm.
Your system may also have been programmed to automatically send alarm messages
and voice via the cellular/GSM/GPRS/3G network, and push alarm notication to your
mobile app.To stop the alarm sounding,you simply disarm the system.

EN
23
2. SYSTEM OVERVIEW

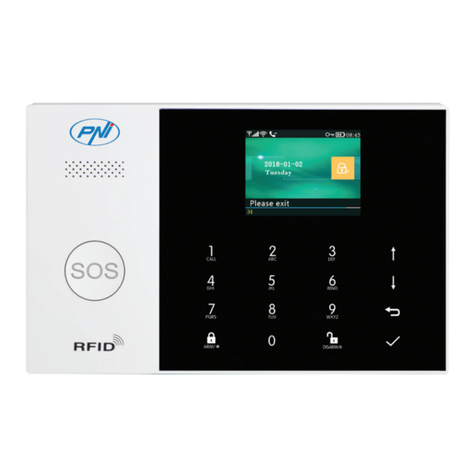

2.1 Control panel description
Index Item Description
1 Display Window 2.4 TFT Display screen. Displays system
status icons and information, time, zone(s)
alarm information, user menus.
2Speaker Alarms and conrmation sounds.
3 Panic Key Press to generate a Panic Alarm in case of
re or personal emergency.
4 Away/Stay Arm Button Press to arm the entire burglary
system,perimeter and interior.
Press twice to arm perimeter portion
programmed for “Stay Arm Active” of
burglary system only.Interior protection is
not armed,which allows movement within
premises without causing alarm.
5Disarm Button Press to disarm the system and to clear
alarm.
Press twice to clear trouble display of
accessories.
6
Menu
butons
Scroll Up/Function/Page Up
Button
Scroll down to the desired function or menu.
7Down/Backspace/Page
Down Button
Scroll down to the desired function or menu.
8 Cancel/Back Button Return to the previous screen.
9 Enter Button Select option or enter to the next screen.
10 RFID Zone Touch TAG to Arm/Disarm System
5
6
78
9
2
3
4
1

EN
24
About the Backlight Indicators of Panic Key
What you see What it it means
Blinking alternately System is in Alarm
Pulse System is Armed
Steady System is Disarmed
2.2 Wiring overview
Index Description
1 Power Supply plug
2Backup Battery Switch
3 SIM card socket
4 EOLR Hardwired Zones Connections, refer to section 2.3 and the
Hardwired Zones Connections diagram
5 Tamper switch
2.3 Hardwired Zone Connections
Zone 1, Zone 2 and Zone 3 are the EOLR supervised zones that supports both open
circuit and closed circuit devices and has a response time of 300msec. Maximum zone
resistance: 11000 ohms, plus EOLR
Connect closed circuit devices in series in the high (+) side of the loop. The EOL resistor
must be connected in series with the devices, following the last device.
Connect open circuit devices in parallel across the loop. The 10000-ohm EOLR must be
connected across the loop at the last device.
Refer to the Hardwired Zones Connections diagram.
1
2
3
4
5

EN
25
the Hardwired Zones Connections Diagram
EOLR(End of Line Resistor): If the EOLR is not at the end of the loop, the zone will not be properly
supervised, and the system may not respond to an open circuit on the zone.
2.4 Home Screen
2.5 Home Screen description
GSM
GSM
Status
SIM
No SIM card present or SIM card faulty
GPRS
Connected to server
GSM
RSSI level signal strength
Signal strength is displayed by a series of 1 to 5
bars ( weak to strong) , and bars are gray if
not registered with cell network
NO
NC
10K
EOLR
Z1 GND
NO
NC
Z2 GND
NO
NC
Z3 GND
10K
EOLR
10K
EOLR
2018-01-02
Tuesday
Please exit
34
3 4 5 6 7 8
10
9
11
3

EN
26
Top Status
Bar
WIFI
Wi-Fi Status
WIFI
Indicates that the system is connected to a
WiFi source and the signal strength.
Indicates that the system is connected to the
server if dot is displayed.
GSM
SMS Sending
Calling
Keypad Locked
Power Status
AC Powered
0~3 bars
Displayed when the system has lost AC
power.
The icon is red when the system’s backup
battery power is low.
Clock 08:45 Real-time Clock
Arm/Disarm
Status Area
Date, time and week
Arm/Disarm
Status
System is Armed Away.
System is Armed Stay.
System is Disarmed.
System
Status
Display
Area
Ready 08:45 Clock
Countdown
“Please exit”
Countdown Bar
Exit Delay
You now have xx seconds to leave the
premises before the exit delay expires. When
the exit delay is completed, the alarm system
is armed.
“Please disarm”
Countdown Bar
Entry Delay
You must disarm the system before the entry
delay expires, or an alarm will occur.
4
5
6
1
7
8
2
10
9
11

EN
27
“Synchronizing”
Countdown Bar
Sniffer Mode
You must active the wireless transmitter before the
sniffer delay expires.
Alarming “Alarm” is displayed upper the red bar, and the Zone
“Alarm” is displayed in a red status bar along the red bar.
An alarm (bell) icon along with “Alarm” is displayed alternately with the
Zone that has caused the alarm.
2.6 Quick View of Menu Functions
Icon and Caption Description Factory
Defaults
Main
Menu Settings
Delay
Exit Delay
0~65535
Used to set Exit Delay
0~65535, unit: second
40
seconds
Entry Delay
0~65535
Used to set Entry Delay
0~65535, unit: second
30
seconds
Siren
Duration
0~65535
Used to set Siren Duration
0~65535, unit: minute 3 minutes
Switch
Arm Beep
Enable/Disable Arm and
Disarm Beep (1)
Enable
Siren
Enable/Disable Alarm
Continuous Siren when an
alarm occurs
Enable
Arm SMS
Enable/Disable SMS
notication when arm or
disarm
Disable
Keypad Lock
Enable/Disable Keypad Lock (2)
Disable
Backlight
Enable/Disable Keypad
Backlight(3)
Enable

EN
28
Main
Menu
Settings
Switch
Keypad Tone
Enable/Disable operation
chime Enable
Delay Tick
Enable/Disable entry and
exit chime Enable
Door/Window
Open Warning
Enable/Disable Exit Alarm
Warning (4) Enable
Password
System
Change System Code
4 digits (5) 6666
User
Change User Code(6)
4 digits 1234
Language
English
Language Selection (7) English
Deutsch
РУССКИЙ
Español
Polski
Italiano
Francais
Português
Romana
Initialization
Loading Factory Defaults
Reset Reset
1st
Phone Used to set the rst Phone Number, Enable/
Disable Dialling and Enable/Disable SMS Null

EN
29
Phone
2nd Phone
Used to set the second Phone Number,
Enable/Disable Dialling and Enable/
Disable SMS
Null
3rd Phone
Used to set the third Phone Number,
Enable/Disable Dialling and Enable/
Disable SMS
Null
4th Phone
Used to set the fouth Phone Number,
Enable/Disable Dialling and Enable/
Disable SMS
Null
5th Phone
Used to set the fouth Phone Number,
Enable/Disable Dialling and Enable/
Disable SMS
Null
Log
Alarm Log Used to view system alarm events.
Arm Log Used to view system arm/disarm events.
Parts
Remote Pairing, Delete or Delete All the wireless
keys
Detector Pairing, Edit, Delete, Delete All the
wireless sensors
RFID Pairing, Delete or Delete All the RFID tags
Add Pairing a new Wireless Key, Sensor or
RFID tag
Delete/Edit
Delete a Wireless Key or RFID tag from
the list
Edit/Delete a wireless sensor from the list
Delete All Delete all the Wireless Key, Sensors or
RFID tags
Siren Learn Used to sends a transmission signal to
the wireless siren be paired.
Eol Zone Used to set the Zone(EOLR) Name, Type
EOL

EN
30
Alarm Socket Pairing with the alarm syncing wireless
switch
Socket Pairing with the wireless switch
Wi-Fi
Airlink WiFi conguration (Requires the mobile
APP).
Unbind Unbind the Panel link from the server
MAC/IP Used to display the MAC and IP
addresses of the WiFi module
Record
Record Message Recording and Playback
Play Used to listen to the recorded message
Delete Used to delete the recorded message
Duration
Used to set Record Duration
( unit: second, 1-20 is available ) 20 seconds
Timer
Arm Timer
Used to set a daily time to arm
automatically,
and Enable/Disable automation
Disarm Timer
Used to set a daily time to disarm
automatically,
and Enable/Disable automation
Zone&Sync reserved + 08:00
Date&Time Set the time and date
Wi-Fi Sync Enable/Disable using the WiFi network-
provided time Enable
2G/3G Sync Enable/Disable using the cellular
network-provided time Enable

EN
31
Version
Used to display the rmware and MAC address of the WiFi
module, the rmware and IMEI of the GSM module and Serial
Number of panel
Description
1. Arm Beep: When enabled, the system will announce the system status when armed
or disarmed.
2. Keypad Lock: The system will lock the keypad if no operation during 30 seconds on
Home Sreen. To enable the keypad, you must enter the valid User Password.
3. Backlight: If disabled, display backlight turn off after 30 seconds if no operation on
Home Sreen.
4. Door/Window Open Warning: If enabled, the system will generate a Exit Alarm
Warning notication when you leaving a door or window open after the exit delay
expires.
5. System Password: used for keypad unlocking and SMS remote settings.
6. User Password: user for keypad unlocking, SMS Remote Control and Alarm text
notication prex Setting.
7. Language: Voice Announcement, Displaying and SMS notication will be in the
selected language. After selecting the desired language, the panel will reset.
8. Initialization: If the factory default conguration is loaded, any data that has
already been programmed into the system will be changed into the Factory Default
Conguration!

EN
32
3. THE FIRST USAGE
3.1 Set up
With the built-in WiFi Communications module, if your system is equipped to report
alarms and Remote Access via Mobile APP over the internet, your router must remain
powered-on at all times, and a WiFi internet connection is required.
With the built-in GSM/3G Communications module, if your system is equipped to
report alarms and Remote control via SMS or Voice Dialling, to ensure the SIM card is
installed (refer to the diagram below ) and the panel must be connected to the GSM/3G
Cellular or to the Internet.
AC Power Connections - Connect the Power Supply to the DC 5V micro USB port, and
push the backup battery switch to “ON”.
3.2 Setting Phone Numbers
Up to 5 User Phone Numbers used to receive the Alarm SMS notication and Audio
Alarm Verication.
- Select: “Main Menu->Phone->1st Phone, 2nd Phone, 3rd Phone, 4th Phone or 5th
Phone”, the system displays the Phone programming screen.
- Use to scroll to , then use digits keypad to enter the Phone Number (up to
18 digits).
- Use to scroll to , then use to toggle between “off”and “on”.
When “on” is selected, the Voice Dialing Alarm will be active.
- Use to scroll to , then use to toggle between “off”and “on”.
When “on” is selected, the SMS Text Notication Alarm will be active.
- Press to save your new settings.

EN
33
3.3 Wireless Keys
Pairing a New Wireless Key
- Select ”Main Menu->Parts->Remote->Add”.
- “Synchronizing” is displayed, the system goes into the sniffer mode and count down
the pairing time remaining .
- Press one button of wireless key to send a transmission signal to the panel.
- As the serial number of wireless key is added to panel, “Leaning OK”will be
displayed.
The system will display“Device code has been learnt”if serial number of wireless key
have been learned.
Delete
- Select “Main Menu->Parts->Remote->Delete”.
- Use the buttons to scroll to the serial number be deleted.
- Press to delete the selected serial number.
Delete All
- Select “Main Menu->Parts->Remote->Delete All”.
- A total number of serial numbers learned is displayed.
- To delete all the serial numbers, press
3.4 Wireless Sensors
Pairing a New Sensor
- Select “Main Menu->Parts->Detector->Add”.
- Use to scroll to , then use to scroll to the desired Zone Name.
- Use to scroll to , then use to scroll to the desired Zone Mode(Type).
You must assign a Zone Type to each zone(sensor), which denes the way in which
the system responds to faults in that zone.
“Stay Arm Active” usually assigned to sensors or contacts on entry and exit doors,
exterior doors and windows, perimeter. Active when armed in AWAY or STAY mode.
“Out Arm Active” usually assigned to a interior area (i.e.: foyer, lobby,or room).
Bypassed automatically when armed in STAY mode.
“24 Hours Active” usually assigned to a zone containing an Emergency Button,
Smoke Sensor, CO, Water Leakage and Gas Sensors.
To used as doorbell, select “Doorbell”.
To disable the zone, select “Close”.
- Use to scroll to , then use digits keypad to enter the Zone Number (0-89 are
available). The Zone Number should be unique.
- Press ,“Synchronizing” is displayed, the system goes into the sniffer mode and
count down the pairing time remaining .
- Active wireless sensor to send a transmission signal to the panel.
- As the serial number of wireless sensor is added to panel, “Leaning OK”will be
displayed.
The system will display“Device code has been learned” if serial number of wireless
sensor have been learned, and the Zone Name/Mode/Number will be refreshed.

EN
34
Edit/Delete
- Select “Main Menu->Parts->Detector->Edit”.
- Use the buttons to scroll to the serial number be edited.
- To edit the Name/Mode/Number of displayed zone, press .
- To delete the selected serial number, press .
Delete All
- Select “Main Menu->Parts->Detector->Delete All”.
- A total number of serial numbers learned is displayed.
- To delete all the serial numbers, press
3.5 RFID Tags
Pairing a New RFID Tag
- Select ”Main Menu->Parts->RFID->Add”.
- “Synchronizing” is displayed, the system goes into the sniffer mode and count down
the pairing time remaining .
- Put the tag close to the RFID area of panel.
- As the serial number of tag is added to panel, “Leaning OK”will be displayed.
The system will display“Device code has been learnt”if serial number of tag have been
learned.
RFID Tag Delete
- Select ”Main Menu->Parts->RFID->Delete”.
- Use the buttons to scroll to the serial number be deleted.
- Press to delete the selected serial number.
RFID Tag Delete All
- Select ”Main Menu->Parts->RFID->Delete All”.
- A total number of serial numbers learned is displayed.
- To delete all the serial numbers, press .
3.6 Pairing with Wireless Siren
- Operating the Wireless Strobe Siren to go into the Sniffer mode( refer to user guide
of strobe siren ) .
- Select “Main Menu->Parts->Siren Learn”.The panel displays ” Learn Signal Sent”
and sends a transmission signal to the Strobe Siren.
- The Strobe Siren gives a successful indication.
3.7 Alarm Syncing with Wireless Switch
- Select: “Main Menu->Parts->Alarm Socket”, the system displays the Alarm Socket
pairing screen.

EN
35
- Operating the Wireless Switch to go into the Sniffer mode( refer to user guide of
wireless switch ) .
- Press the “on” button and the “off”button in turn , The panel displays ”
Learn Signal Sent” and sends a transmission signal twice to the Wireless Switch.
- The Wireless Switch gives a successful indication.
To test if pairing ok, press “on”and “off”to check if the wireless can be opened and
closed.
When a sound alarm occurs, the Wireless Switch will be opened until the
system is disarmed or alarm sounder timeout occurs.
3.8 Home Automation
Pairing with Wireless Switch
To pair with the wireless switch (up to 7 switches), refer to section 3.7“Pairing with
Wireless Switch”.To test if pairing ok, press “on”and “off”to check if the wireless can be
opened and closed.
You can open or close the wireless switch via Mobile APP.
3.9 Message Recording
Message Recording and Playback
Your system can Record/Playback/Delete a brief message(up to 20 seconds) that can
be played back later. The message will be played to the remote when a alarm call is
connected.
- Select “Main Menu->Record->Record”->the system displays the Record screen.
- Ready to record when “Recording”is displayed in the title box and the system display
will count down the recording time remaining.
- Speak into the microphone and the recording automatically stops after the time
expires.
- The system plays back the message automatically.
- Press button to save the message.
3.10 Arm/Disarm Automatically
The feature can be used to program the system to arm or disarm the system
automatically at a daily time.
Arm Schedule
- Select: “Main Menu->Timer->Arm Timer”, the system displays the Arm Timer
programming screen.
- Use to scroll to , then use digits keypad to enter the Daily Arm time (in 24-
hr).
- Use to scroll to , then use to select “on”.
- Press to save your new settings.
!
!

EN
36
Disarm Schedule
- Select: “Main Menu->Timer->Disarm Timer”, the system displays the Disarm Timer
programming screen.
- Use to scroll to , then use digits keypad to enter the Daily Disarm time (in
24-hr).
- Use to scroll to , then use to select“on”.
- Press to save your new settings.
4. MOBILE APP PNI SAFEHOUSE HS550
Scan the QR codes via a smart phone to download the app.
PNI SafeHouse HS550 app will guide you to connect the panel to the WiFi
network and the internet.
5. REMOTE SMS
5.1 How to set the parameters via SMS
To set the parameters via SMS, editing the setting text message as below, then send
it to the SIM number installed in the alarm system panel. Your mobile will received an
acknowledgement SMS if setting ok.
*System Password *Command1 Parameter1 * Command2 Parameter2 * ..................
Note: The command must be 2 digits( e.g.,01,90,etc. ), and the header,
separator and ending character must be‘*’.
Command Function Description Factory
Defaults
51 1st Phone Number refer to note 1 Null
52 2st Phone Number refer to note 1 Null
53 3st Phone Number refer to note 1 Null
54 4st Phone Number refer to note 1 Null
55 5st Phone Number refer to note 1 Null
90 the server IP address and
Port
Only used for GPRS
network, refer to note 2
Null
92 the GPRS APN Only used for GPRS
network, refer to note 3
CMNET
!

EN
37
Note:
The examples uses the default system password 6666.
1. The Phone Number setting format of remote text message: 07xxxxxxxx,A,B
In this string: “07xxxxxxxx” is the phone number( up to 18 digits ),
- “A” used to Enable(1) or Disable(0) the Alarm Voice Dialling and
- “B” used to Enable(1) or Disable(0) the Alarm SMS notication.
For example:
To set the 1st Phone Number as “0710123456” and enable the SMS notication only,
and to set 2nd Phone Number as “0720654321” and enable the Voice Dialling only,
then the remote SMS to be send is:
*6666*510710123456,0,1*520720654321,1,0*.
2. The server IP address and Port is only used for service remote connection.
The server IP and Port setting format of remote text message: aaa,bbb,ccc,ddd,xxxxx
In this string, “aaa,bbb,ccc,ddd” is the IP and “xxxxx” is Port.
For example:
To set the IP and Port as “116.62.42.223:2001”, then the remote SMS is
*6666*90116,62,42,223,2001*.
3. Setting the operator Access Point Name . This is also used for service remote
connection.
For example:
To set the APN as “internet”, then the remote SMS is *6666*92 internet*.
5.2 The alarm SMS notication prex
The panel can be named after a customized text via remote SMS. The name is used
for the alarm SMS notication prex.
The alarm notication prex setting format: 1234@XXX building.
In this string, “1234”is the User Password ,”@”is a command ag and “XXX building ” is
the customized text.
The panel can be named after a customized text via remote SMS. The name is used
for the alarm SMS notication prex.
The alarm notication prex setting format: 1234@XXX building.
In this string, “1234”is the User Password ,”@”is a command ag and “XXX building ” is
the customized text.
5.3 How to set the customized Zone Name
You can set a customized name for each zone via remote SMS. The name is used to
indentify which zone alarm occurs in the SMS notication.
Remote SMS format: 1234@XX@Down Stairs
In this string, “1234”is the User Password , two ”@”are command ags, “XX”is the
Zone Number(from 00 to 89) and “Down Stairs” is the customized text.

EN
38
5.3 How to set the customized Zone Name
5.4.1 Query the system settings
Format is *6666*62*, and the panel echoes as follow.
SYSTEM set:
SN: Serial Number of the panel
LANGUAGE: Language
ENGINEER PASSWORD: System Password
USER PASSWORD: User Password
GSM CSQ: GSM(0-99 Level) RSSI
WIFI RSSI: Wi RSSI
5.4.2 Query the second page of system settings
Format is *6666*90*, and the panel echoes as follow.
SYSTEM set2:
APN: GPRS Access Point Name
GPRS IP: Server IP address and Port
NTP: reserved
TIME ZONE: reserved
SERVER reserved
5.4.2 Query the second page of system settings
Format is *6666*51*, and the panel echoes as follow.
PHONE set:
1: The 1st Phone Number, Voice Dialling and SMS switches
2: The 2nd Phone Number, Voice Dialling and SMS switches
3: The 3rd Phone Number, Voice Dialling and SMS switches
4: The 4th Phone Number, Voice Dialling and SMS switches
5: The 5th Phone Number, Voice Dialling and SMS switches
REDIAL COUNTER: Redial Counter for Voice Dialling
6. HOW TO MAKE A CALL VIA THE PANEL
On the home screen, you can make a call via the digit keypad.
Press to view the list of dialled number, then press to redial it.
The call will be cancelled if GSM network is not registered, the system is
armed or in voice alarming.
!

EN
39
7. SECURING THE PREMISES
7.1 Arming the System
To arm the system, you can operate as below:
By Wireless Key: Press key.
By Panel: Press button when home screen is displayed.
By RFID tag: Put the RFID tag close to the RFID area when system is disarmed.
By APP: Press the Arm icon, then select the Exit Delay.
By remote SMS: Send a message 1234#1 (“1234”is User Password) to the panel, then
an acknowledgement SMS will be returned if armed.
The system will announce “System Armed”. Home Screen will displays the “Armed”icon
and the countdown bar. You must leave the premises before the Exit Delay expires. If
the “Arm SMS” is enabled, you will receive a SMS notication.
All burglary zones, interior & perimeter, are armed.
7.2 Arming in Stay Mode
This mode is used when you are staying home.
To arm the system in stay mode, you can operate as below:
By Wireless Key: Press key.
By Panel: Press button twice when home screen is displayed.
By RFID tag: Put the RFID tag close to the RFID area when system is disarmed.
By APP: Press the Stay Arm icon.
By remote SMS: Send a message 1234#3 (“1234”is User Password) to the panel,
then an acknowledgement SMS will be returned if armed.
The system will announce “System Armed”. Home Screen will displays the “Stay
Armed”icon. If the “Arm SMS” is enabled, you will receive a SMS notication.
Perimeter burglary zones ( Zone Type programmed as Stay Arm Active ),
such as windows and doors are armed.
7.3 Disarming the System
To disarm the system ,to silence alarm ,to clear trouble displays and to cancel
the alarm that is in progress , you can operate as below:
By Wireless Key: Press key.
By Panel: Press button when home screen is displayed.
By RFID tag: Put the RFID tag close to the RFID area when system is armed.
By APP: Press the Disarm icon.
!
!

EN
40
By remote SMS: Send a message 1234#2 (“1234”is User Password) to the panel,
then an acknowledgement SMS will be returned if armed.
The system will announce “System Disarmed”. Home Screen will displays the
“Disarmed”icon. If the “Arm SMS” is enabled, you will receive a SMS notication.
7.4 SOS Function
To manually active panic function, you can operate as below:
By Wireless Key: Press key.
By Panel: Press SOS key on the panel.
By APP: Press the SOS icon.
Home screen displays “Panic Alarm”. An Panic Alarm will be generated.
An Panic Alarm send an text notication to your mobile ,and sounds a loud,steady
alarm at your panel.
8. MULTI-MODE ALARM FEATURE
8.1 SYSTEM TROUBLES:
- Loss of AC Power: If the building and/or neighbourhood has lost electrical power, the
system will continue to operate on battery for several hours.
- System Low Battery: “Low Battery” is displayed when the system’s backup battery
power is low.
- Sensor Low Battery: Each wireless sensor in your system has an internal battery.
The system detects low battery conditions in wireless sensors, and displays a “Sensor
Low Battery” message on the home screen, means that battery replacement in the
indicated sensor(s) is due within 7 days.
- AC Power Normal.
- Tamper: when a cover tamper has been detected to generate a Tamper Alarm.
8.2 SMS Notication Feature
When an alarm or system trouble occurs, a SMS notication will be sent to the Phone
Number that have been programmed in your system.
8.3 Two-Way Voice Feature
8.3.1 Voice Dialog
When an alarm occurs, the system will dial to your Phone Number that have been
programmed in your system. After the call is connected, you can hear the voice
message that have been recorded and what the alarm occurs, then system will
announce “Press 1 to arm, press 2 to disarm, press 3 to monitor, press 4 to talk”. Press
3 or 4 to listen the violated premises and voice dialog between an operator and an
individual at the premises. If a false alarm is ensured, press 1 to cancel the alarm that
is in progress.
8.3.2 The Phone Programmed Call the Panel
When the phone that have been programmed in the system call the panel, two-way
voice is connected automatically. Allows operator to listen, talk to or conduct two-way
conversations with individuals on the premises.
sos
