3User manual
English
Main features
»Simultaneous HDMI and VGA video output
»Up to one 14TB SATA HDD is supported
»10 / 100Mbps RJ45 Ethernet port
»H.265+ video compression
»ONVIF compliant
»Cloud and P2P service
»Remote control via app
»Supports XVI / AHD / TVI / CVI / CVBS / IP signal
»Supports human face identification
»Motion detection function
Technical specifications
DVR/NVR
Video compression H.265+
Video inputs 4 x BNC
Video output 1 x VGA / 1 x HDMI
Playback resolution 1080P(VGA) / 1080P(HDMI)
Registration resolution
and number of channels
Analog: 4 x 5MP
IP: 16 x 1080P / 8 x 5MP
Hybrid: 4 x 5MP + 2 x 1080P
Motion detection Yes
Audio compression G.711A
Recording mode Manual, alarm, motion detection, scheduled
Network interface RJ45 10/100Mbps
PTZ control Yes, it supports
USB 2 x USB 2.0
HDD 1 x SATA (max. 14Tb)
Power voltage 12V / 2A
Consumption < 15W (without HDD)
Working temperature -26°C ~ +80°C
Dimensions 255 x 218 x 43 mm

User manual 4
English
Camera
Resolution 2MP 1080P
IR LEDs 36
IR range Up to 30 m
Lens Fixed 3.6mm
Power voltage 12V / 1A
Waterproof IP66
Dimensions 63 x 166 x 63 mm
Working temperature -26°C ~ +80°C
Software
The PNI House PTZ1350 system can be controlled locally or remotely from
both smartphones and computers with Windows operating system:
Operating system Application Download
Android, iOS XMEye
Android iOS
Windows General CMS
The installation file can be
downloaded from the CD
included in the package or
from the Download section on
the product’s web page (www.
mypni.co.uk)

5User manual
English

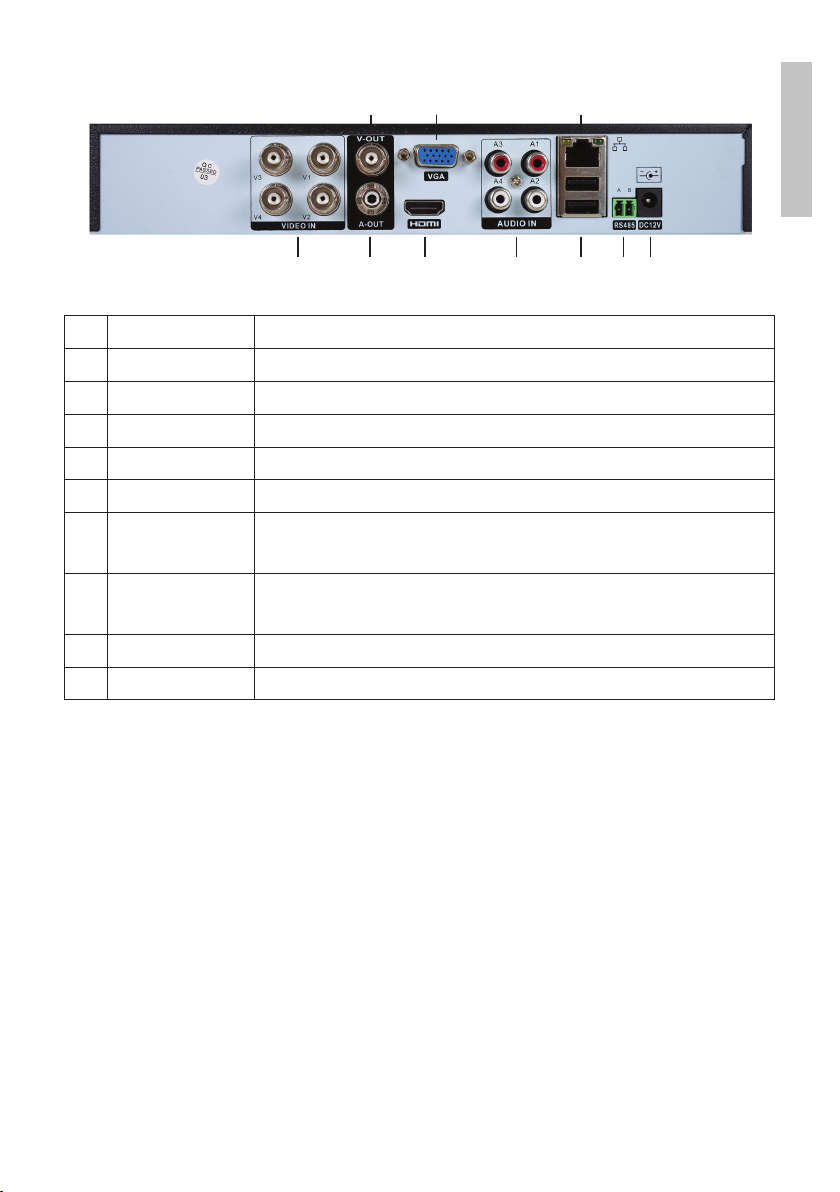

Connections
1
5 83
2 4 6 7 9 10
1Video inputs Connect the 4 cameras included in the package
2Audio output Connect an audio amplifier
3Video output Connect a monitor (composite video)
4HDMI Connect a monitor via an HDMI cable (max. 1080P)
5VGA Connect a monitor via a VGA cable (max. 1080P)
6Audio inputs Connect a microphone to each RCA port
7 2 x USB Insert a USB mouse or USB flash drive for firmware
update or backup
8Ethernet port Insert an Ethernet cable to connect the NVR to the
router
9RS485 Serial interface
10 Power source Insert the 230V - 12V / 2A power adapter
Instructions for use
Installing the storage unit
Before the first use, please install the storage unit. A single SATA HDD with
a maximum capacity of 14TB can be installed inside the recording unit (the
HDD is not included in the package) .
• Loosen the screws and remove the NVR cover
• Connect the data cables and secure the hard drive to the screws
• Reposiion the NVR’s cover
• Connect the power and internet cable to the NVR

User manual 6
English
Turn the device on
Plug the power cord into a 230V outlet. The NVR will start. The indicator LED
will light up. By default, 16 channels will be displayed on the screen.
If the start time is within the preset program for recording, then the recording
function will start automatically.
Notes:
1. Check that the input voltage corresponds to the recommended voltage of the
device. The supply voltage is 230V ± 10% / 50 Hz 2A.
2. We suggest using a UPS device to protect the device from voltage variations.
Turn the device o
There are two ways to turn o the device.
1. Access the main menu (right click on the screen) and select the option
Logout - Shutdown
2. Turn o the power supply.
System authentication
After turning on the device, log in to the system.
By default, the admin user is protected by the password 1234. If the password is
entered incorrectly 5 times in a row, the account will be blocked. By restarting
the device or after half an hour, the account will be unlocked automatically.
Note: For the security of your system, please change the password after the first
login.
Quick setup guide
After starting the device, the quick setup guide will start.
Note: We recommend configuring the system before installing the NVR and
cameras in the final location.

7User manual
English

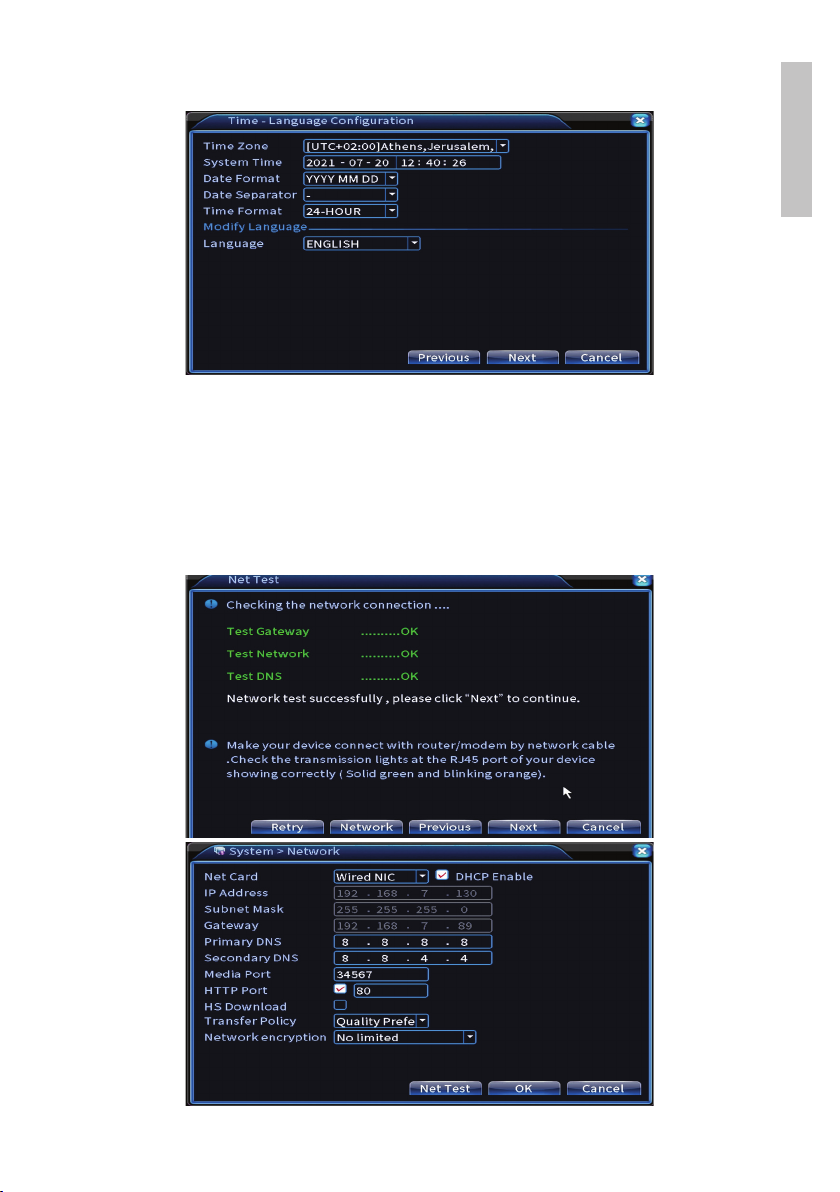

Set the time, date and time zone
Network test
The system will start an automatic check of the network parameters. In case
of an error, click on the Network button, check the DHCP option or enter the
parameters manually.

User manual 8
English
Quick set
Quickly add and configure cameras.

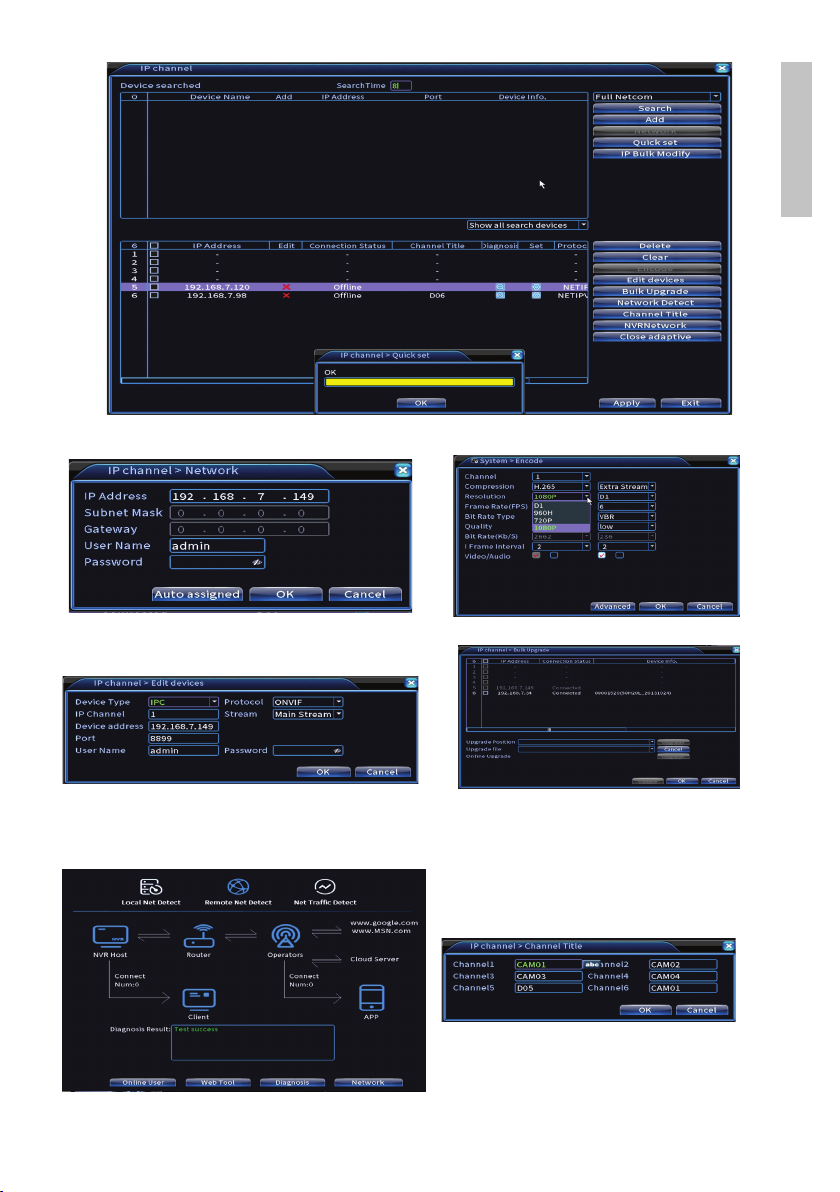

Add cameras interface
1. Select the communication protocol between the NVR and the cameras.
Options: NETIP, ONVIF, Full Netcom.
2. Search. Press the Search key to search for cameras connected to the same
router (same network) as the NVR.
3. Add. From the list of displayed cameras, select the desired cameras and
click Add to add them to the system.
4. Network. Configure network parameters for cameras (IP address, gateway,
etc.)
5. Quick set. Quick addition and configuration of cameras.
6. IP Bulk Modify. Quick change of IP to multiple cameras .
Channels interface
1. Delete. Delete the camera from the selected channel. Click Apply to run.
2.Clear. Delete the information on the selected channel. Click Apply to run.
3. Encode. Displays the technical parameters of the connected cameras
(resolution, frame rate, video compression, quality, etc.).
4. Edit devices. Change IP and port for the selected channel.
5. Bulk upgrade. Firmware update for selected cameras.
6. Network detect. Cloud network and server testing and diagnostics.
7. Channel title. Rename cameras.
8. NVR Network. Configure NVR network parameters.
9. Close adaptive. Disables the IP adaptation function for the selected cameras.

9User manual
English

User manual 10
English
Install mobile app
Scan the QR code for installing the XMEye mobile application and the code
for adding the system to the application.
Human detect
Activate and configure the human detection function.
Click Next and OK to exit the quick setup guide.

11 User manual
English
The menu
In the main preview interface, right-
click with the mouse to access the
menu.
Main Menu
Options: Record, Alarm, System, Advanced, Info, Logout.
Record
Options: Record config, Playback, Backup.

User manual 12
English

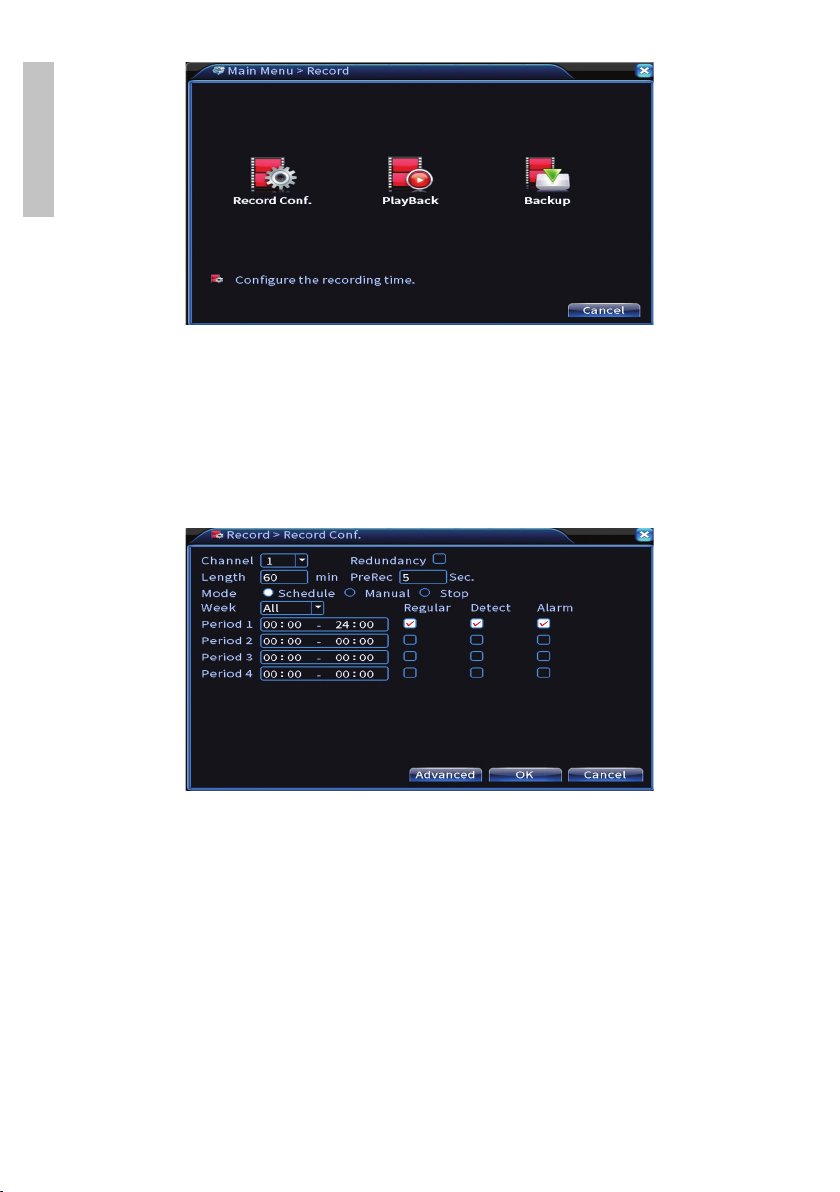

Record Conf.
The interface allows the following settings: duration of a recording file,
recording mode (programmed or manual), period (day and time interval) and
recording type (normal recording, motion detection and alarm) .
Playback
The system oers numerous filters and options for identifying the desired
registration file. You can search by channel number, date and time interval or
by file type.

13 User manual
English
Backup
The USB memory or external HDD must be installed in the NVR before
starting the backup. Press the Detect button to identify the storage device,
then the Backup button to perform the backup.
Alarm
Options: Intelligent Alert, Video Blind, Video Loss, Alarm input, Alarm
Output, Abnormality, Human detect, Face detection.

User manual 14
English
Intelligent Alert
Activate the function, select the channel, the level of sensitivity to motion, the
period and the behavior of the system in case of motion detection: send email,
upload the registration on an FTP server or send notification in the mobile
application.

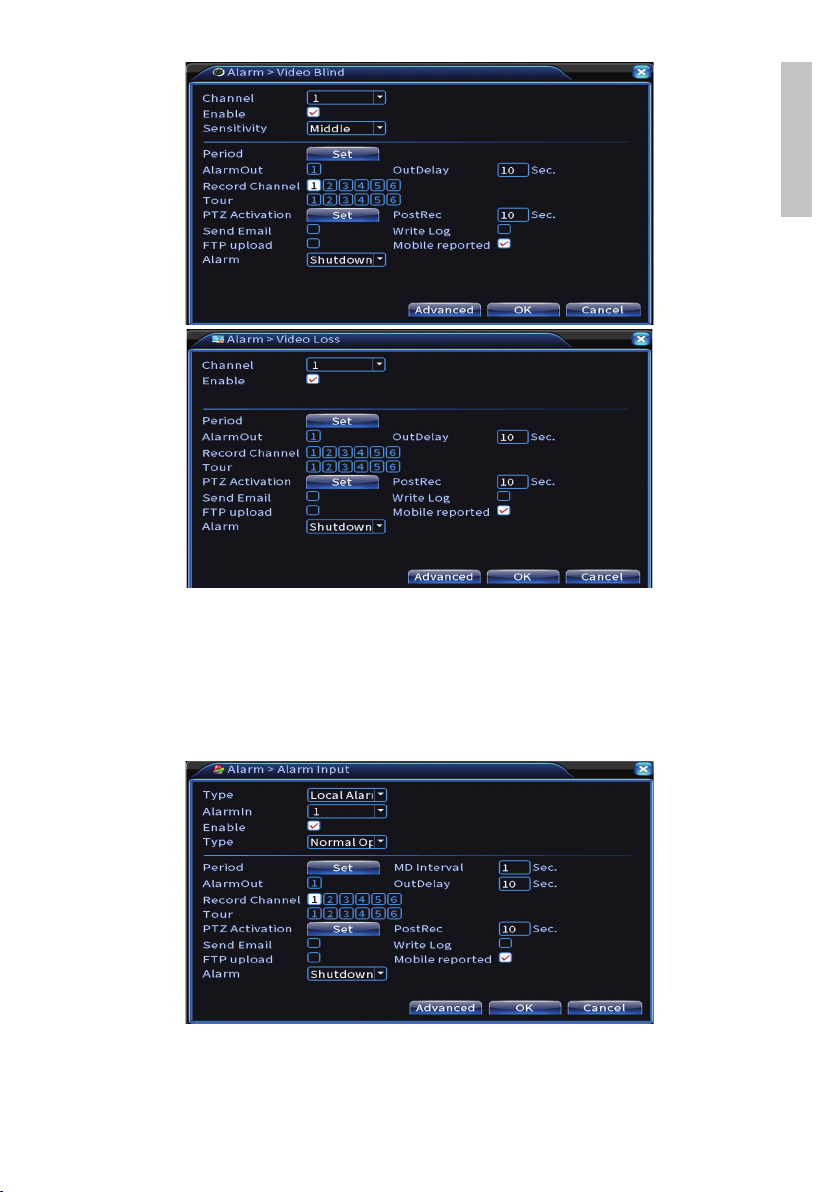

Video blind and Video loss
Activate the function, select the channel, sensitivity level, period and behavior
of the system in case of missing image or missing video signal: send email,
upload the registration on an FTP server or send notification in the mobile
application.

15 User manual
English
Alarm input
The function is only useful when the surveillance system is connected to an
alarm system.

User manual 16
English
Alarm output
The function is only useful when the surveillance system is connected to an
alarm system.
Abnormality
Set the system behavior in case of: storage device error, lack of space on the
storage device, lack of internet connection or IP conflict. In such situations you
can set the sending of a notification in the application or an email.
Human detect
Activate the function, select the channel, period and behavior of the system in
case of human detection: send email, upload the registration on an FTP server
or send notification in the mobile application.

17 User manual
English
Face detection
Activate the function, select the channel, period and behavior of the system in
case of face detection: send email or send notification in the mobile application.
System

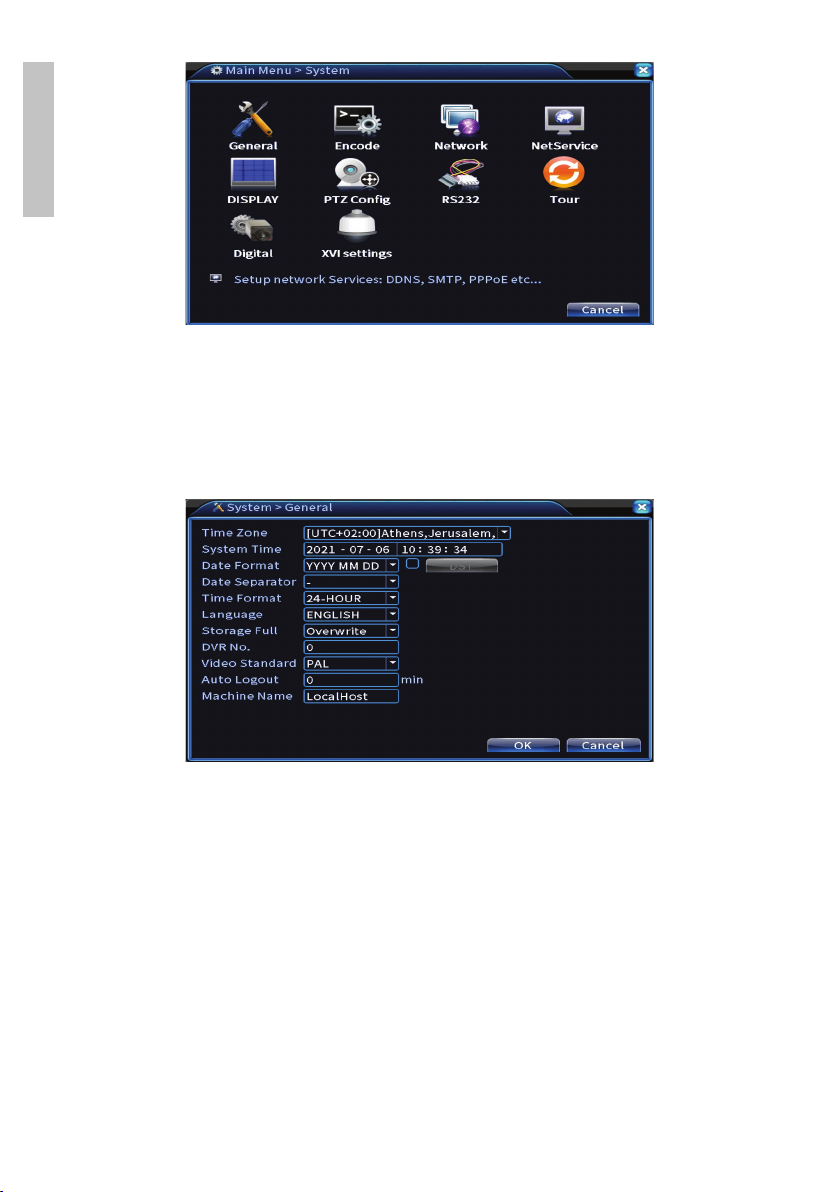

Options: General, Encode, Network, NetService, Display, PTZ Config,
RS232, Tour, Digital, XVI settings.

User manual 18
English
General
Set the time zone, time and date, system display language, and duration of a
work session.
Encode

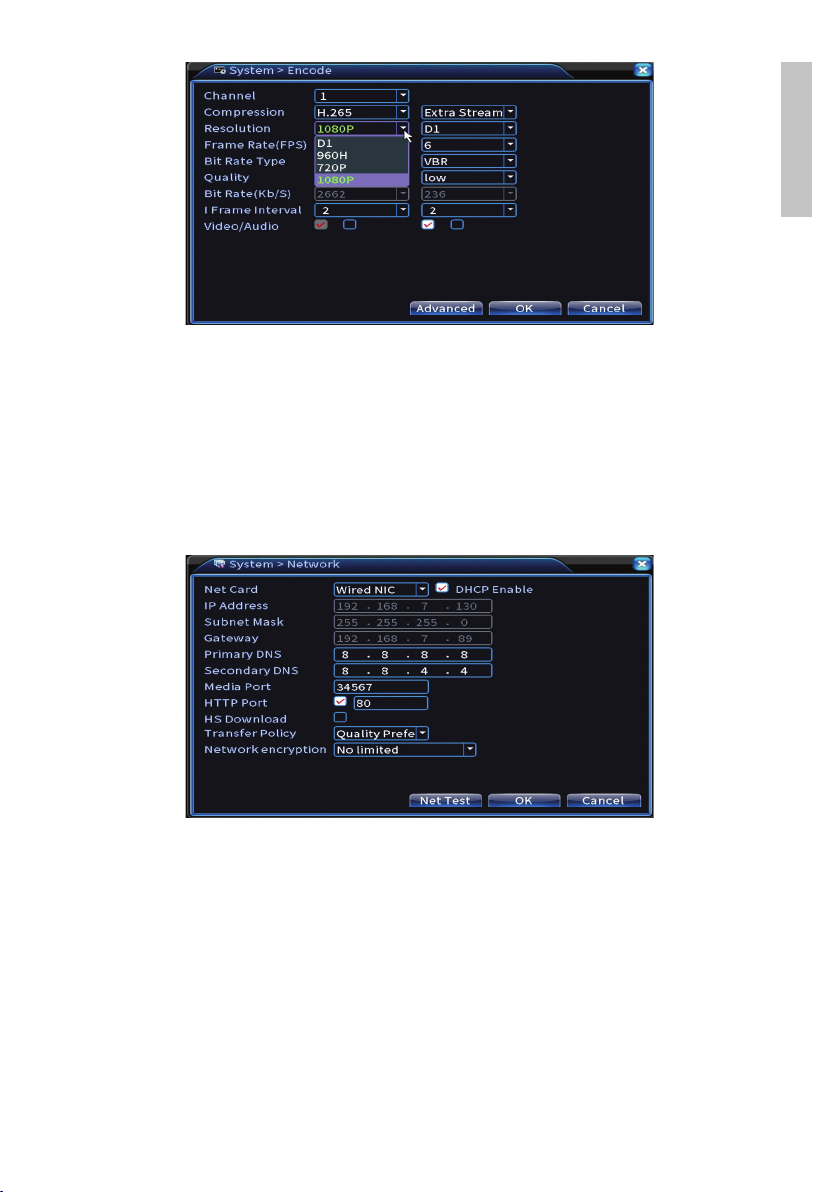

Displays the technical parameters of the connected cameras (resolution,
frame rate, video compression, quality, etc.).

19 User manual
English
Network
Manually set the network parameters (IP address, gateway, DNS, port, etc.)
or check the DHCP option for automatic parameter retrieval.
Note: For the settings to take eect, restart the system. Right click on the screen
- Logout - Reboot.
NetService

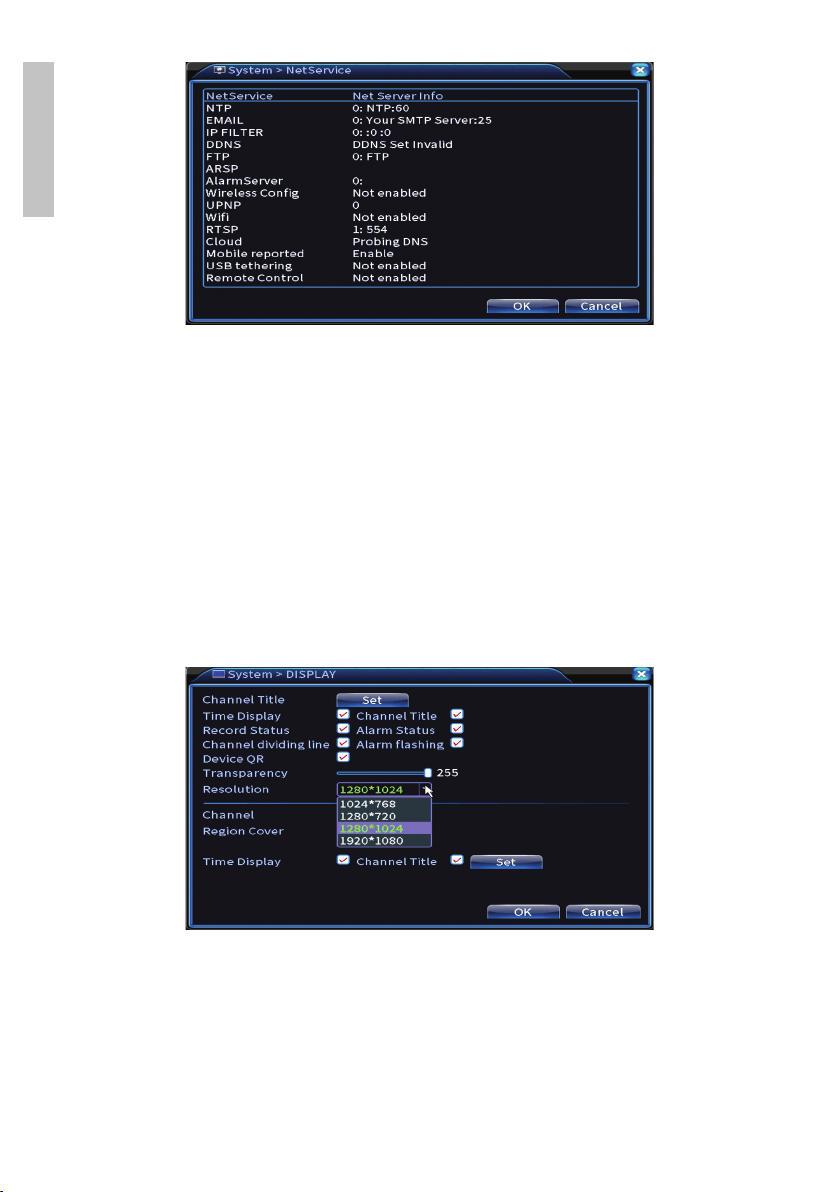

Make various settings, such as: the email address where to receive alerts, or the
FTP server where to send the system records.

User manual 20
English
Display
In the local preview mode can be displayed: time, channel name, recording
status, alarm status, transparency and display resolution. The maximum viewing
resolution supported by this device is 1920 x 1080px.
Note: Before changing the resolution, make sure that your monitor supports that
resolution. If the set resolution is higher than the resolution of your monitor, nothing
will appear on the monitor and you will not be able to access the menu. If this
happens, however, connect the NVR to a lower resolution monitor, access the menu,
and change the resolution.
PTZ Config
The settings can only be applied if you have connected PTZ cameras to the
NVR.
