PR Lighting AQUA 350 BEAM User manual

AQUA 350 BEAM
PR-2368A
This product manual contains important information about the safe installation and use of this projector.
Pleaseread andfollowthese instructions carefullyandkeepthis manualin asafeplaceforfuturereference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2
INDEX
1. SAFETYANDWARNINGS
2. INSTUCTIONS
●CLEANINGANDMAINTENANCE
●LUBRICATION
●TROUBLESHOOTING
3.APPEARANCE
4.INSTALLATION
●RIGGING
●POWER CONNECTIONS
●DMX CONTROLCONNECTION
●DMXTERMINATOR
●INSTALLATION/REPLACEMENTOFALAMP
5.SETUPANDCONFIGURATION
●FRONTPANELOPERATION
●DMXSTARTADDRESS
●DMXWIRELSESSCONTROL
●STAND-ALONEMODE
●MASTER/SLAVEMODE
6.OPERATION MENU
7.DMXPROTOCOL
8. ERROR MESSAGES
9.TECHNICALDATA
10.CIRCUITDIAGRAM
11.COMPONENTORDER CODES
3
4
4
5
5
5
6
6
6
7
7
8
9
9
9
9
10
10
10
15
19
19
23
25
ACCESSORIES
The followingitemsaresuppliedwiththeprojector andplease check:
Name
Quantity
Unit
Remark
Gclamp
2
Pcs
XLRconnector
1
Set
Maleand female
Safetycord
1
Pc
Thismanual
1
Pc
Ω clamp
2
Pcs
Optional
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilstevery care istakeninthepreparationof the manualwereservetheright to change specificationsin the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, orany
consequencearisingfromthem.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / orthe unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and
donotusetheunit.Anydamagecausedby improperusewill notbeassumedbythemanufacturerand/ordealer.
Anyfuturetechnicalchangesarenotsubjecttofurthernotice.
Note: Forthe products made by Guangzhou PR lighting Ltd, the warranty forthe whole product isone year starting from
thedelivery datebut the light source isnotwithinthewarranty.
-

3
1. SAFETYANDWARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!
Thefollowingsafetysignsareusedintheusermanual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● When unpacking , check if there istransportation damage before using the projector. Should there be any
damagecausedbytransportation,consultyourdealeranddonotuseit.
●The manufacture is not responsible for loss caused bythe user not following the manual or changing the projector
ashe/shelikes
●Please be noted that thedamagecausedbychangingtheprojectorat willis not warranted.
● Do not hesitate to contact the dealer or the manufacturer if any questionsoradvice.
● Theprojectorisforindoorandoutdooruse,IP66.
● Itcanbe usedinhumidanddustyareas.And it cancontactwaterandother non-corrosiveliquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
beingoperated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operationmuststrictlyfollowtheproceduresinthemanual
●No repairablepartsin theprojector anddo notopencoversformaintenancebyyourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect thisdevice to anytypeofdimmerpack
●If there are visible damages onthe lamp, lens and protective cover for the screen, i.e., to the extent whichaffects
itsperformancelikecrackingordeformation,please stopusingitandcontactthemanufacturefortheir
replacement withoriginalparts,otherwise itsperformancewillbecompromised
.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projectorwhilecovers(housing)areoff
●Keepthelamp cleananddo nottouch itwithbare hands.
●Whileoperating it,wearprotective items.
●Anyelectricalconnectionmustbecarriedoutbyaqualifiedperson.
●Beforeinstallation,pleaseconfirmthe voltagesupplied matcheswhatisrequired fortheprojector
●Eachprojector mustbeproperlyearthedand installedasper relatedelectrical standards.
●Do notuse powercord withitsinsulatordamaged andconnectthepowercord withothercables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully
orbypullingthepowercable.
●Allpower cordsmustconformto related safetyandregulations
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .

4
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cordsuppliedthroughthesafetycord holes for safetysupport.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●After running for 5minutes, the temperature of the housing of the projector is35℃.After stable operation , its
temperatureis55℃.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean theprojectorhassome defects.
● Don’t touch the covers of the working projector(They are very hot!)
●Do notmounttheprojectordirectlyoninflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the projector
andilluminateditemsis18m.
●A projector should be installed with good ventilation and the minimum distance between the projector and
wallsis50cm.Atthe sametime,pleaseensure thefansand airinletsand outletsareworkable.
2. INSTRUCTIONS
●CLEANINGANDMAINTENANCE
The projector’s protective devices should be periodically checked. For example, check if the fuse is blown or not. If true, replace
it witha new fuse with same rating. Please be advised they be of same rating.
Pleaseperiodicallycheckthecoolingdevices withtheprojectorhavingprotectiveunitforover-temperature（Ifover-temperature
occurs, the protective unit will trigger power-off automatically）. The cooling devices include cooling fan, heat sink and other
cooling components. Please check if the fan runs normally and the fan and the air-inlet and outlet are blocked by dust. Please
ensure that the air inlet and outlet are cleanand clear.The cooling fan mustbecleanedonce every15 days.
For those projector with optical lens, reflector and coated color filters, it is necessaryto make it clean for reliable operation because
of easy accumulation of smoke, oil and dust on the lens, thus decreasing the light output. Then internal optical lens, flat glass,
reflectorandcoatedcolor filters mustbeperiodicallycleaned foroptimal lightoutput.
For the projector with some IP rating, unless approved by professional service people and internal partsrequiring to be replaced,
it’s prohibited to dismantle it. For this type of projector, if without any fan, please keep it clean; if yes, please refer the above
mentioned method forcleaning.
The cleaning intervals depend on how often it’s used and its running environment. Use soft clothing and normal glass detergent
for cleaning. It’s advised the externaloptical systembe cleaned once every20days, internal optical system once every30/60 days
at least. For the projector with higher IP rating, if there is no damage inside, just clean the projector’s surface in principle. Keep
thelenscleanand don’t touch the optical parts with bare hands.
Specialnote:
It’s normal phenomena that there will be mild water mist on the lens while the waterproof product is in use.
●Beforeanymaintenanceandcleaning,pleaseensuretheprojectisoffthepower
●Onlyqualifiedpersonisallowedtodo maintenance
●Duringmaintenance andbefore maintenance, theprojector mustbeoff power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens
whetheritrunsornot
●Do notuse alcoholorotherorganicsolventto cleanthe housingto avoiddamage.
●Do notuseanysolvent withchemicalelementsto cleancolorfiltersorhotmirror.
●LUBRICATION

5
To ensure smooth movement of gobos and focus lens, it’s advised rotators’bearings and 2 sliding bars for focus lens be lubricated
every 2 months. Highquality and high temperature lubricant/greaseisadvised..
●TROUBLESHOOTING
PROBLEM
ACTION
The projector doesn’t switch on
Check thefuseonthepower socket.
Checkthelamp.
Thelampison but the projector doesn’t respond
to the controller
Makesurethatthe fixture’s start address is right
ReplaceorrepairtheXLR signalcable.
Theprojector functionsintermittently
Makesurethefanisworkingwellorfansandtheirshieldsarenotblocked
Beam appears dim, Lowinbrightness
Makesurethe lamp is withinitslifespan
Removedustorgreasefrom thelenses.
Theprojectimageappears tohaveahalo
Carefullycleanthelamp,opticallensesandother components.
HeavilyDefectiveBeam
Check if lensarein goodcondition(notcracked)
Cleandustorgreaseonthelens.
3. APPEARANCE
1. FrontGlass
2. Waterproof FrontCover
3. WaterproofBackCover
4. Airflow Cover
5. ArmCover
6. Handle
RearPanel ofthe Base
1.WaterproofPowerSocket
2.5-PinWaterproofXLR Socket(Male)
3.5-PinWaterproofXLR Socket(Female)
4.WaterproofWirelessReceiver
FrontPaneloftheBase
1.EscapeKey
2.UpKey
3.Down Key
4.EnterKey

6
4. INSTALLATION
●RIGGING
Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to
each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNINGon the underside of
the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
Always ensure that the structure that you are going to mount the projector is secure and is strongenough to supportthe weight of the
fixture.
WARNING:
●TheprojectorMUSTbeliftedorcarriedby the HANDLESinsteadofclamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
●POWERCONNECTION
Connectthepower cordas follows:
L(live)=brown
E(earth)=yellow/green
N(neutral)=blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projectorbeconnected withpower separatelyso that they maybeindividuallyswitchedonandoff.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then
connectitsPOWEROUTwithPOWERINof the2nd projector,andsoontillallfixturesareconnected.Ifthevoltagesupplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
ofthewiresforthePowerin/outcablesmustbeequalorbiggerthan2.5mm2.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordancewiththe standardsconcerned.
●Ifany questionsaboutthe electricalinstallation,donotcontinuebutconsultaqualifiedelectrician.
handle
control panel
clamp safety cord
Please run the safety cord through
safety cord hole for safety

7

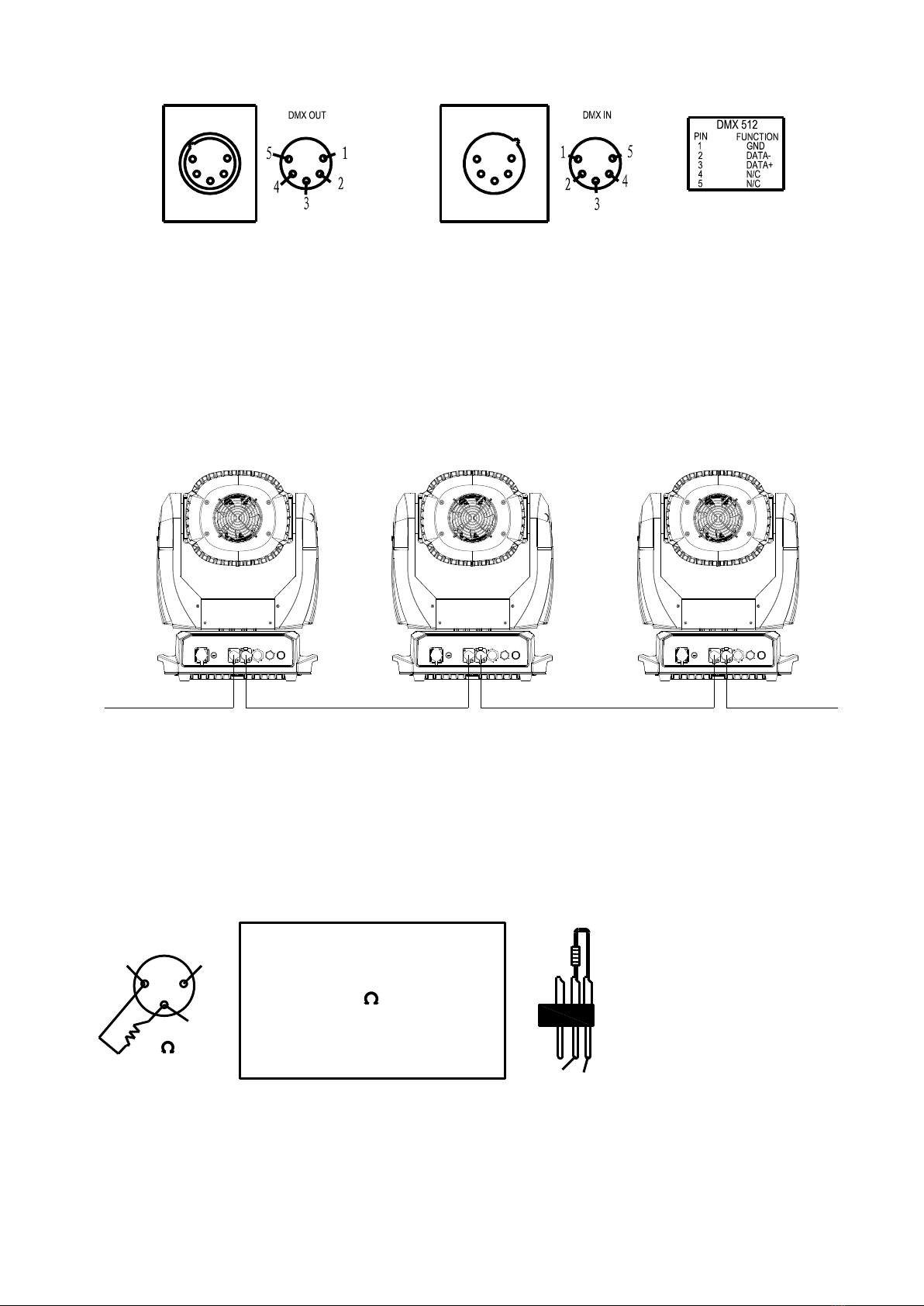

●DMXCONTROLCONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector)or5pinXLRplugsandsockets.TheXLR'sareconnectedasshowninthe figureabove.
Note: care should be taken to ensure that none of the pins touch the metallic bodyof the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512(1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminatorasshowninthefigurebelow.
●DMXTERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noisefromdisturbingandcorruptingtheDMXcontrolsignals.
The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, whichis then plugged
intotheoutputsocket onthelastprojector inthe chain.Theconnectionsare illustrated below.
COMTROLLER INPUT OUTPUT TERMINATOR
DMX512
INPUT OUTPUT INPUT
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain. PIN 3
PIN 2

8
● INSTALLATION/REPLACEMENTOFALAMP
Locktheyokebeforefitting/replacingthelamp.
Just as Shown by Figure 1, after Opening the airflowcover asshown by loosening 4 tightening screws, the structure like figure 2 will
beseen.
Just as shown by the figure 2, loosen the 4 tighteningscrews of the bob-weight block, take it down and the structure like figure 3 will
beseen.
Justasshownbyfigure 3,loosenthe 8tighteningscrewsoflampcover,openthecoverand structurelikethe figure4willbeseen.
Unplug thelamp with power wires, hold the bottom of thelamp by hand and move it asdirected by thearrow using force to makethe
other end of the lamp off the holder. At last take the lamp out ofthe bottom ofthe head. Before placing a new lamp inside , plug the
lamp withpowerwirestightly. Lamp placementand itsremovalareinoppositeorders
Note: Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair the beam output.
While lamp’s installation, do not damage the metal wire around the burner.
Putbackthelampcover,bob-weightblock,airflowcoverandtightenallscrews.
Important: Pleaseread"Instructions" enclosedwiththelampcarefullybeforeitsuse.
颗导风盖
锁紧螺丝
颗配重
锁紧螺丝
颗散热器
锁紧螺丝 灯泡
图 图
图图
4 screws for
airflowcover
4 screws for
bob-weightblock
8 screws for lamp
cover
lamp

9
5. SETUPANDCONFIGURATION
●FrontPanel Operation
ProjectorconfigurationcanbesetconvenientlyviapushbuttonandLCDdisplay.
Launch the projector and press button ENTER for more than3 seconds to unlock the panel, the LCD will show the function menu of
the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the
“OPERATION MENU” section.
Pressbutton UP or DOWN ifyouwanttobrowsethroughthevariousSetupOptions.
Pressbutton ENTER to saveyour settingsorenterthesubmenu.
Pressbutton UP or DOWN tochange values(plusorminus)
Pressbutton FUNC,it will returnto the uppermenu.Ifbutton FUNC notpressed, thedefault will showdisplaystatusautomatically.
●DMX STARTADDRESS
Eachprojector must be given aDMXstart address so that the correctprojector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The projector has 3 DMX modes. There are short mode ,standard mode and extended mode. For example standard mode
has 20 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 021, No. 3 projector’s address 041, No. 4
projector’s address061,andso on.
Launch theprojector. Pressbutton ENTER more than3secondsto unlock panel.
Pressbutton ENTER todisplayDMXaddress;
Pressbutton UP and DOWN,youcan settheaddress;
Pressbutton ENTER to confirm;afterpoweredon next time,the default willbelast value saved
Pressbutton FUNC,itwillreturnto the uppermenu
.
●DMXWIRELESSCONTROL
Theprojector has wirelesscontrol function with wirelessreceivermoduleandantenna forremotecontrol.
Thesetupofitisbelow:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY),then wireless indication in the
front panel will beon,meaning wirelesscontrolfunction is activated.
Only afterthe projector islinked with a transmitter, canit receive wireless signal sent bythe transmitter. If unlinking it, Press
“Enter” for the menu of Unlink Wireless under the upper level menu of ConfigSettigns.

10
●STAND-ALONEMODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVEMODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR controlcable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
StartAddressesof all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
besetaccordingly.
AfterPoweredon,thegroup willruninMaster/SlaveMode
6. OPERATIONMENU
1st
LEVEL
2ndLEVEL
3rdLEVEL
4thLEVEL
5thLEVEL
Address
DMXAddress
1-496(ShortMode)
1-492(Standard Mode)
1-491(ExtendMode)
Reset
Total Reset
ReallyReset?
ConfirmorCancel
Pan&TiltReset
ReallyReset?
ConfirmorCancel
ColourSystemReset
ReallyReset?
ConfirmorCancel
GoboReset
ReallyReset?
ConfirmorCancel
Dimmer/Strobereset
ReallyReset?
ConfirmorCancel
Fo.Ef.Pr. Reset
ReallyReset?
ConfirmorCancel
OUTPUT TERMINATORINPUT OUTPUT INPUT
MASTER SLAVE SLAVE

11
Config
Settings
DMXChannelMode
ShortMode
Standard Mode
ExtendedMode
ViewSelected Mode
Ch.01 Strobe
Ch.02Dimmer
….
Ch XXPower/specialFun
Lamp Control
Lamp Control
OFF/ ON
On ByPowerOn
OFF/ ON
ControlByDMX
OFF/ ON
Signal Select
(Onlyfortheprojectorswith
wirelessreceiverassembly)
XLROnly
XLRFirst
WirelessOnly
WirelessFirst
WirelessIn/XLR Out
LossofDMX
Normaltimeout
Hold LastValue
DisplayConfig
DisplayMode
OffAfterDelay
OnAlways
DisplayInvert
InvertOFF
InvertON
InvertAuto
LanguageSetting
English\Chinese
TemperatureUnit
CelsiusDegree
Fahrenheit Degree
Un-LinkWireless
(Onlyfortheprojectorswith
wirelessreceiverassembly)
ReallyUn-Link?
ConfirmorCancel
Factorydefaults
RestoreDefaults?
ConfirmorCancel

12
Option
Settings
Pan/TiltSettings
PanDMXInvert
OFF/ ON
TiltDMX Invert
OFF/ ON
PanTiltSwap
OFF/ ON
XYFeedback
OFF/ ON
Pan/Tiltmode
Speed/Time
Note: "SpeedMode" means
PanandTiltwill movefrom
PointAto Point Battheir
respective maximum
speeds."TimeMode"means
bothPanandTilt will arriveat
designatedpointatthesame
time. It'sadvisedTimeMode
beusediftheprojectorruns
circlesorinobliquelines.
InvertSettings
DimmerInvert
OFF/ ON
Information
ViewDMXValues
Channel Value
Strobe XXX
Dimmer XXX
DimmerFine XXX
ColorWheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1XXX
Rot. Gobo1RotationXXX
Rot.Gobo1RotationF.XXX
EffectWheel XXX
EffectWheelRotationXXX
Prism XXX
PrismRotation XXX
Focus XXX
Pan XXX
PanFine XXX
Tilt XXX
TiltFine XXX
Pan/TiltSpeed&TimeXXX
Power/SpecialFun.
Lamp Hours
Lamp Hous=XXX H
ResetLamp Hours
Total Hours
TotalHous××××H
Temperature
DisplayBoard=×××C
Panboard=×××C
Tiltboard=×××C
DriverBoard1=×××C
DriverBoard2=×××C
Headsensor=×××C
SoftwareVersion
PCBBoard Sys Boot
DisplayBoard xxx xxx
Pan board xxx xxx
Tiltboard xxx xxx
DriverBoard1 xxx xxx
DriverBoard2 xxx xxx

13
ElectronicSN
XXXXXX
RDMDeviceLabel
AQUA350BEAM
ANSIE1.20RDM
FanStatus
Fan Speed Status
Lamp Fan xxx on/off
ColorFan xxx on/off
HeadFan xxx on/off
AccelerationSensor
X Axis:XXX
YAxis: XXX
ZAxis:XXX
Position:XXX
InformationTast
Fan Speed Status
Lamp Fan xxx on/off
ColorFan xxx on/off
HeadFan xxx on/off
HeadTemperaturexxx
PowerLevel xxx xxxx
Powerxxx xxxxxxx
Service
ManualEffectControl
StrobeXXX
DimmerXXX
DimmerFineXXX
ColourWheelXXX
ColourWheelFineXXX
Fixed GoboWheel XXX
Rot. Gobo1Wheel 1XXX
Rot.Gobo1Rotation XXX
Rot.Gobo1RotationF. XXX
EffectWheelXXX
EffectWheelRotationXXX
PrismXXX
Prism RotationXXX
FocusXXX
FocusFineXXX
PanXXX
PanFineXXX
Tilt XXX
TiltFineXXX
Pan/TiltSpeed&Time
Factorymode
XXX
…
Operation
Mode
DMXMode
ChangeOperationMode?
ConfirmorCancel
MasterMode
PresetMemory
ChangeOperationMode?
ConfirmorCancel
UserMemory1
ChangeOperationMode?
ConfirmorCancel
UserMemory2
ChangeOperationMode?
ConfirmorCancel
Stand-AloneMode
PresetMemory
ChangeOperationMode?
ConfirmorCancel

14
UserMemory1
ChangeOperationMode?
ConfirmorCancel
UserMemory2
Change OperationMode?
ConfirmorCancel
StaticScene
ChangeOperationMode?
ConfirmorCancel
User
Memories
EditUserMemory
EditUserMemory1
/
EditUserMemory2
（1~200Scenes）
SceneXX
（1~200Scenes）
StrobeXXX
DimmerXXX
DimmerFineXXX
ColourWheelXXX
ColourWheelFineXXX
Fixed GoboWheel XXX
Rot. GoboWheel1XXX
Rot.Gobo1 Rotation XXX
Rot.Gobo1 RotationF. XXX
EffectWheelXXX
EffectWheelRotationXXX
Prism XXX
PrismRotation XXX
FocusXXX
FocusFineXXX
PanXXX
PanFineXXX
TiltXXX
TiltFineXXX
Pan/TiltSpeed&TimeXXX
FadeTimeXXX
HoldtimeXXX
DelayTimeXXX
Delayunit(msec/s/m)
LinktoStepXXX
EditStaticScene
StrobeXXX
DimmerXXX
DimmerFineXXX
ColourWheelXXX
ColourWheelFineXXX
Fixed GoboWheel XXX
Rot. GoboWheel1XXX
Rot.Gobo1 Rotation XXX
Rot.Gobo1 RotationF. XXX
EffectWheelXXX
EffectWheelRotationXXX
Prism XXX
PrismRotation XXX
FocusXXX
FocusFineXXX
PanXXX
PanFineXXX
TiltXXX
TiltFineXXX
Pan/TiltSpeed&TimeXXX
FadeTimeXXX
HoldtimeXXX
DelayTimeXXX
Delayunit(msec/s/m)
LinktoStepXXX
Init UserMemory
ResetUserMemory1
ResetUserMemory?
ConfirmorCancel
ResetUserMemory2
ResetUserMemory?
ConfirmorCancel
ResetStaticScene
ResetStaticScene?
ConfirmorCancel

15
Remark:
1. In the synchronous control ofmultiple projectors parameters can be transmitted from the master including: DMX mode,
displaysetting, operation mode(usermemory);
2. allprojectorsAcceptingparameterswillautomaticallybesettoslave mode.
SpecificationsfortheSIGNon the topright:
7. DMXPROTOCOL
Short
mode
Standard
mode
Extended
Mode
FUNCTION
DMX
DESCRIPTION
1
1
1
Strobe
000-010
Close
011-025
Open
026-225
Strobespeedfrom slowtofast
226-246
Randomstrobefrom slowtofast
247-255
Open
2
2
2
Dimmer
000-010
Close
011-255
Lineardimming（0-100%）
3
3
DimmerFine
000-255
Dimmerin16bit
3
4
4

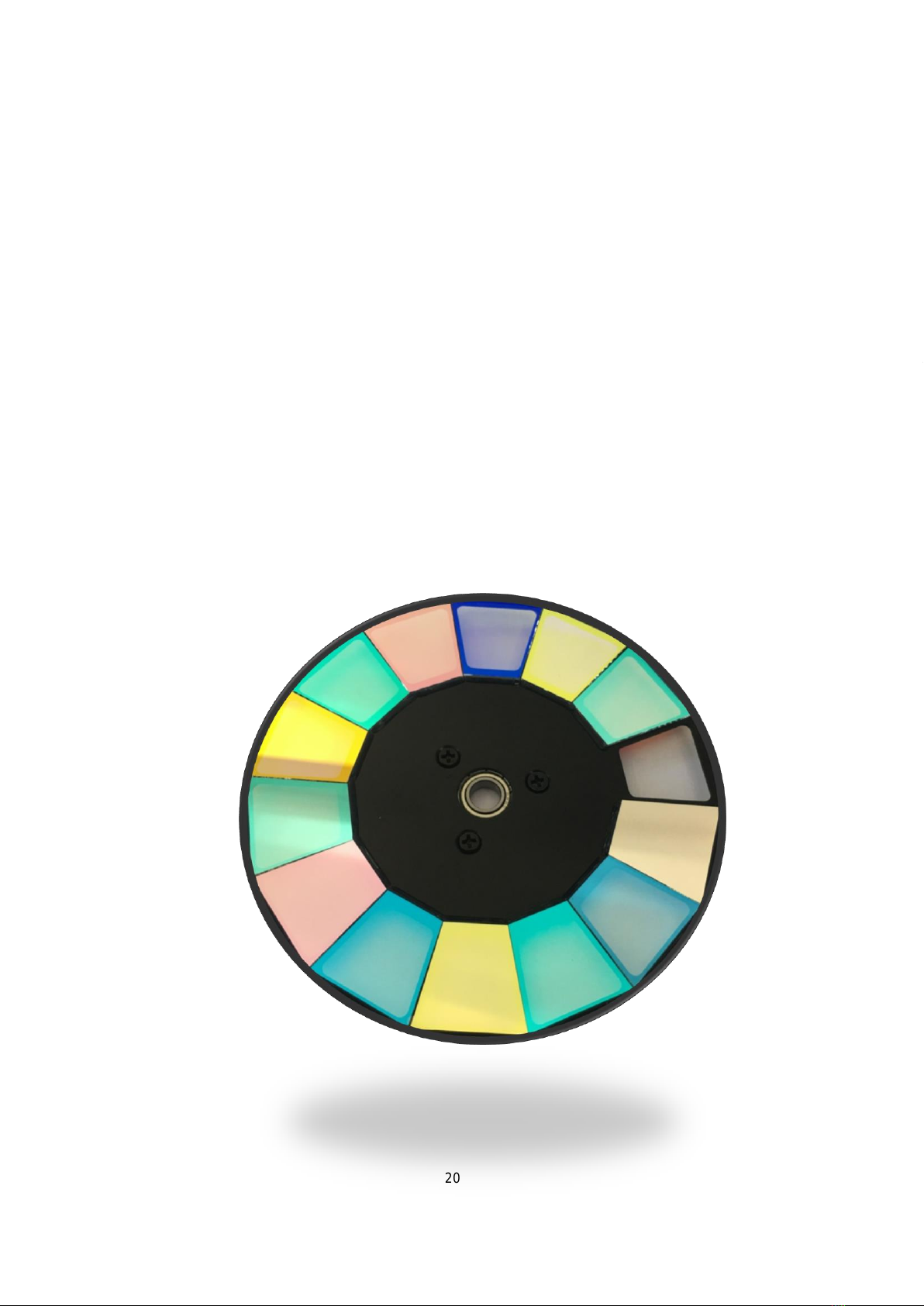

ColorWheel
000-063
Indexing(0-360degrees)
064-073
White
074-075
White/color1
076-077
Color1
078-079
Color1/color2
080-081
Color2
082-083
Color2/color3
084-085
Color3
086-087
Color3/color4
088-089
Color4
090-091
Color4/color5
092-093
Color5
094-095
Color5/color6
096-097
Color6
098-099
Color6/color7
100-101
Color7
102-103
Color7/Color8
104-105
Color8
106-107
Color8/color9
108-109
Color9
110-111
Color9/color10
112-113
Color10
114-115
Color10/color11
116-117
Color11
118-119
Color11/CTO
120-121
CTO

16
122-123
CTO/color12
124-125
Color12
126-127
Color12/white
128-191
Rotation,Clockwisefromslowtofast
192-255
Rotation,Anti-Clockwisefromfast to slow
5
5
Color wheel Fine
0-255
ColorWheelin16Bit
4
6
6
FixedGobo
Wheel
000-008
White
009-015
Gobo1
016-022
Gobo2
023-029
Gobo3
030-036
Gobo4
037-043
Gobo5
044-050
Gobo6
051-057
Gobo7
058-064
Gobo8
065-071
Gobo9
072-078
Gobo10
079-085
Gobo11
086-092
Gobo12
093-099
Gobo13
100-106
Gobo14
107-113
Gobo15
114-120
Gobo16
121-127
White
128-159
Clockwiserotationfromslowto fast
160-191
AntiClockwiserotation fromslow tofast
192-195
Gobo1 shakeeffect fromfasttoslow
196-199
Gobo 2shakeeffect fromfasttoslow
200-203
Gobo3 shakeeffect fromfasttoslow
204-207
Gobo 4shakeeffect fromfasttoslow
208-211
Gobo5 shakeeffect fromfasttoslow
212-215
Gobo 6shakeeffect fromfasttoslow
216-219
Gobo7shakeeffect fromfasttoslow
220-223
Gobo 8shakeeffect fromfasttoslow
224-227
Gobo9shakeeffect fromfasttoslow
228-231
Gobo 10shakeeffect fromfast toslow
232-235
Gobo11shakeeffect fromfasttoslow
236-239
Gobo 12shakeeffect fromfast toslow
240-243
Gobo12shake effect fromfasttoslow
244-247
Gobo 14shake effect fromfasttoslow
248-251
Gobo15shake effect fromfasttoslow
252-255
Gobo 16shake effect fromfasttoslow
000-007
White

17
5
7
7
RotatingGobo
Wheel
008-017
Gobo 1
018-027
Gobo 2
028-037
Gobo 3
038-047
Gobo 4
048-057
Gobo 5
058-067
Gobo 6
068-077
Gobo 7
078-087
Gobo 8
088-097
Gobo 9
098-107
Gobo 10
108-117
Gobo 11
118-127
Gobo 12
128-143
Rotation （clockwiseFromslowtoFast）
144-159
Reverse Rotation（anti-clockwise From slow
toFast）
160-167
Shake of Gobo1fromslow to fast
168-175
Shake ofGobo2fromslowtofast
176-183
Shake of Gobo3fromslow to fast
184-191
Shake of Gobo4fromslow to fast
192-199
Shake of Gobo5fromslow to fast
200-207
Shake of Gobo6fromslow to fast
208-215
Shake of Gobo7fromslow to fast
216-223
Shake of Gobo8fromslow to fast
224-231
Shake of Gobo9fromslow to fast
232-239
Shake of Gobo10fromslow tofast
240-247
Shake of Gobo11 fromslowtofast
248-255
Shake of Gobo12fromslow tofast
6
8
8
Gobo Rotation
000-128
Gobo Indexing(0~360degrees)
129-188
Rotation （ClockwiseFromslowtoFast）
189-195
Stop
196-255
Rotation （Anti-ClockwiseFromslowtoFast）
9
9
GoboRotation
Fine
000-255
Gobo Rotation in16Bit
7
10
10
EffectWheel
000-063
No
064-127
Linearprism
128-191
Frost
192-255
Circularprism
8
11
11
EffectWheel
Rotation
000-127
Circularprismindexing
128
Stop rotating
129-191
Clockwiserotationfromslowto fast
192
Stop rotating
193-255
Anti-Clockwiserotation fromslowtofast
9
12
12
Prism
000-016
Open
017-255
Prism

18
10
13
13
Prism Rotation
000-127
Prism Indexing
128
Stop
129-191
Rotation(Clockwise fromslowto fast)
192
Stop
193-255
Rotation(Anti-Clockwisefromslowtofast)
11
14
14
Focus
000-255
Linearfrost
15
FocusFine
000-255
Focusin16bitprecision
12
15
16
Pan
000-255
Pan(0°~540°)
13
16
17
Pan Fine
000-255
Panin16bit precision
14
17
18
Tilt
000-255
Tilt(0°~270°)
15
18
19
Tilt Fine
000-255
Tilt in16 bitprecision
19
20
Pan &Tilt Speeds
000-255
Pan &TiltSpeed fromFast toSlow
16
20
21
Control
000-019
Reserved
ThefollowingfunctionswillbeactivatedaftertheDMX value
hasbeenheldformorethan5s.
020-024
Display On
025-029
Display Off
030-034
Reserved
035-039
Reserved
040-044
LampFullPower
045-089
Reserved
090-094
Pan&TiltSpeedMode
095-099
Pan &TiltTimeMode
100-129
Reserved
130-139
Lamp On
140-149
Pan &TiltReset
150-159
Color System Reset
160-169
GoboWheels Reset
170-179
Dimmer/ShutterReset
180-189
Frost/Focus/Prism Reset
190-199
Reserved
200-209
TotalReset
210-229
Reserved
230-239
LampOff
240-255
Reserved
Note:
1. The projector can’t be turned on within 1 minute after the lamp-off.
2.Fanerror cancause lamp-off.
3.Note:"SpeedMode"meansPanandTilt will movefromPointAtoPointBattheirrespectivemaximumspeeds."TimeMode"
meansbothPanandTiltwillarriveatdesignatedpointatthe sametime.It'sadvisedTime Modebeusedifthe projectorruns circlesor
inobliquelines.
4.Ifbothprismandfrostaretobeused,prismispriorto frost.
.

19
8. ERRORINFORMATION
Thesystemcandetectsomeerrorsduring thereset,if displayed,touchthelogo to viewthe error.
The errormessages areasfollows:
Name
Type
Correction
Pan
Timeout/magnetSensor/Encoder
Checkifwiring,positioningpartsandmotors arenormal
Tilt
Timeout/magnetSensor/Encoder
Checkifwiring,positioningpartsand motors arenormal
ColorWheel
Timeout
Checkifwiring,positioningpartsandmotors arenormal
Fixedgobo wheel
Timeout
Checkifwiring,positioningpartsand motors arenormal
Rot.GoboWheel
Timeout
Checkifwiring,positioningpartsandmotors arenormal
Rot.Gobo1Rotation
Timeout
Checkifwiring,positioningpartsand motors arenormal
Dimmer
Timeout
Checkifwiring,positioningpartsandmotors arenormal
Prism
Timeout
Checkifwiring,positioningpartsand motors arenormal
Prism Rotation
Timeout
Checkifwiring,positioningpartsandmotors arenormal
Effectwheel
Timeout
Checkifwiring,positioningpartsand motors arenormal
EffectwheelRotation
Timeout
Checkifwiring,positioningpartsandmotors arenormal
Focus
Timeout
Checkifwiring,positioningpartsand motors arenormal
LampFan
Error
Checkiffananditswiringare normal
ColorFan
Error
Checkiffananditswiringare normal
Head Fan
Error
Checkiffananditswiringare normal
PanandTiltBoard
Error
Checksignalwire
DriverBoard1
Error
Checksignalwire
DriverBoard2
Error
Checksignalwire
AccelerationSensor
Error
Checksignalwire
Lampon
Timeout
Checkifhe lampis damaged
LampLife
TimeoutWarning
LampOff[Fan Error]
Error
Checkifall fansarenormal
TimeIC
Error

20
9. TECHNICALDATA
ELECTRICALPARAMETERS
Inputvoltage:100V-240VAC，50/60Hz
Inputpower:550W@220V
Maximumcurrent: 6.7A
Power factor:PF>0.9
SPECIFICATIONSOFLIGHTSOURCE
Lamp USHIONSL-350A
MSD Platinum11R
ColourTemperature 6800K
7800°K
ManufacturersRated LampLife 1500hrs
2000hrs
COLORS
1ColorWheel
12Dichroiccolour filters+CTO+white
Variablespeedand bi-directionalrainboweffect
Linearcolourchangingisavailable
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
11
CTO
Color12
1212
White
Color1
Color2
