RAB T5HE-10-24P-8-EXT Series User manual

INSTRUCTIONS
T5HE/U6 & DRIVER TYPE C
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: [email protected]
•
READ CAREFULLY BEFORE INSTALLING LAMPS. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNINGS:
•
•
•
Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of luminaire electrical systems. Installation
should be performed only by a qualified electrician in accordance with the National Electrical Code and relevant local code.
Risk of fire or electric shock. Install this kit only in the luminaires that have the construction features and dimensions shown
in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of luminaire
• Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit installation.
Do not leave any other open holes in an enclosure of wiring or electrical components.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED
retrofit kit. Check for enclosed wiring and components.

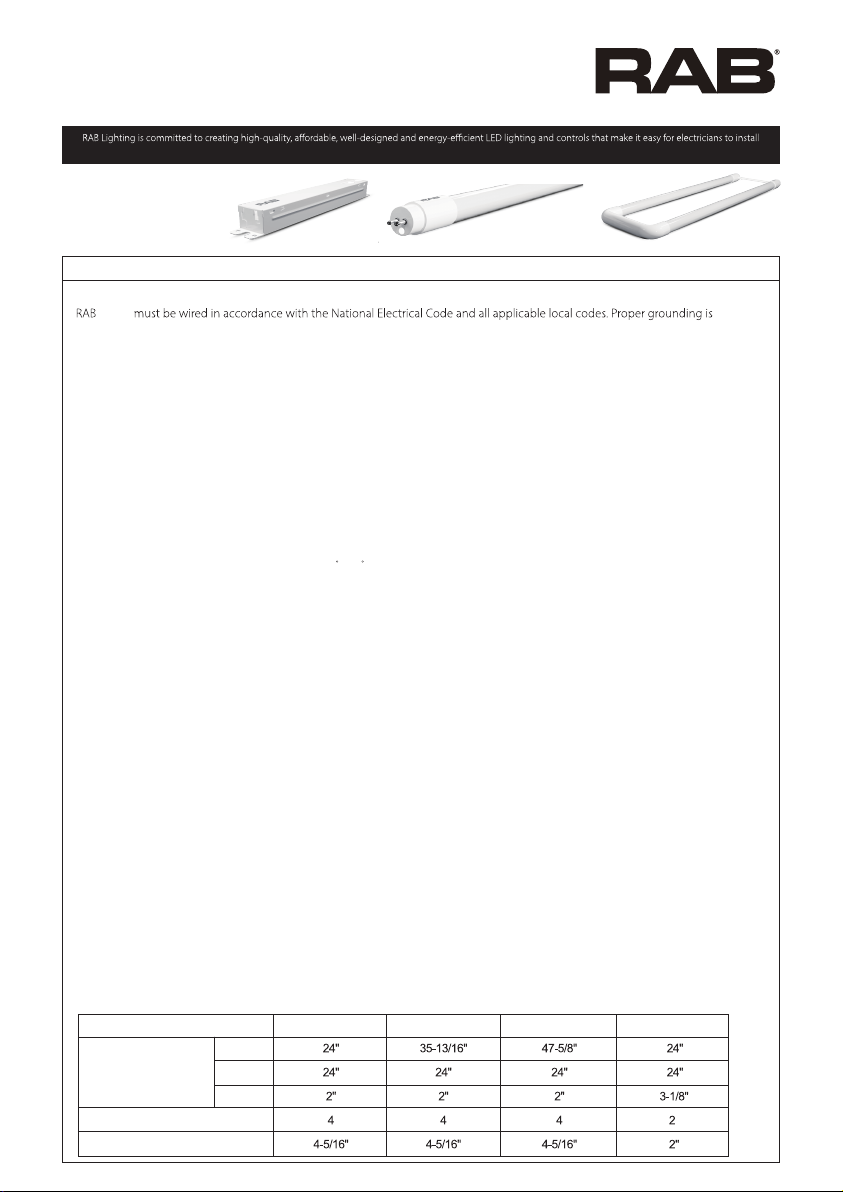

T5HE-10-24P-8XX-EXT T5HE-11-36P-8XX-EXT T5HE-13-48P-8XX-EXT T8-15-U6GC-8XX-EXTModel Number
Maximum Lamps in Luminaire
Lampholder-to-Lampholder Spacing
Length
Width
Heigth
Lamp Compartment
Dimensions
CAUTION
Check the Max. case temperature of the fluorescent lamp ballast before replacement. The temperature shall be below or
equal to the maximum case temperature (194 /90 ) of the external driver. The external driver shall be mounted at the
same location as the ballast.
• Disconnect power at the source before installation, inspection or removal. Do not simply switch off fixture.
• This item is rated at 120-277V. Installer must determine whether line voltage 120-277V is available at the luminaire before
installation.
• Not intended for use with emergency exit fixtures or emergency exit lights.
• Do not use if product is damaged.
• Suitable for use with shunted and non shunted lamp holders.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• Risk of fire or electric shock. Do not open or modify. No user serviceable parts inside.
• SUITABLE FOR “TYPE IC” OR “TYPE NON-IC” LUMINAIRES.
• No external weight or mechanical force should be applied to tube or components.
• THE RETROFIT ASSEMBLY IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION
SHALL BE DETERMINED BY UL OR AUTHORITIES HAVING JURISDICTION.
• SUITABLE FOR DRY AND DAMP LOCATIONS ONLY.
• Complies with Part 15 of FCC. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received including interference that may cause undesired
operation.
• Installers should not disconnect existing wires from lamp holder terminals to make new connections at lamp holder
terminals. Instead installers should cut existing lamp holder leads away from the lamp holder and make new electrical
connections to lamp holder lead wires by employing applicable connectors.
• “This luminaire has been modified to operate RAB LIGHTING T5 EXT LED lamps” shall be marked on the retrofit luminaire
where readily visible by the user during normal maintenance including re-lamping.
• RAB LIGHTING T5 EXT tubes and drivers are sold separately. This lamp is DC input. Do not operate LED tubes without
corresponding compatible driver (refer to compatibility table below).
IMPORTANT
lamps
The minimum lamp compartment dimensions are described below:
•
•
DRI-30T5HE-2L-DIM
DRI-60T5HE-4L-DIM
F C
T5HE-10-24P-8xx-EXT
T5HE-11-36P-8xx-EXT
T5HE-13-48P-8xx-EXT
T8-15-U6GC-8xx-EXT
ONLY USE THE CONTROL PROVIDED WITH OR SPECIFIED BY THESE INSTRUCTIONS TO CONTROL THIS LAMP. THIS LAMP WILL
NOT OPERATE PROPERLY WHEN CONNECTED TO A STANDARD (INCANDESCENT) DIMMER OR DIMMING CONTROL.

INSTRUCTIONS
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: [email protected]
LED Lamp Model LED Lamp Model DRI-30T5HE-2L-DIM DRI-60T5HE-4L-DIM
T5HE-10-24P-8XX-EXT 1 lamp/ 2 lamps 3 lamps/ 4 lamps
1 lamp/ 2 lamps 3 lamps/ 4 lamps
1 lamp/ 2 lamps 3 lamps/ 4 lamps
1 lamp/ 2 lamps 3 lamps/ 4 lamps
T5HE-11-36P-8XX-EXT
T5HE-13-48P-8XX-EXT
T8-15-U6GC-8XX-EXT
Brand
Leviton IP710-LFZlllmatech
Lutron
Nova 960W
960W
1000W
1200W
/
NTSTV-DV
NFTV
DVSTV
DVSCTV
Nova
Diva
Diva
Series Model Load(w)
COMPATIBILITY TABLE
•
•
•
•
•
•
•
•
Read all WARNINGS before continuing this section.
Make sure POWER IS TURNED OFF at the source to the location at which you are installing the product.
Remove lens, cover and fluorescent tubes. Cut away all wires connecting the ballast and remove the ballast if necessary. (fig. 1)
Attach the LED driver to the fixture using existing ballast mounting holes and screws if present. If necessary, use self-tapping screws to
create new holes and mount the LED driver.
Follow wiring diagrams for number of lamps. (fig. 2-9)
For 0-10V dimming circuits, connect the incoming grey and purple wires to the LED driver's grey and purple wires using wire
nuts (not provided). If no 0-10V dimming circuit is present, cap off the grey and purple wires.
Visibly affix the "Modification Sticker" to the fixture and reinstall housing cover and lens if applicable.
Return power back to the source and installation is complete.
INSTALLATION
WIRING DIAGRAM
Cut all wires connecting ballast
fig. 1
Double-ended Installation
1-Lamp
For shunted & non-shunted lamp holders
Not polarity sensitive, lamps can be wired at either end
fig. 2 Retrofit with One Lamp
2-Lamps
For shunted & non-shunted lamp holders
Not polarity sensitive, lamps can be wired at either end
Retrofit with Two Lamps
fig. 3
0 - 10V DIMMER COMPATIBILITY
T5HE/U6 & DRIVER TYPE C

INSTRUCTIONS
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: [email protected]
T5HE/U6 DRI-IN-0421
Easy Answers
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - [e-mail]
Free Lighting Layouts
Answered online or by request
© 2021 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
RAB WARRANTY: RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.
WIRING DIAGRAM
1-Lamp
Single-ended Installation
3-Lamps
4-Lamps2-Lamps
For non-shunted lamp holders only
Not polarity sensitive, lamps can be wired at either end
For non-shunted lamp holders only
Not polarity sensitive, lamps can be wired at either end
For non-shunted lamp holders only
Not polarity sensitive, lamps can be wired at either end
For non-shunted lamp holders only
Not polarity sensitive, lamps can be wired at either end
Double-ended Installation
Retrofit with One Lamp Retrofit with Three Lamps
Retrofit with Four LampsRetrofit with Two Lamps
For shunted & non-shunted lamp holders
Not polarity sensitive, lamps can be wired at either end
3-Lamps
Retrofit with Three Lampsfig. 4
For shunted & non-shunted lamp holders
Not polarity sensitive, lamps can be wired at either end
4-Lamps
Retrofit with Four Lamps
fig. 5
fig. 6 fig. 8
fig. 7 fig. 9
T5HE/U6 & DRIVER TYPE C
