Rapid Racking Rapid Chrome shelving User manual

Rapid Chrome shelving
Assembly instruction
AIC002
RAPID CHROME SHELVING
IMPORTANT - ASSEMBLY INSTRUCTIONS
Tools required:
Rubber mallet and
wood block
AIC002
A
1Take a chrome upright Aand shelf clip B.
Starting at the bottom, locate the shelf clip in
the ring of the uprights at the selected height.
Repeat for other 3 uprights. Ensure the clips are
firmly located in the upright ring and the clip is
tapering upwards (thin end at the top).
2Slide shelf Cdown uprights Aonto clips B.
Tap the shelf with a mallet to tighten on the clips.
3Clip second level clips Binto place then slide
shelf Conto the clips, repeat for third shelf and
then finally top shelf. Tapping the shelves with a
mallet to tighten on the clips.
4Locate extension bays using clips D.
B
ASSEMBLY
If you have any problems whatsoever please call 01285 686868 where a team of experts will be pleased to help.
A
B
C
C
D
Screw feet up/down
to correct height
Uprights- 4 of per bay
COMPONENTS
RAPID CHROME SHELVING
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIC002
ABShelf clips (pair)
Keep heavier items
on the bottom shelves
Do not climb
on your shelving
Make sure it is on a
level and even floor
Keep your
shelving dry
CChrome shelf
1 of per shelf level, various
widths and depths
SAFETY
660mm, 800mm, 965mm, 1270mm,
1600mm or 1880mm
DShelf clips with
extension bays
8 of per bay
4 pairs
per shelf
2 per shelf level
Chrome shelf sizes
Widths 915 mm, 1220 mm, 1525mm and 1830 mm
Depths 355mm, 455 mm and 610mm
Other 455mm sq, 610 mm sq, 610 x 355 mm and 610 x 455 mm

Other Rapid Racking Indoor Furnishing manuals

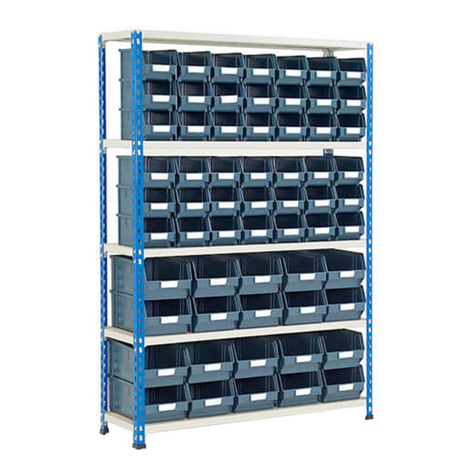

Rapid Racking Rapid2 Budget bin bay 88 User manual

Rapid Racking

Rapid Racking Rapid2 Budget bin bay 88 User manual

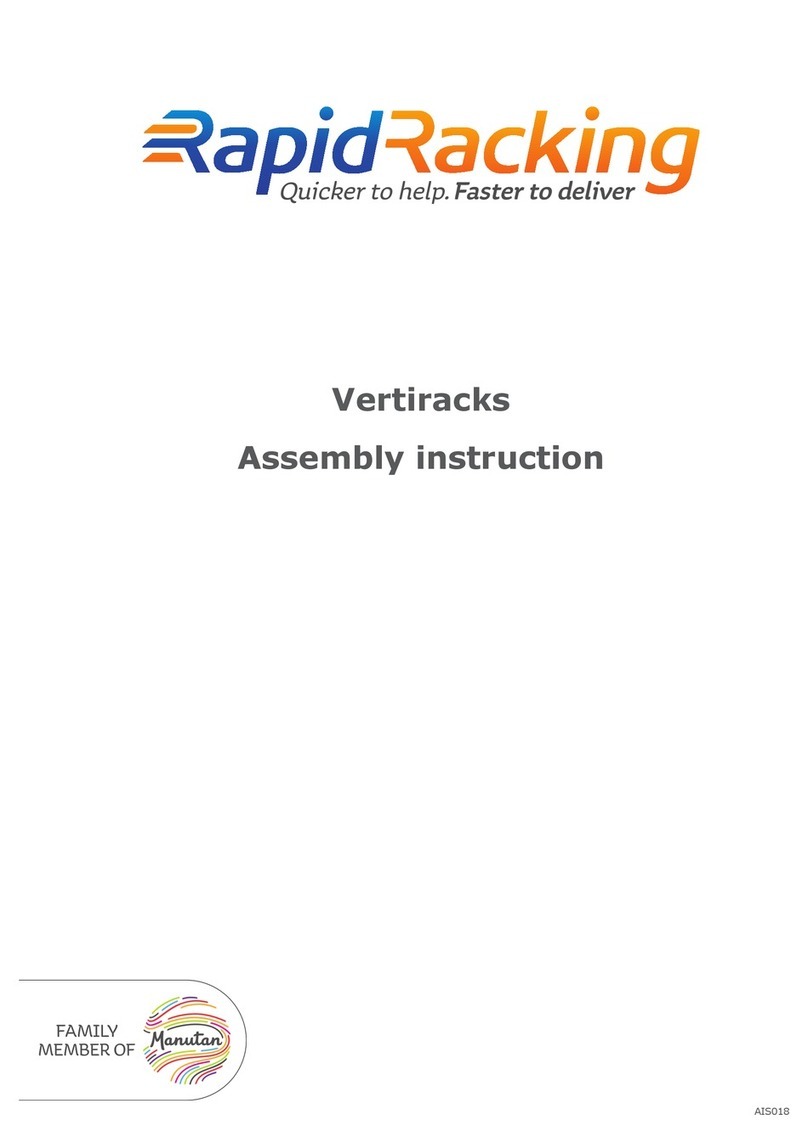

Rapid Racking Vertiracks User manual

Rapid Racking

Rapid Racking Vertiracks User manual

Rapid Racking WIDE SPAN User manual

Rapid Racking

Rapid Racking WIDE SPAN User manual

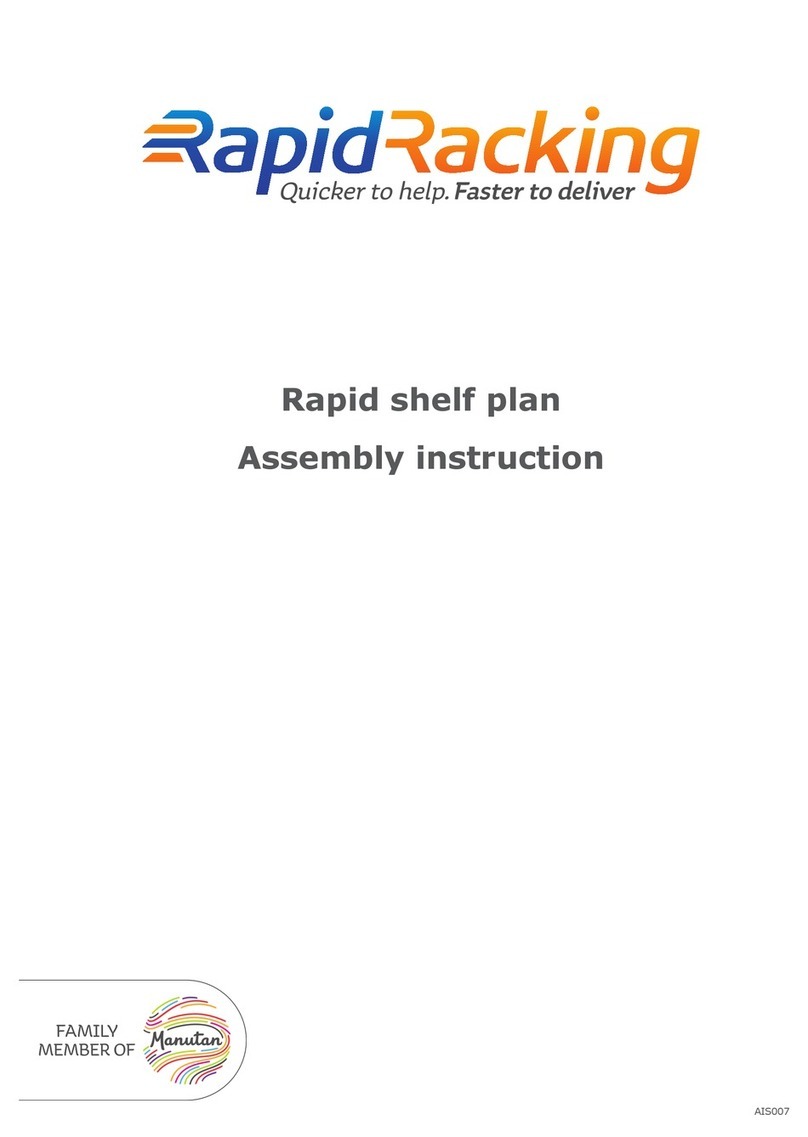

Rapid Racking Rapid shelf plan User manual

Rapid Racking

Rapid Racking Rapid shelf plan User manual

Rapid Racking Rapid1 Heavy duty tyre rack User manual

Rapid Racking

Rapid Racking Rapid1 Heavy duty tyre rack User manual

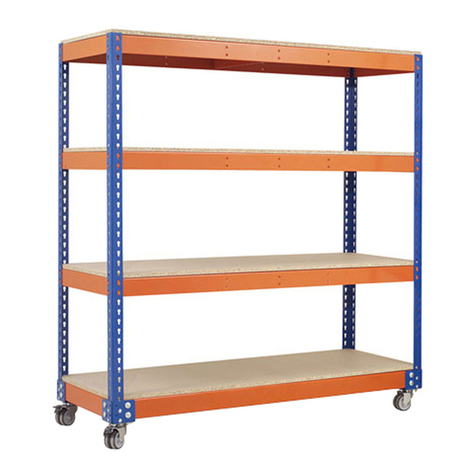

Rapid Racking Rapid1 Heavy duty shelving User manual

Rapid Racking

Rapid Racking Rapid1 Heavy duty shelving User manual

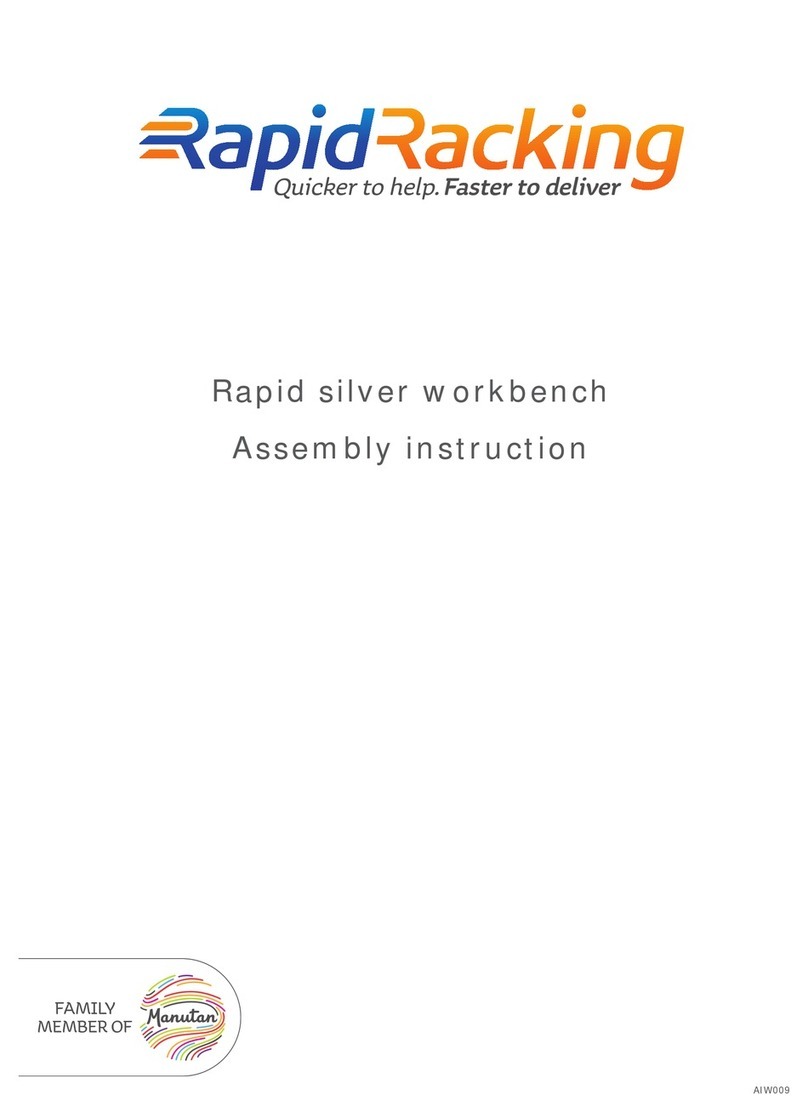

Rapid Racking Rapid silver workbench User manual

Rapid Racking

Rapid Racking Rapid silver workbench User manual

Rapid Racking Rapid2 Medium duty tyre rack User manual

Rapid Racking

Rapid Racking Rapid2 Medium duty tyre rack User manual

Rapid Racking Heavy duty work station User manual

Rapid Racking

Rapid Racking Heavy duty work station User manual

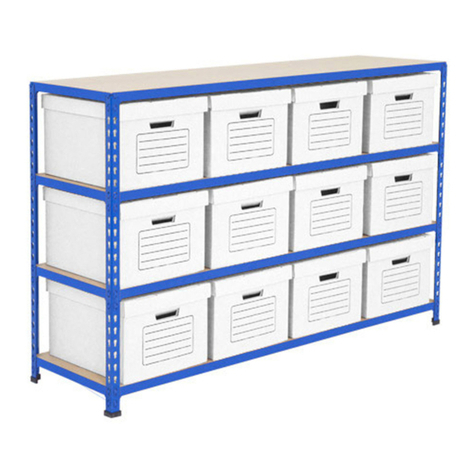

Rapid Racking DES24 User manual

Rapid Racking

Rapid Racking DES24 User manual

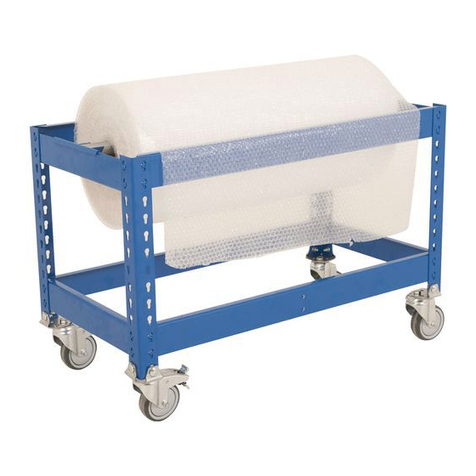

Rapid Racking Packing station trolley User manual

Rapid Racking

Rapid Racking Packing station trolley User manual

Rapid Racking Modular mobile benches User manual

Rapid Racking

Rapid Racking Modular mobile benches User manual

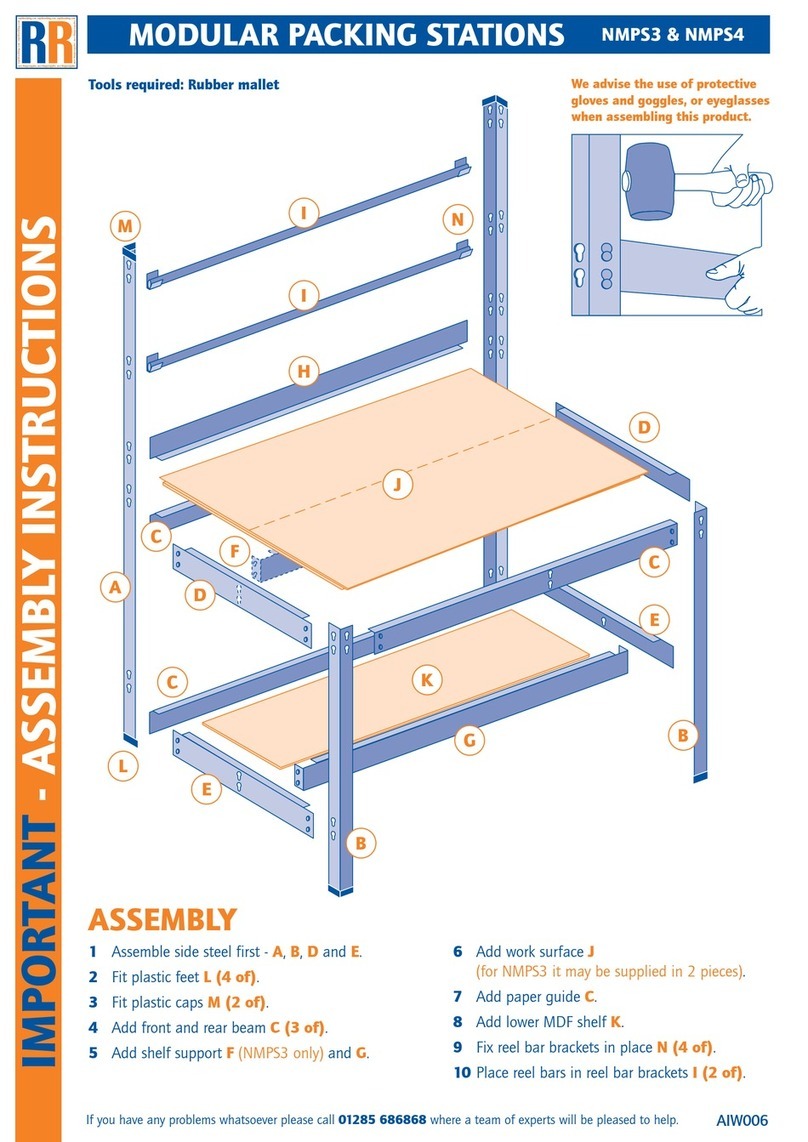

Rapid Racking NMPS3 User manual

Rapid Racking

Rapid Racking NMPS3 User manual

Rapid Racking Chrome wine rack User manual

Rapid Racking

Rapid Racking Chrome wine rack User manual

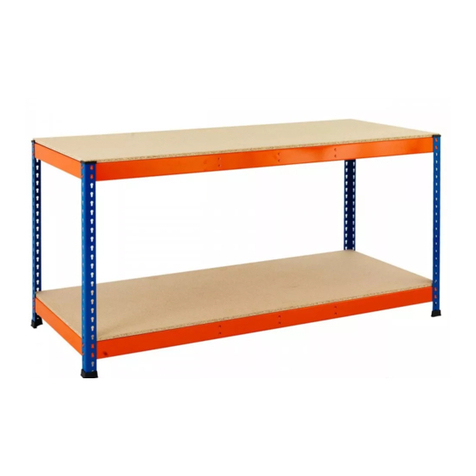

Rapid Racking Heavy duty workbench User manual

Rapid Racking

Rapid Racking Heavy duty workbench User manual

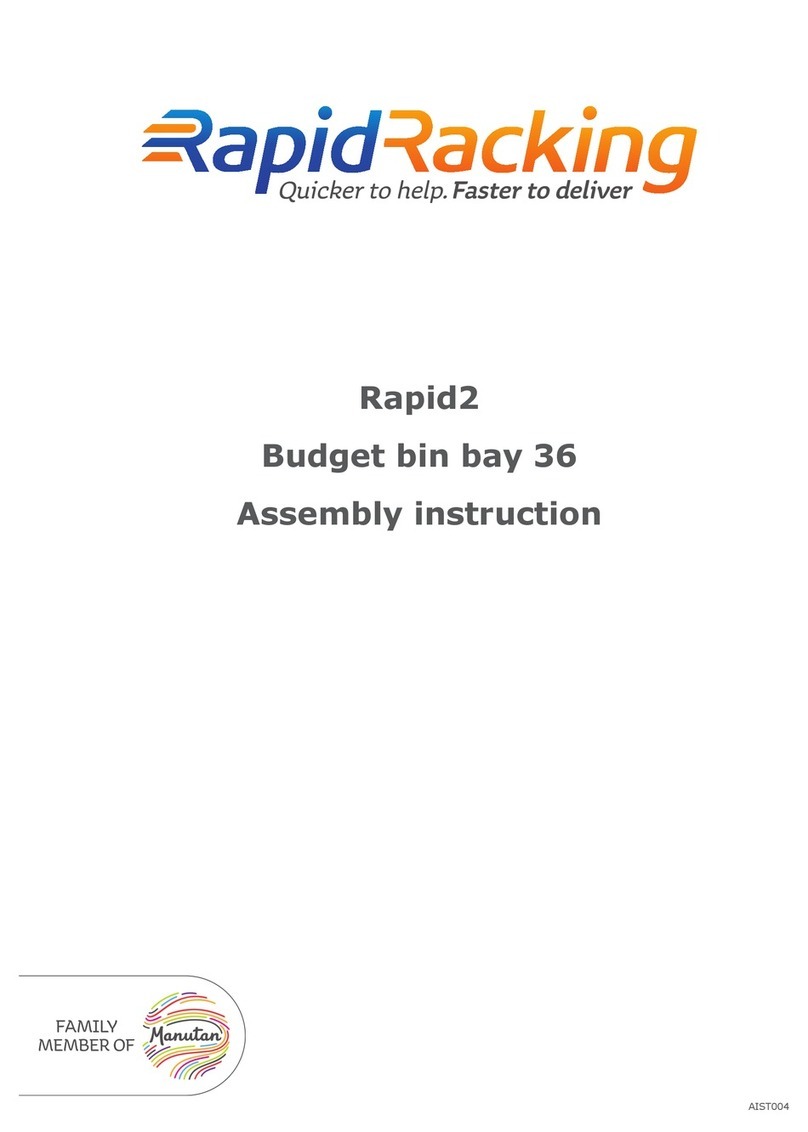

Rapid Racking Rapid2 Budget bin bay 36 User manual

Rapid Racking

Rapid Racking Rapid2 Budget bin bay 36 User manual

Rapid Racking DS25 User manual

Rapid Racking

Rapid Racking DS25 User manual

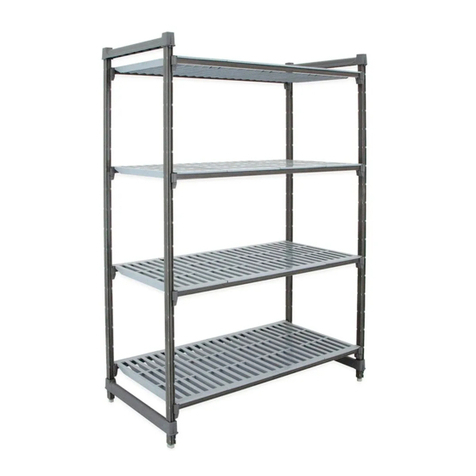

Rapid Racking Cambro shelving User manual

Rapid Racking

Rapid Racking Cambro shelving User manual

Rapid Racking Bar Racks User manual

Rapid Racking

Rapid Racking Bar Racks User manual

Rapid Racking Garment Rack User manual

Rapid Racking

Rapid Racking Garment Rack User manual

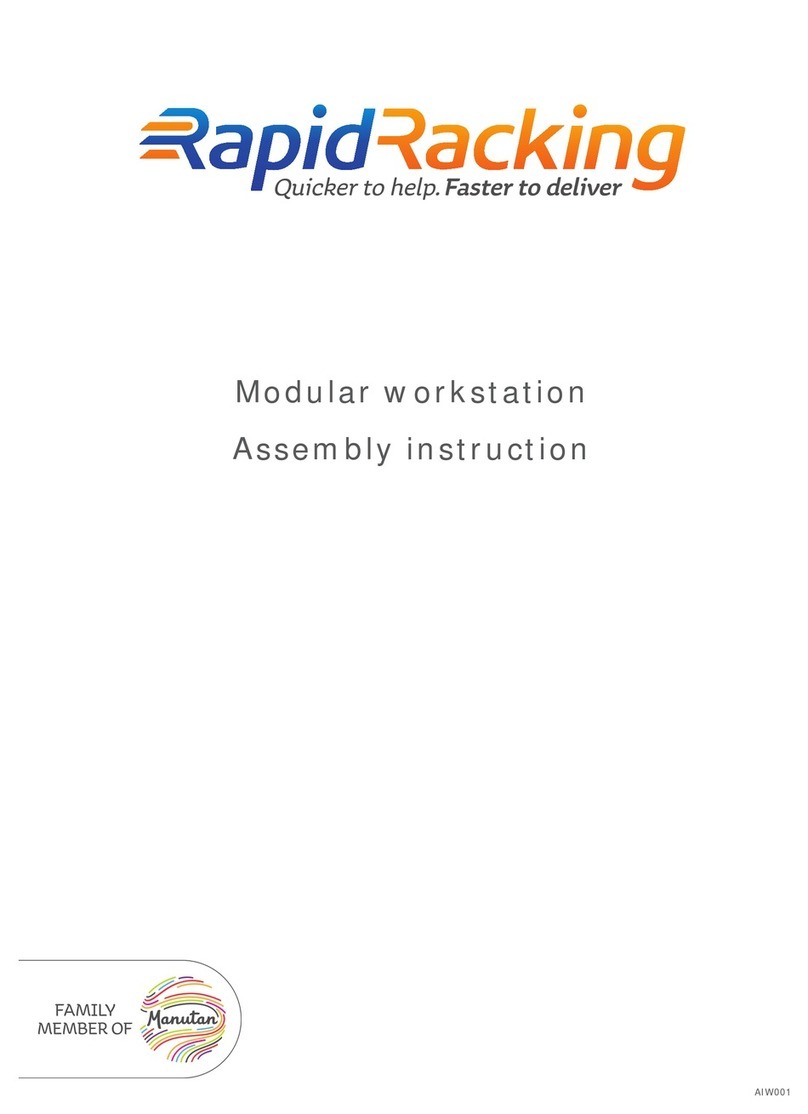

Rapid Racking Modular workstation User manual

Rapid Racking

Rapid Racking Modular workstation User manual

Rapid Racking Rapid span User manual

Rapid Racking

Rapid Racking Rapid span User manual

Popular Indoor Furnishing manuals by other brands

Cooper Lighting PD8 specification

Cooper Lighting

Cooper Lighting PD8 specification

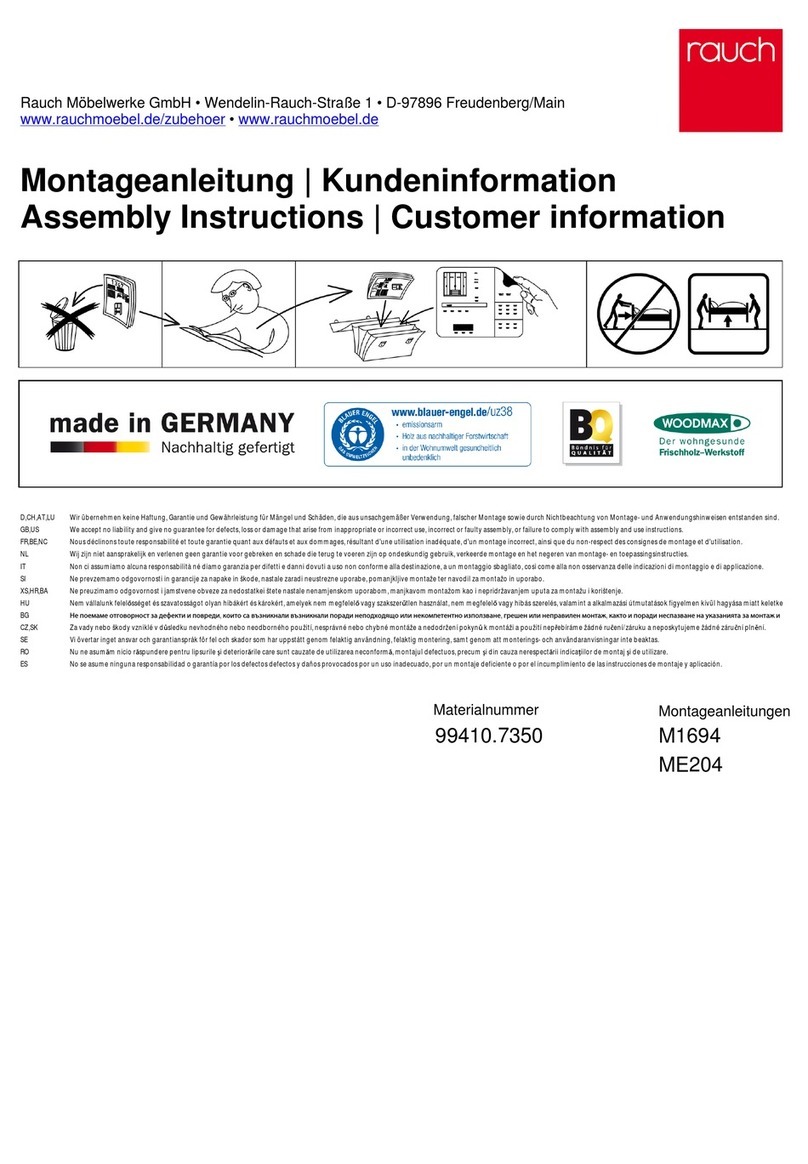

Rauch M1694 Assembly instructions

Rauch

Rauch M1694 Assembly instructions

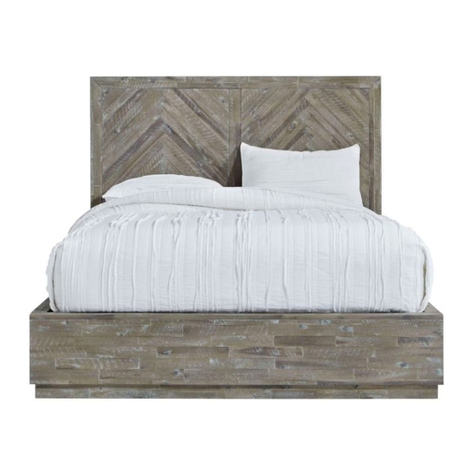

Modus Furniture HERRINGBONE 5QS3H4 Assembly instructions

Modus Furniture

Modus Furniture HERRINGBONE 5QS3H4 Assembly instructions

Argos 274/9668 Assembly instructions

Argos

Argos 274/9668 Assembly instructions

Furniture of America Glenbrook CM3018PC Assembly instructions

Furniture of America

Furniture of America Glenbrook CM3018PC Assembly instructions

Steelcase Brody 488 Assembly Directions

Steelcase

Steelcase Brody 488 Assembly Directions

Stor-It-All WS24MP1 Assembly instructions

Stor-It-All

Stor-It-All WS24MP1 Assembly instructions

sedia systems JumpSeat Assembly instructions

sedia systems

sedia systems JumpSeat Assembly instructions

Pinnacle PRO Series quick start guide

Pinnacle

Pinnacle PRO Series quick start guide

Canvas MONTCLERC 168-0007-8 Assembly instructions

Canvas

Canvas MONTCLERC 168-0007-8 Assembly instructions

MAD delta G50BT Assembly instructions

MAD

MAD delta G50BT Assembly instructions

Crate&Barrel Colette manual

Crate&Barrel

Crate&Barrel Colette manual

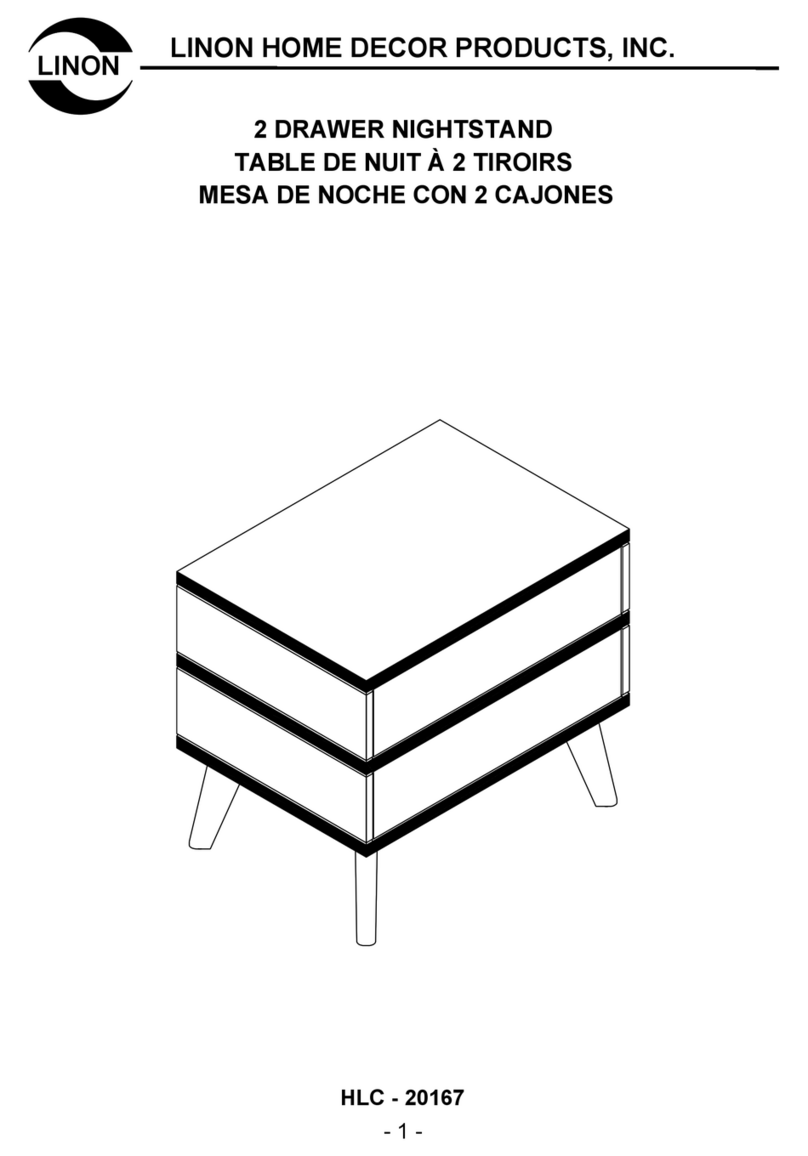

Linon HLC - 20167 manual

Linon

Linon HLC - 20167 manual

Royalcraft Cannes KD Carver Assembly instructions

Royalcraft

Royalcraft Cannes KD Carver Assembly instructions

Mocka Sonata Assembly instructions

Mocka

Mocka Sonata Assembly instructions

Safavieh SFV2113 quick start guide

Safavieh

Safavieh SFV2113 quick start guide

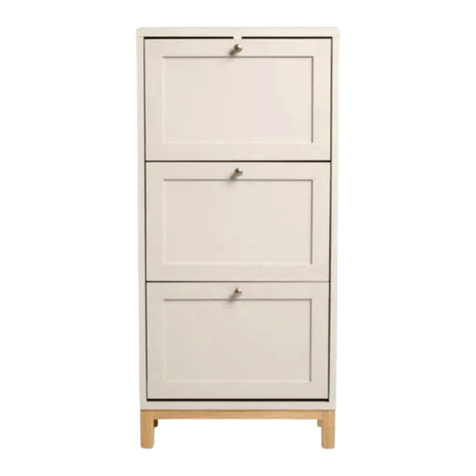

Next MALVERN A79691 Assembly instructions
