Rapid Racking Vertiracks User manual

Vertiracks
Assembly instruction
AIS018
1Assemble upright frame Ato rear beam B
starting at the top using bolts Gto fix in place.
2Fit middle rear beams Cto upright frames A.
3Fit base tray Dinto bottom of upright frames A.
4Add top dividers E.
5Add bottom dividers F(used only with
product VR27).
6Fix to floor with fixing K.
NB. All bolts Gand Htorque to 60Nm
VERTIRACKS Multiple packages
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIS018
A
Tools required: Spanners, Electric Drill and Masonry Drill
A
B
D
E
F
G
H
VR15 Starter rack with
VR15E Extension rack
C
We advise the use of protective
gloves and goggles, or eyeglasses
when assembling this product.
H
VR27 Starter rack with
VR27E Extension rack
G
K
G
K
K
H
G
J
G
ASSEMBLY
If you have any problems with this product or its assembly, please contact your local distributor or
call our helpline on 01285 686868 where a team of experts will be pleased to help.
Uprights
COMPONENTS
VERTIRACKS Multiple packages
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIS018
ABRear beams
VR27 and VR27E - 2700mm
VR15 and VR27 - 1350 mm
VR15E and VR27E - 1300 mm
CMiddle rear beams
VR15 and VR27 - 1350 mm
VR15E and VR27E - 1300 mm
DBase tray
VR15 - 1350mm W x 550mm D
VR27 - 1350mm W x 580mm D
VR15E - 1300mm W x 550mm D
VR27E - 1300mm W x 580mm D
ETop dividers
FBottom dividers GEnd frame nuts
and bolts
M10 x 80 mm
JUpright
VR15 and VR15E - 1500mm
Rapid Vertirack, Component Check
VR15 VR15E VR15D VR27 VR27E VR27BD VR27D
Uprights ‘A’ ---21--
Uprights ‘H’ 21-----
Top Rear Beams ‘B’ 11-11- -
Middle Rear Beams ‘C’ 11-22- -
Base Tray ‘D’ 11-11- -
Top Dividers ‘E’ 33133 - 1
Bottom Dividers ‘F’ ---331-
End Fame Nuts 12 6 - 16 8 - -
& Bolts ‘G’
Divider Nuts & Bolts ‘H’ 66-99- -
HDivider nuts and bolts
M10 x 25 mm
KFloor fixings
M10 x 80 mm
If you have any problems with this product or its assembly, please contact your local distributor or
call our helpline on 01285 686868 where a team of experts will be pleased to help.

Other Rapid Racking Indoor Furnishing manuals

Rapid Racking Rapid1 Heavy duty tyre rack User manual

Rapid Racking

Rapid Racking Rapid1 Heavy duty tyre rack User manual

Rapid Racking Rapid span User manual

Rapid Racking

Rapid Racking Rapid span User manual

Rapid Racking NMPS3 User manual

Rapid Racking

Rapid Racking NMPS3 User manual

Rapid Racking Bar Racks User manual

Rapid Racking

Rapid Racking Bar Racks User manual

Rapid Racking Rapid Chrome shelving User manual

Rapid Racking

Rapid Racking Rapid Chrome shelving User manual

Rapid Racking Chrome wine rack User manual

Rapid Racking

Rapid Racking Chrome wine rack User manual

Rapid Racking Cambro shelving User manual

Rapid Racking

Rapid Racking Cambro shelving User manual

Rapid Racking WIDE SPAN User manual

Rapid Racking

Rapid Racking WIDE SPAN User manual

Rapid Racking Rapid2 Budget bin bay 36 User manual

Rapid Racking

Rapid Racking Rapid2 Budget bin bay 36 User manual

Rapid Racking Garment Rack User manual

Rapid Racking

Rapid Racking Garment Rack User manual

Rapid Racking Rapid2 Medium duty tyre rack User manual

Rapid Racking

Rapid Racking Rapid2 Medium duty tyre rack User manual

Rapid Racking Modular mobile benches User manual

Rapid Racking

Rapid Racking Modular mobile benches User manual

Rapid Racking Rapid silver workbench User manual

Rapid Racking

Rapid Racking Rapid silver workbench User manual

Rapid Racking Rapid2 Budget bin bay 88 User manual

Rapid Racking

Rapid Racking Rapid2 Budget bin bay 88 User manual

Rapid Racking Heavy duty workbench User manual

Rapid Racking

Rapid Racking Heavy duty workbench User manual

Rapid Racking Heavy duty work station User manual

Rapid Racking

Rapid Racking Heavy duty work station User manual

Rapid Racking DS25 User manual

Rapid Racking

Rapid Racking DS25 User manual

Rapid Racking DES24 User manual

Rapid Racking

Rapid Racking DES24 User manual

Rapid Racking Rapid1 Heavy duty shelving User manual

Rapid Racking

Rapid Racking Rapid1 Heavy duty shelving User manual

Rapid Racking Modular workstation User manual

Rapid Racking

Rapid Racking Modular workstation User manual

Rapid Racking Packing station trolley User manual

Rapid Racking

Rapid Racking Packing station trolley User manual

Rapid Racking Rapid shelf plan User manual

Rapid Racking

Rapid Racking Rapid shelf plan User manual

Popular Indoor Furnishing manuals by other brands

STM SIMPLY 55 Assembly instruction

STM

STM SIMPLY 55 Assembly instruction

Costway CB10297 manual

Costway

Costway CB10297 manual

LEGACY HOME C2010192 Assembly instructions

LEGACY HOME

LEGACY HOME C2010192 Assembly instructions

Champion Overnighter Series Operating instructions and service manual

Champion

Champion Overnighter Series Operating instructions and service manual

Dorel Living DA6922-SF instruction manual

Dorel Living

Dorel Living DA6922-SF instruction manual

J.Burrows PRESTON JBPRE1SEBK Assembly instructions

J.Burrows

J.Burrows PRESTON JBPRE1SEBK Assembly instructions

Allen + Roth LW113P04 quick start guide

Allen + Roth

Allen + Roth LW113P04 quick start guide

BullFrog LAGOON 1520 Assembly and instruction manual

BullFrog

BullFrog LAGOON 1520 Assembly and instruction manual

MADRAX MADLOCKER ML1-1 Assembly instructions

MADRAX

MADRAX MADLOCKER ML1-1 Assembly instructions

Patiorama PA-02+03+04 manual

Patiorama

Patiorama PA-02+03+04 manual

Techni Mobili ID-2022 Assembly instructions

Techni Mobili

Techni Mobili ID-2022 Assembly instructions

Next Claro 347876 Assembly instructions

Next

Next Claro 347876 Assembly instructions

WB Mfg iXchange SSW1001-AL Assembly instructions

WB Mfg

WB Mfg iXchange SSW1001-AL Assembly instructions

CRAFTLINE Cabinetry Drawer Box Assembly manual

CRAFTLINE Cabinetry

CRAFTLINE Cabinetry Drawer Box Assembly manual

Interactive Health The Perfect Chair PC-9 use and care manual

Interactive Health

Interactive Health The Perfect Chair PC-9 use and care manual

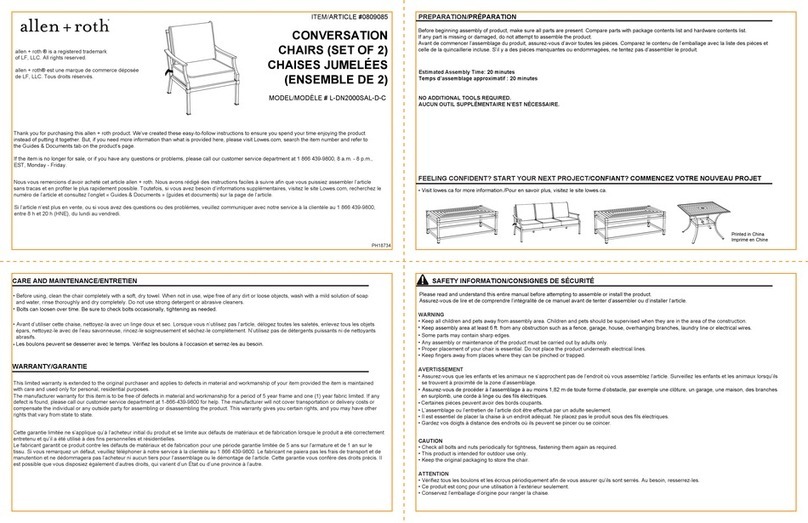

Allen + Roth L-DN2000SAL-D-C quick start guide

Allen + Roth

Allen + Roth L-DN2000SAL-D-C quick start guide

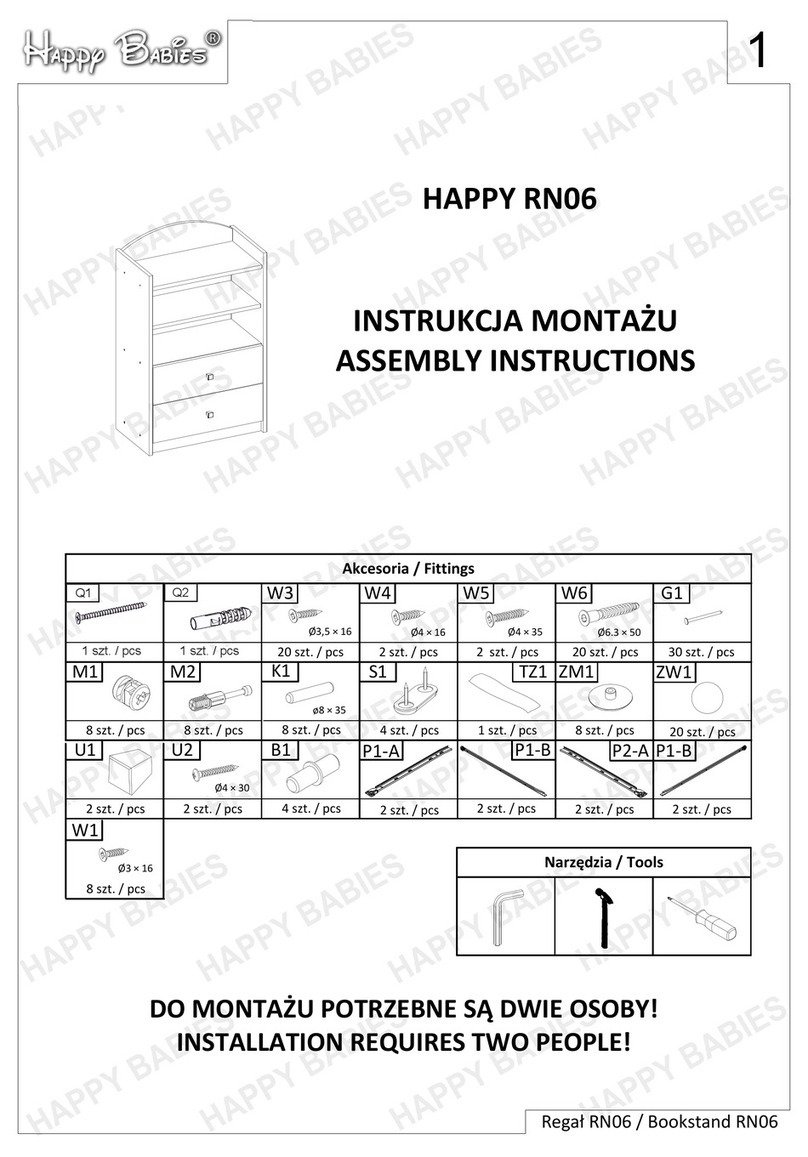

Happy Babies HAPPY RN06 Assembly instructions
