Raven SmarTrax User manual

Case IH 4300 SmarTrax Supplement
& Installation Manual
P/N 016-0190-072 Rev B 09/15
Copyright 2008, 2015

DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven
Industries assumes no responsibility for omissions and errors. Neither is any liability
assumed for damages resulting from the use of information contained herein.
Raven Industries shall not be held responsible or liable for the effects of atmospheric
conditions and sunspot activity on the performance of our products.
Raven Industries cannot guarantee the accuracy, integrity, continuity, or availability of
the GPS signal from the US Department of Defense/NAVSTAR GPS satellites, the
OmniSTAR correction service or the WAAS correction service.
Raven Industries accepts no responsibility for the use of the signal for other than the
stated purpose. Raven Industries shall not be responsible or liable for incidental or
consequential damages or a loss of anticipated benefits or profits, work stoppage or
loss or impairment of data arising out of the use or inability to use the Smartrax or any
of its components.

Manual # 016-0190-072
1
CHAPTER
I NTRODUCTION
Congratulations on your purchase of the Raven SmarTrax system! This
system is designed to provide cutting-edge, hands-free steering of your
machine via GPS coordinates.

CaseIH 4300 SmarTrax Supplement & Installation Manual
2
Basic Kit
Contents
Below you will see the kit contents that you should have received with this
SmarTrax kit.
CaseIH 4300 SmarTrax Kit Contents
Quantity Item Description Part Number
1 Sensor, Yaw 063-0172-684
1 Cable, Hydraulic Solenoid/Override 115-0171-466
1 Weldment, Bracket, Universal Hydraulic Mounting 116-0159-527
1 Kit, Hyd., SmarTrax, CIH 4300 Floater, ‘97 & Earlier 117-0194-072
1 Valve, Flow Control, 1/4” NPTF, w/Fittings 334-0001-053
1 Valve, Hyd., MM, Dual Counterbalance, w/FTGS 334-0003-026
1 Switch, Press., Micro, HD, 15-100 BAR ADJ., w/
Fitting 422-0000-073
4 Bolt, 5/10-18 x 7/8” Hex 311-0052-104
2 Bolt, Machine, 5/16-18 UNC x 3” LONG 311-0052-113
2 Nut, Hex, 5/16-18 UNC 312-1001-034
4 Nut, 3/8-16 312-1001-037
6 Washer, 5/16 Lock, Split 313-1000-022
2 Washer, .312 I.D. x .734 O.D. 313-2300-011
4 Washer, Flat, 3/8” 313-2300-013
1 Valve, Hyd., Open Center, PWM 334-0003-064
1 Manual, Installation 016-0190-072
1 Manual, Installation, SmarTrax 016-9001-012
1 Label, Warning, Do Not Step 041-0159-688
1 Label, Warning, Tampering 041-0159-689
1 FTG., Adapter, Swivel Run Tee, -8 JIC M/M/F 333-0012-039
1 FTG., Elbow, 45° Swivel, -8 JIC M/F 333-0012-040
5 FTG., Elbow, 90° Swivel, -6 JIC M/F 333-0012-042
4 FTG., Adapter, Swivel Run Tee, -6 JIC M/M/F 333-0012-043
1 FTG., Elbow, 90° Swivel, -8 JIC M/F 333-0012-064
2 FTG., Adapter, STR., -6 JIC (F) To -8 JIC (M) 333-0012-118
2 Hose, Hyd., -8 JIC (F) to -6 JIC (F), 24” 214-1000-171
1 Hose, Hyd., -8 JIC (F) to -8 JIC (F), 18” 214-1000-250
1 Hose, Hyd., -8 JIC (F) 90° to -6 JIC (F), 18” 214-1000-428
3 Hose, Hyd., -6 JIC (F) 90° to -6 JIC (F), 12” 214-1000-429

Manual # 016-0190-072
3
CHAPTER
S AFETY
Hydraulic
Safety
Precautions
When disconnecting the hydraulic hoses or when purging is required, be
aware that the hydraulic oil within the machine system may be extremely
hot and under high pressure. Caution must be exercised. Any work carried
out on the hydraulic system must be performed in accordance with the
machine manufacturer’s approved maintenance instructions. Raven
Industries recommends that appropriate protective equipment be worn
when working on the hydraulic system.
Objects or materials that are able to bypass the machine’s hydraulic
filtration system will adversely reduce performance and possibly damage
the hydraulic valves.
Electrical Safety
Precautions
Do not reverse the power leads. Doing so will cause severe damage to the
equipment. Always check to make sure that the power leads are connected
to the right polarity as marked. Ensure that the power cable is the last cable
to be connected.
Important: Hydraulics are under pressure. Never attempt
to open or work on a hydraulic system with the equipment
running. Care should always be taken when first opening
a system that was previously pressurized.

CaseIH 4300 SmarTrax Supplement & Installation Manual
4
Contacting
Raven
Industries
We welcome your feedback about this manual. If you have any comments
or suggestions for improvement, please let us know by contacting our
Customer Support Center by any of the following methods:
•Via phone: [phone]
•Via mail:
Raven Industries
Flow Control Division
205 E. 6th St.
Sioux Falls, SD 57104
•Via email: [email protected]

Manual # 016-0190-072
5
CHAPTER
M OUNTING THE U NIVERSAL B RACKET
AND H YDRAULIC V ALVE
1. Position the hydraulic valve on the universal bracket, over the top of
the proper hole pattern. Secure the valve to the bracket using the
supplied bolts and washers.
2. Mount the smaller counterbalance valve to the bracket. Two mounting
holes and clearance holes/slots will have to be drilled to mount the
valves as shown. The valve can be moved up on the bracket to allow
the fittings to hang over the edge of the valve.

CaseIH 4300 SmarTrax Supplement & Installation Manual
6
3. Position the bracket on the front of the cab, under the hood.
4. Drill holes to fit the mounting bracket pattern and attach the universal
mounting bracket to the machine using the supplied 3/8” hex bolts.

Manual # 016-0190-072
7
CHAPTER
H YDRAULICS
Mounting the
Counterbalance
Valve, Pressure
Switch, and
Needle Valve

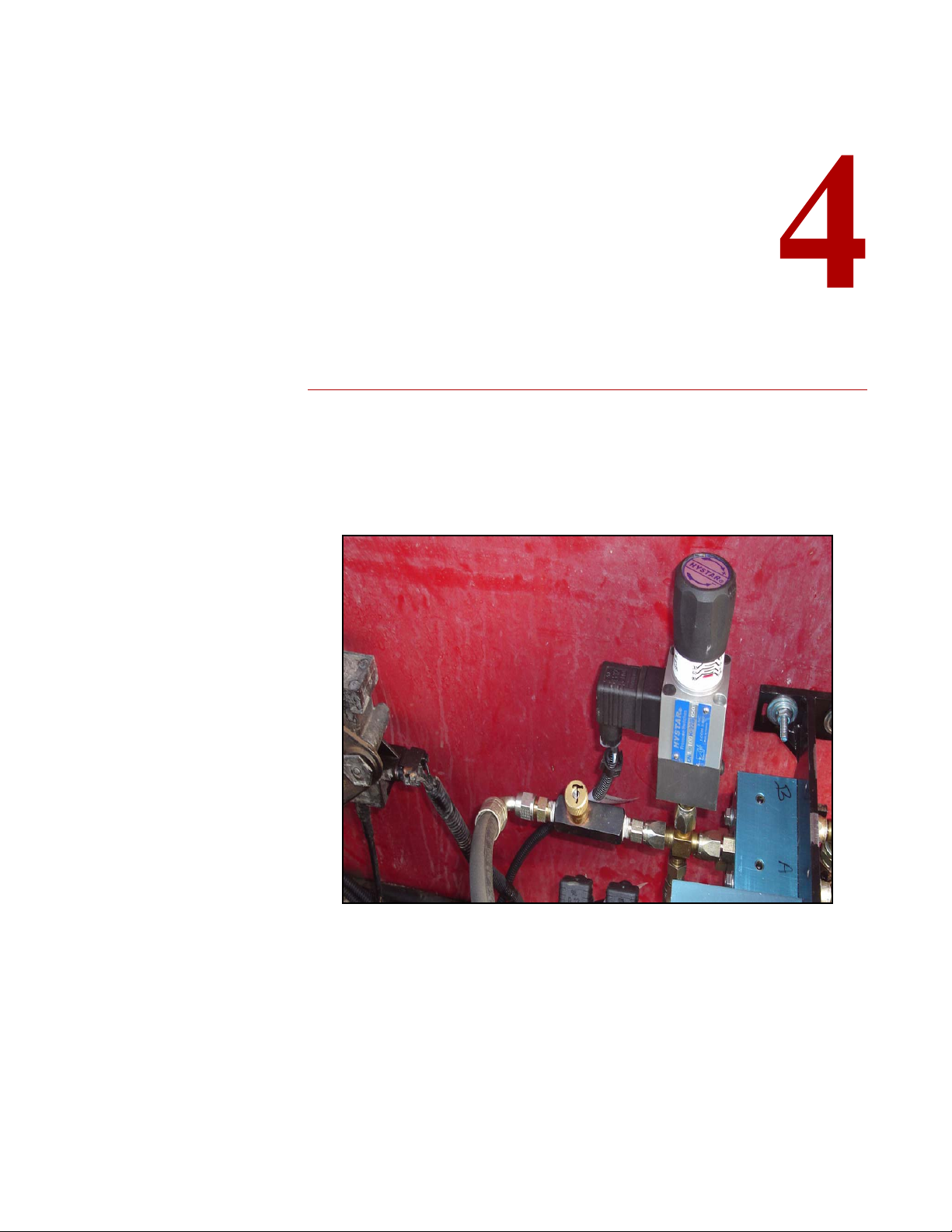

1. Connect the pressure switch with the tee fitting to the brake port of the
counterbalance valve.
2. Attach the needle valve to the open port of the tee of the pressure
switch.

CaseIH 4300 SmarTrax Supplement & Installation Manual
8

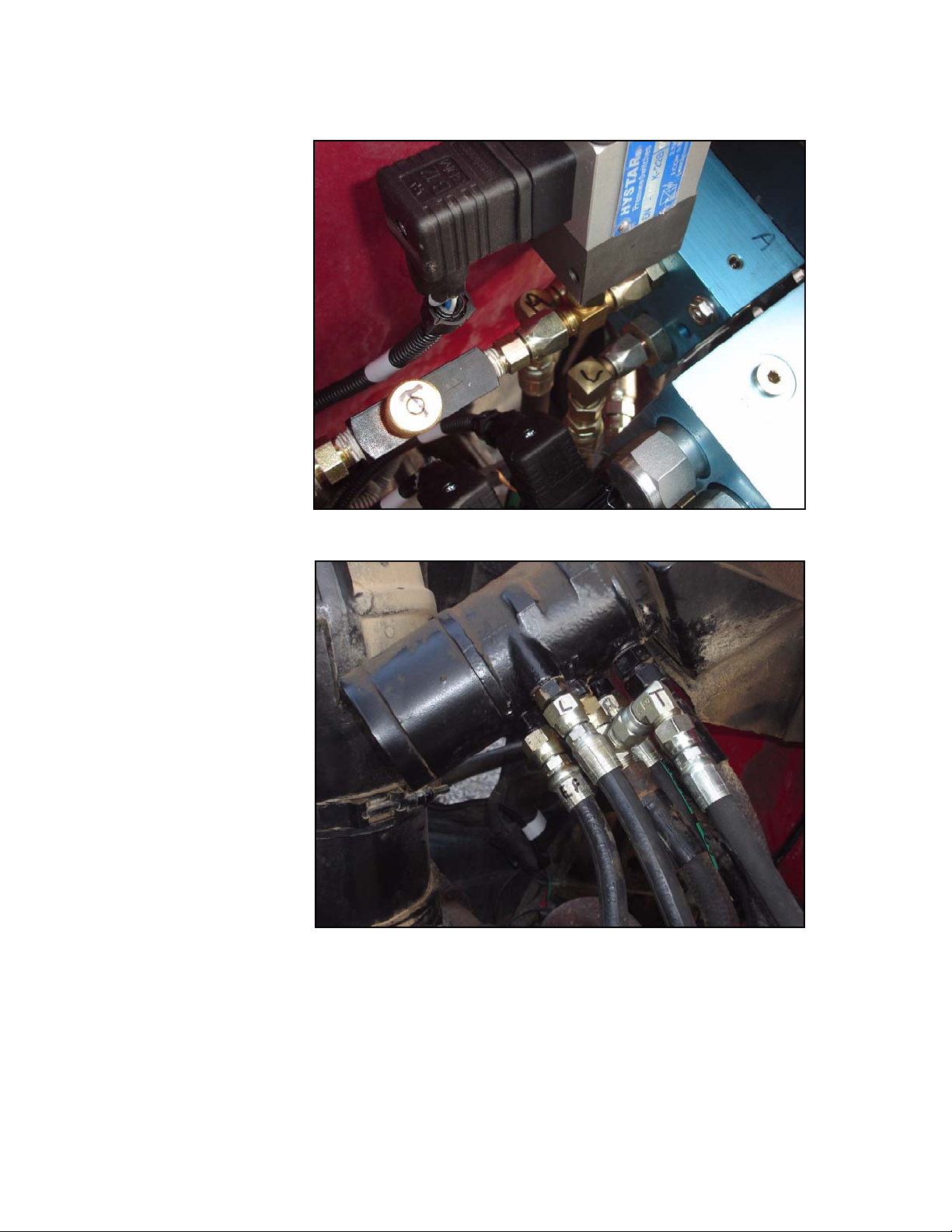

3. Locate and label the ports on the steering orbital as shown below.

Manual # 016-0190-072
9
Pressure Hose
1. Remove the existing pump to orbital hose and attach it to the ‘P’ port
on the SmarTrax valve. It may be necessary to use the supplied 90
degree 3/4” JIC elbow fittings to ensure the hoses are routed properly.
Excess Flow Hose
1. Connect one end of the excess flow hose (P/N 214-1000-250) to the
fitting EF Port on the SmarTrax Valve.
2. Connect the remaining open end of the excess flow hose to the pressure
port on the steering orbital.
Tank Port Hose
1. Remove the existing tank to orbital hose at the orbital and attach a
supplied 3/4” tee fitting to the orbital.
2. Reconnect the hose to the tee fitting.
3. Attach a tee fitting to the ‘T’ Port on the SmarTrax valve.
4. Connect one end of the tank hose (P/N 214-1000-428) to this tee and
the other end to the remaining open port of the tee on the orbital.
Needle Valve Hose
1. Attach the hose (P/N 214-1000-429) to the needle valve, which is
attached to the counterbalance valve.

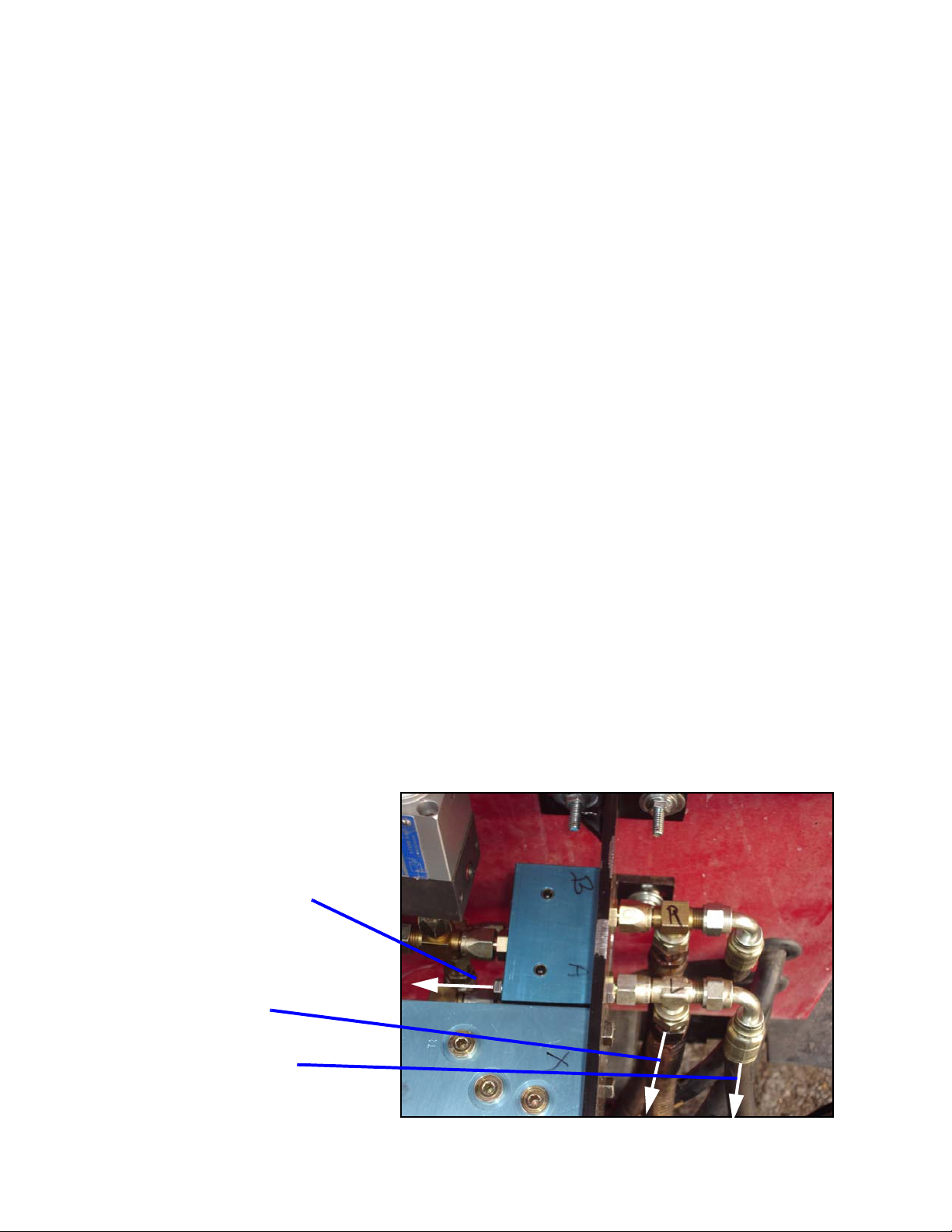

In this picture, the ports are labeled:
EF - Pressure In (from EF port on the SmarTrax valve)
R- Right Steer Port
T- Tank Port
L- Left Steer Port

CaseIH 4300 SmarTrax Supplement & Installation Manual
10
2. Attach the other end of the hose to the tee fitting that is connected to the
‘T’ Port on the SmarTrax valve.
‘CB’ to Right Steer Hose
1. Remove the hose attached to the right steer port of the orbital.
2. Connect the ‘CB’ to the right steer hose (P/N 214-1000-171) to the
open right steer port on the orbital.
3. Connect the other end to the ‘B’ port on the side of the counterbalance
valve with the brake port. You may need to install an elbow fitting on
the counterbalance valve to properly route the new hose.
‘CB’ to Left Steer Hose
1. Remove the hose attached to the left steer port of the orbital.
2. Connect the ‘CB’ to the left steer hose (P/N 214-1000-172) to the open
left steer port on the orbital.
3. Connect the other end to the ‘A’ Port on the side of the counterbalance
valve with the brake port. You may need to install an elbow fitting on
the counterbalance valve to properly route the new hose.
‘B’ Port to Counterbalance Hose
1. Install the supplied 9/16” JIC tee fitting to the port that is opposite the
‘B’ port on the counterbalance valve.
2. Connect the right steer hose that was disconnect from the orbital to one
of the open ports on the tee using a supplied reducer fitting.
3. Connect the 90 degree end of the ‘B’ Port to the counterbalance hose
(P/N 214-1000-429) to the remaining open port on the tee.
4. Connect the remaining open end of the hose to the ‘B’ port on the
SmarTrax Valve using a 90 degree fitting.
To left port on
To left steer
To ‘A’ port on
steering orbital
cylinder
SmarTrax valve

Manual # 016-0190-072
11
‘A’ Port to Counterbalance Hose
1. Install the supplied 9/16” JIC tee fitting to the port that is opposite the
A port on the counterbalance valve.
2. Connect the left steer hose that was disconnect from the orbital to one
of the open ports on the tee using a supplied reducer fitting.
3. Connect the 90 degree end of the ‘A’ port to the counterbalance hose
(P/N 214-1000-429) to the remaining open port on the tee.
4. Connect the remaining open end of the hose to the ‘A’ port on the
SmarTrax Valve using a 90 degree fitting.

CaseIH 4300 SmarTrax Supplement & Installation Manual
12
CaseIH 4300 SmarTrax Installation

Manual # 016-0190-072
13
CHAPTER
S ENSOR M OUNTING
Mounting the Yaw Sensor
Yaw Sensor
Installation
Installing the Raven Yaw Sensor is quick and easy. Raven recommends that
you keep the following points in mind while installing the sensor:
• The sensor is not weatherproof. Mount the sensor inside of the machine’s
cab or drivers compartment.
• Mount the sensor to a flat surface parallel to the ground with the Raven
logo facing up. The floor of the cab is generally ideal.
• Once mounted, the sensor should remain fixed in relation to the vehicle.
The sensor should not become loose or rotate due to machine vibration or
movement.
• The sensor should also be mounted in a location where it will not be
kicked or jarred during normal equipment operation.
• The cable does not need to be oriented in any way to the direction of
travel of the vehicle. Mount the sensor to with the cable routed to avoid
tripping hazards or damaging the cable or yaw sensor.

CaseIH 4300 SmarTrax Supplement & Installation Manual
14
Installation • Mount the Yaw Sensor to the floor inside of the vehicle’s cab using the
double sided tape on the sensor or steel bolts or screws through the
mounting plate. See the Mounting the Yaw Sensor section on the
previous page for mounting location considerations.
• Connect the supplied sensor cable to the Yaw Sensor and to the Yaw
Sensor connector on the SmarTrax Interface cable.

Manual # 016-0190-072
15
CHAPTER
S TART -U P P ROCEDURES
Prior to using the SmarTrax system:
• Turn the wheels fully from side to side numerous times to remove air
from the hydraulic system.
• Adjust the Pressure Switch to the most responsive setting. Refer to the
Universal Kit Manual for instructions.
Important: Time the wheels for a full left to right and
right to left time of approximately 6 seconds. Refer to the
Universal Kit Manual for additional instructions.

RAVEN INDUSTRIES
LIMITED WARRANTY
WHAT IS COVERED?
This warranty covers all defects in workmanship or materials in your Raven
Flow Control Product under normal use, maintenance, and service.
HOW LONG IS THE COVERAGE PERIOD?
This warranty coverage runs for 12 months from the purchase date of your
Raven Flow Control Product. This warranty coverage applies only to the
original owner and is not transferrable.
HOW CAN YOU GET SERVICE?
Bring the defective part, and proof of date of purchase, to your local dealer.
Ifyourdealeragreeswiththewarrantyclaim,hewillsendthepart,andproof
of purchase to his distributor or to Raven for final approval.
WHAT WILL RAVEN INDUSTRIES DO?
Whenour inspectionproves thewarranty claim,we will,at ouroption, repair
or replace the defective part and pay for return freight.
WHAT DOES THIS WARRANTY NOT COVER?
Raven Industries will not assume any expense or liability for repairs made
outsideourplantwithoutwrittenconsent. Wearenotresponsiblefordamage
toanyassociatedequipmentorproductandwillnotbeliableforlossofprofit
orotherspecialdamages. Theobligationofthiswarrantyisinlieuofallother
warranties,expressedorimplied,andnopersonisauthorizedtoassumefor
usany liability. Damagescaused bynormal wearand tear,mis-use, abuse,
neglect,accident,orimproperinstallation andmaintenancearenot covered
by this warranty.
