Raven SmarTrax User manual

Buhler Versatile 350/375/400/450/500/
550 Steering Ready, MY 2015 & Newer
SmarTrax™ Installation Manual
P/N 016-5031-009 Rev. A 03/17 E28729
Copyright 2017

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer

Table of Contents
P/N 016-5031-009 Rev. A i
Chapter 1 Important Safety Information............................................................................. 1
Instructions for Hose Routing ....................................................................................................2
Instructions for Wire Routing .....................................................................................................3
Chapter 2 Introduction............................................................................................................. 5
Updates .....................................................................................................................................5
Preparing for Installation ...........................................................................................................6
Recommendations .................................................................................................................................................................6
Point of Reference .................................................................................................................................................................7

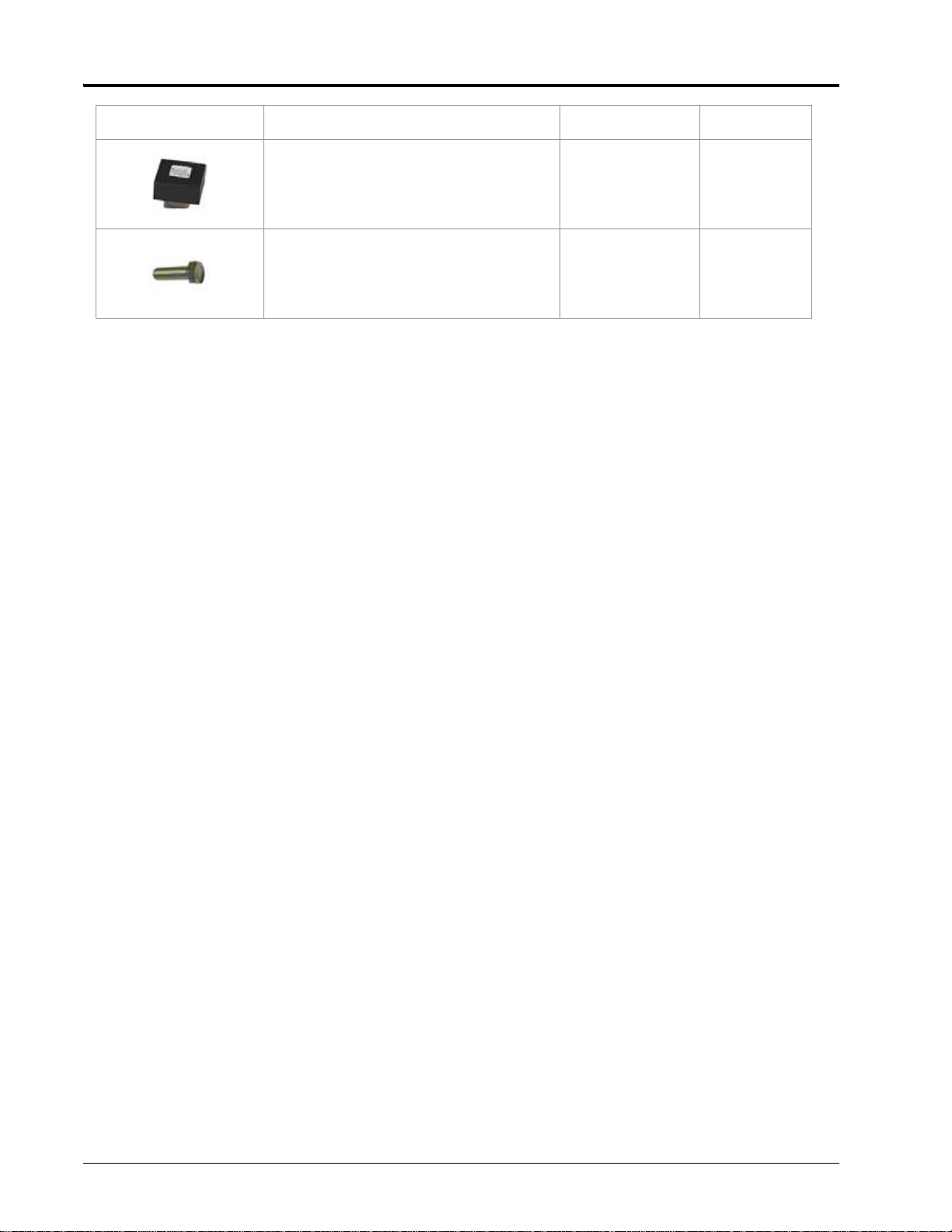

Kit Contents ...............................................................................................................................7
Chapter 3 Cab Component Installation................................................................................ 9
Install the SmarTrax Node .........................................................................................................9
Mount the SmarTrax Node .................................................................................................................................................9
Node Mounting Locations ................................................................................................................................................10
Install the Node Harness ......................................................................................................... 11
Install the Valve Harness .........................................................................................................13

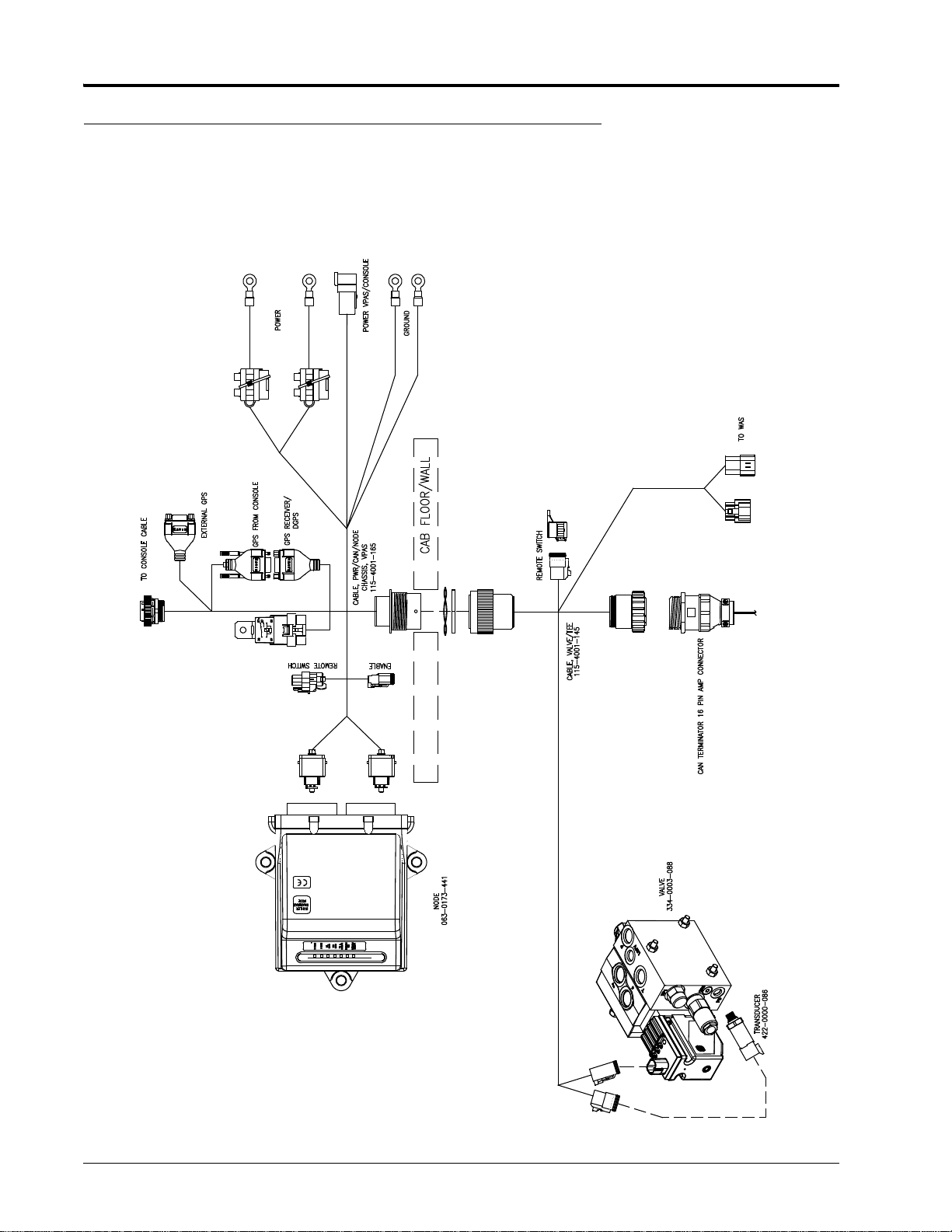

System Diagrams ....................................................................................................................17

Table of Contents
ii Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation

CHAPTER
1
P/N 016-5031-009 Rev. A 1
CHAPTER 1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the SmarTrax™ system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged safety
labels, contact your local Raven dealer.
When operating the machine after installing SmarTrax, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate SmarTrax or any agricultural equipment while under the influence of alcohol or an illegal
substance.
• Remain in the operator’s position in the machine at all times when SmarTrax is engaged.
• Disable SmarTrax when exiting the operator’s seat and machine.
• Do not drive the machine with SmarTrax enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
SmarTrax when the safe working distance has diminished.
• Ensure SmarTrax is disabled prior to starting any maintenance work on SmarTrax or the machine.
• Do not use hands to check for leaks. Hydraulic fluid under pressure can penetrate the skin and cause serious
injury or death.
• When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in
case a hose has not been properly tightened.
• The machine must remain stationary and switched off during SmarTrax installation or maintenance.
NOTICE
WARNING
CAUTION

CHAPTER 1
2 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
INSTRUCTIONS FOR HOSE ROUTING
The word “hose” is used to mean all flexible fluid carrying components. Follow existing hoses as much as possible
and use these guidelines:
Hoses should not contact or be attached to:
• Components with high vibration forces
• Components carrying hot fluids beyond component specifications
Avoid contact with any sharp edge or abrading surfaces such as, but not limited to:
• Sheared or flame cut edges
• Edges of machined surfaces
• Fastener threads or cap screw heads
• Ends of adjustable hose clamps
Routing should not allow hoses to:
• Hang below the unit
• Have the potential to become damaged due to exposure to the exterior environment. (i.e. tree limbs, debris,
attachments)
• Be placed in areas of or in contact with machine components which develop temperatures higher than the
temperature rating of hose components
• Hoses should be protected or shielded if it needs to route near hot temperatures beyond hose component
specifications
Hoses should not have sharp bends
Allow sufficient clearance from machine component operational zones such as:
• Drive shafts, universal joints and hitches (i.e. 3-point hitch)
• Pulleys, gears, sprockets
• Deflection and backlash of belts and chains
• Adjustment zones of adjustable brackets
• Changes of position in steering and suspension systems
• Moving linkages, cylinders, articulation joints, attachments
• Ground engaging components
For hose sections that move during machine operation:
• Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or
rubbing, especially in articulation and pivot points
• Clamp hoses securely to force controlled movement to occur in the desired hose section
• Avoid sharp twisting or flexing of hoses in short distances
Protect hoses from:
• Foreign objects such as rocks that may fall or be thrown by the unit
• Buildup of dirt, mud, snow, ice, submersion in water and oil
• Tree limbs, brush and debris
• Damage where service personnel or operators might step or use as a grab bar
• Damage when passing through metal structures

P/N 016-5031-009 Rev. A 3
IMPORTANT SAFETY INFORMATION
• High pressure wash
INSTRUCTIONS FOR WIRE ROUTING
The word “harness” is used to mean all electrical leads and cables, bundled and unbundled. When installing
harness, secure it at least every 30 cm (12in) to the frame. Follow existing harness as much as possible and use
these guidelines:
Harness should not contact or be attached to:
• Lines and hoses with high vibration forces or pressure spikes
• Lines and hoses carrying hot fluids beyond harness component specifications
Avoid contact with any sharp edge or abrading surfaces such as, but not limited to:
• Sheared or flame cut edges
• Edges of machined surfaces
• Fastener threads or cap screw heads
• Ends of adjustable hose clamps
• Wire exiting conduit without protection, either ends or side of conduit
• Hose and tube fittings
Routing should not allow harnesses to:
•Hang below the unit
• Have the potential to become damaged due to exposure to the exterior environment. (i.e. tree limbs, debris,
attachments)
• Be placed in areas of or in contact with machine components which develop temperatures higher than the
temperature rating of harness components
• Wiring should be protected or shielded if it needs to route near hot temperatures beyond harness component
specifications
Harnessing should not have sharp bends
Allow sufficient clearance from machine component operational zones such as:
• Drive shafts, universal joints and hitches (i.e. 3-point hitch)
• Pulleys, gears, sprockets
• Deflection and backlash of belts and chains
• Adjustment zones of adjustable brackets
• Changes of position in steering and suspension systems
• Moving linkages, cylinders, articulation joints, attachments
• Ground engaging components
For harness sections that move during machine operation:
• Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or
rubbing, especially in articulation and pivot points
• Clamp harnesses securely to force controlled movement to occur in the desired harness section
• Avoid sharp twisting or flexing of harnesses in short distances
• Connectors and splices should not be located in harness sections that move

CHAPTER 1
4 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
Protect harnesses from:
• Foreign objects such as rocks that may fall or be thrown by the unit
• Buildup of dirt, mud, snow, ice, submersion in water and oil
• Tree limbs, brush and debris
• Damage where service personnel or operators might step or use as a grab bar
• Damage when passing through metal structures
IMPORTANT: Avoid directly spraying electrical components and connections with high pressure water. High pressure
water sprays can penetrate seals and cause electrical components to corrode or otherwise become
damaged. When performing maintenance:
•Inspect all electrical components and connections for damage or corrosion. Repair or replace
components, connections, or cable as necessary.
•Ensure connections are clean, dry, and not damaged. Repair or replace components, connections,
or cable as necessary.
•Clean components or connections using low pressure water, pressurized air, or an aerosol electrical
component cleaning agent.
•Remove visible surface water from components, connections, or seals using pressurized air or an
aerosol electrical component cleaning agent. allow components to dry completely before
reconnecting cables.

CHAPTER
2
P/N 016-5031-009 Rev. A 5
CHAPTER 2 INTRODUCTION
Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge,
hands-free steering of agricultural equipment via GPS (Global Positioning System) coordinates.
This manual applies to the following machines. For future reference, write your serial number in the space below.
MAKE: Buhler Versatile
MODEL: 4 WD and DeltaTrack 350/375/400/450/500/550
YEAR: 2015 & Newer
FIGURE 1. Buhler Versatile 4 WD
UPDATES
Software and manual updates are available on the Raven Applied Technolo gy web site .
http://www.ravenhelp.com

CHAPTER 2
6 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
PREPARING FOR INSTALLATION
Before installing the SmarTrax system, park the machine where the ground is level, clean, and dry. Bleed pressure
from the hydraulic system and leave the machine turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
RECOMMENDATIONS
Raven Industries recommends the following best practices when installing or operating the SmarTrax system for
the first time, at the start of the season, or when moving the SmarTrax system to another machine:
• Install the GPS antenna in the recommended location. Refer to the following table for the machine-specific
antenna mounting location.
NOTE: If your machine is not listed, install the antenna on the front-center of the cab.
• Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the machine’s
hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic hoses, etc.).
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™
Installation Manual
-P/N 016-5031-009 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.
Machine Preset Antenna X Position
(left to right)
Antenna Y Position
(from the rear
wheel axle to the
antenna position
on the cab)
Antenna Z Position
(ground to top of
antenna)
Versatile 350-400 Centered 128 inches 143 inches
Versatile 450-550 Centered 135 inches 143 inches

2
P/N 016-5031-009 Rev. A 7
INTRODUCTION
• Ensure the machine’s hydraulic system is using fresh oil and debris is flushed from the hydraulic hoses, valves,
and filters.
Raven Industries recommends the following best practices when installing the SmarTrax system:
• Use part numbers to identify the parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
• Do not remove plastic caps from a part until it is necessary for installation.
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
KIT CONTENTS
This section contains a list of the components that are included in the SmarTrax kit. Before beginning the SmarTrax
installation, compare the items in the SmarTrax kit with the components on this list. If you have questions about
the kit, contact your Raven dealer.
FIGURE 2. SmarTrax Steer Ready, Buhler/Versatile 4WD; 2015, 350-400 Serial Number 307825 and Up;
450-550 Serial Number 705533 and Up (P/N 117-5031-009)
Picture Item Description Part Number Qty.
Not Pictured Manual - SmarTrax Calibration &
Operation 016-0171-532 1
Not Pictured
Manual - Buhler Versatile 350/375/400/
450/500/550 Series, Model Year 2015 &
Newer SmarTrax Installation
016-5031-009 1
Node - SmarTrax Gen II, Buhler Versatile 063-0173-441 1
Cable - CAN/Valve Tee, V-PAS , With
W.A.S 115-4001-145 1
Cable - PWR/CAN/NODE Chassis 115-4001-165 1

CHAPTER 2
8 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
Terminator - CAN 063-0172-369 1
Bolt - M8 x 1.25 x 25 mm Hex 311-0070-001 3
Picture Item Description Part Number Qty.

CHAPTER
3
P/N 016-5031-009 Rev. A 9
CHAPTER 3 CAB COMPONENT
INSTALLATION
INSTALL THE SMARTRAX NODE
Mount the SmarTrax Node

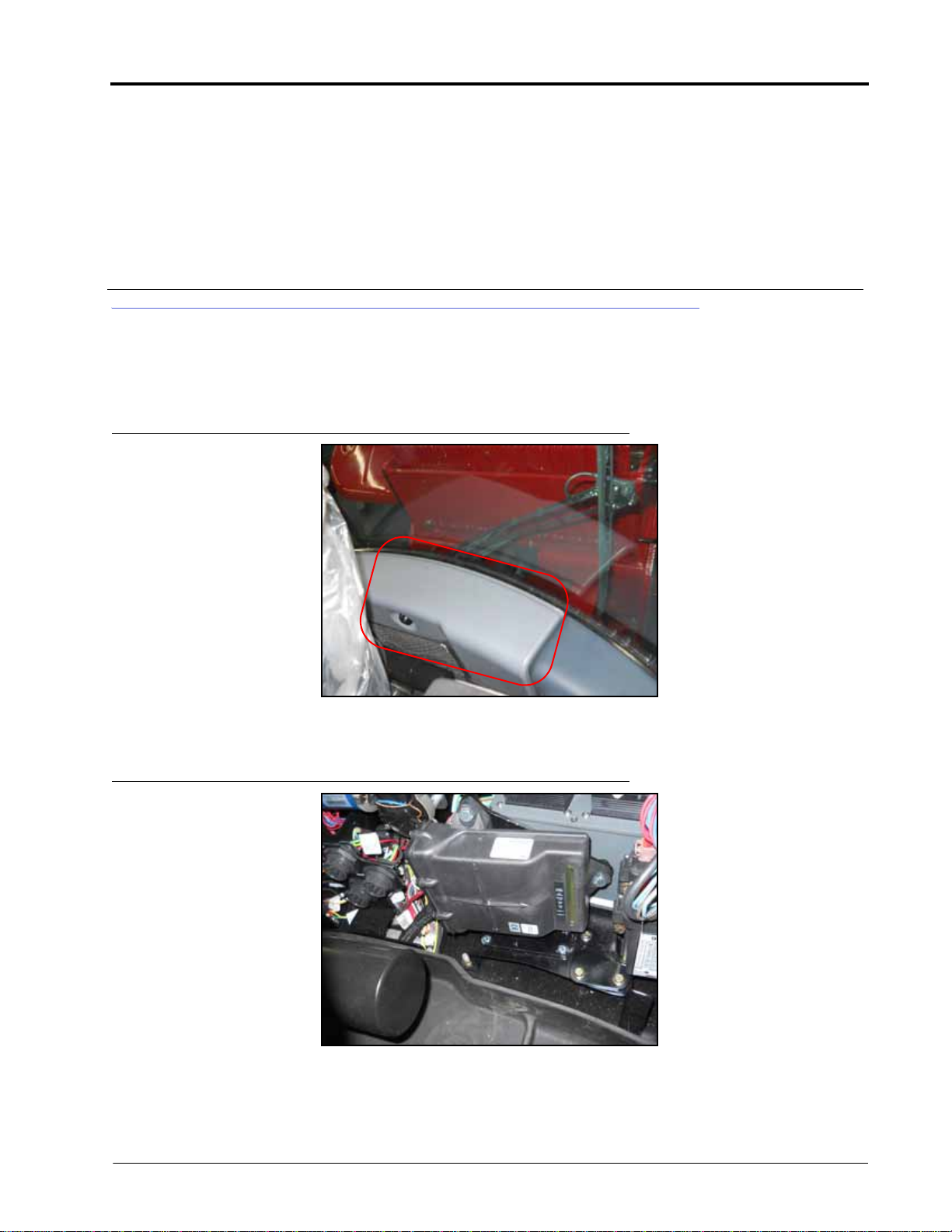

FIGURE 1. SmarTrax Node Mounting Location
1. Remove the compartment cover located behind the operator’s seat.
FIGURE 2. SmarTrax Node Installed
2. Secure the SmarTrax node (P/N 063-0173-441) to the existing node mounting bracket using three M8 x
1.25 x 25 mm hex bolts (P/N 311-0070-001).

CHAPTER 3
10 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
Node Mounting Locations
FIGURE 3. Node Mounting
When choosing the location for the SmarTrax node, consider the following points:
•Mount the SmarTrax node inside the machine’s cab on a flat, level surface for proper performance and
cable connection.
•One of the six numbered direction arrows on the node must be oriented in the direction of forward vehicle
travel, one arrow pointing straight up, and two of the arrows parallel to the ground.
NOTE: Make a note of the number of the arrow that is oriented in the direction of forward vehicle travel.
This number will be needed during the SmarTrax calibration process.
•The node mounting location must not create tripping hazards.
•Mount the node in a location where it will not be kicked or jarred during normal equipment operation.
•The location must allow cable routing to avoid crimping or damaging the cables or the node connections.
•Securely fasten the node using bolts or screws through at least two of the three mounting holes. When
mounted properly, the node should not become loose or rotate.
Direction Arrows
Any two arrows
must be parallel
with level ground
Mounting
Tabs
1
2
3
4
5

P/N 016-5031-009 Rev. A 11
CAB COMPONENT INSTALLATION
INSTALL THE NODE HARNESS
FIGURE 4. 6-Pin Deutsch Connector on Node Harness
1. Connect the unlabeled 6-pin Deutsch connector to the mating connector on the machine’s harness.

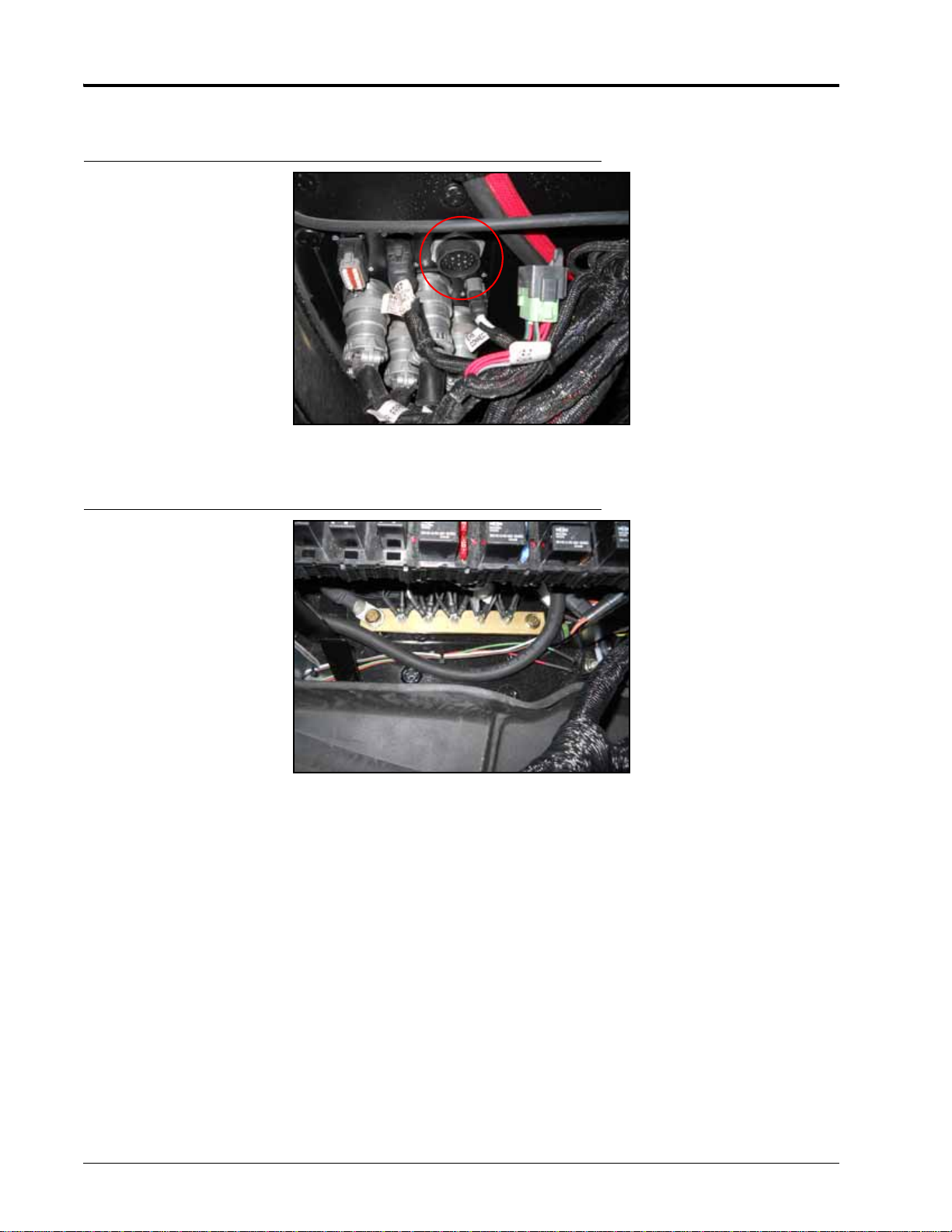

FIGURE 5. Grommet in Bottom of Compartment
2. Remove the rubber grommet in the bottom of the compartment.
FIGURE 6. Node Harness Routed to Machine’s Bulkhead

CHAPTER 3
12 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
3. Route the 21-pin bulkhead connector on the node harness into the hole in the bottom of the compartment.
FIGURE 7. Node Harness Secured to Bulkhead
4. From outside the cab, secure the bulkhead connector to the machine using the lock nut on the connector.
FIGURE 8. Machine’s Ground Bar
5. Locate the machine’s ground bar on the right side of the compartment.
6. Install the two ground wires on the grounding bar.
7. Locate the fuse panel on the right side of the compartment.
8. Remove the bolt from the machine’s power cable.
9. Install the two power wires from the node cable on the bolt.
NOTE: It may be necessary to cut the ring terminals from the power wires and crimp new ring terminals (P/N
405-0200-052 or 405-0200-053) on the end.
10. Reinstall the machine’s power cable on the bolt.
11. Reinstall the bolt in the fuse panel.
12. Loop and tie-off the REMOTE SWITCH cable connection, securing it with plastic cable ties as necessary.
NOTE: The ENABLE and REMOTE SWITCH connectors are not used in the SmarTrax system. Ensure the cables
are secured away from moving parts and heat sources.

P/N 016-5031-009 Rev. A 13
CAB COMPONENT INSTALLATION
INSTALL THE VALVE HARNESS
FIGURE 9. Valve Harness Secured to Bulkhead
1. Connect the round 21-pin connector on the valve harness (P/N 115-4001-145) to the mating bulkhead
connector under the machine’s cab.
2. Route the valve harness toward the existing SmarTrax valve located under the cab on the right side of the
articulation joint.

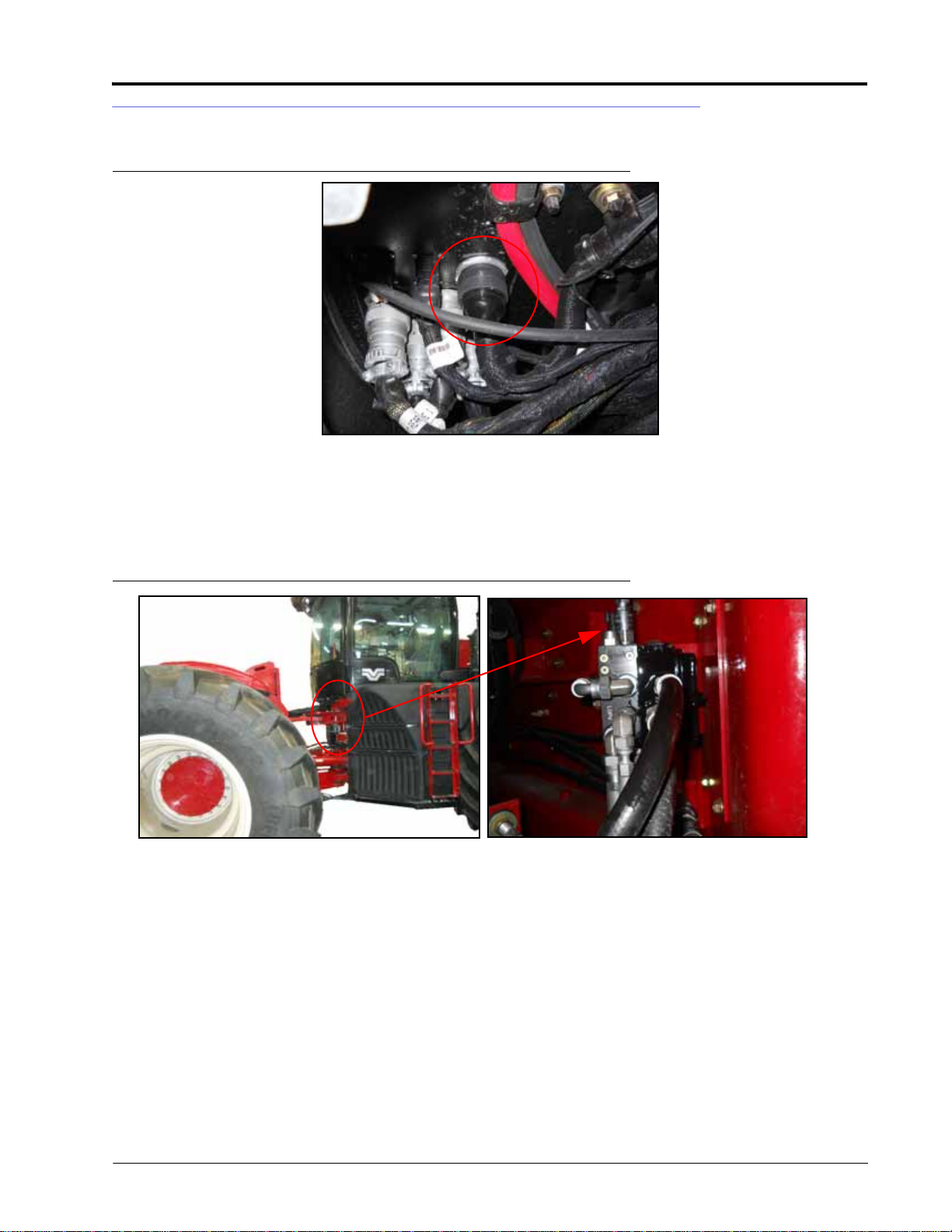

FIGURE 10. TRANSDUCER and VALVE Connections
3. Connect the TRANSDUCER connector to the pressure transducer installed in Port PS of the SmarTrax valve.

CHAPTER 3
14 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation

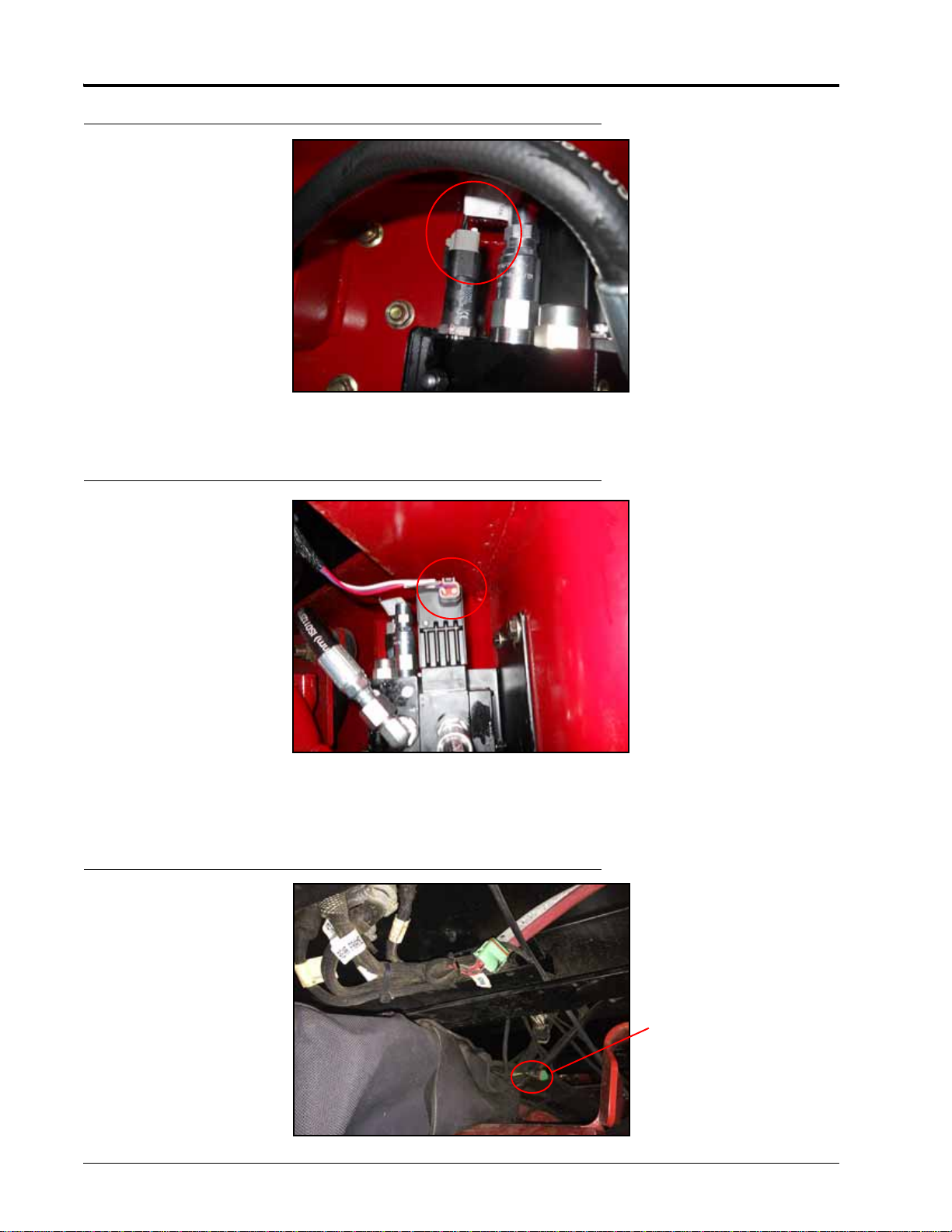

FIGURE 11. Transducer Connection
4. Connect the VALVE connector to the open 4-pin Deutsch port on the PVES valve.
FIGURE 12. Valve Connection
5. Disconnect the machine’s existing WAS connection location adjacent to the bulkhead in Figure 9 on page 13.
6. Install the WAS connectors of the valve harness between the machine’s WAS connectors.
FIGURE 13. WAS Tee Connector
Connect
Tee
Here

P/N 016-5031-009 Rev. A 15
CAB COMPONENT INSTALLATION
7. Use cable ties to secure any excess cable away from moving parts and heat sources.

CHAPTER 3
16 Buhler Versatile 350/375/400/450/500/550 Steering Ready, MY 2015 & Newer SmarTrax™ Installation
FIGURE 14. Valve and Node Harness Wiring Diagram
