OWNER’S MANUAL
v1_06/13
Scooter Manual
Read and understand this entire manual before riding!
DO NOT RETURN TO STORE!
NOTE: Manual illustrations are for demonstration purposes only. Illustrations
may not reflect exact appearance of actual product. Specifications subject to
change without notice.
Please have your 21 digit product I.D. code ready before contacting Razor for
warranty assistance and/or replacement parts.
Product I.D. Code: _____________ - ____________ - ____________
File Name: DirtScoot_MAN_US_1306_v1 | Flat: 420 mm W x 594 mm H | Final: (A4) 210 mm W x 297 mm H
# of Pgs: 8 | Bleed: Yes/pg 1/3 sides | Color: 2 sides, 1/1, 1C | Bindery: Cut, Score and Fold | Date: 06/05/13
PM: Ali Kermani | Designer: John Radtke | NOTES:
Diamond DirtScoot_MAN_US_1306_v.1.indd 1 6/6/13 12:09 PM

21
ACCOMPLISHED RIDERS ONLY: This product is designed and built
for talented and athletic riders who have learned to ride scooters well and
who understand and accept the need for skill and caution. If you are good
enough at riding scooters to need and afford a scooter this well made and
this expensive, you are smart enough to understand that “this product
moves when used” and that even the best of riders can be injured when
riding scooters. BE CAREFUL and focus on safety when using your
Dirt Scoot:
• Recommended for riders age 12+ and weighing up to 220 lbs (100kg).
• Safety equipment such as helmet (with chinstrap fastened), knee pads
and elbow pads are always recommended because they may provide
protection against the most common types of impact circumstances.
• Always wear shoes when riding. Friction brakes get hot when used, so
avoid contact with bare skin on brake.
• Do not inflate tires beyond 100 psi rating. Over-inflation may cause a
rupture.
• Obey the law, avoid pedestrians and any moving or motor vehicles, and
don’t ride at night.
TRICK AND OFF-ROAD RIDING PRESENTS ADDITIONAL
RISKS TO RIDERS AND EQUIPMENT: No scooter, not even this one,
is impervious to damage. Off-road and trick riding obviously increases risks
of rider falls and of product damage due to stresses, impacts or wear, and
riders assume all risks associated with high-stress activities:
• Riding in “off-road” conditions can present obstacles, surfaces and
conditions potentially more difficult to master than “ordinary” smooth or
paved surfaces.
• Check your scooter before every ride, and replace worn or broken parts
immediately.
• Trick and off-road riding requires skill and practice, it is not “automatic”.
Just because you may see people on TV, the internet or in your
neighborhood doing tricks or stunts, that does not mean you can do the
same without learning or without risk. Take your time, be careful, make
progress at your own pace and always be aware of the difficulty and risk
involved in what you are trying to accomplish.
• Always visually review off-road riding terrain before riding it, in order to
try to minimize encounters with “unknown” impediments in your path
without time to react or compensate.
REVIEW “GENERAL” SCOOTER WARNINGS
• Even experienced riders can benefit from a refresher, so we are including
in this manual a copy of “scooter warnings” as often presented with entry-
level scooter products. They should be familiar to all experienced riders,
including those using this Dirt Scoot product. See page 5.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS
FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK
AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION.
USE CAUTION.
SAFETY WARNINGS
Safety Warnings............................................................. 1
Before You Begin ........................................................... 2
Assembly Instructions ................................................... 3
Check Before Riding ................................................... 3-4
Safety Reminders .......................................................... 4
Warranty ........................................................................ 6
CONTENTS
Remove the contents from box. Inspect the contents of the box for scratches in the paint and/or dents that may have
occurred during shipping. Because your scooter was partially assembled and packed at the factory, there should not be
any problems, even if the box has a few scars or dents.
BEFOREYOU BEGIN
WARNING: DO NOT
USE NON-PHASE TWO
PRODUCTS WITH YOUR
SCOOTER.
Phase Two Dirt Scoots have
been built to certain Phase Two
design specifications. The original
equipment supplied at the time of
sale was selected on the basis of
its compatibility with the frame,
fork and all other parts. Certain
aftermarket products may or may
not be compatible and will void
your warranty.

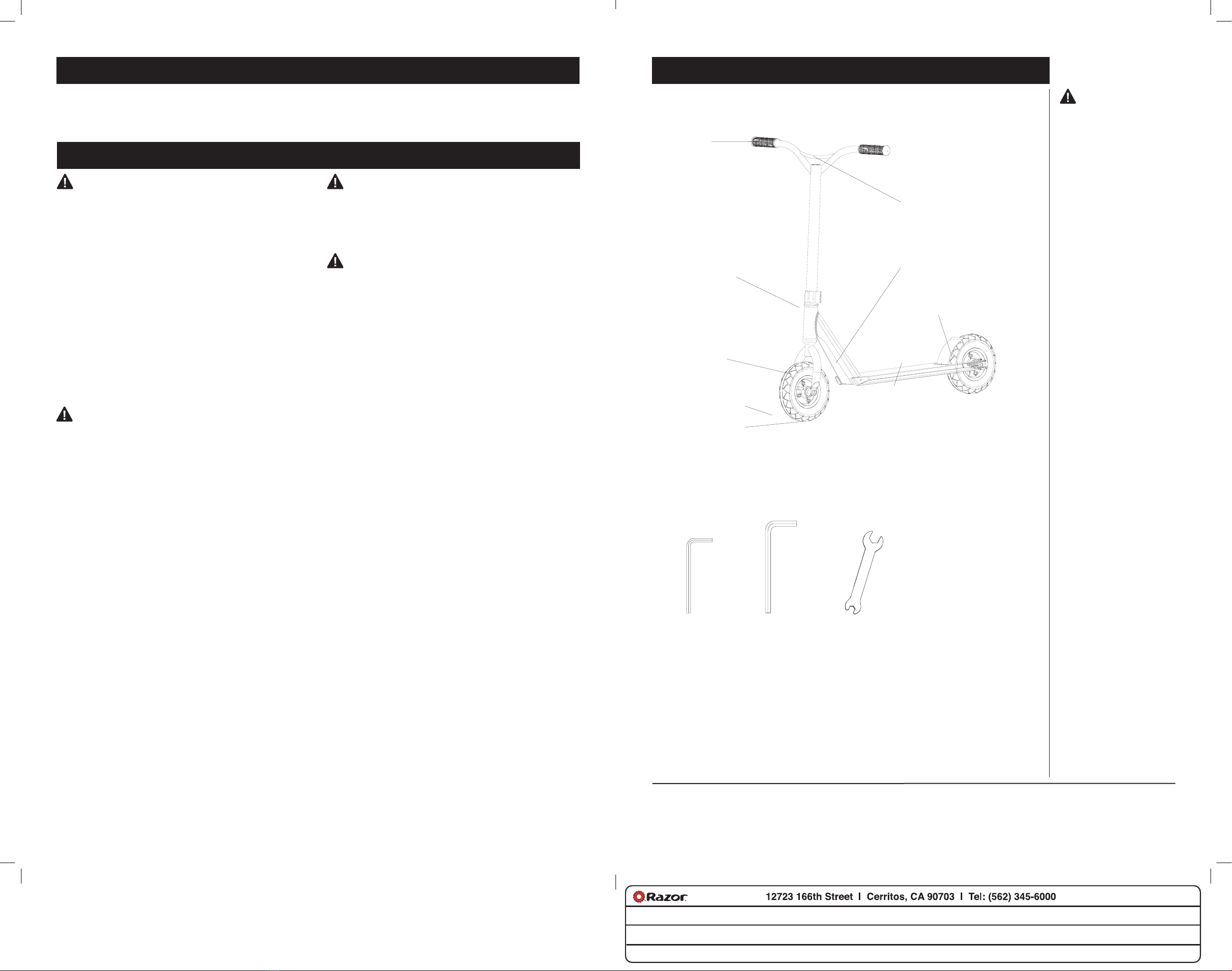

q Required Tools
5mm
Allen wrench
(for Clamp assembly)
Grips
Riser
Handlebar
Down Tube
Rear Fender/Brake
Clamp
Front Fork
Tires
Deck
8mm
Allen wrench
(not supplied)
Wheel Hub
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll free 866-467-2967 Monday - Friday 8AM - 5PM Pacific Time. Please have the
product I.D. code (located on the white label on your product) available for better assistance.
13mm or
adjustable wrench
(not supplied)
File Name: DirtScoot_MAN_US_1208_v1r6 | Flat: 420 mm W x 594 mm H | Final: (A4) 210 mm W x 297 mm H
# of Pgs: 8 | Bleed: Yes/pg 1/3 sides | Color: 2 sides, 1/1, 1C | Bindery: Cut, Score and Fold | Date: 08/29/12
PM: Lupe Figueroa | Designer: Antoinette Bing Zaté | NOTES:
Diamond DirtScoot_MAN_US_1306_v.1.indd 1-2 6/6/13 12:09 PM

3 4
Using a 5mm Allen wrench, check that the clamp bolts are tightened securely.
Check the running pressure of your tires and inspect them for any signs of damage.
Check your front and rear bolts to ensure they are tight.
CHECK BEFORE RIDING
q Collar Clamp q Tires

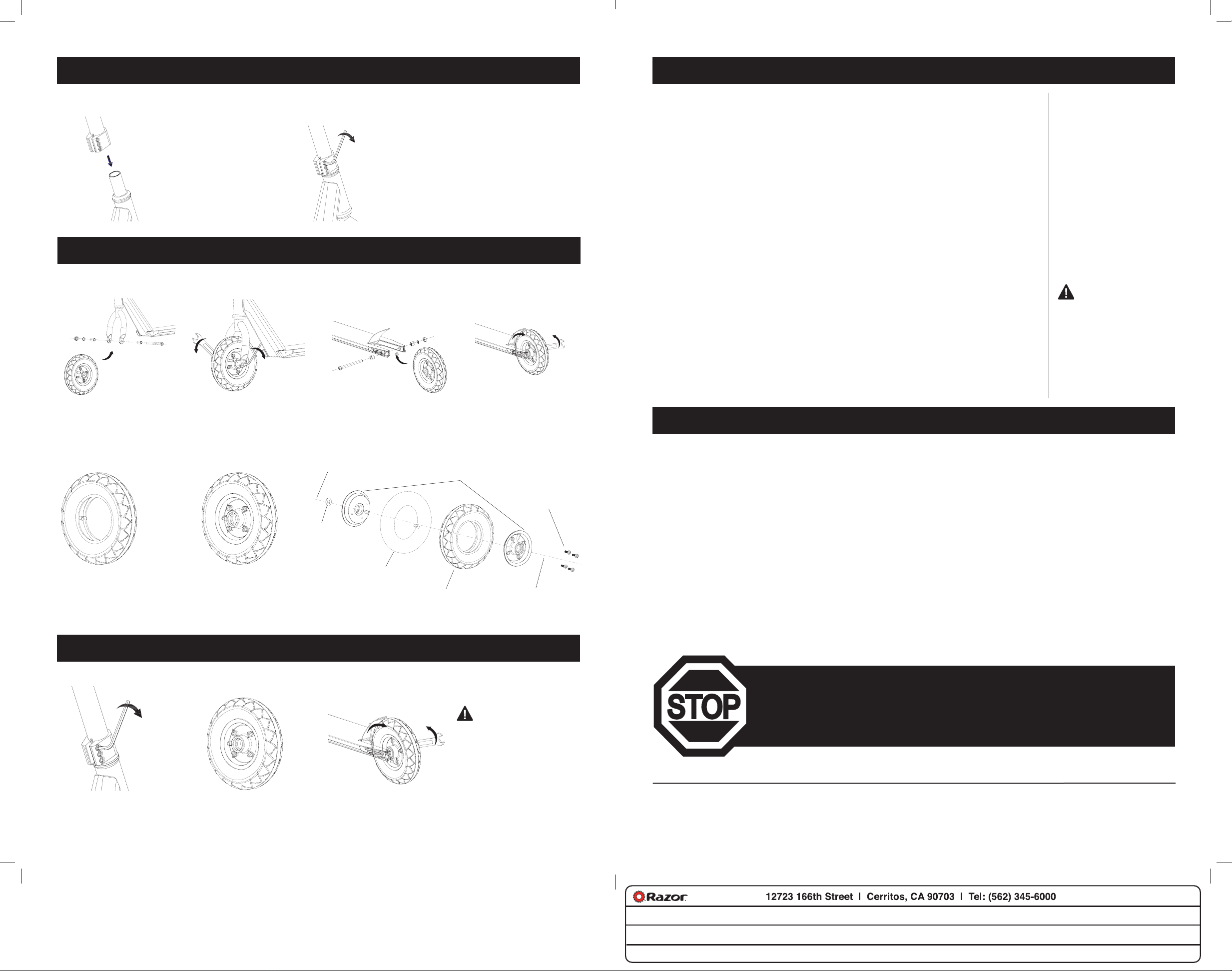

ASSEMBLY INSTRUCTIONS
WARNING: Failure to
properly install and tighten the
clamp may cause the rider to
lose control and fall. If you do not
understand these instructions or the
concept of “tighten securely”, seek
the assistance of a qualified mechanic.
2With the front wheel pointed straight
ahead, the handlebars square to the front
wheel and the Phase Two logo facing the
front, tighten the clamp as shown. Alternately
tighten each bolt until securely tightened.
1Loosen the collar clamp and slide
it upward on the handlebar. With a
twisting motion, push the handlebar
onto the fork until it bottoms out on
the fork headset lock nut.
q Attaching the Handlebar
2Securely tighten the bolt
as shown.
4Securely tighten the bolt
as shown.
1Completly deflate the tire. Use a
5mm Allen wrench to remove all four
fastener bolts on the core. Remove
the worn/damaged tire or inner tube
and replace it with a new one.
2Assemble the core using the
diagram at right. Tighten using
your 5mm Allen wrench and then
inflate. (Do not exceed 100 psi)
1Front wheel sequence. 3Rear wheel sequence.
q Replacing the Tires/Tubes
q Attaching the Wheels
q Wheels and Bearings
Under normal circumstances and conditions, Dirt Scoot wheels and wheel bearings are maintenance free. Nonetheless,
it is the responsibility of the owner or guardian to periodically inspect the wheels for wear and tear, the axle for proper
tightness, and bearings for side-to-side play and loose parts. When a wheel or wheel bearing develops play, this is an
indication of excess wear and replacement is necessary. Replace immediately with only genuine Dirt Scoot replacement
wheels. Worn wheels/bearings are considered normal wear and tear and are not covered by the Warranty. Other
manufacturers’ wheels may not be compatible with your Dirt Scoot, may affect your safety and will void your warranty.
q CleaningYour Scooter
Wipe with a damp cloth to remove dirt and dust.
Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or
ammonia-based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesive.
To clean griptape, use a wet coarse bristle brush to scrub any dirt stuck to the surface and let dry.
q How to Ride
Place one foot on the baseboard, push forward with the other foot. Steer. For enhanced cornering, lean slightly into the
direction of the turn. For controlled stops, apply the brake by stepping on the rear fender/brake. Practice applying the
brake at various speeds and in an open area free from obstructions before riding around others.
WARNING: Wheelies
and other stunt-type riding
reduces your ability to maneuver
and control your scooter. Take
the necessary precautions,
such as wearing appropriate
protective gear and practice in
an area safe for stunt riding and
free from obstructions.
CHECK BEFORE RIDING
Be Careful!
You will see people on TV and maybe even people you know doing
tricks and stunts. These are people who have been practicing on
scooters for a very long time. Don’t try something until you are
ready. Avoid steep inclines and don’t ride too fast — you can lose
control and fall. Never ride in traffic or on the street and watch
your surroundings for pedestrians, bikers, boarders and skaters.
Maintain a hold on the handlebars at all times.
Loose Parts / Tire Care
Check and secure all fasteners before every ride. Make
sure the clamp is locked properly in place before riding.
Inspect tires for signs of wear or damage. Measure and
adjust the psi of the tires accordingly. Do not exceed 100 psi.
Replacement Parts
Replace worn or broken parts immediately. Visit
www.razor.com for replacement parts.
Safety Gear
Always wear proper protective equipment, such as an approved
safety helmet, elbow pads and kneepads. Always wear shoes
(lace-up with rubber soles). Keep shoelaces tied and out of the
way of the wheels and never ride barefoot or in sandals.
SAFETY REMINDERS
q
q
q
PRE-RIDE CHECKLIST
DO NOT RETURNTO STORE
Failure to follow these instructions may damage
your product and void your warranty.
q
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll free 866-467-2967 Monday - Friday 8AM - 5PM Pacific Time. Please have the
product I.D. code (located on the white label on your product) available for better assistance.
REPAIR / SERVICE
Spacer
Wheel Hub
Inner Tube
Outer Tire
Fastener Bolts
Bearings
Bearings
File Name: DirtScoot_MAN_US_1208_v1r6 | Flat: 420 mm W x 594 mm H | Final: (A4) 210 mm W x 297 mm H
# of Pgs: 8 | Bleed: Yes/pg 1/3 sides | Color: 2 sides, 1/1, 1C | Bindery: Cut, Score and Fold | Date: 08/29/12
PM: Lupe Figueroa | Designer: Antoinette Bing Zaté | NOTES:
Diamond DirtScoot_MAN_US_1306_v.1.indd 3-4 6/6/13 12:09 PM

5 6
Phase Two Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects
for a period of 6 months from date of purchase. This Limited Warranty does
not cover normal wear and tear, or any damage, failure or loss caused by
improper assembly, maintenance, or storage.
This Limited Warranty will be void if the product is ever
• used in a manner other than for recreation;
• modied in any way;
• rented.
The manufacturer is not liable for incidental or consequential loss or damage
due directly or indirectly to the use of this product.
WARRANTY
CONTACT INFO
Phase Two does not come with an extended warranty. If you have purchased
an extended warranty, it must be honored by the store at which it was
purchased.
For your records, save your original sales receipt with this manual.
_______________________________________________________
Printed in China for:
Razor USA LLC
Copyright © 2003-2013 Razor USA, LLC. All rights reserved. Phase Two and the Phase
TwoTM logo Design are among the registered trademarks of Razor USA LLC in the United
States and/or select foreign countries.
09/2012
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll free 866-467-2967 Monday - Friday 8AM - 5PM Pacific Time. Please have the
product I.D. code (located on the white label on your product) available for better assistance.
SB1918(CALIFORNIA)DECLARATION
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS
INVOLVINGTHE USE OF THIS SCOOTER/ELECTRIC VEHICLE. TO DETERMINE
IF COVERAGE IS PROVIDED,YOU SHOULD CONTACTYOUR INSURANCE
COMPANY OR AGENT.
GENERAL BASIC SCOOTER SAFETY WARNINGS
AN IMPORTANT MESSAGE TO PARENTS: This manual contains
important information. For your child’s safety, it is your responsibility to
review this information with your child and make sure that your child
understands all warnings, cautions, instructions and safety topics. Razor
USA recommends that you periodically review and reinforce the information
in this manual with younger riders, and that you are required to inspect and
maintain your child’s scooter to insure their safety.
GENERAL WARNING: Scooter riding can be a hazardous activity.
Scooters can and are intended to move, and it is therefore possible to get into
dangerous situations and/or lose control and/or fall. If such things occur you
can be seriously injured or die. LIKE ANY OTHER MOVING PRODUCT, USING
A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY
OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT
YOUR OWN RISK AND USE COMMON SENSE.
• Thisscooterwasmanufacturedforperformanceanddurability,
butitisnotimpervioustodamage.Trickridingcanoverstressor
damageanyproduct,includingthisscooter,andtheriderassumes
allrisksassociatedwithhigh-stressactivity.
• Always wear safety equipment, such as helmet, knee pads and elbow
pads. Always wear a helmet when riding your scooter and keep the
chinstrap securely buckled.
• Always wear shoes.
• Ride on smooth, paved surfaces away from motor vehicles.
• When riding off road, be careful of broken glass, sharp objects or other
debris that may puncture or damage your tires and inner tubes.
• Avoid soft patches of dirt or loose gravel while riding. Scooter may lose
traction and cause rider to fall.
• Avoid sharp bumps, drainage grates and sudden surface changes. Scooter
may suddenly stop.
• Avoid riding wet surfaces, weather impairs traction, braking and visibility.
• Do not ride at night.
• Brake will get hot from continuous use. Do not touch after braking.
• Avoid excessive speed associated with downhill rides.
• Adults must assist children in the initial adjustment procedures to
assemble the scooter.
• Obey all local trafc and scootering laws and regulations.
• Watch out for pedestrians.
• Check and secure all fasteners before every ride.
• Replace worn or broken parts immediately.
• Always be sure to check tires for excessive wear or damage before riding.
• Do not exceed the tires 100 psi rating. Overination will cause a rupture.
• Do not exceed 220 lbs (100 kg) on the Phase Two scooter.
• Do not allow children under age twelve (12) to use the Phase Two scooter.
All children and preteens should ride with adult guidance at all times.
• Rider weight does not necessarily mean a child’s size is appropriate to t
or maintain control of the scooter.
• A parent’s decision to allow his or her child to ride this product should be
based on the child’s maturity, skill and ability to follow rules.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Direct parental supervision is required. Scooters are meant to be used only
in controlled environments free of potential traffic hazards and not on public
streets. Do not allow your child to ride a scooter in any areas where vehicle
traffic is present. Child must maintain a hold of the handlebars at all times.
Never allow more than one child at a time to ride a scooter. Never use near
steps, sloped driveways, hills, roadways, alleys or swimming pool areas.
Do not ride a scooter in wet weather. Scooters are intended for use on solid,
flat, dry surfaces such as pavement or level ground without loose debris
such as rocks or gravel. Wet, slick or uneven and rough surfaces may impair
traction and contribute to possible accidents. Do not ride a scooter in mud,
ice, puddles or water. Avoid excessive speeds that can be associated with
downhill rides. Never risk damaging surfaces, such as carpet or flooring, by
use of a scooter indoors. Do not ride at night or when visibility is impaired.
You will see people on TV and videos doing tricks or stunts. These are people
who have been practicing a long time and accept the risks of trick riding
activity. Do not assume that you can attempt to do the same tricks without
great risk.
PROPER RIDING ATTIRE
Always ensure rider is wearing proper protective equipment, such as an
approved safety helmet. A helmet may be legally required by local law or
regulation in your area. Always wear shoes and keep shoelaces tied and
out of the way of the wheels. Never ride barefoot or in sandals.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS
FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK
AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION.
USE CAUTION.
WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly
inspecting and maintaining your scooter can reduce the risk of injury. Always
inspect your scooter before riding and regularly maintain it.
WARNING: CHECK LOCAL LAWS REGARDING SCOOTER USE. Check
local laws and regulations to see where and how you may use your Razor
scooter legally. In many states and local areas scooter riders are required
BY LAW to wear a helmet. Check local laws and regulations regarding laws
governing helmet use and scooter operation in your area.
REMINDER
WARNINGS FOR SCOOTER RIDERS: Your Dirt Scoot is a “high end” product and is made for use by well-qualified riders. A refresher about basic
scooter safety principles is worth repeating, so reprinted here are the warnings associated with many basic scooter products.
Printed in China for Razor USA LLC.
UNITED STATES MAILING ADDRESS:
RAZOR USA LLC
P.O. Box 3610
Cerritos, CA 90703
Tel: [phone]
EUROPE MAILING ADDRESS:
Razor USA
Shannonweg 72-74
3197 LH Rotterdam
Netherlands
[phone]
DISTRIBUTED IN THE UK BY:
re:creation Ltd,
2 Meadows Business Park
Station Approach
Blackwater
Camberley
Surrey
GU17 9AB
Tel: [phone] Fax: [phone]
Email: [email protected]o.uk
DISTRIBUTED IN THE AUSTRALIA BY:
FUNTASTIC LIMITED.
Level 2
Tower 2
Chadstone Place
1341 Dandenong Rd
Chadstone
3148
Customer Service: 1800 244 543
File Name: DirtScoot_MAN_US_1208_v1r6 | Flat: 420 mm W x 594 mm H | Final: (A4) 210 mm W x 297 mm H
# of Pgs: 8 | Bleed: Yes/pg 1/3 sides | Color: 2 sides, 1/1, 1C | Bindery: Cut, Score and Fold | Date: 08/29/12
PM: Lupe Figueroa | Designer: Antoinette Bing Zaté | NOTES:
Diamond DirtScoot_MAN_US_1306_v.1.indd 5-6 6/6/13 12:09 PM

7
File Name: DirtScoot_MAN_US_1208_v1r6 | Flat: 420 mm W x 594 mm H | Final: (A4) 210 mm W x 297 mm H
# of Pgs: 8 | Bleed: Yes/pg 1/3 sides | Color: 2 sides, 1/1, 1C | Bindery: Cut, Score and Fold | Date: 08/29/12
PM: Lupe Figueroa | Designer: Antoinette Bing Zaté | NOTES:
Diamond DirtScoot_MAN_US_1306_v.1.indd 7 6/6/13 12:09 PM
