Razor PowerWing DLX User manual

OWNER’S MANUAL
Read and understand this entire manual before allowing
child to use this product! For assistance contact Razor.
DO NOT RETURN TO STORE.
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
Please have your 22 character product I.D. code ready before contacting Razor for
warranty assistance and/or replacement parts.
Product I.D. Code: _____________ - ____________ - ____________
PowerWing® DLX

Safety Warnings .............................................................................................. 1
Before You Begin.............................................................................................. 2
Assembly and Set-Up....................................................................................3-4
Pre-Ride Checklist and Usage.......................................................................... 5
PowerWing®DLX Parts.................................................................................... 6
Warranty and Contact Information.................................................................. 7
AN IMPORTANT MESSAGE TO PARENTS: This manual contains
many warnings and cautions concerning the consequences of failing to
maintain, inspect or properly use your PowerWing DLX. Because any incident
can result in serious injury or even death, we do not repeat the warning of
potential serious injury or death each time such a possibility is mentioned.
GENERAL WARNING: Riding the PowerWing DLX can be a hazardous
activity. Certain conditions may cause the equipment to fail without fault of
the manufacturer. Like other wheeled products, the PowerWing DLX can and
is intended to move, and it is therefore possible to lose control, fall off and/or
get into dangerous situations that no amount of care, instruction or expertise
can eliminate. If such things occur, your child can be seriously injured or die,
even when using safety equipment and other precautions. USE COMMON
SENSE.
APPROPRIATE RIDER USE AND PARENTAL SUPERVISION
Direct adult supervision is required at all times. This manual contains
important safety information. It is your responsibility to review this
information and make sure that all children obey all warnings, cautions,
instructions and safety topics, and assure that young riders are able to
safely use this product. Razor recommends that you periodically review and
reinforce the information in this manual with young riders, and that you
inspect and maintain your children’s product to insure their safety.
The recommended rider age of 6 years and older for the PowerWing DLX is
only an estimate, and can be affected by the rider’s size, weight or ability. Any
child unable to fit comfortably on the PowerWing DLX should not attempt to
ride it.
A parent’s decision to allow his or her child to ride this product should be
based on the child’s maturity, skill and ability to follow rules.
Do not exceed 143 lb (65 kg) on the PowerWing DLX.
Rider weight does not necessarily mean a child’s size is appropriate to fit or
maintain control of the PowerWing DLX.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Direct parental supervision is required. The PowerWing DLX is meant to be
used only in controlled environments, free of potential traffic hazards and
not on public streets. Do not allow your child to ride the PowerWing DLX in
any areas where vehicle traffic is present. Child must maintain a hold on the
handlebars at all times. Never allow more than one child at a time to ride the
PowerWing DLX. Never use near steps, sloped driveways, hills, roadways,
alleys or swimming pool areas.
Do not ride the PowerWing DLX in wet weather. The PowerWing DLX is
intended for use on solid, flat, clean and dry surfaces, such as pavement
or level ground, without loose debris such as rocks or gravel. Wet, slick or
uneven and rough surfaces may impair traction and contribute to possible
accidents. Do not ride the PowerWing DLX in mud, ice, puddles or water.
Avoid excessive speeds that can be associated with downhill rides. Never risk
damaging surfaces, such as carpet or flooring, by use of a PowerWing DLX
indoors. Do not ride at night or when visibility is impaired.
PROPER RIDING ATTIRE
Always ensure child is wearing proper protective equipment, such as an
approved safety helmet. A helmet may be legally required by local law
or regulation in your area. A child should always wear shoes, never ride
barefooted or in sandals, and keep shoelaces tied and out of the way of
the wheels.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS
INCREASES RISK OF SERIOUS INJURY. USE WITH APPROPRIATE CAUTION
AND SERIOUS ATTENTION TO SAFE OPERATION.
WARNING: ALWAYS INSPECT POWERWING DLX PRIOR TO RIDING.
Properly inspecting and maintaining your PowerWing DLX can reduce the risk
of injury. Always inspect your PowerWing DLX before riding and regularly
maintain it.
WARNING: CHECK LOCAL LAWS REGARDING POWERWING DLX USE.
Check local laws and regulations to see where and how you may use your
Razor PowerWing DLX legally. In many states and local areas, PowerWing
DLX riders may be required BY LAW to wear a helmet. Check local laws
and regulations regarding laws governing helmet use and PowerWing DLX
operation in your area.
1
CONTENTS
SAFETY WARNINGS

Left Platform
Rear Caster
Brake Lever
Frame
Handlebar Stem
Right Platform
Rear Wheel
Front Wheel
Barcode
Folding Mechanism
Quick Release
Lever
2
Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service
contact information is listed at the back of this manual.
BEFOREYOU BEGIN
Remove contents from box and check parts against part diagram below. Remove the separators that protect the
components from damage during shipping. Inspect the contents of the box for scratches in the paint, dents or kinked
cables that may have occurred during shipping. Because the PowerWing DLX is partially assembled and packed at the
factory, there should not be any problems even if the box has a few scars or dents.
Estimated Assembly and Set-Up Time
Allow up to 15–20 minutes for assembly. Razor recommends assembly by an adult.
Required Tools
Two (2) 5 mm
Allen Wrenches
(Included)
PRODUCT I.D. CODE
1. Side of frame
2. Barcode on side of box
(not shown)
Box Contents:
• PowerWing DLX
• Allen Wrench
• Owner’s Manual
WARNING: DO NOT USE
NON-RAZOR PRODUCTS WITH
YOUR POWERWING DLX.
The PowerWing DLX has been
built to certain Razor design
specifications. The original
equipment supplied at the time of
sale was selected on the basis of
its compatibility with the frame,
fork and all other parts. Certain
aftermarket products may not be
compatible and will void
the warranty.

3

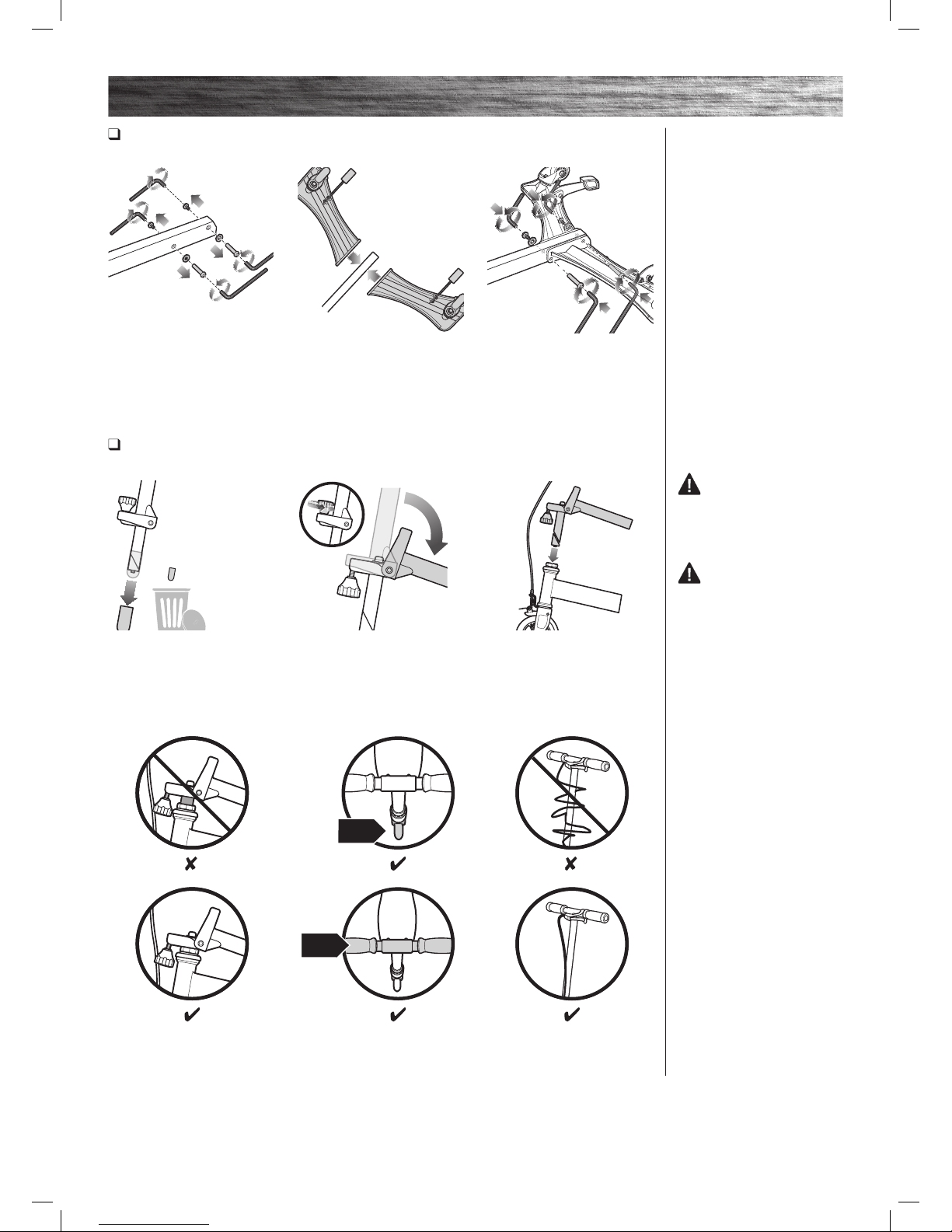

ASSEMBLY AND SET-UP
3 Re-insert the coupling bolts
and tighten using two (2) 5 mm
Allen wrenches.
Attaching the Platforms
Tools Required: Two (2) 5 mm Allen wrenches
1 Using two (2) 5 mm Allen
wrenches, remove the two coupling
bolts from the frame.
2 Align the holes on the right
and left platforms with the holes
on the frame.
1 Remove the plastic protector
covering the wedge.
Note: Slide the handlebar stem
down into the front fork until it
fits snuggly into the lock nut on
the headset.
Note: The cable and wire
assembly from the handlebar must
not wrap around the handlebar
stem or handlebar. Sharp bends
or twisting of the brake cable can
cause the brake to malfunction.
Note: Make sure the front
wheel is pointed straight ahead,
the handlebars square to the
front wheel and the Razor logo
facing the front.
2 Loosen the black folding knob,
and swing to the 6 o’clock position
to unfold the handlebar stem.
3 Insert the handlebar stem
into the front fork. You may need
to slightly loosen the wedge
using a 5 mm Allen wrench to
allow it to slip into the front fork.
WARNING:
Parents must assist children in
the procedures to unfold and fold
PowerWing DLX.
WARNING:
Keep your fingers clear of the
pivoting mechanism when folding or
unfolding the PowerWing DLX, and
make sure others are standing clear.
Attaching the Handlebars
Tools Required: 5 mm Allen wrench

ASSEMBLY AND SET-UP
4
Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service
contact information is listed at the back of this manual.

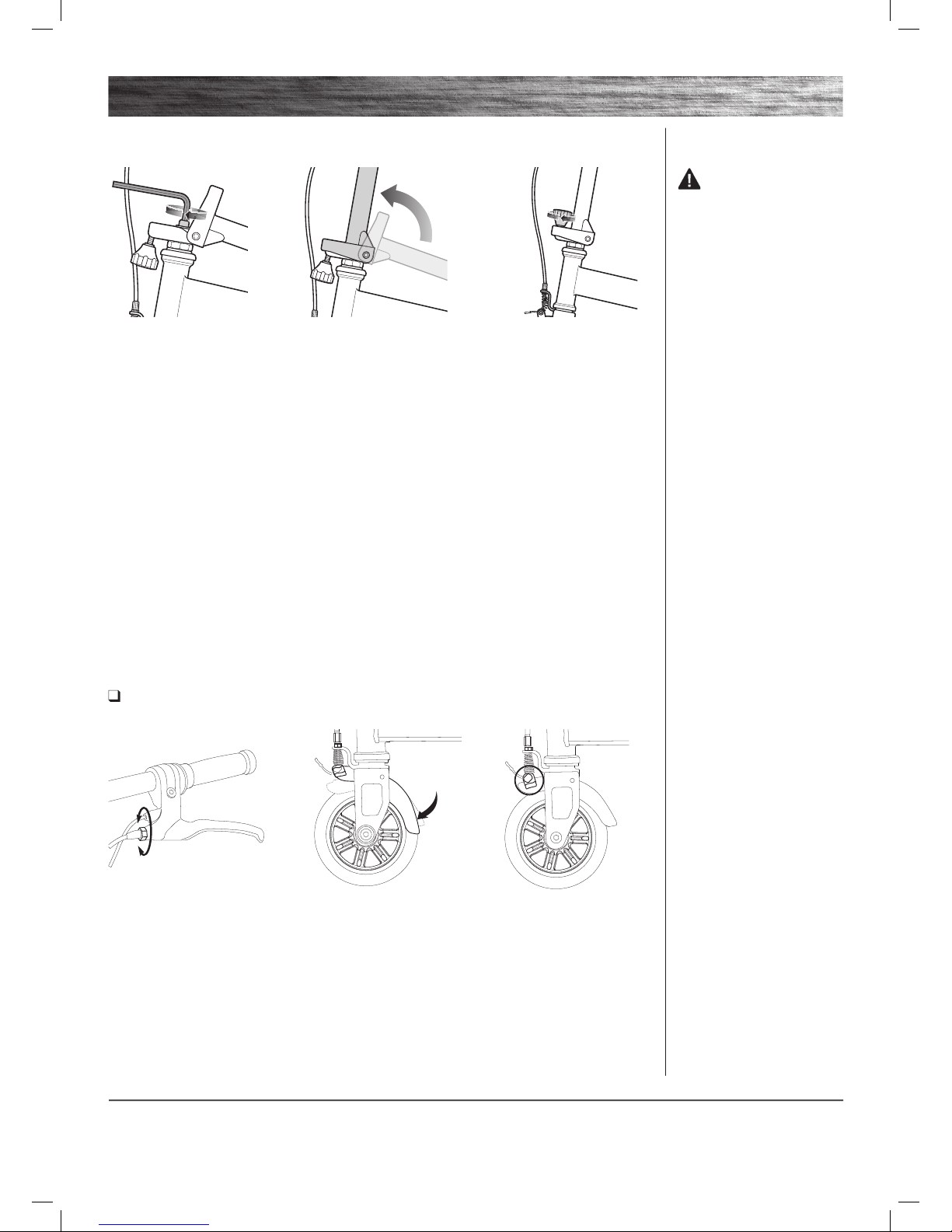

2 Squeeze the brake lever to
test the brake to make sure it is
working properly. The front fender
should clamp down and rub against
the front wheel. If brake is not
working properly, proceed to the
next step.
1 To adjust the brake cable wire,
thread the brake lever adjuster in or
out 1/4 to 1/2 turn until the desired
cable tension is attained.
Adjusting the Brake
3 If the brake is too tight or too
loose, use a 8 mm wrench and
a 3 mm Allen wrench to make
adjustments as needed.
WARNING:
Failure to properly tighten the
wedge may allow the handlebars to
dislodge while riding and may cause
you to lose control and fall. When
correctly tightened, the handlebars
will not rotate out of alignment
with the front wheel, under normal
circumstances.
4 Using a 5 mm Allen wrench,
tighten the stem bolt. The stem
bolt is properly tightened when the
handlebars cannot be twisted out of
alignment with the front wheel.
5 Bring the handlebar stem back
to the upright position.
6 Swing the black folding knob
to the 12 o’clock position and
tighten by hand until handlebars
are secure.

PRE-RIDE CHECKLIST
USAGE
5
Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service
contact information is listed at the back of this manual.
Note: Do not step off of
platforms until unit has come
to a complete stop.
How to Ride
Place both hands on the handlebars. Place one foot on the platform directly above the caster. Push off with the other
foot then place foot on the other platform directly above the caster. Slightly bend knees. With handlebars straight,
swing hips and legs side to side. Shifting weight on the platforms from right to left in sync with hips and legs. The side
to side motion acts to self propel the PowerWing DLX. No pushing required.
How to Stop
Apply hand brake.
Loose Parts
Check and secure all fasteners before every ride. Make sure
the steering bolts and foot platforms are tight. There should
not be any unusual rattles or sounds from loose parts or broken
components. If you are not sure, call 1-866-467-2967
for assistance.
Replacement Parts
Replace worn or broken parts immediately.
Call 1-866-467-2967 for parts or visit www.razor.com.
Brake
Check the brake for proper function. When you squeeze the
lever, the brake should provide positive braking action.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken frames are
rare, it is possible for an aggressive rider to run into a curb or wall
and wreck, bend or break a frame. Get in the habit of inspecting
yours regularly.
Safety Gear
Always wear proper protective equipment, such as an approved
safety helmet, elbow pads and kneepads. Always wear shoes (lace-
up with rubber soles) and keep shoelaces tied and out of the way of
the wheels. Never ride barefooted or in sandals.

Keep your PowerWing DLX working for years with genuine Razor parts. Visit our website www.razor.com to purchase replacement parts.
(Specifications subject to change without notice.)
1. Handlebar Stem
2. Handlebar Grip (2)
3. Handlebar End Caps
4. Brake Lever Assembly
5. Quick Release Lever
6. Black Folding Knob
7. Wedge
8. Stem Bolt
9. Headset
10. Front Wheel
11. Front Fork with Fender Assembly
12. Platform (Right/Left)
12 - 1 Deck Protector (2)
12 - 2 Platform Coupling Bolt (2)
13. Stability Bar (Right/Left)
14. Caster (Right/Left)
15. 64 mm Rear Wheel (Right/Left)
POWERWING DLX PARTS
1
3
3
4
5
6
78
9
11
12
13
14
15
12-2
12-1
12-1
10
2
6

7
WARRANTY
Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing
defects for a period of 6 months from date of purchase. This Limited Warranty
does not cover normal wear and tear, wheels, or any damage, failure or loss
caused by improper assembly, maintenance, storage or use of the Razor
PowerWing DLX.
This Limited Warranty will be void if the product is ever:
• used in a manner other than for recreation;
• modified in any way;
• rented.
The manufacturer is not liable for incidental or consequential loss or damage
due directly or indirectly to the use of this product.
Razor does not offer an extended warranty. If you have purchased an extended
warranty, it must be honored by the store at which it was purchased.
For your records, save your original sales receipt with this manual.
__________________________________________
US Patent No. 7,597,334 B2, 7,681,895 B2 & 7,784,803 B2.
Printed in China for:
Razor USA LLC
PO Box 3610
Cerritos, CA 90703
Copyright © 2003-2014 Razor USA, LLC. All rights reserved. Razor®, PowerWing®and the
Razor logo design are among the registered trademarks of Razor USA LLC in the United
States and/or select foreign countries. US_140711
CUSTOMER SERVICE CONTACT INFORMATION
UNITED STATES
Razor USA LLC
P.O. Box 3610
Cerritos, CA 90703
USA
[phone]
Monday - Friday
8:00 AM - 5:00 PM Pacific Time
DISTRIBUTED IN THE UK BY:
Re:creation Limited
2 Meadows Business Park
Station Approach, Blackwater
Camberley, Surrey GU17 9AB
United Kingdom
[phone] Tel
[phone] Fax
[email protected]
ASIA
Razor USA (Asia)
P.O. Box 3610
Cerritos, CA 90703
USA
[phone]
[e-mail]
EUROPE
Razor USA (Europe)
Handelsweg 2
2742 RD Waddinxveen
Netherlands
[phone]
DISTRIBUTED IN AUSTRALIA BY:
Funtastic Limited
Level 2, Tower 2, Chadstone Place
1341 Dandenong Road
Chadstone VIC 3148
Australia
[phone]
Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service
contact information is listed below:
